Description
The EVA Chrome Bidet Shattaf Shower Kit with Mini Thermostatic Bar Valve provides a modern, hygienic cleaning solution next to your toilet. It combines a sleek chrome bidet spray with a compact thermostatic bar valve that lets you quickly set and maintain a comfortable water temperature, making it ideal for Muslim ablution and everyday toilet use.
Incoming hot & cold water goes into the back of the plate and thermostatic mixer bar goes onto the front of the plate.
Key Features
-
Chrome‑finished bidet shattaf spray for a clean, contemporary bathroom look
-
Mini thermostatic bar valve for easy temperature control and safe, consistent water heat
-
Designed as a Muslim shower / shattaf kit for wudu and personal hygiene beside the WC
-
Compact, wall‑mounted layout saves space in smaller bathrooms
-
Complete bidet douche set ready to install with standard connections
Specification

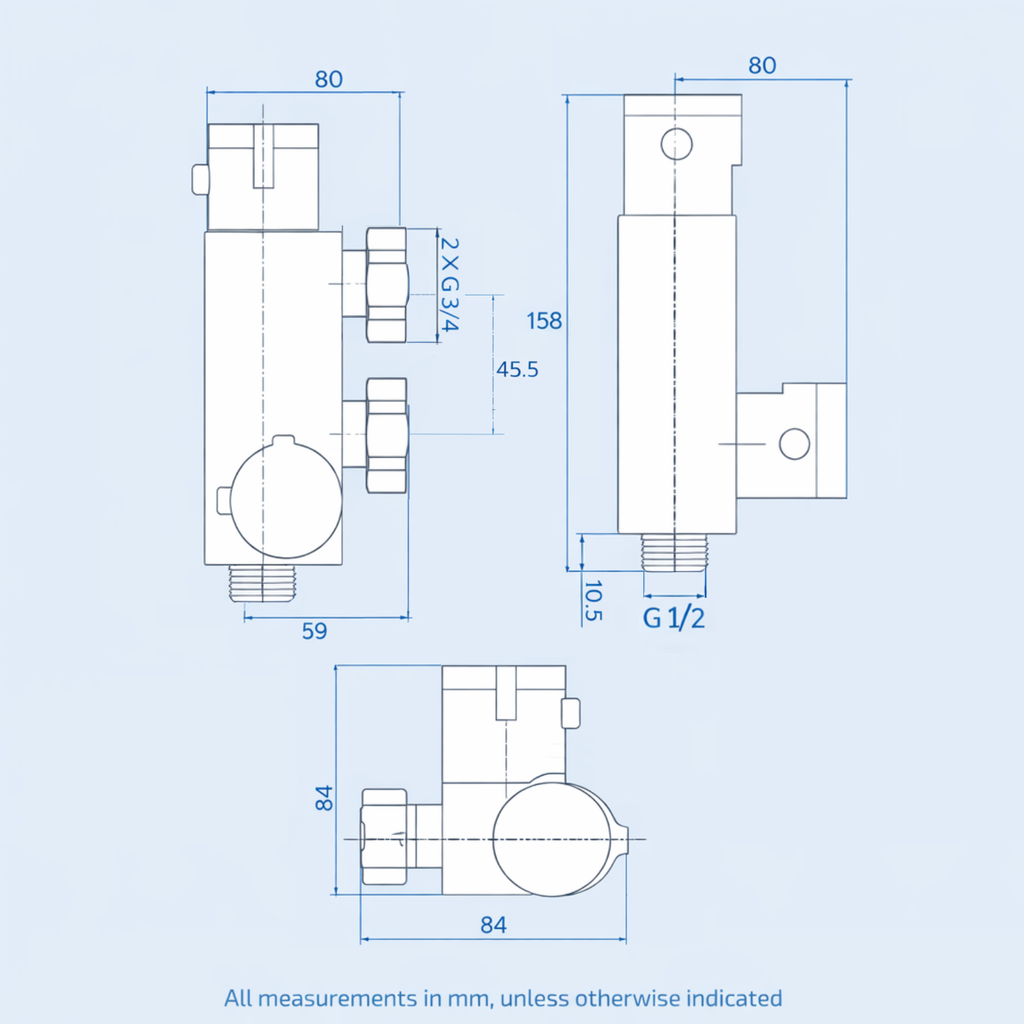

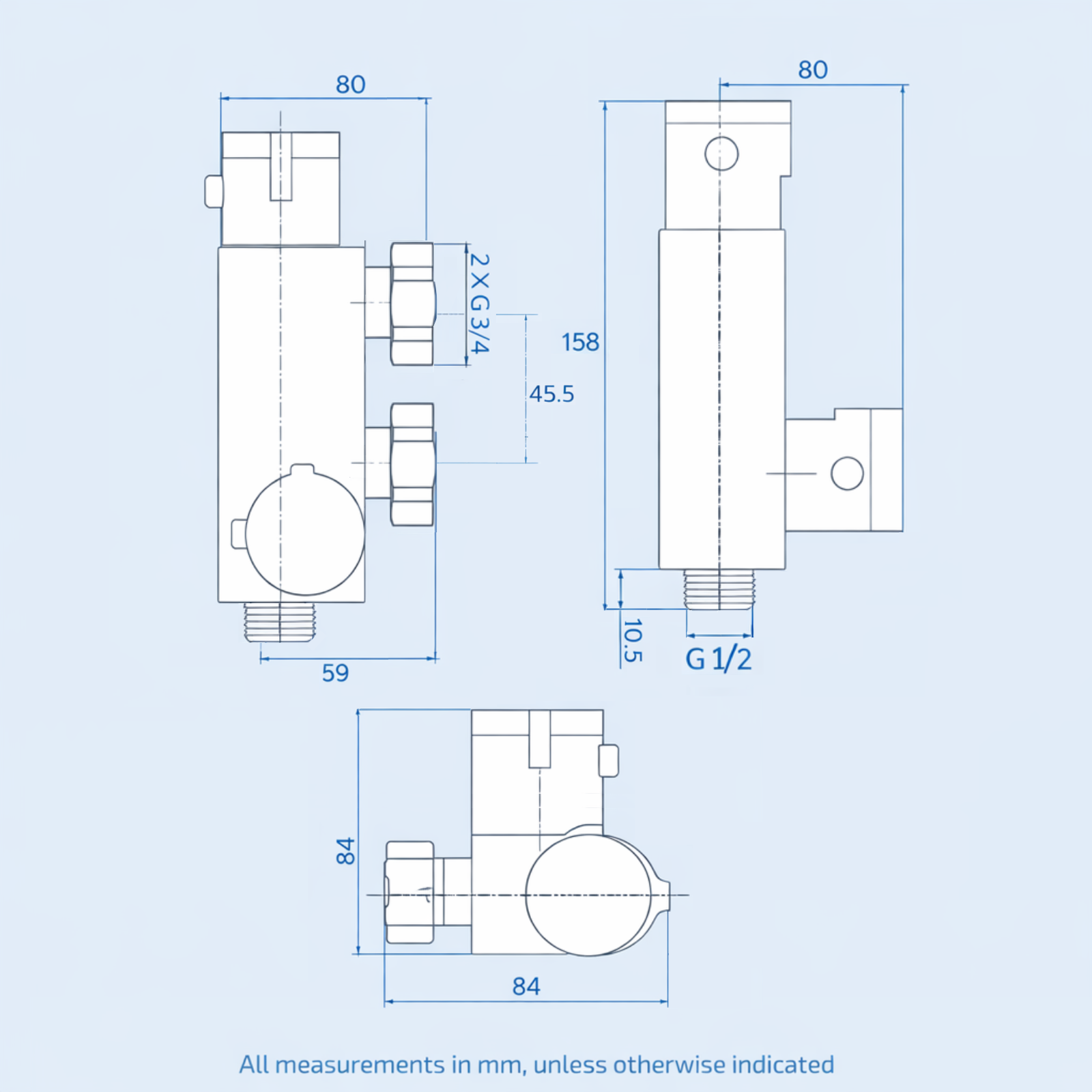

Thermostatic Mixing Valve
- All internals are brass- unlike other similar products which contain plastic parts will leak over a period of time
- Mini thermostatic bar valve in chrome finish for precise temperature control
- Exceptional build quality and finish. Highly polished 3 layer PVD mirror chrome finish, create a silky- feel surface, mirror-like sheen and tarnish & corrosion resistant.
- Durable and solid brass construction

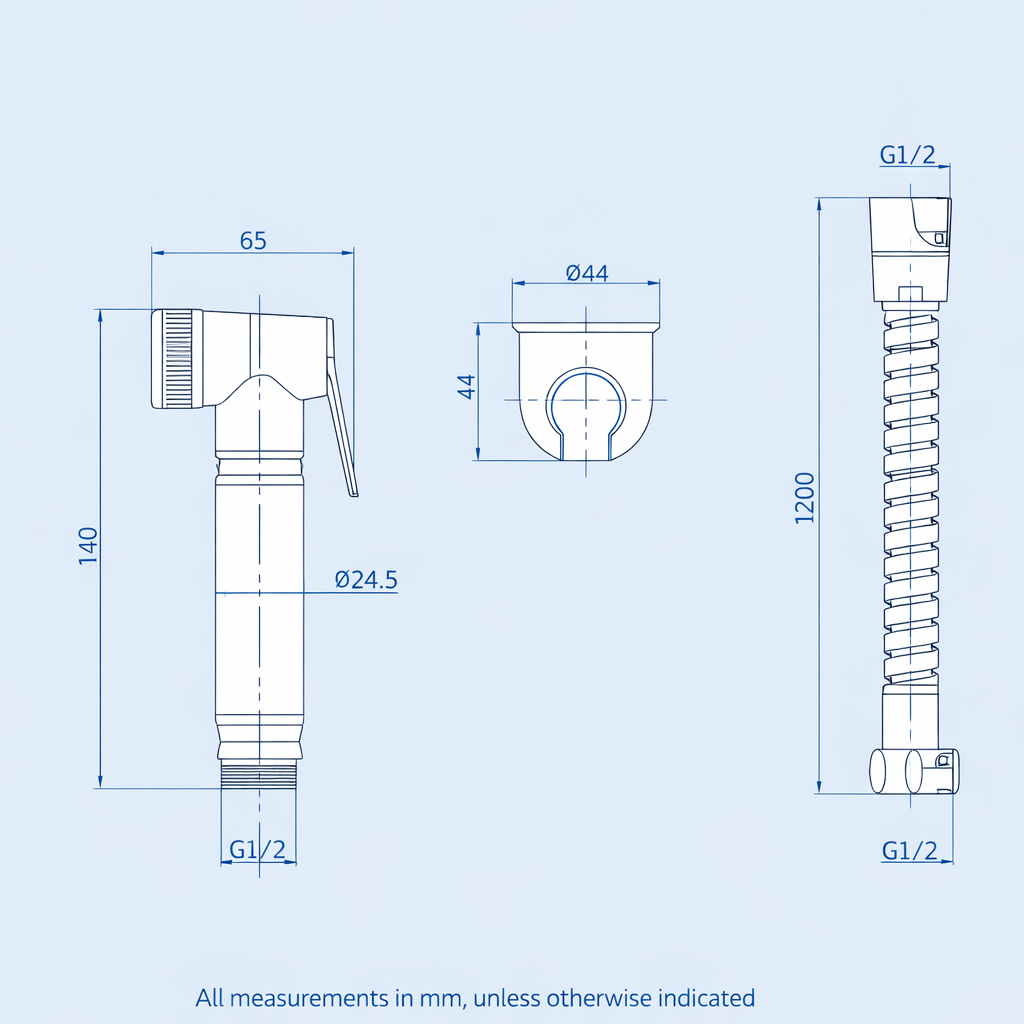

Bidet Spray
- Bidet Douche Material: Brass
- Bidet Douche Finish: Chrome
- 120cm Stainless Steel Double Interlocking Flexible Hose included
- ABS Bidet Douche Holder included

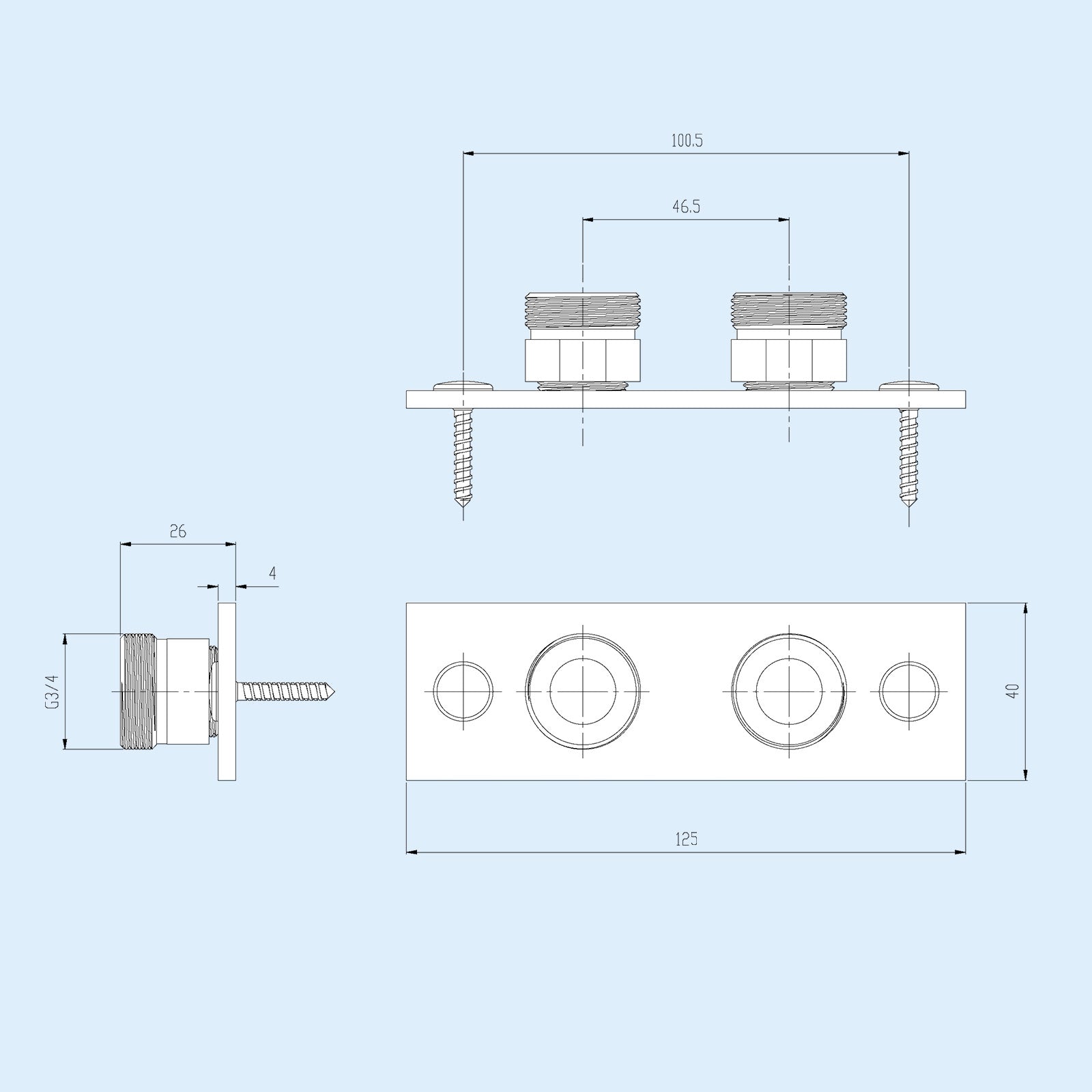

Easy Fixing Plate Bracket
- Designed to hold the mini thermostatic bar valve and bidet hose in a compact, space‑saving layout
- Simple bracket geometry with standard screw centres so it can be installed quickly using common bathroom fixings
- Length: 125mm
- Height: 40mm
- Width Between Inlets: 46.5mm
- Width Between Fixing Holes: 100.5mm
Technical Information
Suitable for the following water systems:
- It is a very smart valve for controlling water temperature. This valve is made by using a very high quality brass for timeless and flawless functionality.
- Mixed water regulated at 38 Celsius
- Fitting Size: G 3/4" Bsp (G 1/2" Bsp With S Union)
- Ultimate thermostatic performance to TMV Buildcert standards
- Thermostatic control to prevent the risk of scalding
- Meets requirements to BS7942:2000 and NHS D08
Package Contents
- x1 Thermostatic Mixing Valve
- x1 Douche Spray
- x1 Douche Spray Holder
- x1 120cm Shower Hose
- x1 S Union Fittings
- x1 Easy Fitting Plate
- Fixings included
