Description
The Toilet Frame is a dependable solution for the installation of wall-hung toilets in your bathroom. It features a front dual flush cistern with various button options. This frame offers robust support for your wall-hung toilet, ensuring durability and longevity. The dual flush cistern is designed to reduce water consumption and promote sustainability. Additionally, the frame is adjustable in both height and depth, allowing for an optimal fit and seamless integration with your toilet. Its sleek, minimalist design enhances the overall aesthetic of the bathroom. The frame is an excellent option for any renovation or upgrade, thanks to its stability, water-saving features, and contemporary design.
Key Features
- Designed to provide stable support for wall-hung WC pans
- Reduces noise from water tank with insulation
- Durable moulded tank
- Easy access for maintenance
- Top or front flush installation
- Water saving dual-flush valve
- Suitable for bathroom furniture and concealed framework
- Compact minimalist design

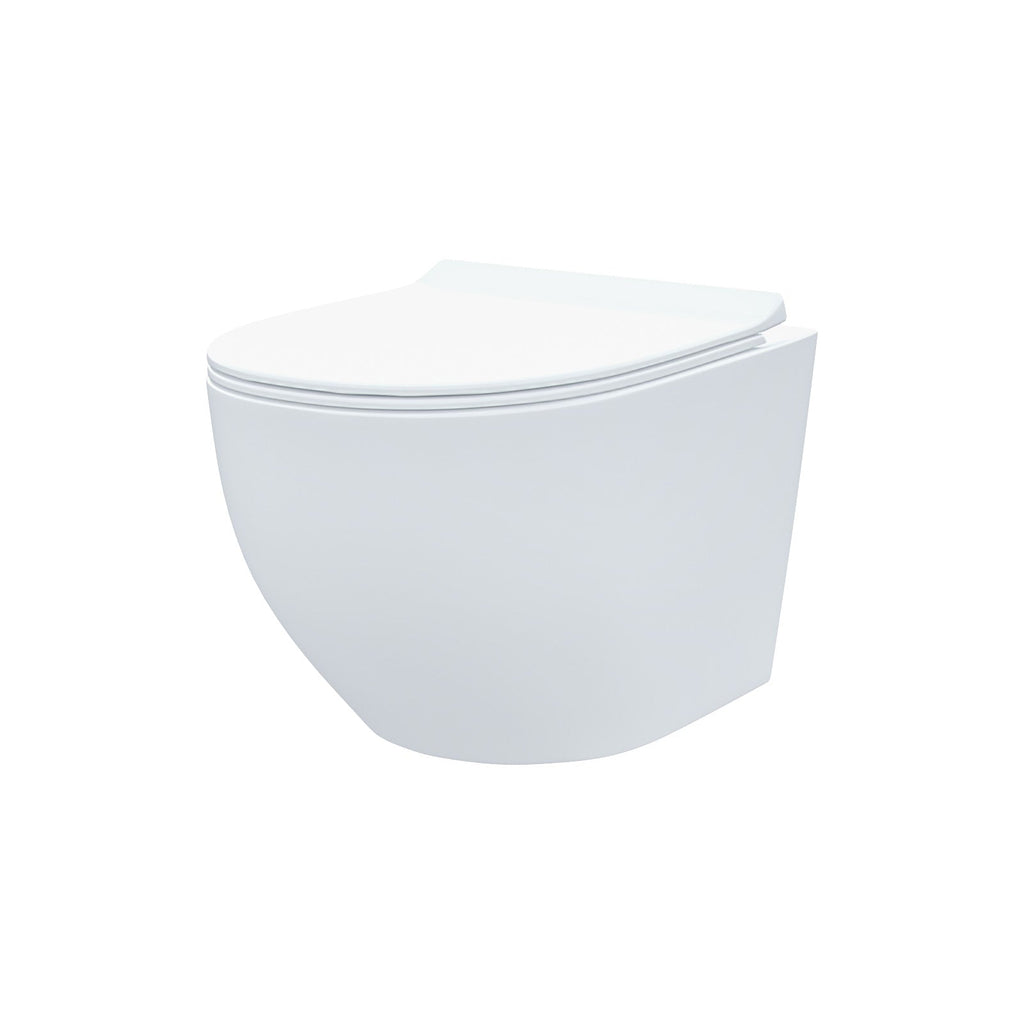

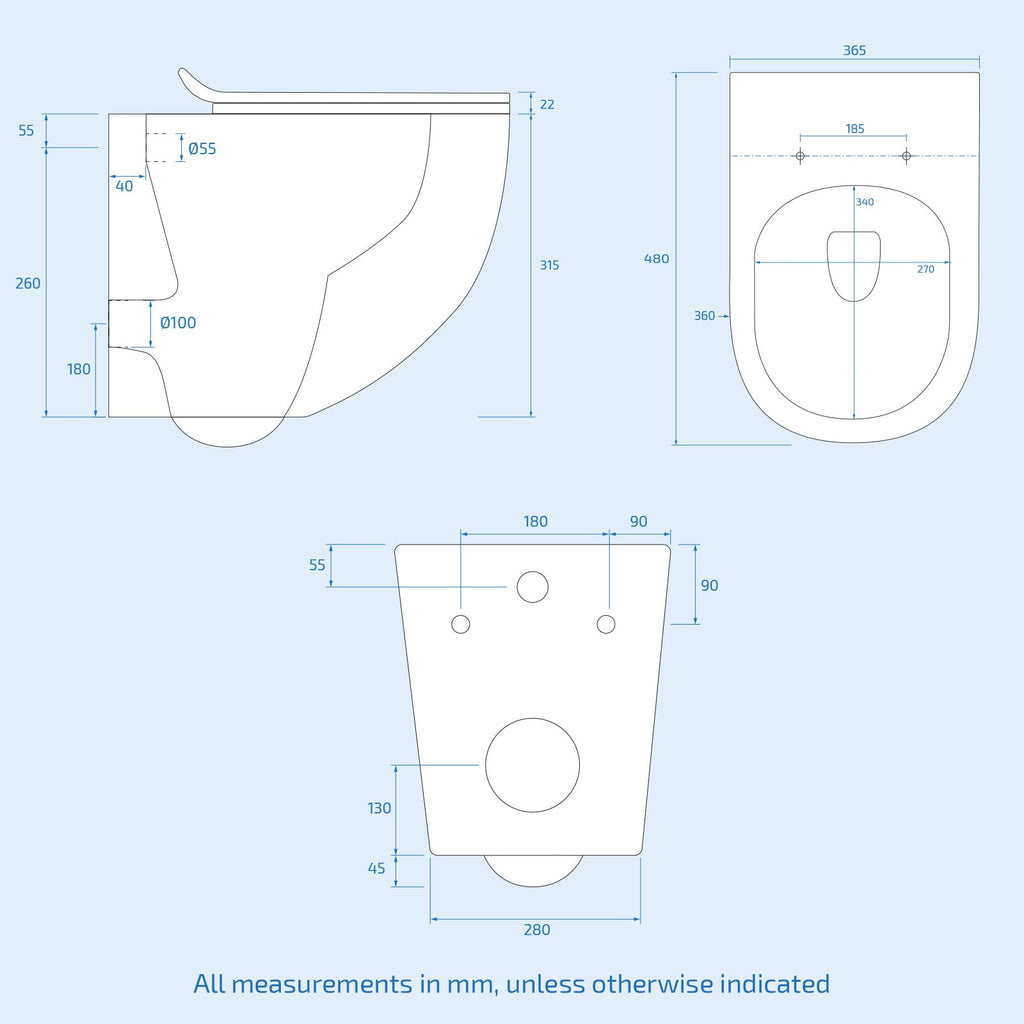

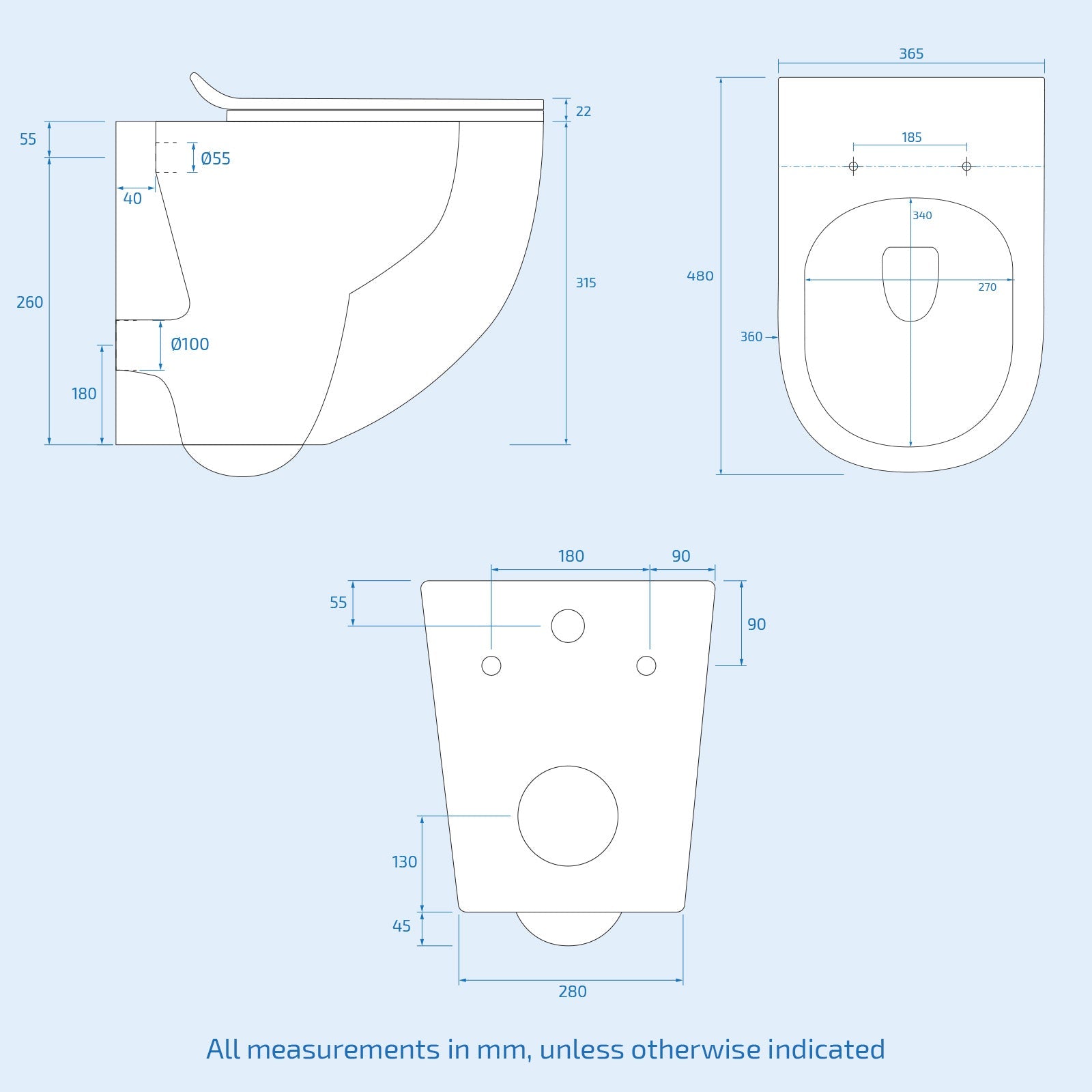

Wall Hung Toilet
- Installation: Wall hung
- Material: Ceramic
- Height : 315mm
- Width : 365mm
- Projection: 480mm
- Finish: Gloss white
- Seat type: Soft close seat
- Designed for use with a concealed cistern frames
- Fittings: UK standard size

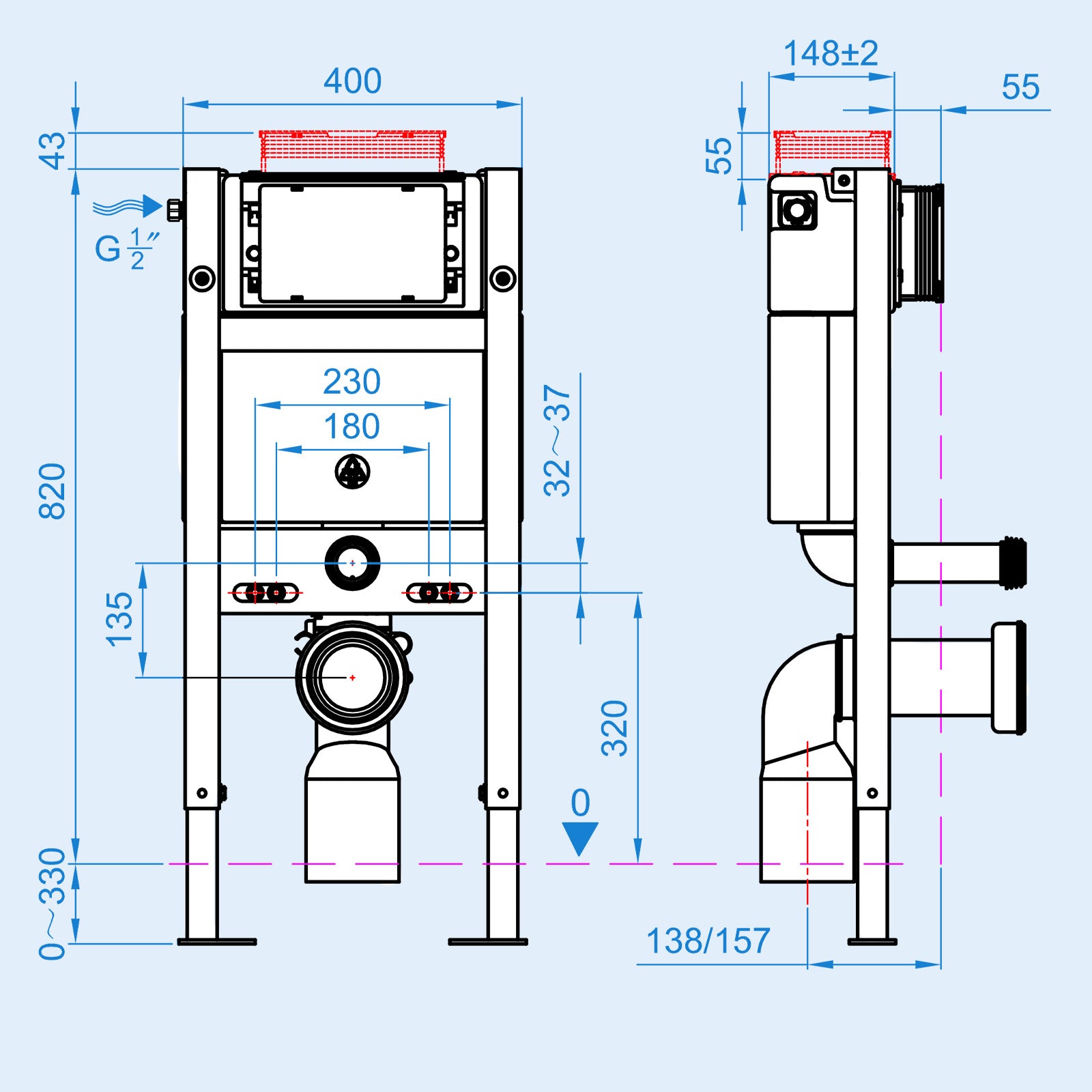

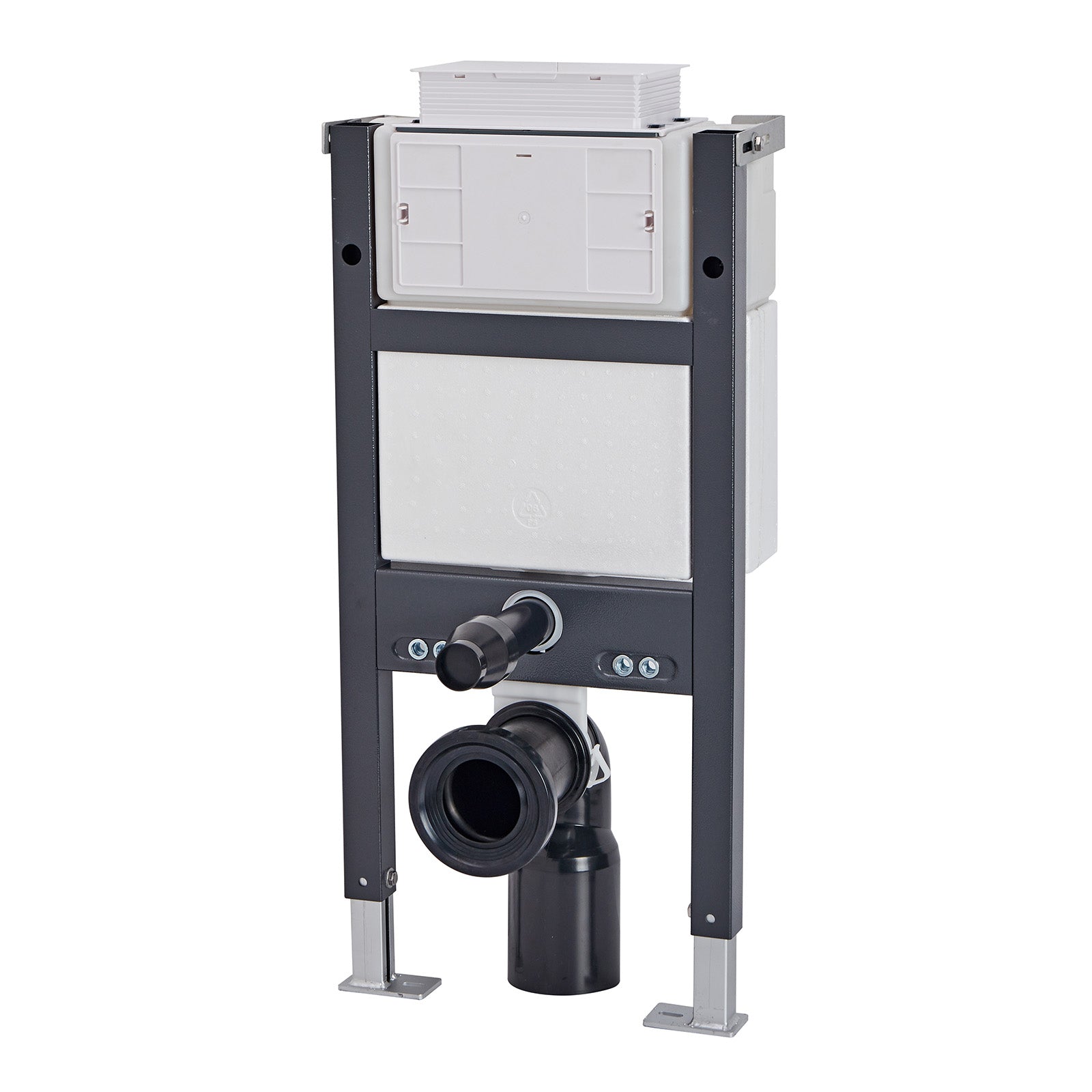

Concealed Cistern & Wall Hung WC Frame
- Height: 863-1193mm (Approx.)
- Width: 400mm
- Depth: 203-205mm
- Dual flush cistern
- Full flush: 6L, Half flush: 4L
- Fill valve pressure: 0.2-16 bar
- Metal frame support weight: 400KG
- EN 14055 approved
- ISO9001:2018 Registered Manufacturer

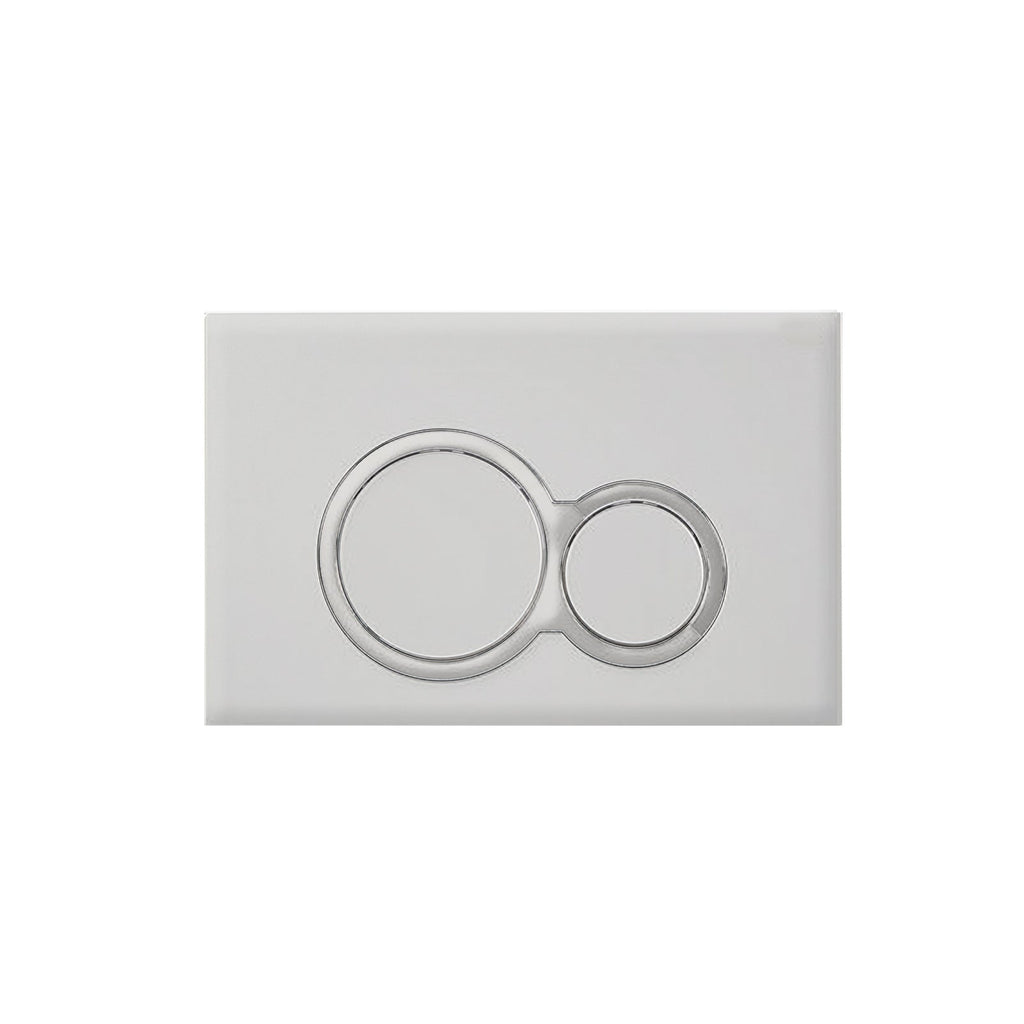

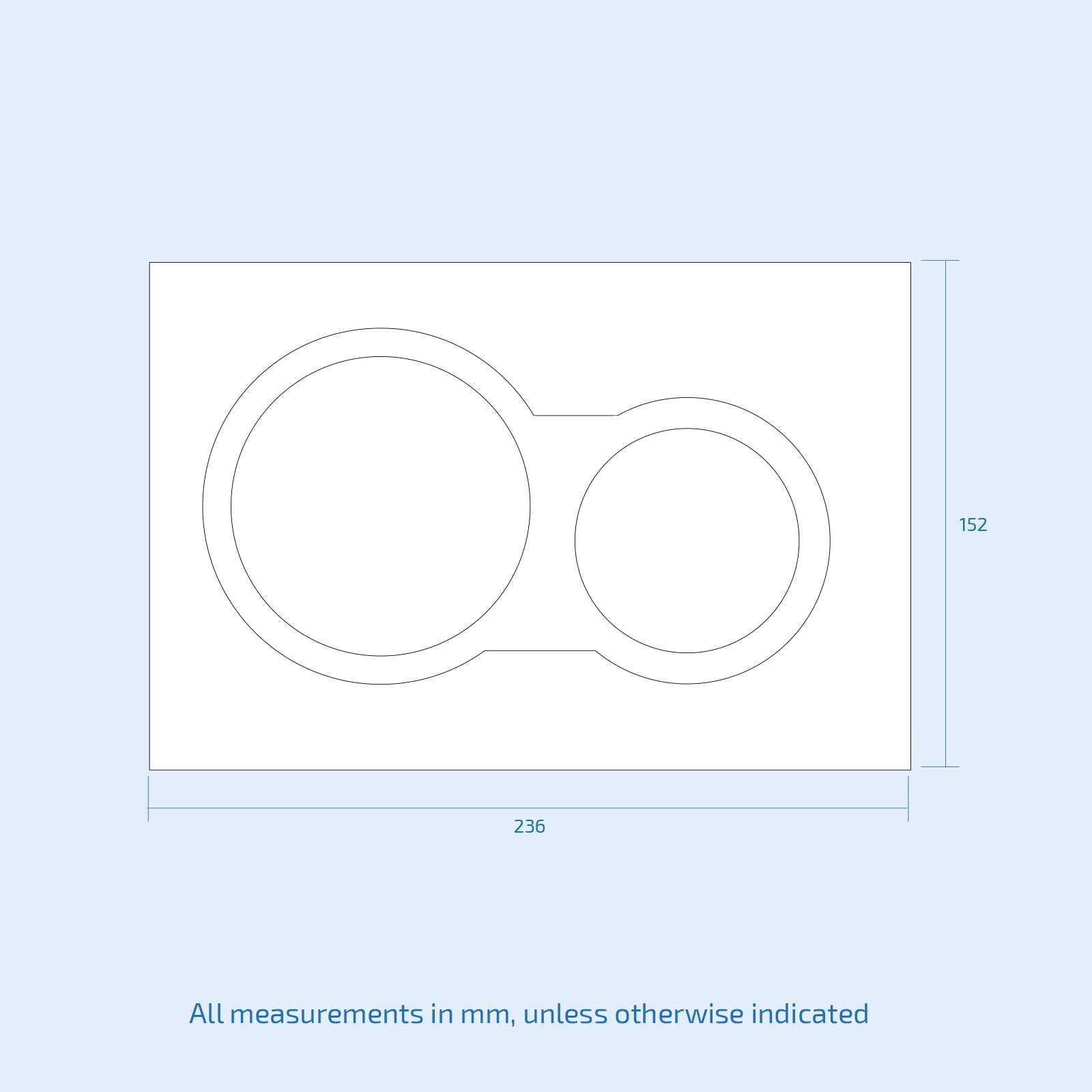

Modern Chrome Round Button Flush Plate
- Flush plate height: 152mm
- Flush plate width: 236mm
- Flush plate button Shape: Round
- Colour: Chrome
- Water saving dual-flush valve
- Durable moulded tank
- Easy access for maintenance
- Hassle-free installation
Package Contents
- WC Frame
- Cistern
- Flush plate with buttons
- Toilet Pan
- Toilet Seat
- Toilet Seat Fittings
