Description

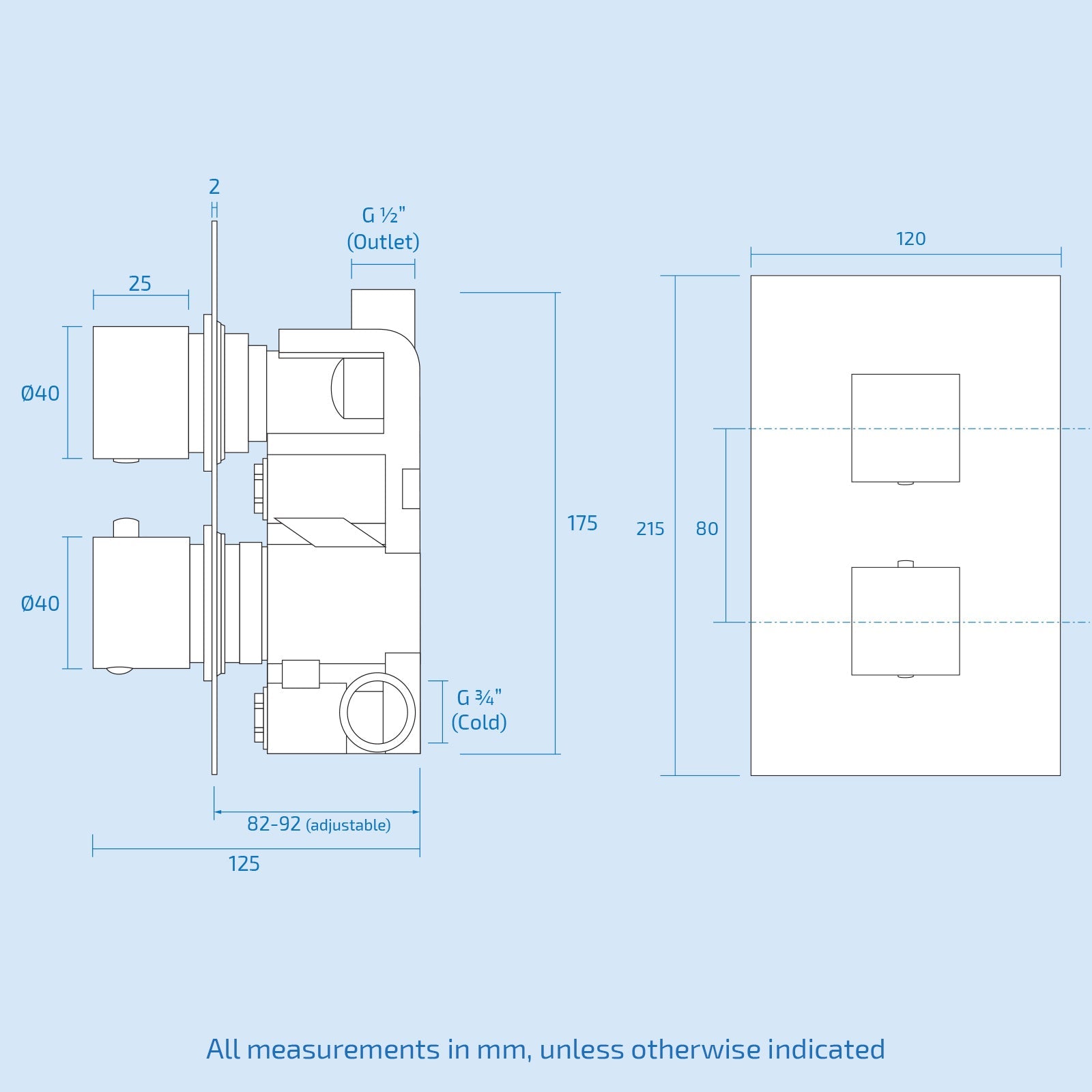

Thermostatic Concealed Valve Features

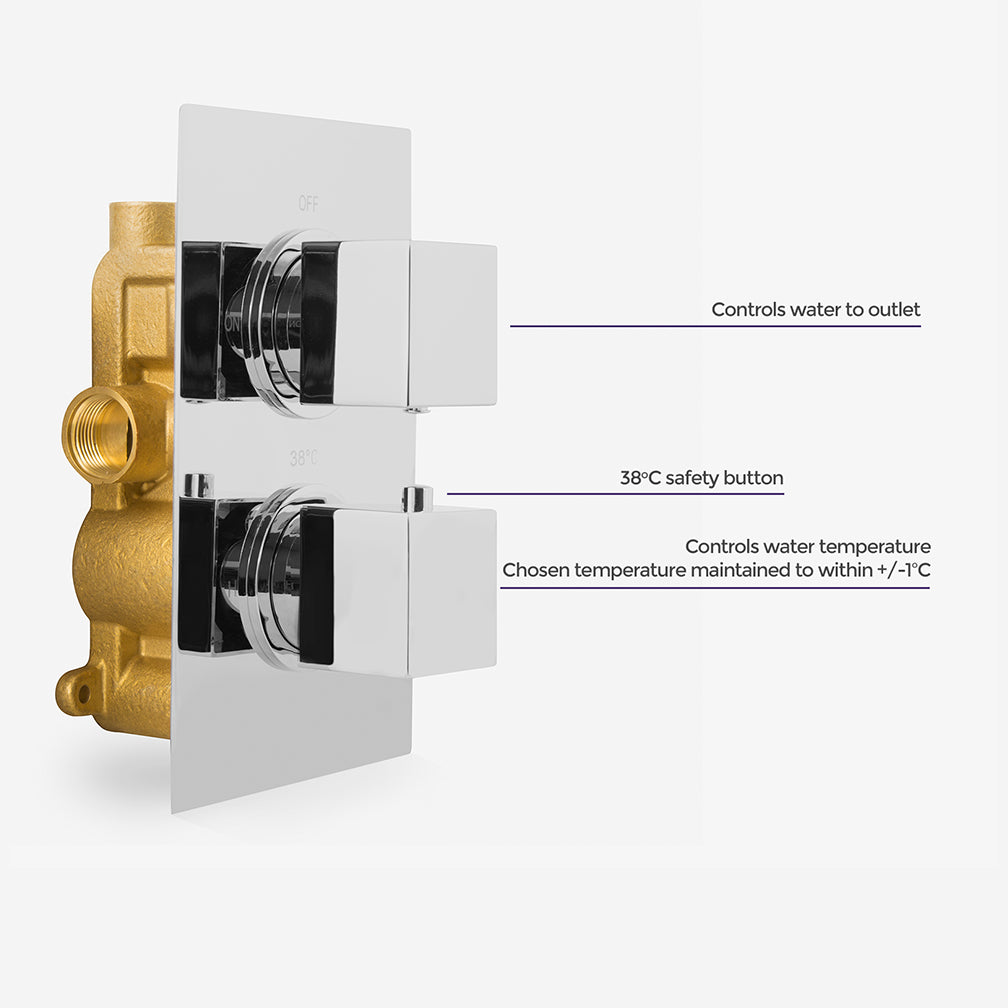

- Top dial - controls water to 1 outlet diverter
- Bottom dial - temperature control
- High Quality Design
- Chrome Plated
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button

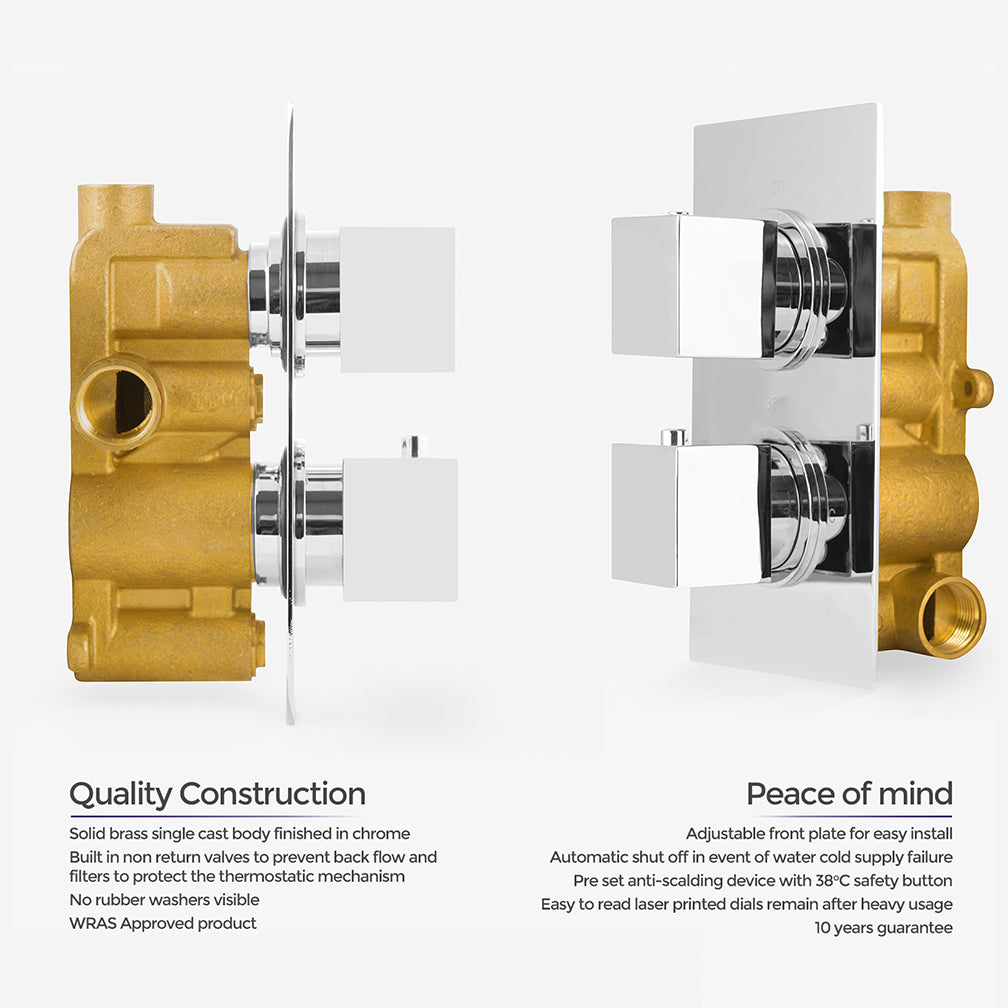

- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting

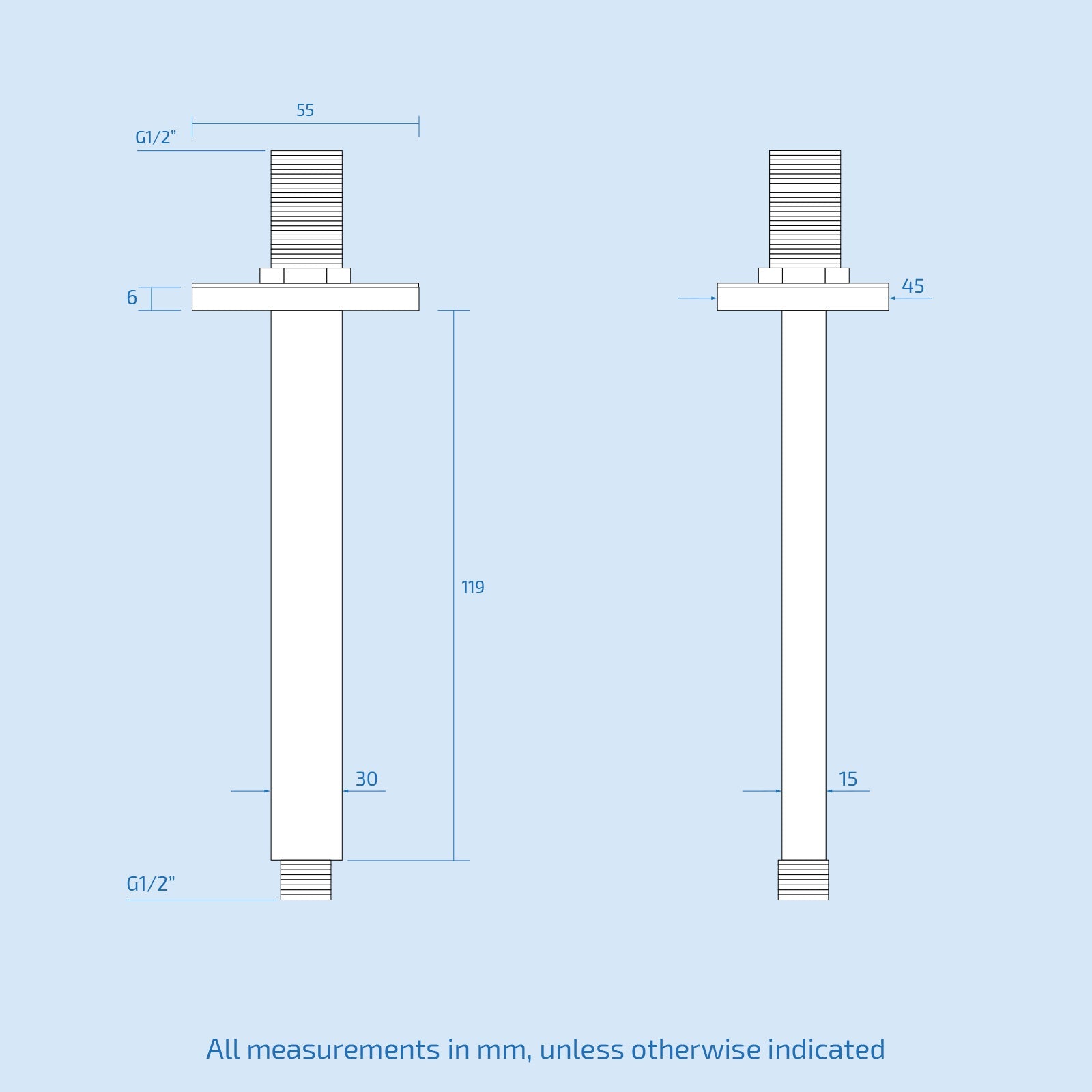

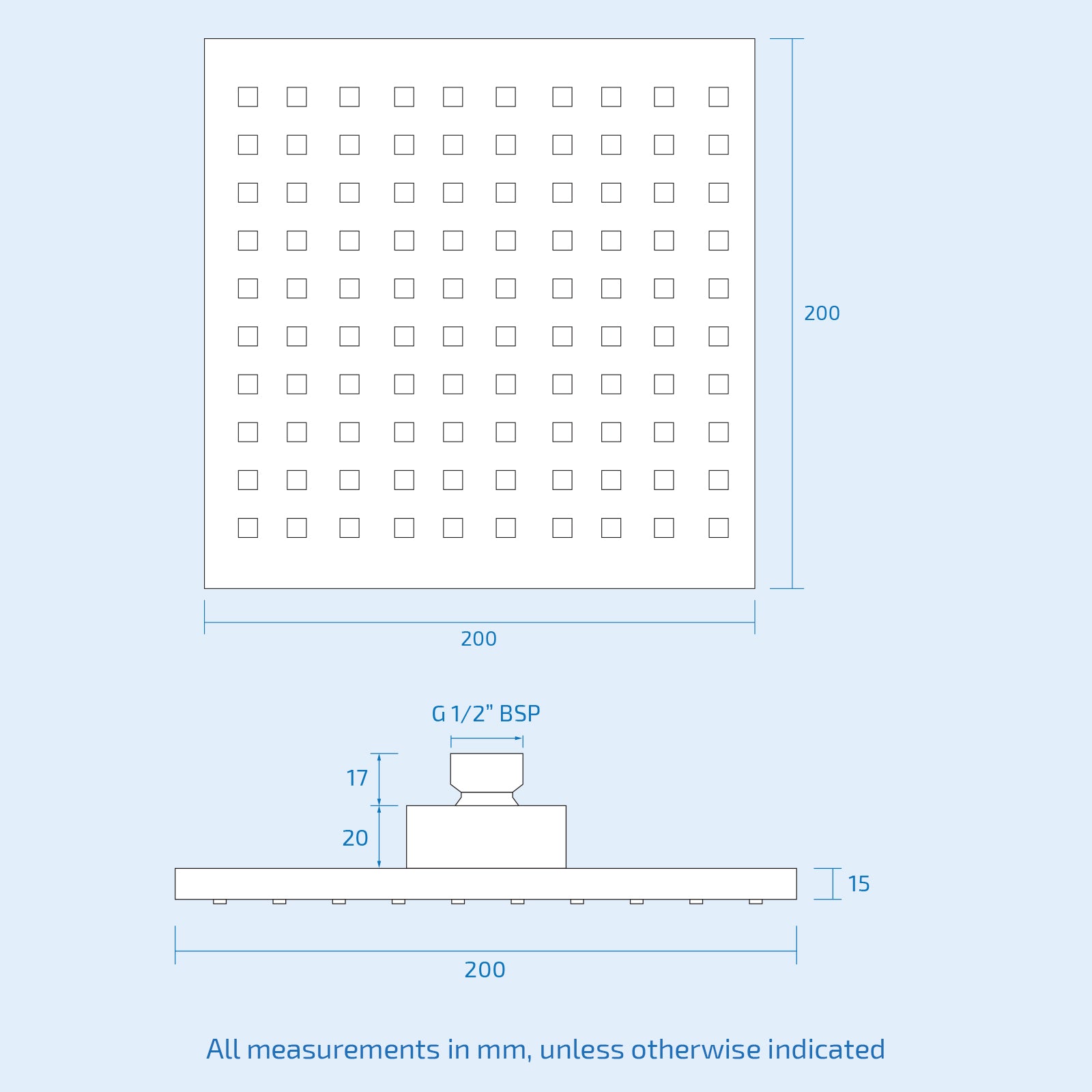

Shower Head with Ceiling Mounted Arm Details
- ABS Shower Head
- Solid Brass Arm
- Chrome Finish
Technical Information
Suitable for the following water systems:
- Combination boiler systems
- Gravity-fed systems (only with a pump)
- MegaFlo systems
- Pumped hot water systems
- Un-vented hot water systems
- Standard pressurised hot water cylinder type systems
Package Contents
- 1 x Thermostatic Concealed Valve
- 1 x Shower Head
- 1 x Ceiling Mounted Arm
- Complete fitting accessories
Specifications
| Material | Brass |
|---|---|
| Style | Modern |
| Finish | Highly polished chrome |
| Shower head | 8" (200mm) |
| Shower arm | 120mm |
| Anti-scalding | Built-in device |
| Child friendly | Yes |
| Temperature range | 20-50 degrees C |
| Controls | 1 |
| Diverter | No |
| Valve | Brass construction |
| Mounting Type | Ceiling Mounted |
| Structure | Fully integrated |
| Minimum pressure | 1 bar |
| Maximum pressure | 6 bar |
| Guarantee | 10 years |
