Description

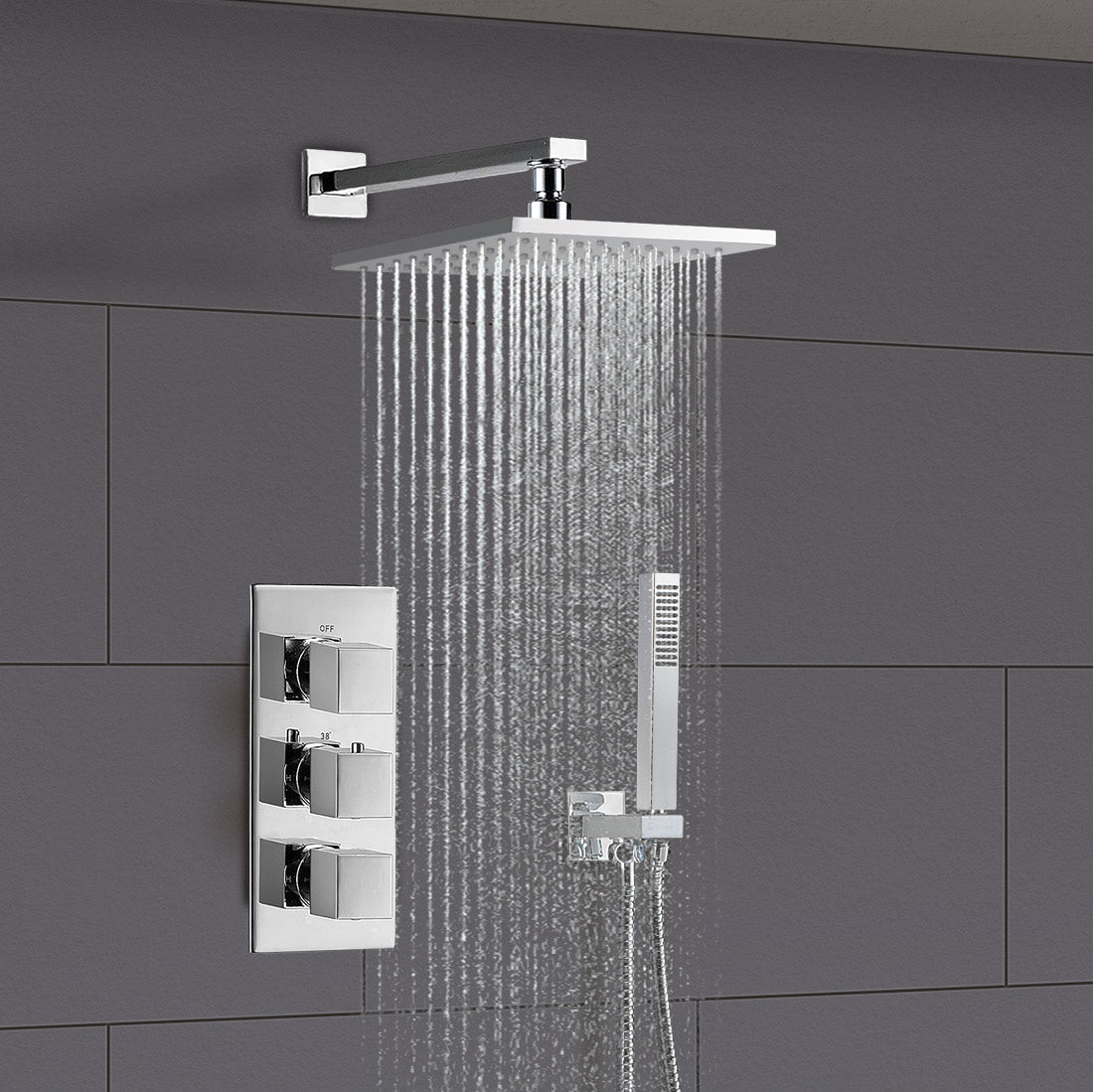

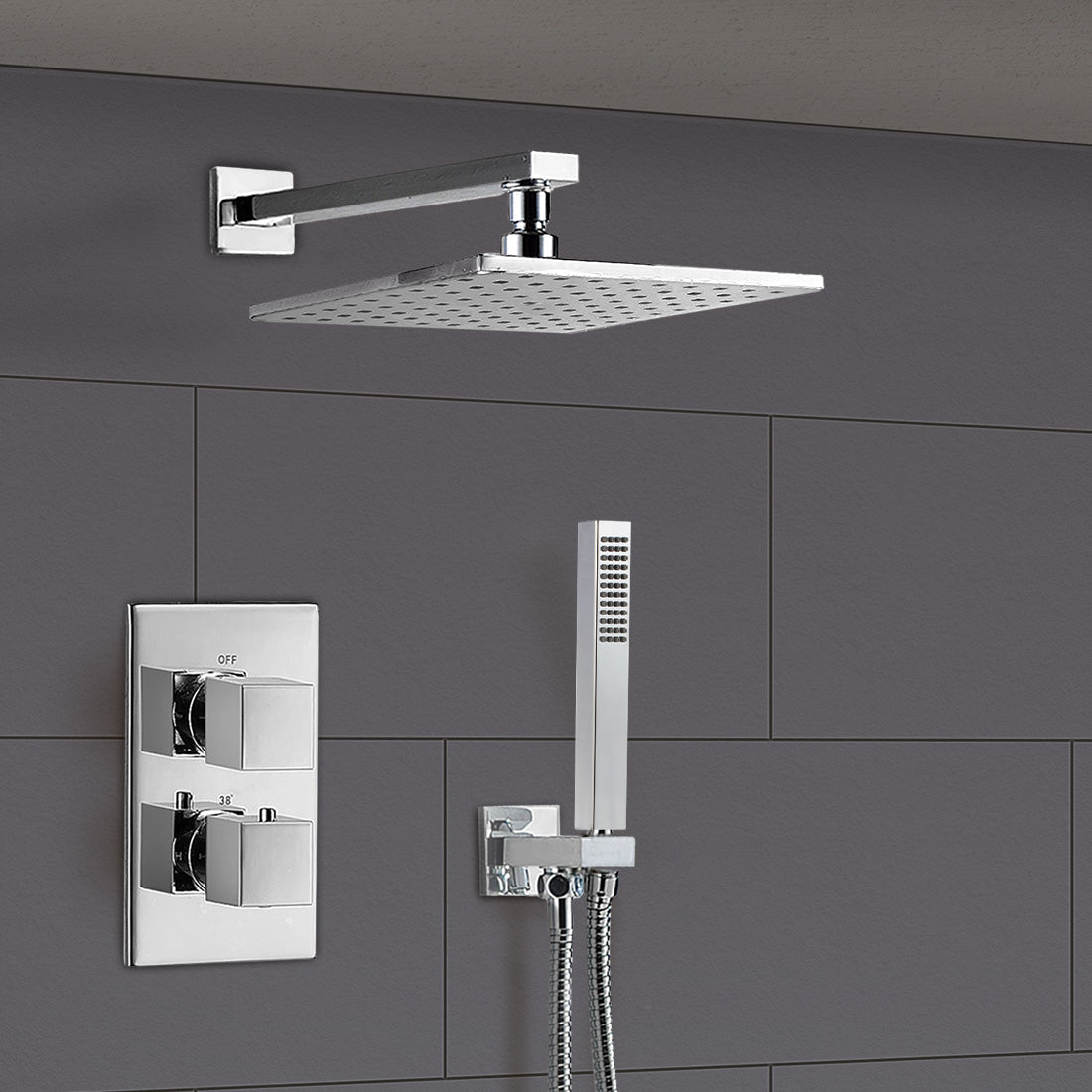

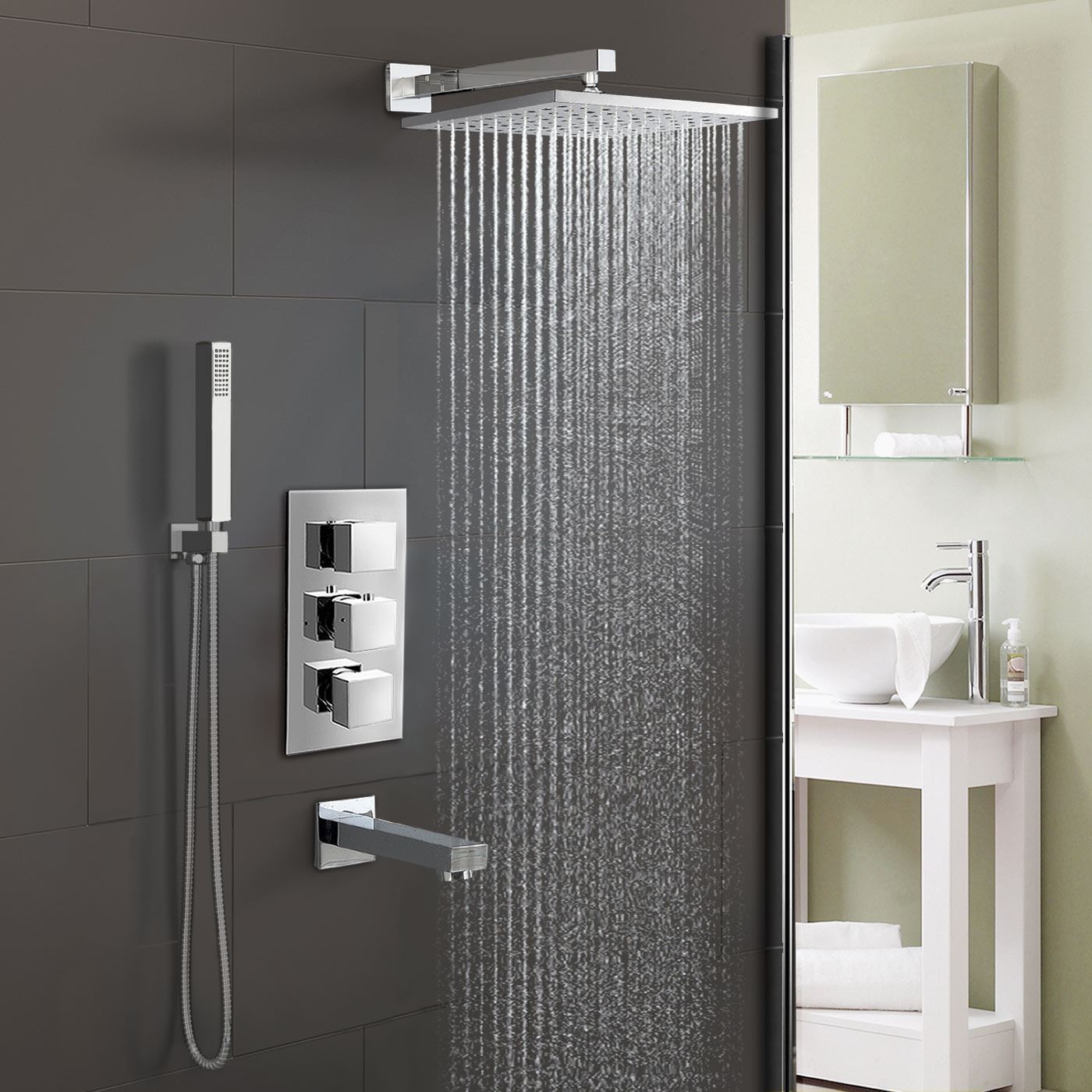

This square concealed thermostatic mixer valve shower set is a perfect addition to any bathroom. The thermostatic mixer valve gives you complete temperature control with a built-in anti-scalding device, so you'll never have to worry about a drop in temperature again.
All our valves have isolators and non-return valves meaning that it can be accessed from the front so, if a problem occurs it can be easily resolved without removing the valve from the wall. Most competitors' valves do not have this feature.
Please note: This product comes with a 10 year guarantee.

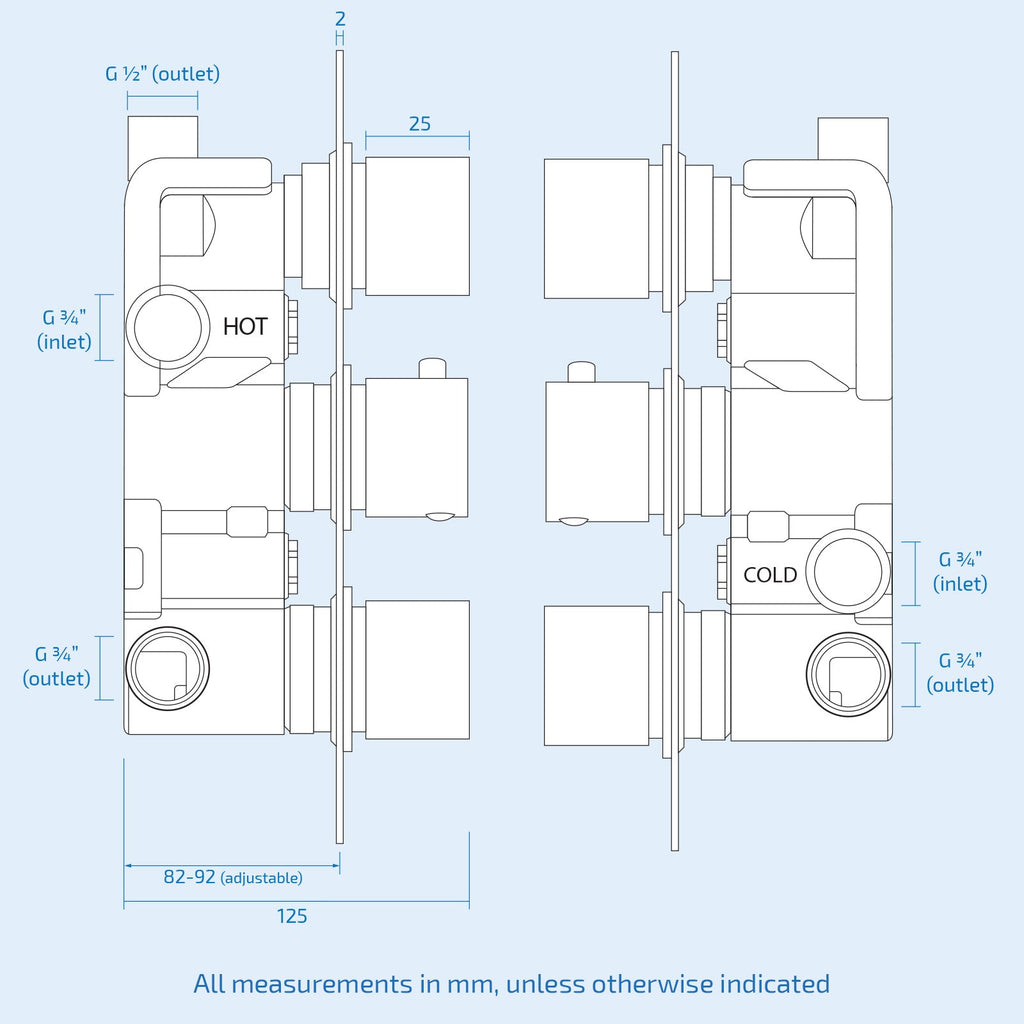

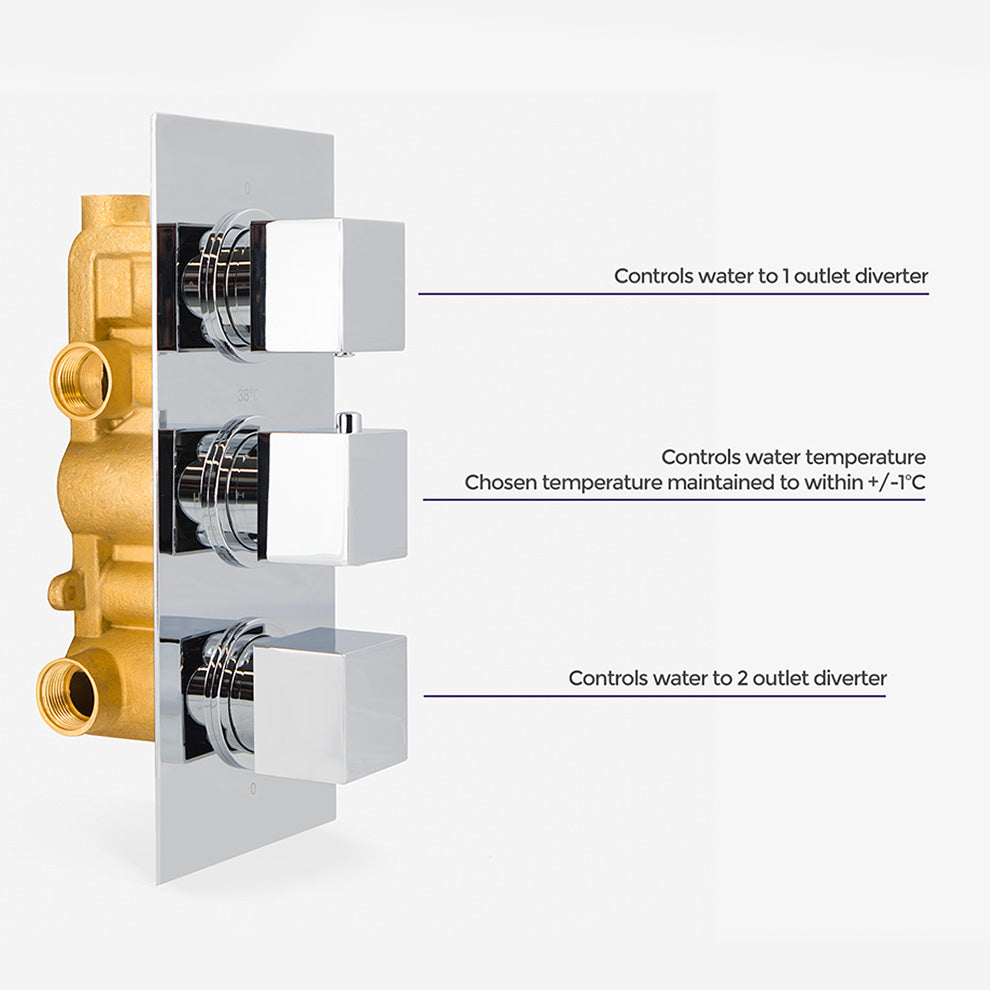

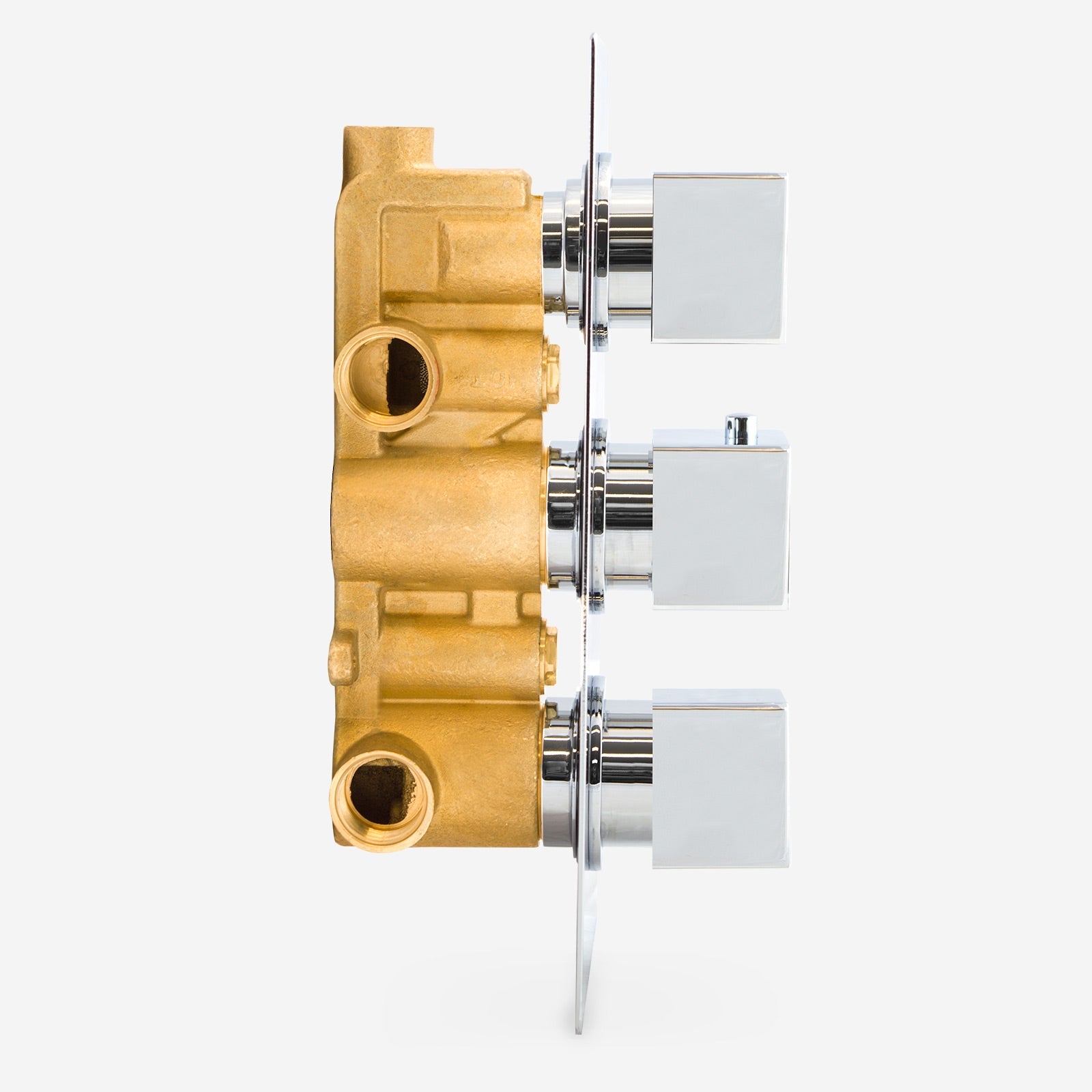

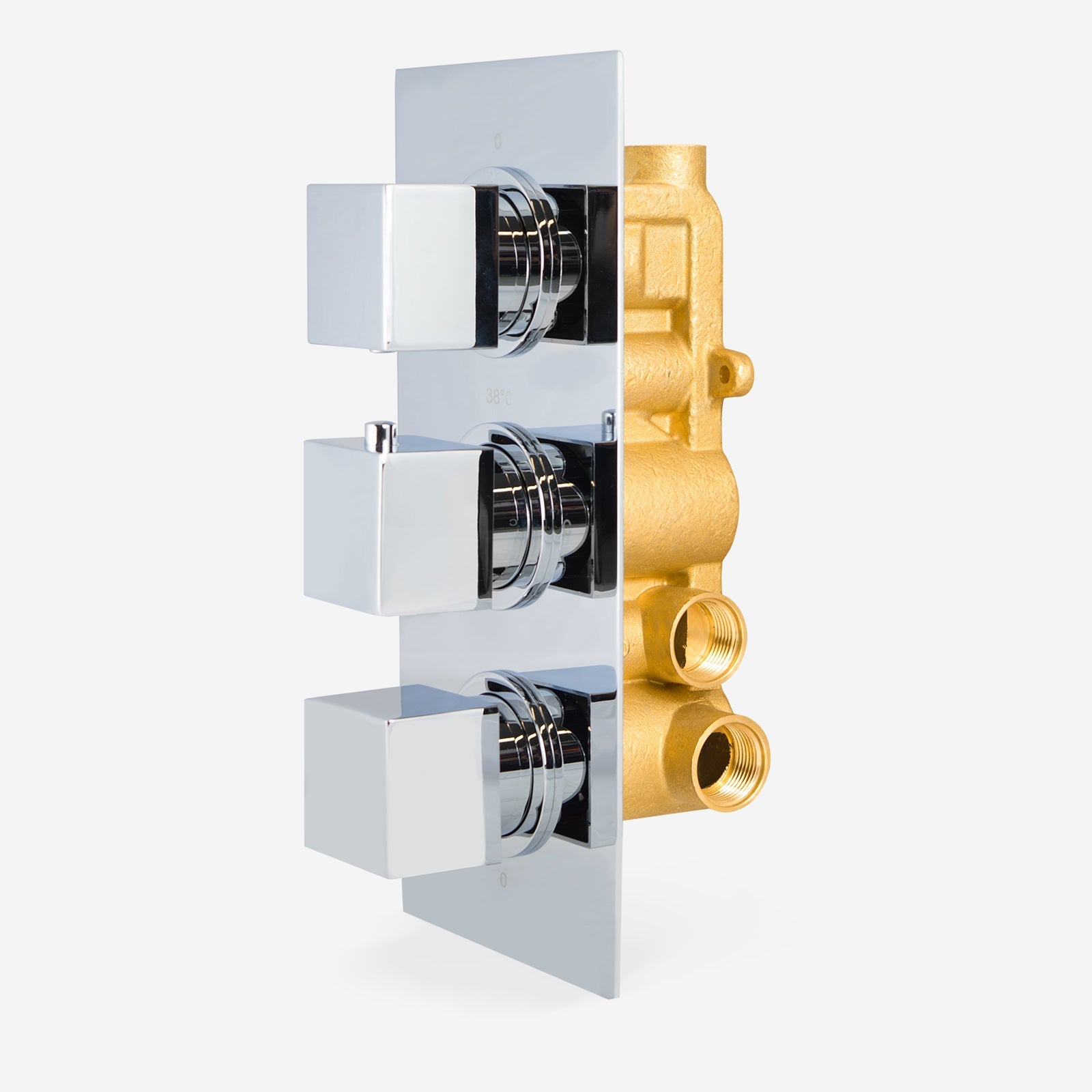

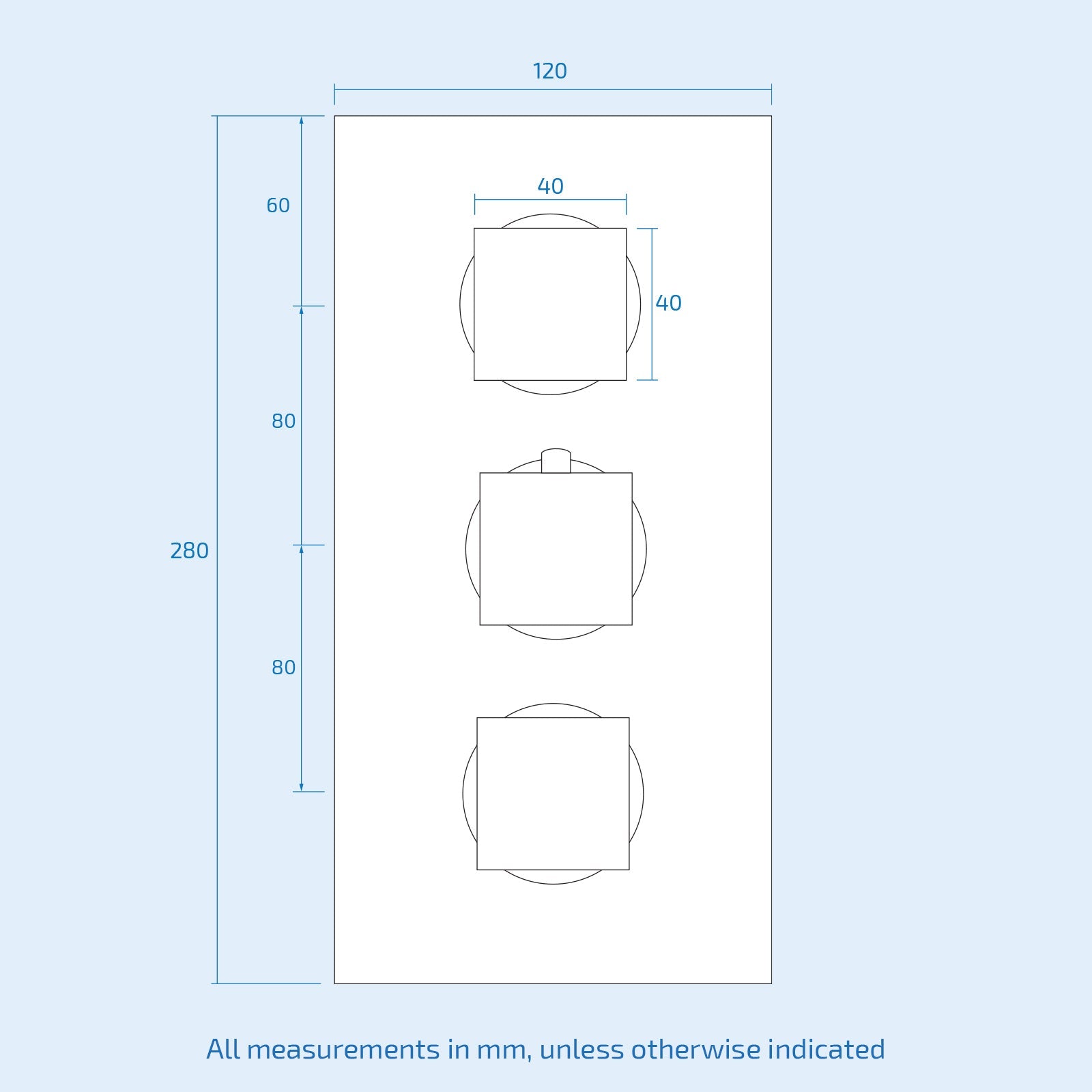

3 Dial 3 Way Thermostatic Mixer Valve
- Top Dial - Controls water to 1 outlet diverter
- Middle Dial - Temperature Control
- Bottom Dial - Controls water to 2 outlet diverters
- WRAS Approved valve
- Chrome Finish
- Thermostatically controlled

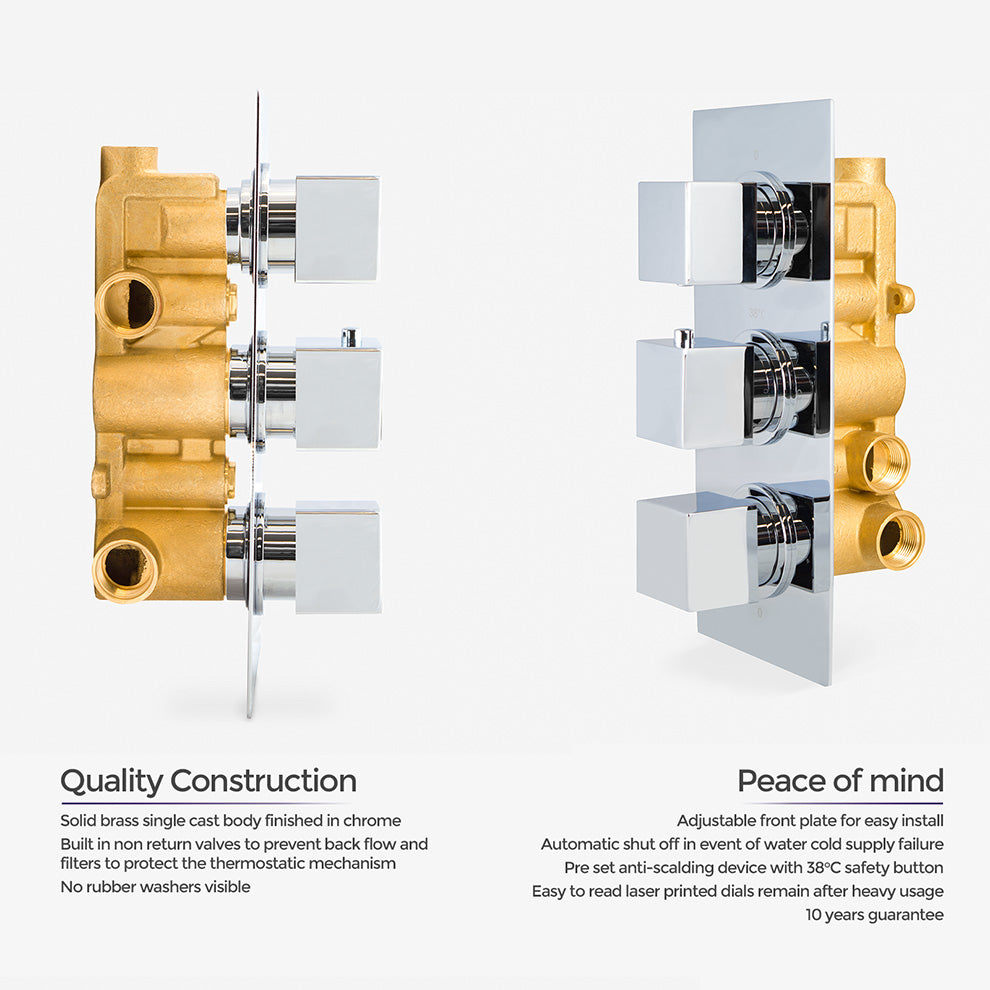

- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting

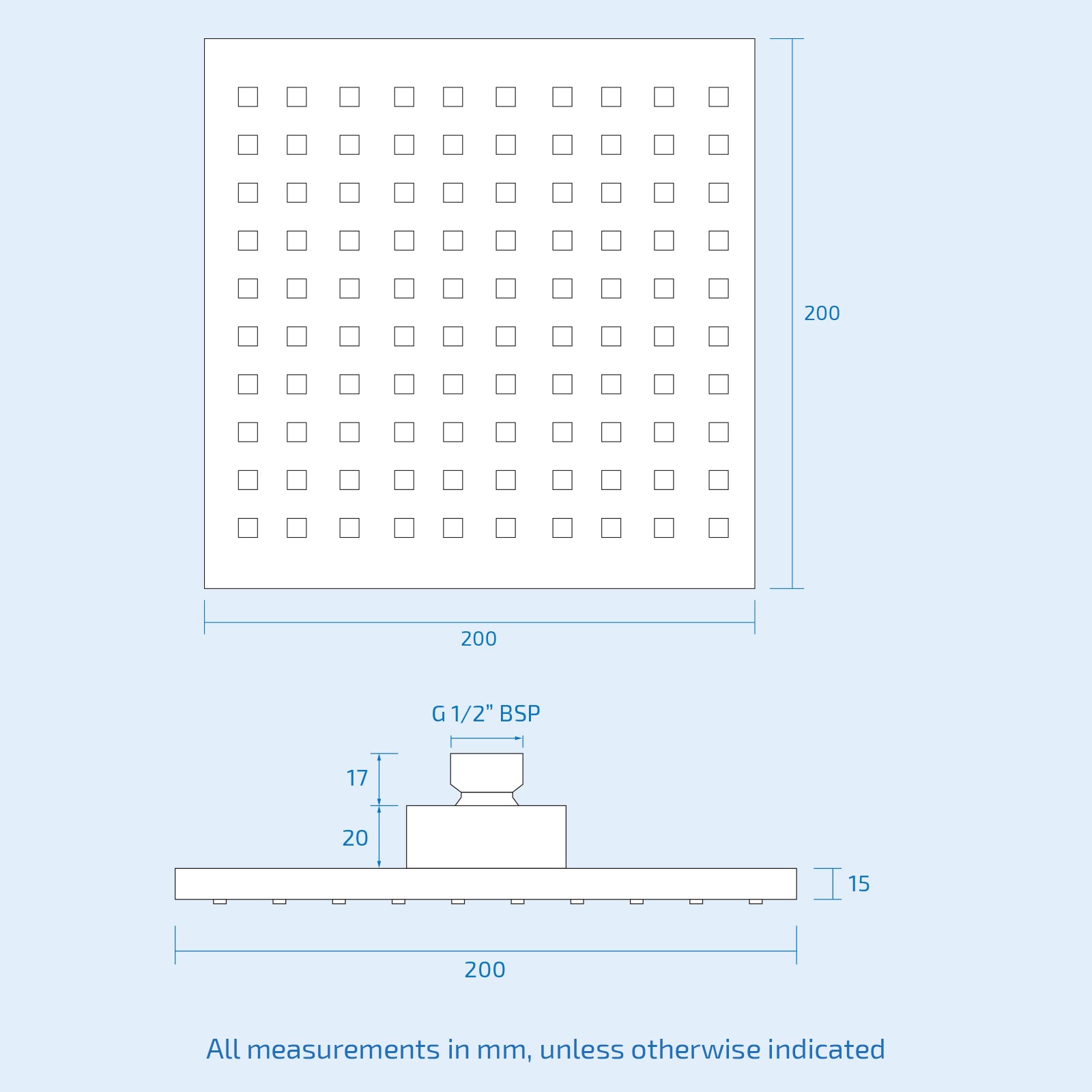

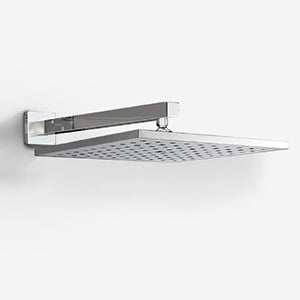

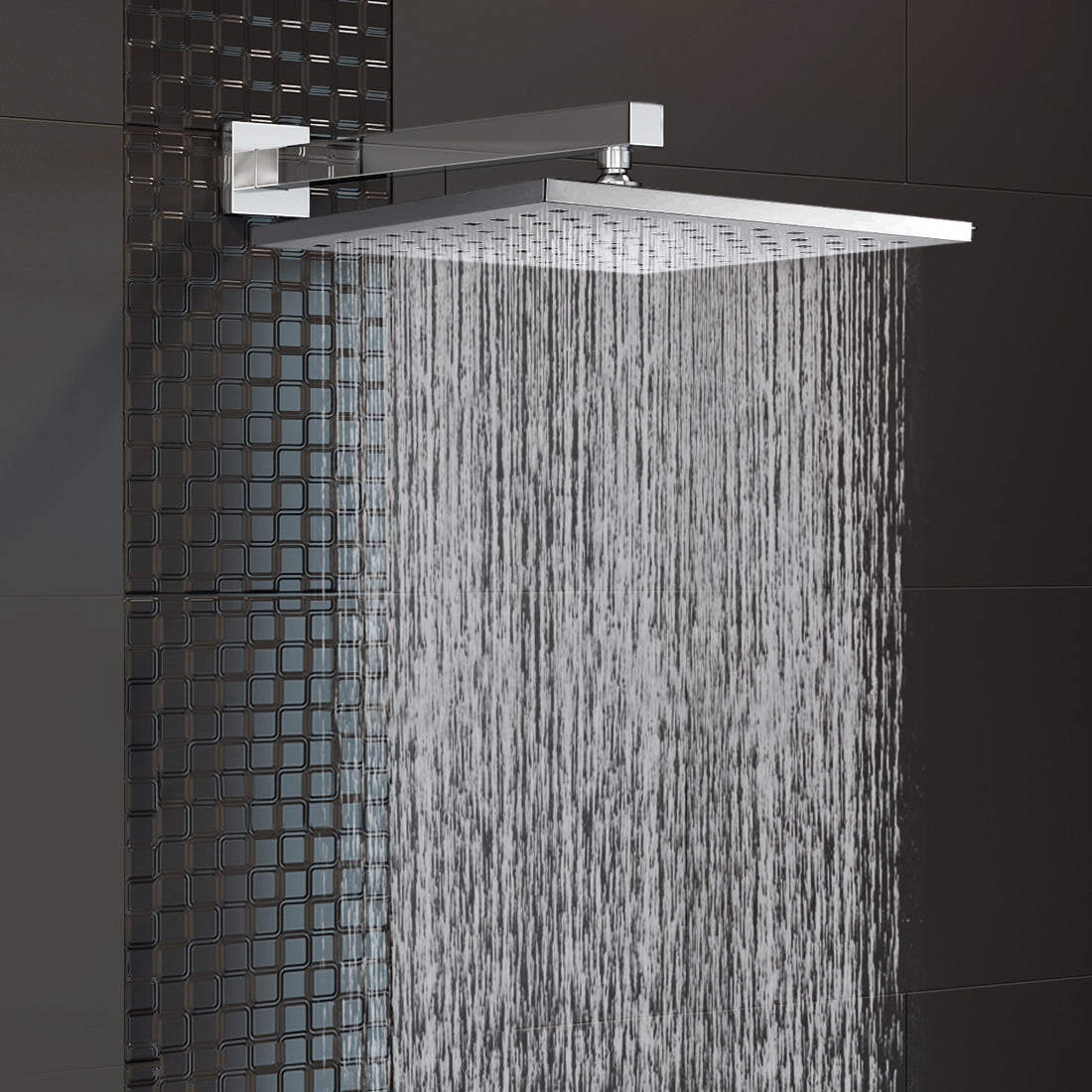

Shower Head
- Wall Mounted
- Easy clean anti-limescale rubber jets
- 200mm square shower head, with a high shine chrome finish
- Provides an even spray and full water coverage
- Swivel joint allows you to adjust the angle of the spray
Suitable Water Systems
- Minimum Pressure: 0.5 bar
- Maximum Pressure: 7.0 bar
- Combination boiler systems
- Gravity fed systems (only with a pump)
- Megaflow system
- Pumped hot water systems
- Un-vented hot water systems
- Standard pressurized hot water cylinder type systems
Package Includes
- 1 X Thermostatic valve
- 1 X Shower handset

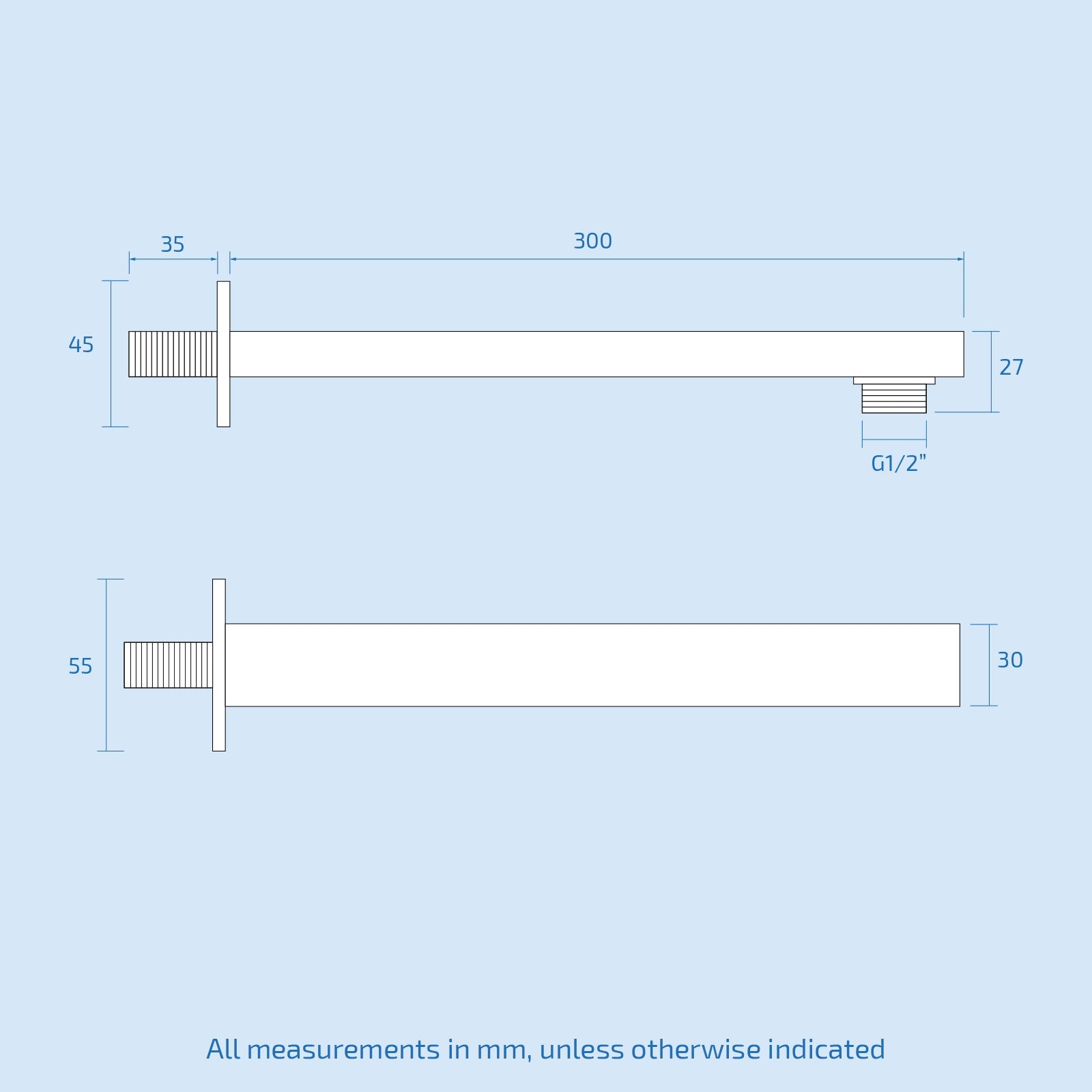

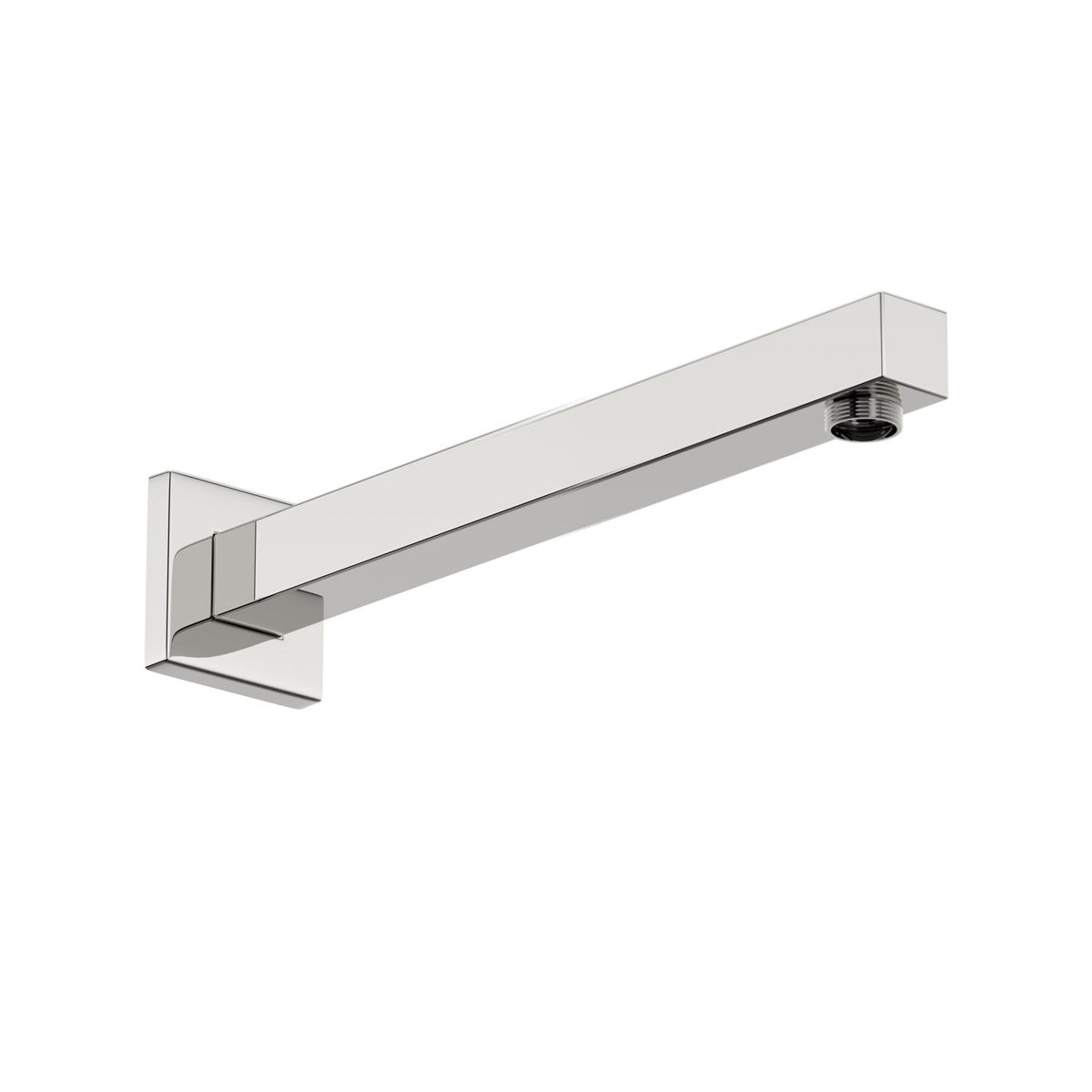

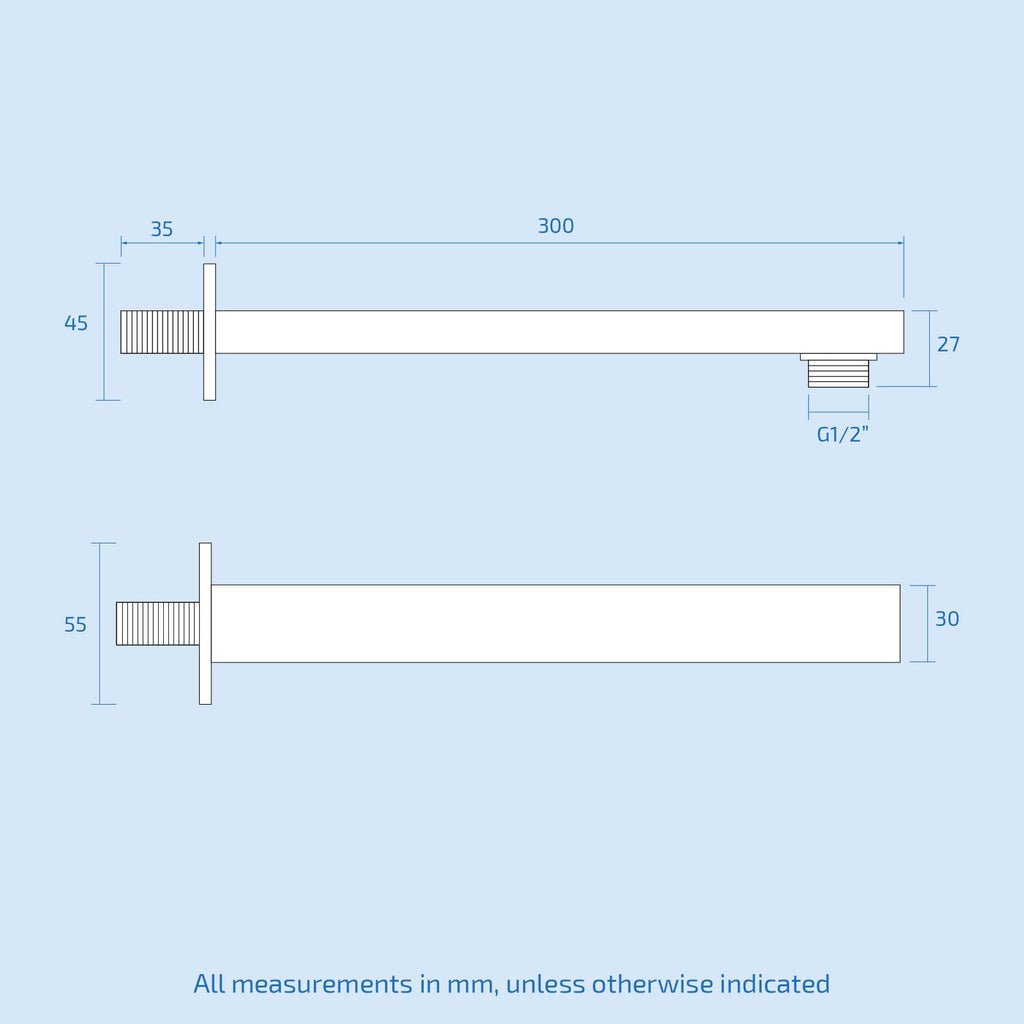

- 1 X Shower head and shower arm
- 1 X Stainless steel shower hose
- 1 X Rectangular bath filler spout

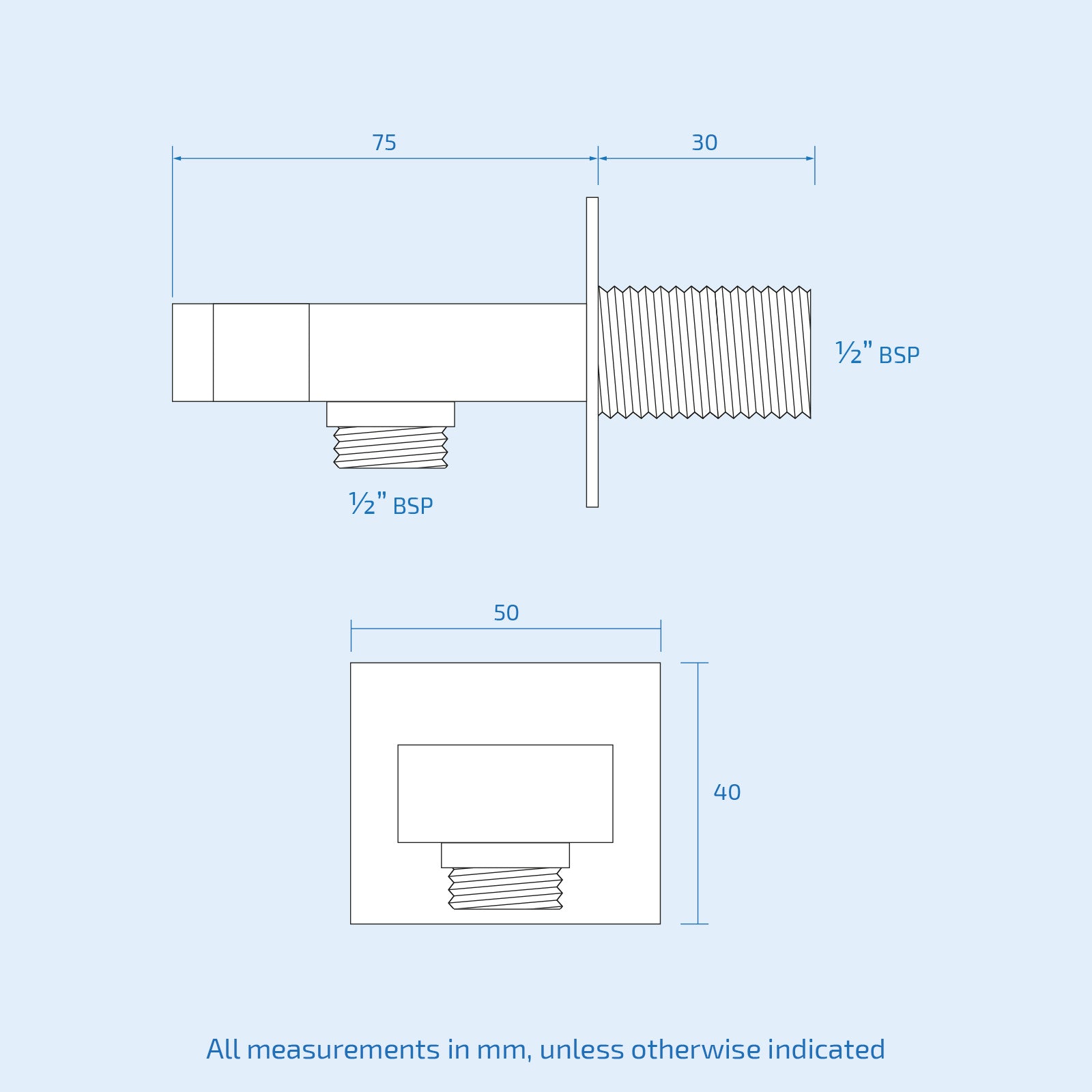

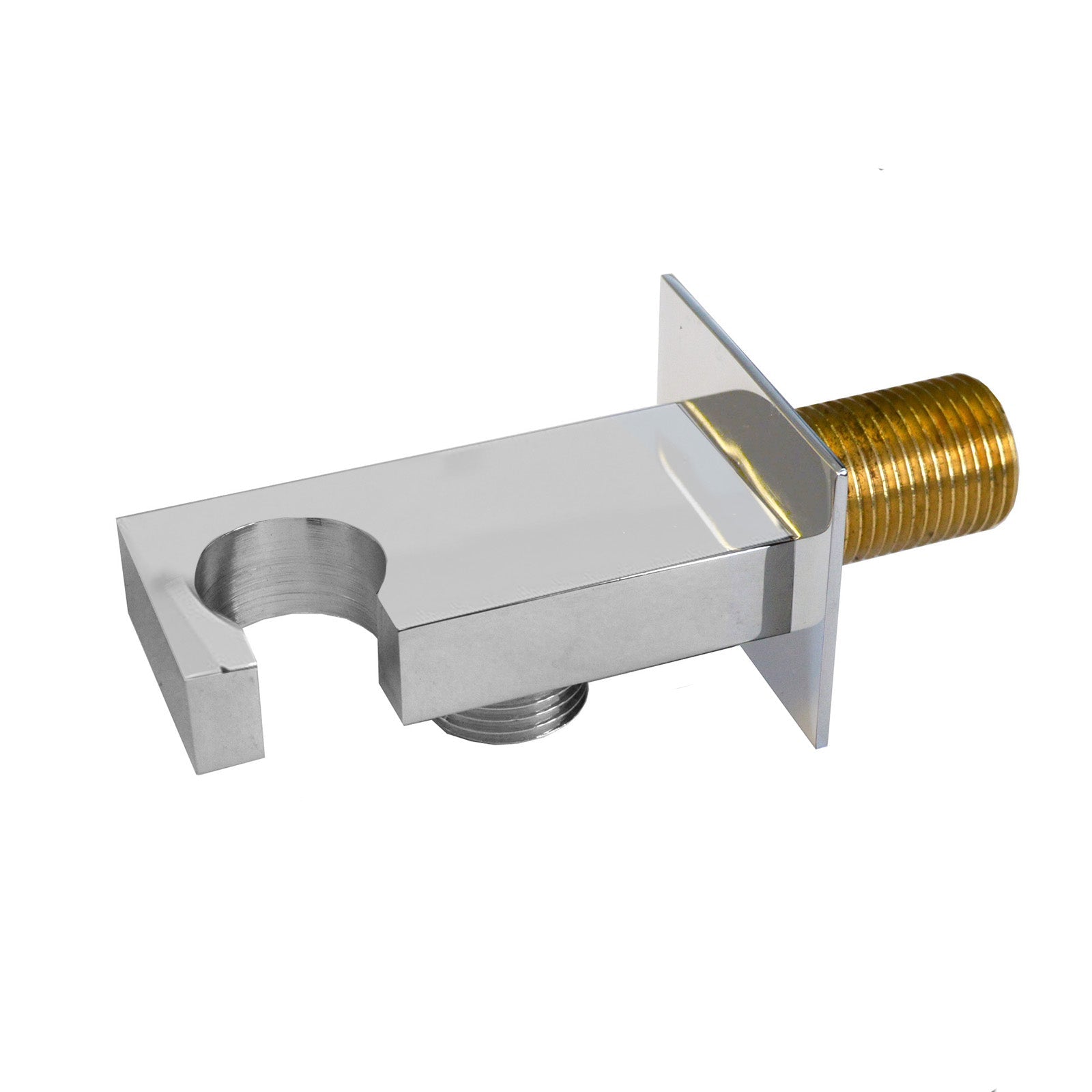

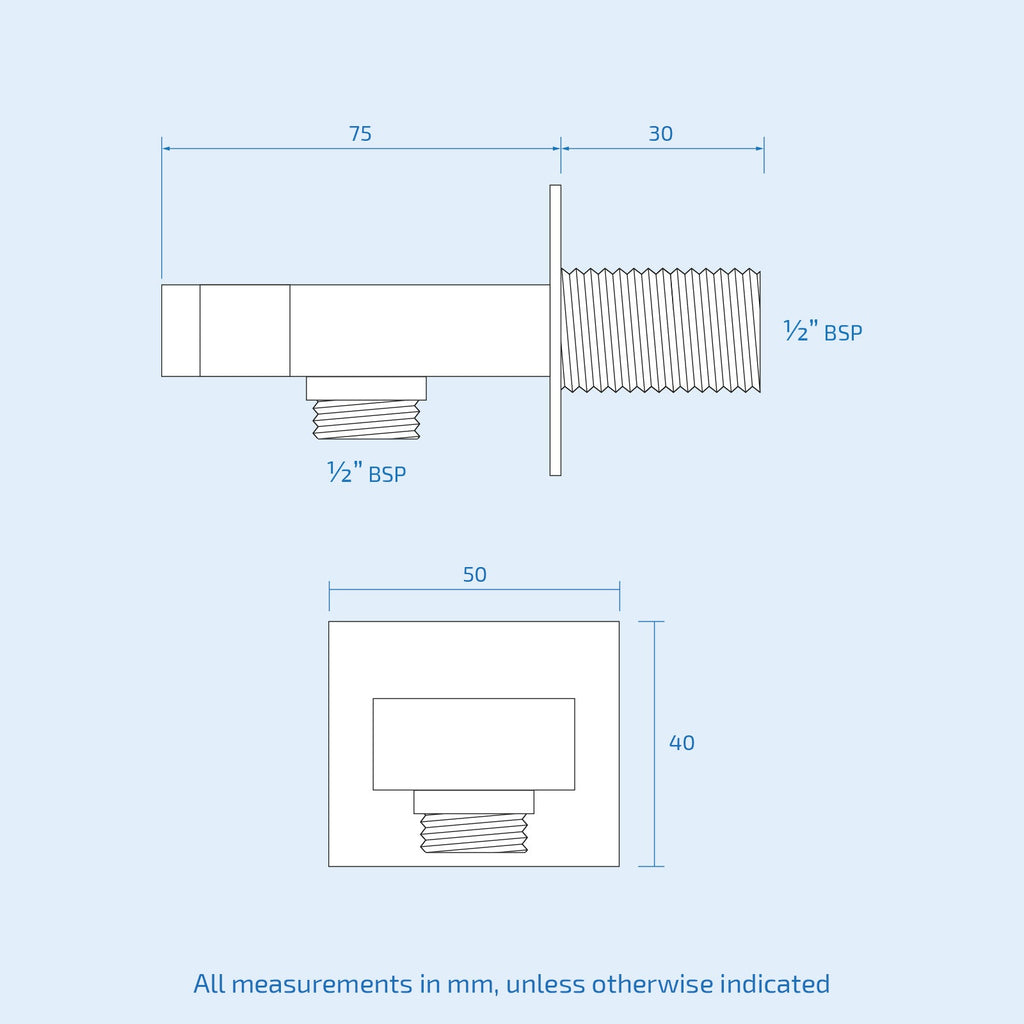

- 1 X Wall connector and brackets
