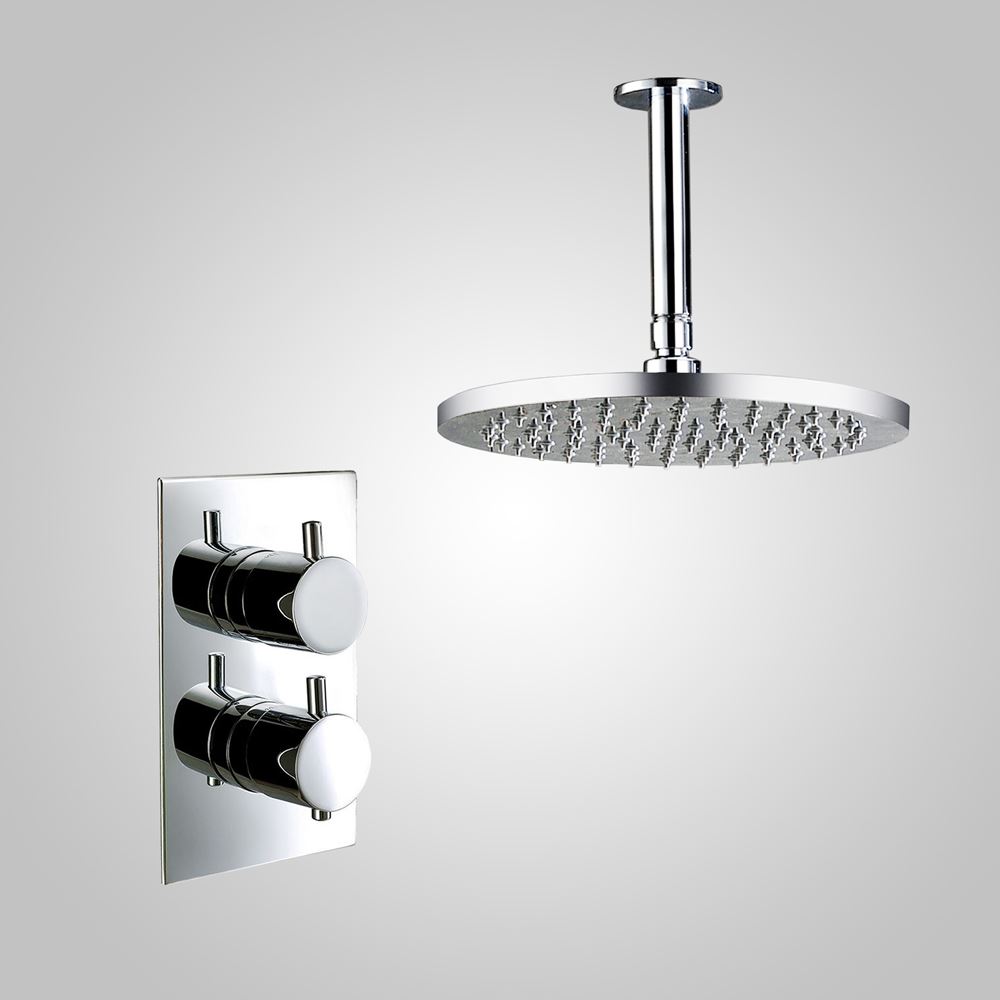

Description
The sleek and modern concealed thermostatic shower mixer valve is perfect for creating a new minimalist look to your bathroom. The mixer valve mounts onto the wall making your shower look less cluttered and bulky, while its two dial one way round design allows you to control the temperature.
Key Features
- Chrome Finish
- High Quality Design
- Manufactured from highly durable brass
- Thermostatically controlled

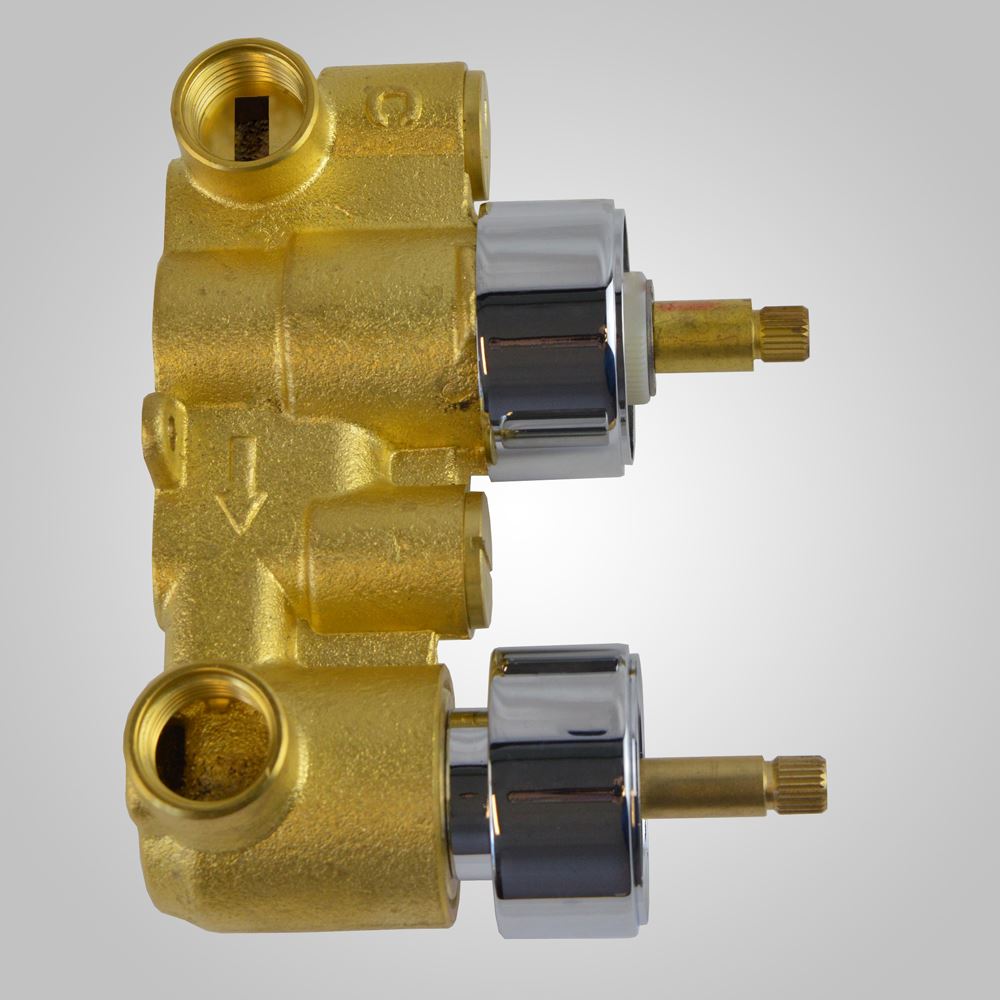

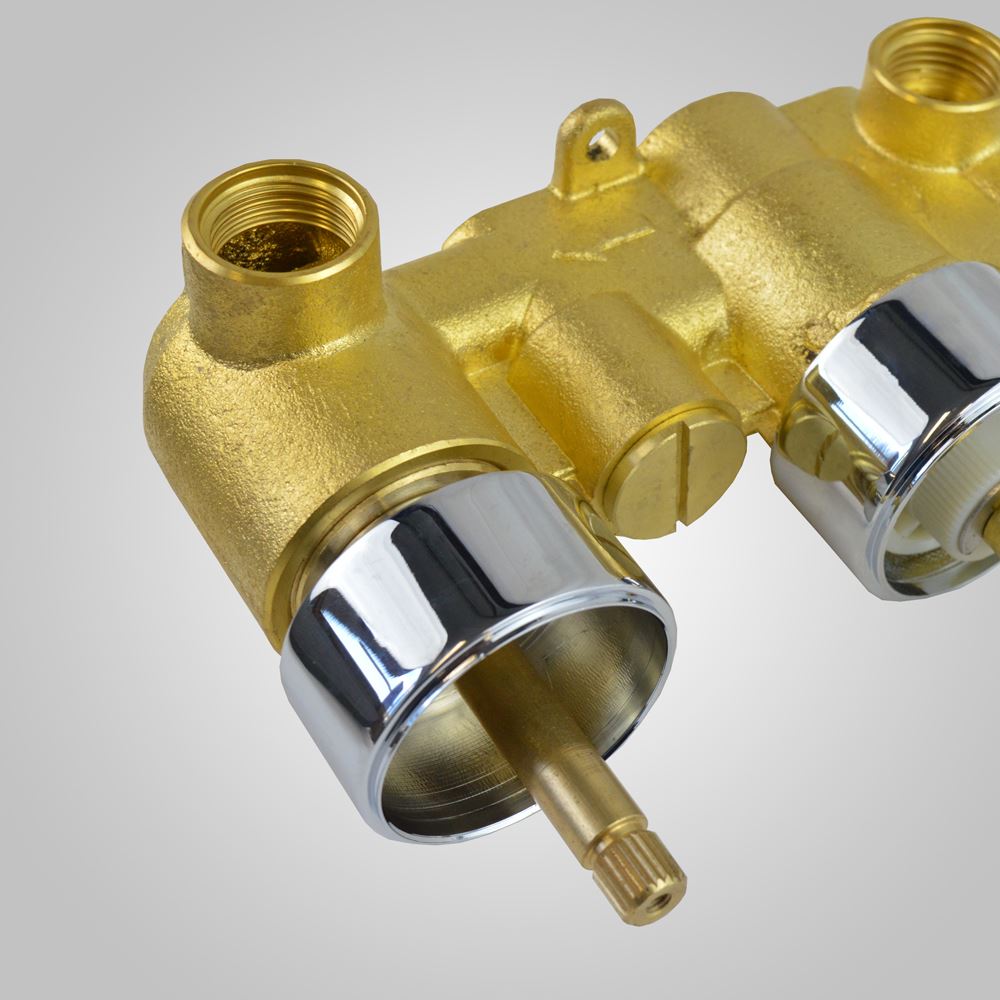

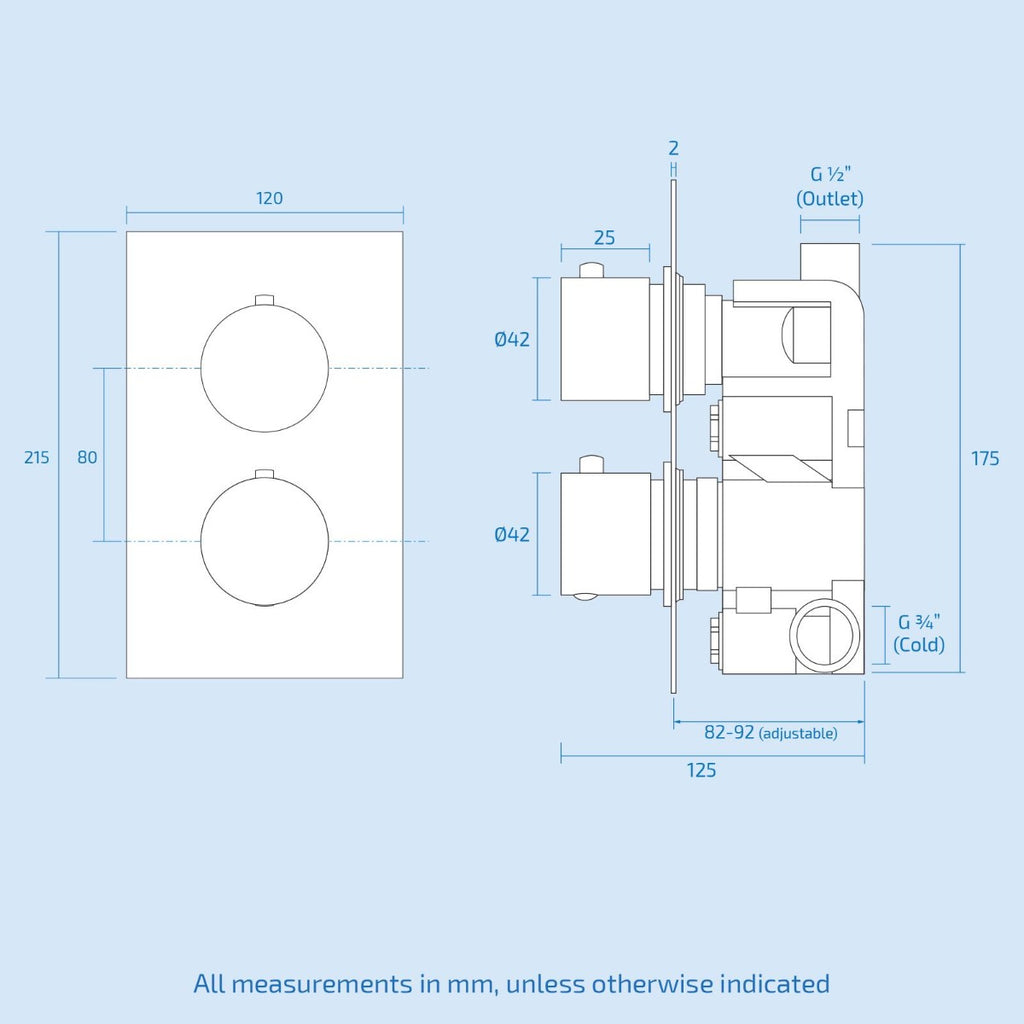

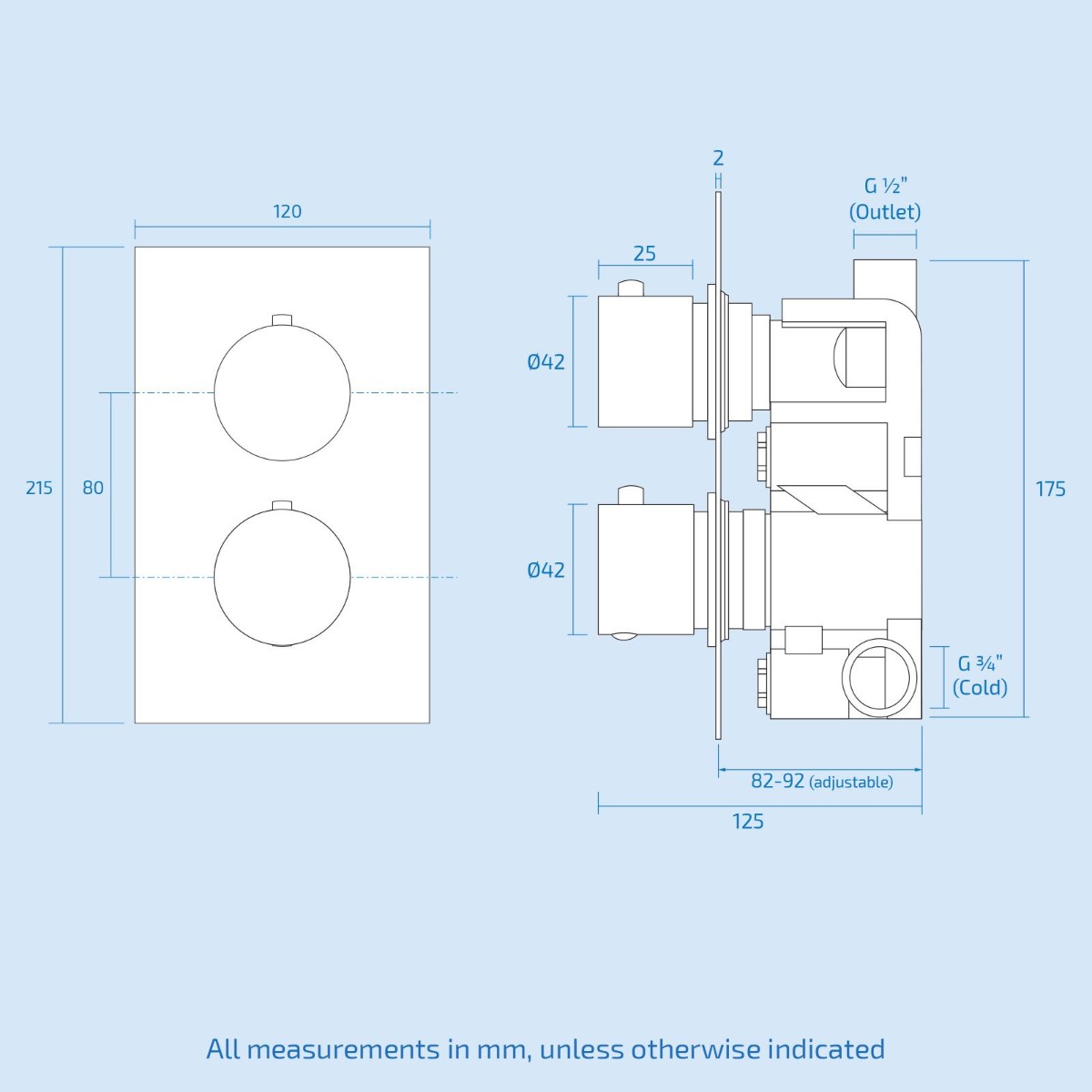

Thermostatic Concealed Valve Features
- Top dial: controls water to 1 outlet diverter
- Bottom dial: temperature control
- High Quality Design
- Chrome Plated
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20: 50 deg C with 38 deg C safety button
- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting

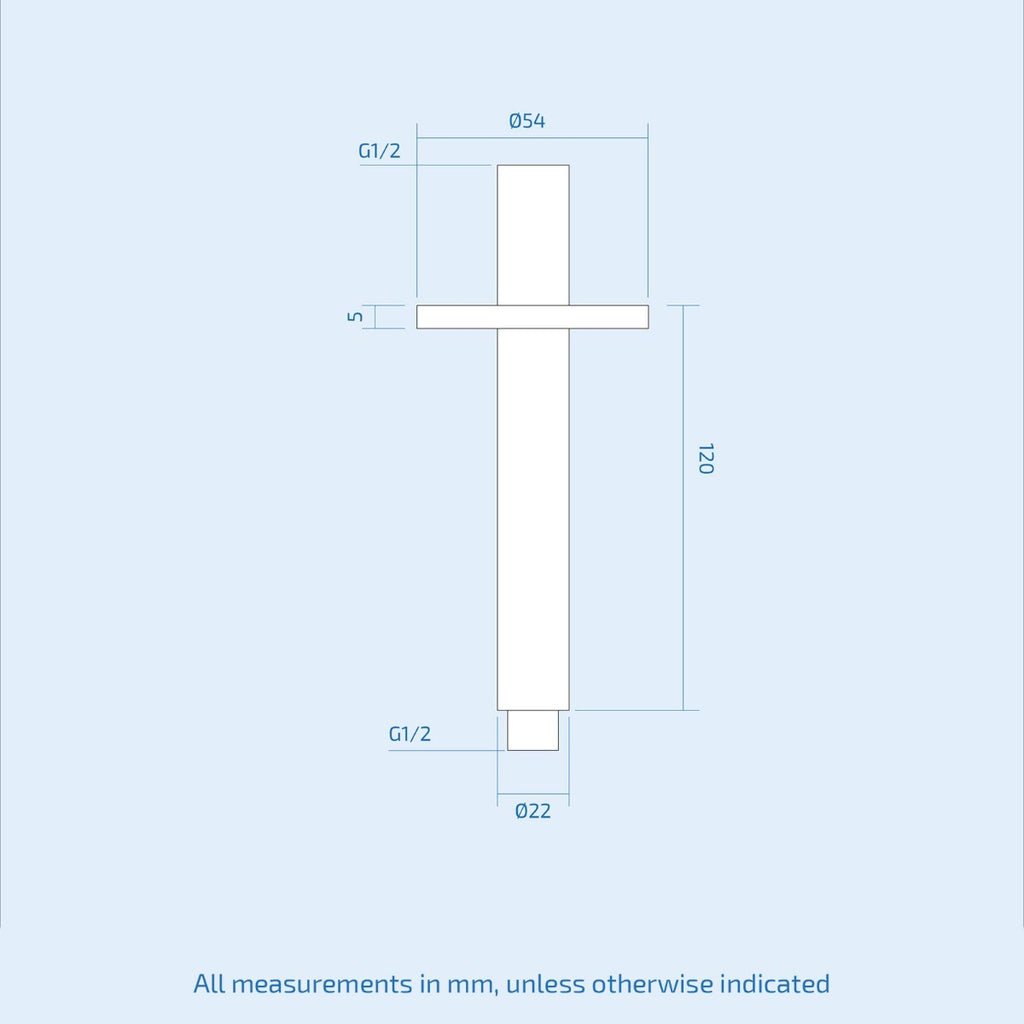

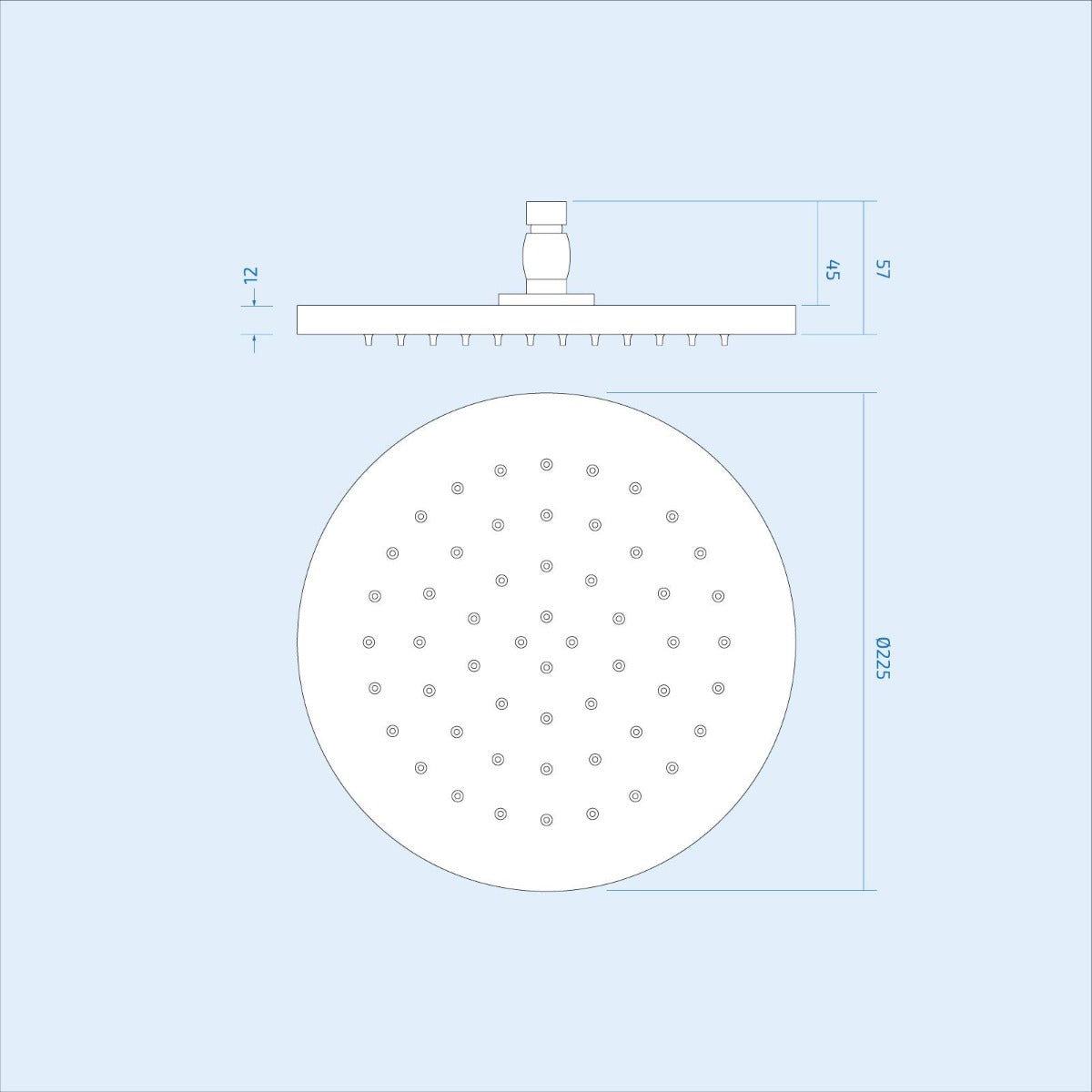

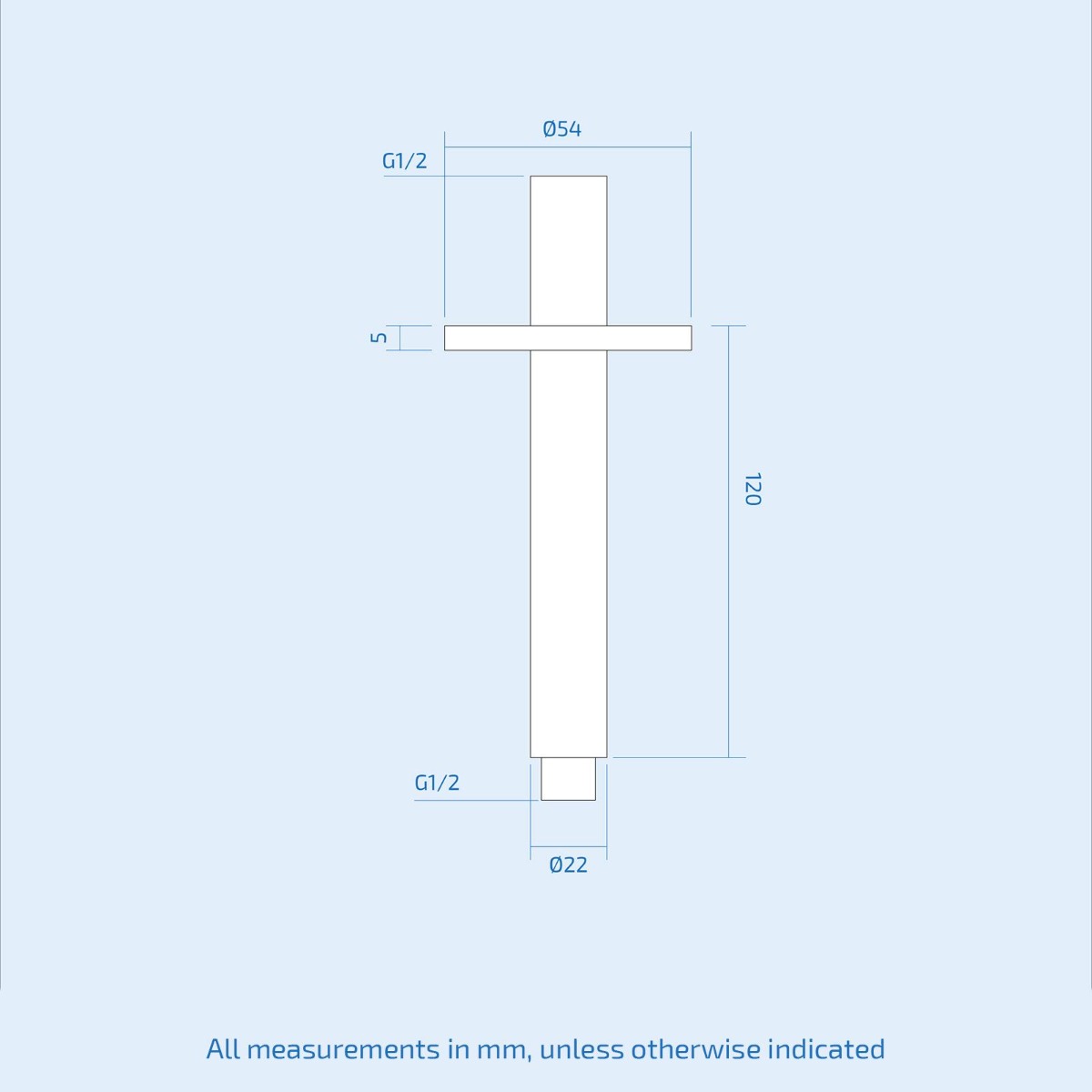

Shower Head with Ceiling Mounted Details
- Shower head
- Stainless Steel
- Solid Brass Arm
- Chrome Finish
Technical Information
- Suitable for the following water systems:
- Combination boiler systems
- Gravity-fed systems (only with a pump)
- MegaFlo systems
- Pumped hot water systems
- Un-vented hot water systems
- Standard pressurised hot water cylinder type systems
Package Contents
- 1 x Thermostatic Concealed Valve
- 1 x Ceiling Mounted Shower Head and Arm
- Complete fitting accessories
Technical Specifications:
- Material: Brass
- Style: Modern
- Finish: Highly polished chrome
- Anti-scalding: Built-in device
- Child Friendly: Yes
- Controls: 1
- Diverter: No
- Valve: Brass construction
- Temperature Range: 20–50°C
- Minimum Pressure: 0.2 bar
- Maximum Pressure: 6 bar
- Guarantee: 10 years
