Description
This Concealed Thermostatic Valve will compliment any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow. Supplied with a 200mm square ABS shower head with swivel joint and arm.
This Modern Design Concealed Thermostatic Valve will compliment any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow.
Thermostatic Concealed Valve Features
- Top dial - controls water to 1 outlet diverter
- Bottom dial - temperature control
- High Quality Design
- Chrome Plated
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting

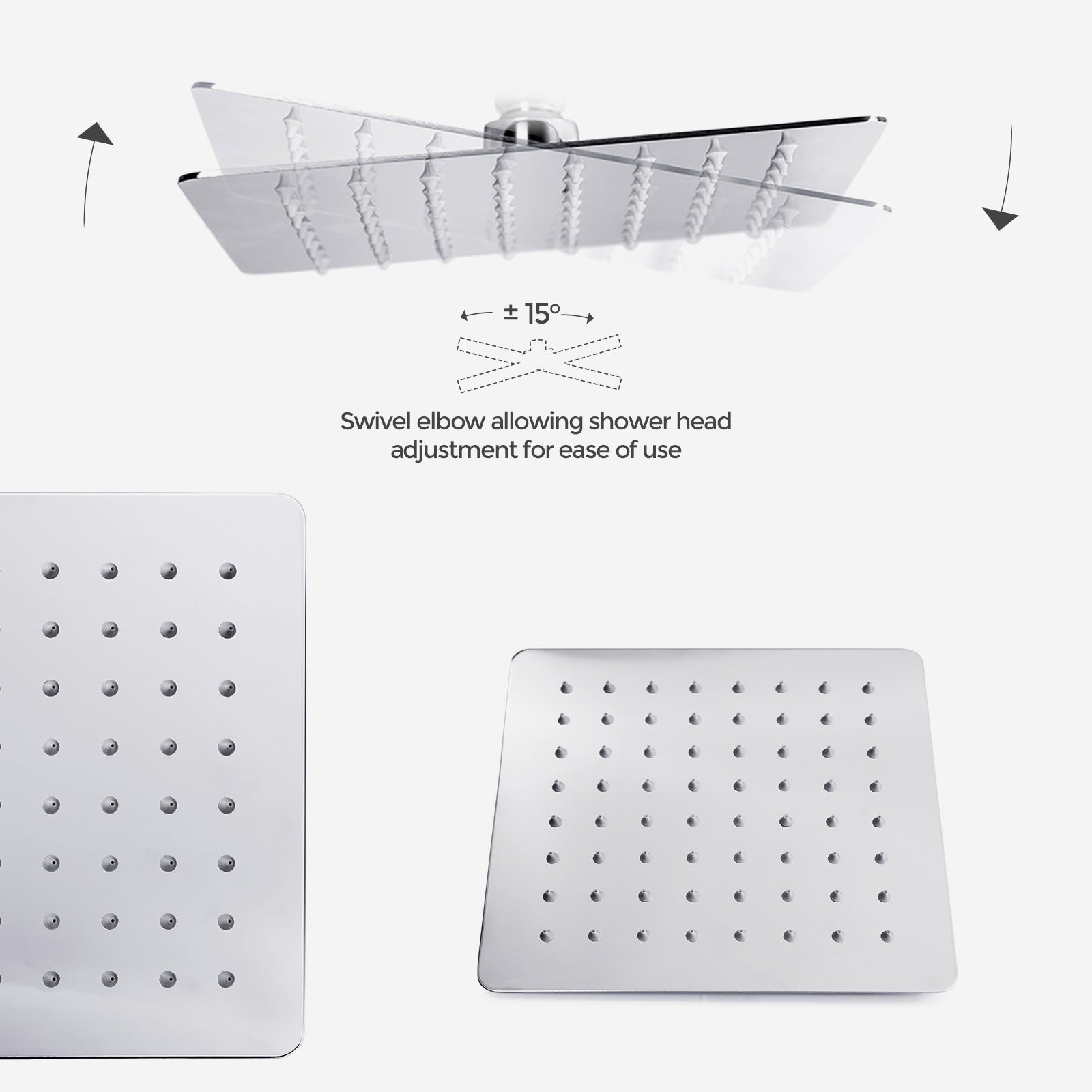

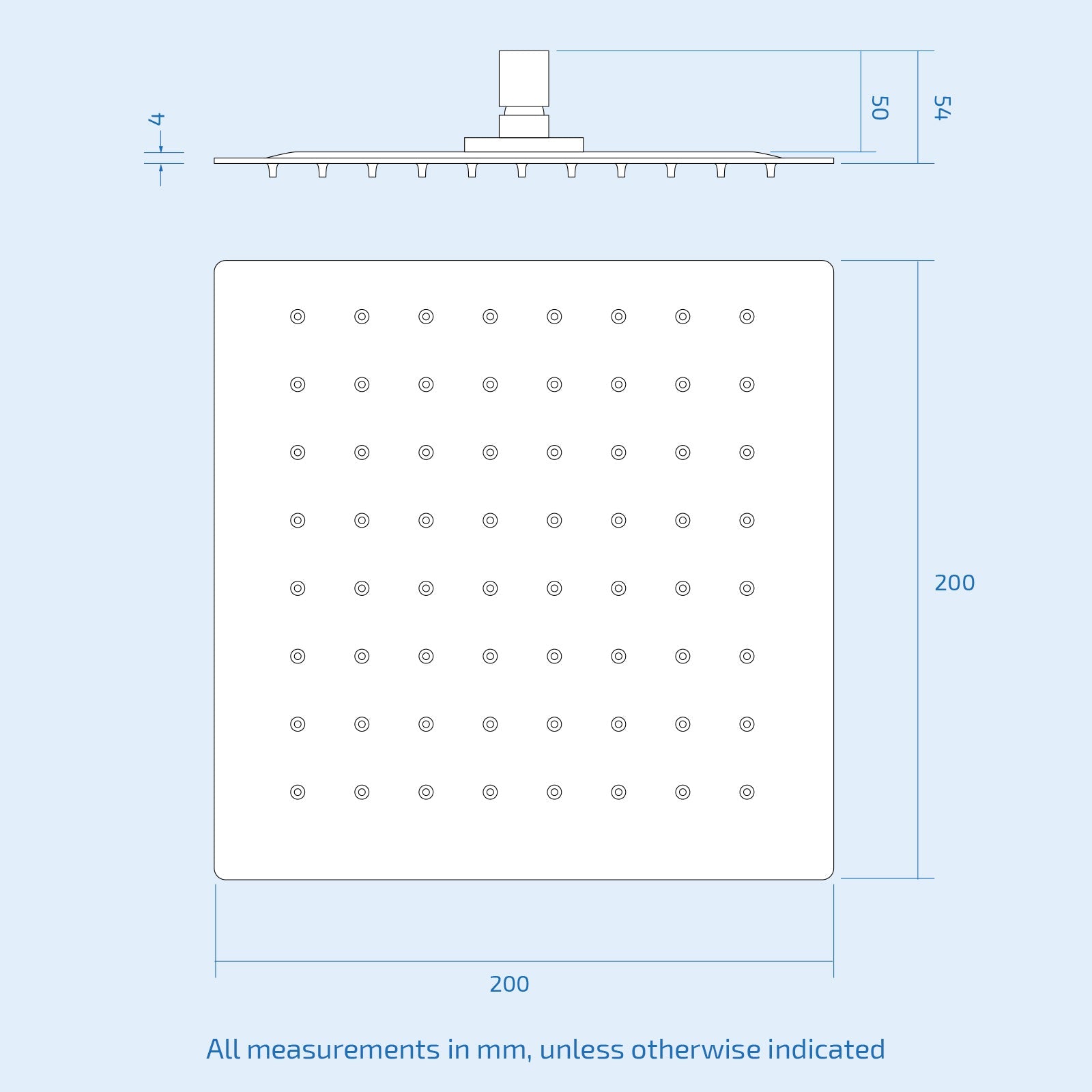

Shower Head with Wall Mounted Arm Details
- ABS Shower Head
- Solid Brass Arm
- Chrome Finish
Technical Information
Suitable for the following water systems:
- Combination boiler systems
- Gravity-fed systems (only with a pump)
- MegaFlo systems
- Pumped hot water systems
- Un-vented hot water systems
- Minimum pressure: 1 bar
- Maximum pressure: 6 bar
- Standard pressurised hot water cylinder type systems
Package Contents
- 1 x Thermostatic Concealed Valve
- 1 x Shower Head
- 1 x Wall Mounted Arm
- Complete fitting accessories
