Description
Description
The Violet concealed thermostatic shower valve has a unique stylish design giving your bathroom the more modern look the thermostatic shower valve is convenient and safe to use. The top dial controls water 2 outlet diverter and the bottom dial control the water temperature, we understand that safety has to be a first with our products hence why the Teslie thermostatic show mixer valve are fixed with thermostatic control, hence why the Violet thermostatic shower mixer valve is fitted with a safety button, pre-set to 38 degrees, which prevents any accidental scalding temperatures.
Specifications

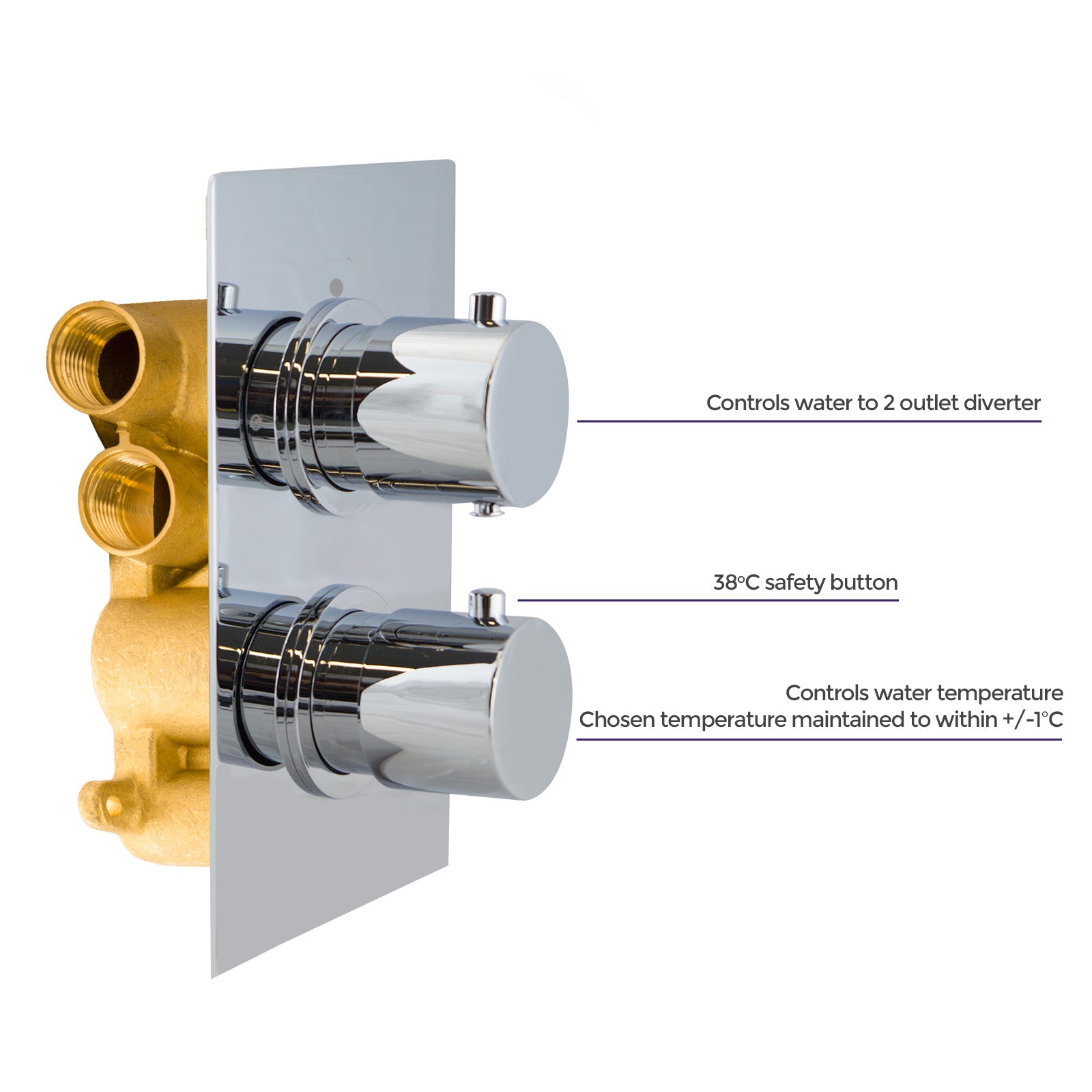

- Top Dial - controls water to 2 outlet diverter
- Bottom Dial - temperature control
- Chrome plated
- Durable and solid brass construction
- Thermostatically controlled
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC.
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting, Inlet 3/4", Outlet 3/4"
Technical Information:
Suitable for the following water systems:
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum pressure of 0.5 bar to maximum 7.0 bar
Package Contents
- Concealed Thermostatic Mixing Shower Valve
- Face Plate
- Dials x 2
- Fittings
- Instructions
