Description

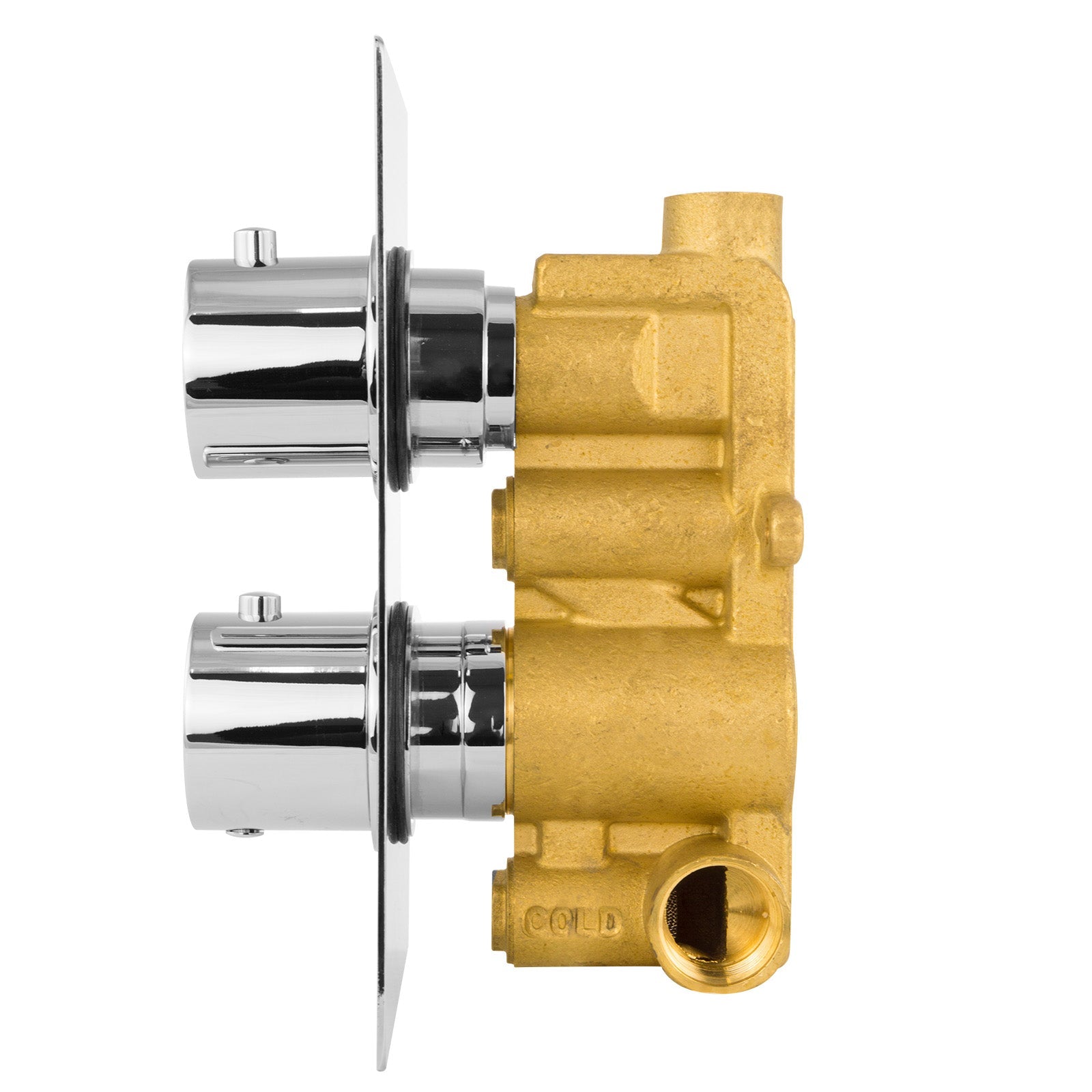

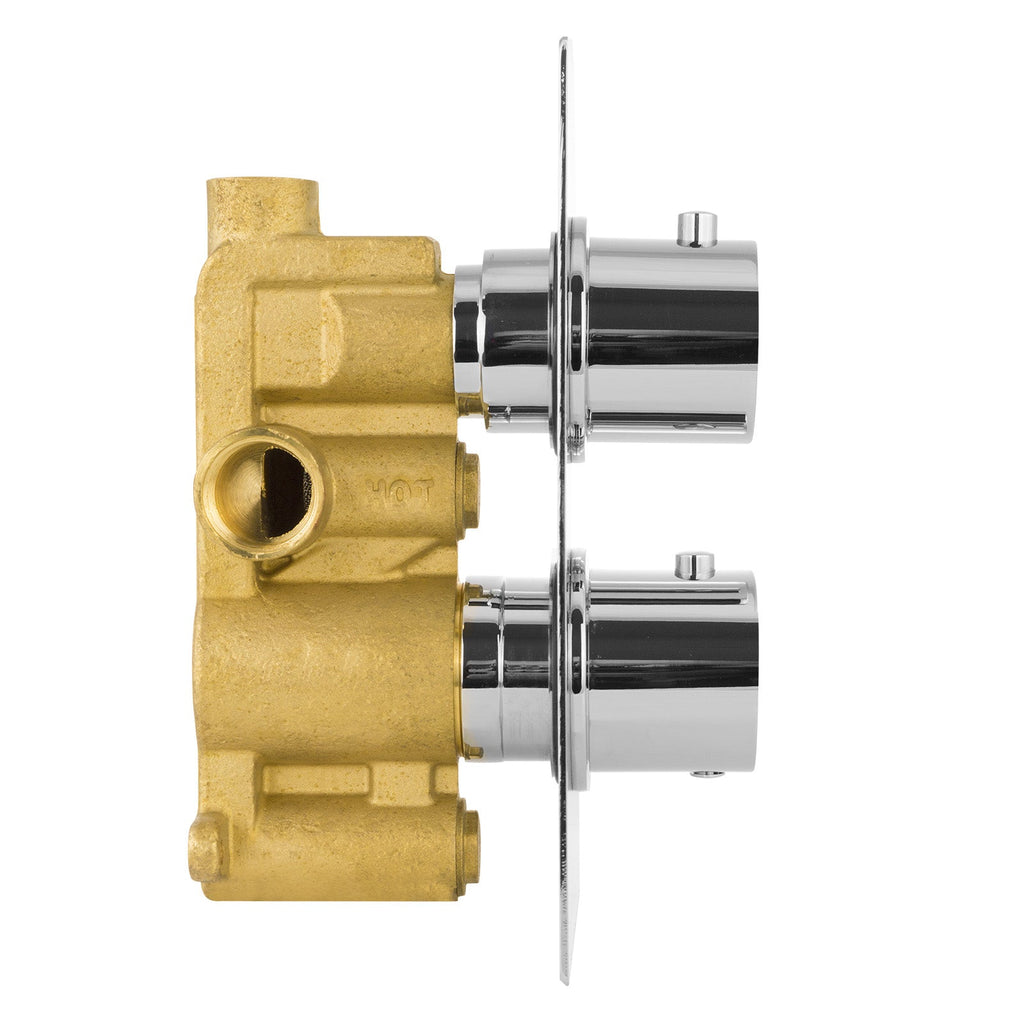

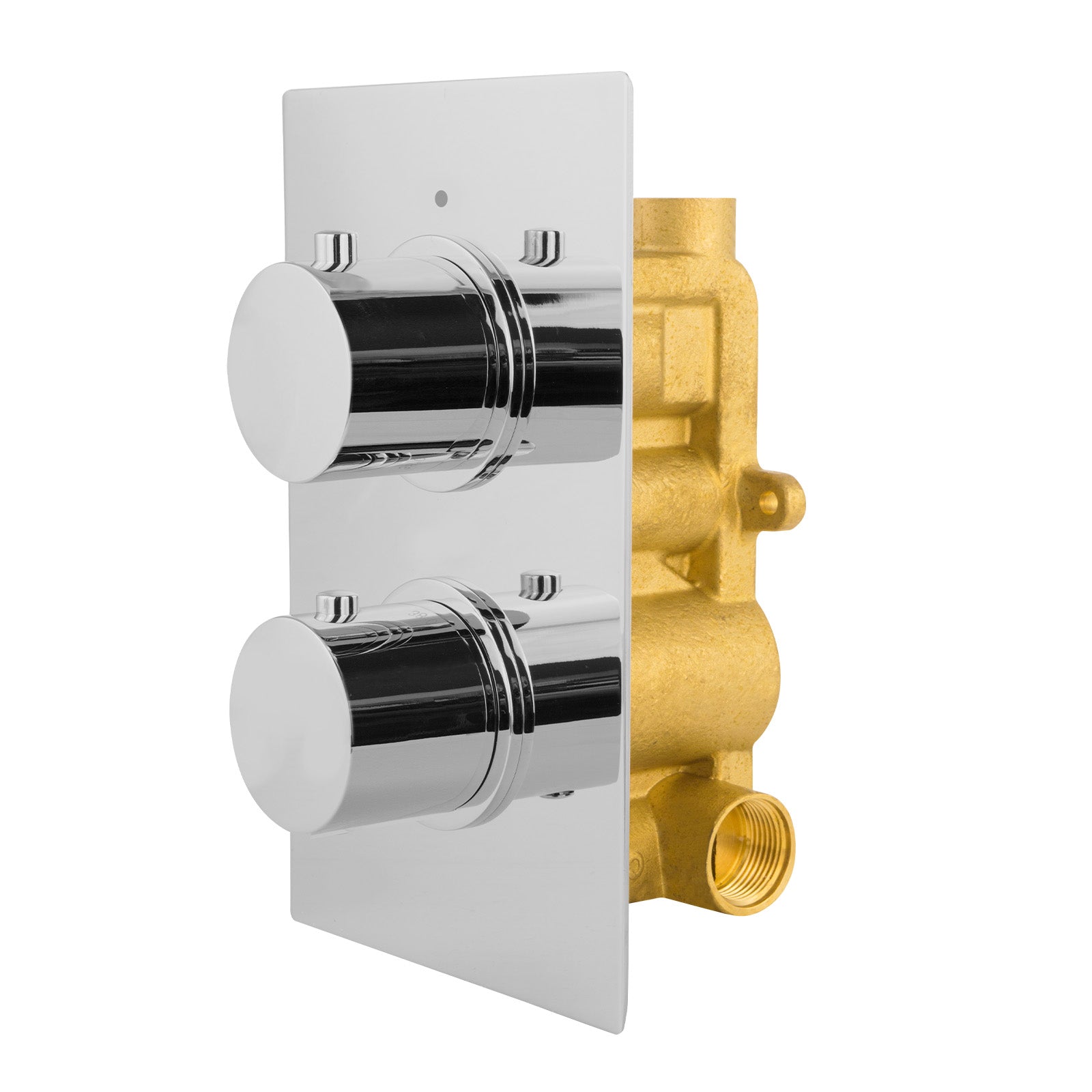

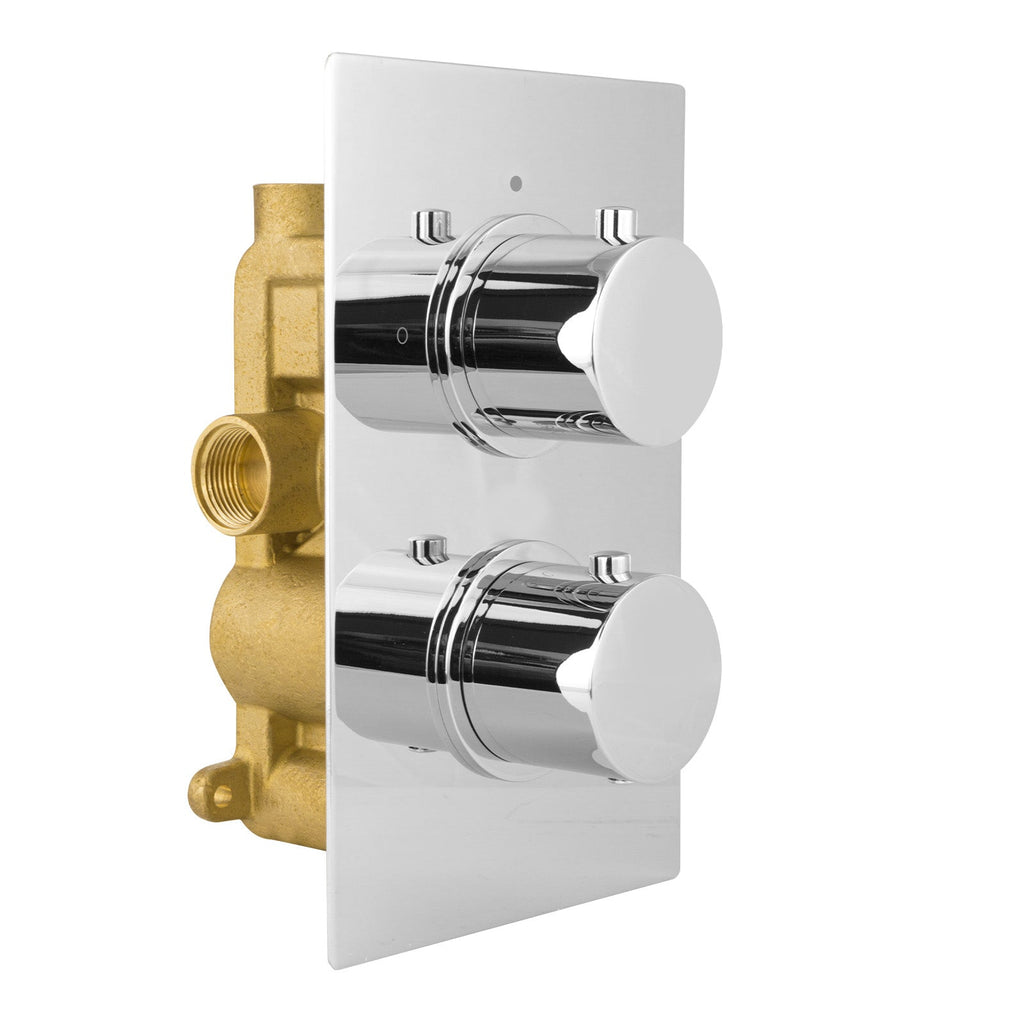

This Concealed Thermostatic Valve will compliment any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow.
This product comes with a 10 Year Guarantee.
- Beautiful chrome Finish
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built-in non-return valves to prevent backflow
- Chosen temperature maintained to within +/-1ºC

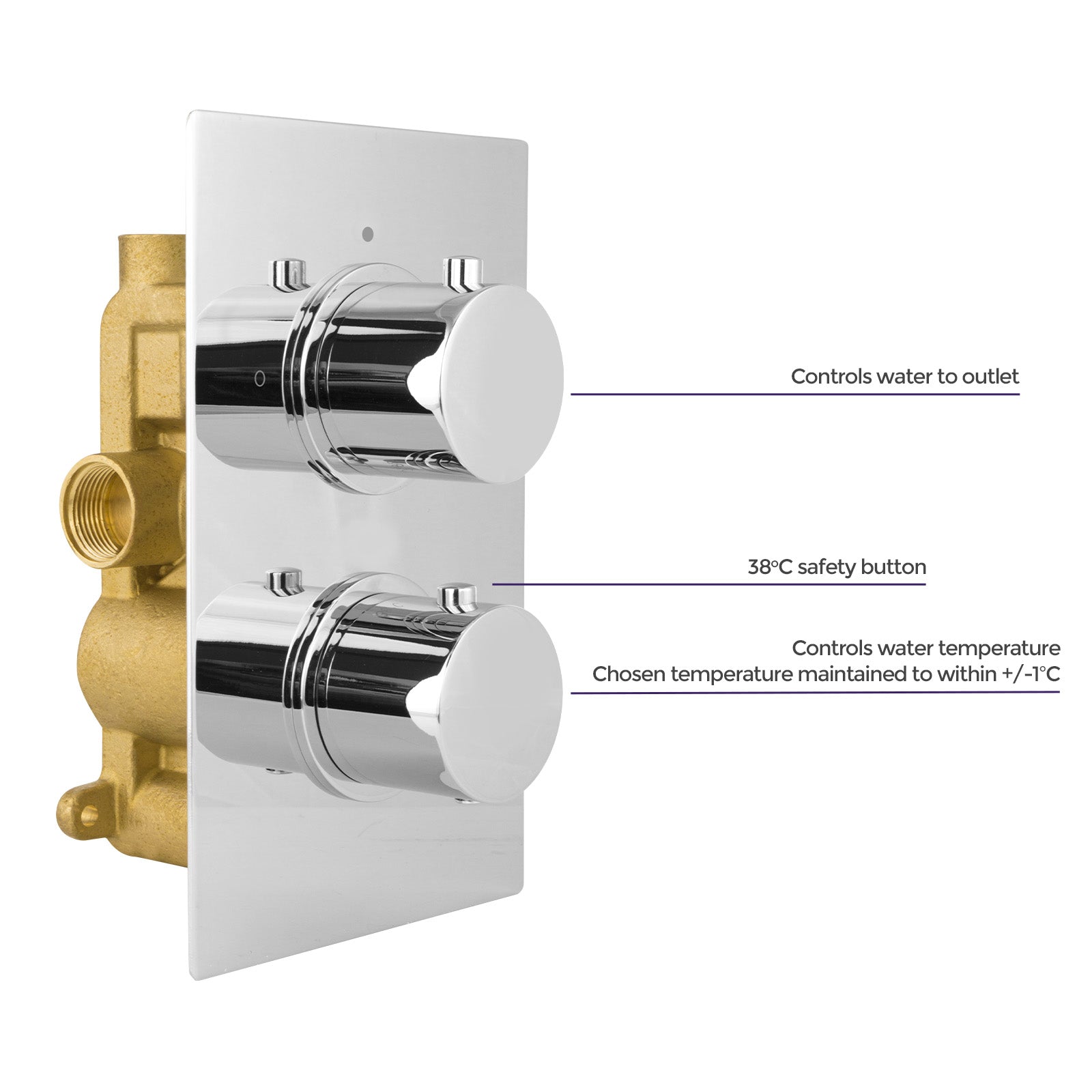

Thermostatic Valve Features
- Top dial: controls water to 1 outlet diverter
- Bottom dial: temperature control
- Inlet Connection Size: 2x G 3/4" BSP
- Outlet Connection Size: 1x G 1/2" BSP
- High Quality Design
- Chrome Finish
- Thermostatically controlled
- WRAS Approved
- Manufactured from highly durable brass
- Operating range 20: 50 deg C with 38 deg C safety button
- Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting
Suitable for the following systems
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum pressure of 0.2bar to maximum 6bar (Recommended pressure is 1.0bar)

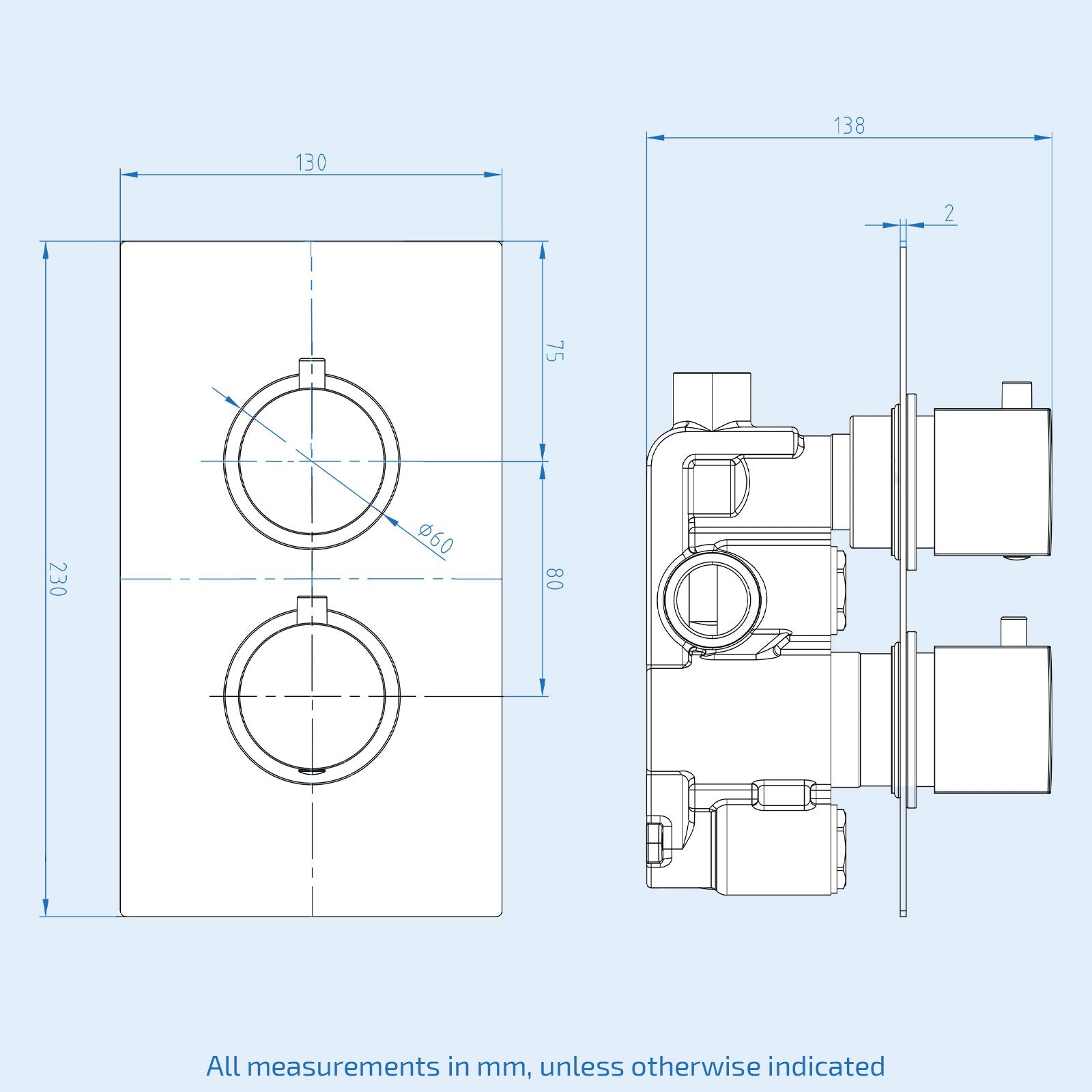

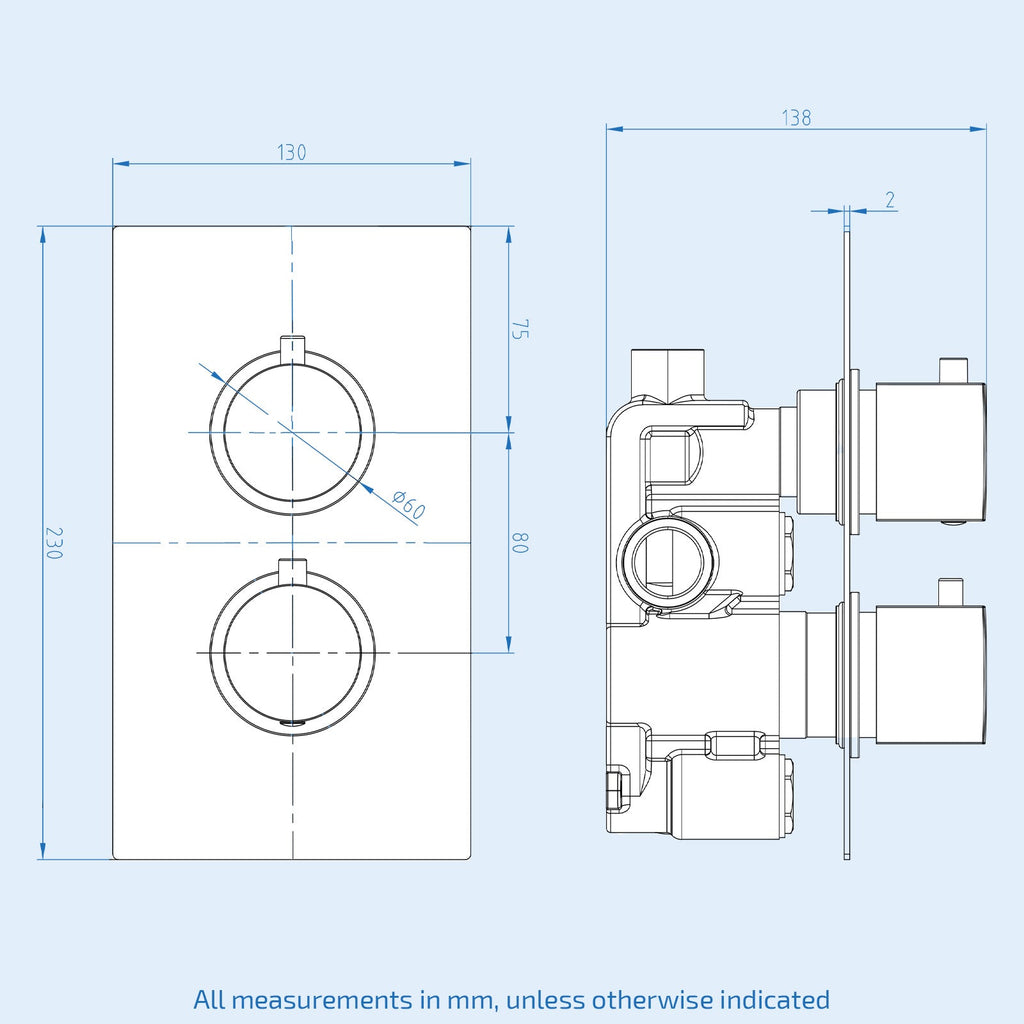

Specifications
- Height: 230mm
- Width: 130mm
- Depth: 138mm
- Un-vented systems
- Pressurised cylinder systems
Package Contents
- 1 X Thermostatic Valve
- 1 X Installation Guide
- Wall fixings
