Description

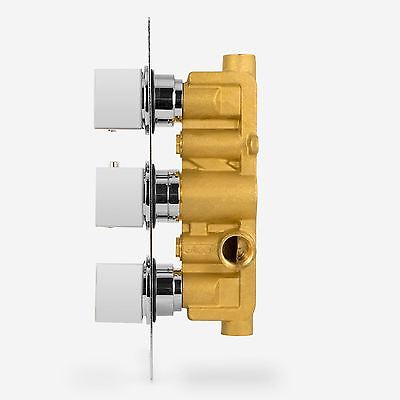

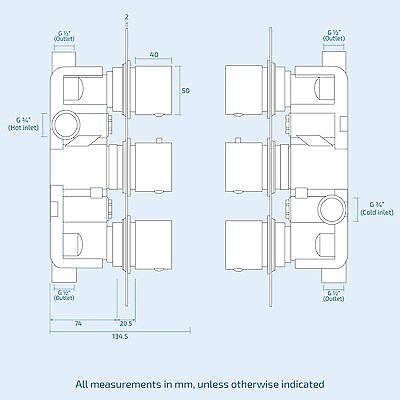

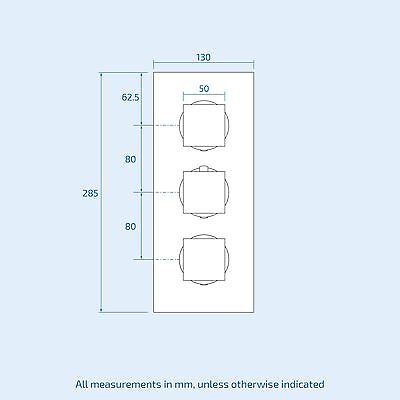

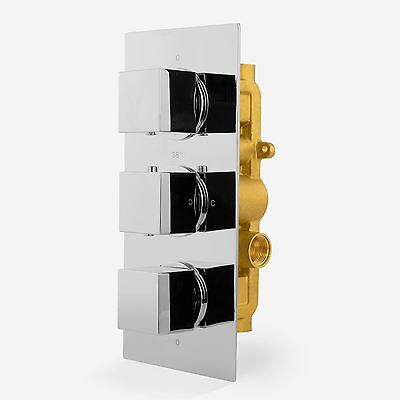

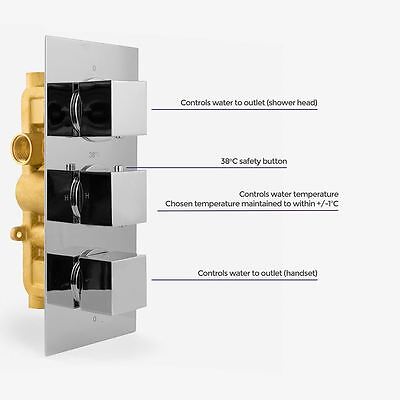

Thermostatic Concealed Valve
- Top dial - controls water to 2 outlet diverter
- Middle dial - on and off control
- Bottom dial - temperature control

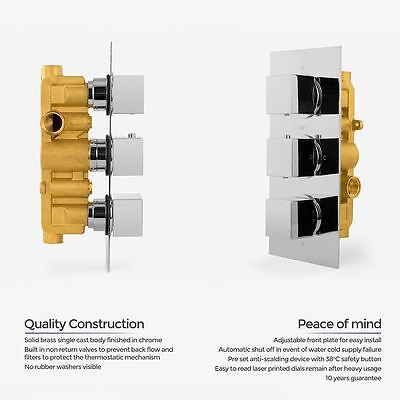

- Manufactured from highly durable solid brass
- Finished in chrome ensuring a high quality reflective mirror finish
- Tarnish and corrosion resistant
- Operating range 20-50ºC, with 38ºC safety button
- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting
Overhead Shower Arm

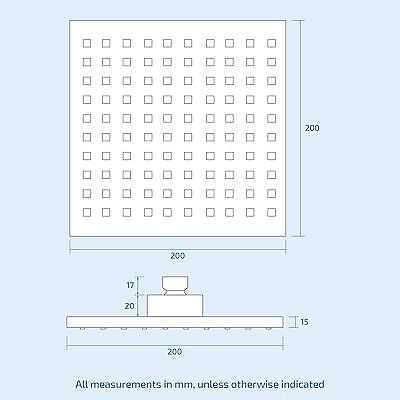

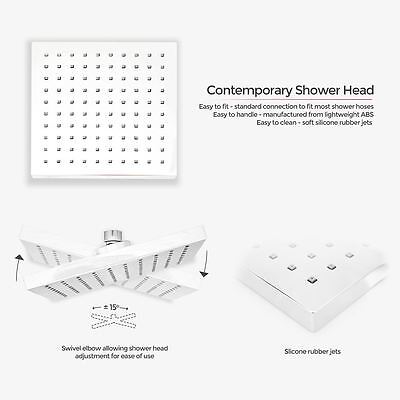

- Overhead shower dimensions - 200mm x 200mm x 8mm
- Chrome plated ABS plastic overhead shower
- Solid brass 15 degrees swivel joint for ease of use

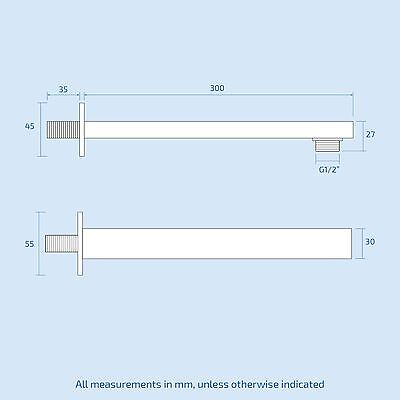

- Solid brass matching arm length - 300mm
- Finished in chrome ensuring a high quality reflective mirror finish
- UK standard size fitting
Handset Shower
- Slimline chrome plated ABS plastic handset
- Easy clean, anti-clog rubber nozzles
- Water tight construction to minimise the possibility of water leakage
- Stainless steel, flexible, braided 1.5m double interlocking shower hose

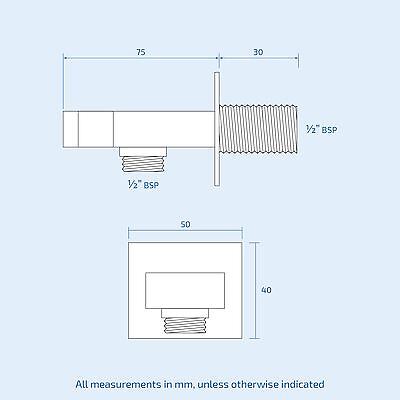

- Wall outlet bracket and handset holder
Subject to a minimum pressure of 0.5 bar to maximum 6 bar
- Combination boiler systems
- Gravity fed systems (only with a pump)
- MegaFlo systems
- Pumped hot water systems
- Un-vented hot water systems
- Standard pressurised hot water cylinder type systems

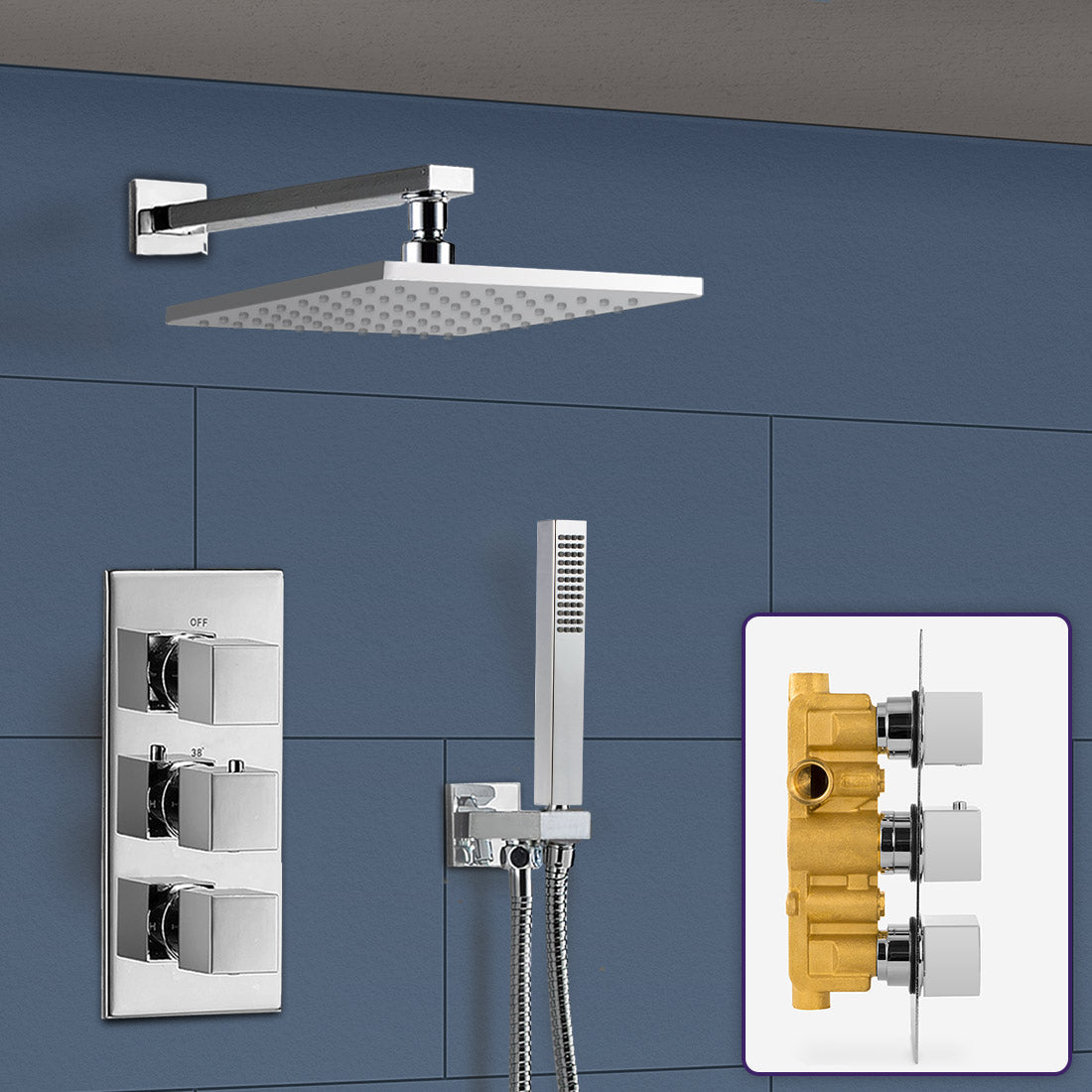

Package Contents
- Thermostatic concealed valve
- Overhead shower with arm
- Handset shower with hose and bracket
