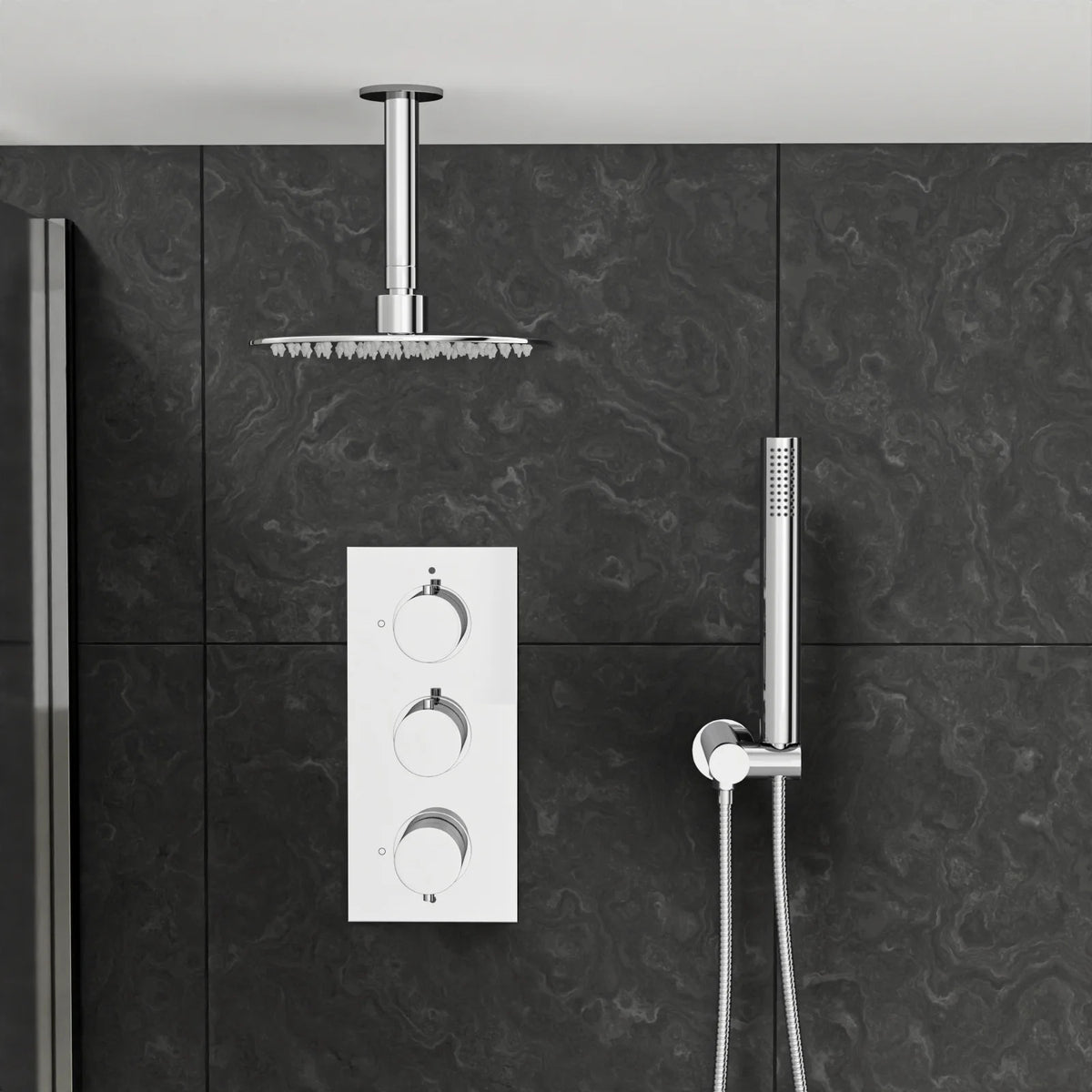

This premium chrome-finished brass shower system features a three-dial concealed thermostatic valve for independent control over the 200 mm ultra-thin overhead shower and handheld. Engineered for safety, it includes an automatic shut-off feature that instantly stops water flow if the cold supply fails, to protect against scalding. Complete with a bath filler with sprung waste, this all-in-one set delivers a luxurious and reliable modern bathroom experience.
Specifications

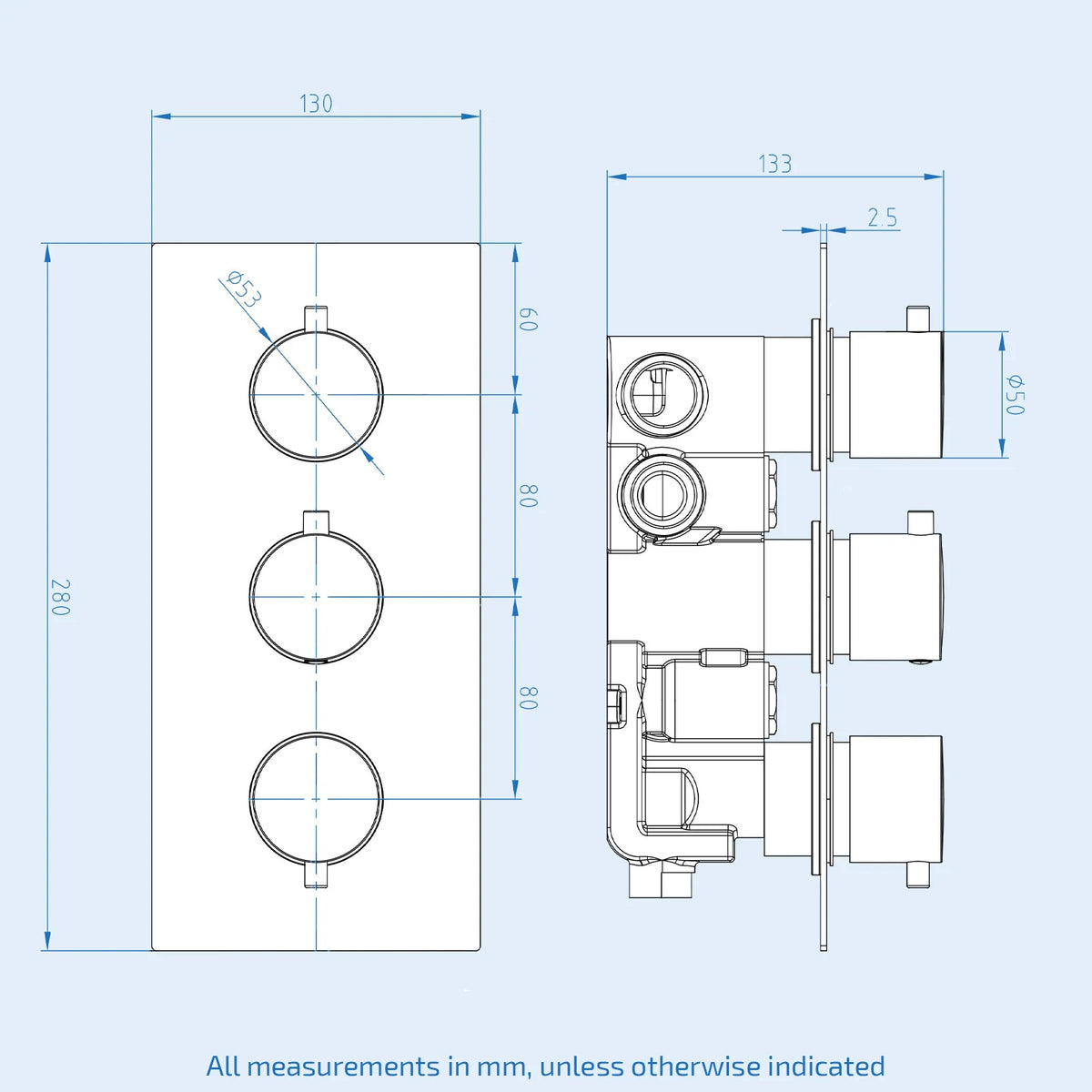

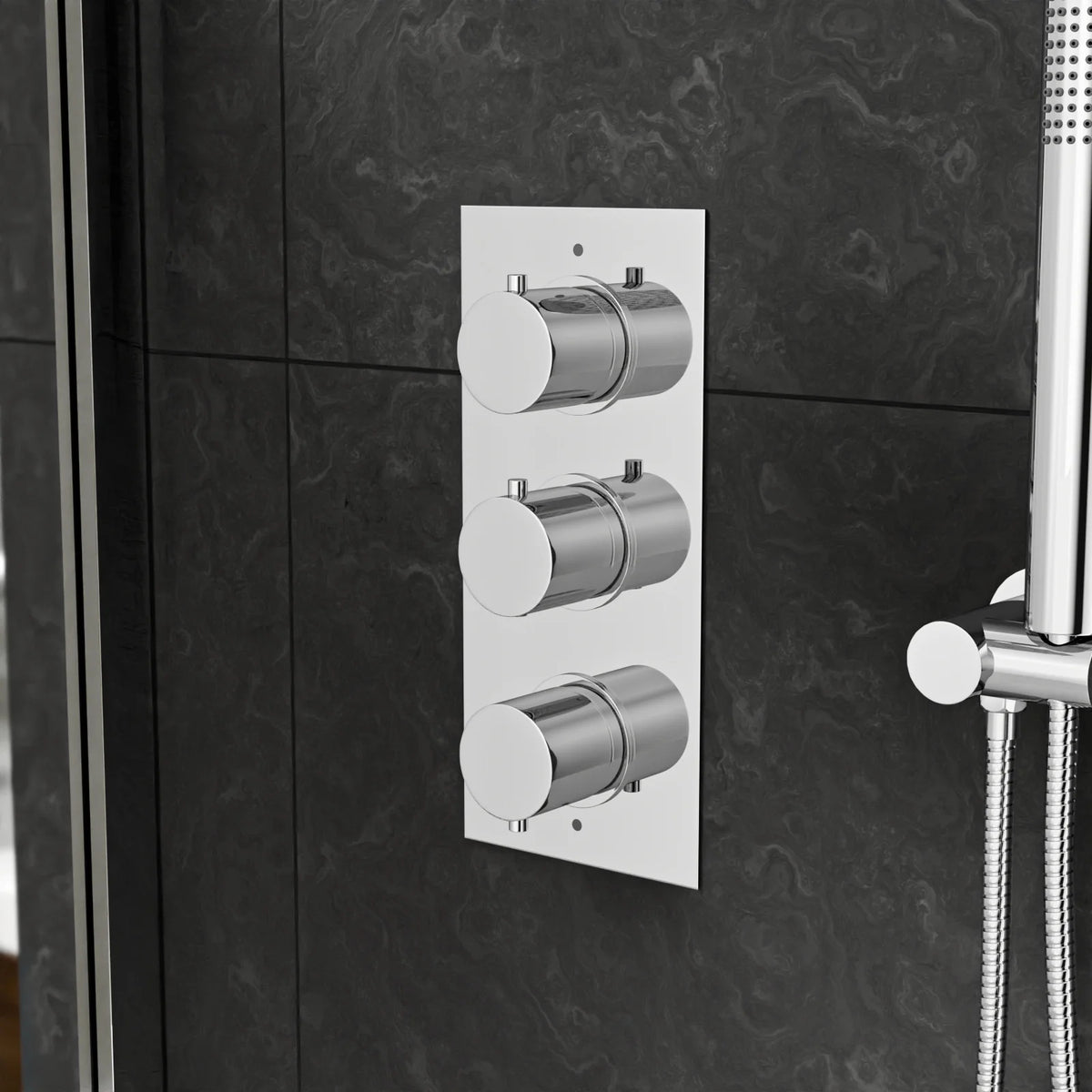

Valve
- Top Dial - Controls water to 1 outlet diverter
- Middle Dial - Temperature Control
- Bottom Dial - Controls water to 2 outlet diverters
- Automatic shut-off in the event of cold water supply failure
- Finish: Chrome
- Material: Brass
- Width: 130 mm
- Height: 280 mm

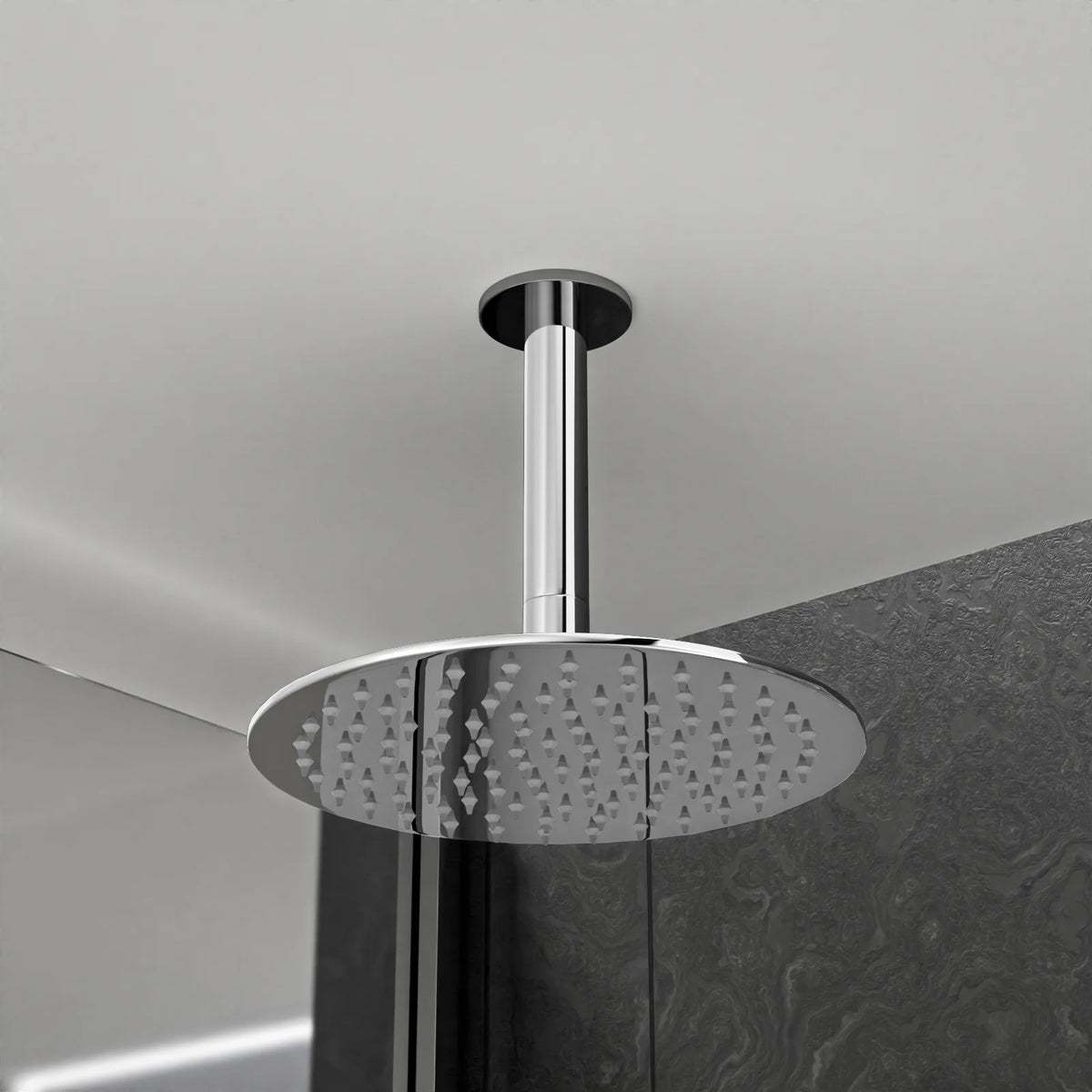

Head & Ceiling Arm
- Head Material: Brass
- Arm Material: Brass
- Finish: Chrome
- Adjustable swivel joint elbow for ease of use

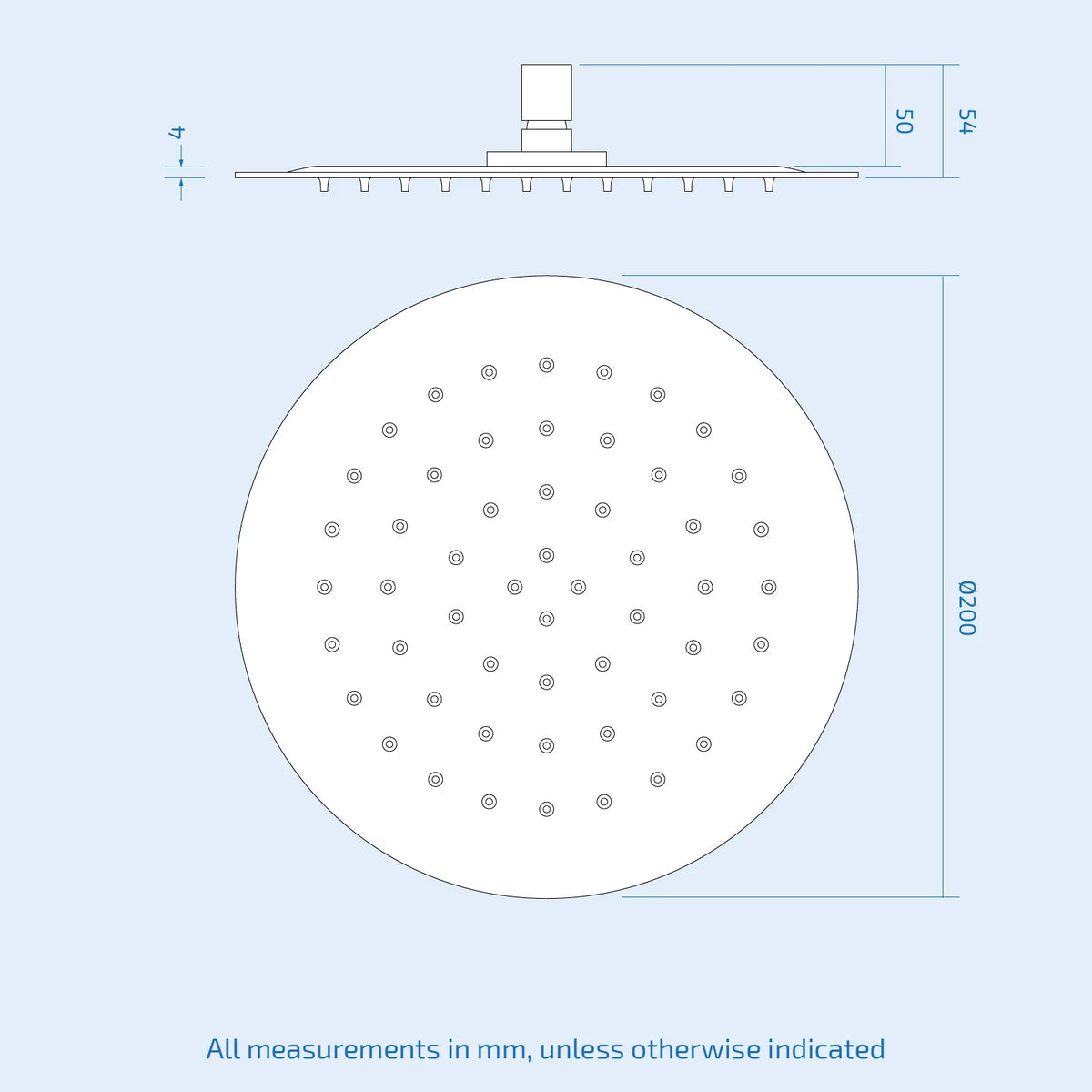

- Head Dimensions: 200 mm x 4mm

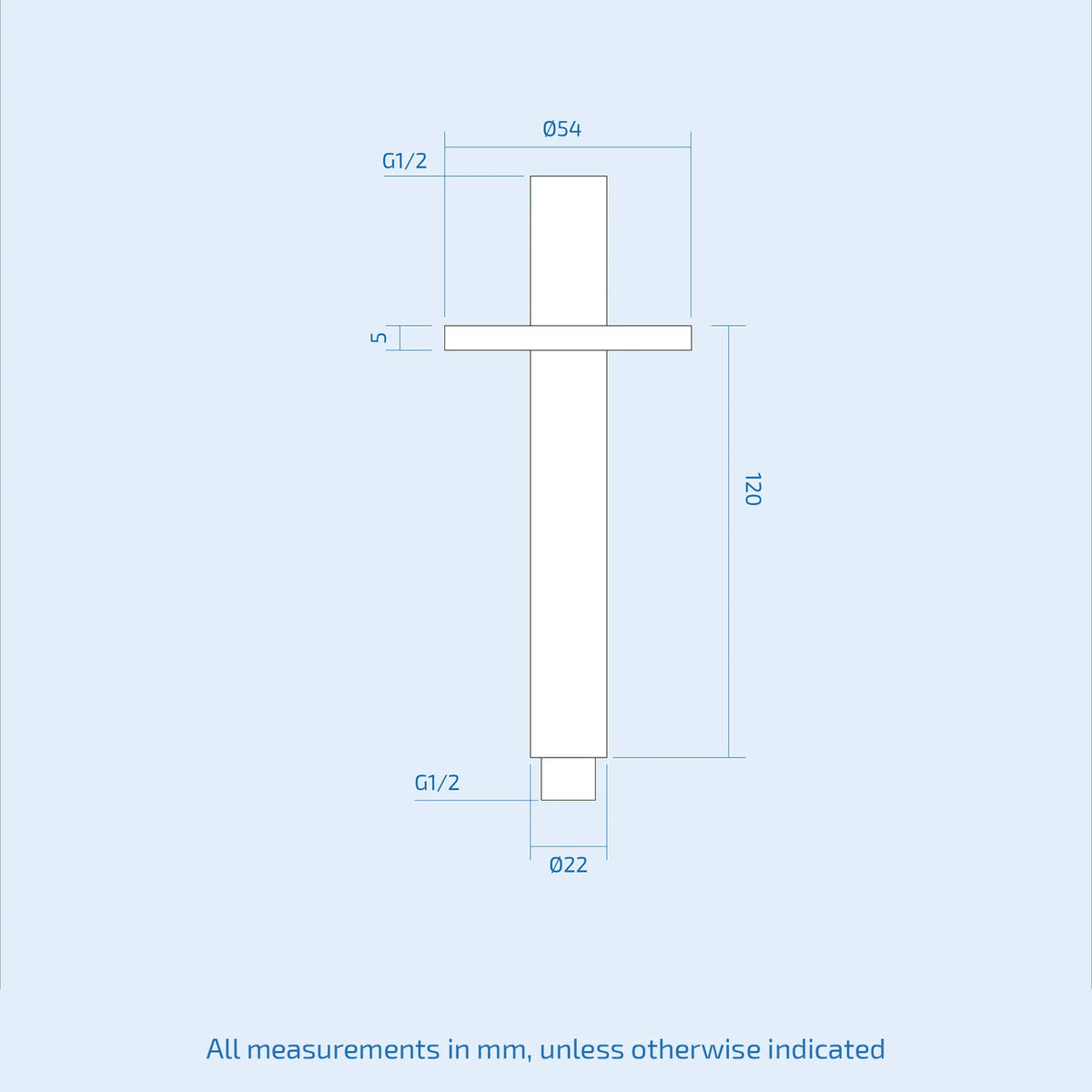

- Ceiling Arm Length: 120 mm

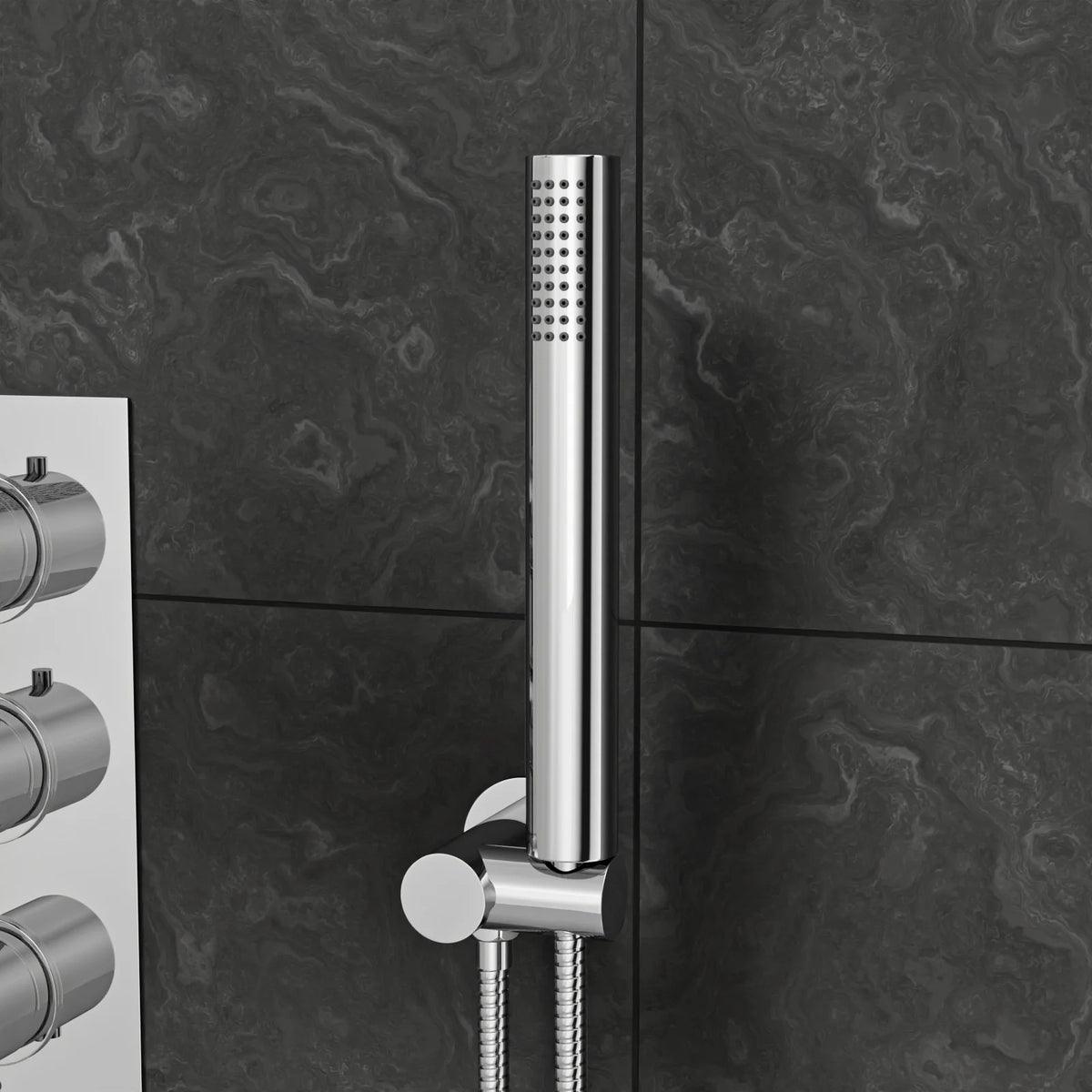

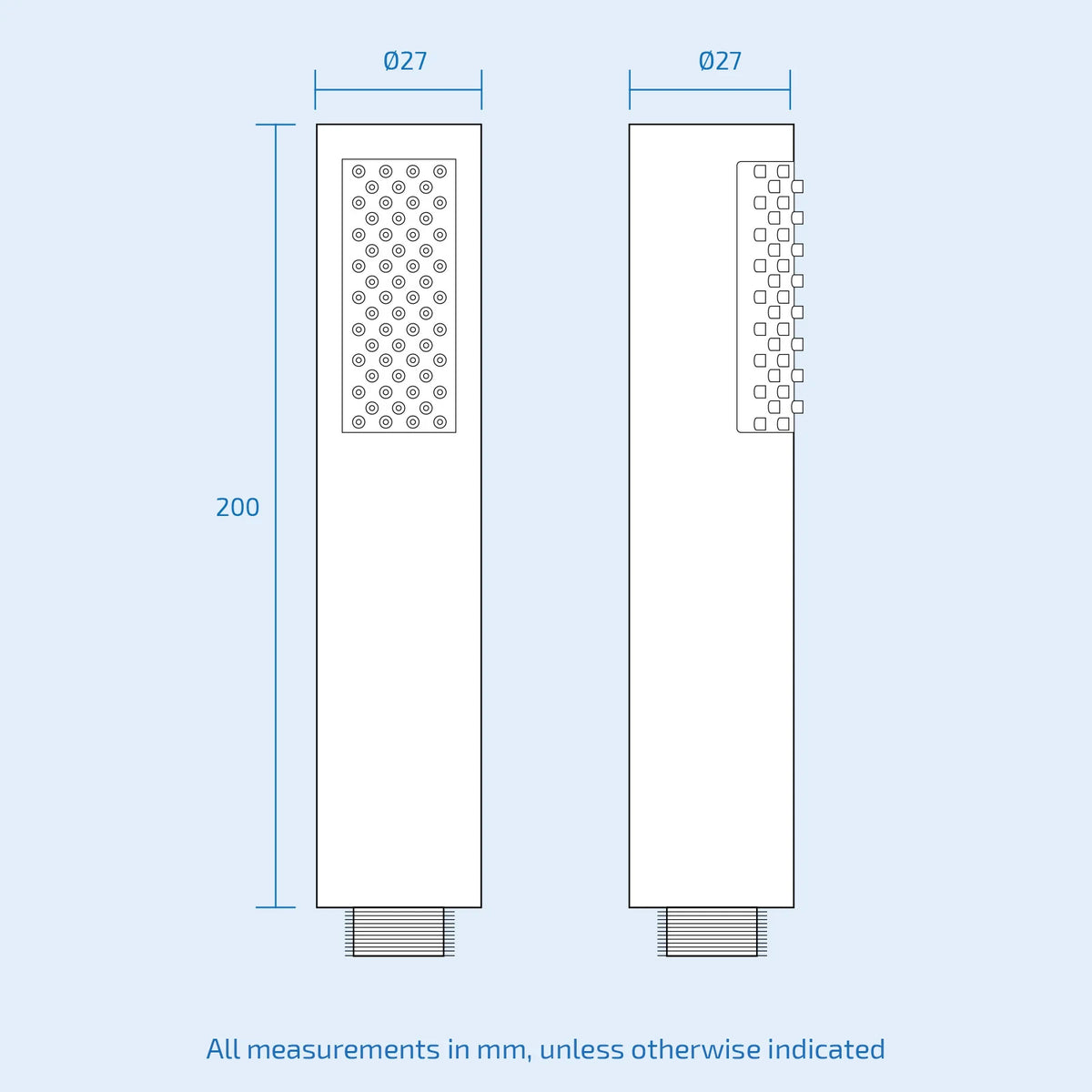

Handset & Bracket
- Handset Height: 200mm
- Handset Width: 27mm
- 1.5m double interlocking hose, with two rubber washers
- Solid brass round wall outlet bracket/handset holder
- Finish: Polished chrome
- Matching round back plate

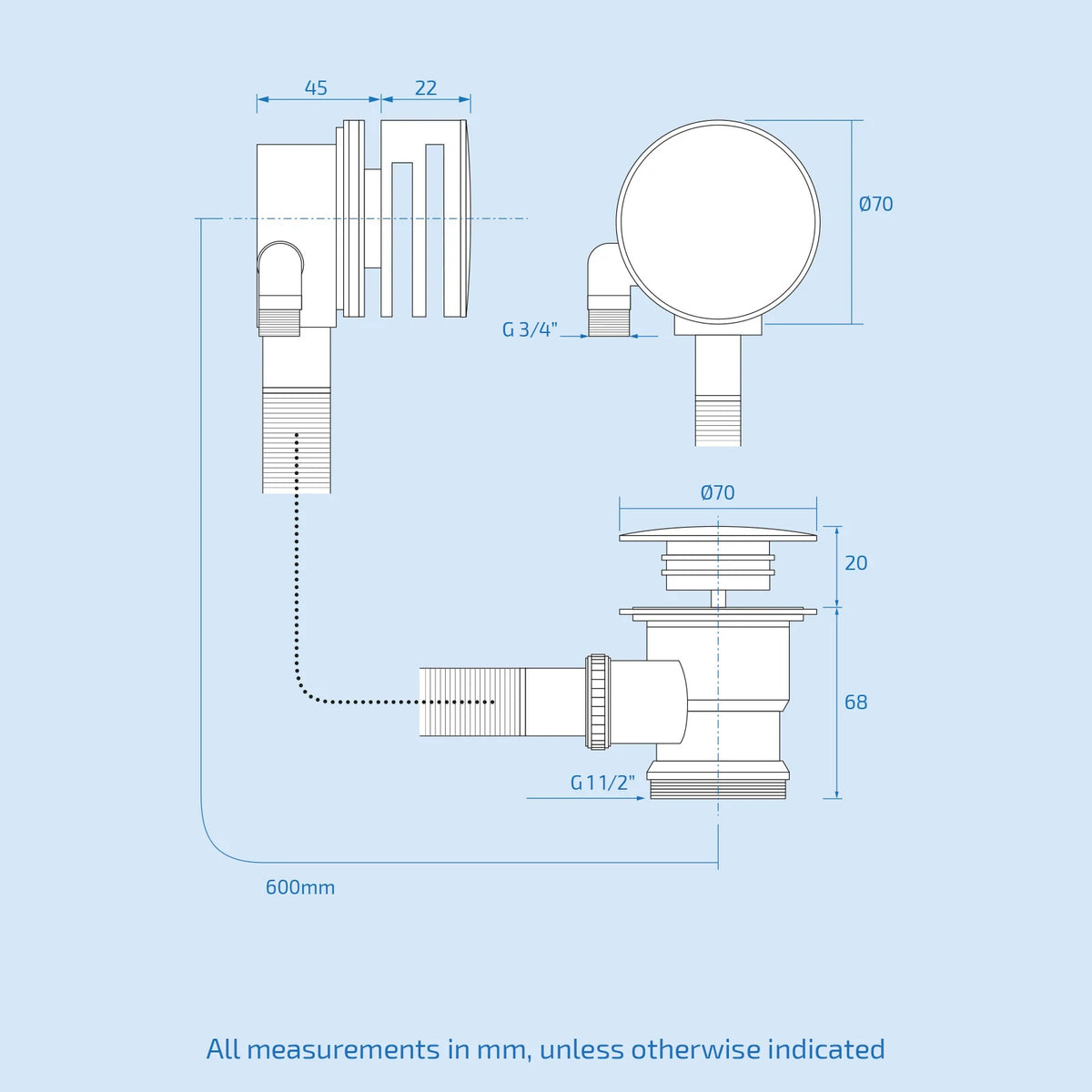

Bath Filler & Sprung Waste
- Length: 600mm
- Waste Diameter: 70mm
- Push-button bathtub waste with connecting overflow
- Combined bath filler and waste
- Requires bath panel valves or concealed shower valve or deck-mounted diverter
- Modern design chrome-plated finish

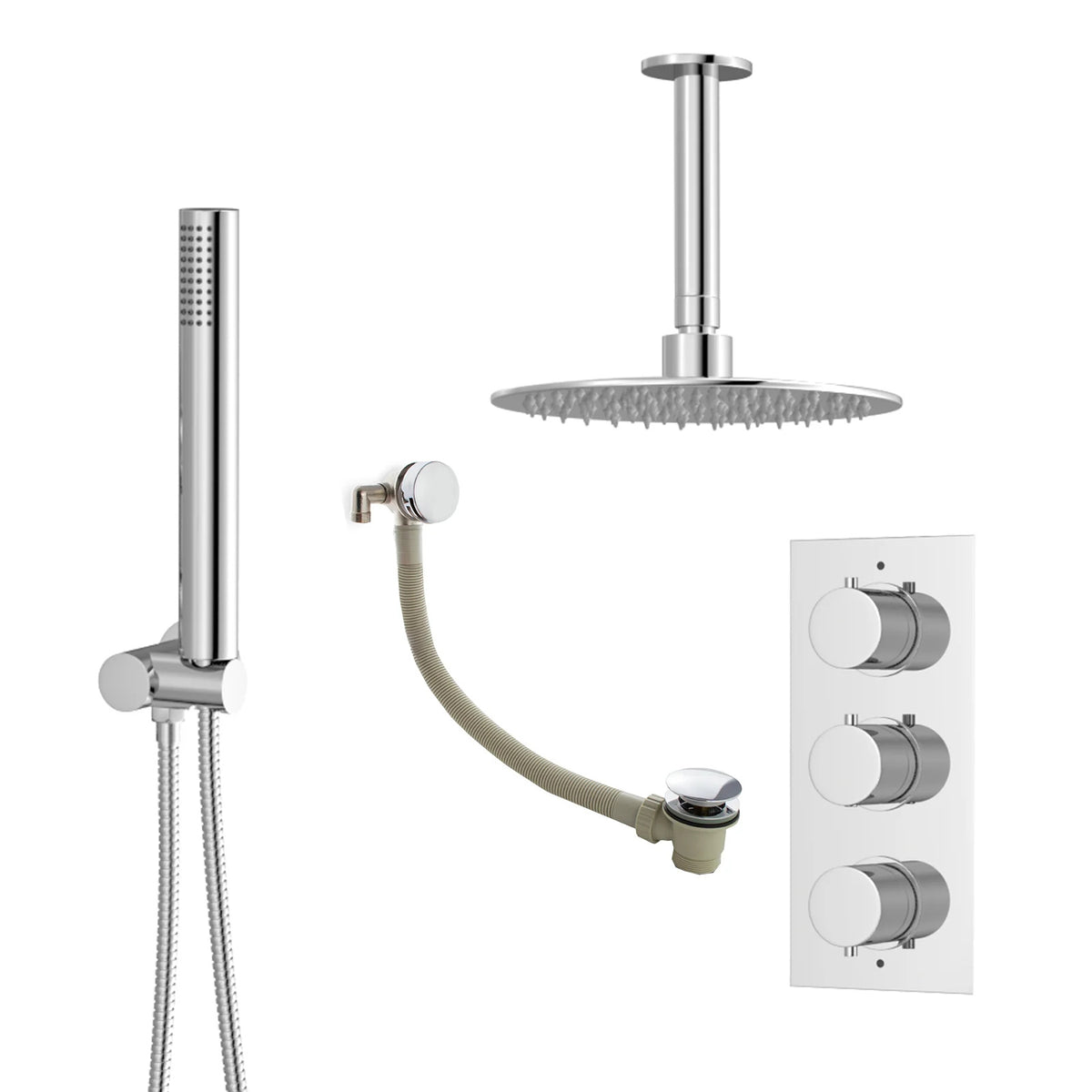

Package Contents
- 1 x Concealed Thermostatic Mixer Valve
- 1 x Ultra Slim Shower Head
- 1 x Ceiling Head Arm
- 1 x Handset with Bracket
- 1 x 1.5m Double Lock Shower Hose
- 1 x Bath Filler with Sprung Waste
- 1 x Wall Outlet Elbow
