Description

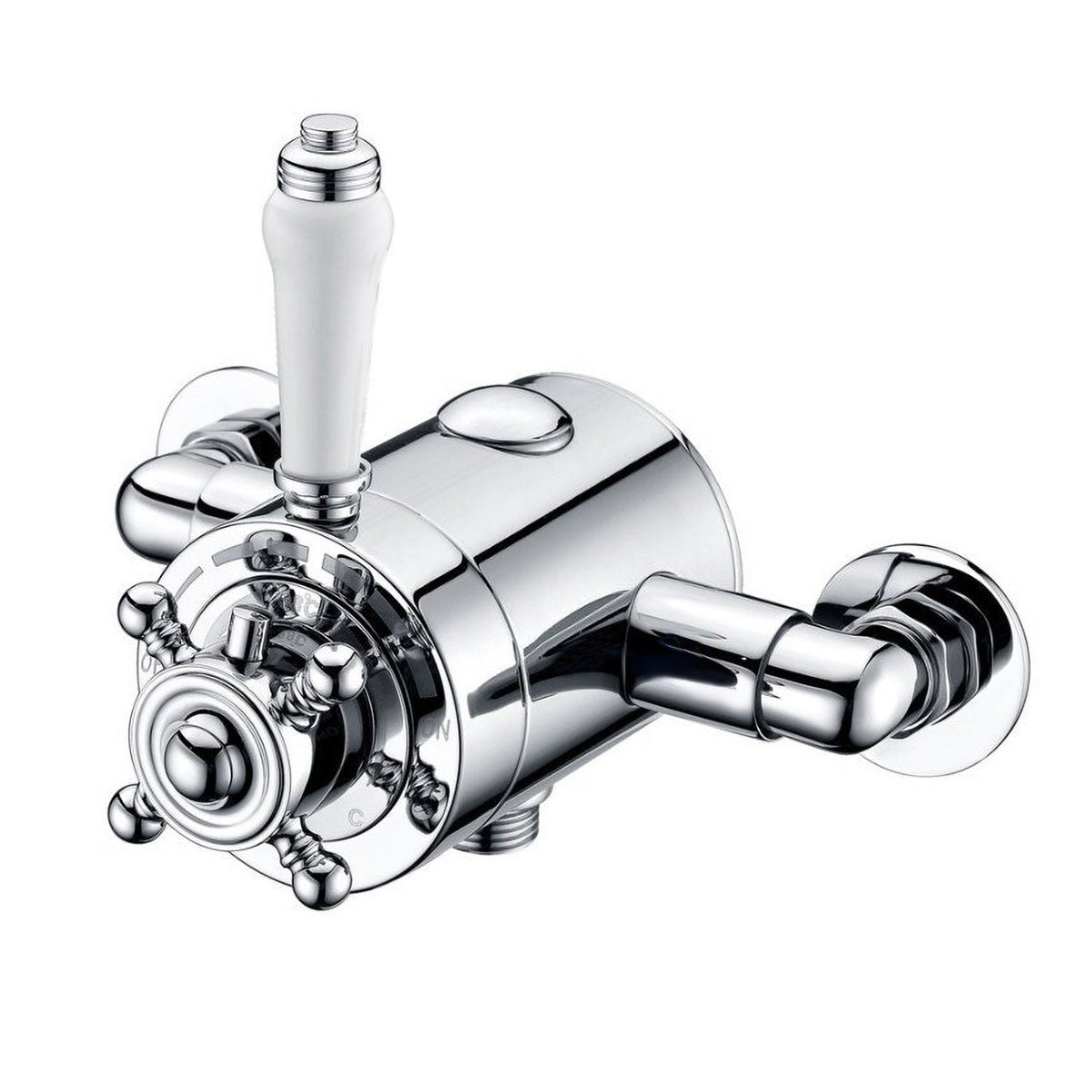

This thermostatic valve is a modern innovation and precision engineering complemented with a stunning design, constructed from a high quality brass for superior construction, extra strength, long-lasting durability and heavyweight feel. The bodywork is beautifully designed and powerfully sculpted, polished mirror chrome finish that will look absolutely stunning in any bathroom setting.
Key Features
- Thermostatic mixer valve: user set temperature that will remain constant regardless of any change in water pressure
- Thermostatic control with built-in anti scalding device - water temperature set at 38ºC that can be overridden
- Ergonomically designed crossed handles providing an easy comfortable grip
- Valve elbows rotate to allow pipework to come into the valve from up or down the wall
- Suitable for top and bottom outlet - for shower hose or rigid riser rail.
Specification
- 1-Way thermostatic mixer valve, with 1 handle and 1 dial

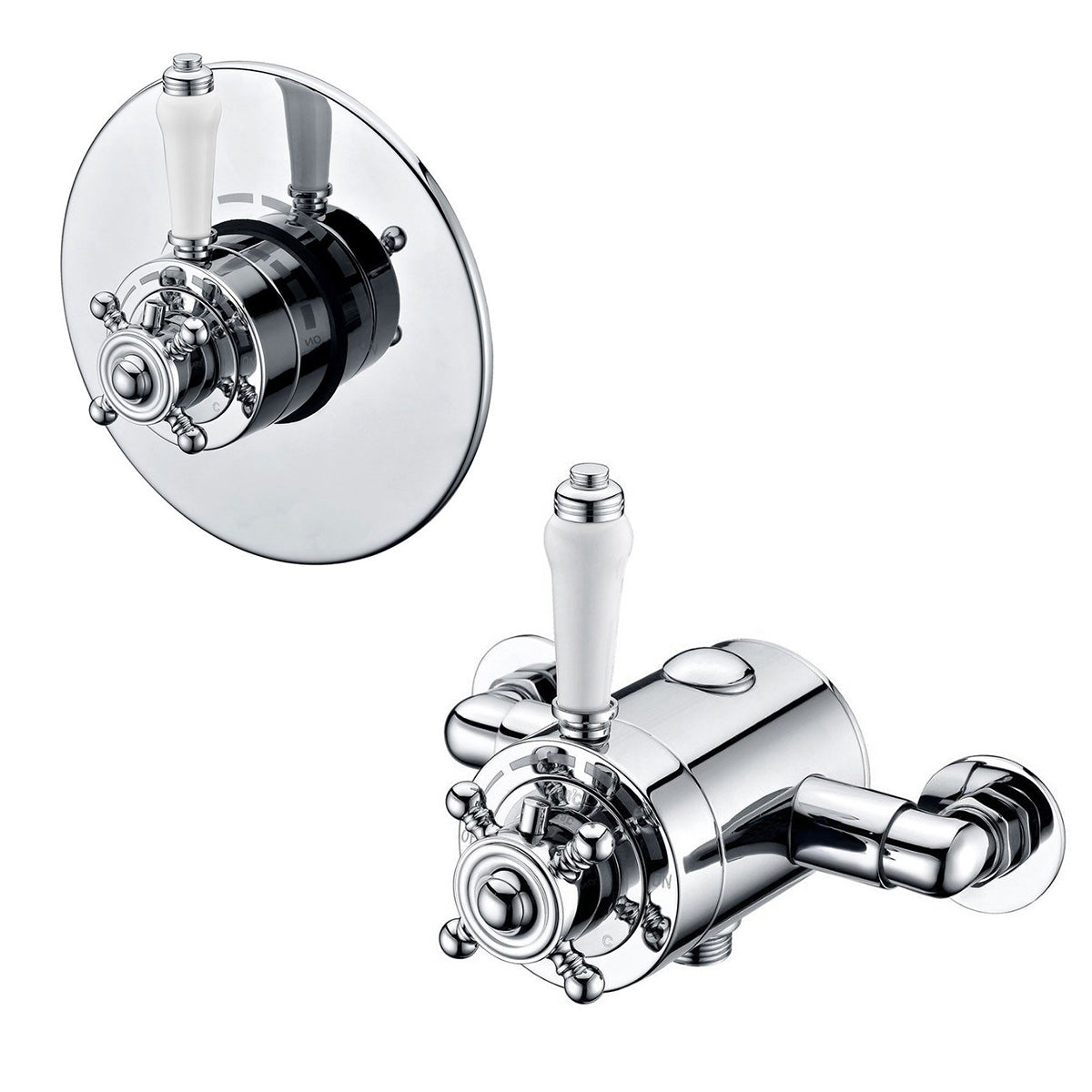

- Exposed/concealed valve
- British Standard Size
- 1-Way function for either a shower overhead, shower handset or slider rail kit
- Chrome face-plate with laser printed dials
- Easy smooth turning ceramic disc technology

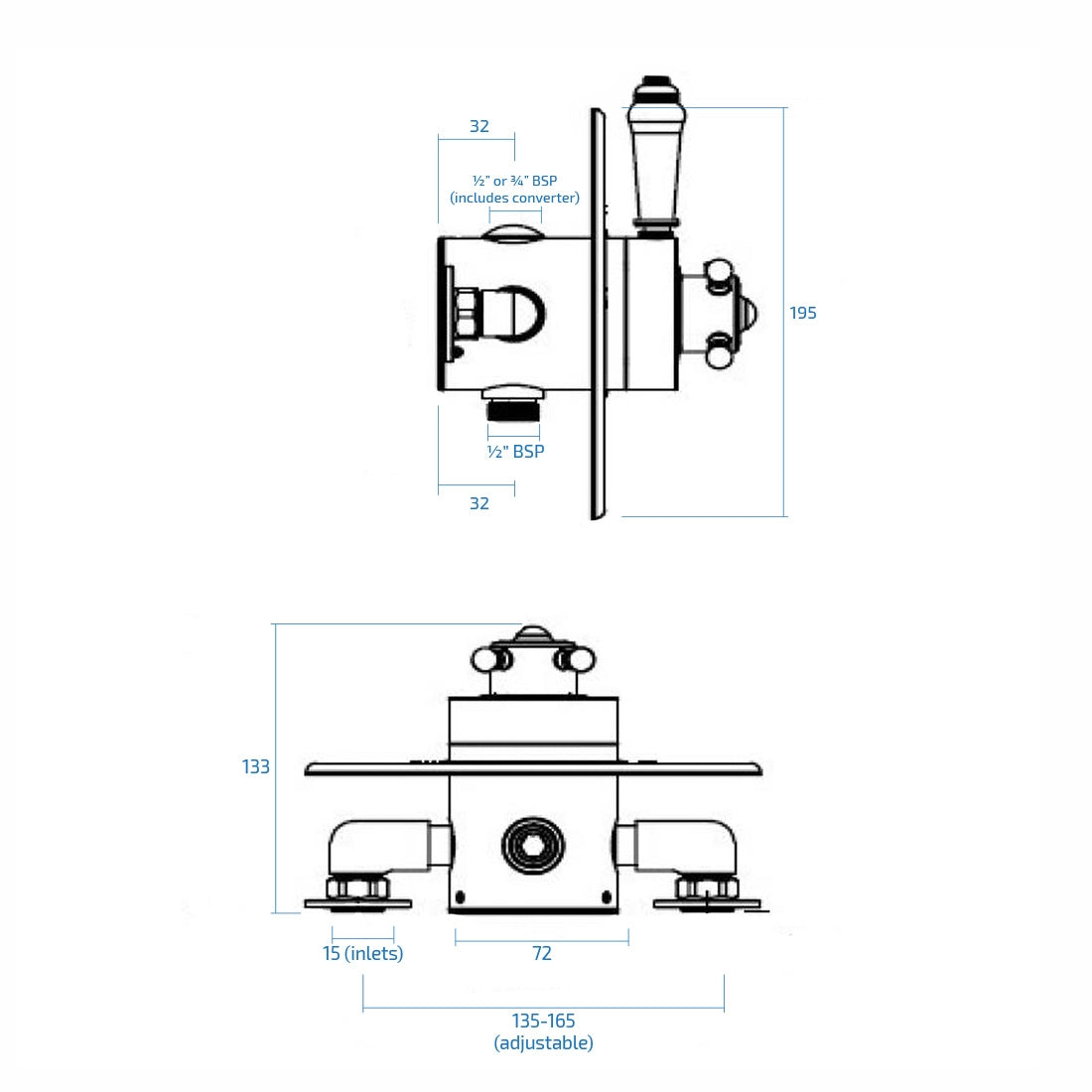

- Inlets are adjustable between 135mm to 165mm
- Water inlet connections: 15mm
- Water top outlet connections: 1/2" BSP or convert to 3/4" BSP
- Water bottom outlet connections: 1/2" BSP
Flow Rates (water at 38C)
- 0.1 bar - 4.9 l/min
- 0.2 bar - 8.0 l/min
- 0.5 bar - 13.6 l/min
- 1.0 bar - 18.6 l/min
- 2.0 bar - 26.5 l/min
- 3.0 bar - 32.2 l/min
- 4.0 bar - 37.2 l/min
- 5.0 bar - 41.5 l/min
Package Contents
- 1 X Thermostatic shower valve
- 1 X Fittings included
