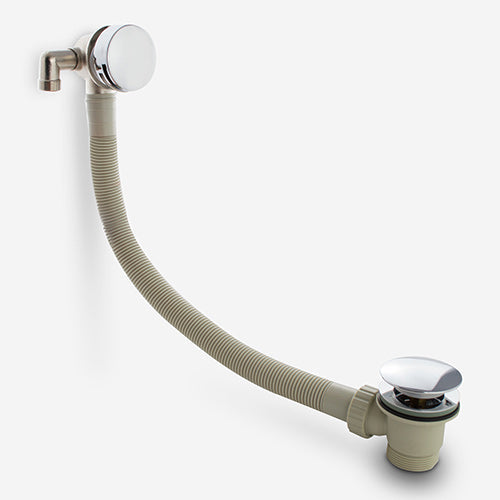

Create a clean, minimalist finish around your bath with this combined bath filler, overflow and sprung waste.
The water flows directly into the bath through the overflow filler, removing the need for a conventional bath tap spout and helping to create a neat, modern appearance.
IMPORTANT – VALVES REQUIRED
This bath filler is not a standalone bath tap. It must be used with suitable water control valves.
To operate the bath filler, it must be connected to either:
The bath filler receives the mixed water supply and allows the water to flow into the bath through the overflow.
Side valves or concealed mixer valves are NOT included and must be purchased separately.
Key Features
- 3-in-1 bath filler, overflow and sprung waste
- Water fills the bath through the overflow
- Clean and minimalist alternative to a conventional bath spout

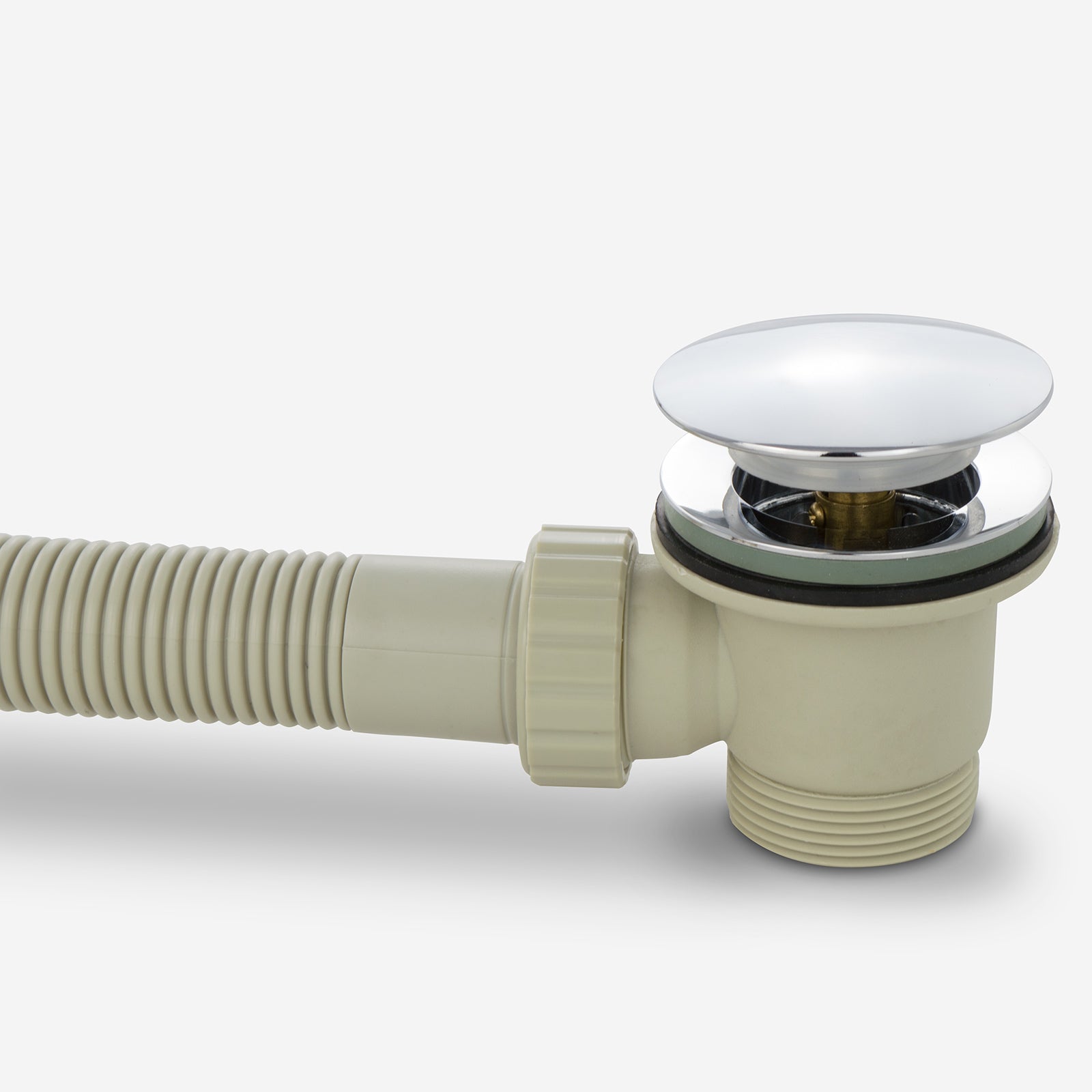

- Push-button sprung click-clack bath waste
- Round overflow bath filler
- Chrome-plated finish
- Solid brass construction
- Easy to operate and clean
- Suitable for modern bathroom installations
Compatibility
This product must be paired with:
Option 1: Hot and cold deck-mounted bath side valves
OR
Option 2: A suitable concealed bath/shower mixer valve
The valves control the water flow and temperature before supplying mixed water to the bath filler.
Water Pressure
Suitable for water pressure between 0.5 bar and 4 bar.
Suitable for:
- Combination boiler systems
- Gravity-fed systems when used with a suitable pump
- Megaflo systems
- Pumped hot water systems
- Unvented hot water systems
- Standard pressurised hot water cylinder systems
Package Contents
- 1 × Bath Filler, Overflow & Sprung Waste Set
- 1 × Instructions
Please Note: Bath side valves and concealed mixer valves are not included.
