Description

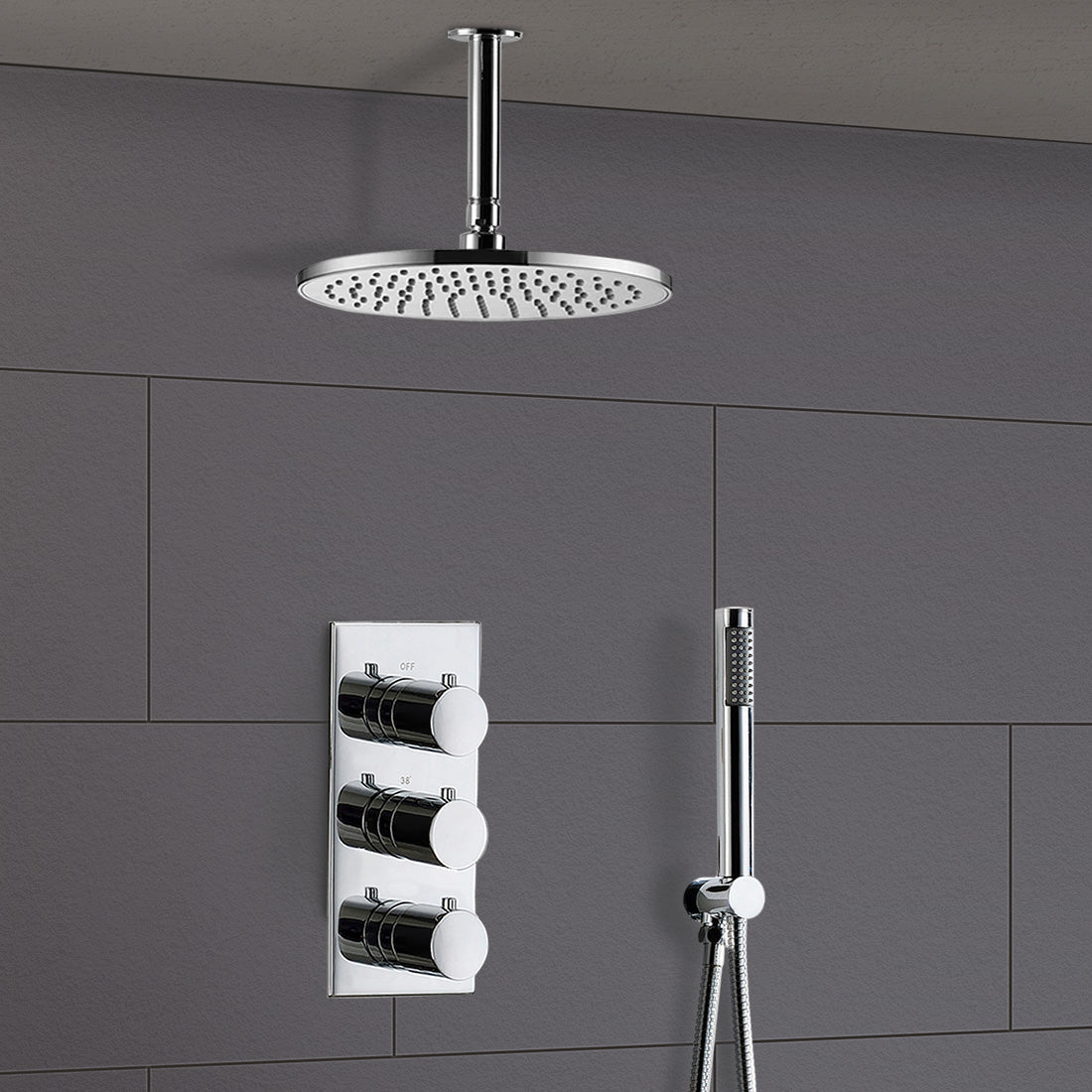

This concealed thermostatic valve will compliment any modern bathroom suite, offers thermostatic showering via three easy-to-operate controls for temperature and flow.
Concealed Thermostatic Shower Mixer Information:
Constructed from solid brass, with modern ceramic disc technology, our stylish concealed thermostatic shower mixer valve is perfect for creating a new minimalist look to your bathroom. The mixer valve mounts on to the wall making your shower look less cluttered and bulky and the slim rectangular back plate neatly conceals all pipe work, adding an exceptional sleek finish. With our built-in anti-scalding devices in all of our thermostatic mixer valves, you can have piece of mind knowing that you'll never have to worry about any drastic drops in temperature.
This product comes with a 10 Year Guarantee.
Thermostatic Concealed Valve Features
- Top dial - controls water to 2 outlet diverter
- Middle dial - on/off
- Bottom dial - temperature control
- High Quality Design
- Chrome Plated
- Thermostatically controlled

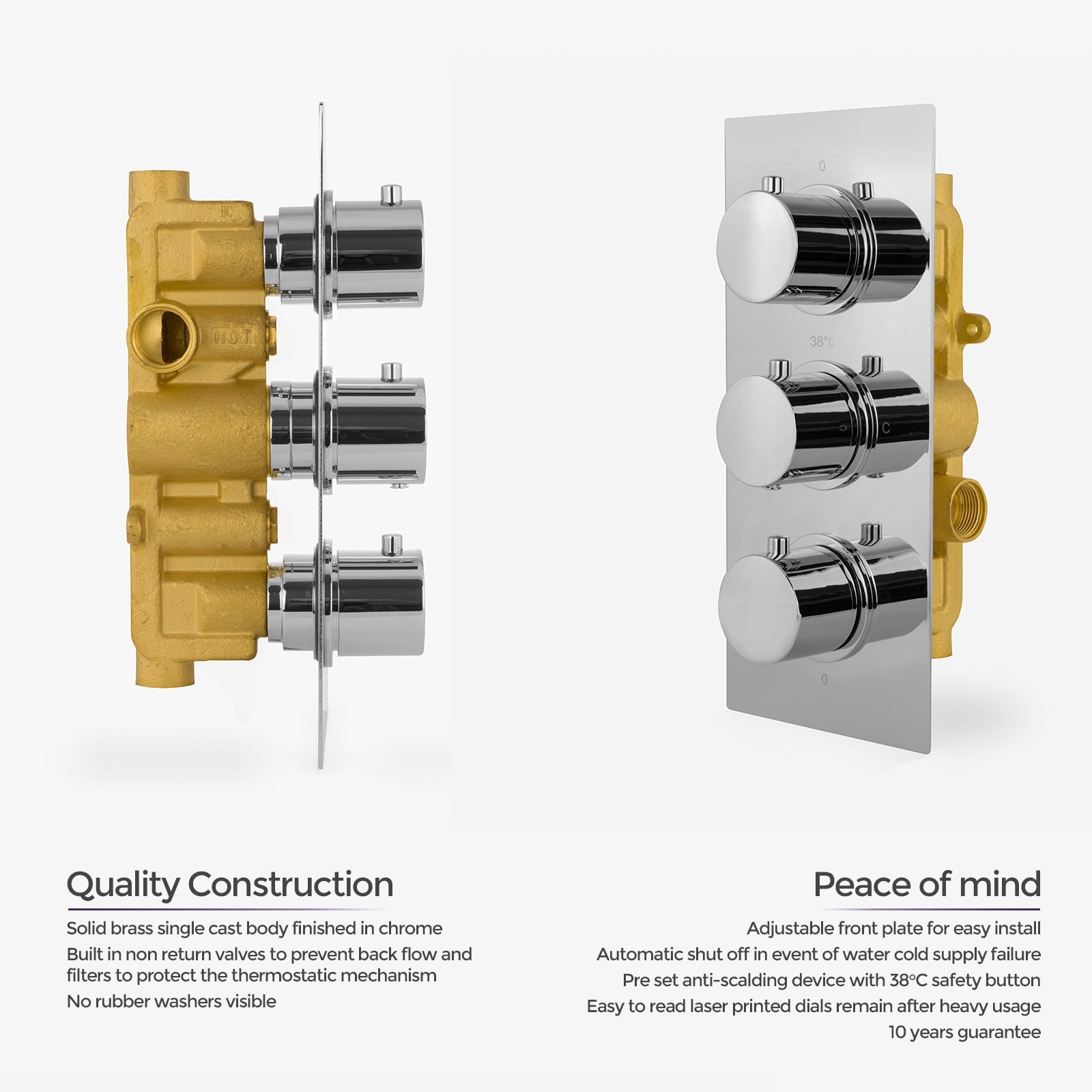

- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting

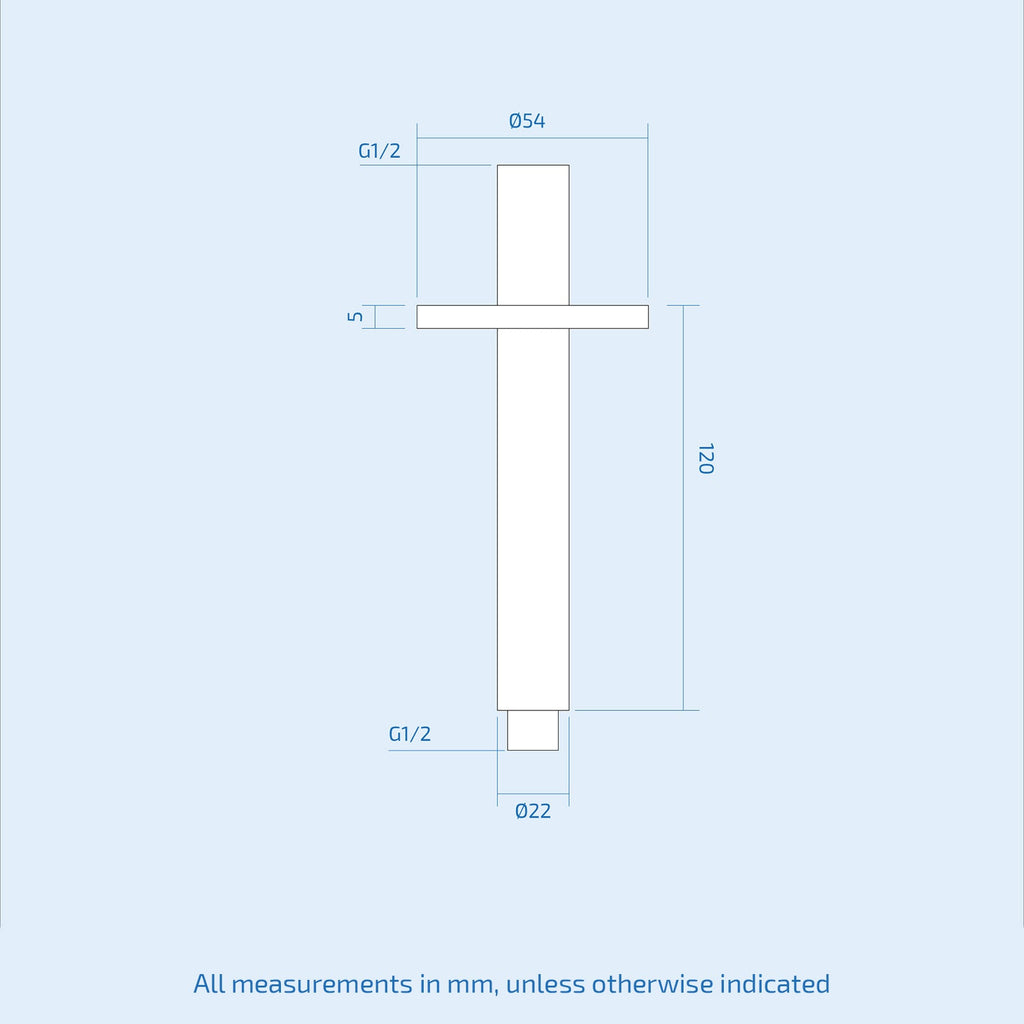

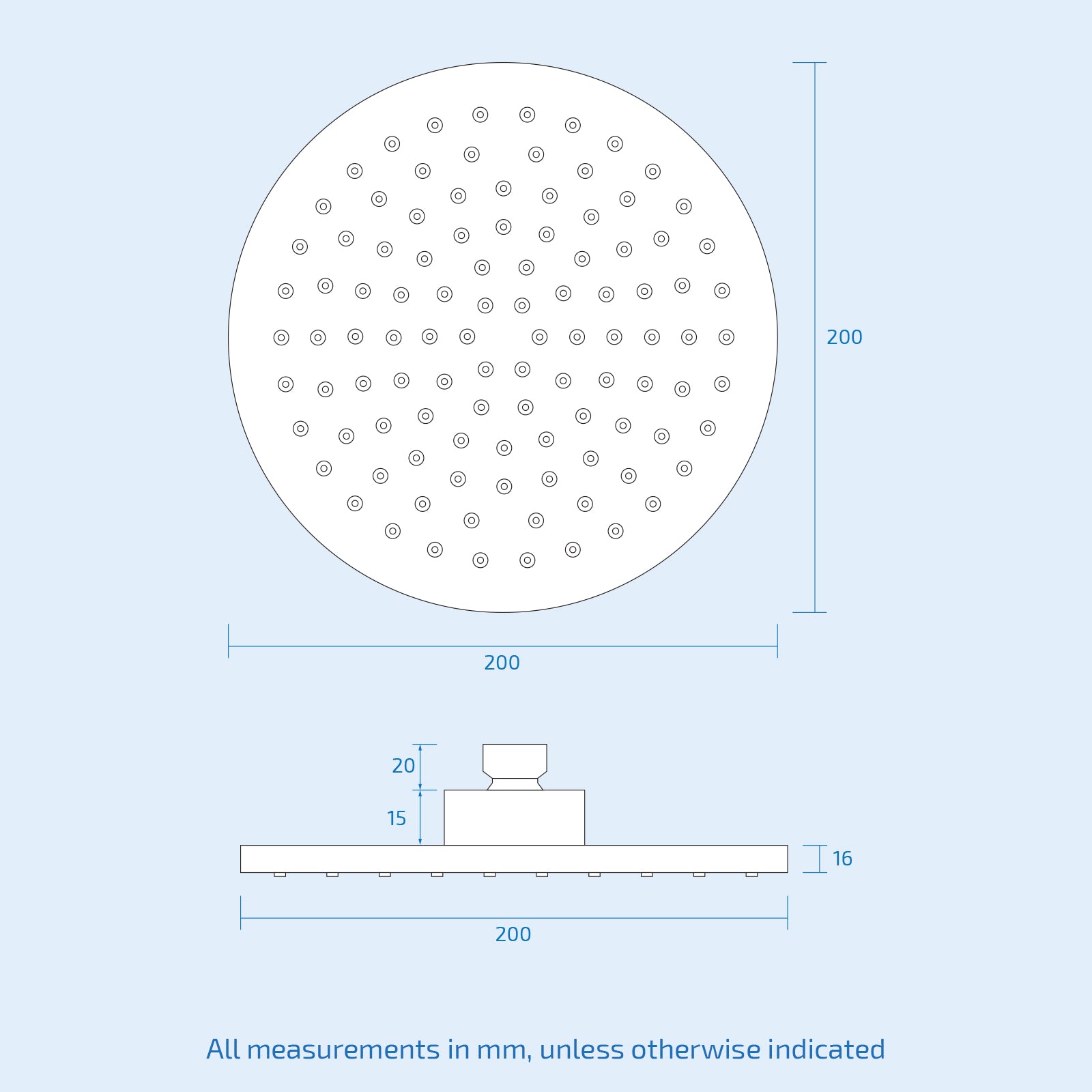

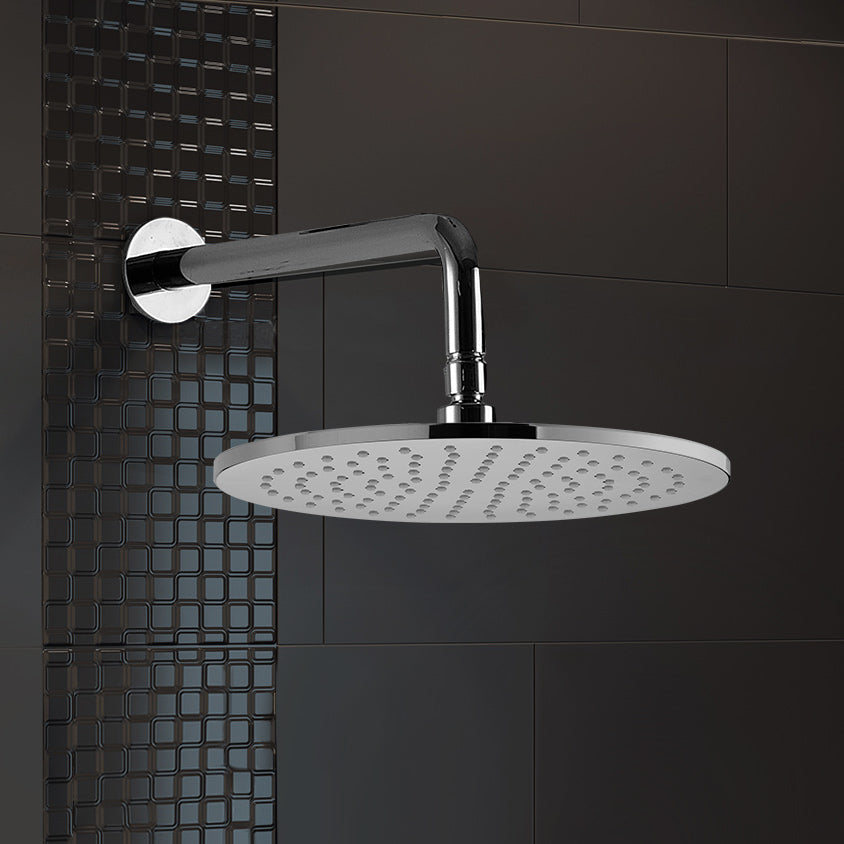

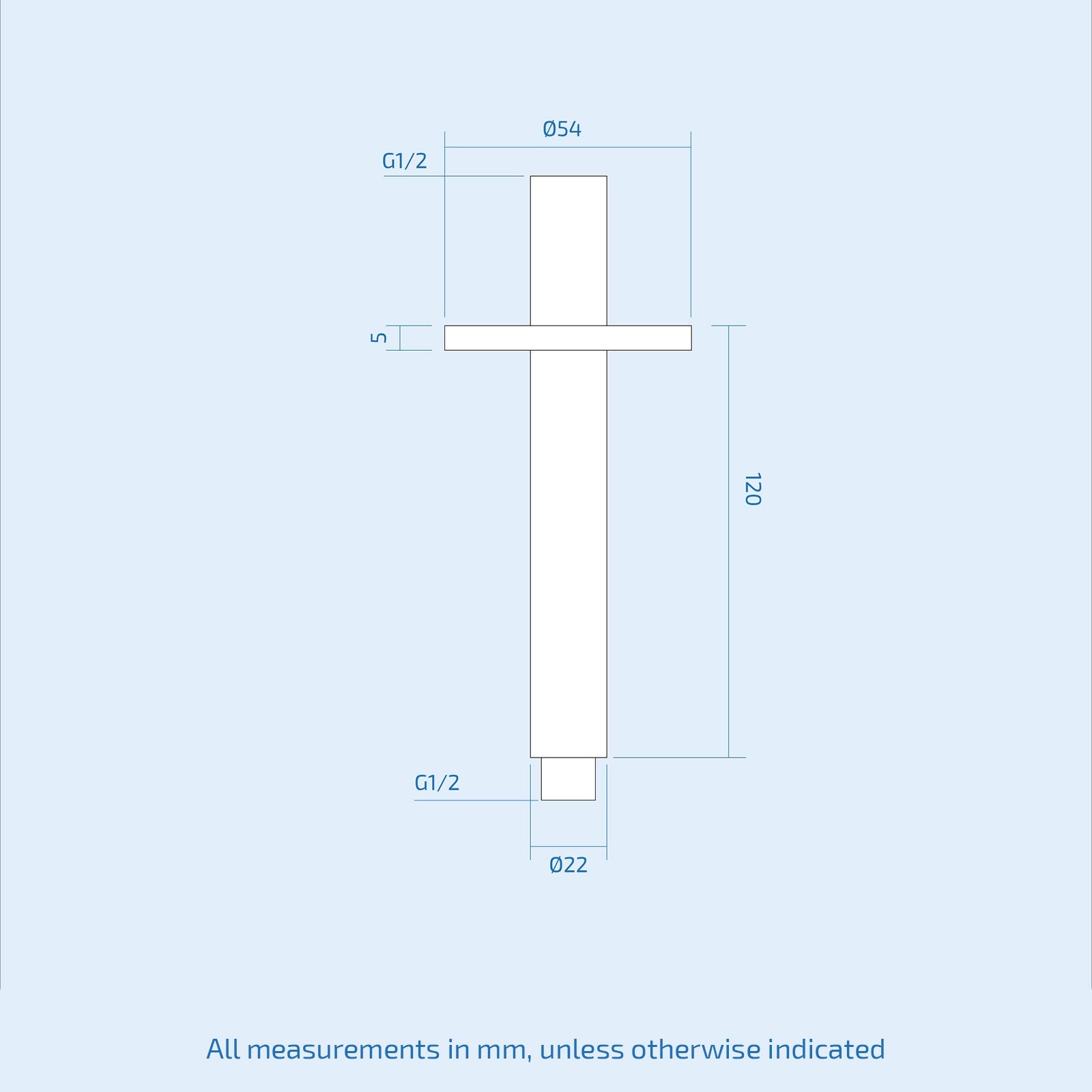

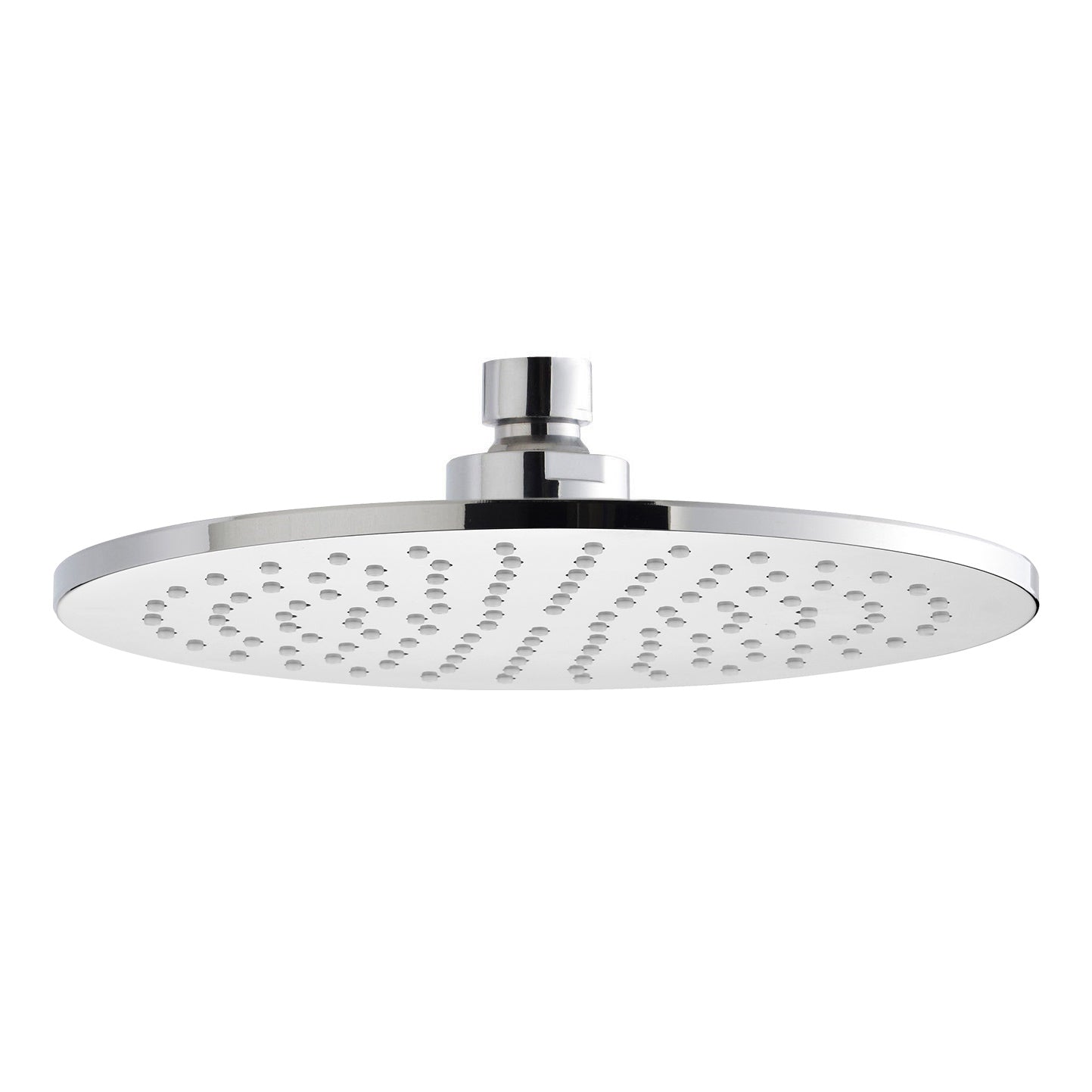

Shower Head with Ceiling Mounted Details
- Chrome plated ABS plastic overhead shower
- Solid brass 15 degrees swivel joint for ease of use

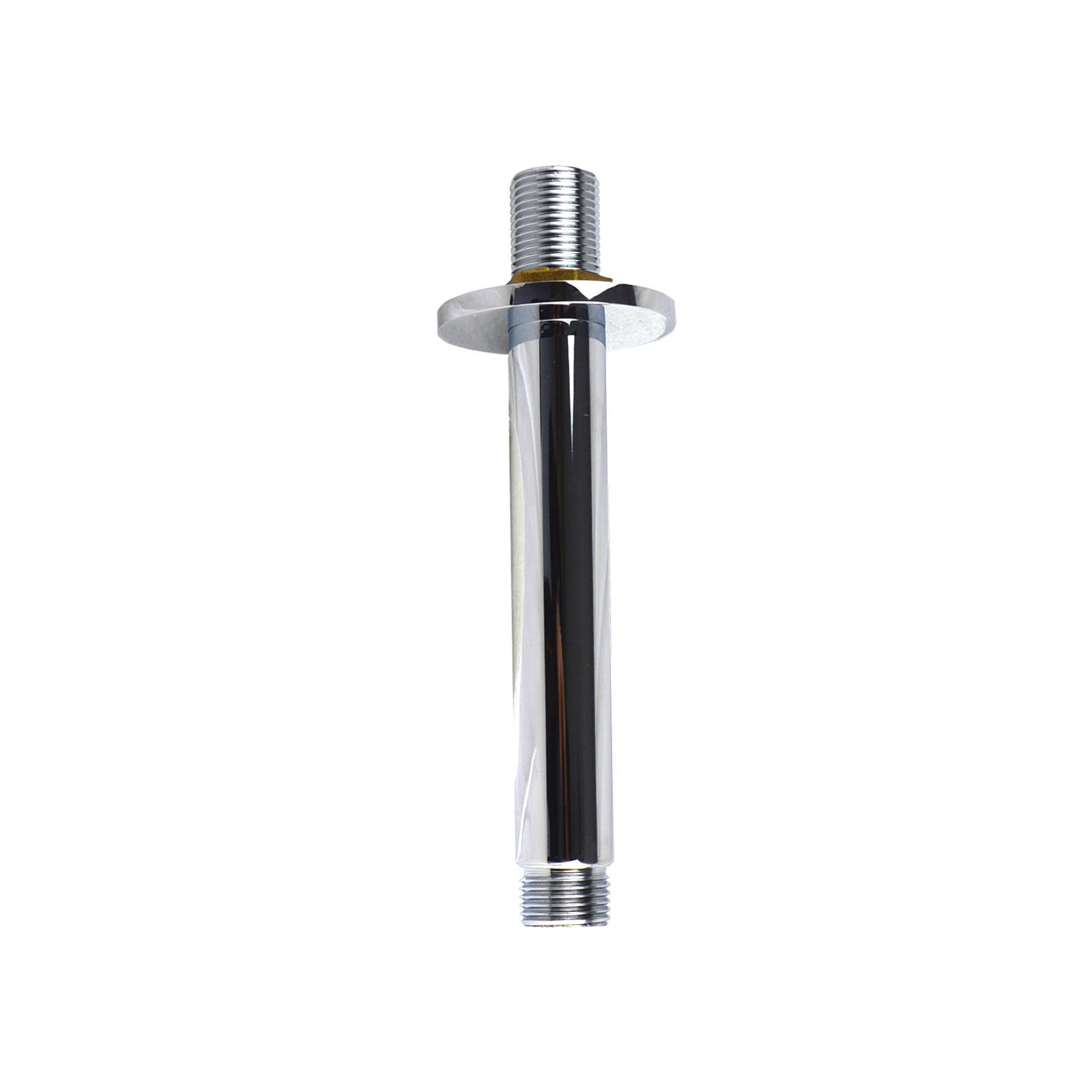

- Solid brass matching arm
- Finished in chrome ensuring a high quality reflective mirror finish
- UK standard size fitting
Handset Shower
- Matching chrome plated ABS plastic handset
- Easy clean, anti-clog rubber nozzles
- Water tight construction to minimise the possibility of water leakage
- Stainless steel, flexible, braided 1.5m double interlocking shower hose

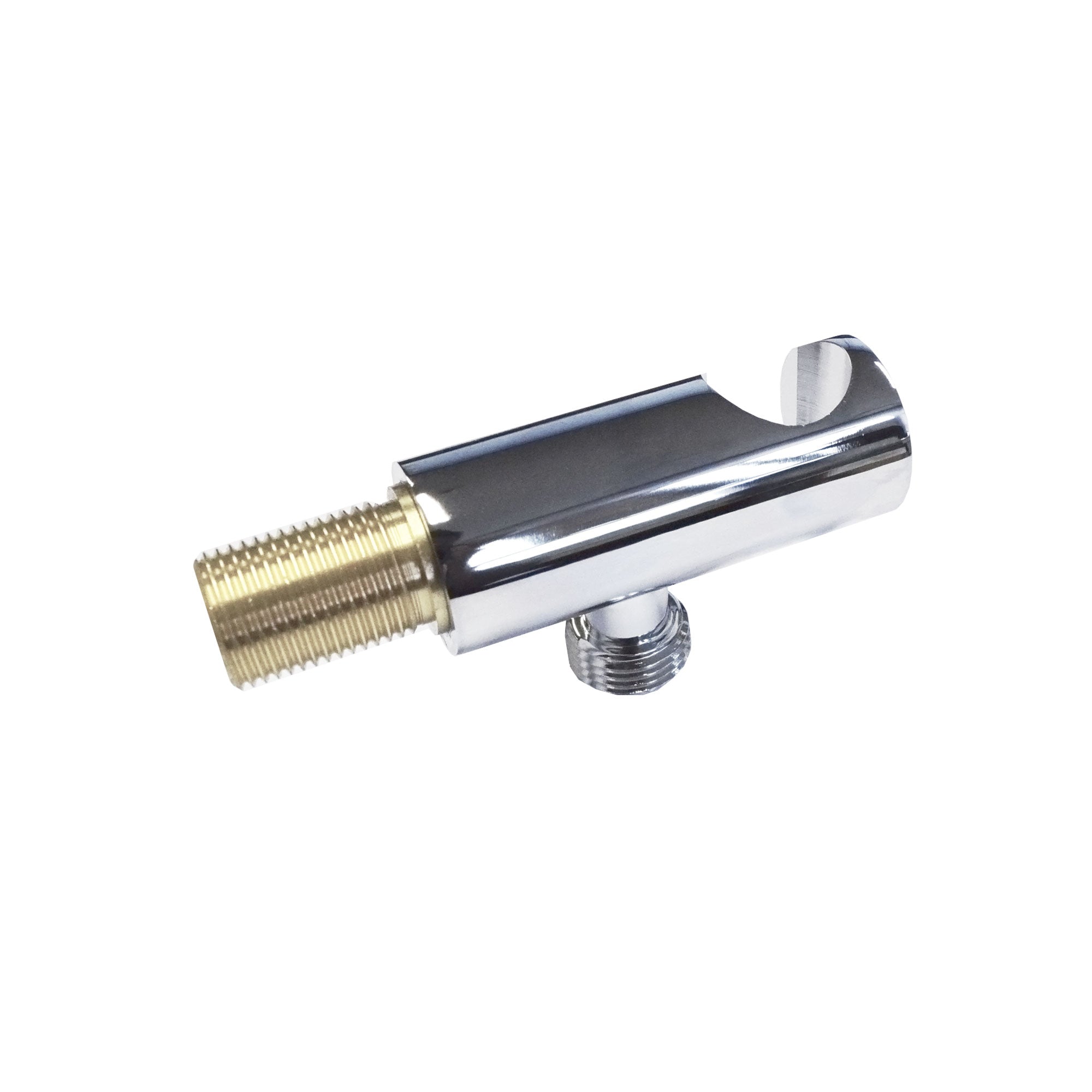

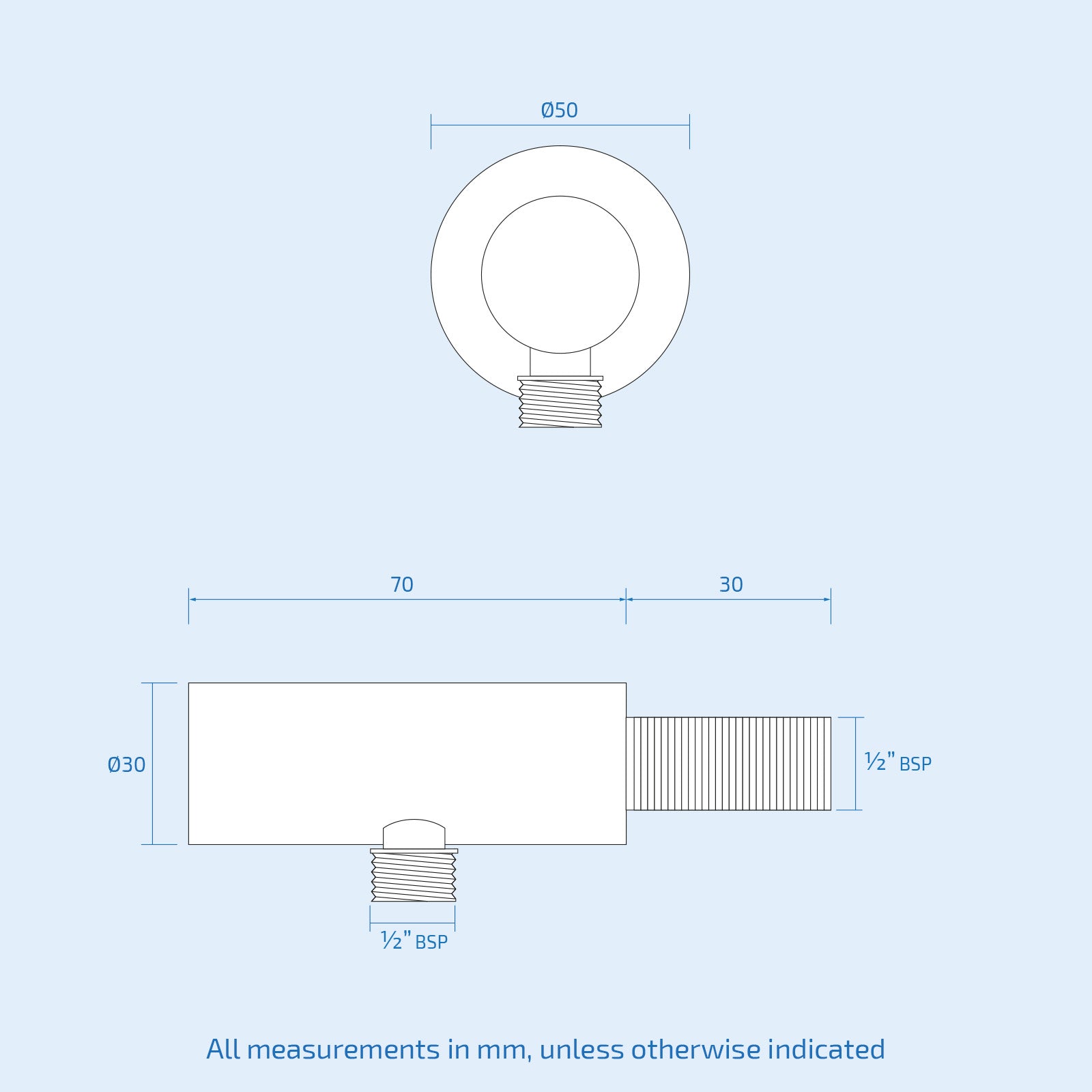

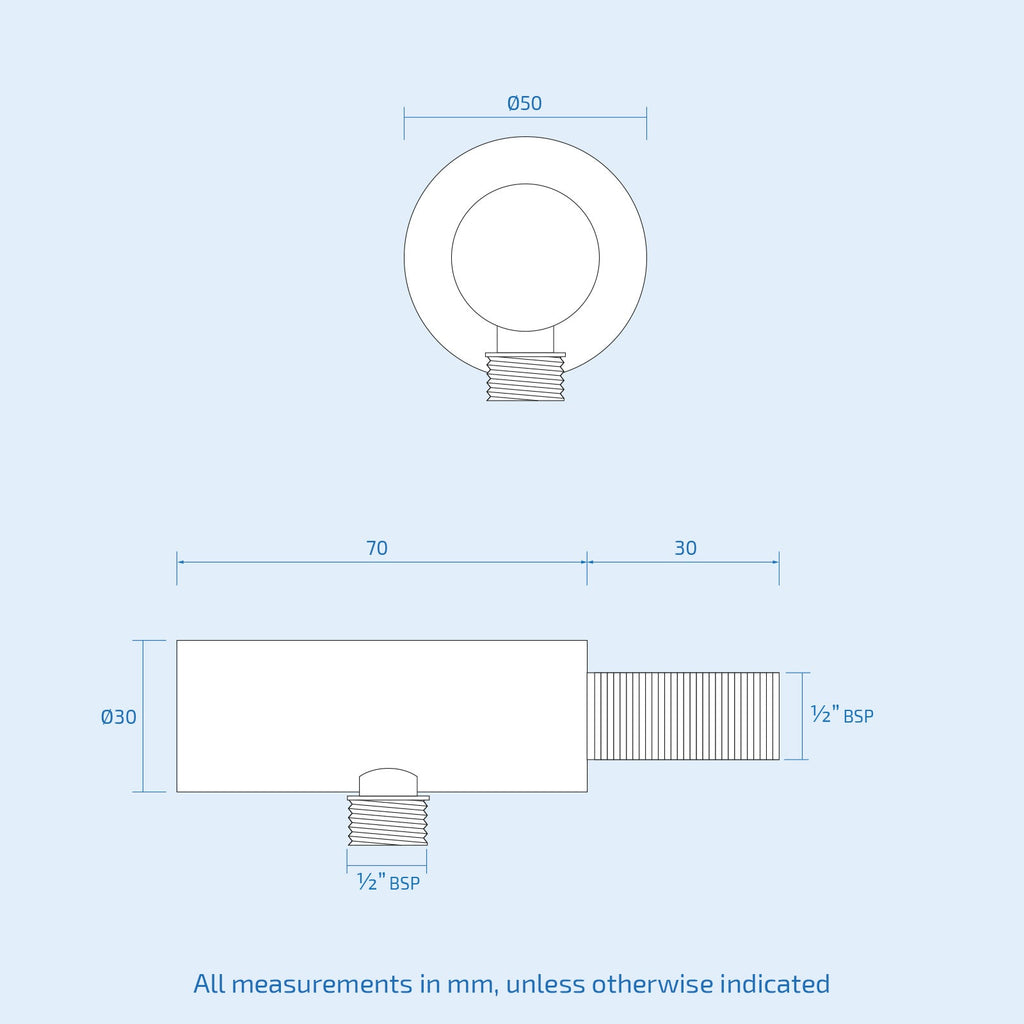

- Wall outlet bracket and handset holder
- Finished in chrome ensuring a high quality reflective mirror finish
- Easy to fit - no tools required
- UK standard size fitting
Technical Information
Suitable for the following water systems:
- Combination boiler systems
- Gravity-fed systems (only with a pump)
- MegaFlo systems
- Pumped hot water systems
- Un-vented hot water systems
- Minimum pressure: 1 bar
- Maximum pressure: 6 bar
- Standard pressurised hot water cylinder type systems
Package Contents
- 1 x Thermostatic Concealed Valve
- 1 x Ceiling Mounted Shower Head and Arm
- 1 x Handset
- Complete fitting accessories
