Description
This Concealed Thermostatic Valve will compliment any modern bathroom suite, offers thermostatic showering via three easy-to-operate controls for temperature and flow.

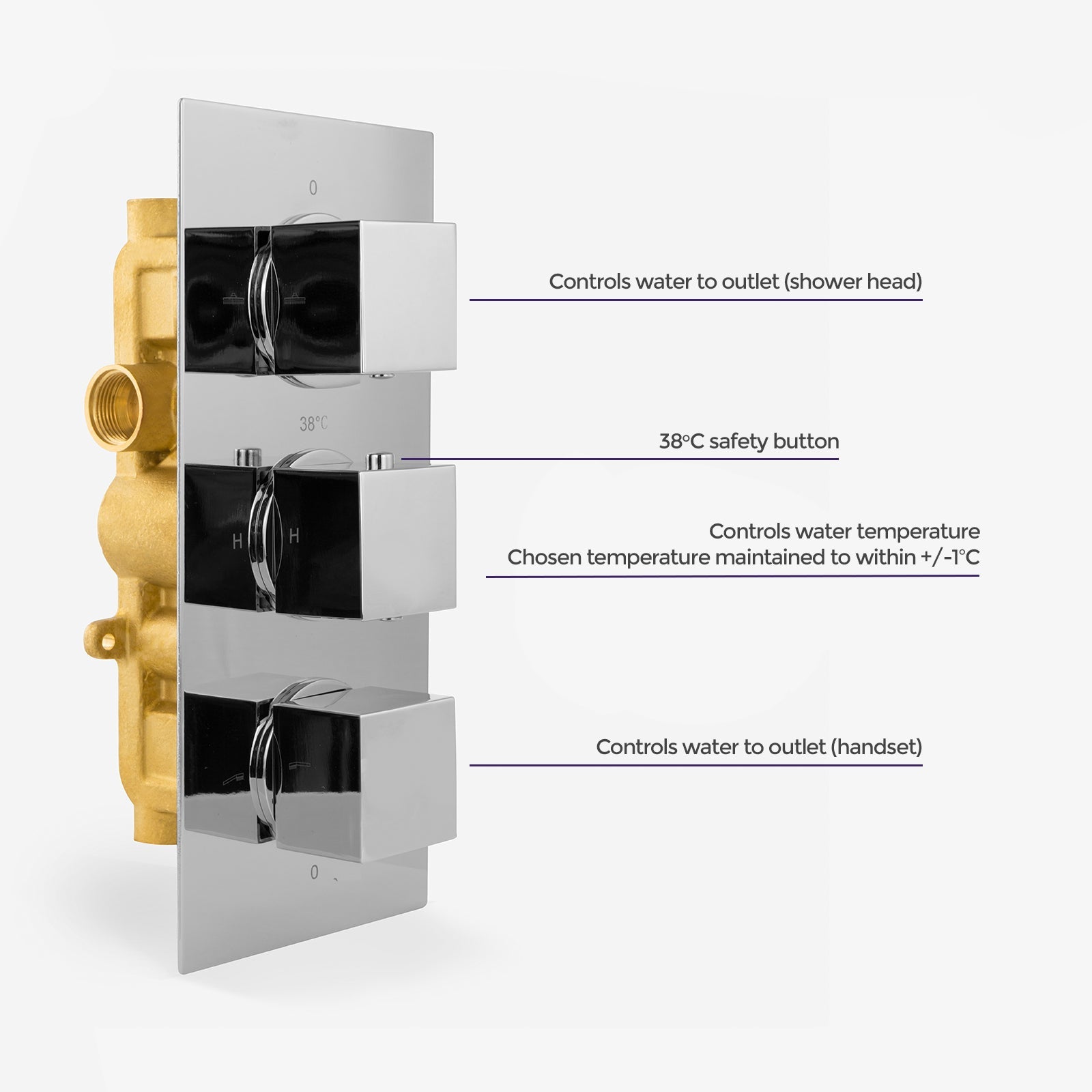

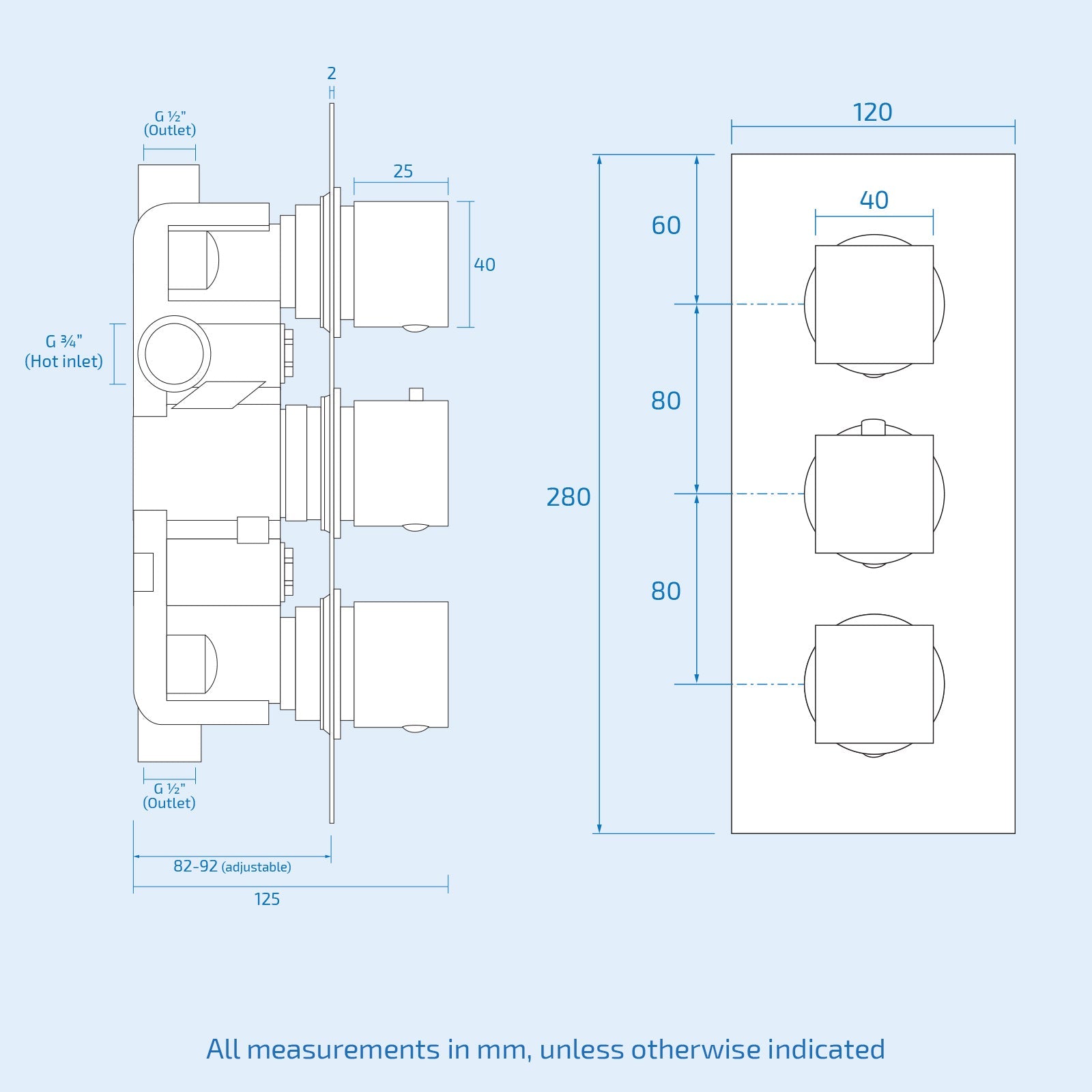

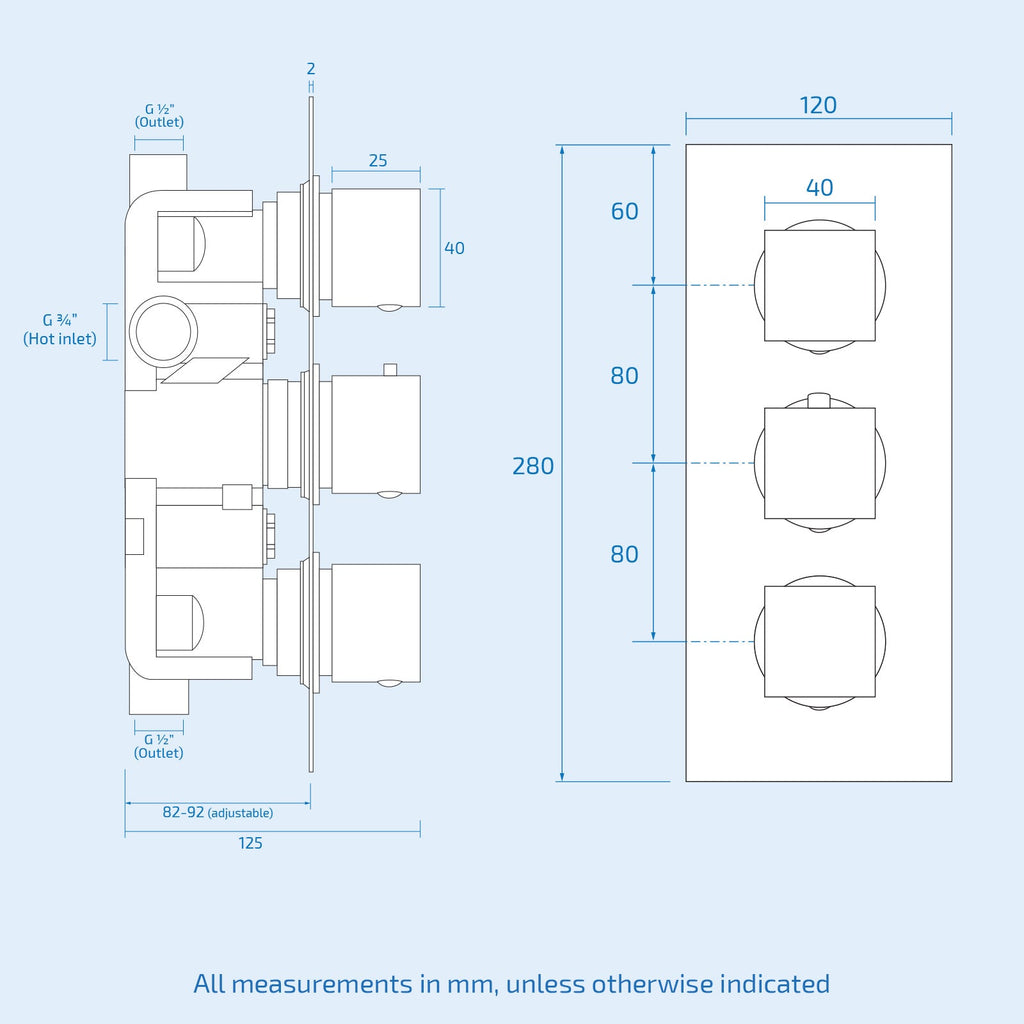

Thermostatic Concealed Valve Features
- Top dial - controls water to 1 outlet diverter
- Middle dial - temperature control
- Bottom dial - controls water to 1 outlet diverter
- High Quality Design
- Chrome Plated
- Thermostatically controlled

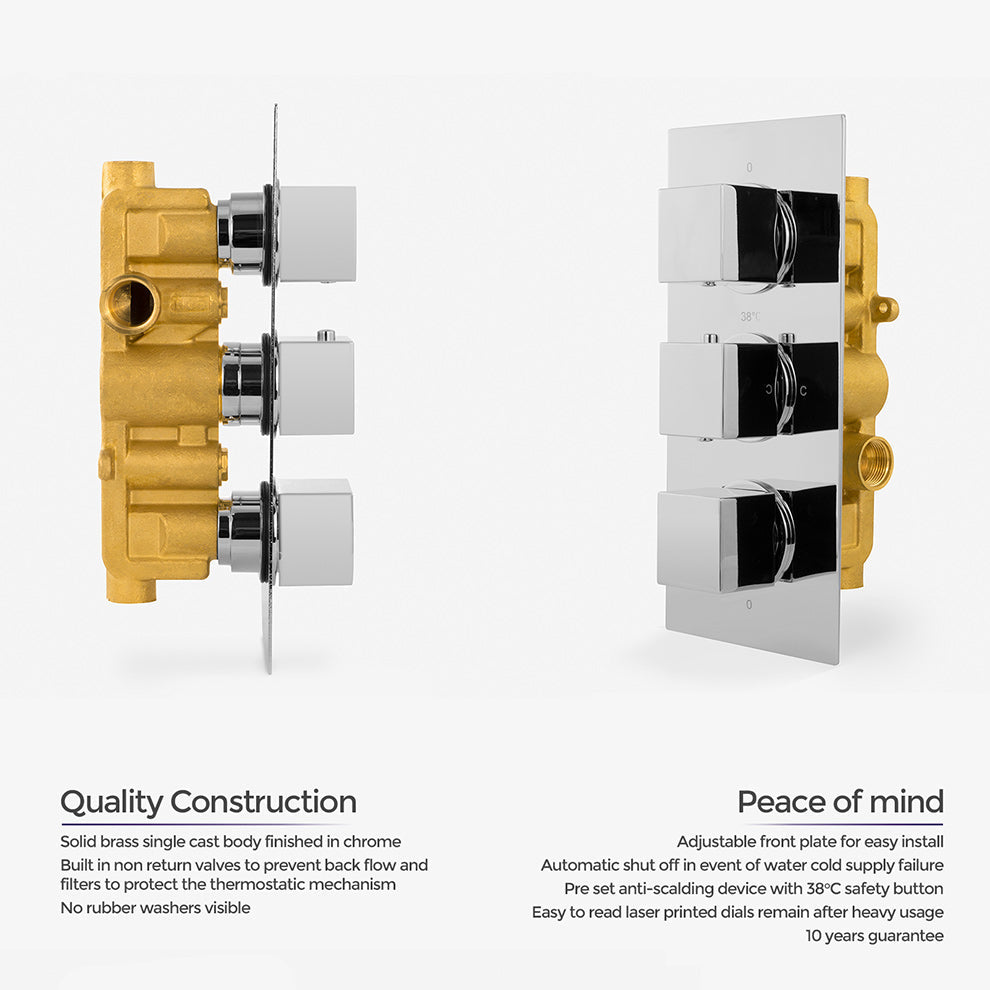

- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting

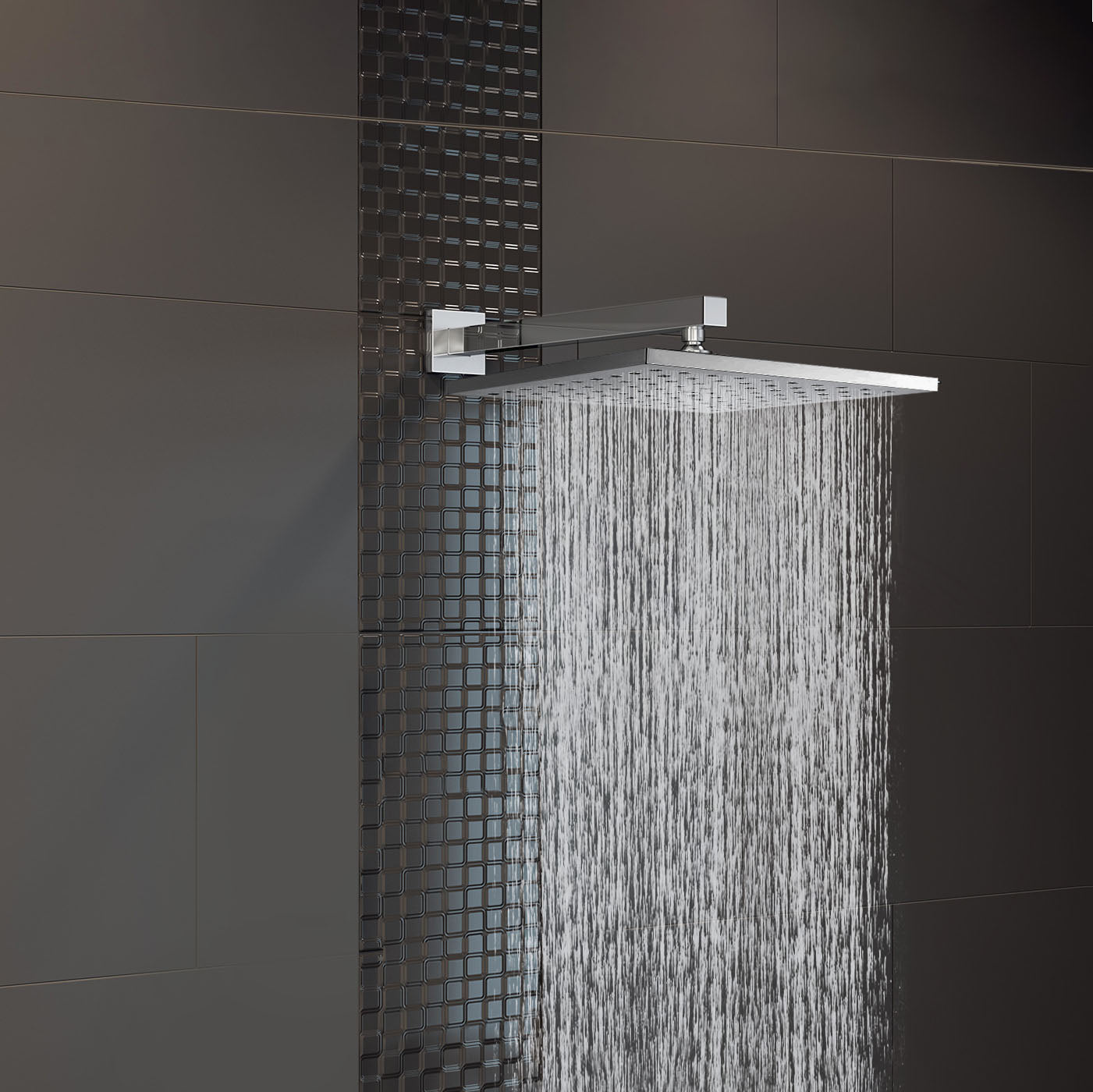

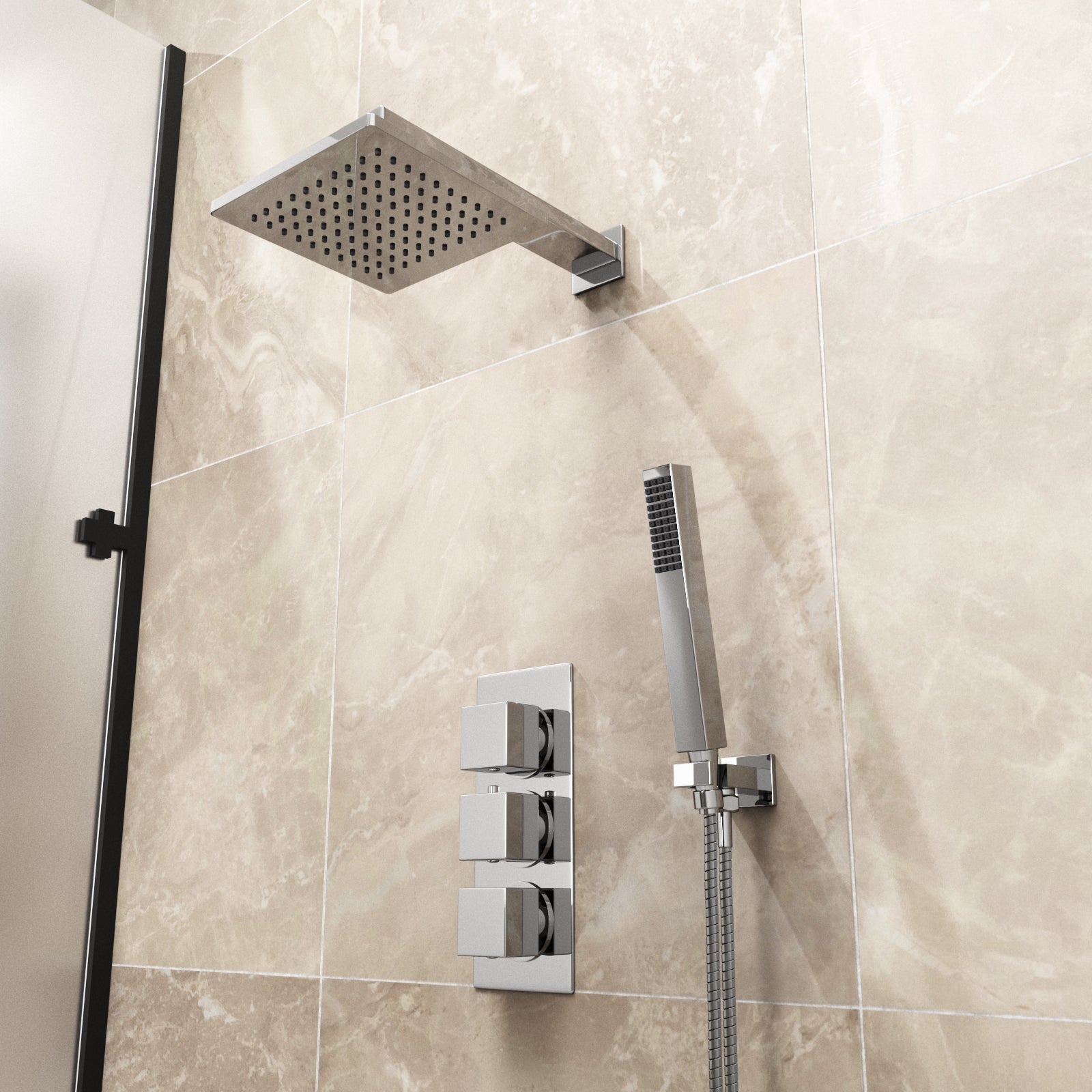

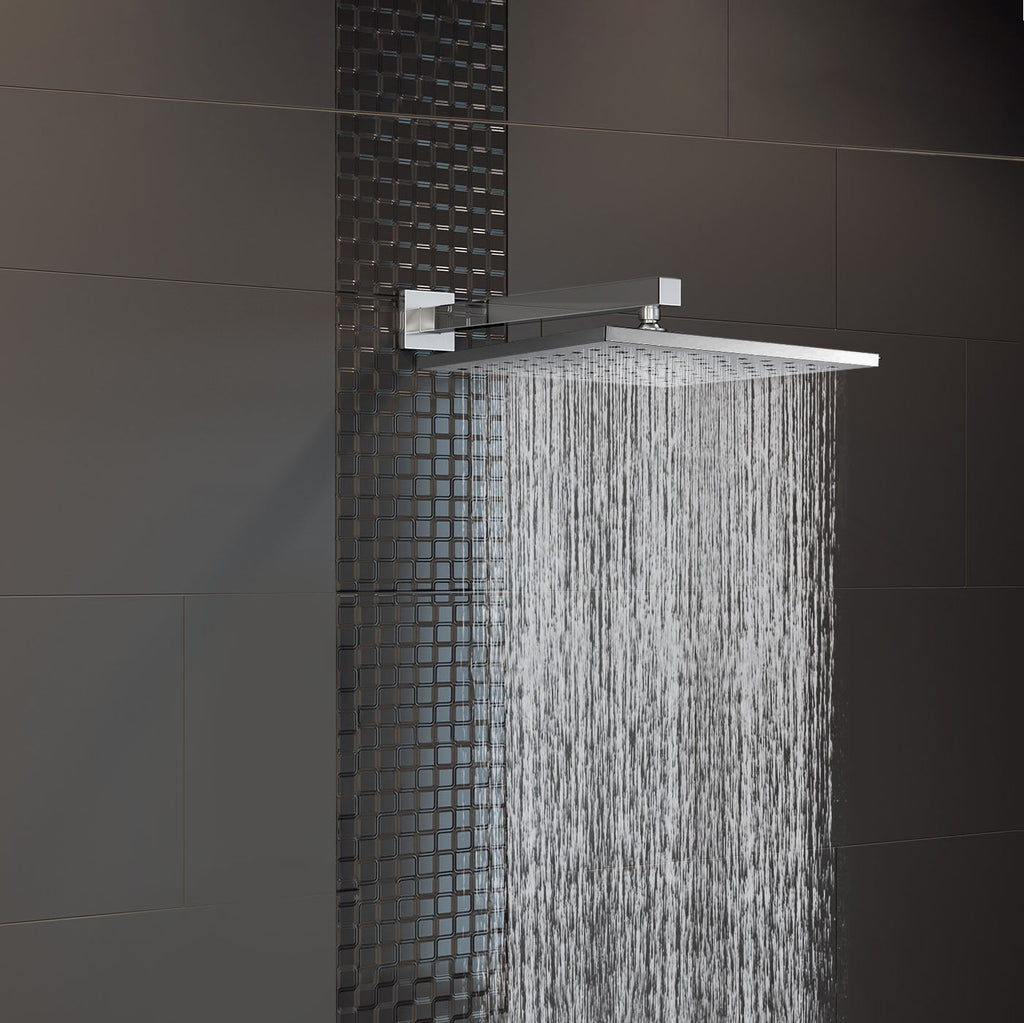

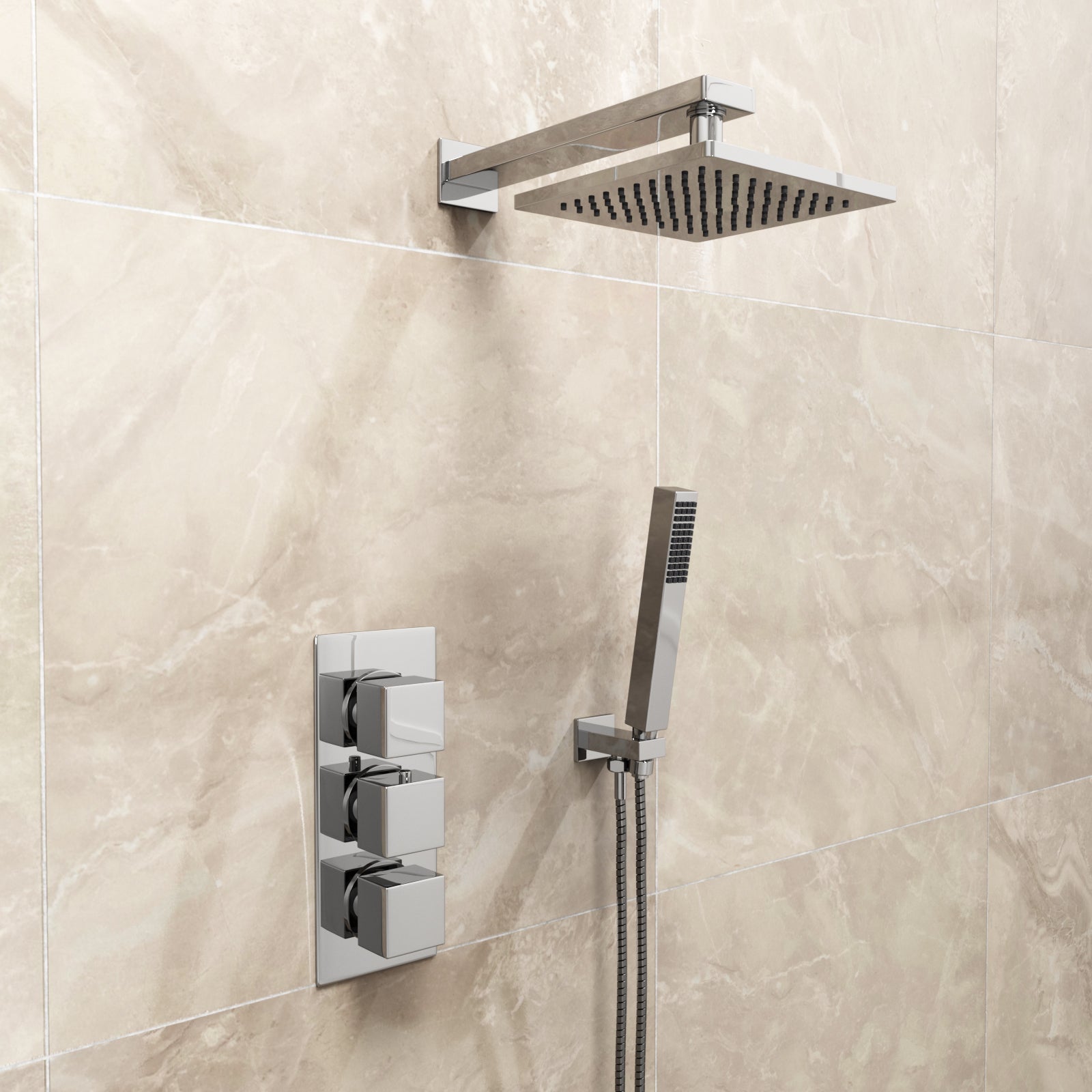

Shower Head with Wall Mounted Details
- Shower head
- Stainless Steel

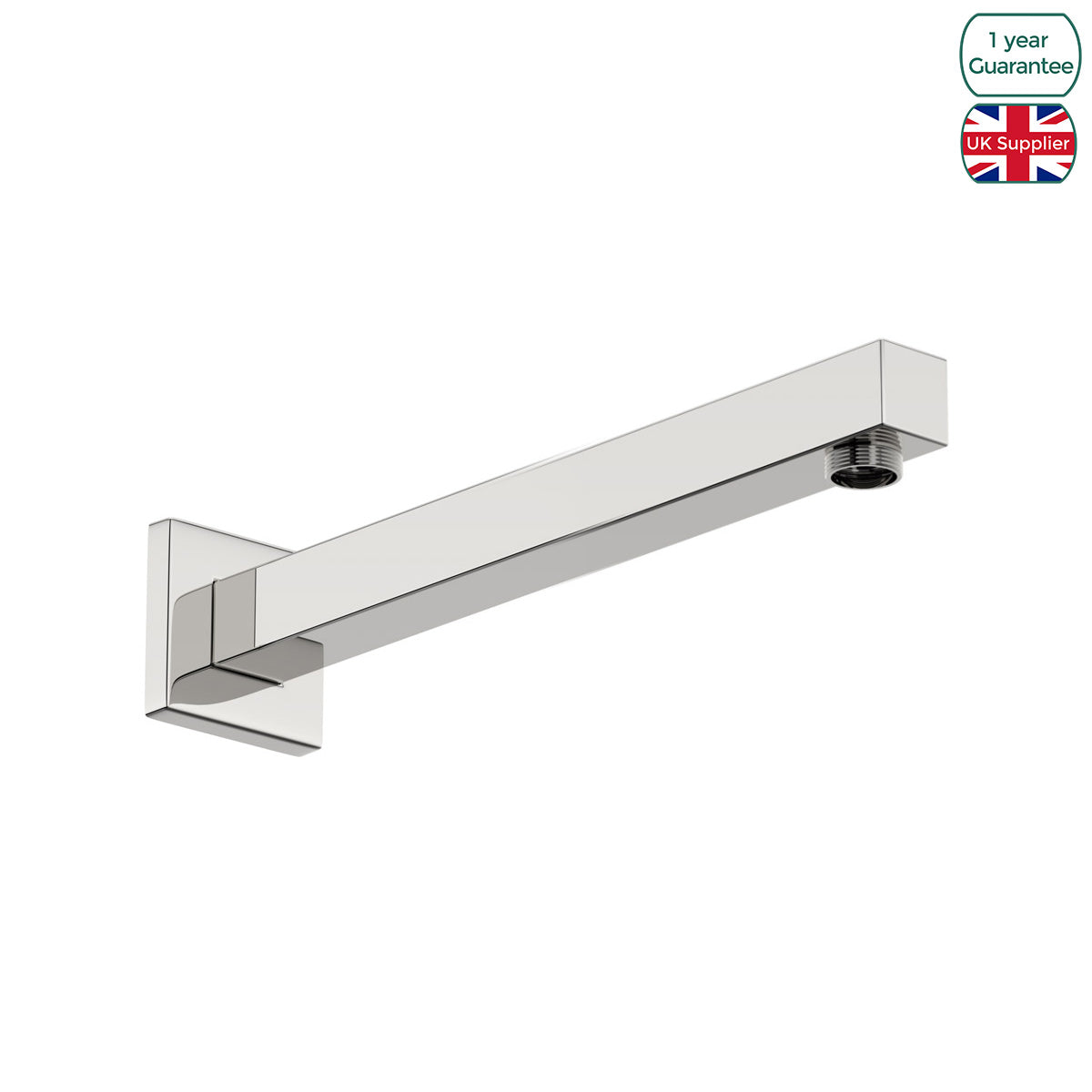

- Solid Brass Arm
- Chrome Finish
Technical Information
Suitable for the following water systems:
- Combination boiler systems
- Gravity-fed systems (only with a pump)
- MegaFlo systems
- Pumped hot water systems
- Un-vented hot water systems
- Standard pressurised hot water cylinder type systems

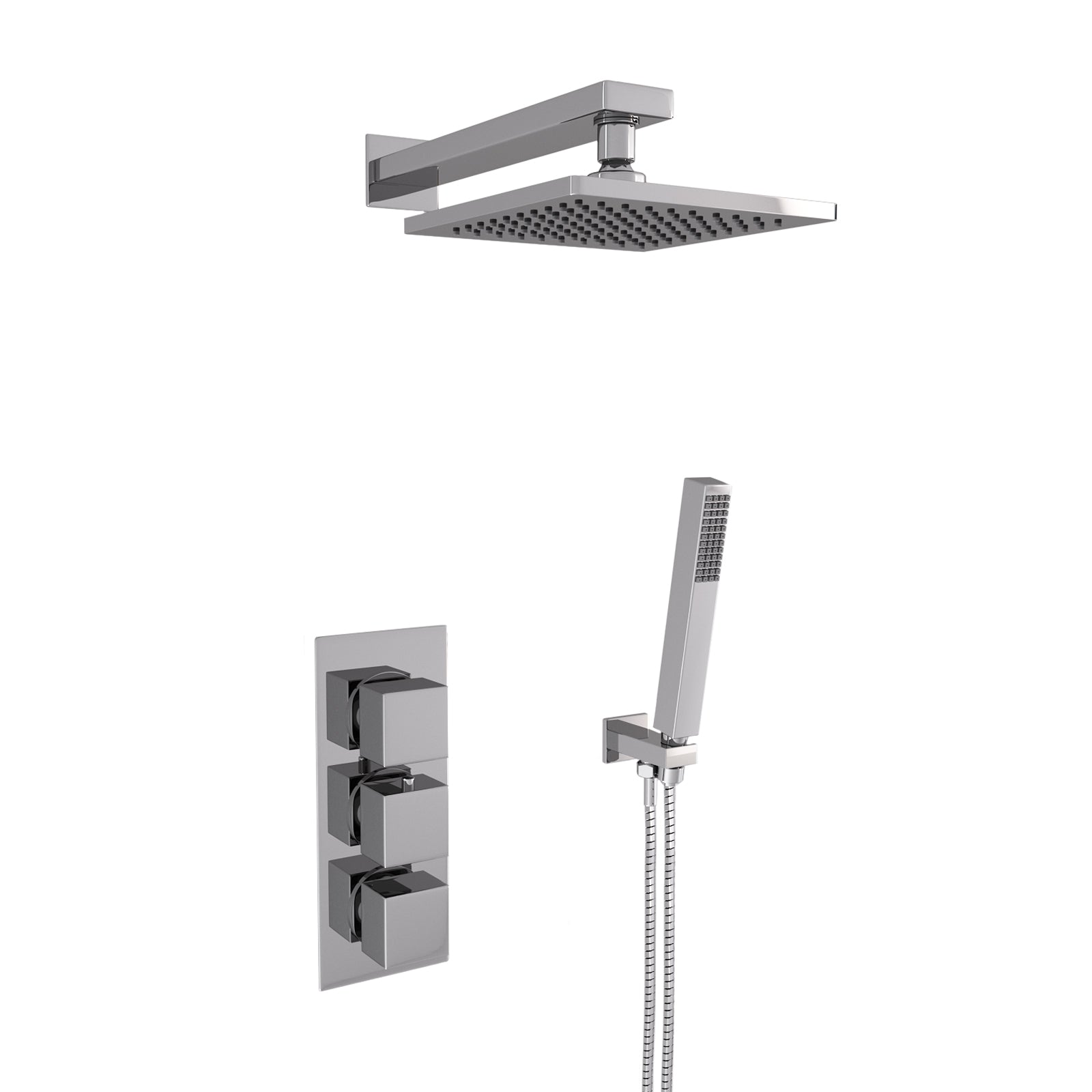

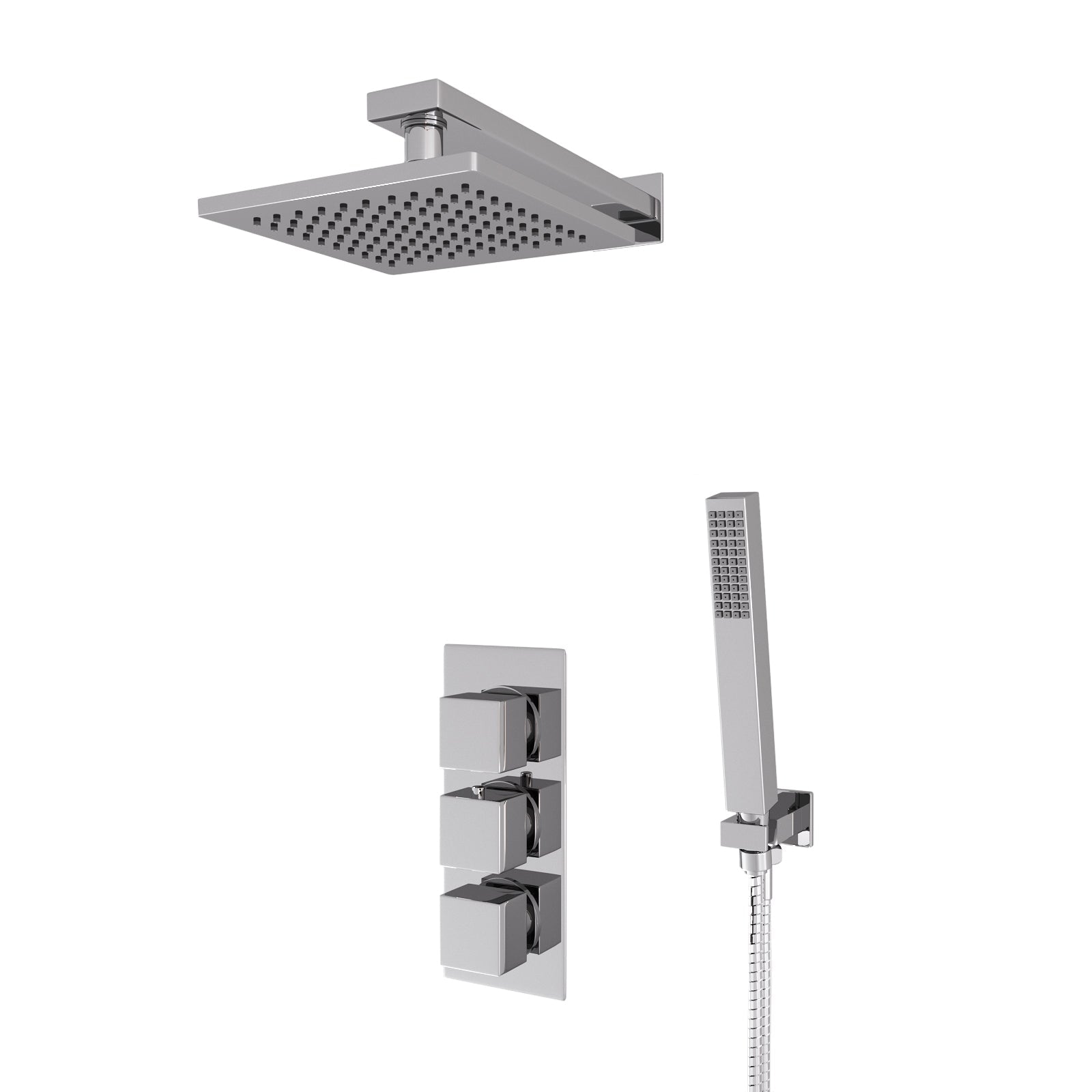

Package Contents
- 1 x Thermostatic Concealed Valve
- 1 x Wall Mounted Shower Head and Arm

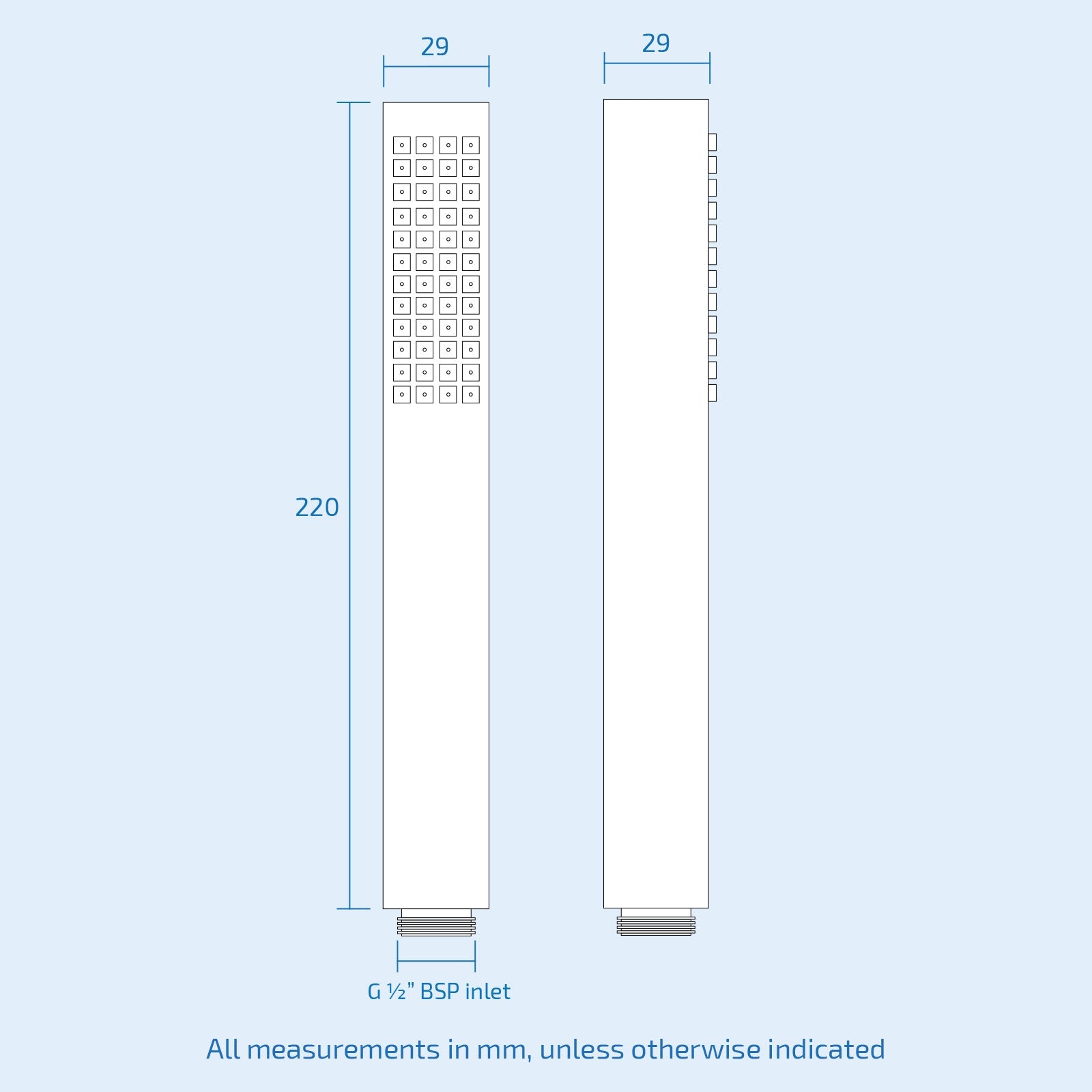

- 1 x Handset
- Complete fitting accessories
Specifications
| Material | Brass |
|---|---|
| Style | Modern |
| Finish | Highly polished chrome |

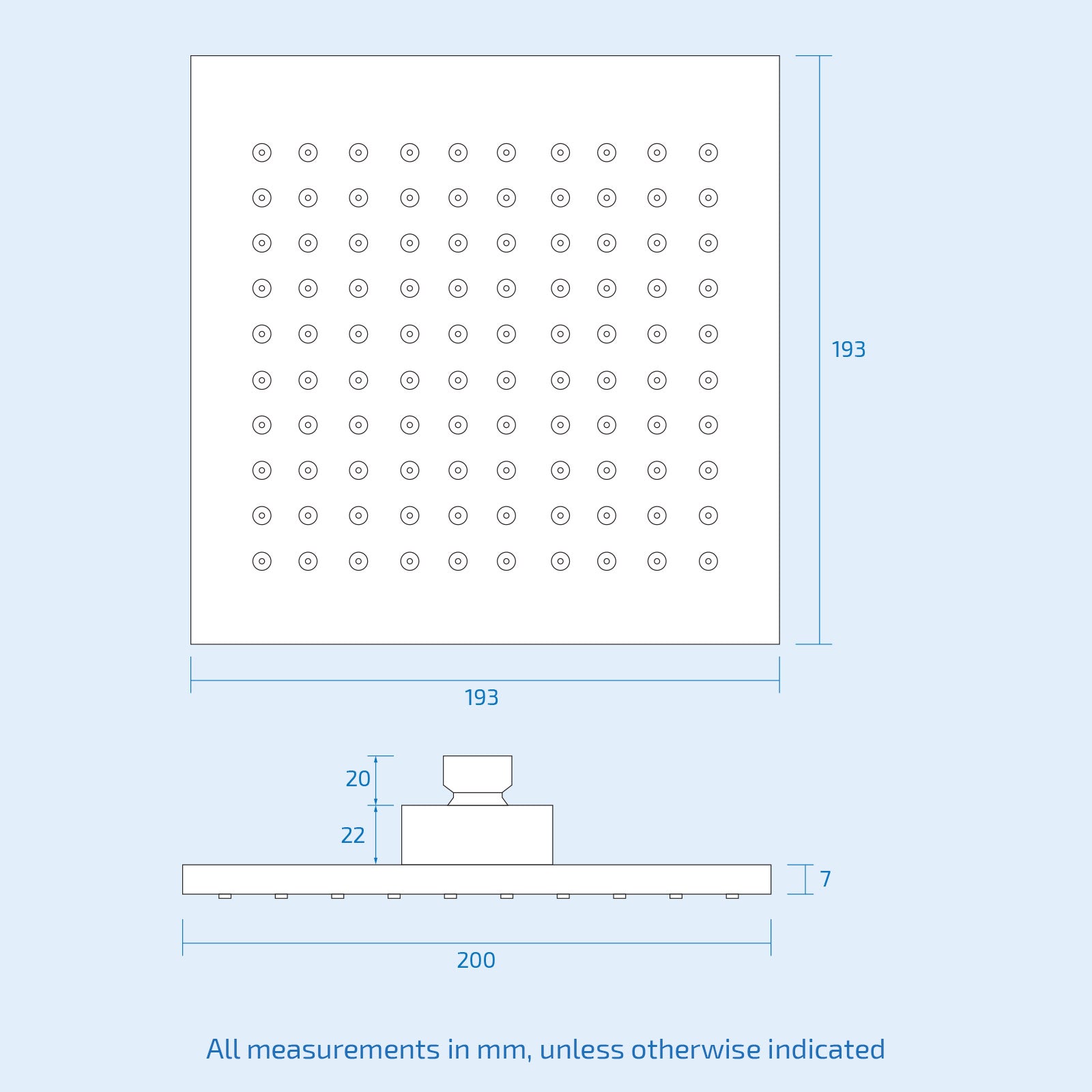

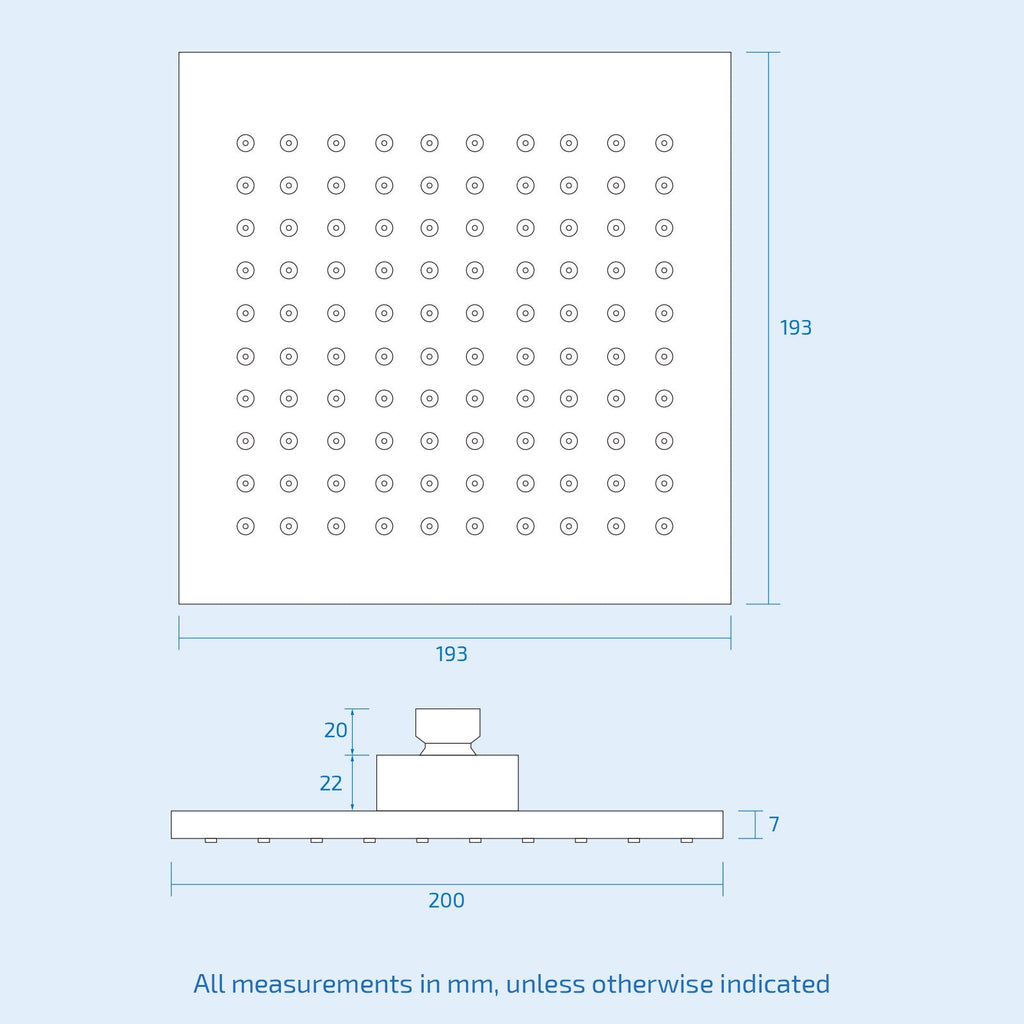

| Shower head | 8" (200mm) |

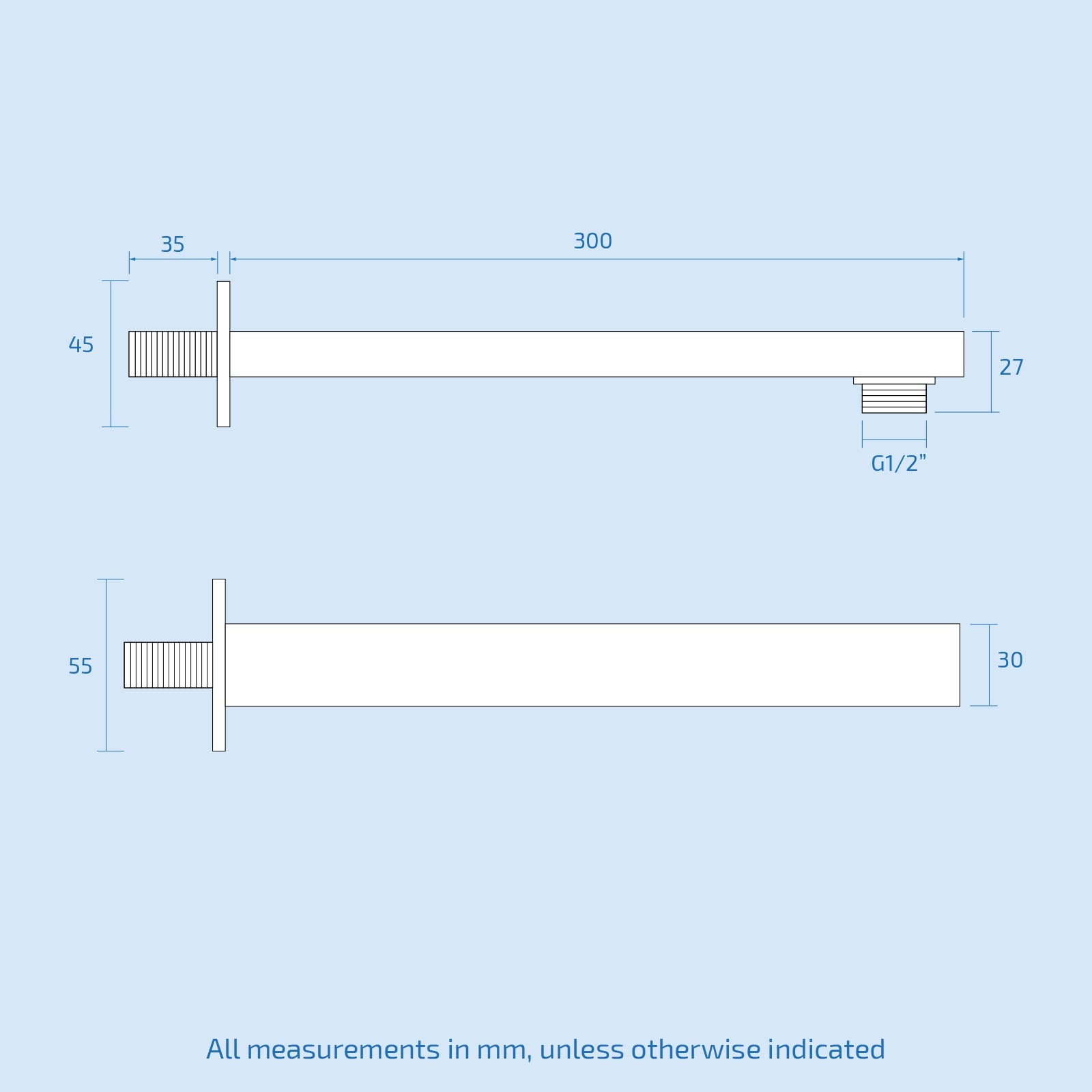

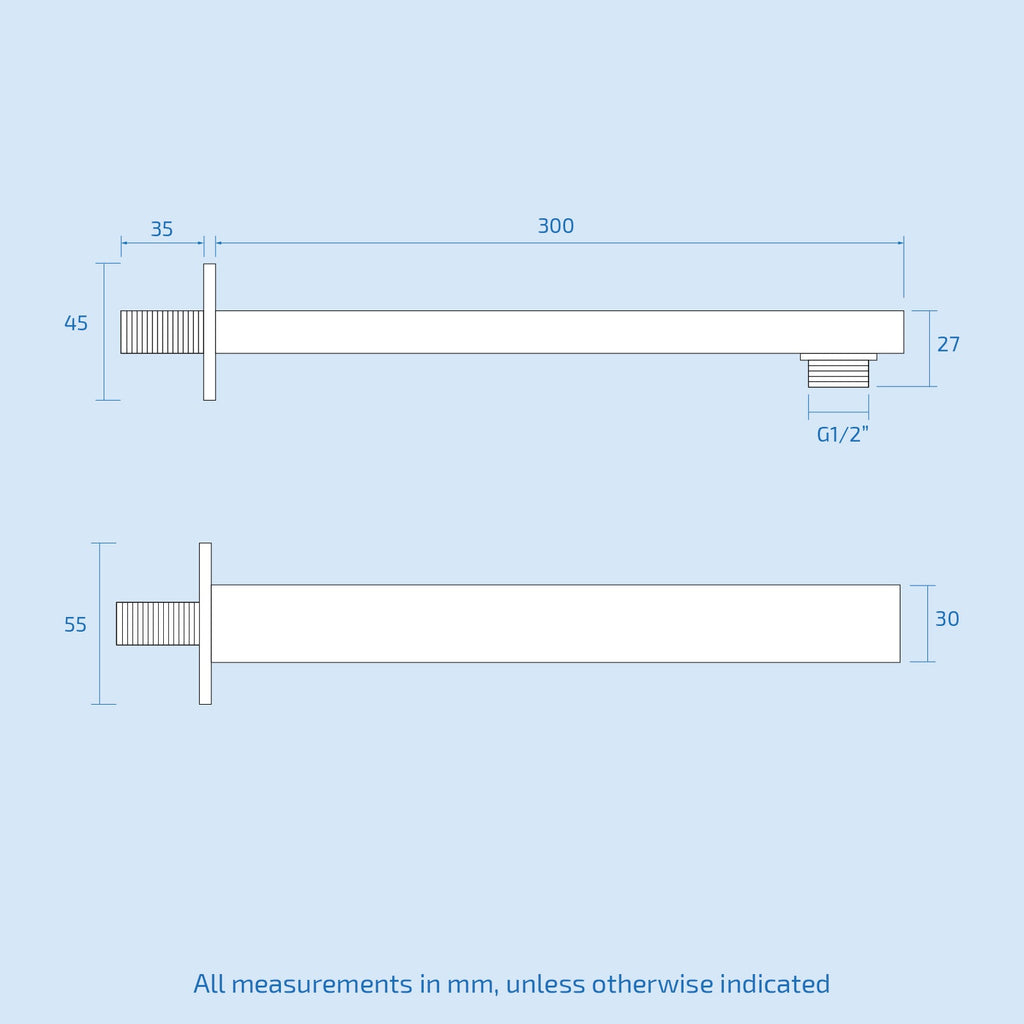

| Shower arm | 300mm |

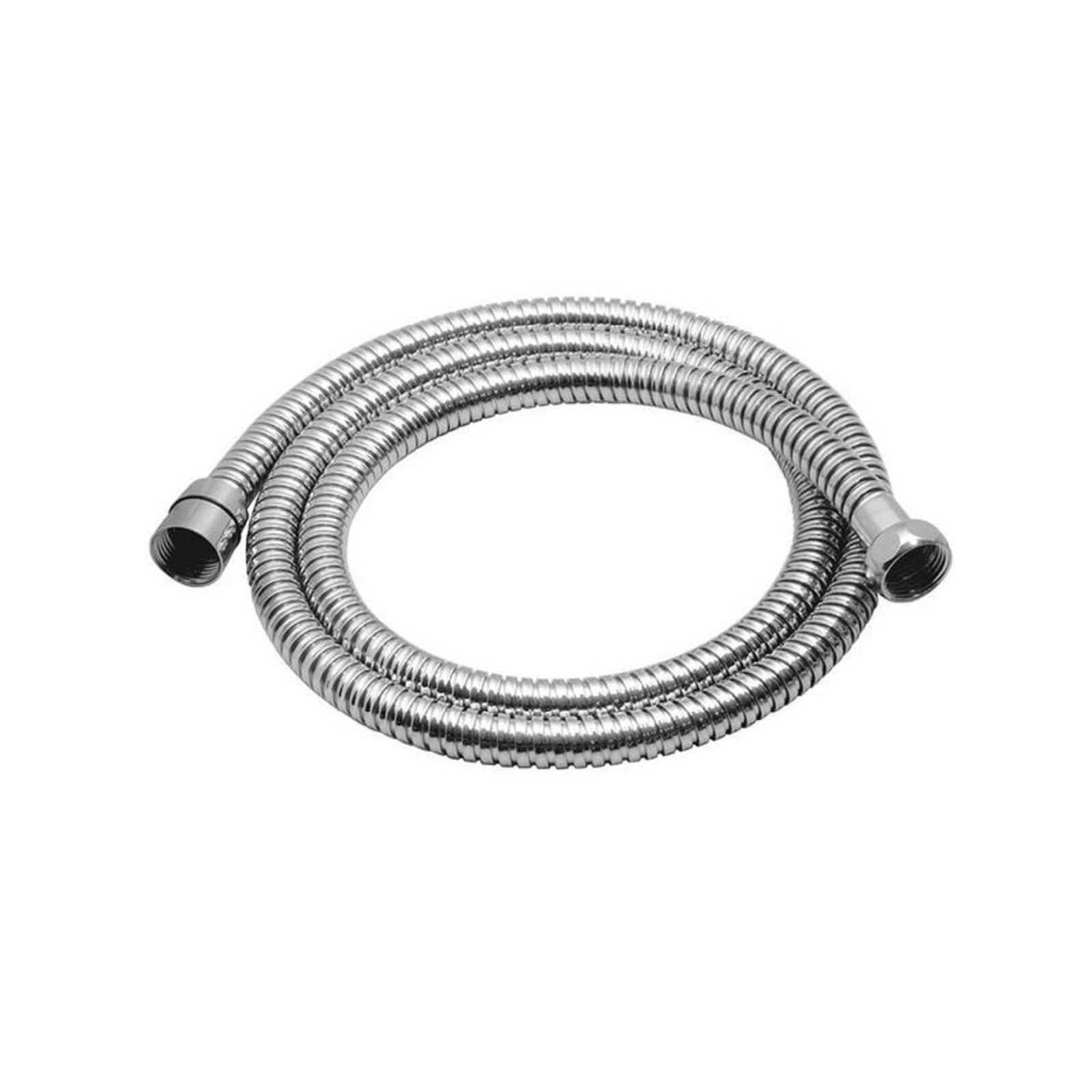

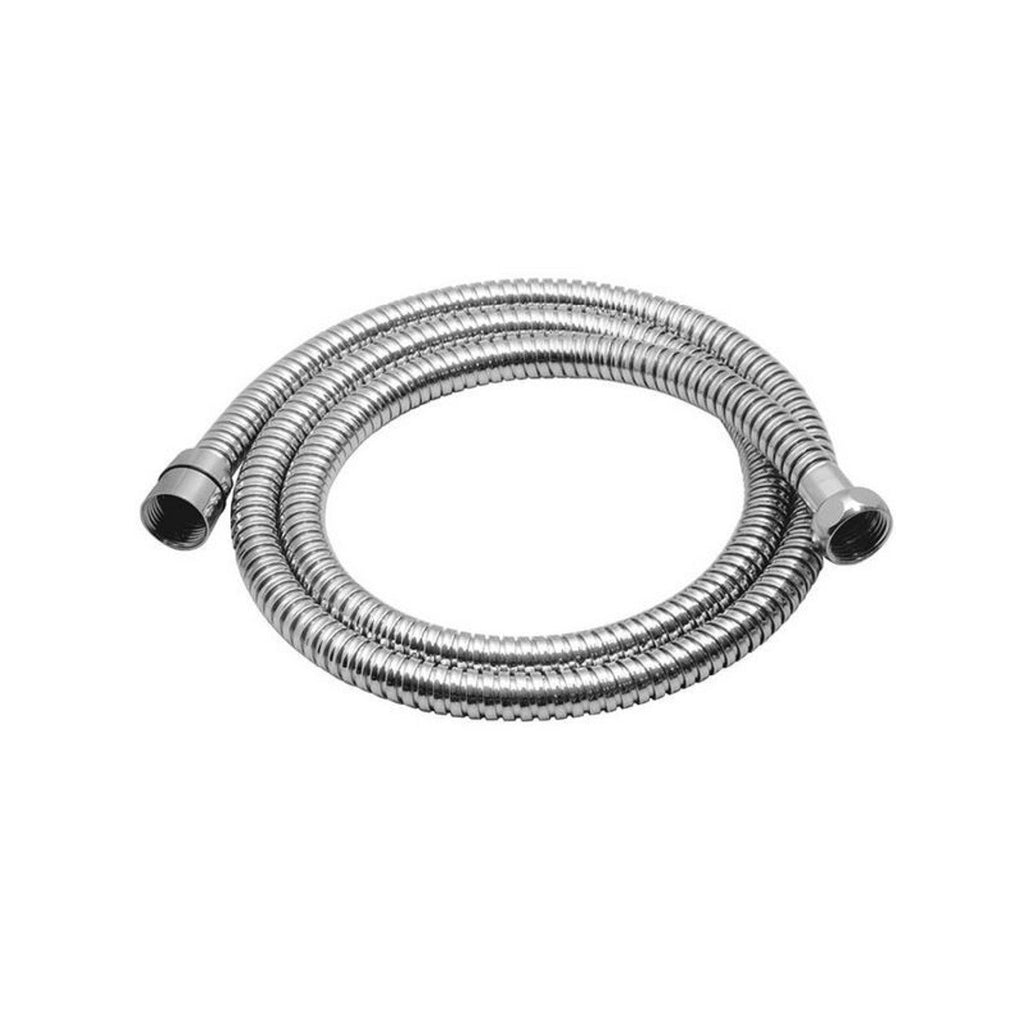

| Shower hose | 1.5m flexible stainless steel |
| Shower handset | Chrome plated |
| Anti-scalding | Built-in device |
| Child friendly | Yes |
| Temperature range | 20-50 degrees C |
| Controls | 3 |
| Diverter | Yes |
| Valve | Brass construction |
| Mounting Type | Wall Mounted |
| Structure | Fully integrated |
| Minimum pressure | 0.2 bar |
| Maximum pressure | 6 bar |
| Guarantee | 10 years |
