Description

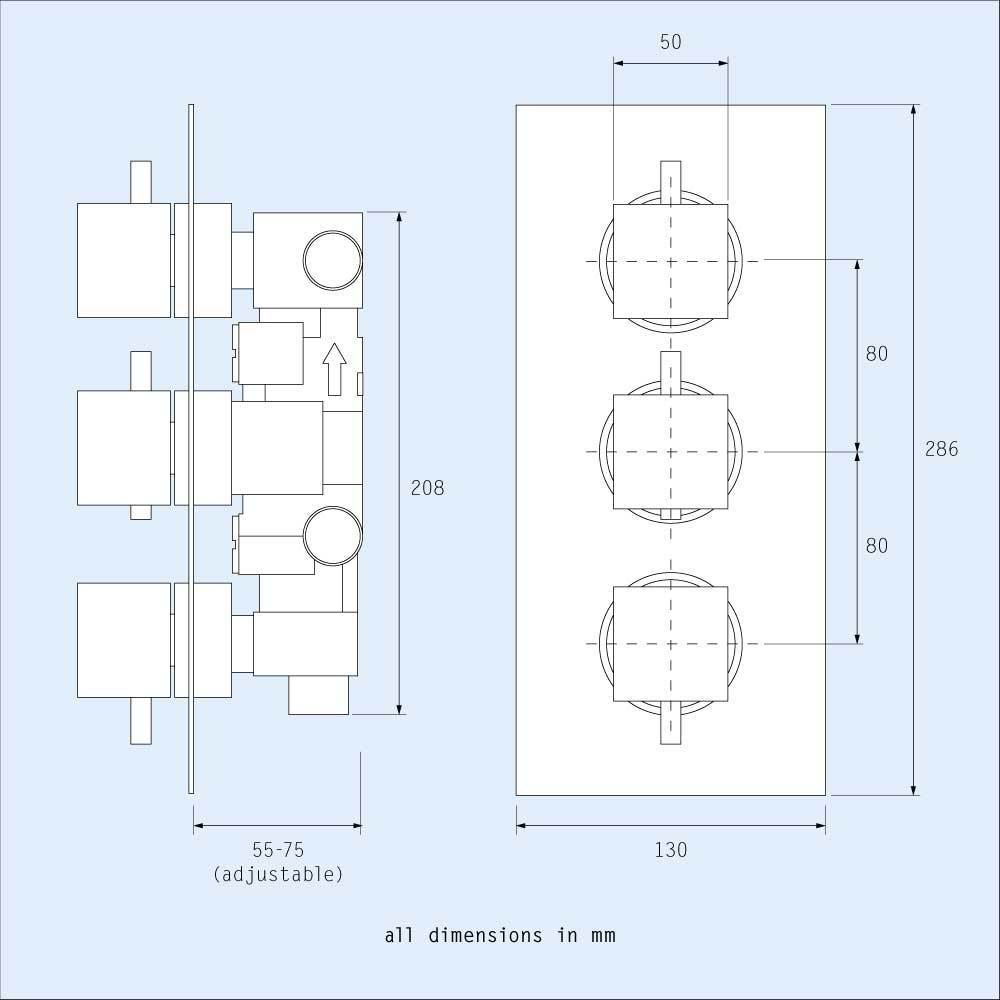

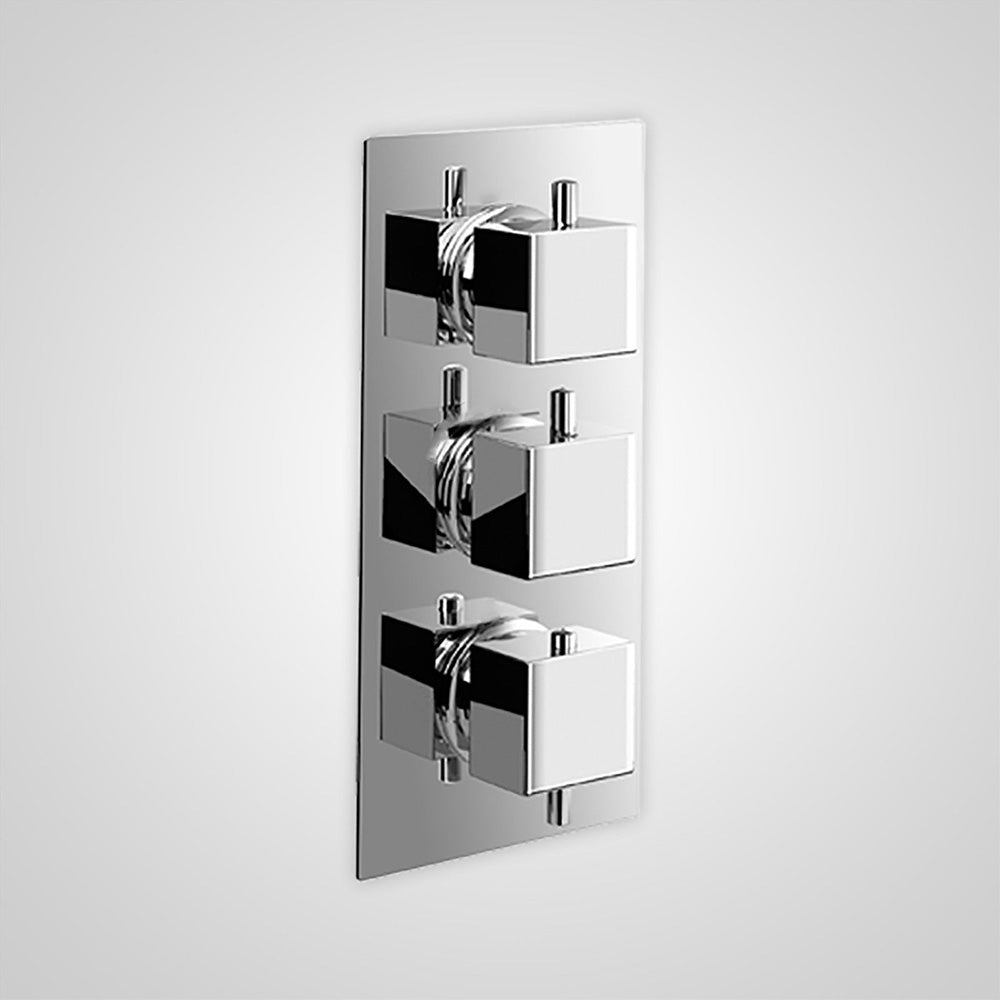

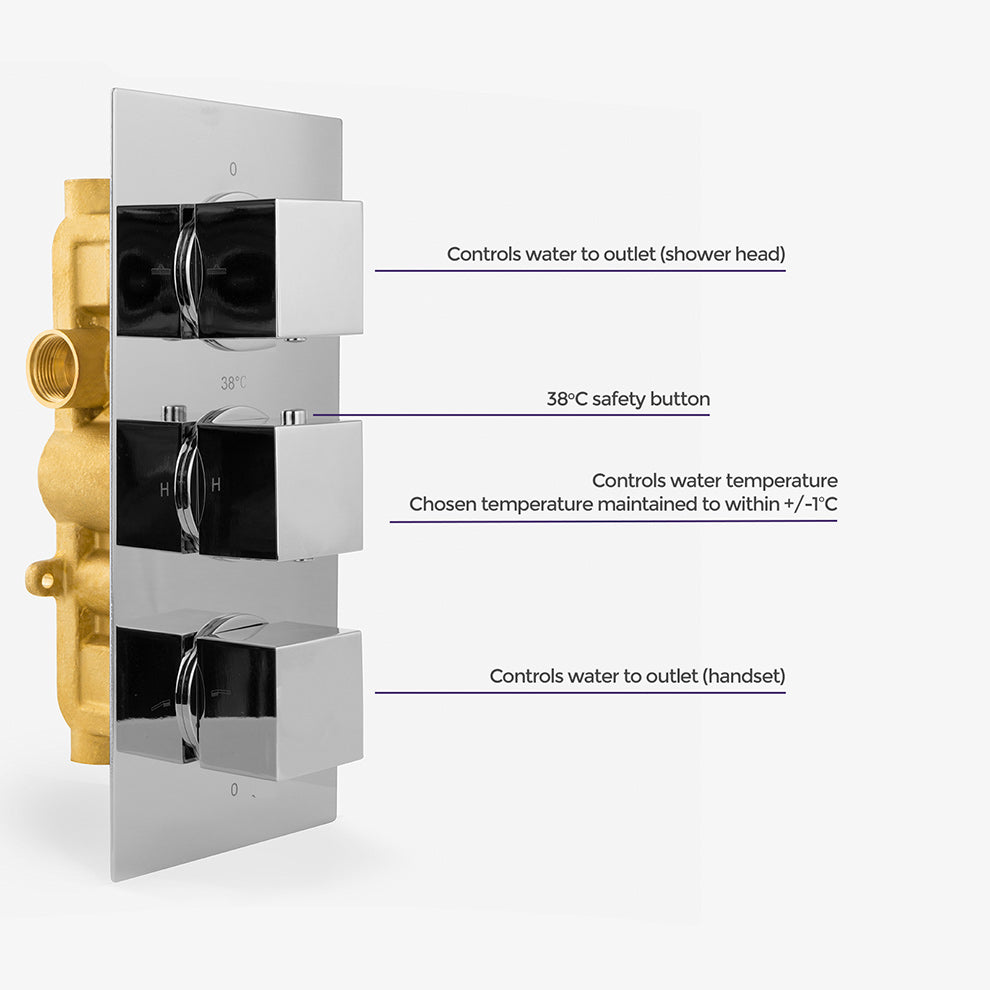

Thermostatic Concealed Valve Features
- Top dial - controls water to 1 outlet diverter
- Middle dial - temperature control
- Bottom dial - controls water to 1 outlet diverter
- High-Quality Design
- Chrome Plated
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button

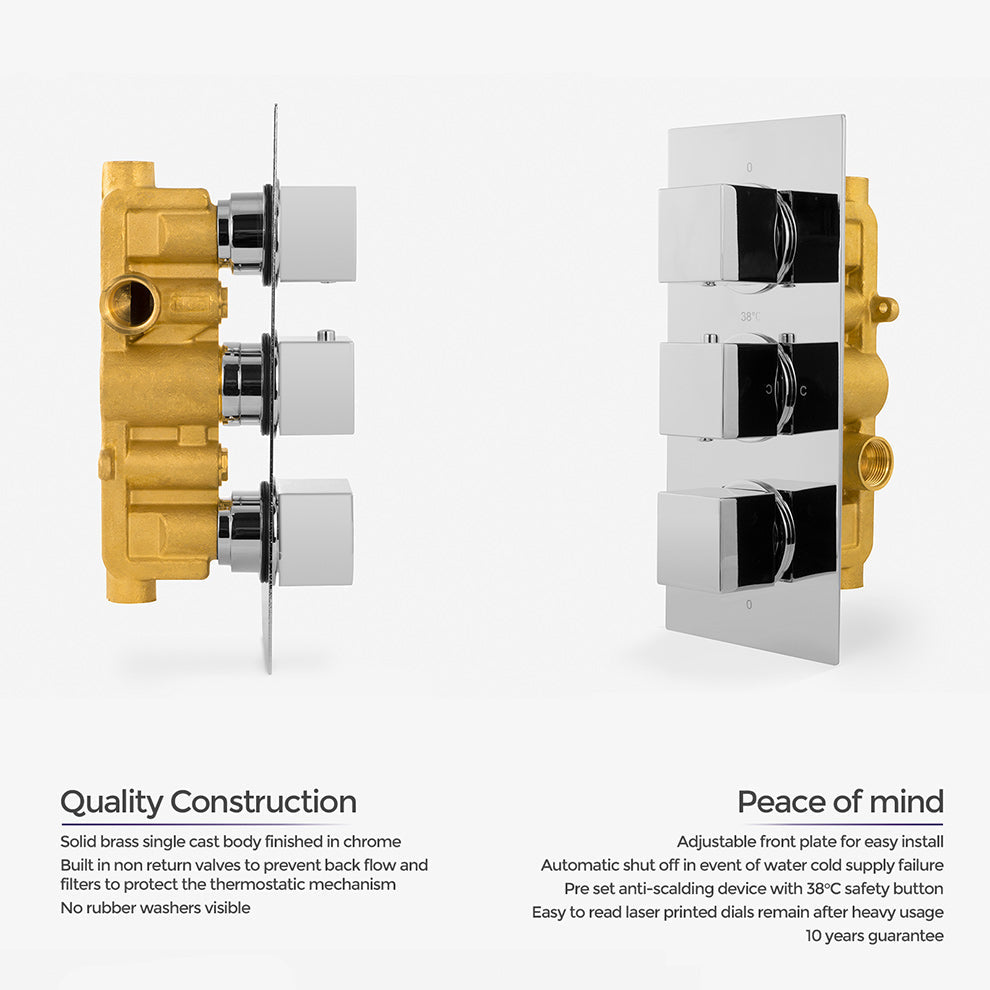

- Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting
Shower Head with Wall Mounted Details

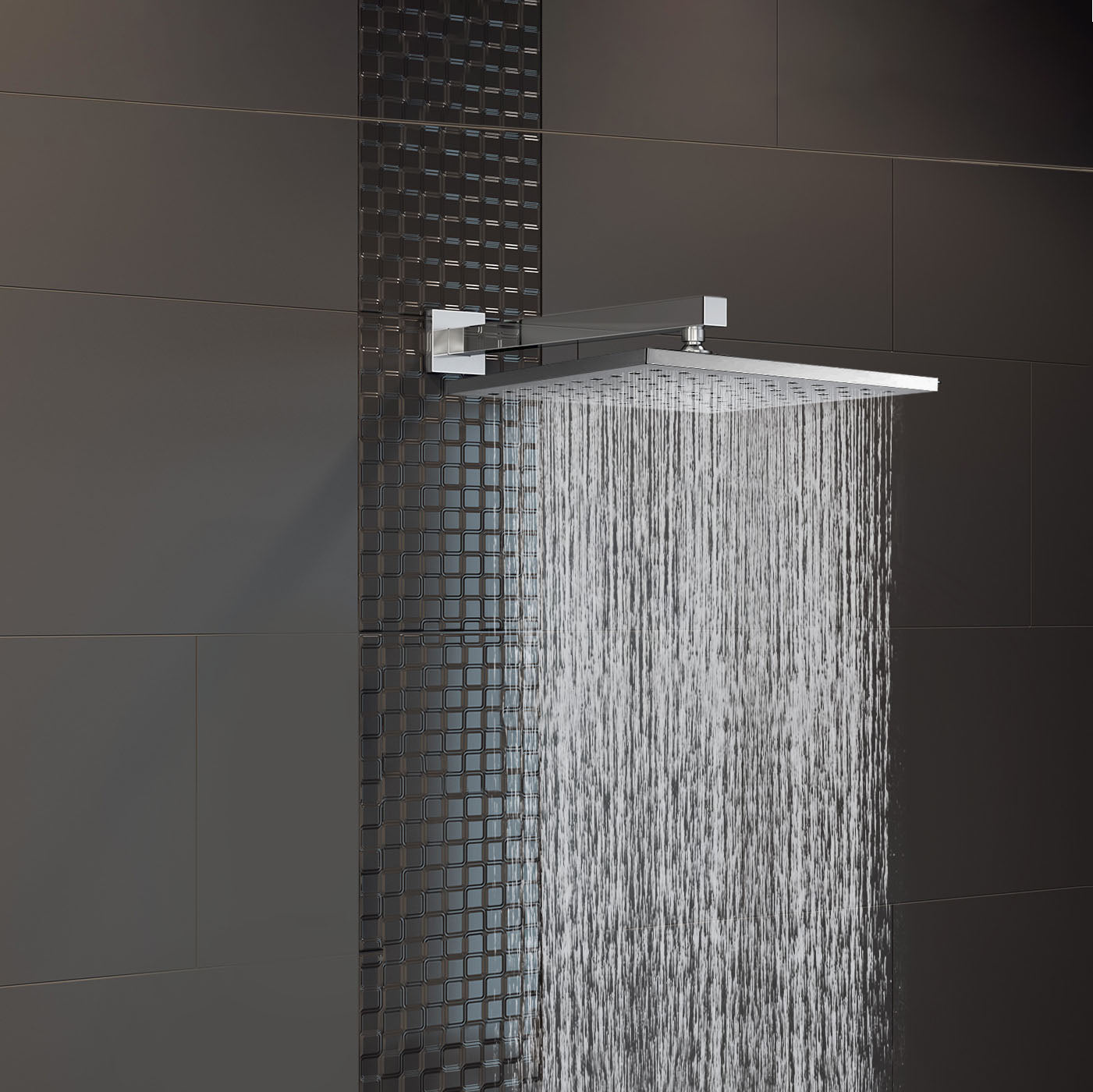

- Showerhead
- Stainless Steel

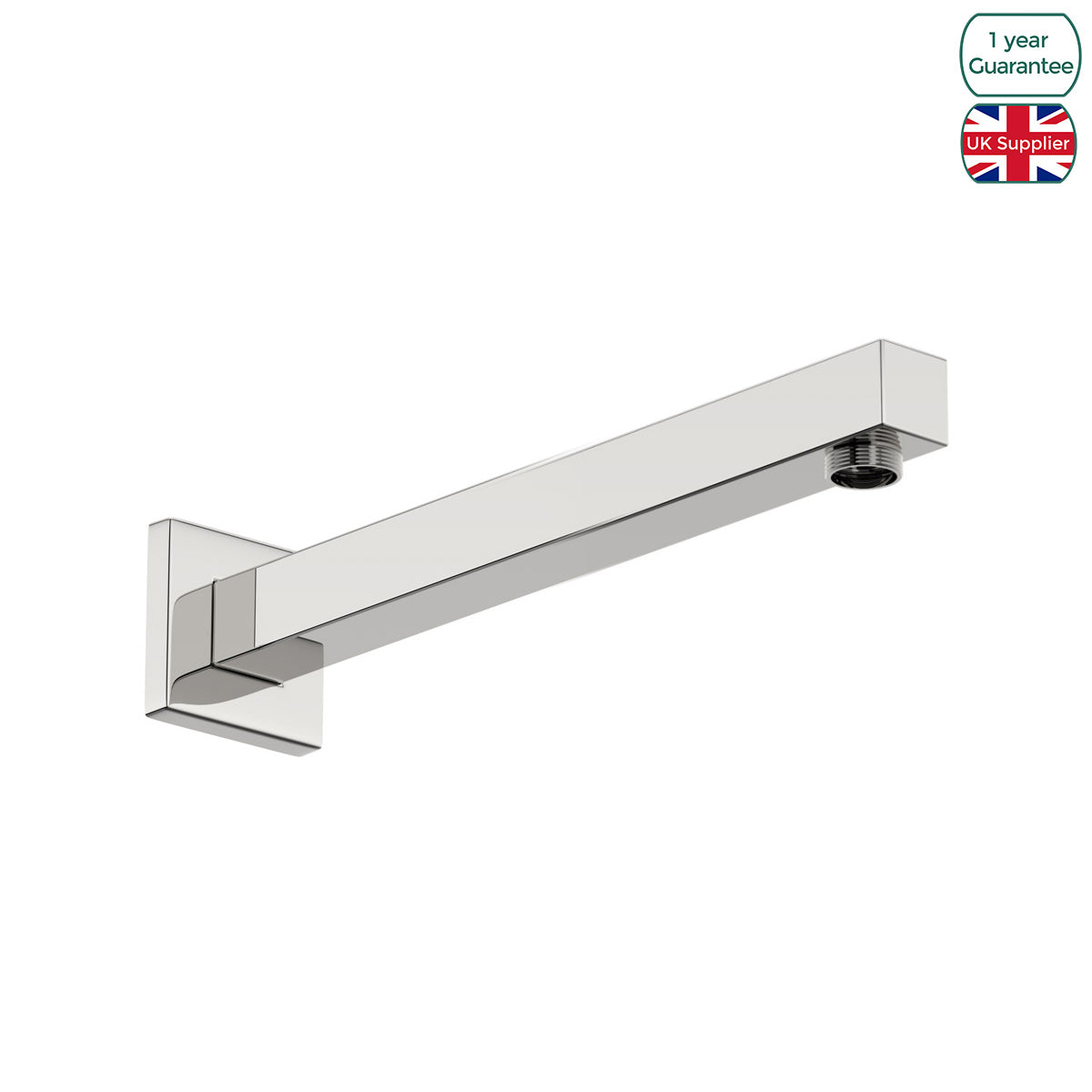

- Solid Brass Arm
- Chrome Finish
Technical Information
Suitable for the following water systems:
- Combination boiler systems
- Gravity-fed systems (only with a pump)
- MegaFlo systems
- Pumped hot water systems
- Un-vented hot water systems
- Standard pressurised hot water cylinder type systems

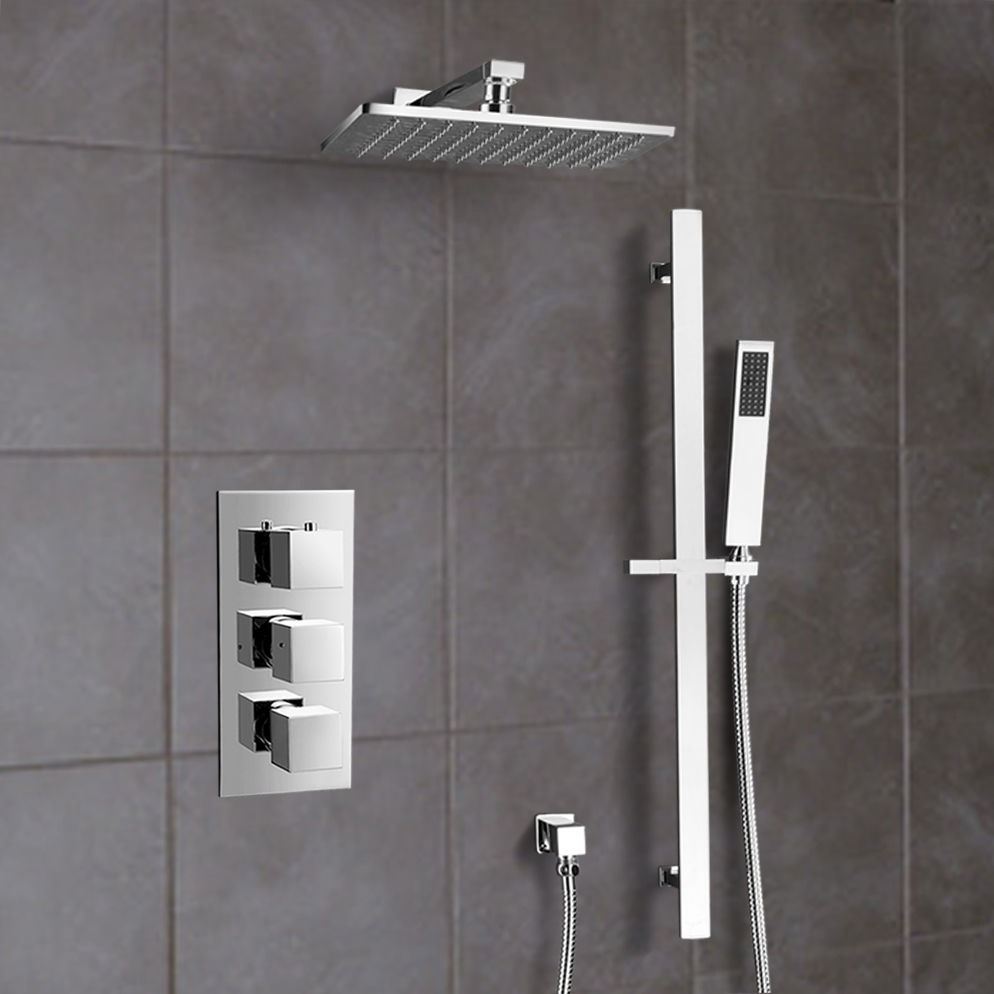

Package Contents
- 1 x Thermostatic Concealed Valve
- 1 x Wall Mounted Shower Head

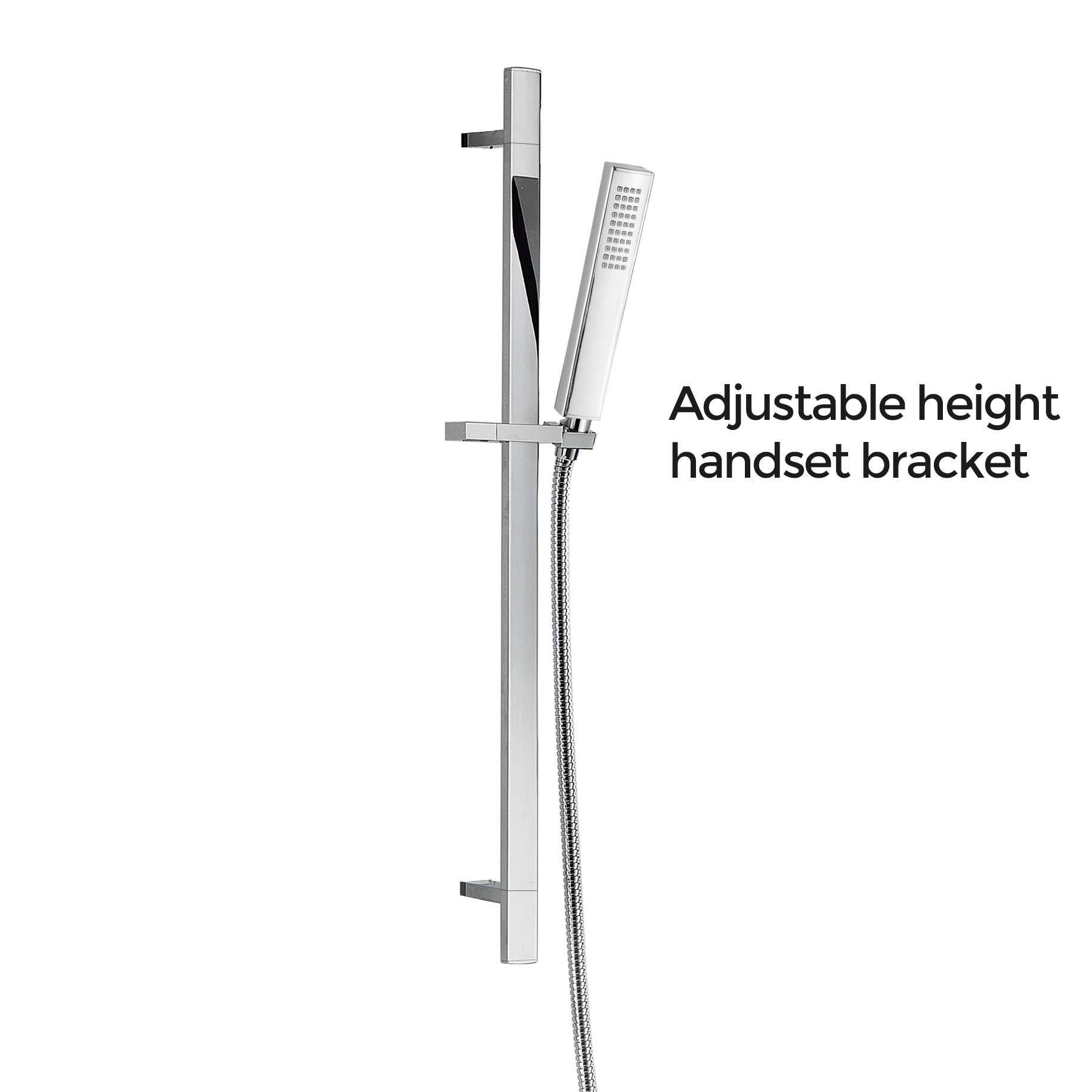

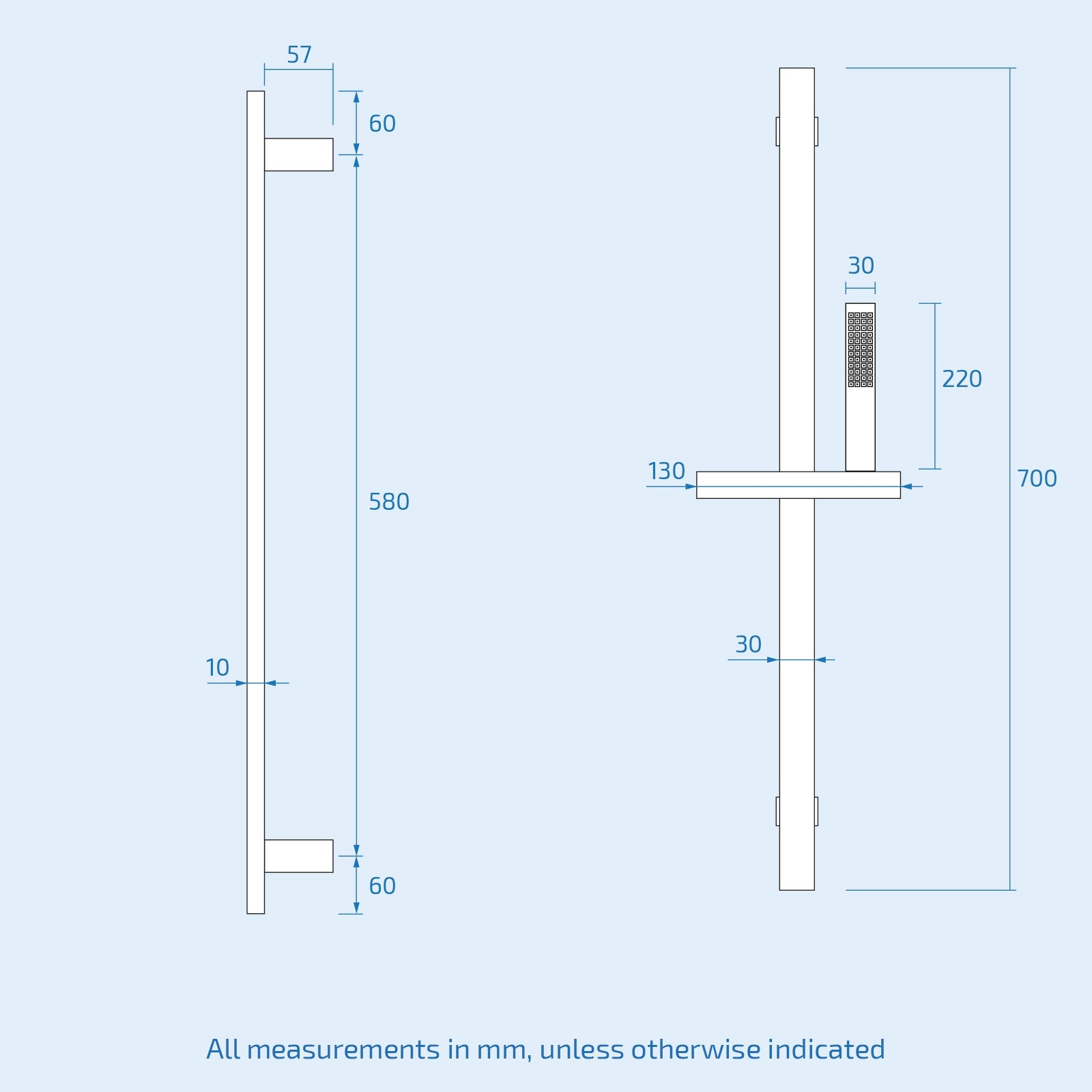

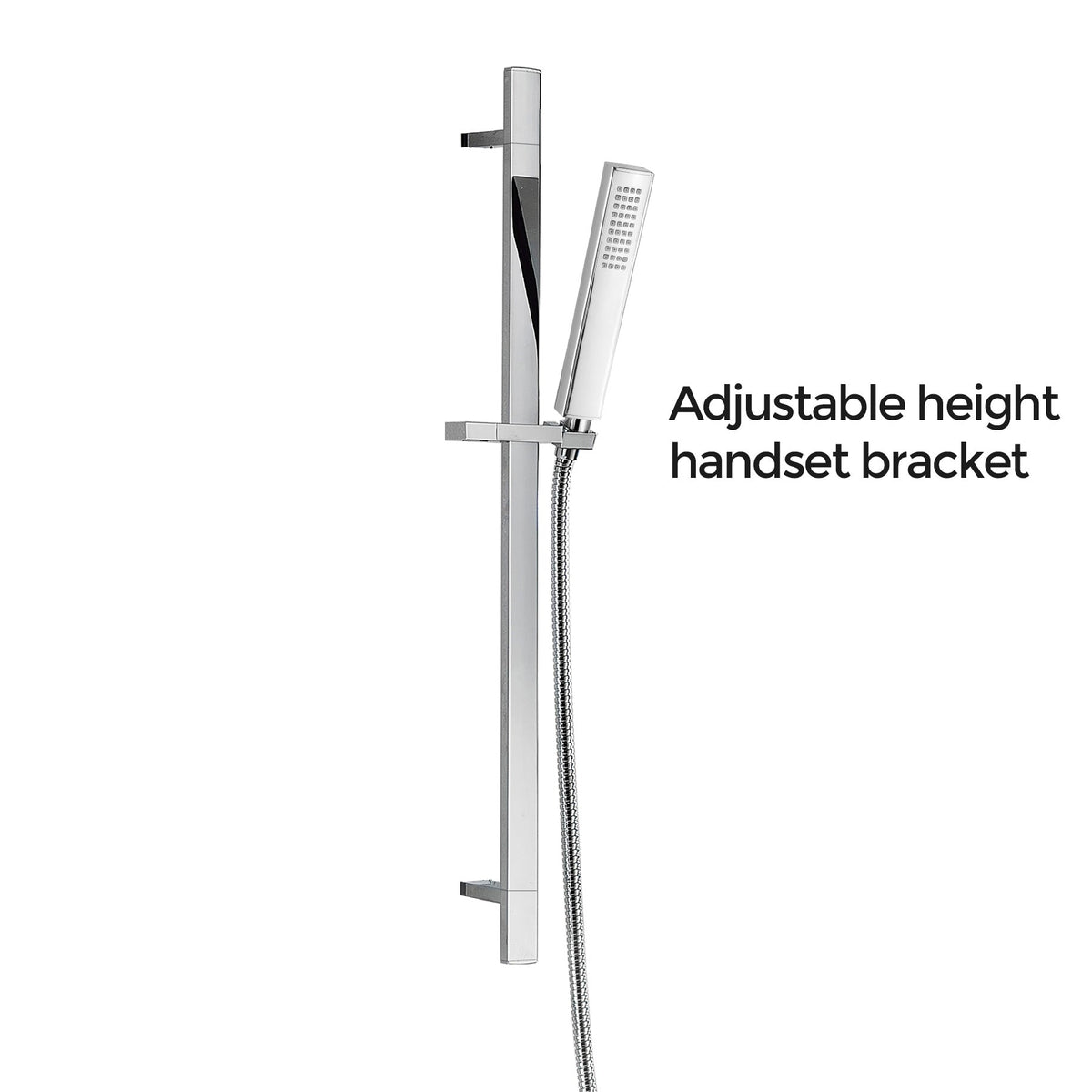

- 1 x Slider Rail and Handset
- Complete fitting accessories
Specifications
- Material Brass
- Style Modern
- Finish Highly polished chrome

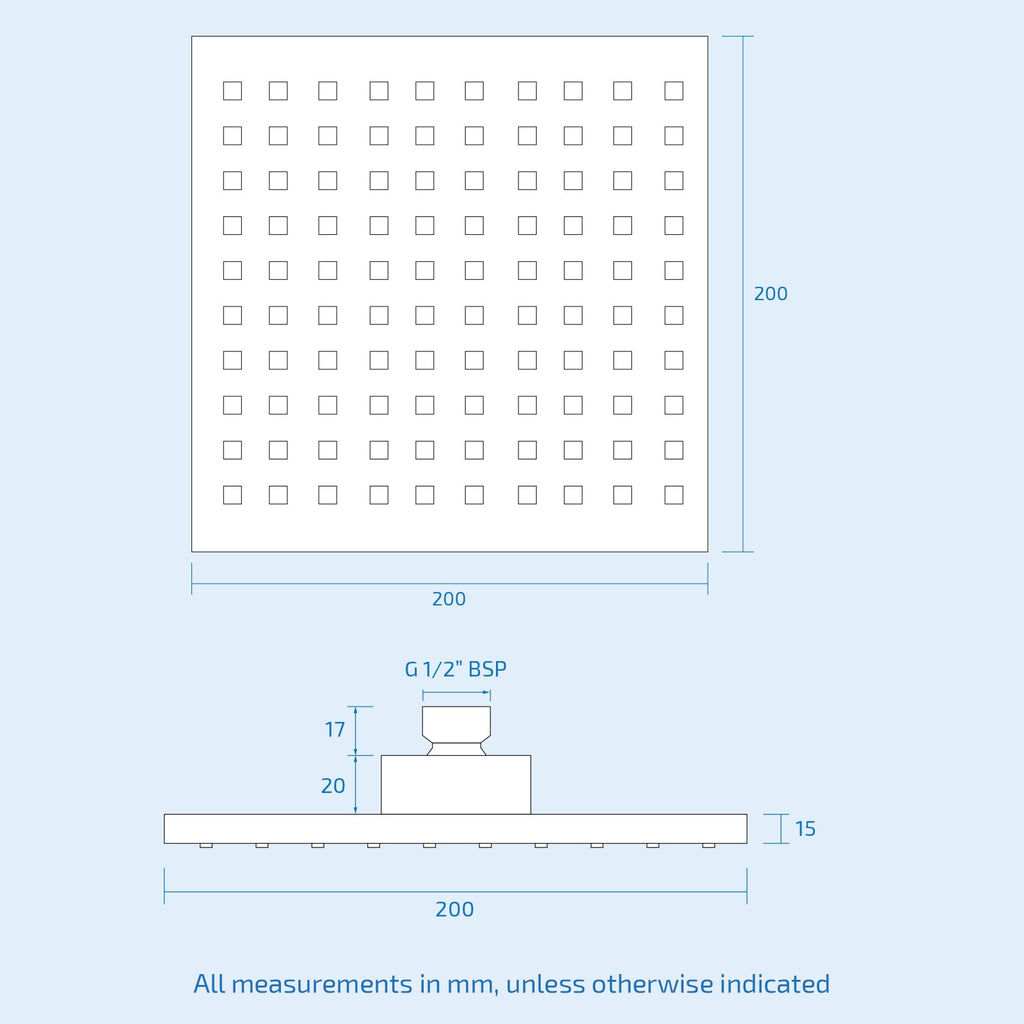

- Showerhead 8" (200mm)

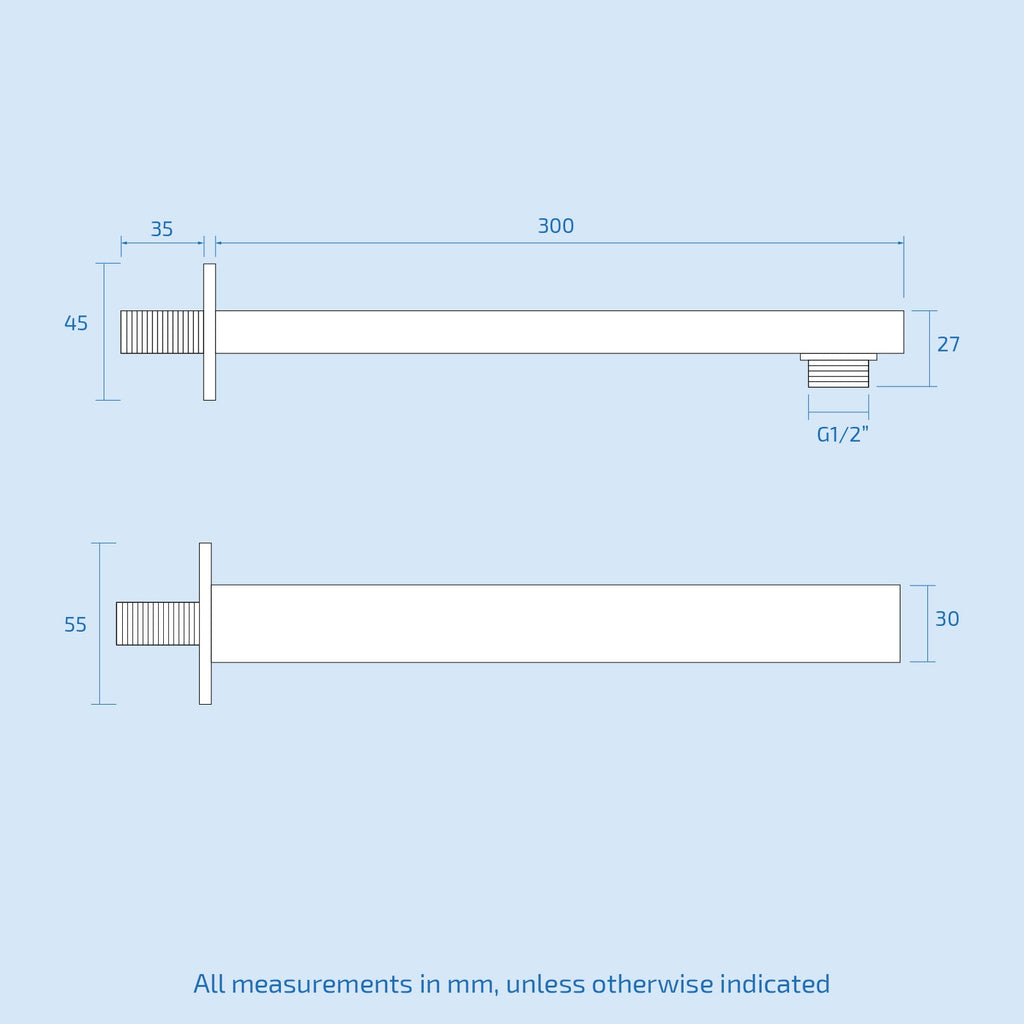

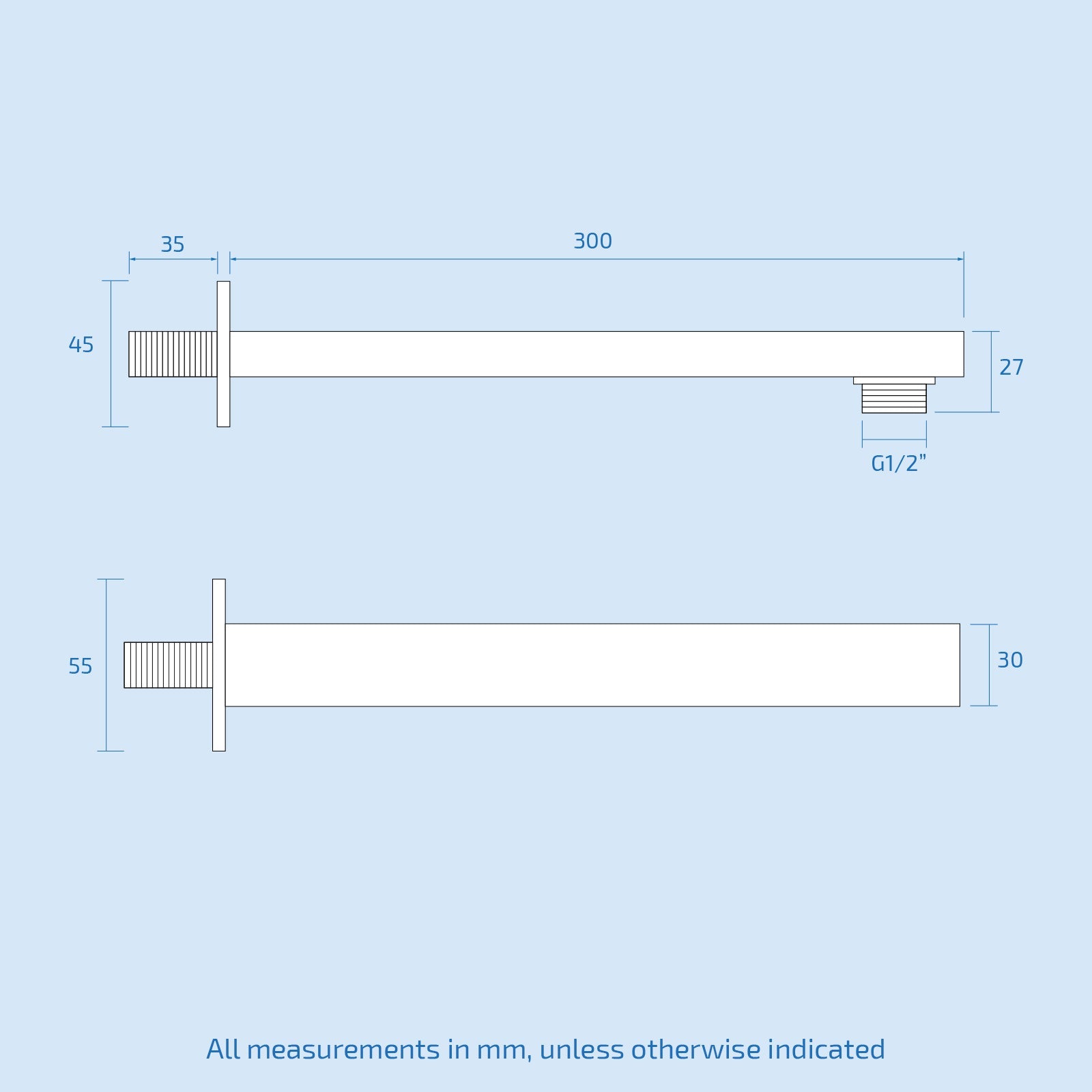

- Shower arm 300mm
- Shower hose 1.5m flexible stainless steel
- Shower handset Chrome plated
- Anti-scalding Built-in device
- Child friendly Yes
- Temperature range 20-50 degrees
- C Controls 2
- Diverter Yes
- Valve Brass c
