Designed for busy, modern homes, this Complete 1700mm Bathroom Suite is the perfect balance of cost, quality, and style. The elegant design features the smooth, clean lines of a traditionally curved full pedestal basin, beautifully contrasted by brushed brass brassware and shower fittings. This comprehensive suite delivers a stunning centrepiece while providing exceptional daily comfort and functionality.
Crafted from high-quality ceramic and acrylic, each component is built for long-lasting performance. The suite includes a 1700mm x 700mm bathtub with an encapsulated baseboard and legs, a durable ABS front panel, and a brushed brass framed tempered glass bath screen. The close-coupled toilet features a highly efficient 3/6 litre dual-flush cistern, helping you save water and reduce household bills without compromising on performance.
Complete with a thermostatic shower kit boasting anti-scald technology, a cold-start basin mixer, and a durable bath filler—all finished in brushed brass—this suite combines elegant design with practical, family-friendly functionality, making it the ultimate investment for your bathroom.
Key Features
- Complete, ready-to-install bathroom suite for a cohesive look
- Water-saving 3/6 litre dual-flush integrated cistern
- Easy-to-clean full pedestal basin that conceals unsightly pipework
- Premium brushed brass brassware with durable ceramic disc technology
- Child-friendly thermostatic shower kit with anti-scalding device
- 5mm tempered safety glass bath screen with 787–800mm adjustment
- High-gloss glaze white finish on all ceramic and acrylic components
- Suitable for both domestic and commercial use
Specification

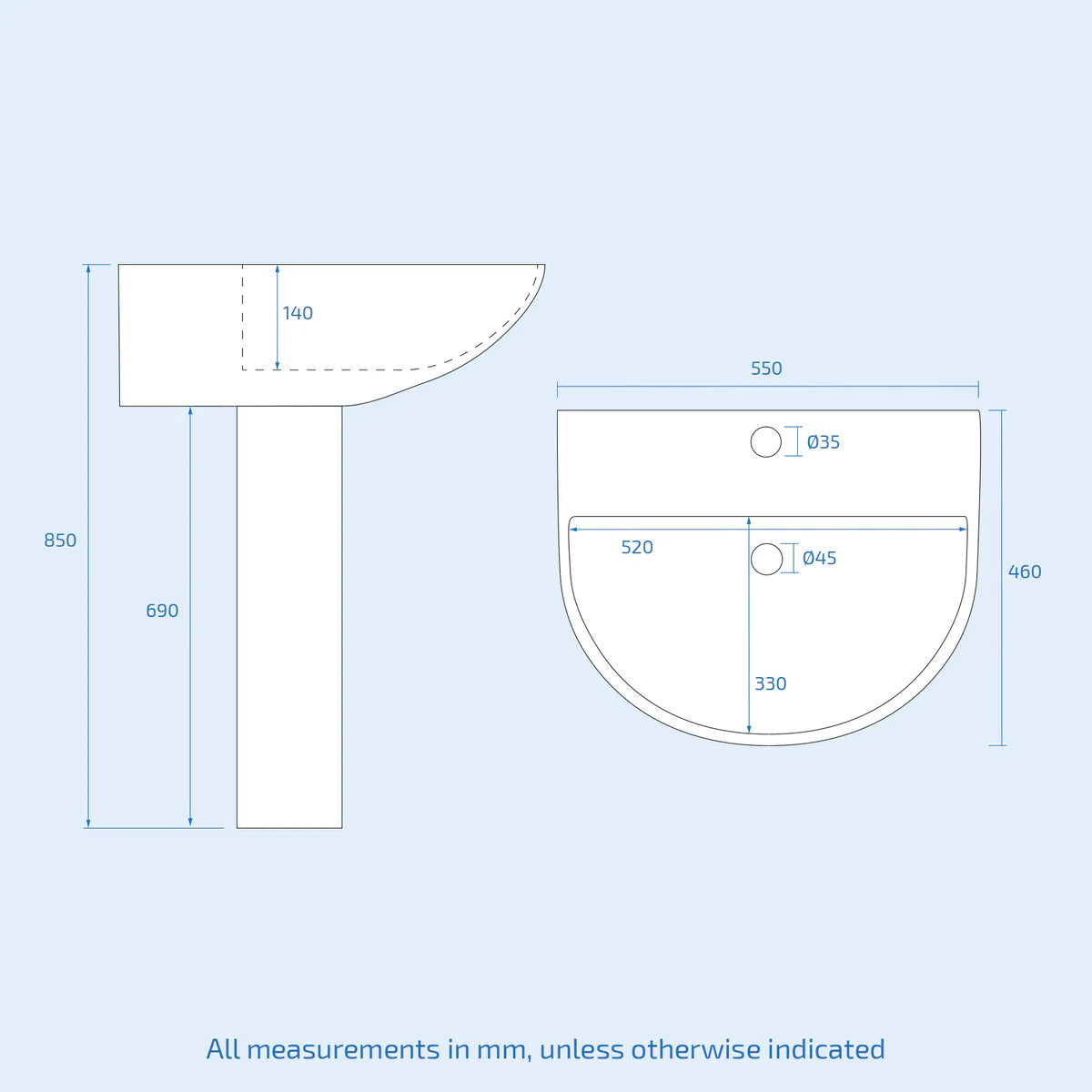

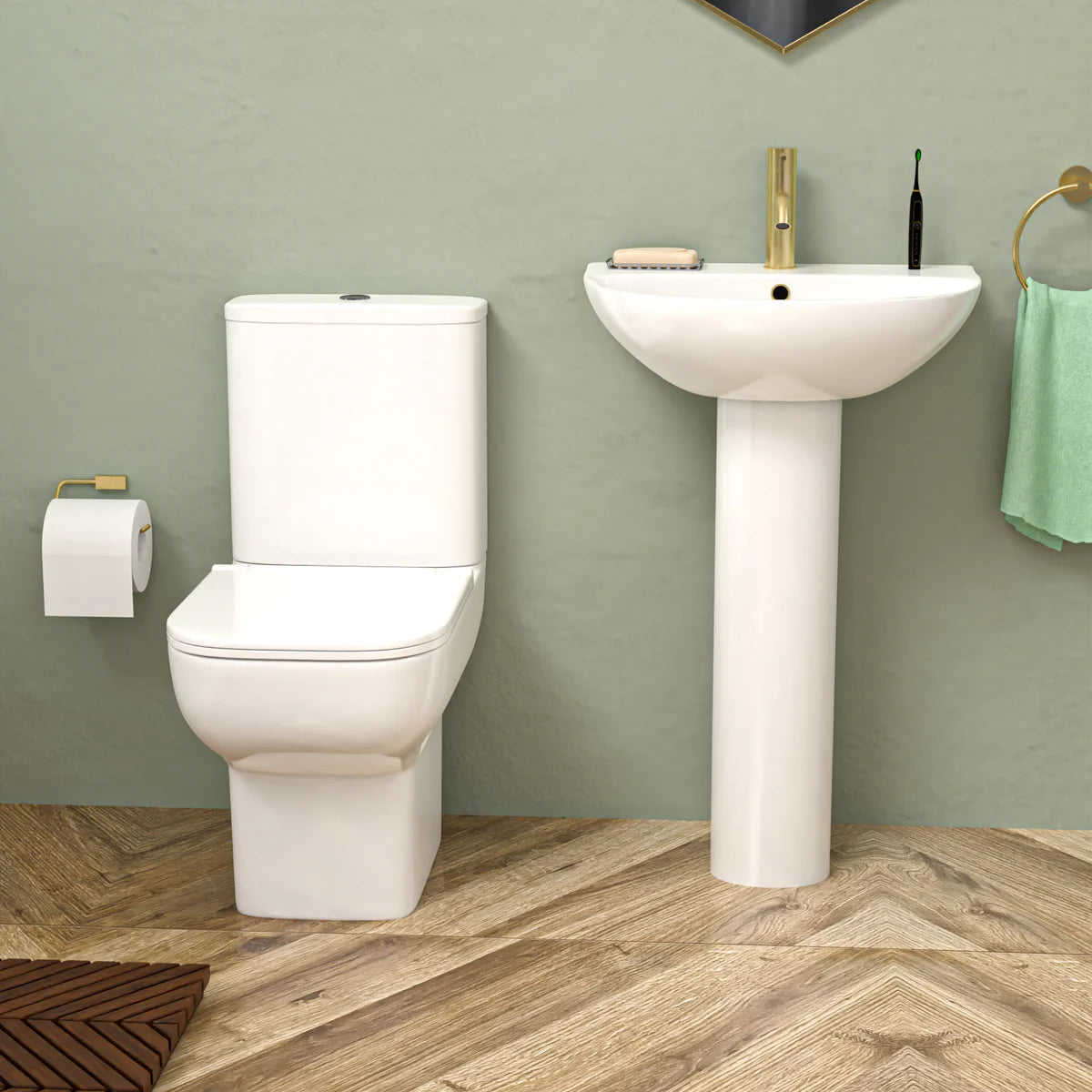

Basin & Pedestal
-
Material: Ceramic
-
Width: 550 mm
-
Height: 850 mm
-
Projection: 460 mm
-
Tap Hole: 1 (Ø35mm)
-
Pedestal Type: Full

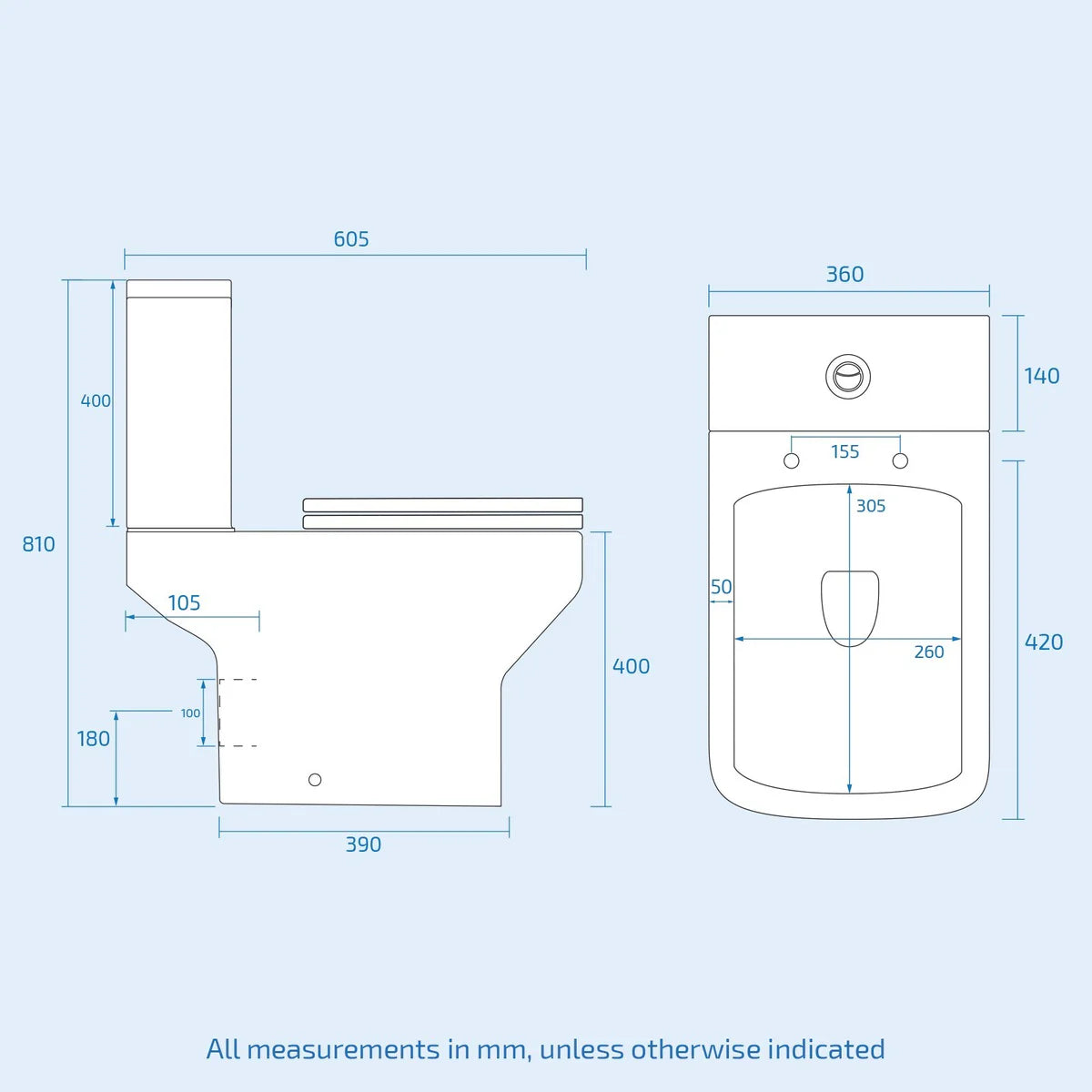

Toilet & Cistern
-
Material: Ceramic
-
Type: Close Coupled
-
Height: 810 mm
-
Width: 360 mm
-
Projection: 605 mm
-
Flush: 3/6 Litre Dual Flush (Internal Overflow)
-
Seat: Top Fixing, Soft Close

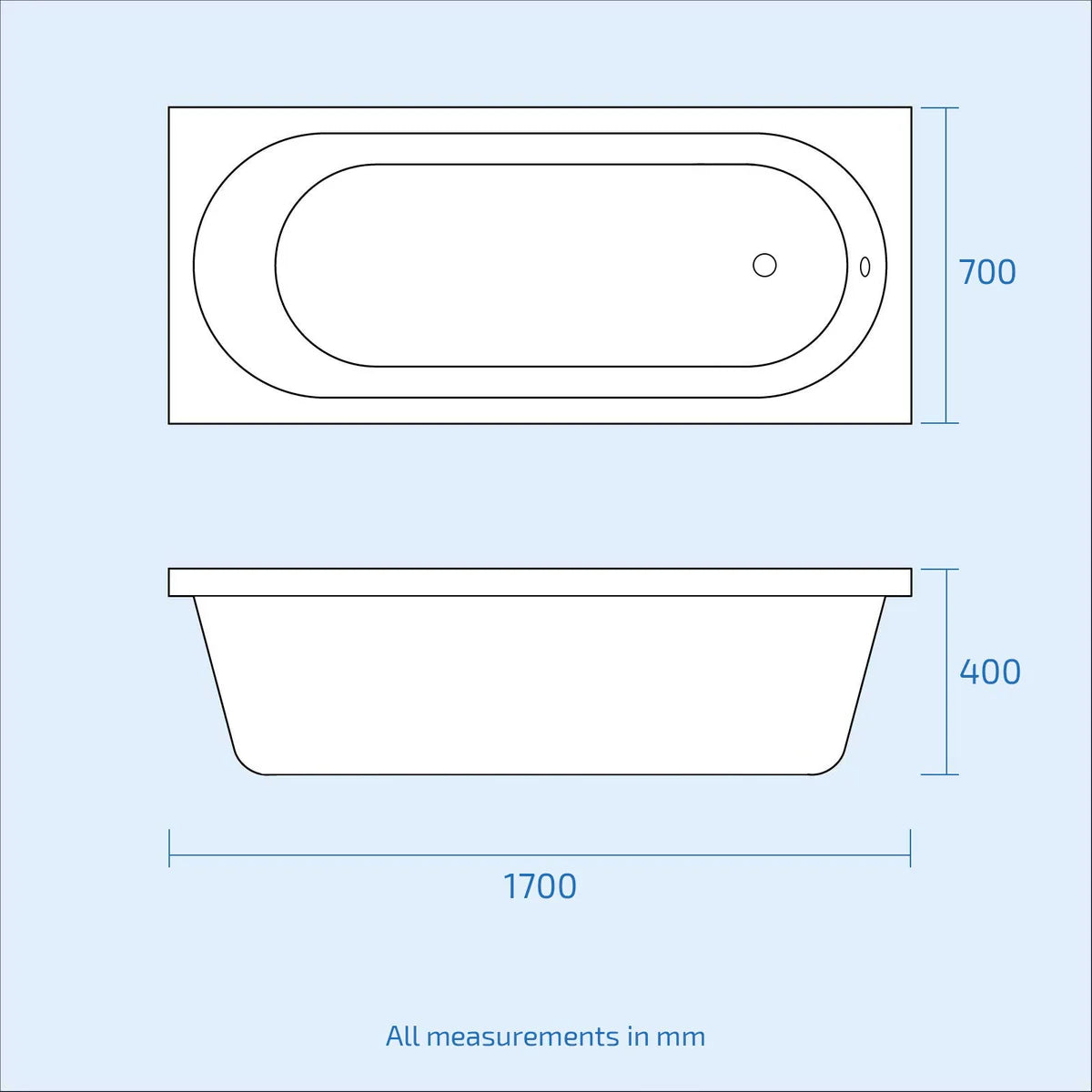

Bath & Front Panel
-
Bath Material: Acrylic (White Finish)
-

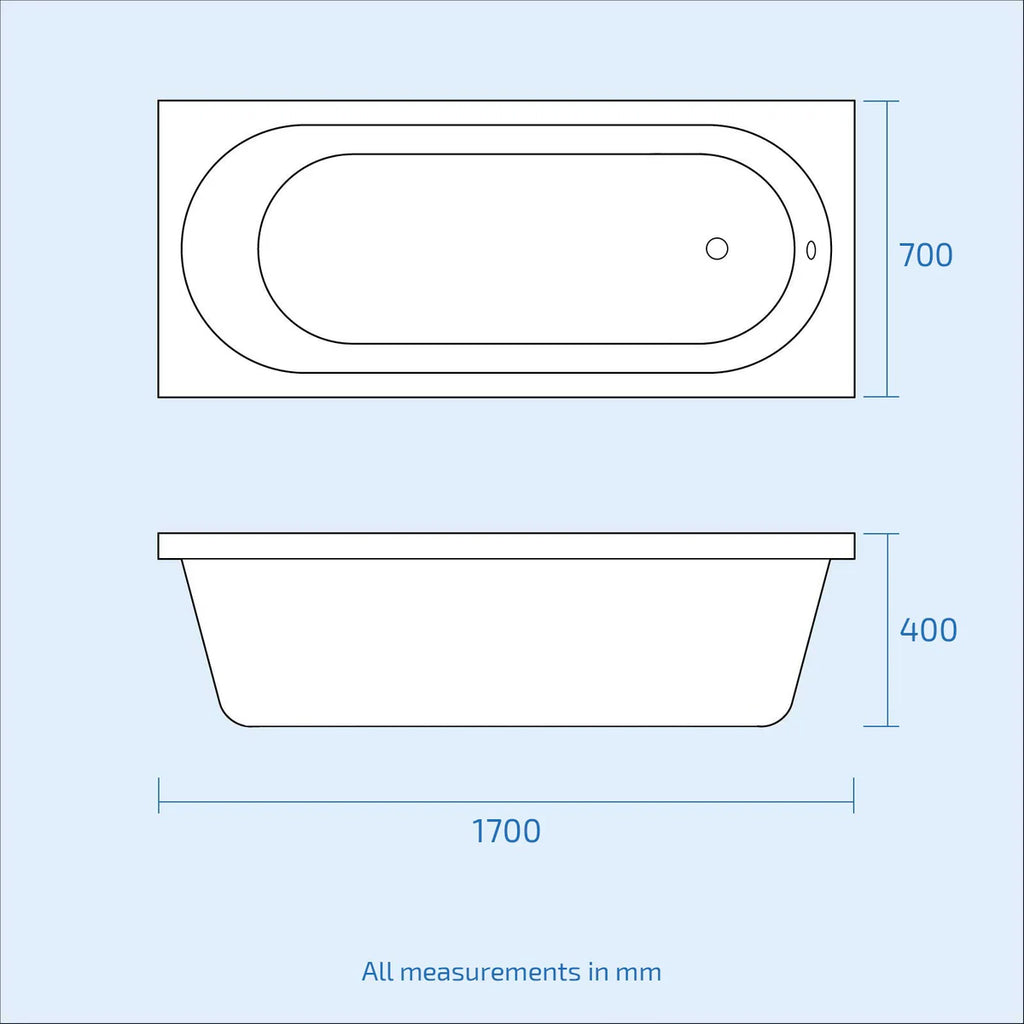

Bath Dimensions: 1700 mm (L) x 700 mm (W) x 400 mm (H)
-

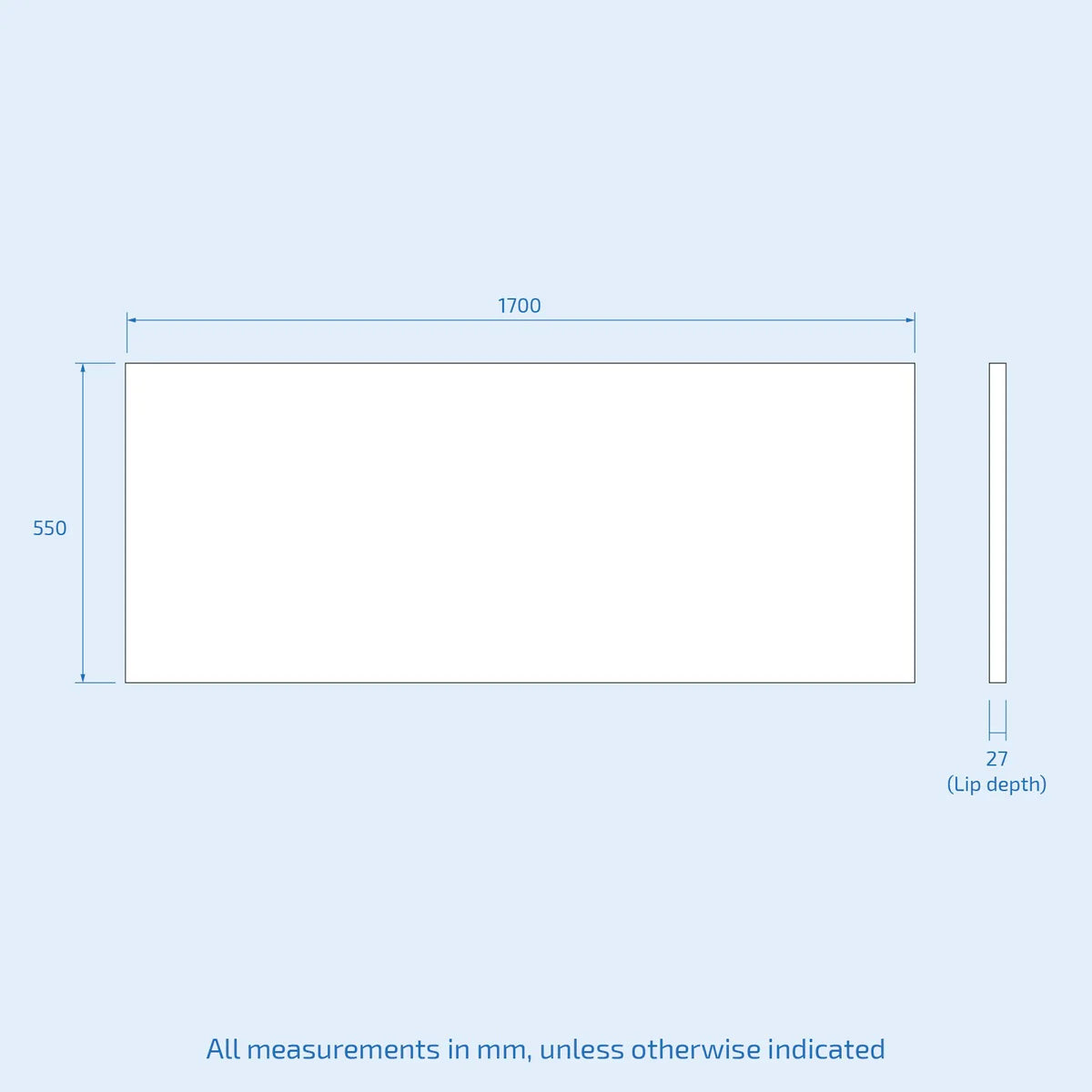

Panel Material: ABS (2mm Thickness / 27mm Lip Depth)
-
Panel Dimensions: 1700 mm (L) x 550 mm (H)
-
Legs Set: Included

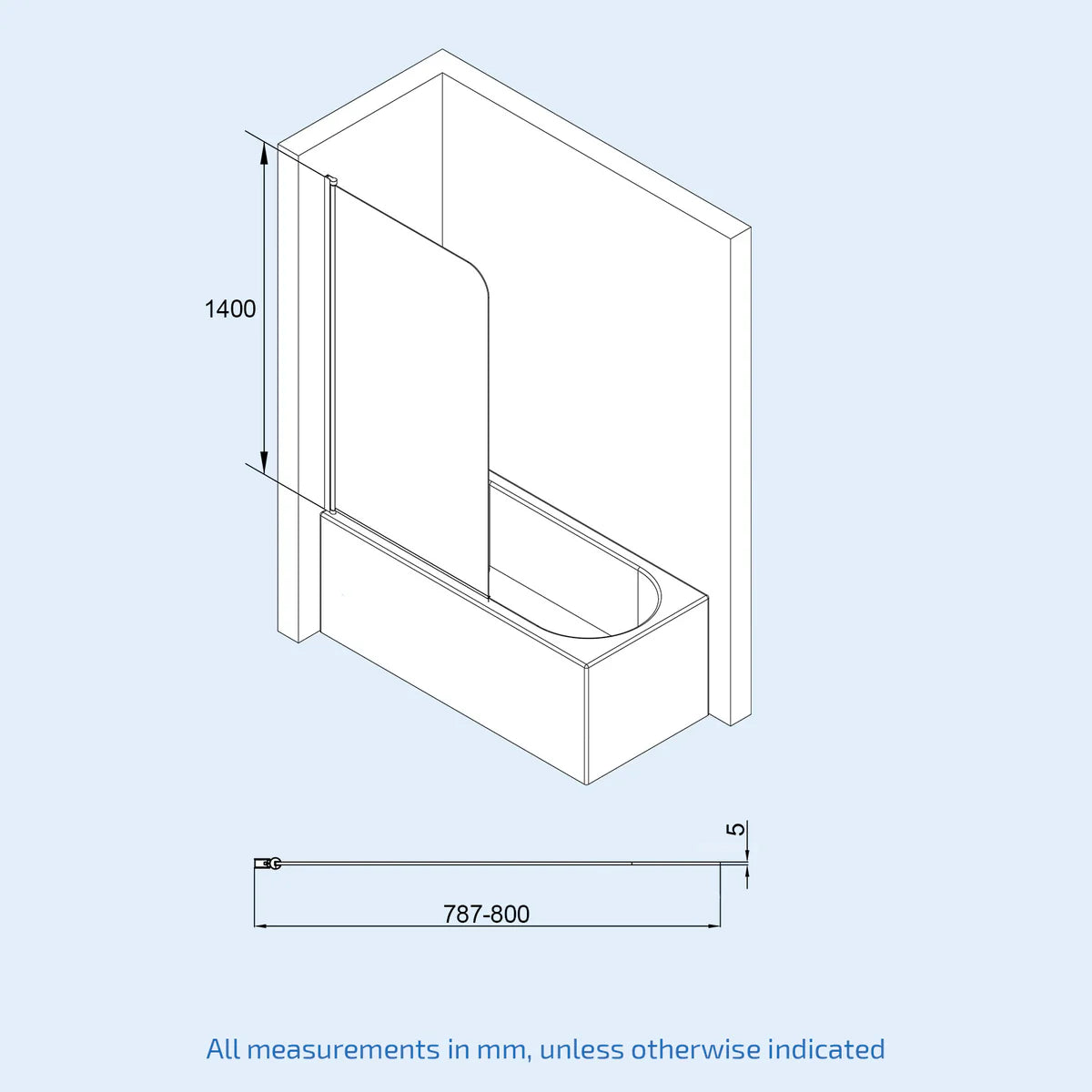

Bath Screen
-
Material: 5mm Tempered Glass
-
Frame Finish: Brushed brass
-
Height: 1400 mm
-
Width: 787–800 mm (Adjustable)

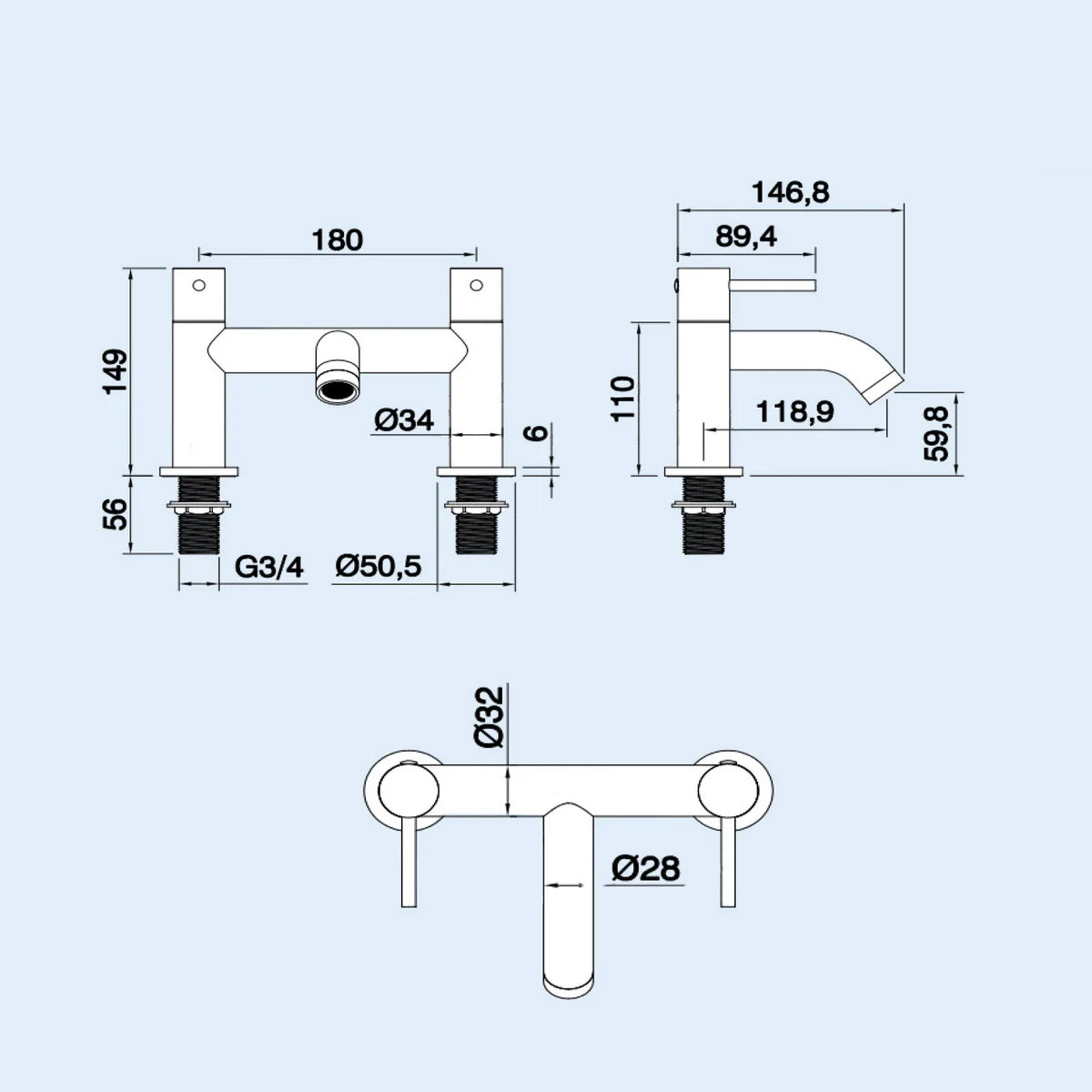

Basin & Bath Taps
-
Material: Solid Brass
-
Finish: Brushed brass
-

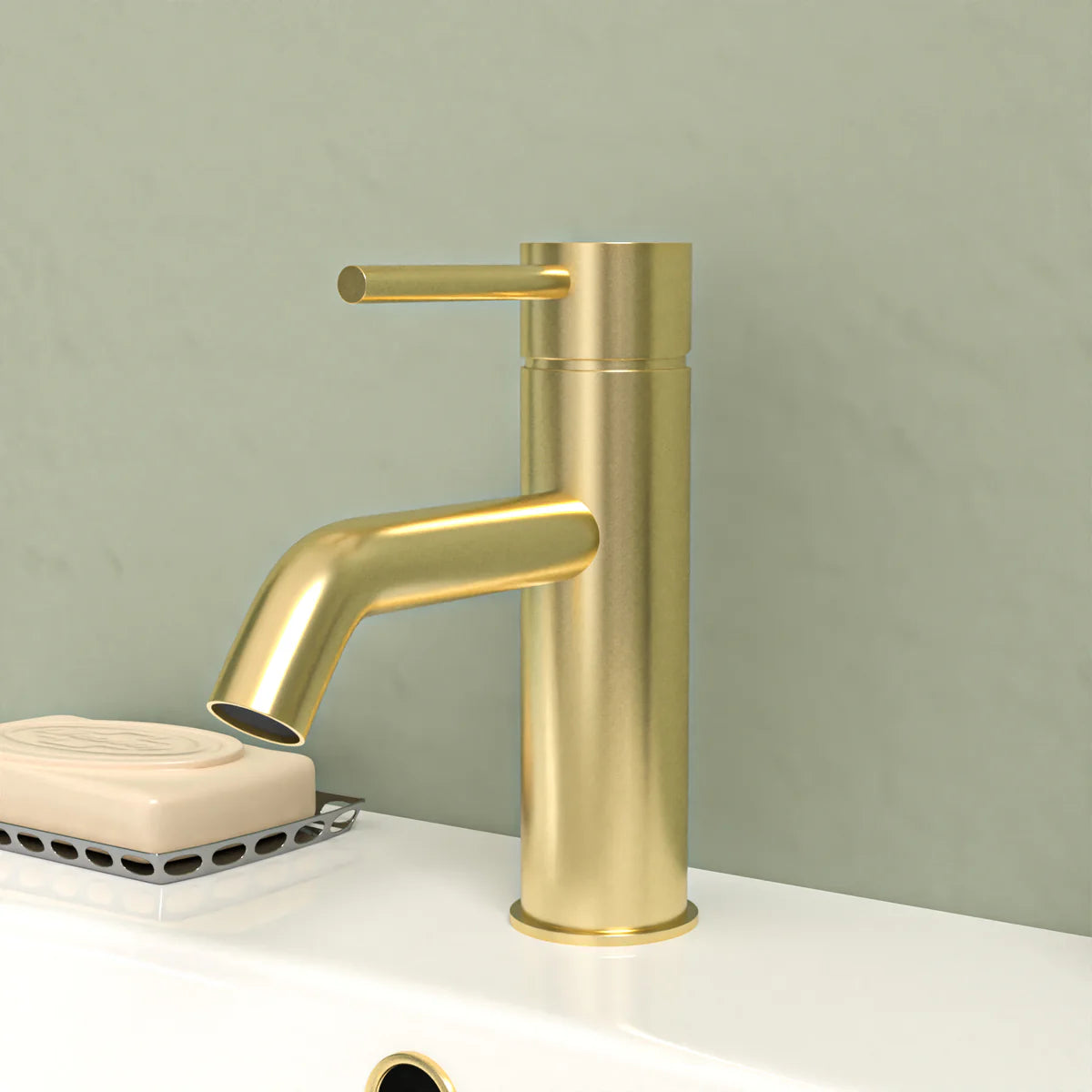

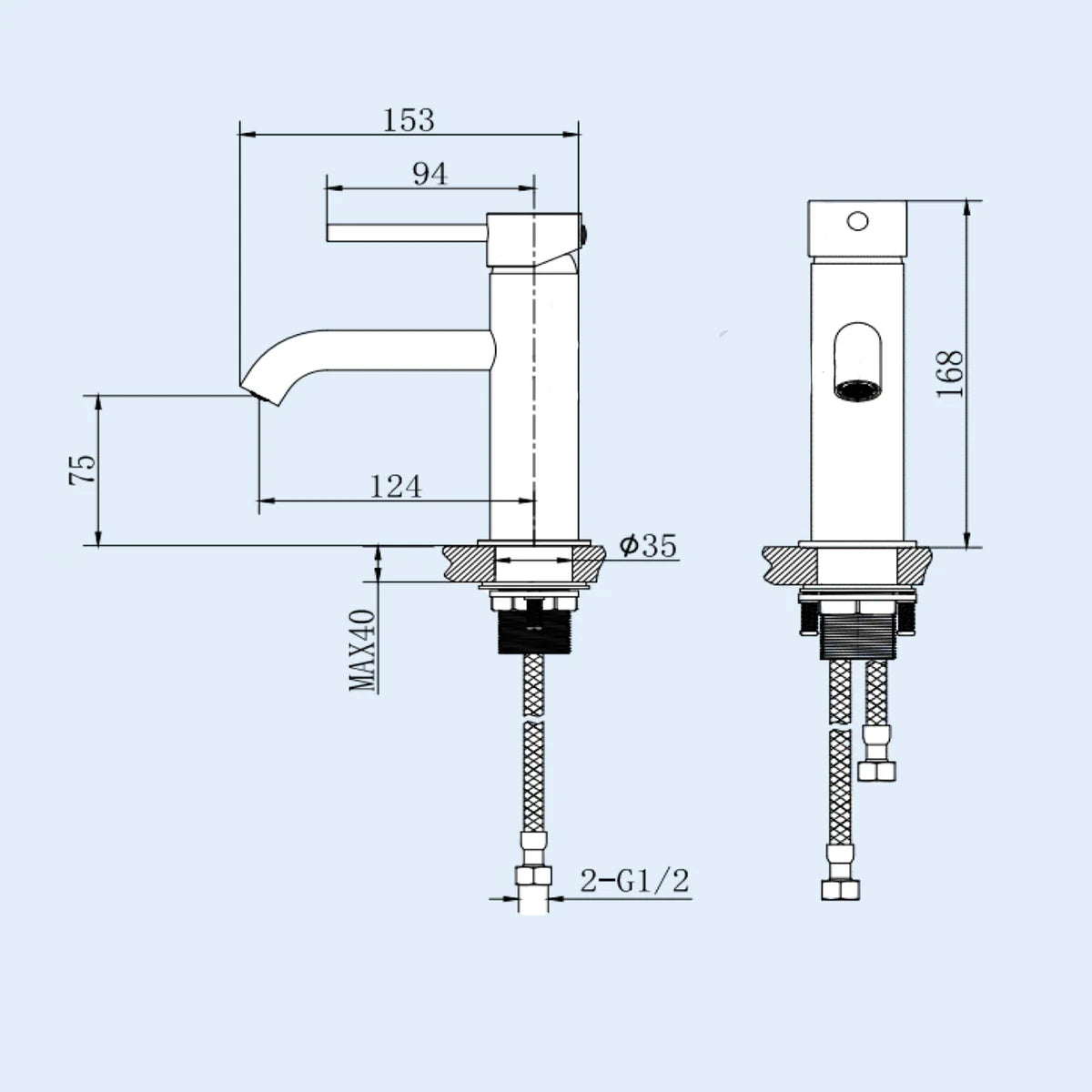

Basin Tap Height: 168 mm (124 mm Spout Reach)
-

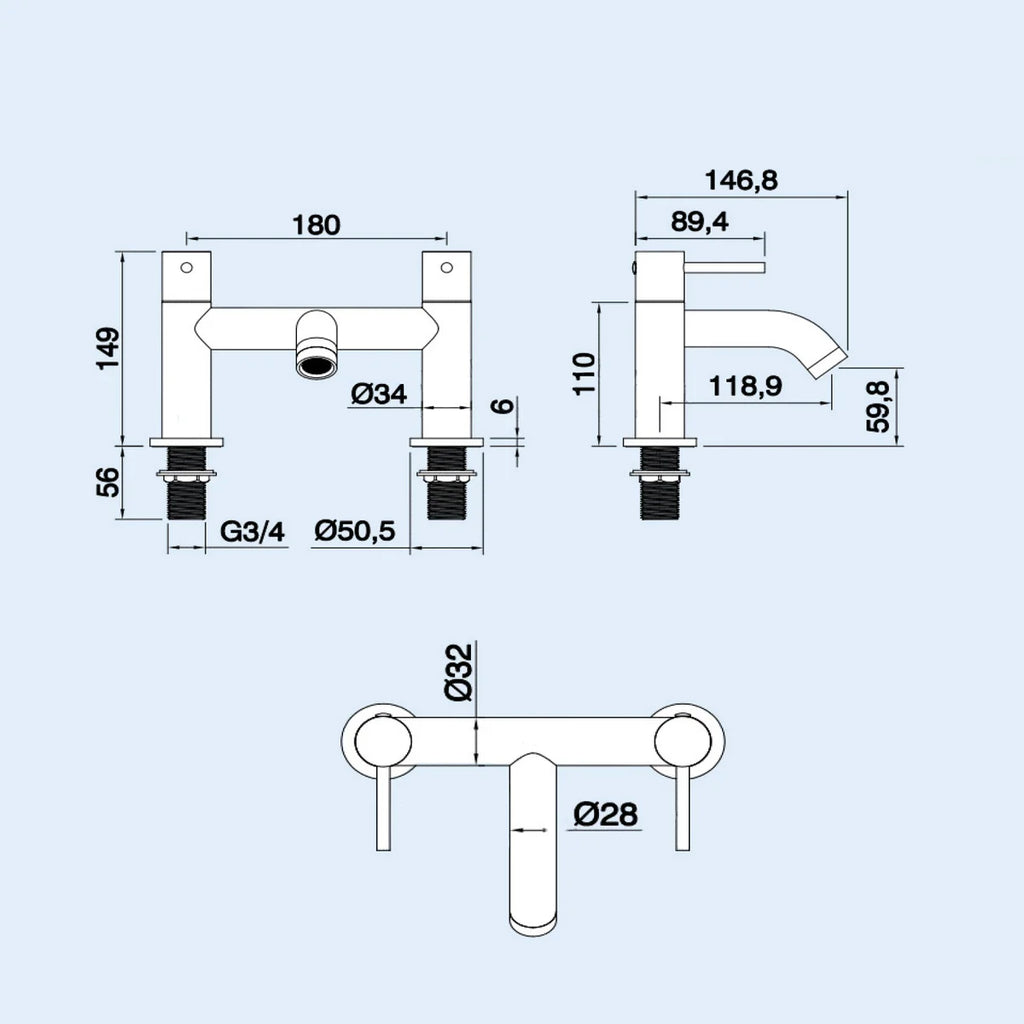

Bath Tap Width: 180 mm hole centers (118.9 mm Spout Reach)
-
Cartridges: 110° Turn Cold Start (Basin) / 1/4 Turn 3/4" Ceramic Disc (Bath)
-
Standards: Complies with BS6920, BS5412, BS EN200

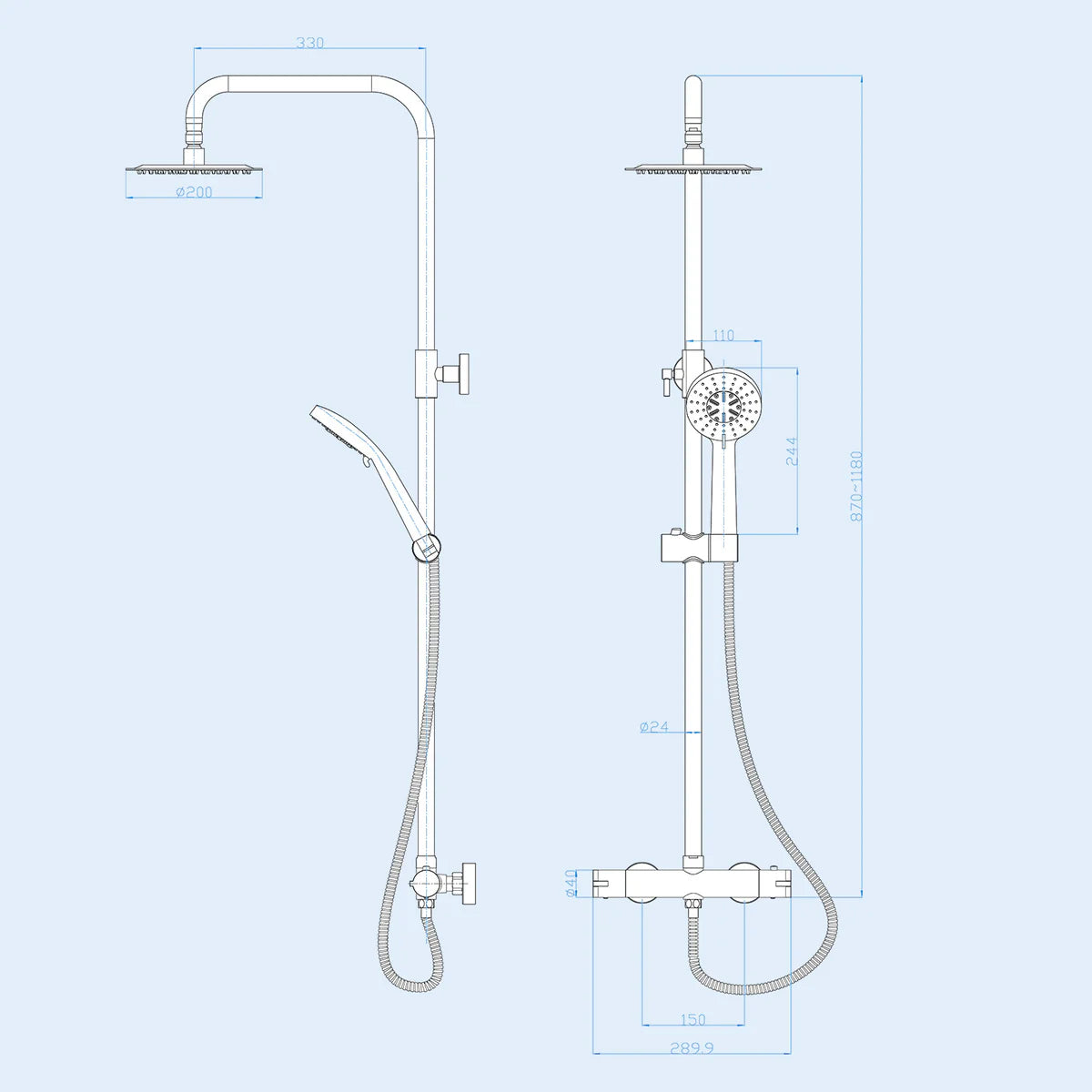

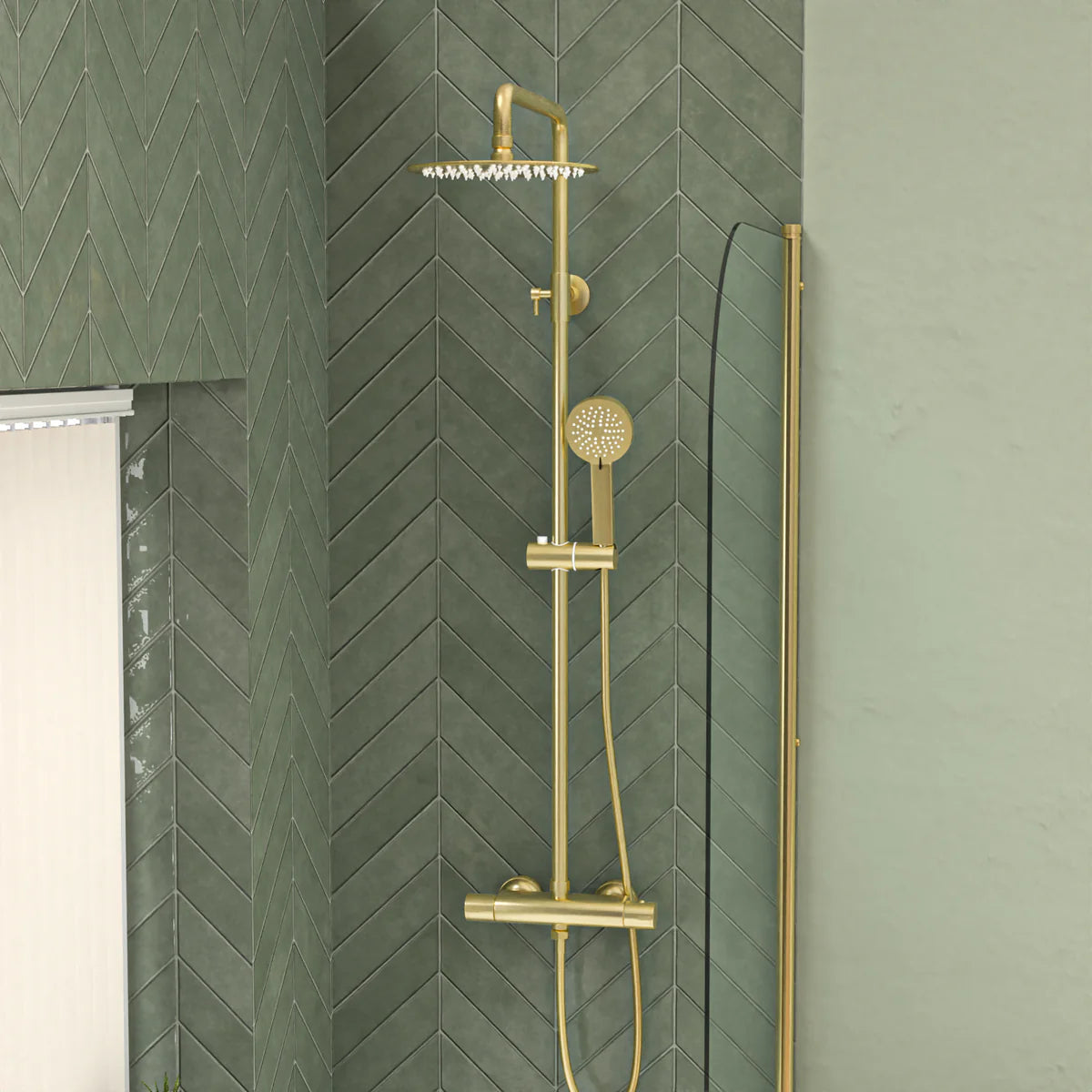

Shower Kit
-
Control: Dual Control (Thermostatic and water-flow)
-
Temperature Range: 20–50°C
-
Rigid Riser Height: 870–1180 mm (Adjustable)
-
Overhead Shower: Ø200 mm (8 inch) with adjustable swivel joint
-
Shower Arm Length: 330 mm
-
Handset: ABS handset with 1.5m flexible stainless steel hose

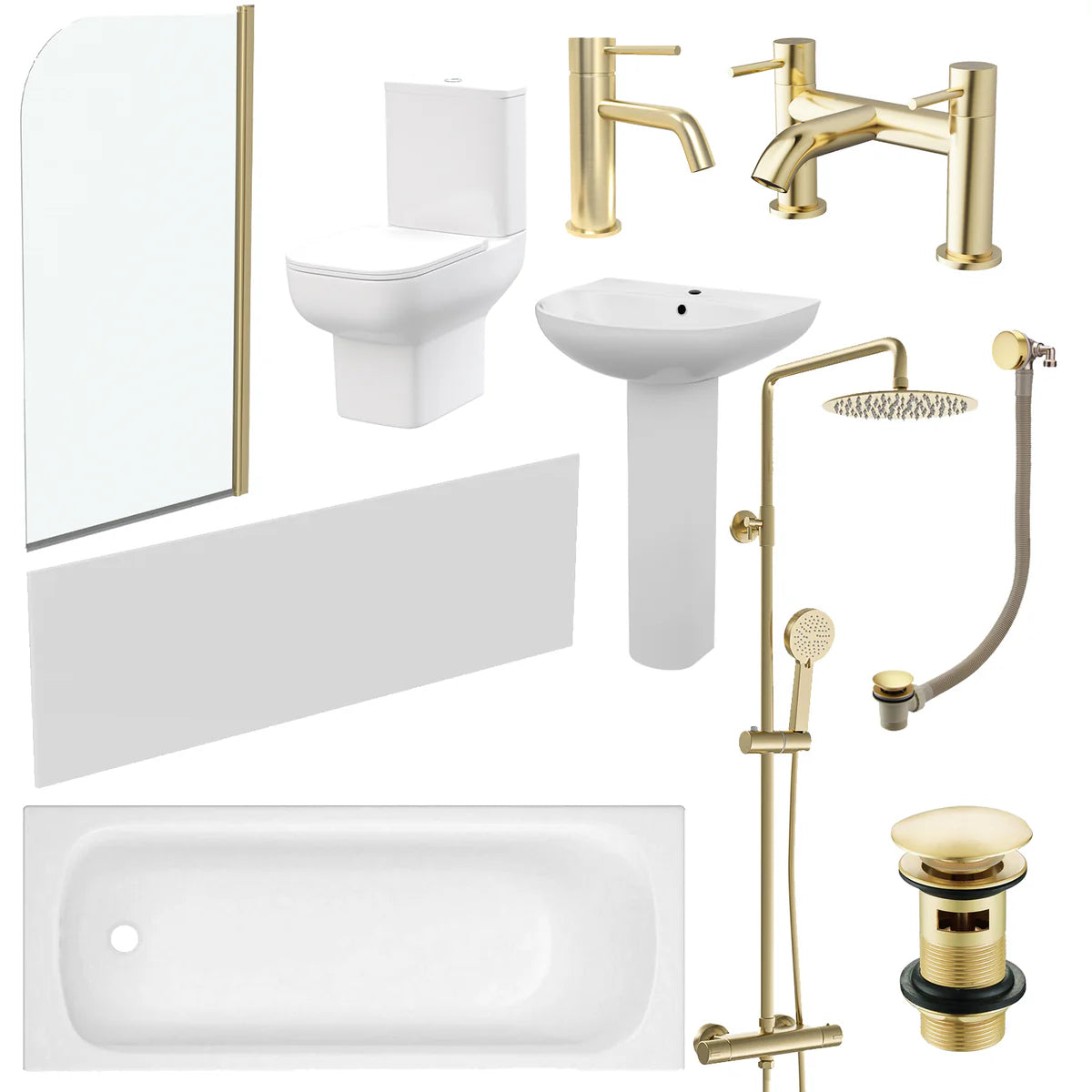

Package Contents
- 1 x Pedestal Basin
- 1 x Toilet with Cistern & Soft Close Seat
- 1 x Double Ended Bath with Legs Set
- 1 x Front Bath Panel
- 1 x Bath Screen
- 1 x Thermostatic Shower Kit

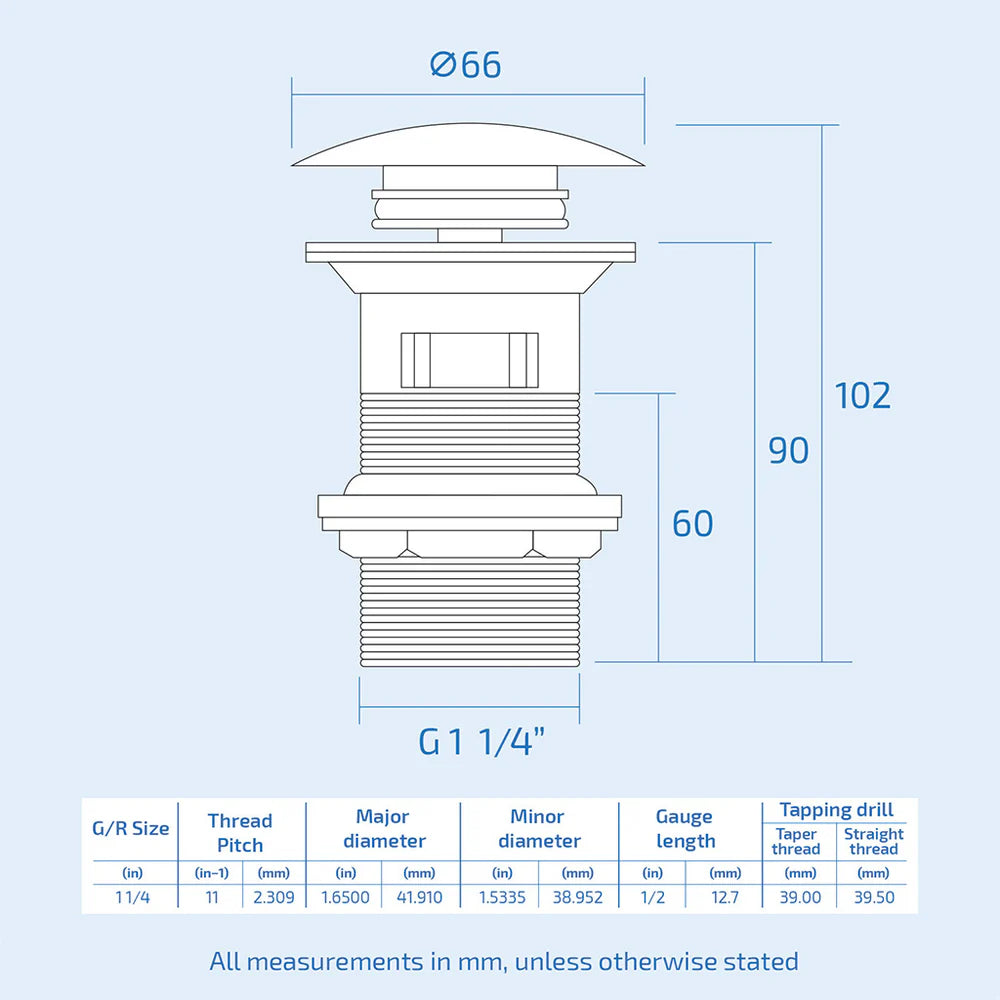

- 1 x Basin Tap and Waste

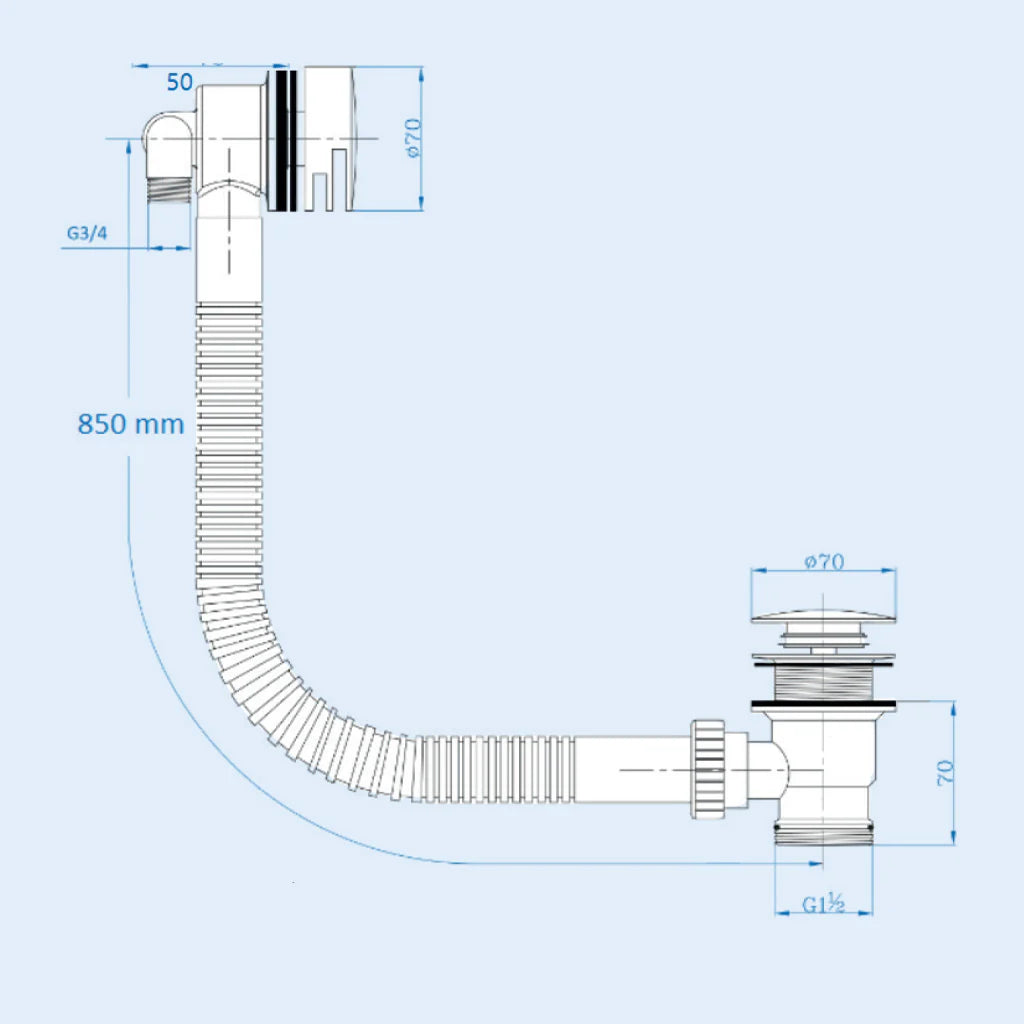

- 1 x Bath Tap and Sprung Waste
Please Note:
- Images and technical drawings are for illustration purposes and may differ slightly from the actual product.
- All measurements are approximate and clearly stated in mm.
- Consult our Customer Service for additional information or installation guidance.
