Description

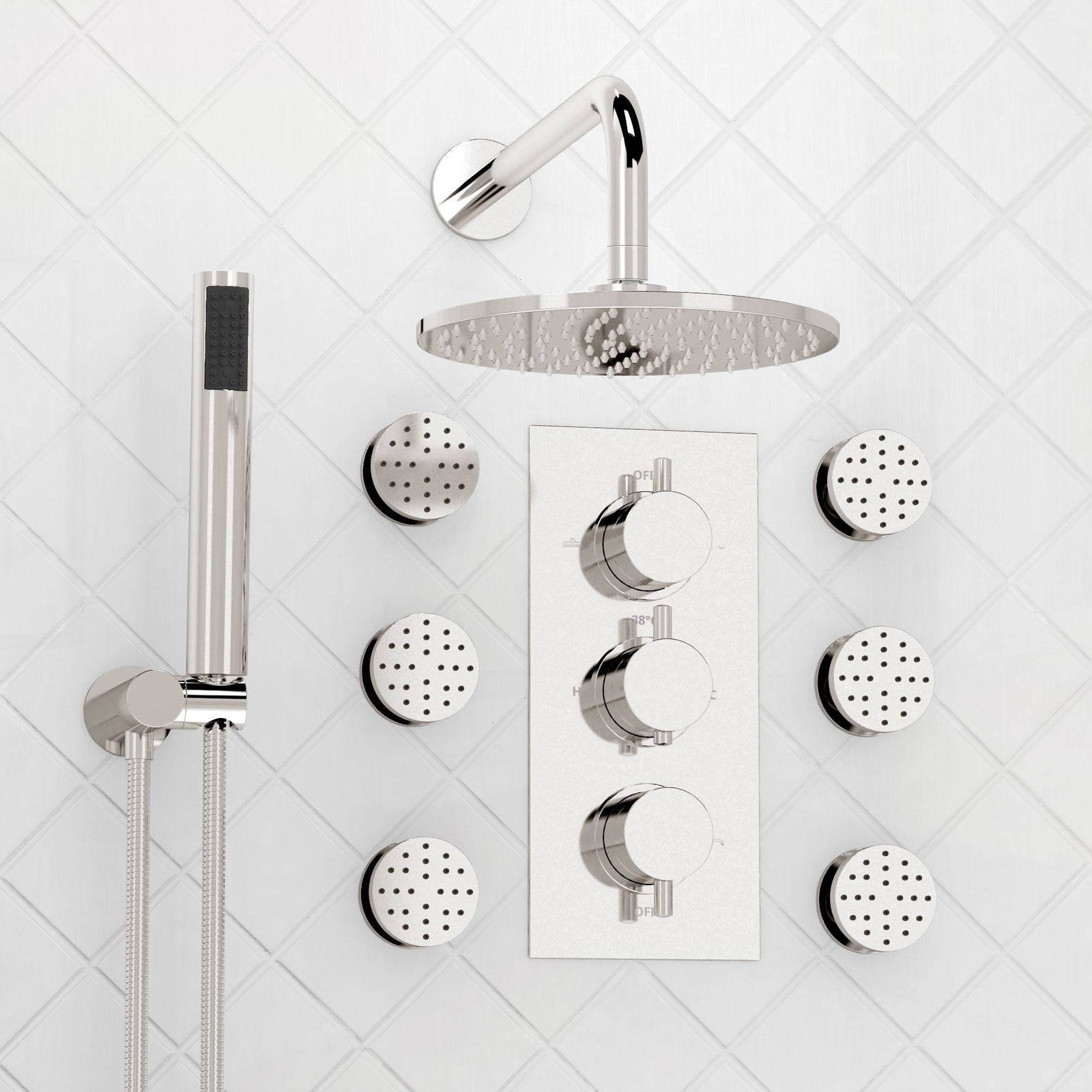

Chrome 3-dial thermostatic shower set with rainfall head, handset, and massage jets. Ceramic disc valve, anti-scald safety (38°C), and PVD mirror finish. Spa-like comfort with smooth, secure control.
This Set comes with a 10 Year Warranty for peace of mind.
Thermostatic Concealed Valve Features
- Top dial - controls water to 2 outlet diverter
- Middle dial - temperature control
- Bottom dial - controls water to 1 outlet diverter
- High Quality Design
- Chrome Plated
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button

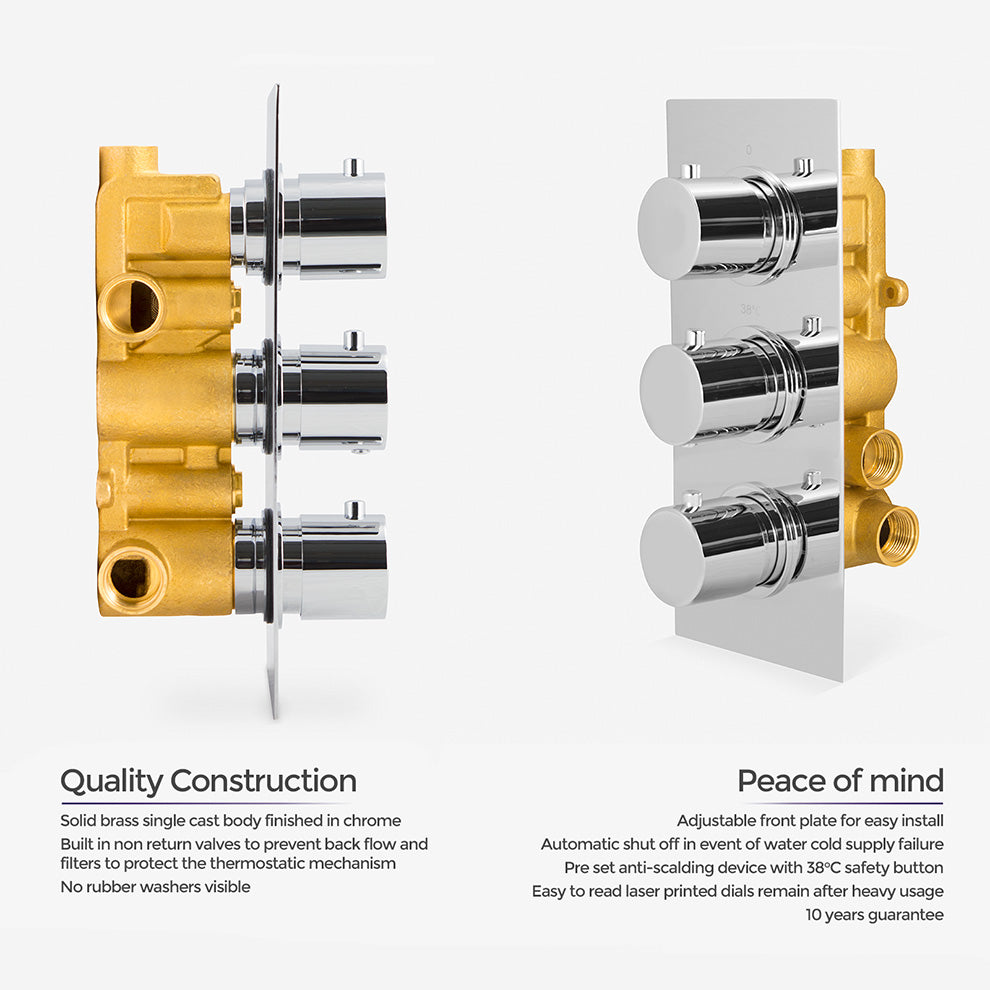

- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting
Shower Head with Wall Mounted Details

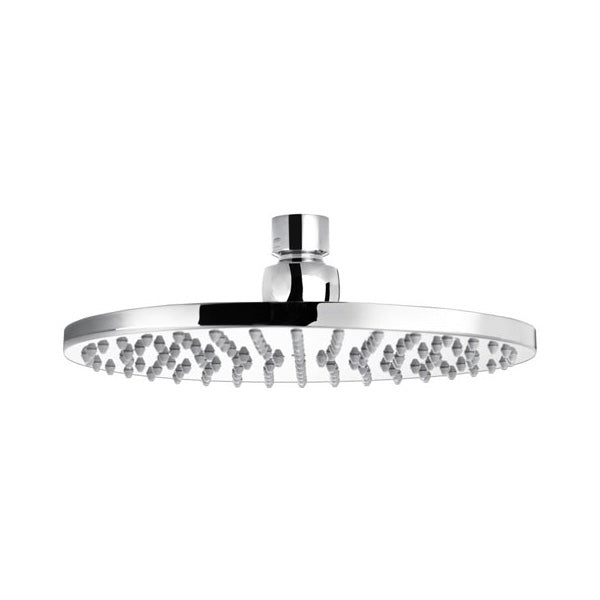

- Shower head
- Stainless Steel

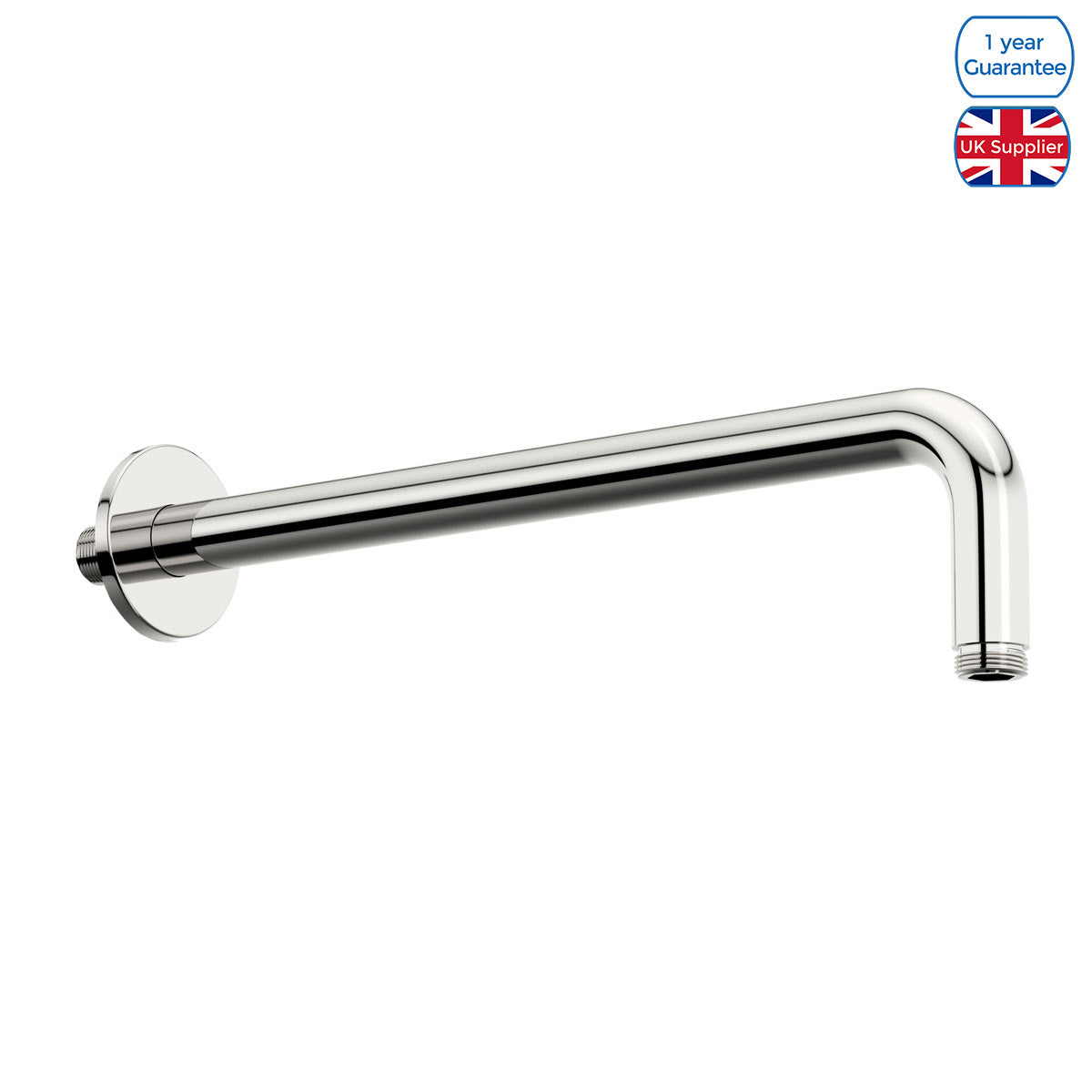

- Solid Brass Arm
- Chrome Finish

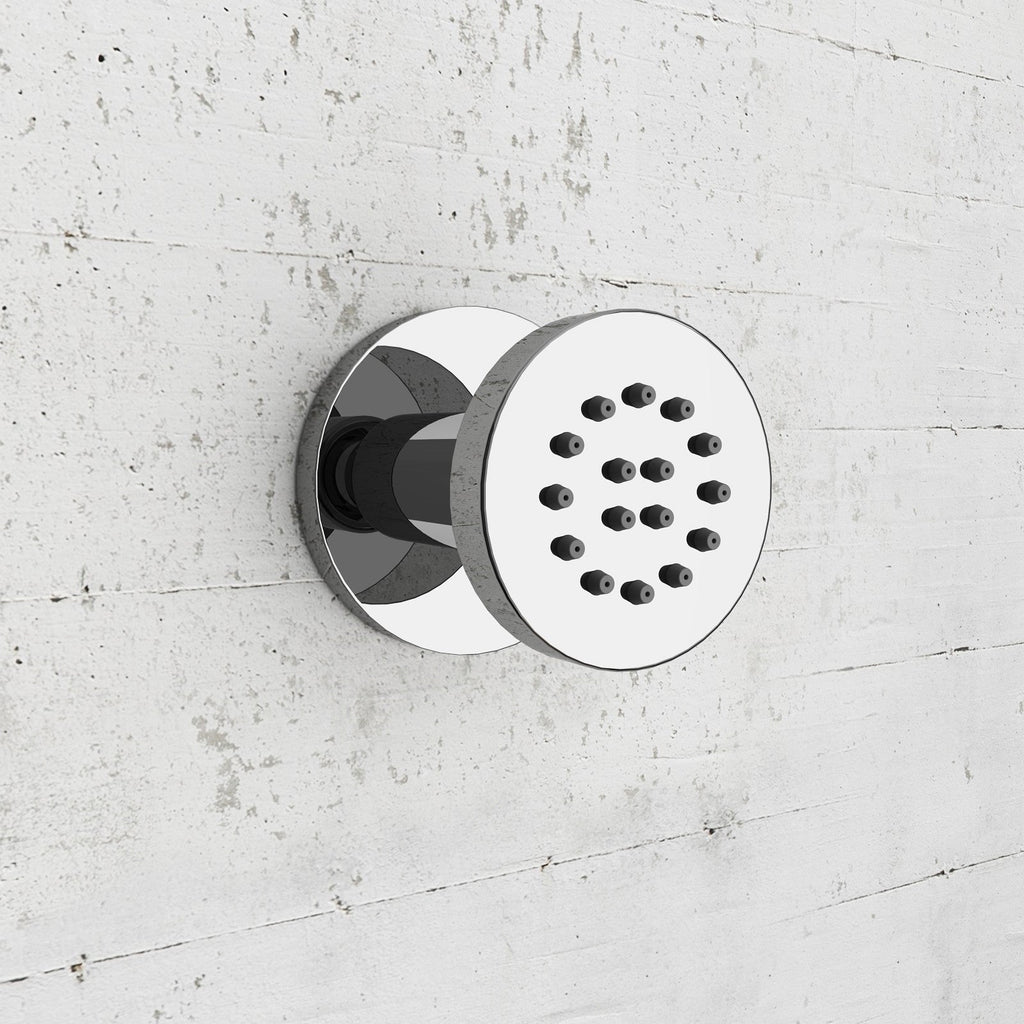

Body Jets Feature
- Chrome plated round body jets
- Chrome finish - long lasting high shine
- High quality solid brass - will not rust or corrode
- Standard 1/2" connection
- Easy to clean rubber nozzles
Technical Information
Suitable for the following water systems:
- Combination boiler systems
- Gravity-fed systems (only with a pump)
- MegaFlo systems
- Pumped hot water systems
- Un-vented hot water systems
- Standard pressurised hot water cylinder type systems
Package Contents
- 1 x Thermostatic Concealed Valve
- 1 x Wall Mounted Shower Head
- 6 x Body Jets

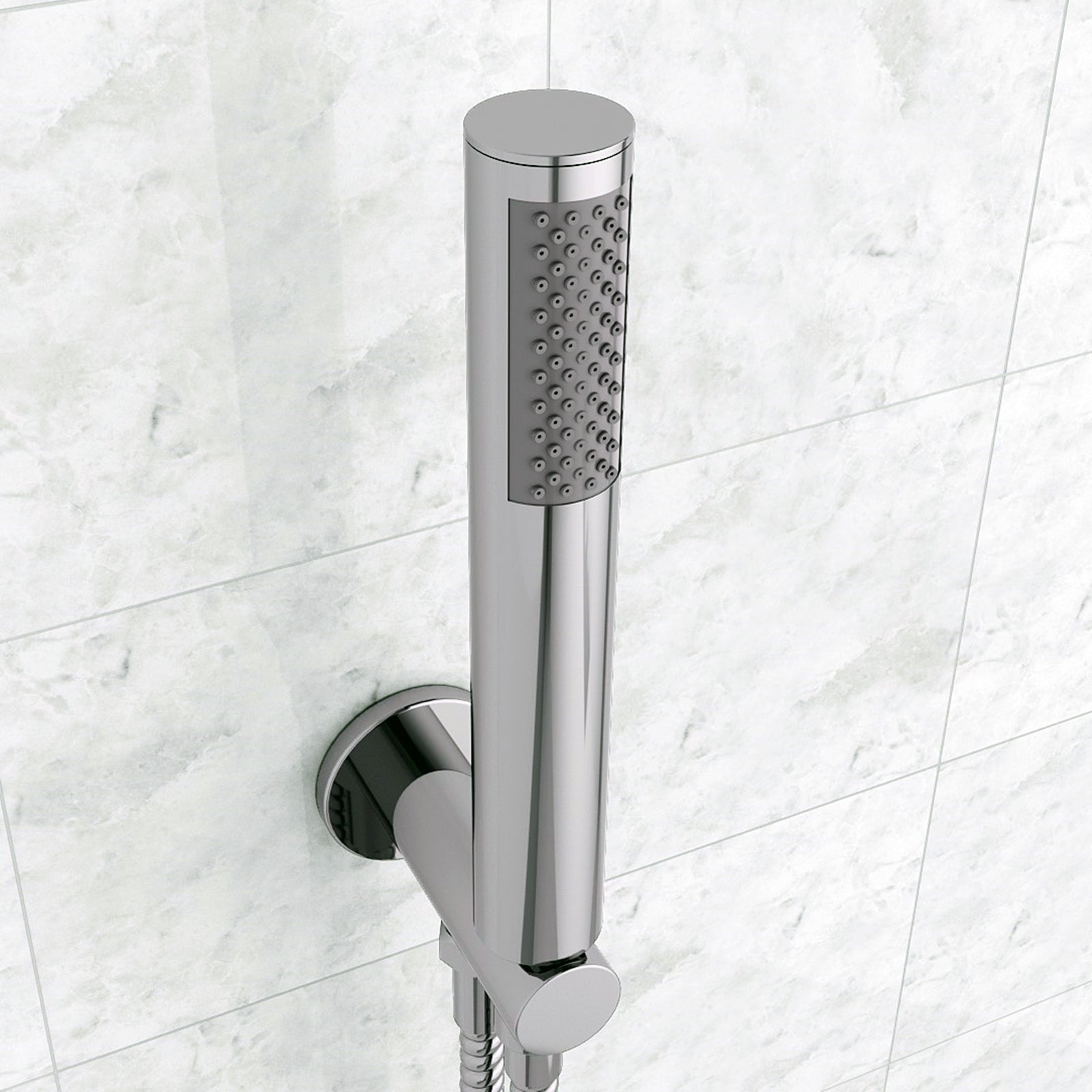

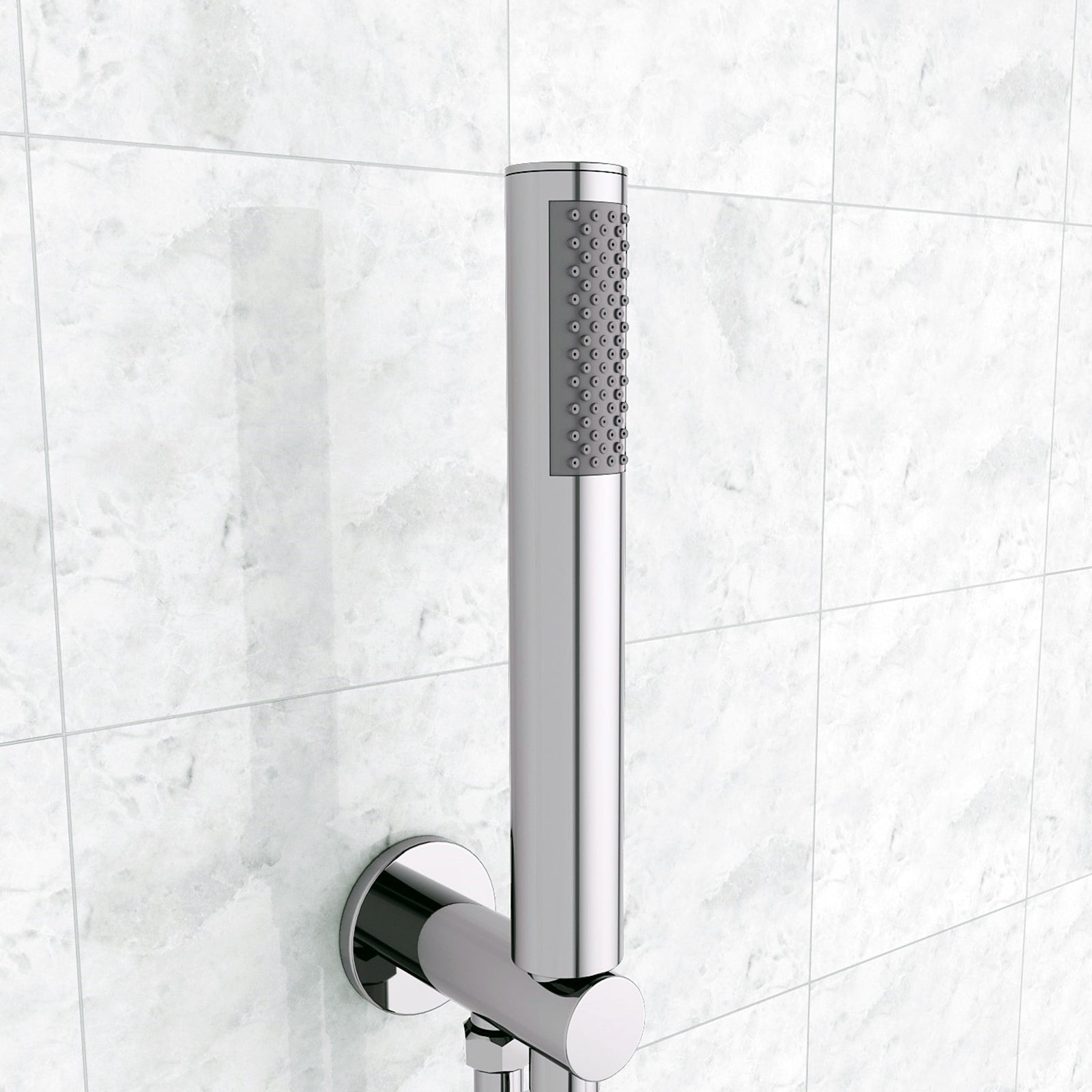

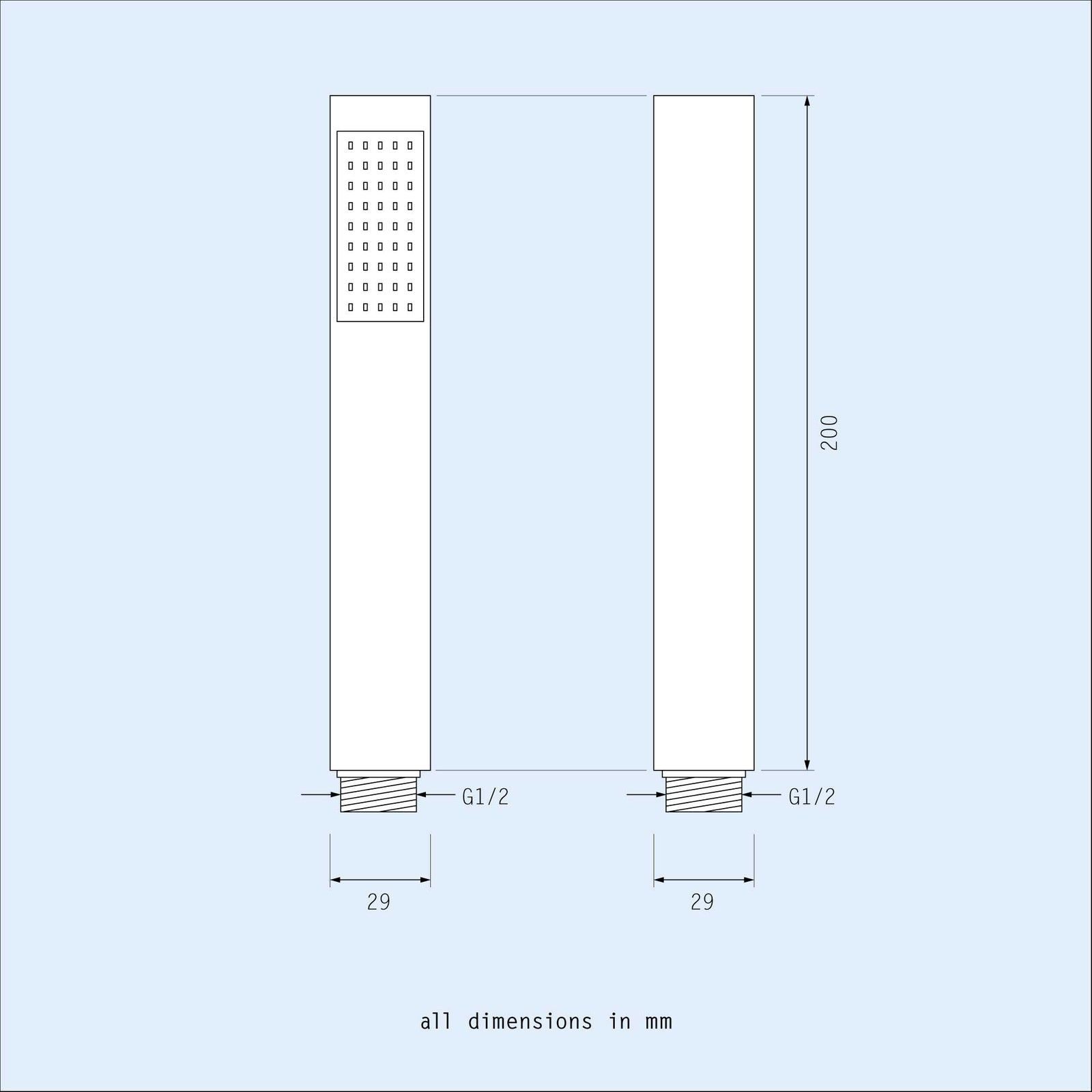

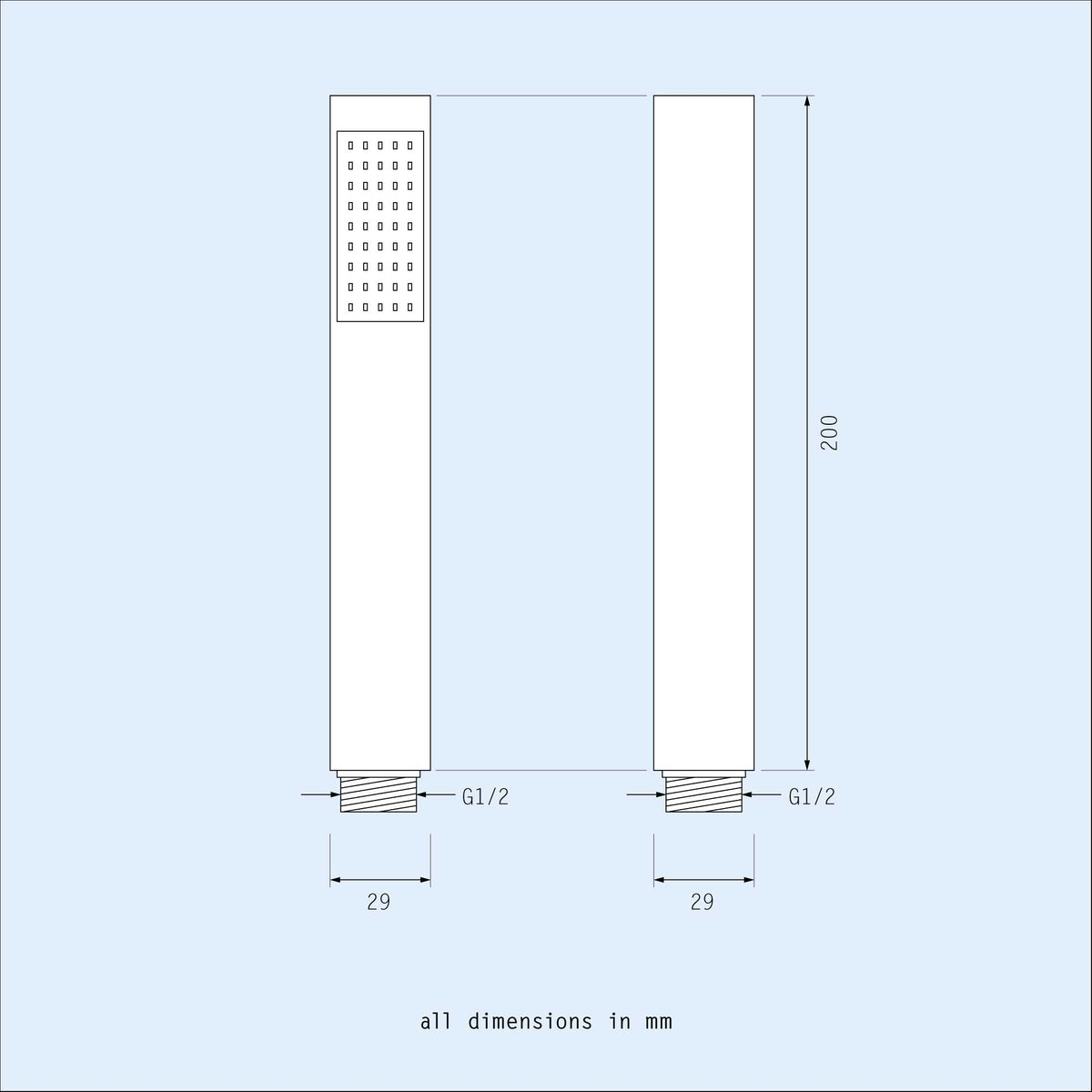

- 1 x Handset
- Complete fitting accessories
Specifications
| Material | Brass |
|---|---|
| Style | Modern |
| Finish | Highly polished chrome |
| Shower head | 8" (200mm) |

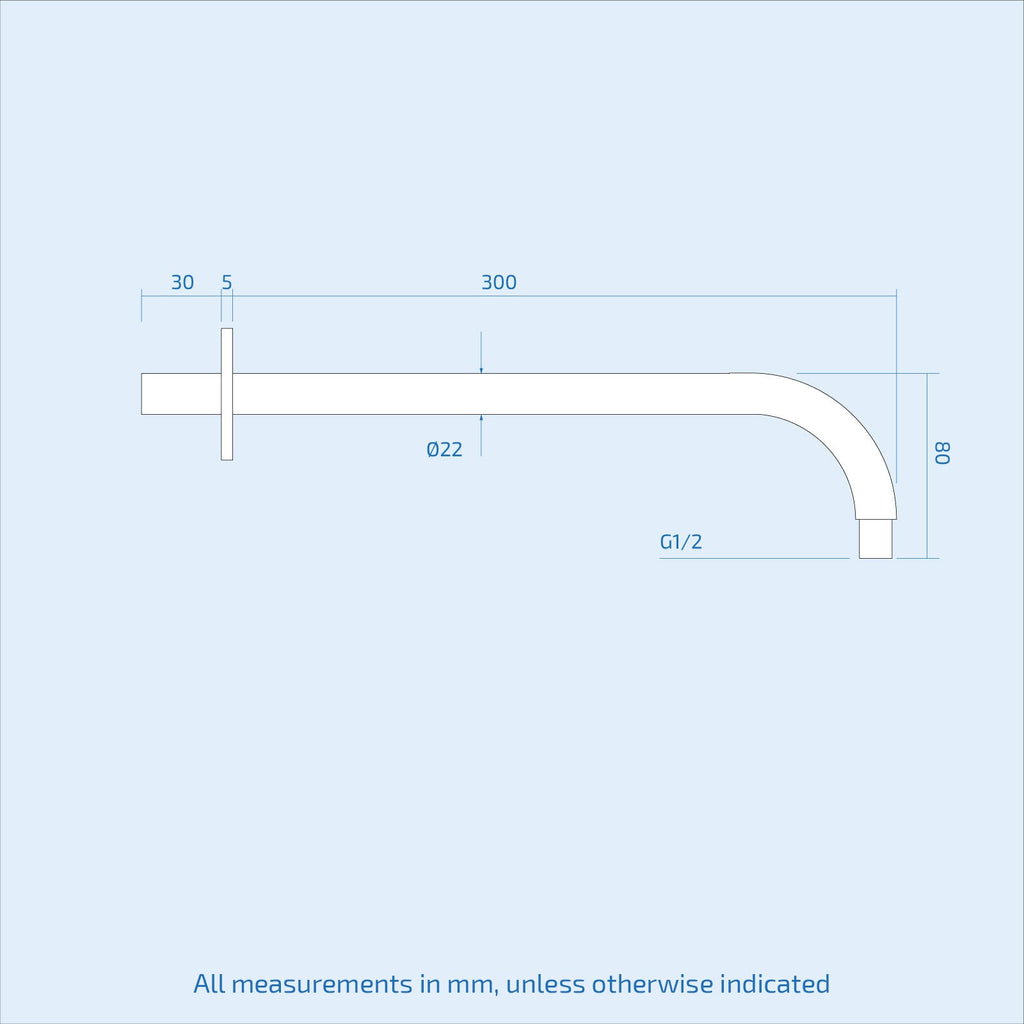

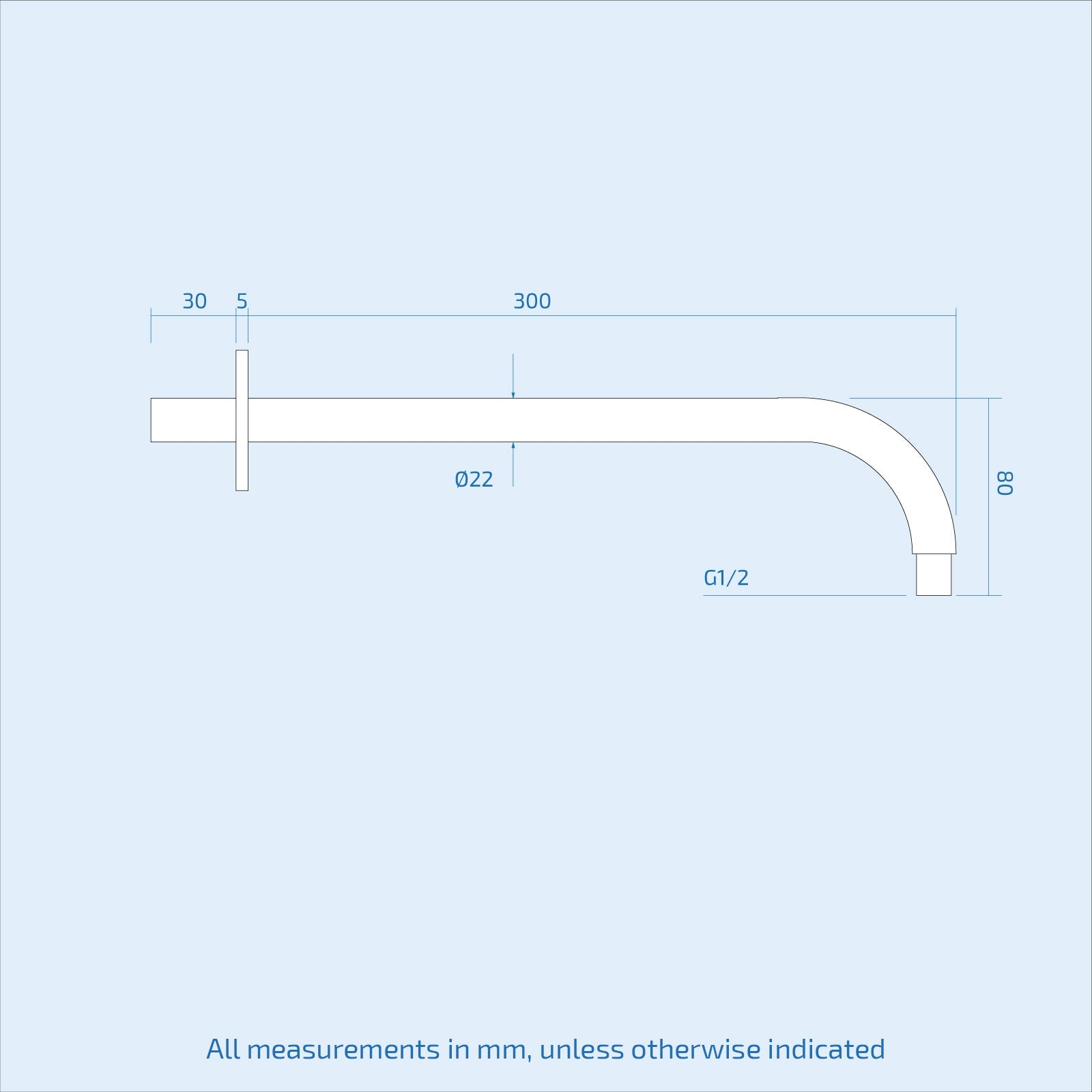

| Shower arm | 300mm |

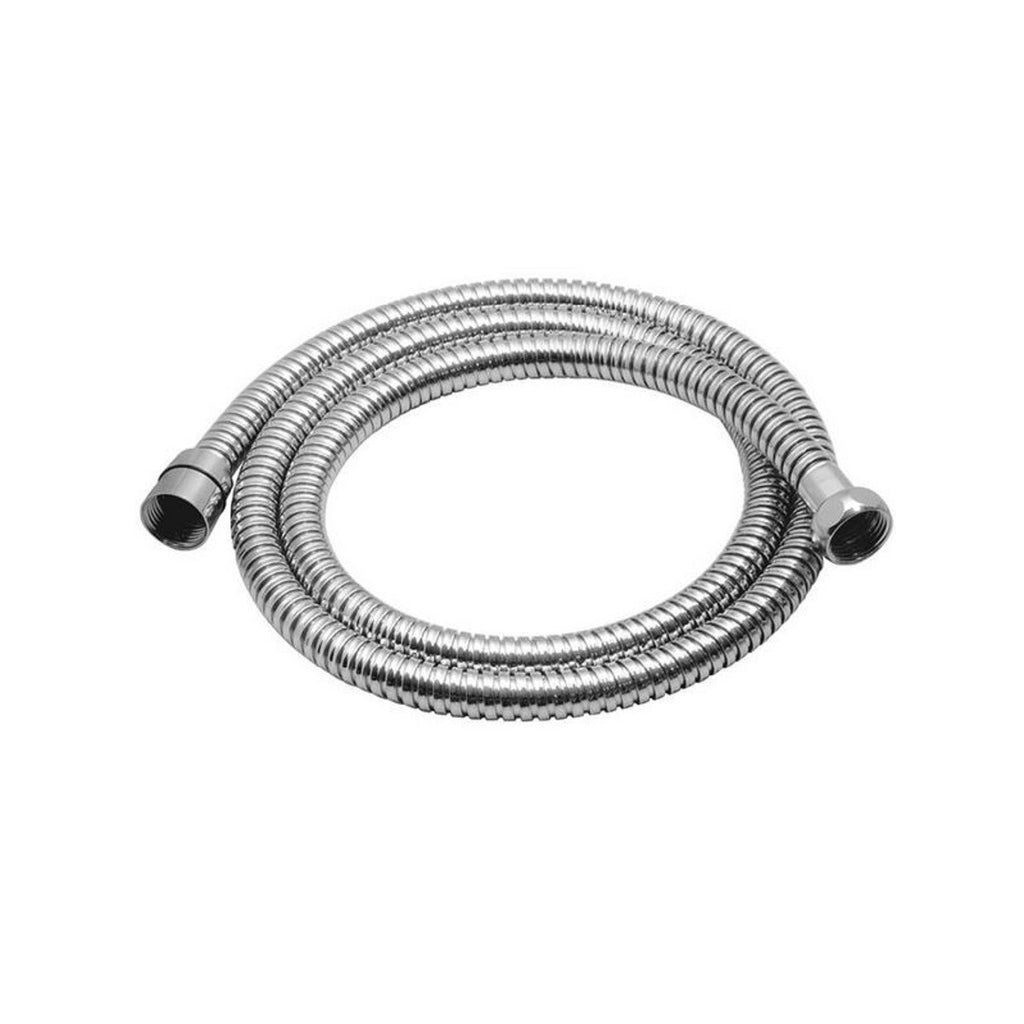

| Shower hose | 1.5m flexible stainless steel |
| Shower handset | Chrome plated |
| Anti-scalding | Built-in device |
| Child friendly | Yes |
| Temperature range | 20-50 degrees C |
| Controls | 3 |
| Diverter | Yes |
| Valve | Brass construction |
| Mounting Type | Wall Mounted |
| Structure | Fully integrated |
| Minimum pressure | 0.2 bar |
| Maximum pressure | 6 bar |
| Guarantee | 10 years |
