Description
Concealed Thermostatic Shower Mixer Valve Information:
The Faye concealed thermostatic shower valve has a unique stylish design giving your bathroom a more modern look, the thermostatic shower valve is convenient and safe to use. The top dial controls the water flow, the middle dial controls the temperature and the bottom dial control the water to 2 outlet diverters, the Faye thermostatic shower mixer valve is fitted with a safety button, pre-set to 38 degrees, which prevents any accidental scalding temperatures, it is also a non-return valve which means that the water will only flow in one direction.
Thermostatic Concealed Valve Features
- Top dial - controls water to 2 outlet diverter
- Middle dial - temperature control
- Bottom dial - controls water to 1 outlet diverter
- High-Quality Design
- Chrome Plated
- Thermostatically controlled

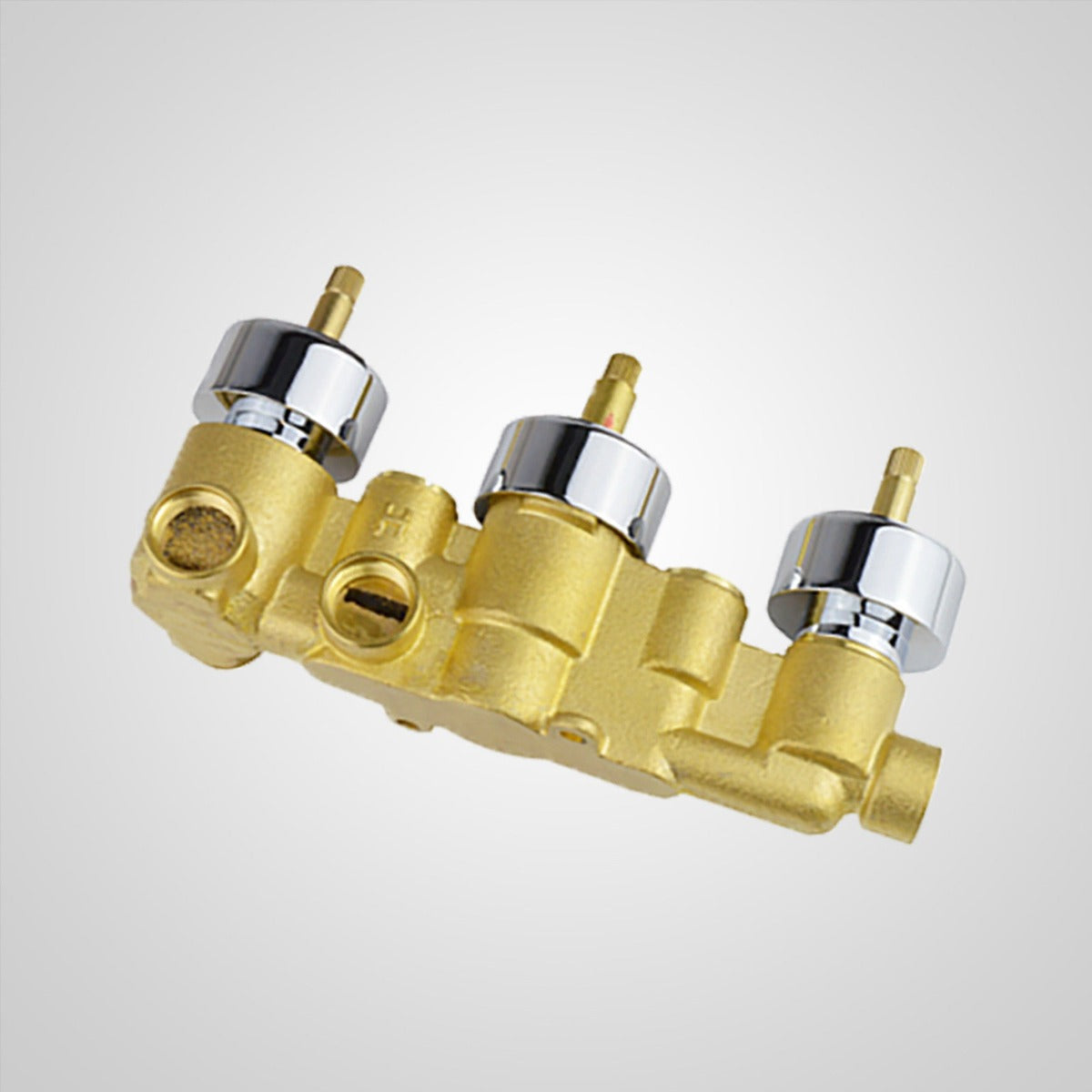

- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting
Shower Head with Wall Mounted Details
- Showerhead
- Stainless Steel
- Solid Brass Arm
- Chrome Finish
Technical Information
Suitable for the following water systems:
- Combination boiler systems
- Gravity-fed systems (only with a pump)
- MegaFlo systems
- Pumped hot water systems
- Unvented hot water systems
- Standard pressurised hot water cylinder type systems

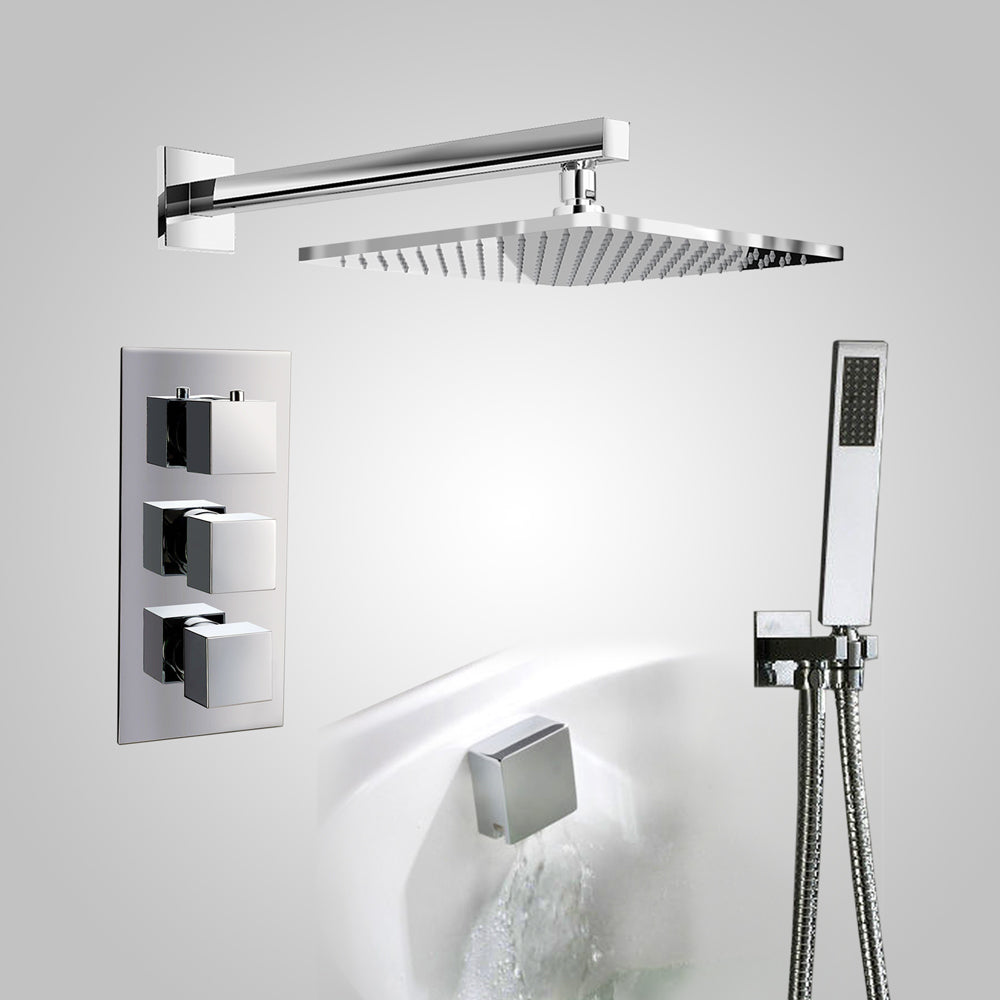

Package Contents
- 1 x Thermostatic Concealed Valve
- 1 x Wall Mounted Shower Head

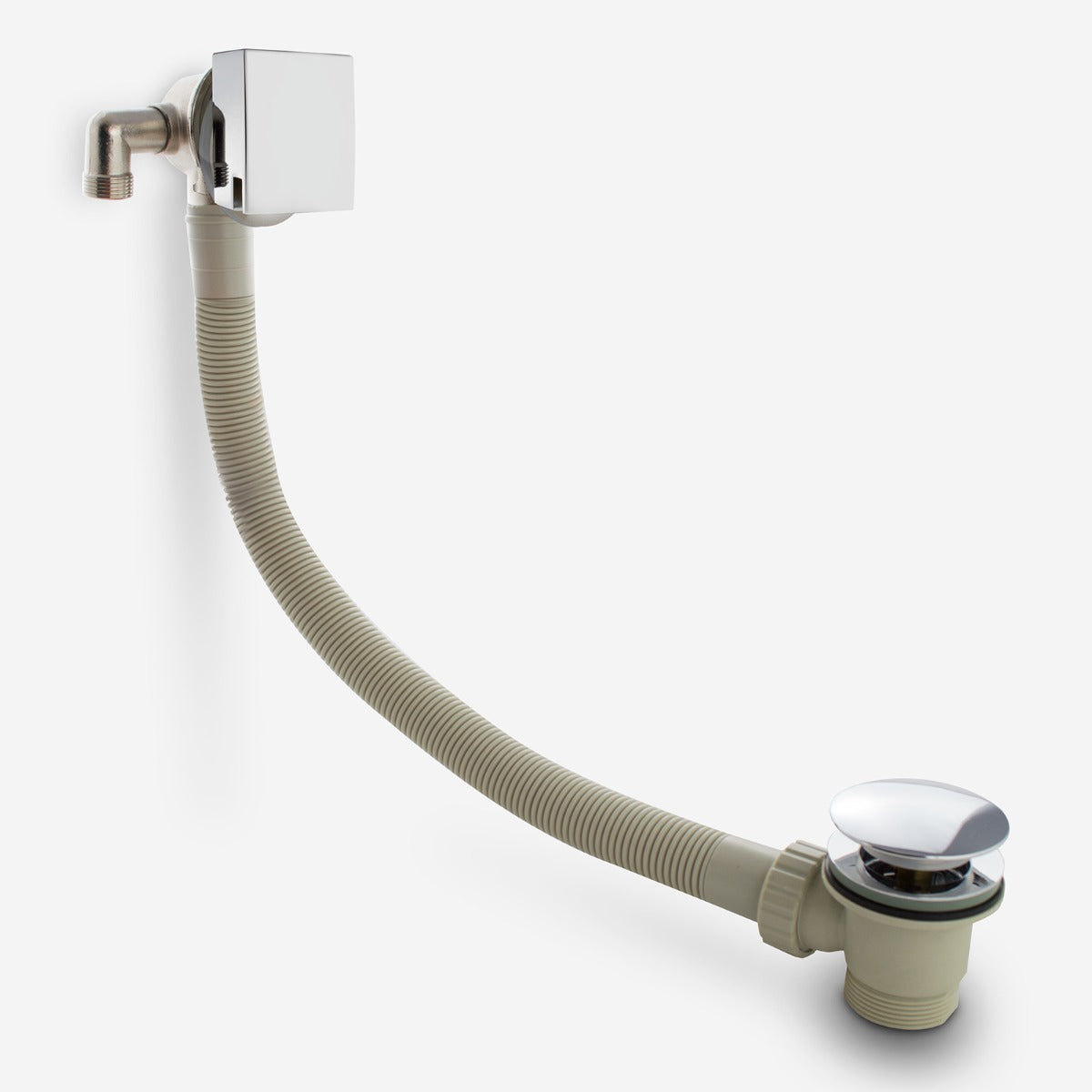

- 1 x Bath Filler
- 1 x Handset
- Complete fitting accessories
