Description
This Modern Design Concealed Thermostatic Valve will compliment any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow.
This thermostatic mixer valve shower is perfect for creating a minimalistic look in a modern bathroom. The Thermostatic Showering Can be accessed via the two-dial, Easy to operate mixer valve that gives you complete temperature control.

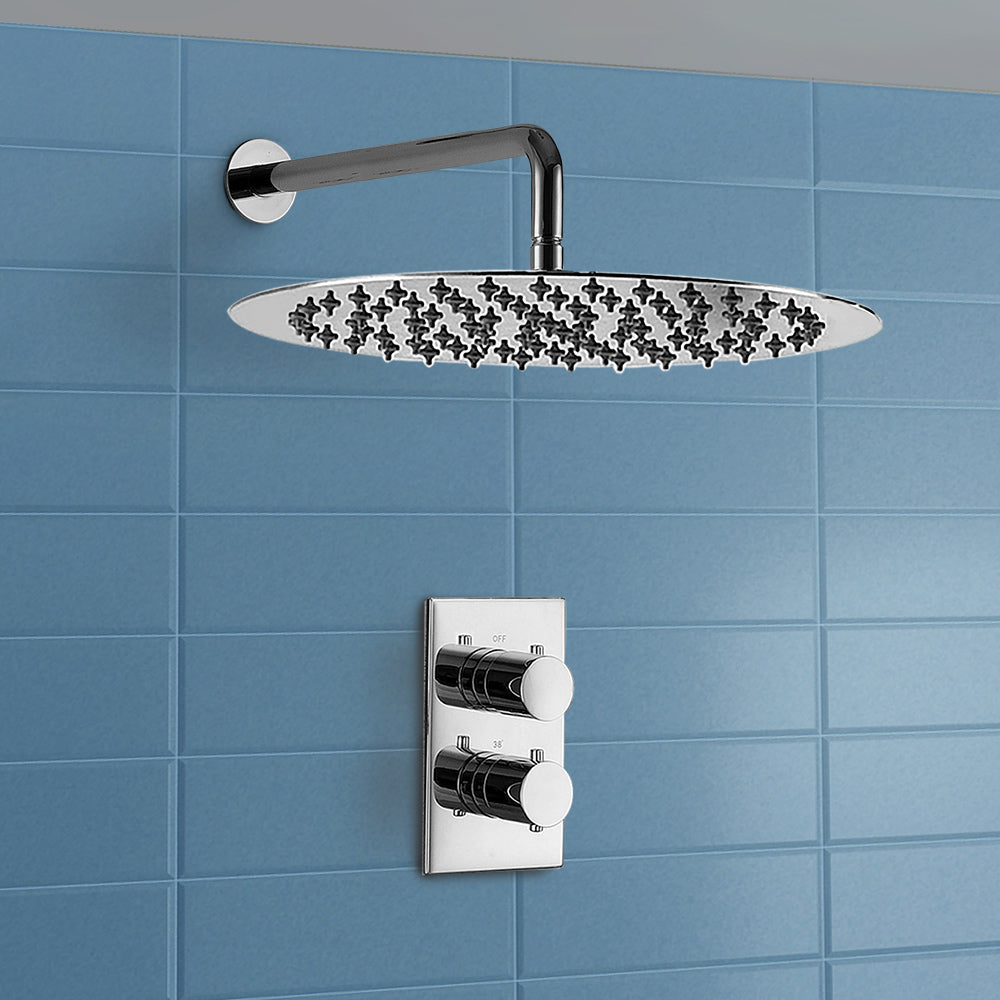

This mixer valve also mounts onto the wall making your shower look less cluttered and bulky. These come in a stylish design, which coordinates with the design of the shower set, and it is easy to use. The concealed shower mounts onto the wall, and also comes with an ultra-thin shower head with a swivel joint and arm for ease of use.
Please note: This product comes with a 10-year guarantee.

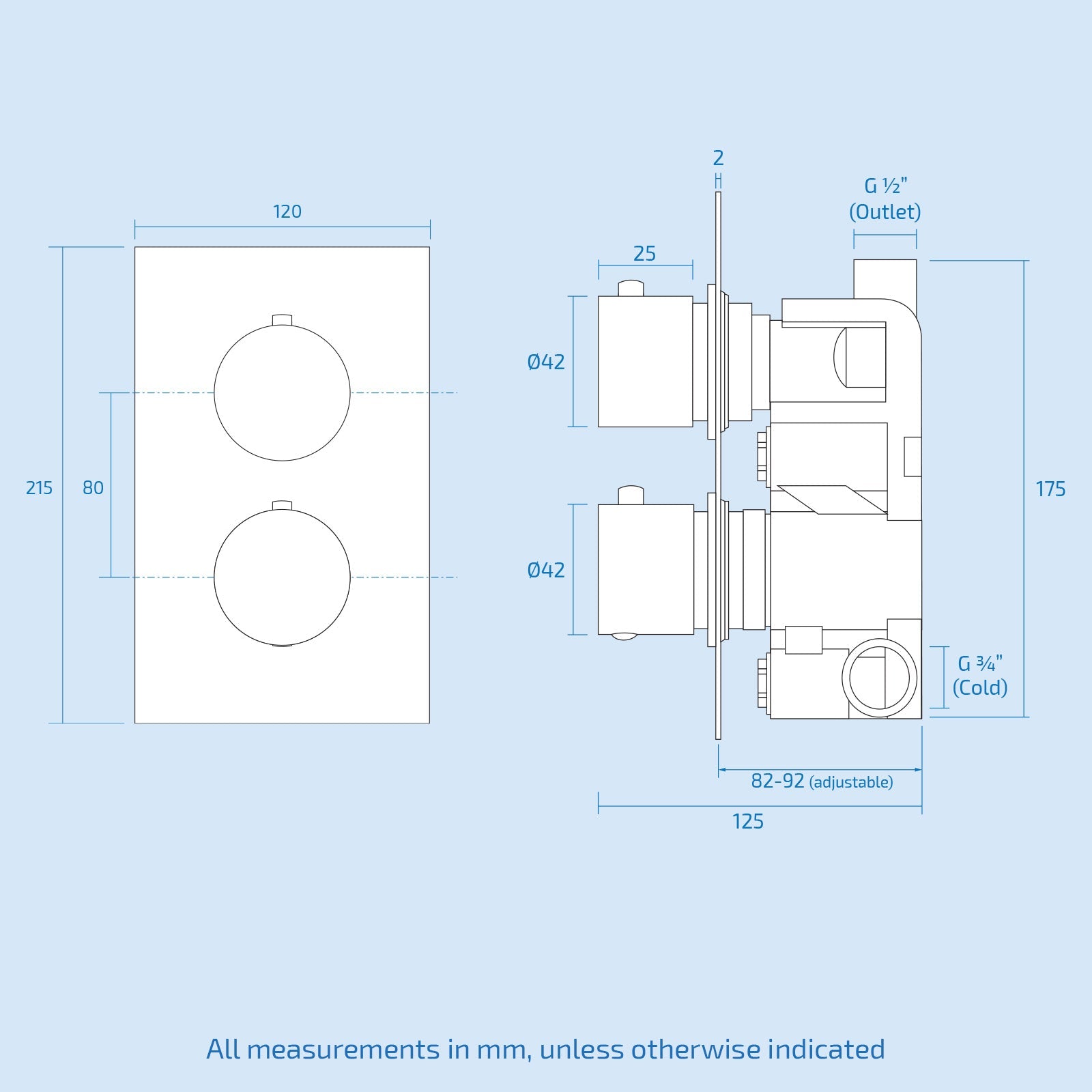

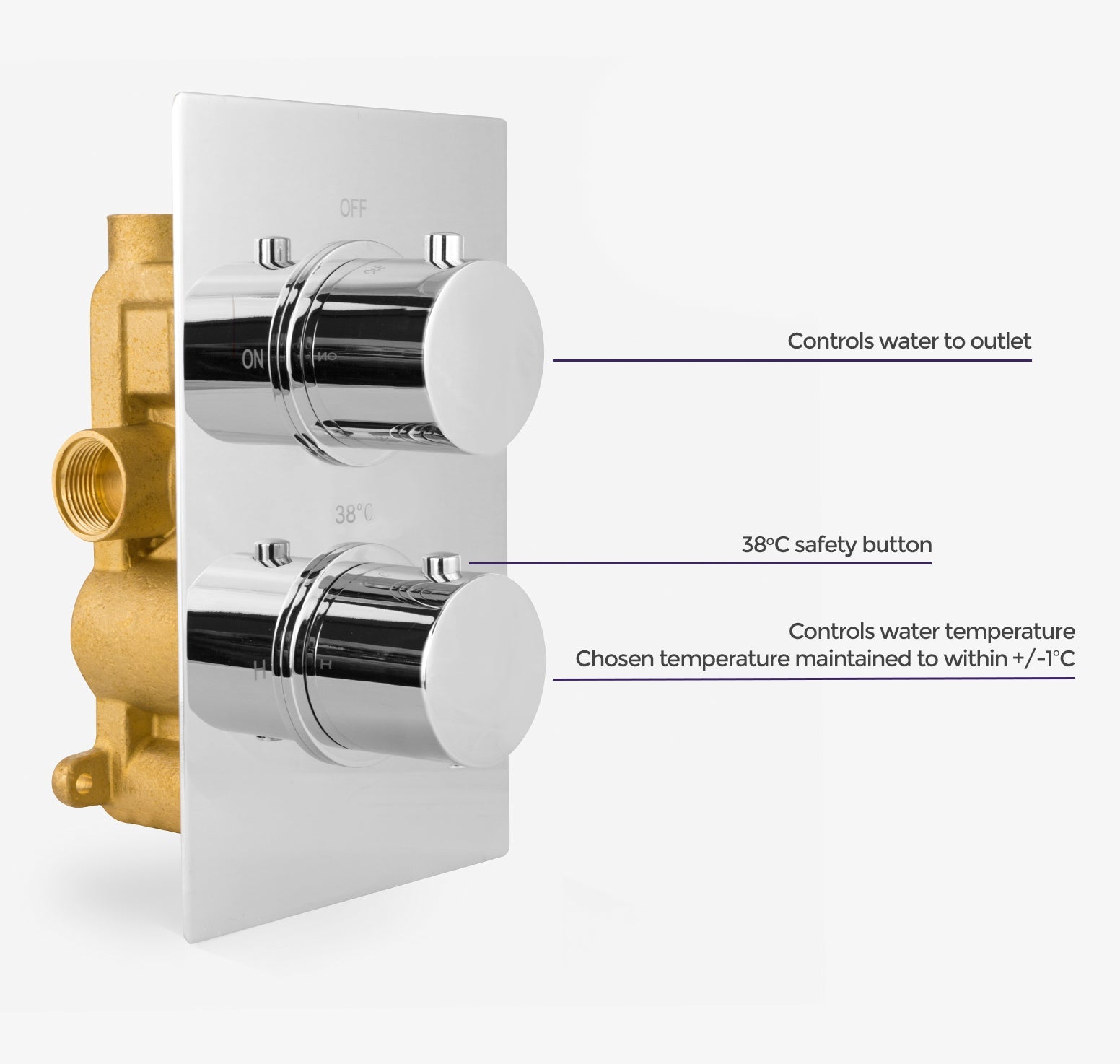

Thermostatic concealed valve
- Top dial - controls water to 1 outlet
- Bottom dial - temperature control
- Inlet Connection Size: 2x 3/4"
- Outlet Connection Size: 1x 1/2"
- High-quality design
- Chrome finish
- Thermostatically controlled

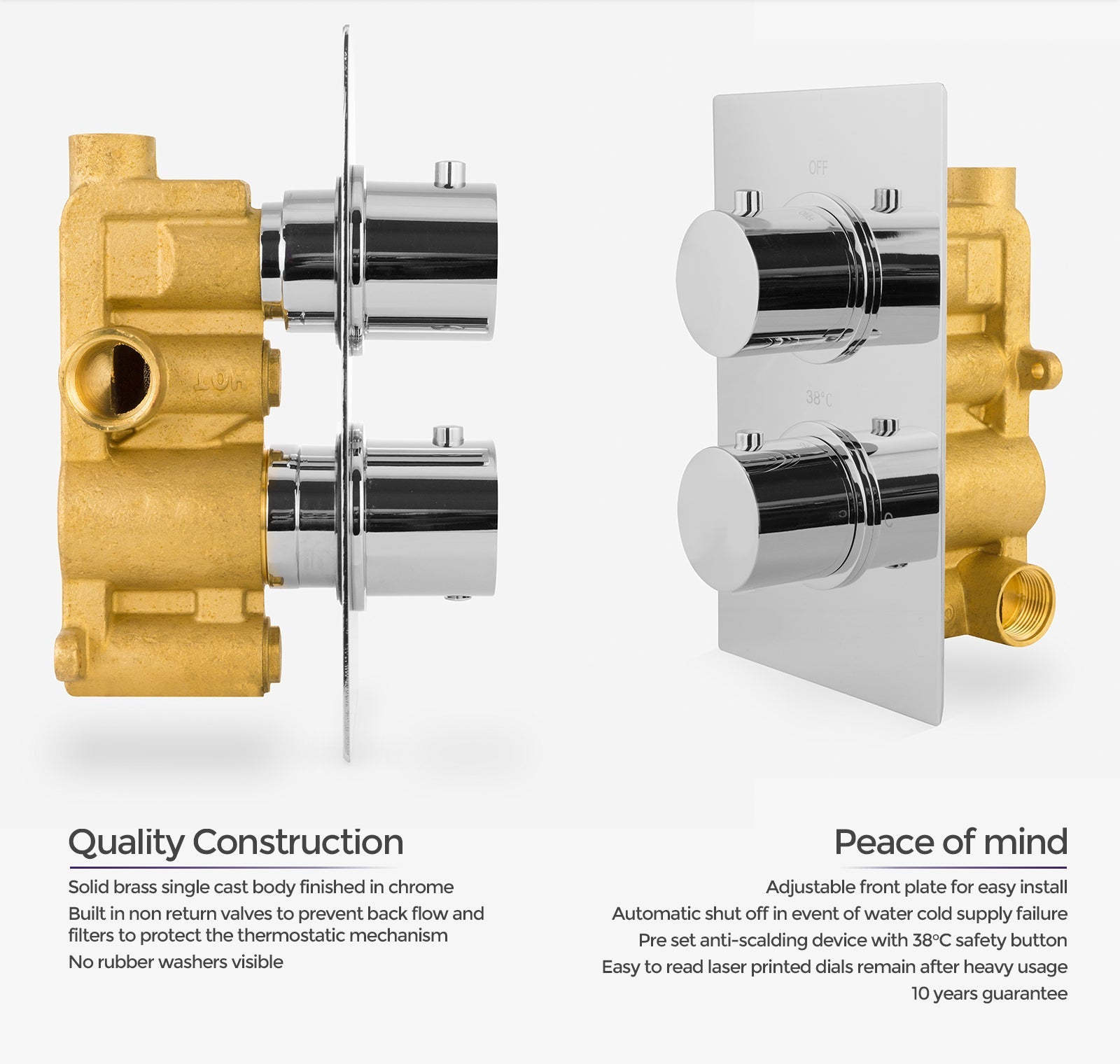

- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- Comply with the requirements of the Water Supply
- UK standard size fitting
Shower Head & Arm

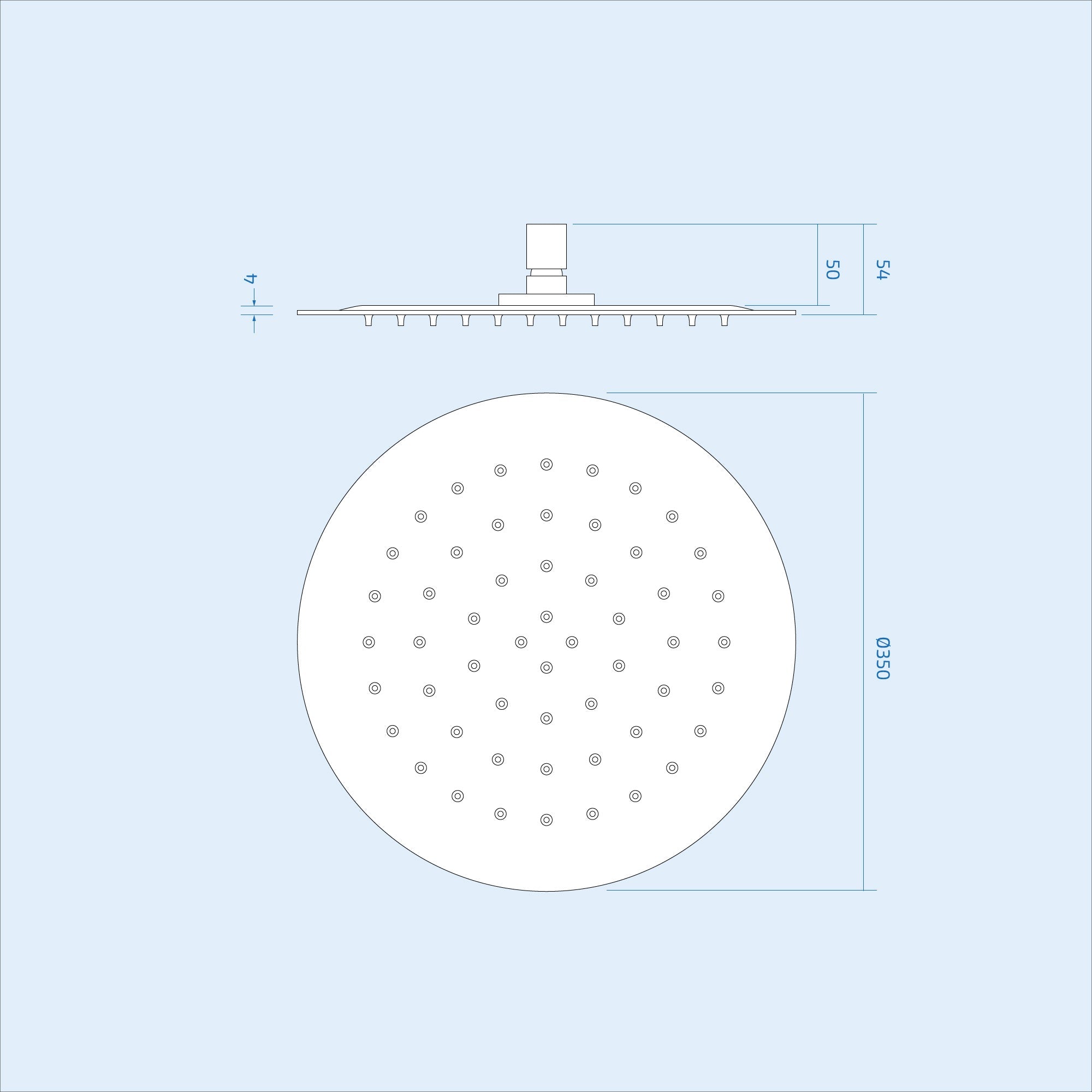

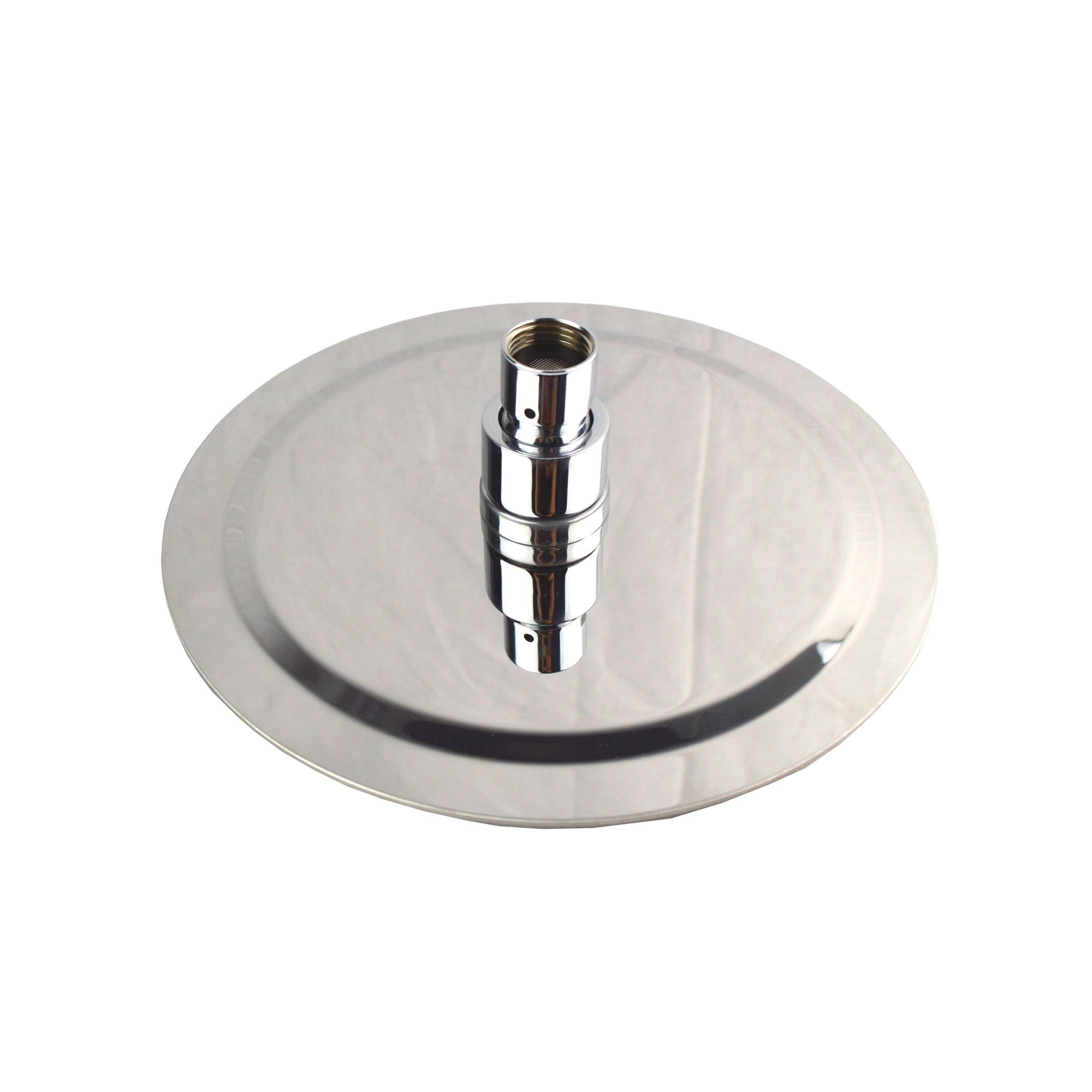

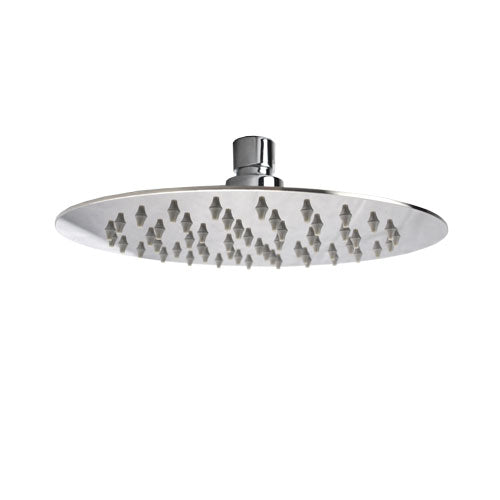

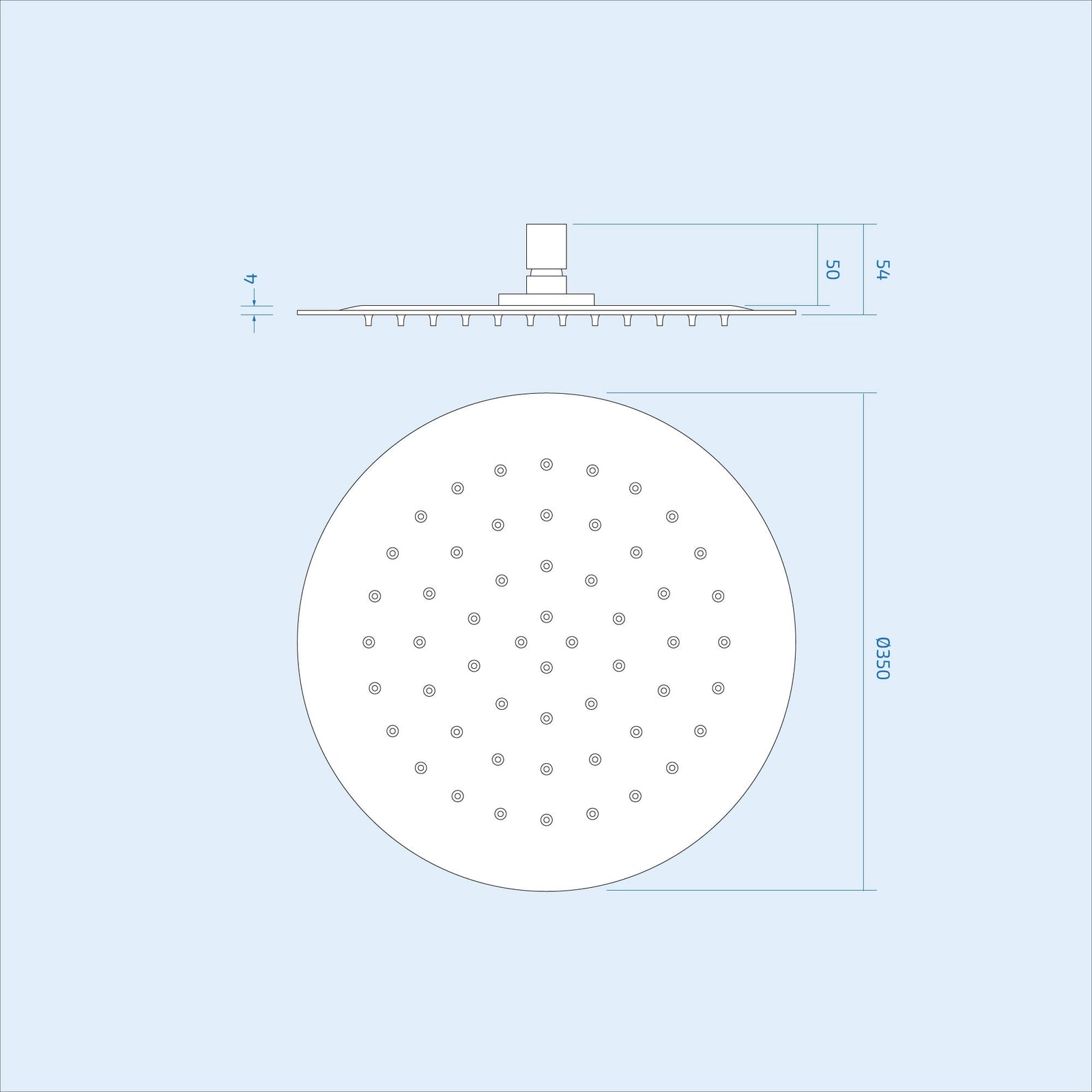

- Solid Brass Round Ultra Thin Shower Head
- Swivel connection allowing tilt up to 15 deg.

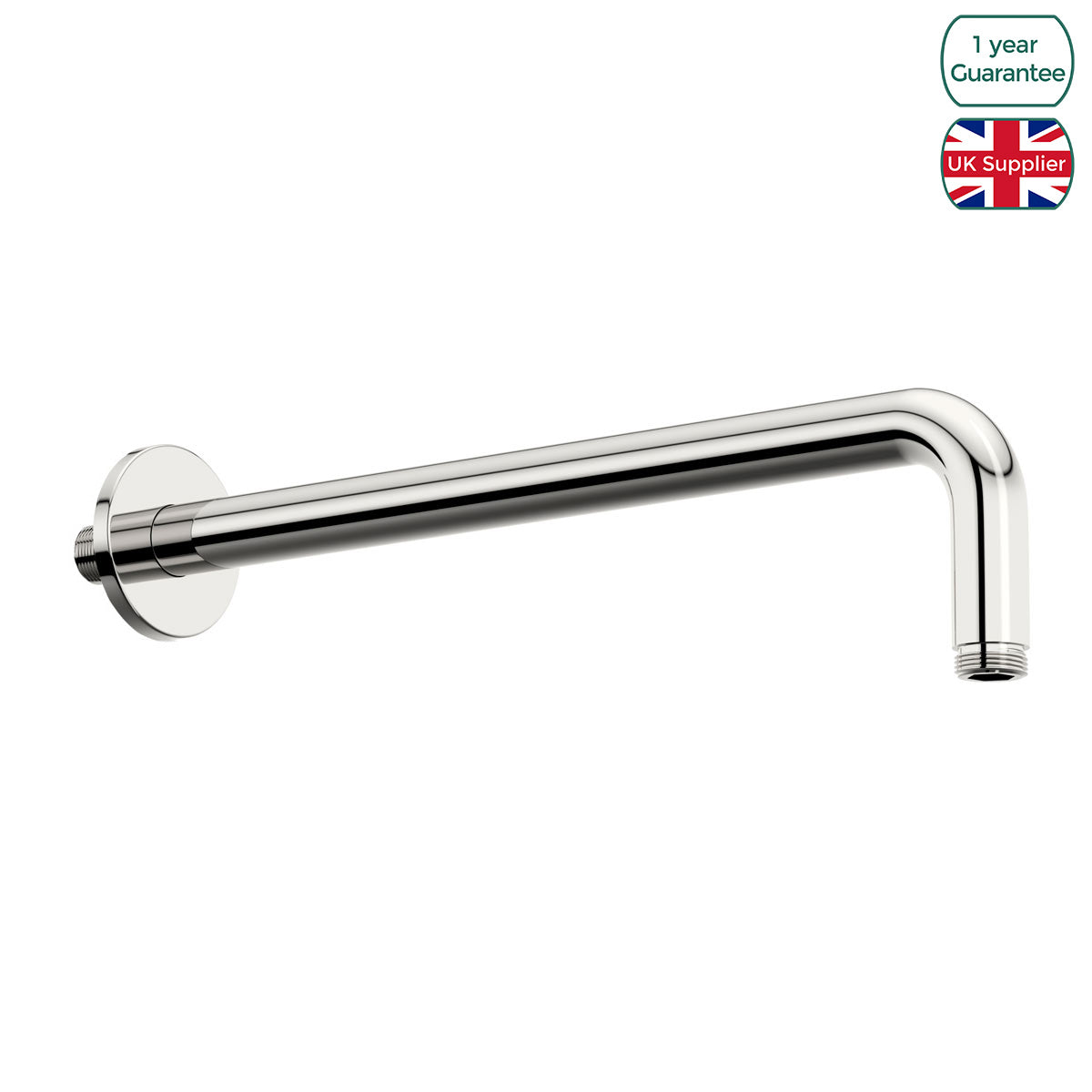

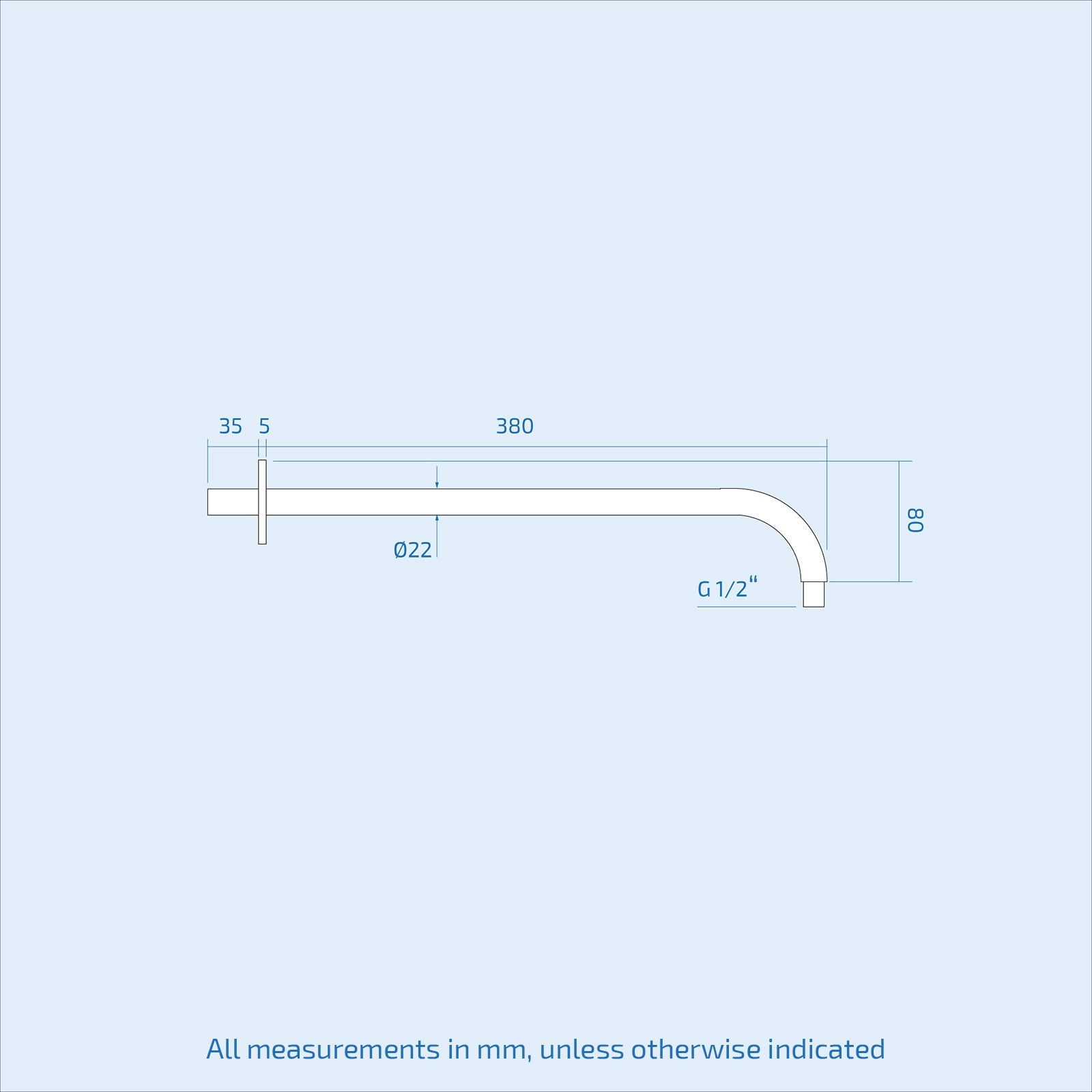

- Solid brass round wall mounting 300mm arm length
- Neoprene outlets offer easy clean functionality
- Subject to a minimum of 1.0 bar water pressure
Suitable For The Following Water Systems
- Combi-boilers
- Gravity-fed systems
- Megaflow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum of 1.0 bar water pressure
Package Contents
- 1 X Thermostatic valve
- 1 X Showerhead
- 1 X Wall mounted arm
