Description
This concealed shower set will upgrade any bathroom, offering a thermostatic control to consistently control the temperature of your water. Featuring a contemporary overhead shower head with a swivel joint & arm, two dial, 2 outlet valve & round chrome shower handset this bathroom set will look great.
One of the standout features of our Shower Set is its ceramic disc mechanism. Engineered to enhance longevity and protect against corrosion, these ceramic discs ensure smooth operation and prevent leaks, making this set a reliable and long-lasting addition to your bathroom. Even in hard water areas, where mineral deposits can wreak havoc on lesser taps, our ceramic discs keep the tap functioning flawlessly.
Made from high-quality brass, this set is durable and resistant to wear and tear, ensuring long-lasting performance. Additionally, The Chrome finish on this set is built to last and withstand daily use in the bathroom, they are coated with highly innovative rust and scratch-proof technology PVD coating, making them a practical choice for any busy household.

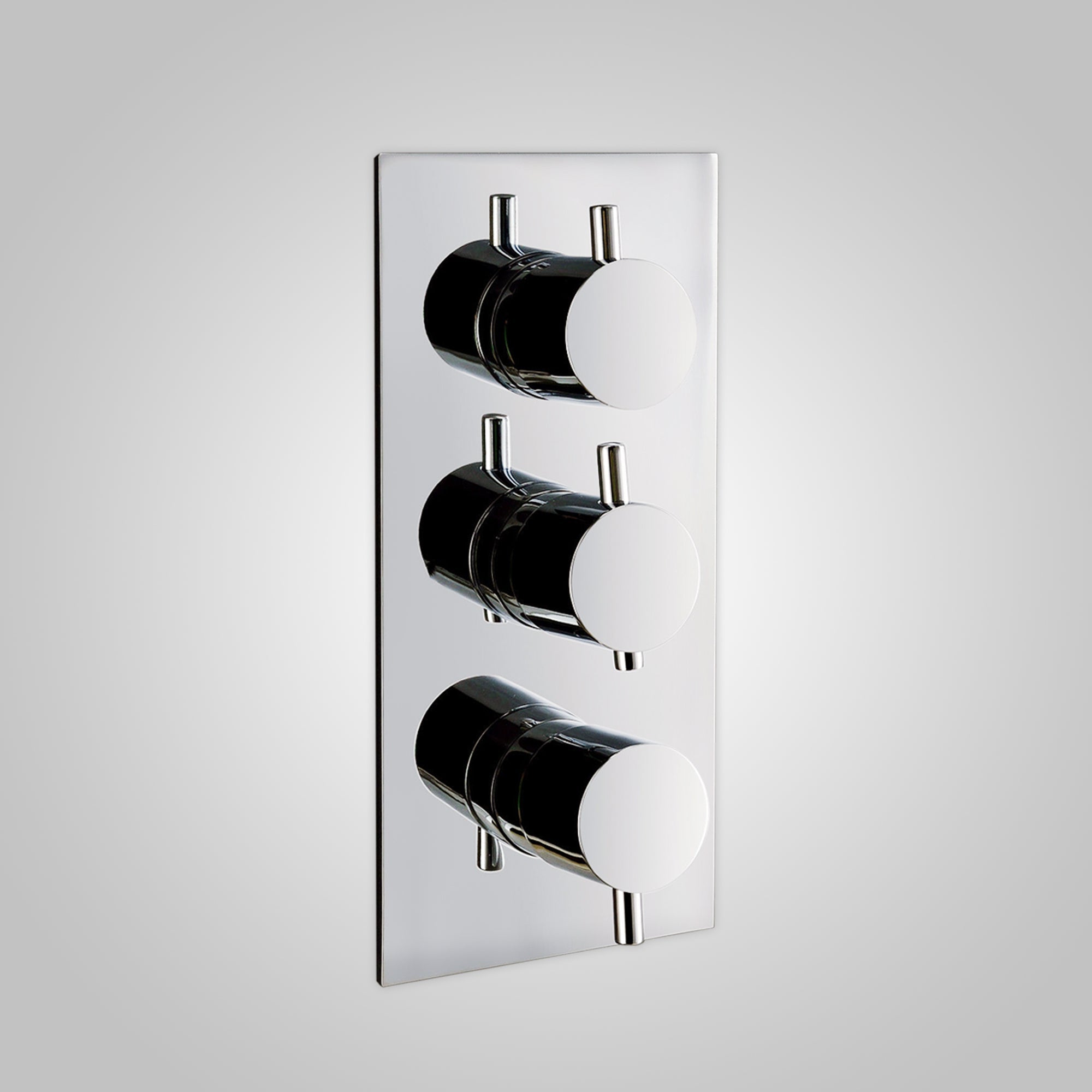

Thermostatic Concealed Valve Features
- Top dial - controls water to 2 outlet diverter
- Middle dial - on/off
- Bottom dial - temperature control
- High Quality Design
- Chrome Plated
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button

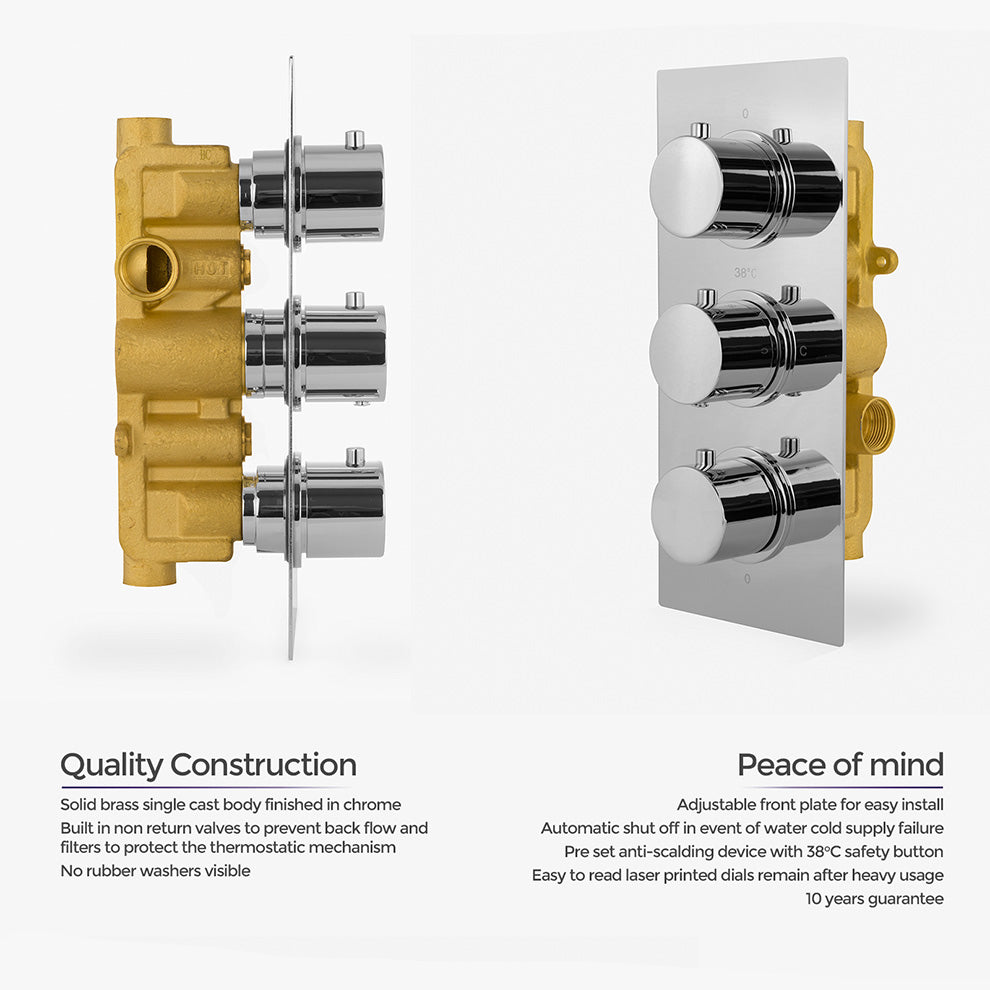

- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting
Shower Head with Ceiling Mounted Details
- Chrome plated ABS plastic overhead shower
- Solid brass 15 degrees swivel joint for ease of use
- Solid brass matching arm length - 120mm
- Finished in chrome ensuring a high quality reflective mirror finish
- UK standard size fitting

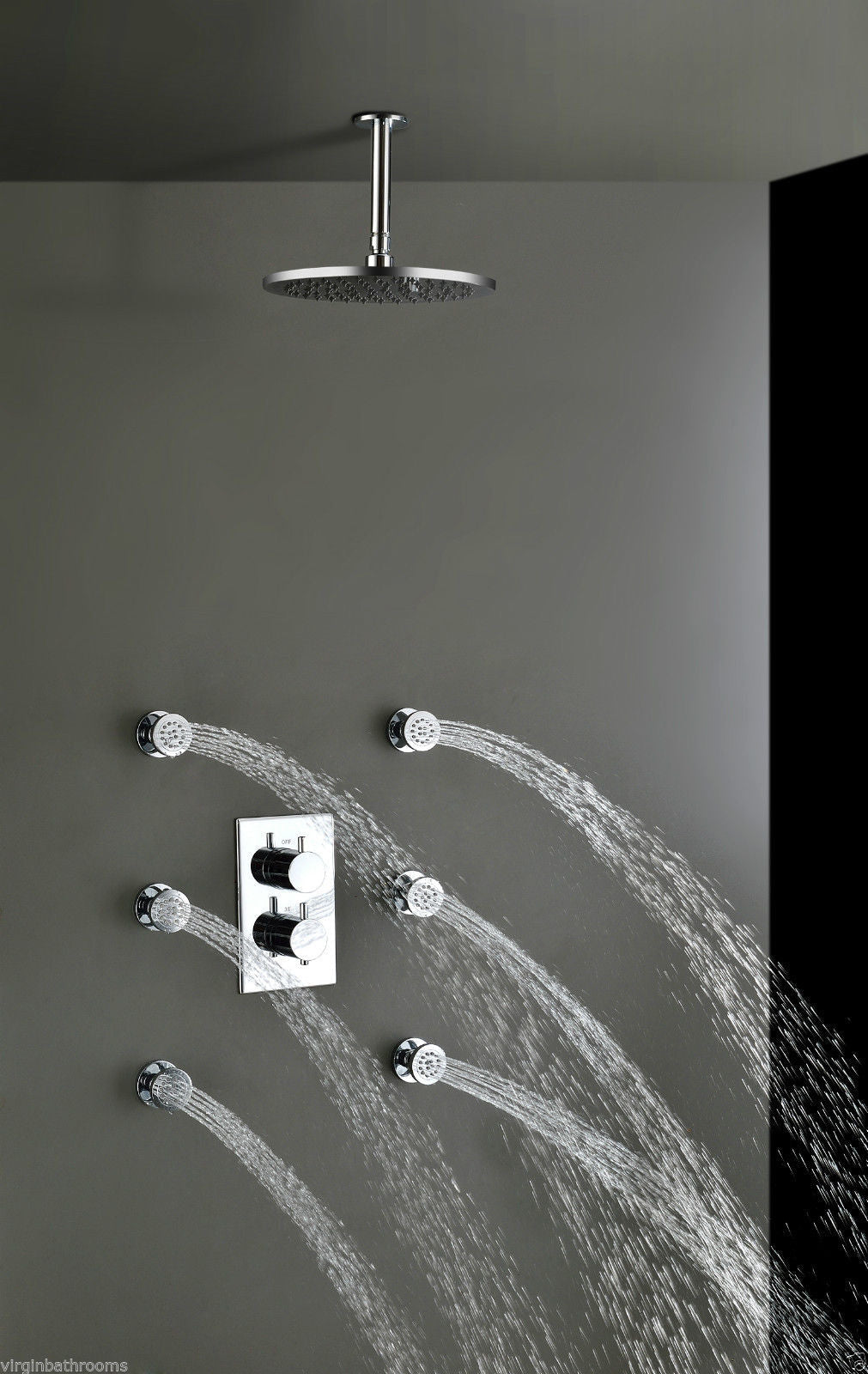

Massage Body Jets
- Chrome plated round body jets
- Chrome finish - long lasting high shine
- High quality solid brass - will not rust or corrode
- Standard 1/2" connection
- Easy to clean rubber nozzles
Technical Information
Suitable for the following water systems:
- Combination boiler systems
- Gravity-fed systems (only with a pump)
- MegaFlo systems
- Pumped hot water systems
- Un-vented hot water systems
- Standard pressurised hot water cylinder type systems
Package Contents
- 1 x Thermostatic Concealed Valve
- 1 x Ceiling Mounted Shower Head and Arm
- 6 x Massage Body Jets
- Complete fitting accessories
Specifications
| Material | Brass |
|---|---|
| Style | Modern |
| Finish | Highly polished chrome |
| Shower head | 8" (200mm) |
| Shower arm | 120mm |
| Anti-scalding | Built-in device |
| Child friendly | Yes |
| Temperature range | 20-50 degrees C |
| Controls | 2 |
| Diverter | Yes |
| Valve | Brass construction |
| Mounting Type | Ceiling Mounted |
| Structure | Fully integrated |
| Minimum pressure | 1 bar |
| Maximum pressure | 6 bar |
| Guarantee | 10 years |
