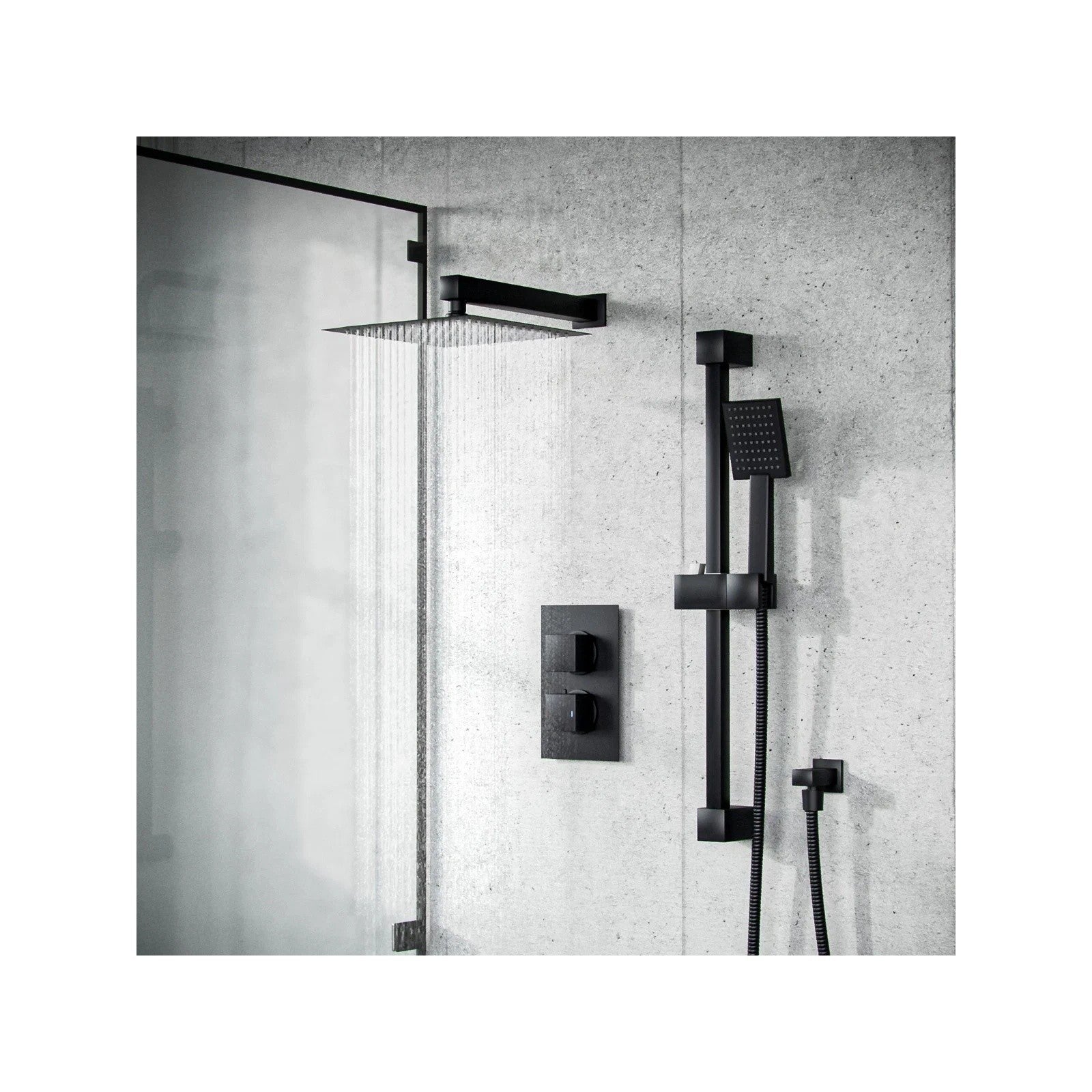

The concealed shower valve has two easy controls, for temperature and flow. The valve body comes with a contemporary square face plate.
Key Features
- Black matte finish
- Durable and solid brass construction
- Top Dial - controls water to 2 outlet diverter
- Bottom Dial - temperature control
- Slim Shower Head Design
Specification

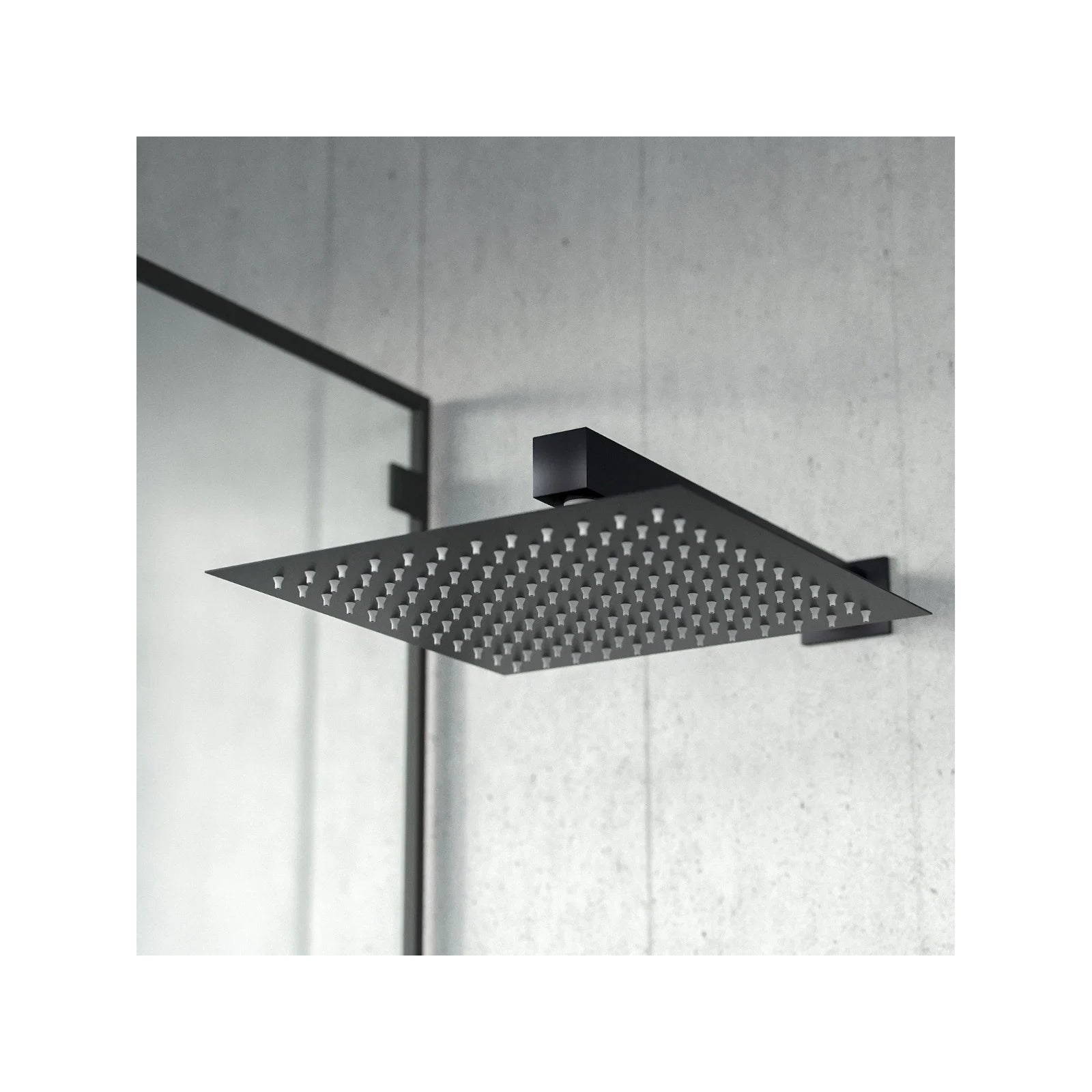

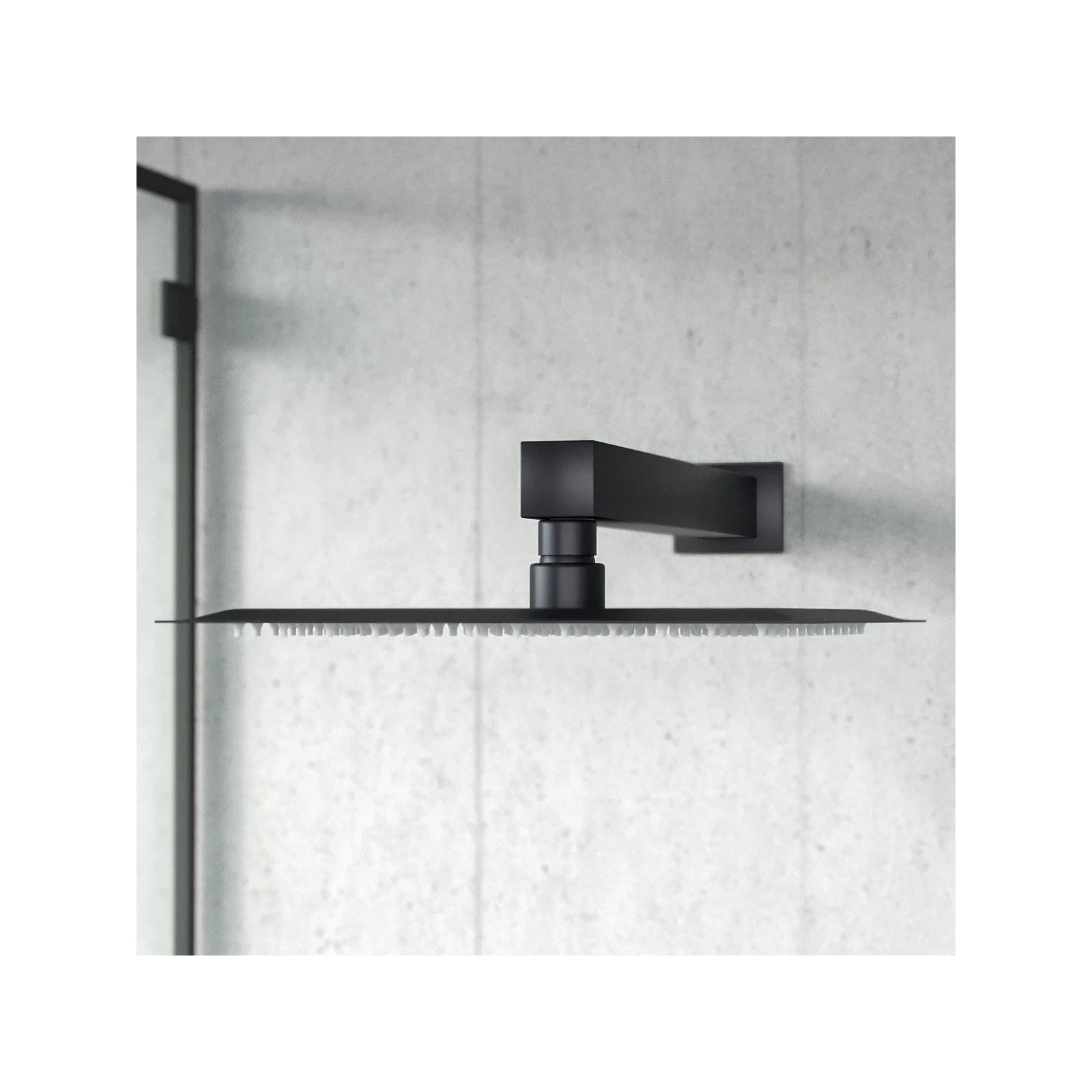

Shower Head and Arm

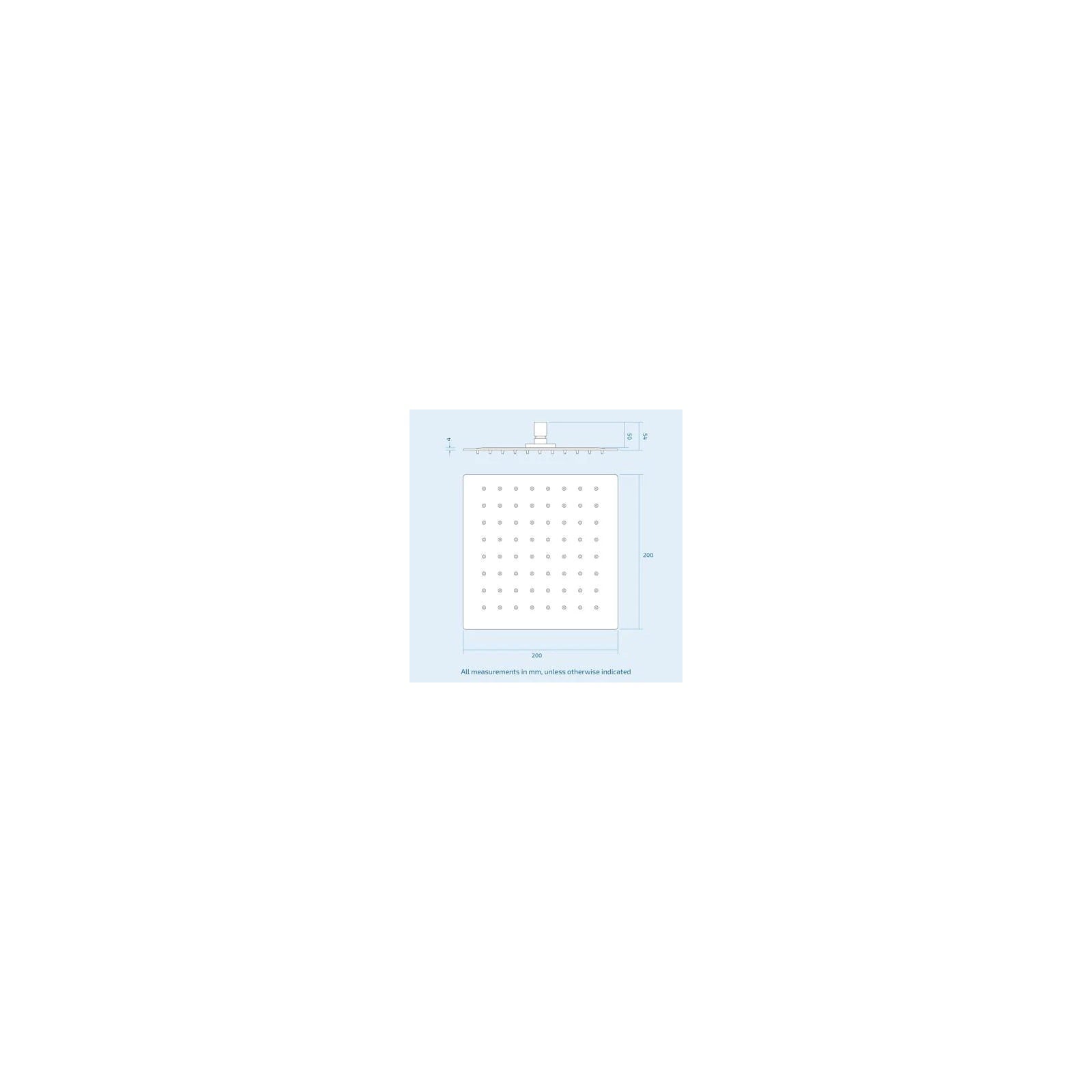

- Shower Head: 200mm Square
- Style: Slim
- Shape: Square
- Material: Brass
- Colour: Black
- Finish: Matte
- Single-mode shower head with swivel joint
- Crafted using superior quality materials
- Rub clean anti-scale nozzles
- 40mm Thread
- ½ Inch Shower Head Connection

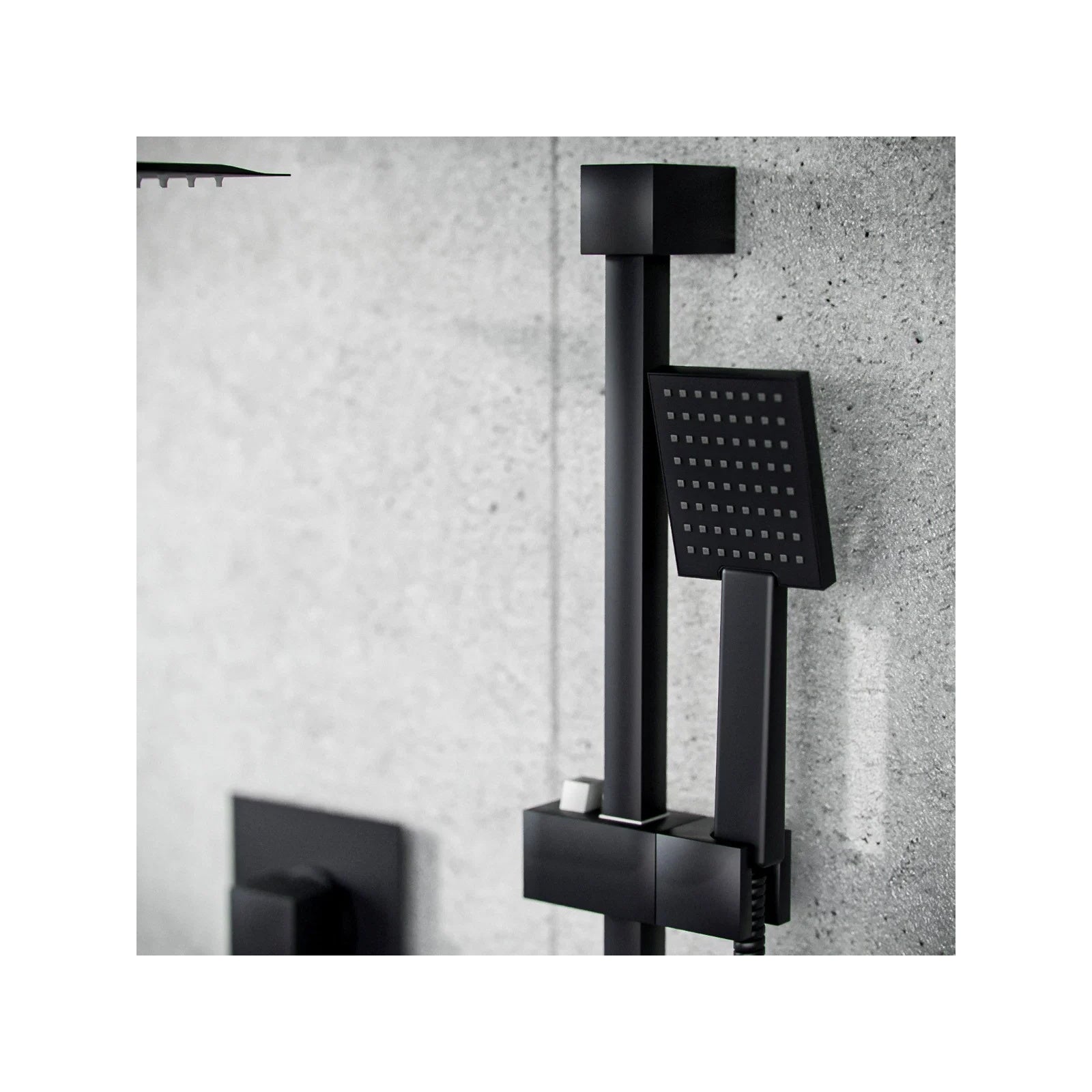

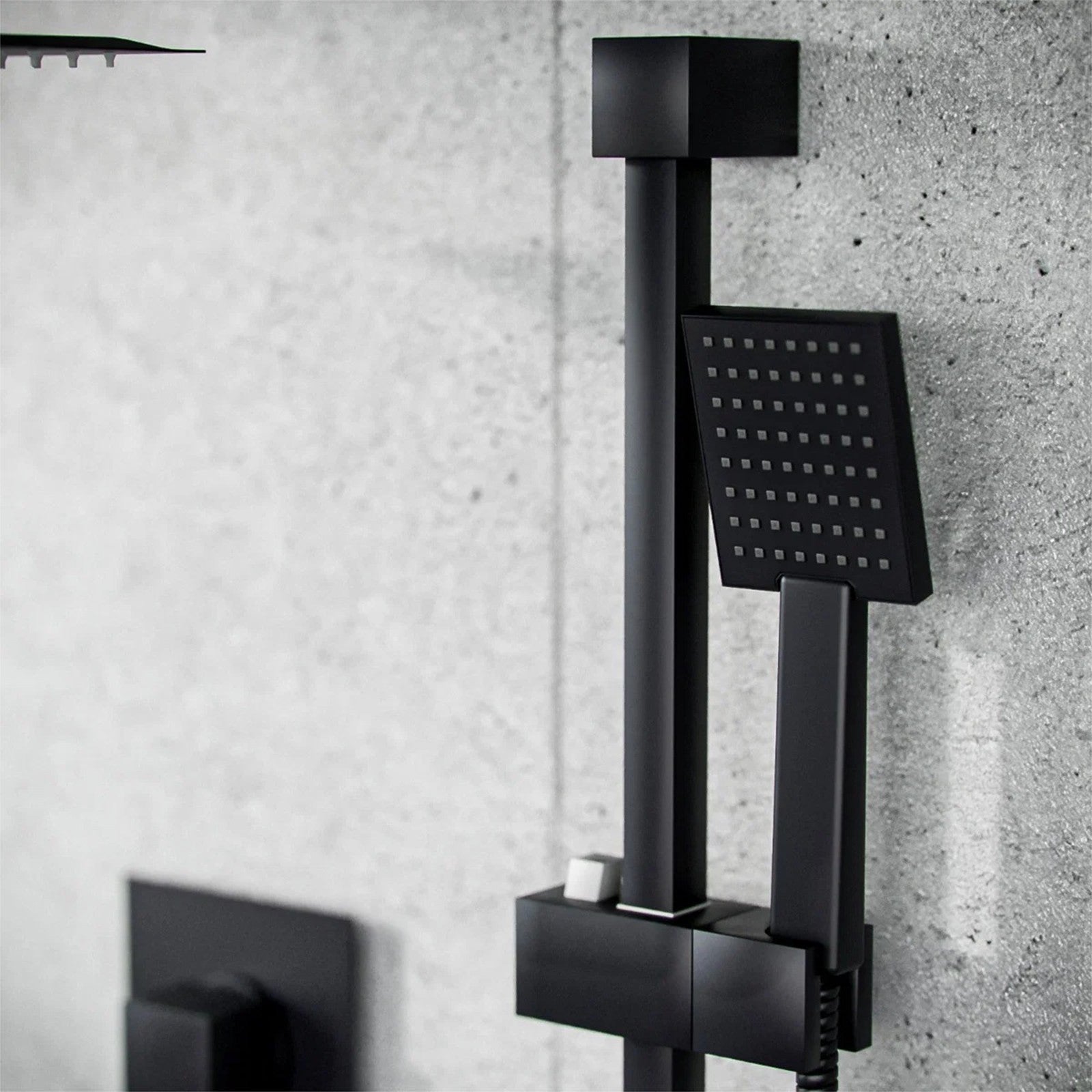

Handset
- Shape: Square
- Modes: Single
- Colour: Black
- Finish: Matte
- Material: ABS plastic
- Rubber easy-clean nozzles

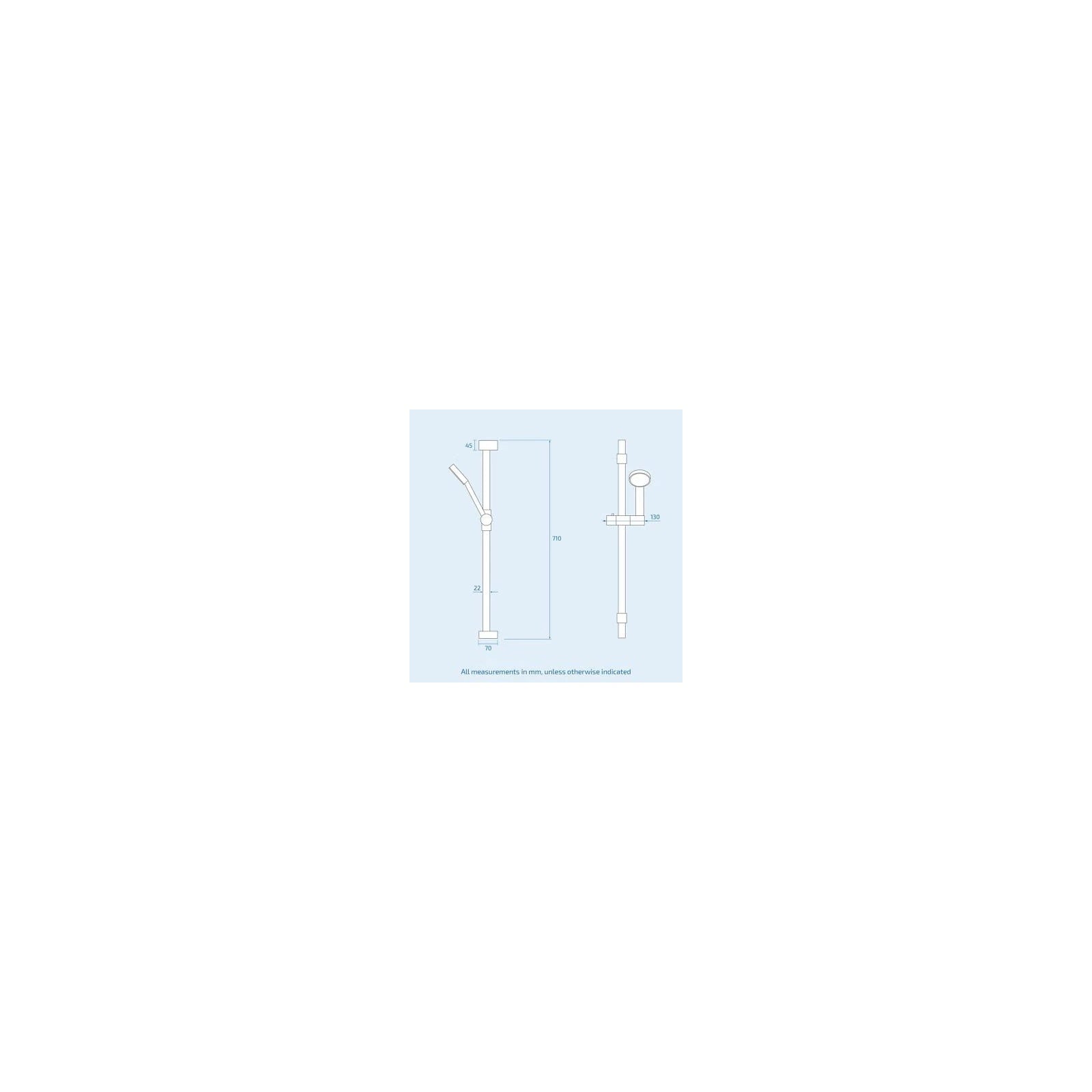

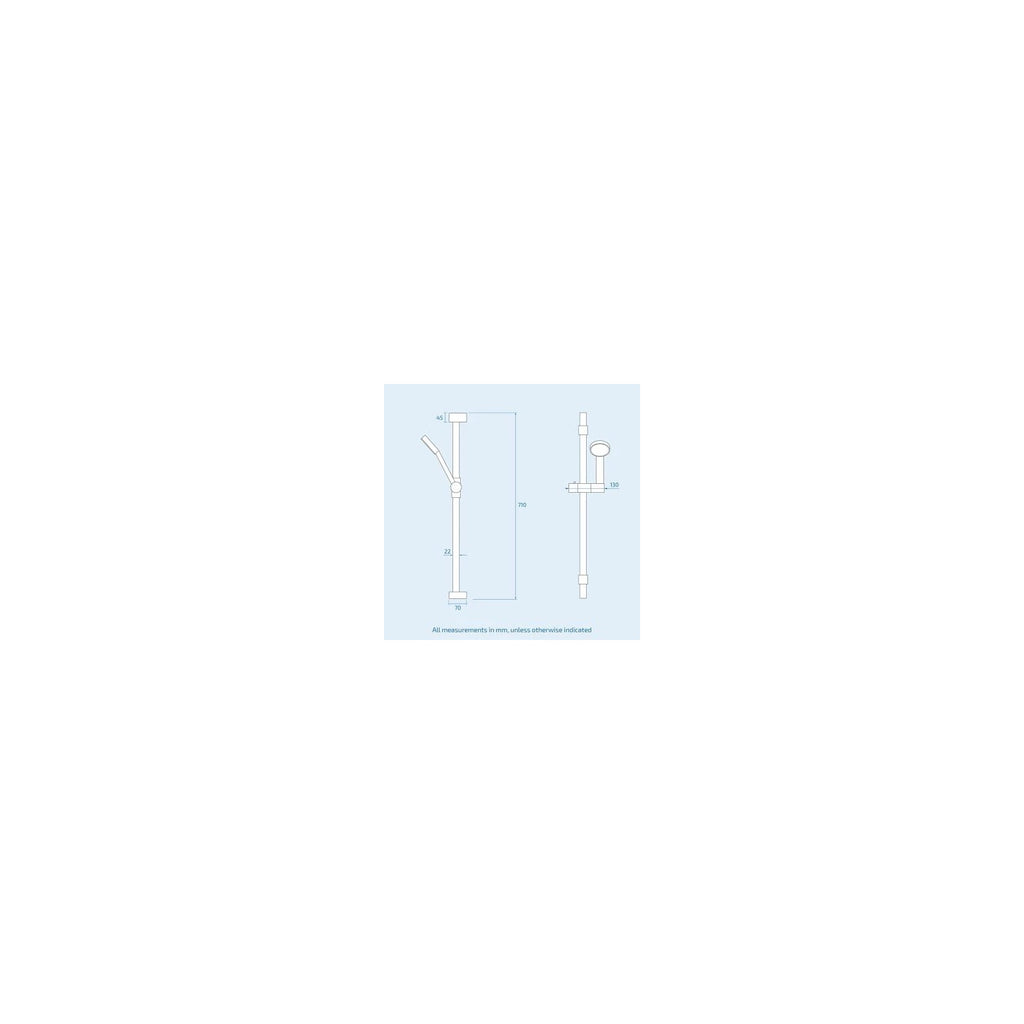

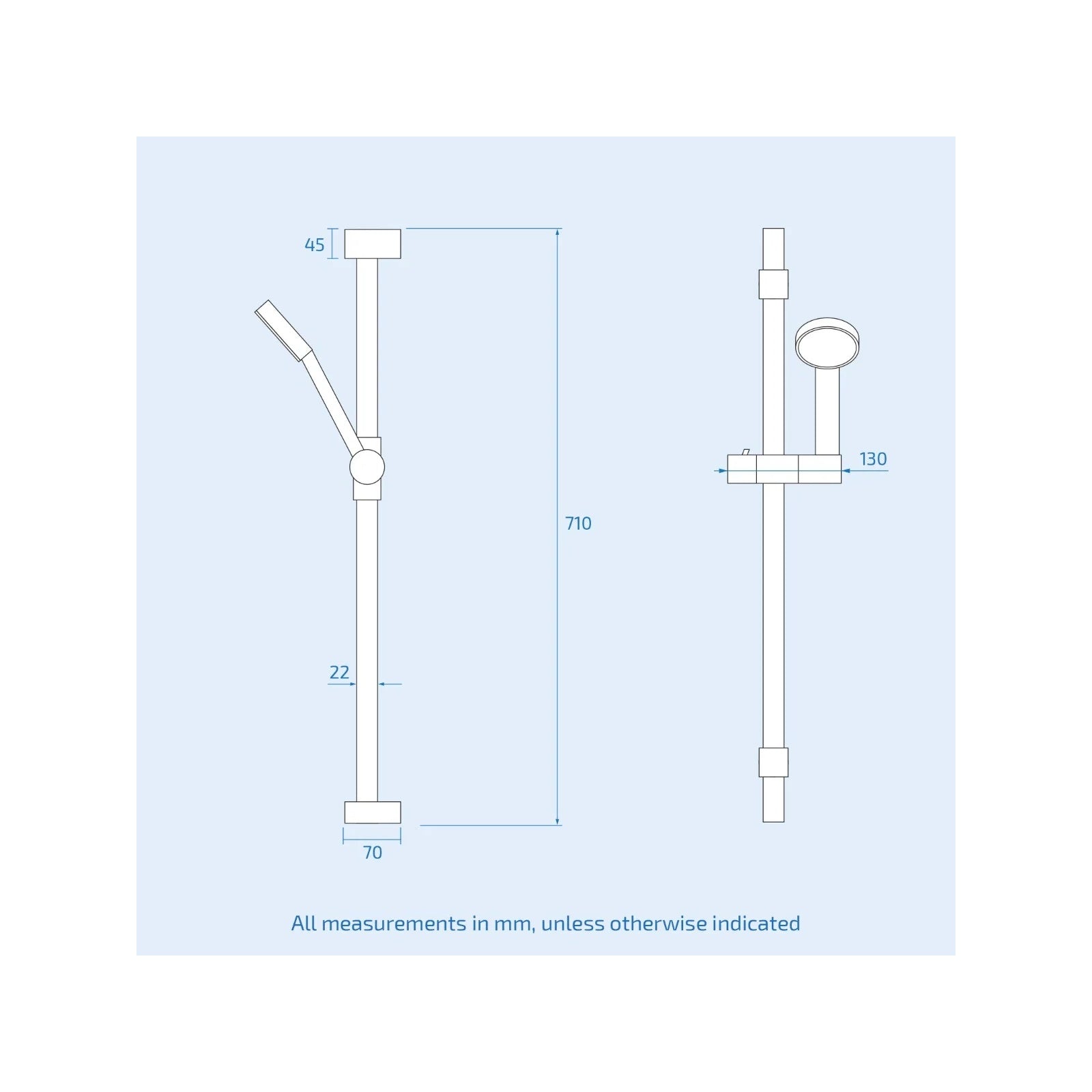

Slider Rail
- Height: 710 mm
- width: 130 mm
- Sliding angle adjustable handset bracket
- Colour: Black
- Finish: Matte
- Braided, flexible 1.5m double interlocking shower hose
- Subject to a minimum pressure of 0.5 bar to maximum 3 bar
- UK standard size fitting

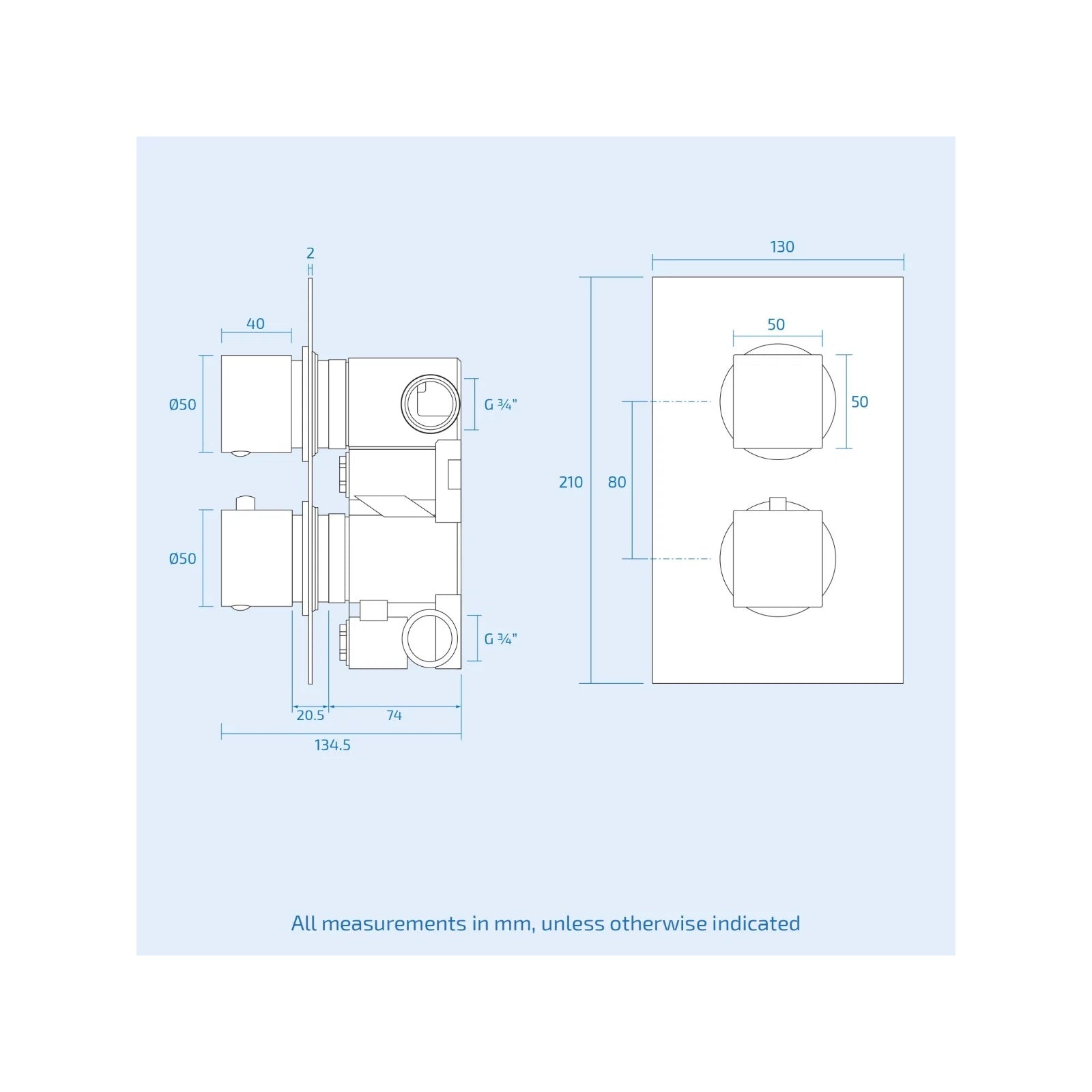

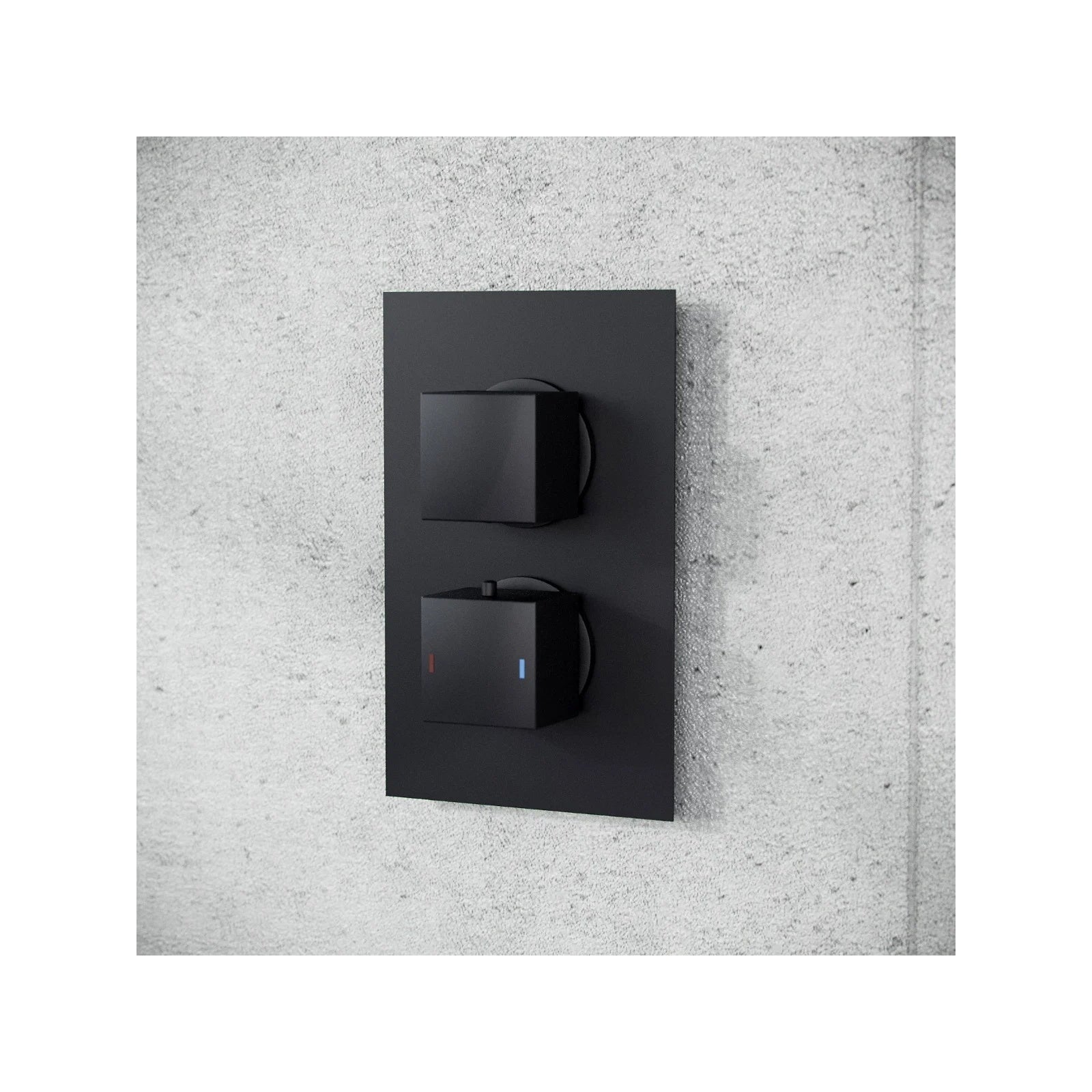

Thermostatic Shower Valve
- Top dial - controls water to 2 outlet diverters
- Bottom dial - controls water temperature
- The two outlets cannot be operated simultaneously
- Manufactured from highly durable solid brass
- Finished in black matt ensuring a high-quality reflective mirror finish
- Tarnish and corrosion resistant
- Operating range 20-50ºC, with 38ºC safety button
- Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
Technical Information
Suitable for the following water systems:
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum pressure of 0.5 bar to maximum 7.0 bar

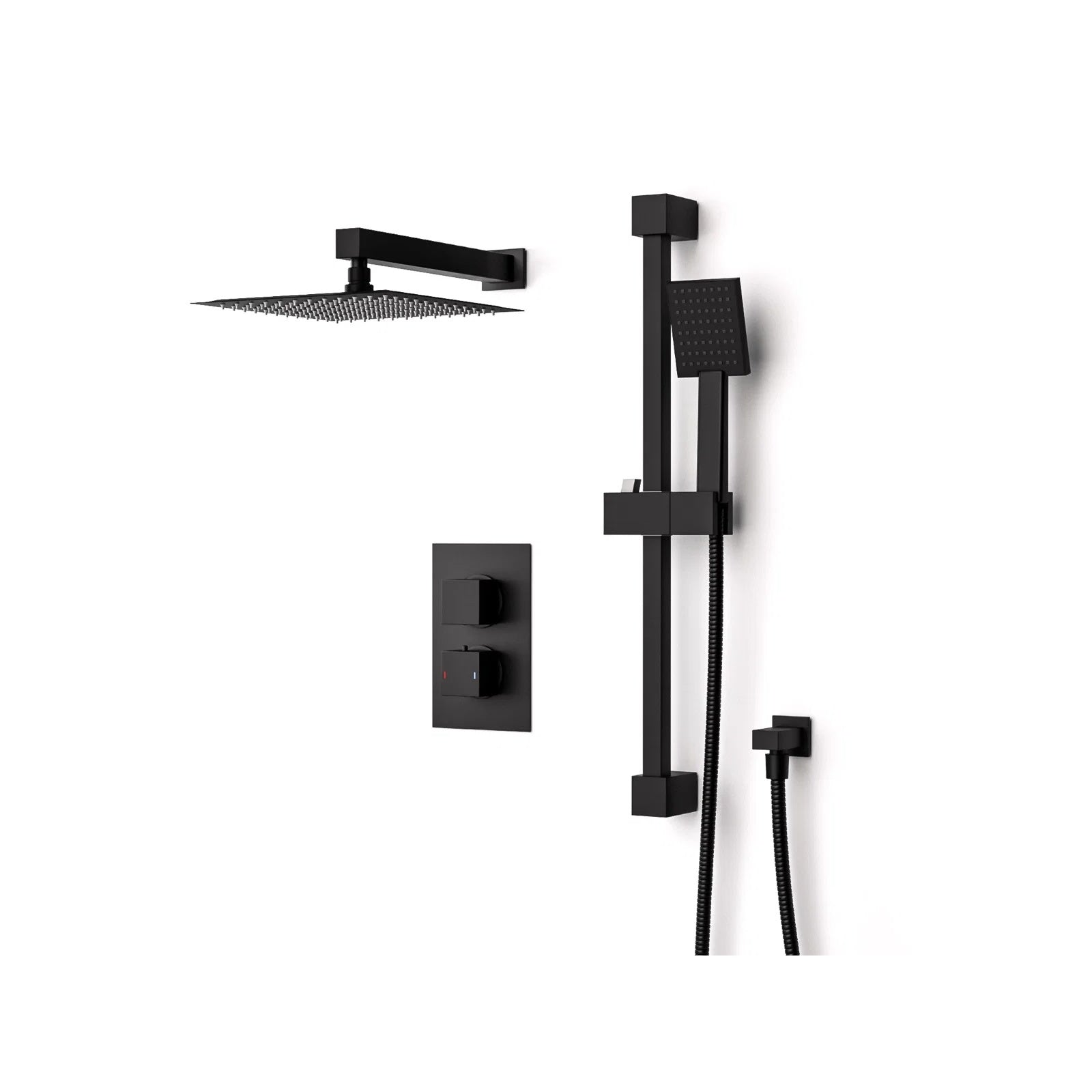

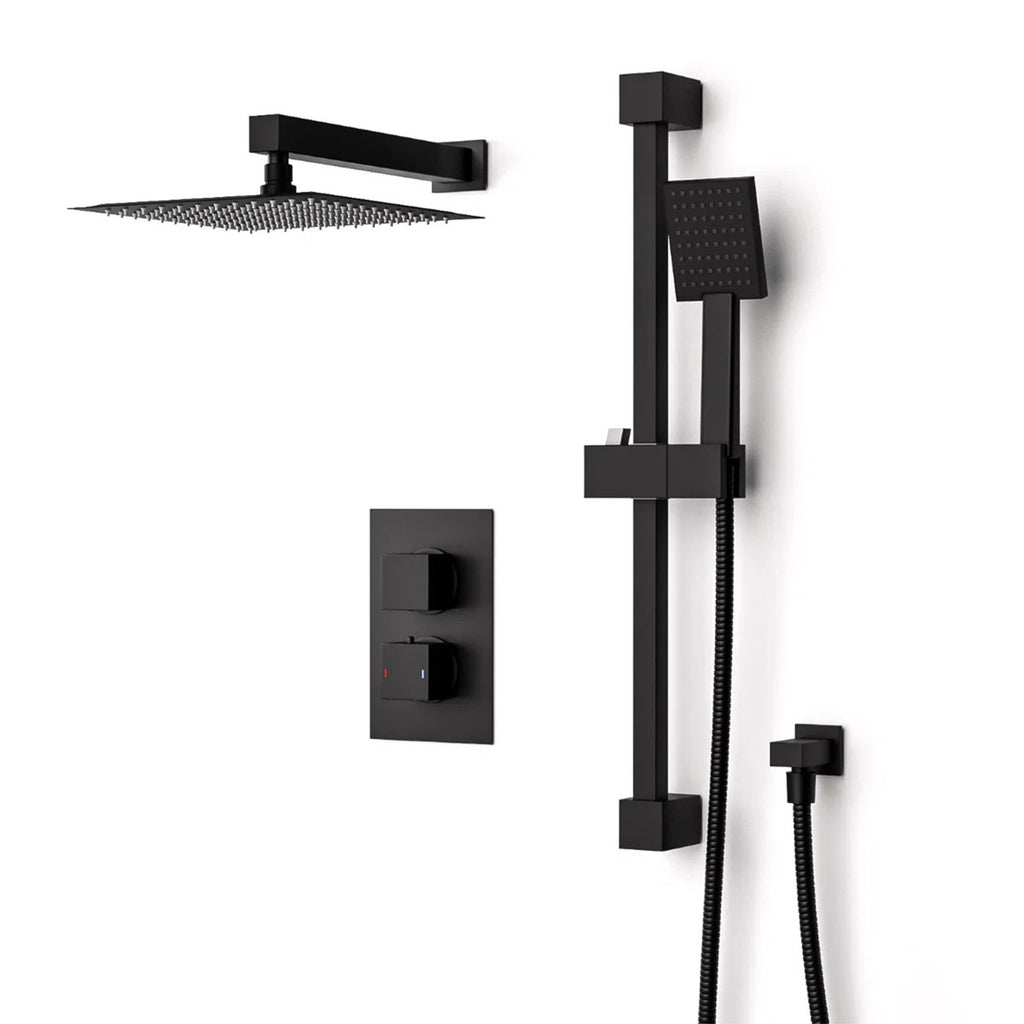

Package Contents
- Shower Valve

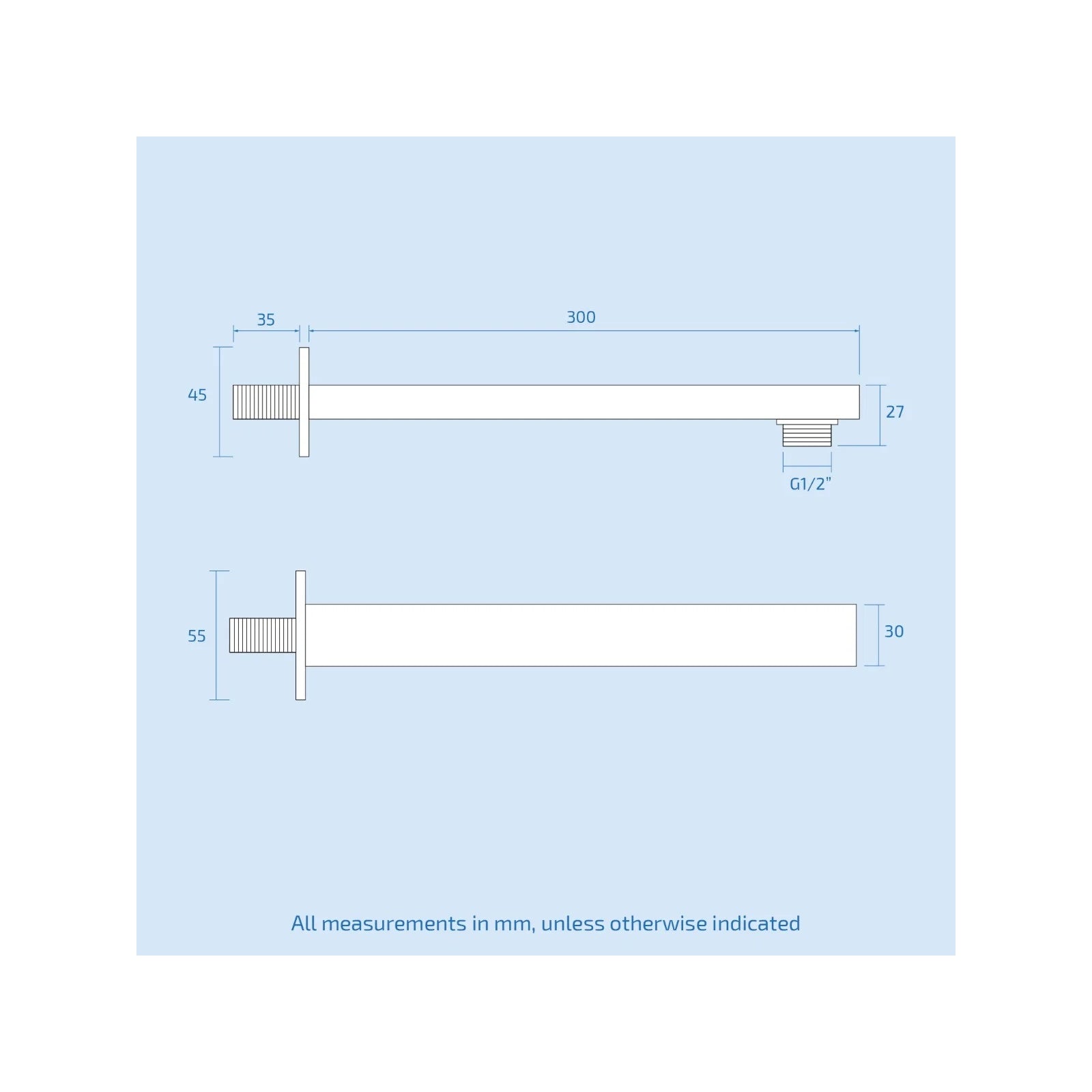

- Shower Arm
- 200mm Shower Head
- Slider Rail Kit

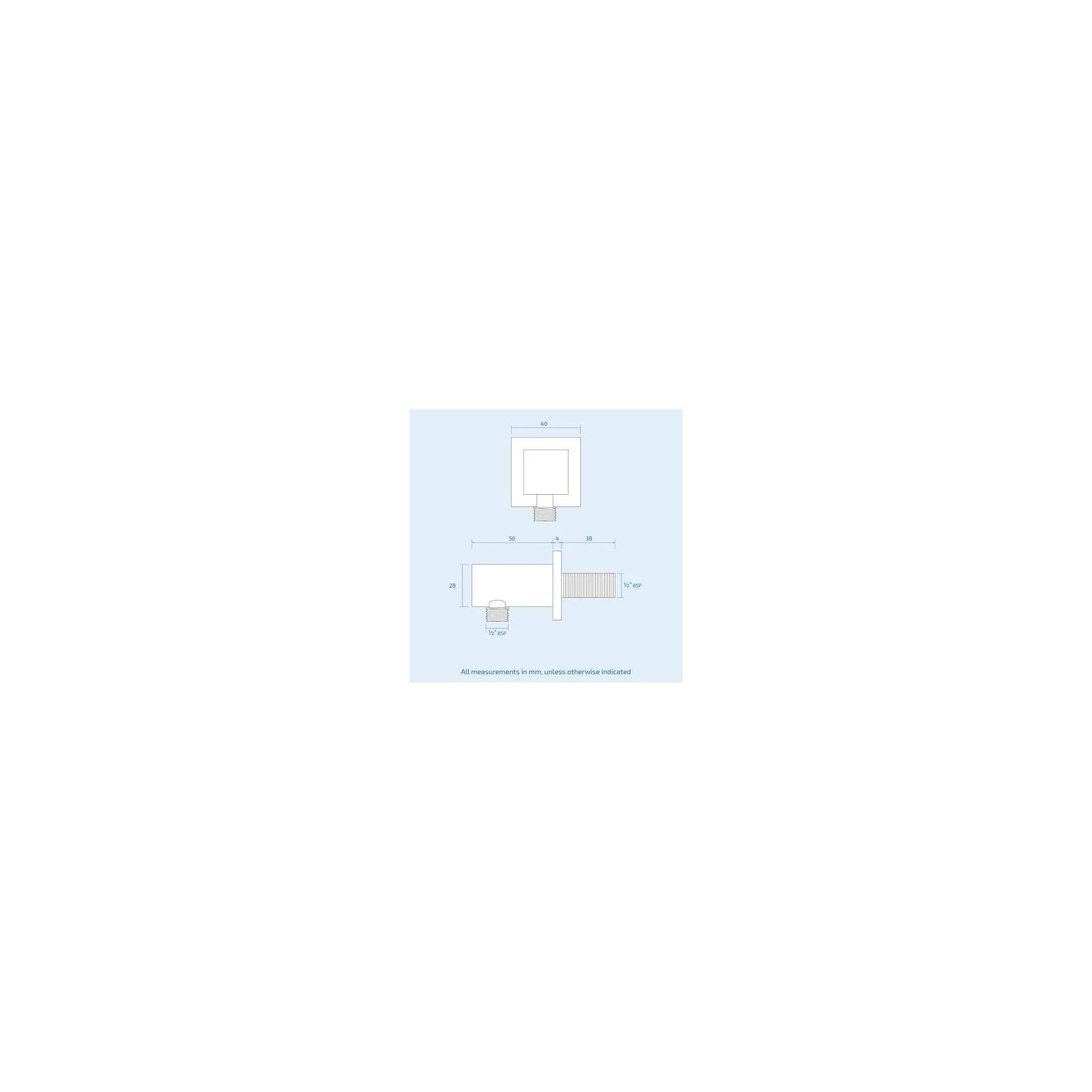

- Elbow Wall Outlet
Please Note:
- Images are illustrative and may vary from actual
- Some concept images depict different sizes or variations, not the exact item
- All measurements are approximate
- Consult our Customer Service for additional information
