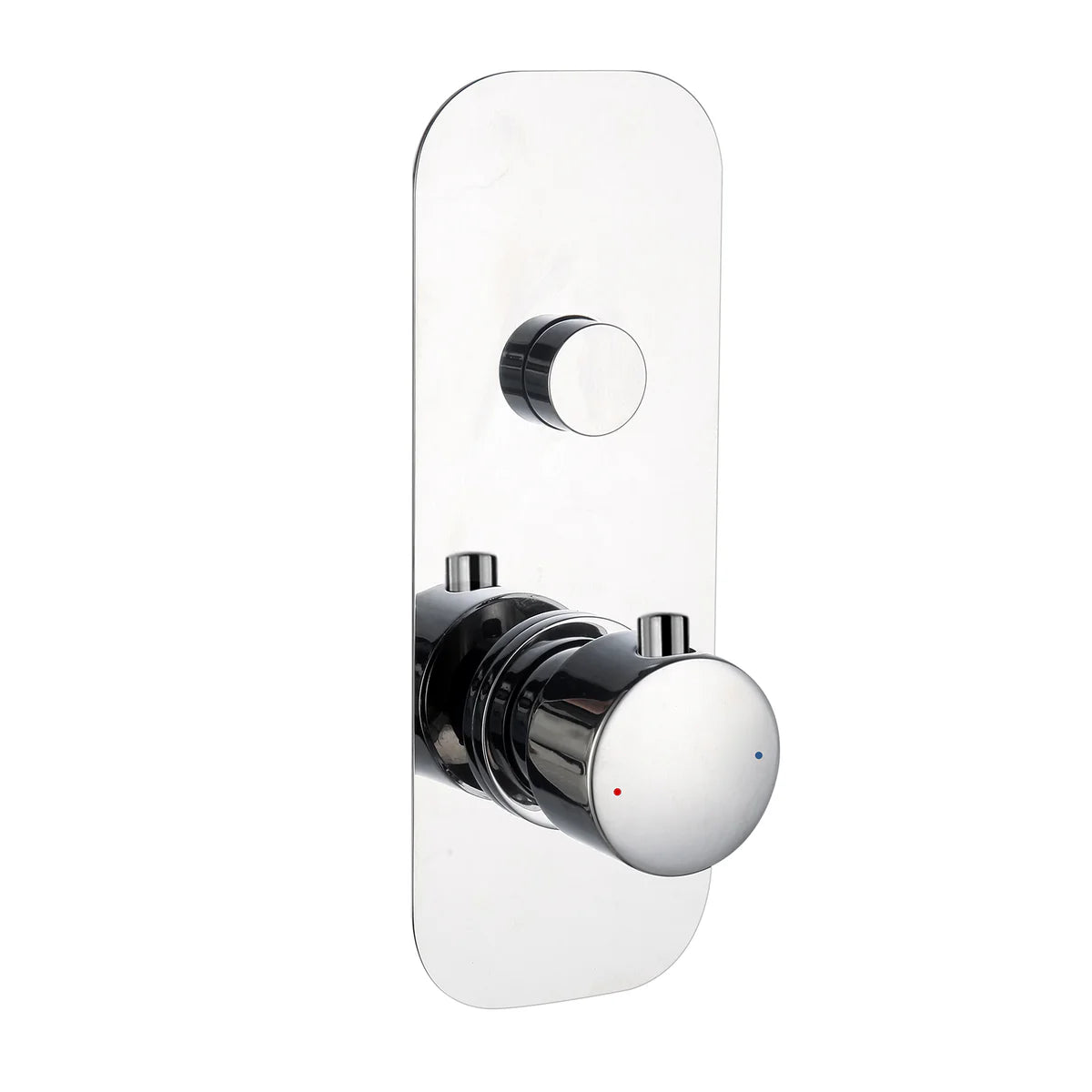

Designed for modern bathrooms and wet room spaces, this 1 Outlet Thermostatic Push Button Concealed Shower Mixer Valve offers a sleek, minimalist, and practical shower control solution. Its concealed design keeps pipework hidden behind the wall, creating a clean and stylish finish for contemporary bathroom interiors.
The single push button controls water flow to one shower outlet, while the thermostatic temperature dial helps maintain a safe and consistent showering temperature. With a polished chrome finish and durable brass construction, this valve combines modern styling with reliable everyday performance.
Suitable for a wide range of water systems, this concealed shower valve is ideal for pairing with a shower handset, fixed shower head, or compatible single outlet shower accessory. It can be installed horizontally or vertically, offering flexible installation for different bathroom layouts.
Key Features
- Modern 1 outlet concealed thermostatic shower mixer valve

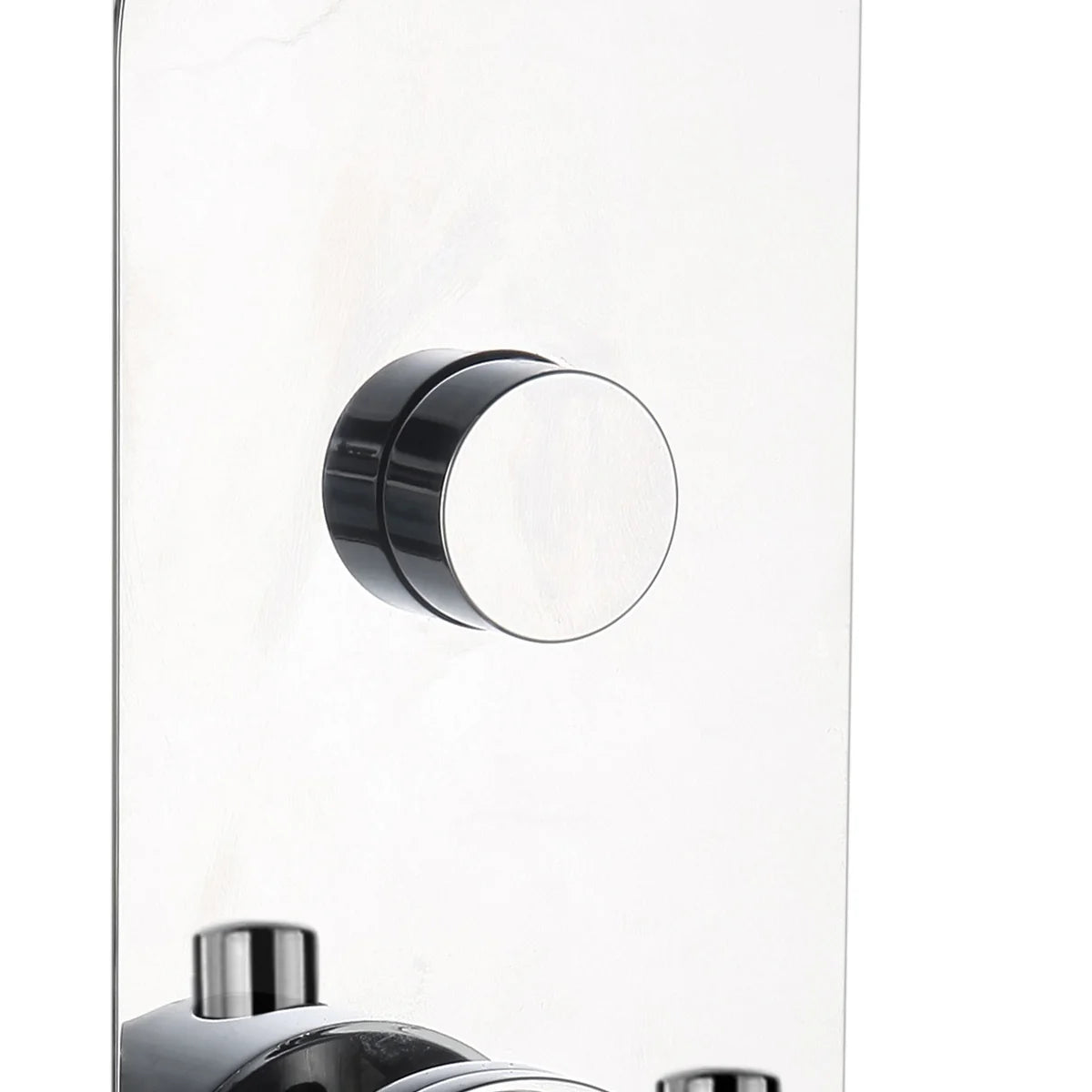

- Push button control operates water flow to one shower outlet

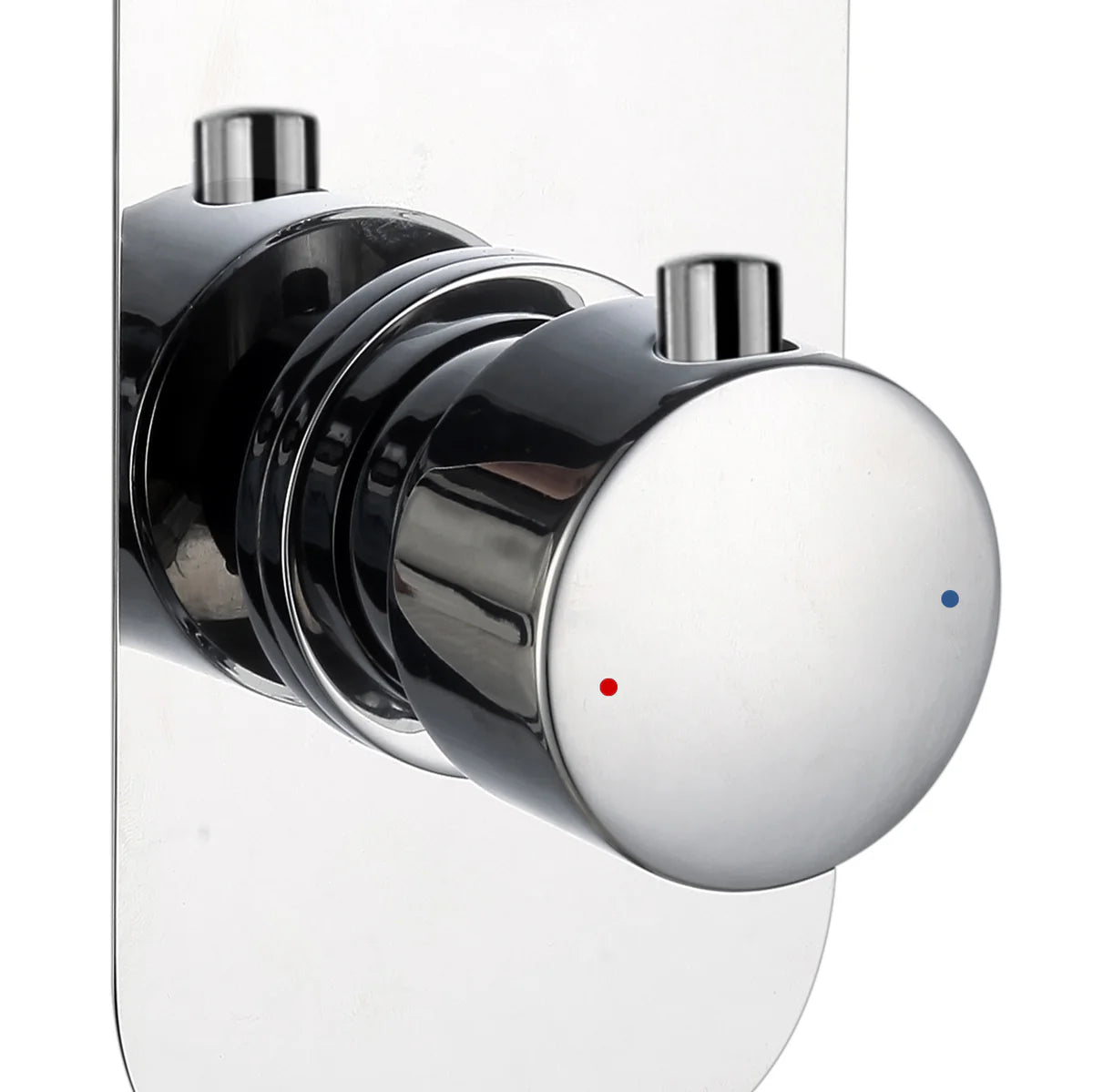

- Bottom dial controls shower temperature
- Thermostatic control helps maintain a consistent water temperature
- Concealed design creates a clean and minimalist bathroom finish
- Polished chrome faceplate for a sleek modern appearance
- Made from highly durable brass for long-lasting performance

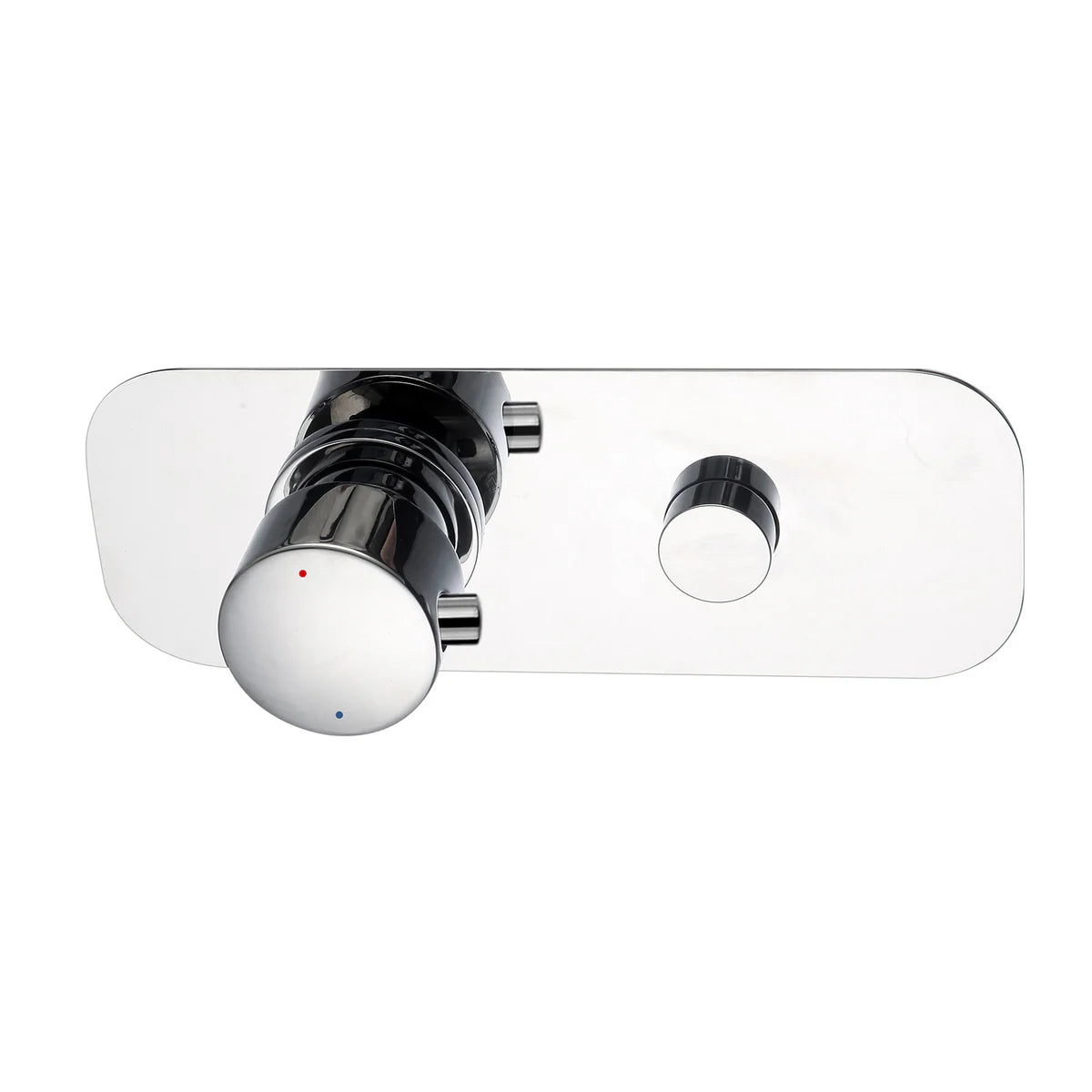

- Can be installed horizontally or vertically
- Operating temperature range from 20°C to 50°C
- 38°C safety button for added protection
- Built-in non-return valves help prevent backflow
- Integrated filters help protect the thermostatic mechanism
- Automatic shut off in the event of cold water supply failure
- UK standard size fittings for compatible installations
Suitable Water Systems
- Combination boiler systems
- Gravity-fed systems, only when used with a pump
- MegaFlo systems
- Pumped hot water systems
- Unvented hot water systems
- Standard pressurised hot water cylinder systems
Specification
- Product Type: Concealed Shower Mixer Valve
- Valve Type: Thermostatic
- Outlet: 1 Outlet
- Control Type: Push Button and Temperature Dial
- Finish: Polished Chrome
- Material: Brass

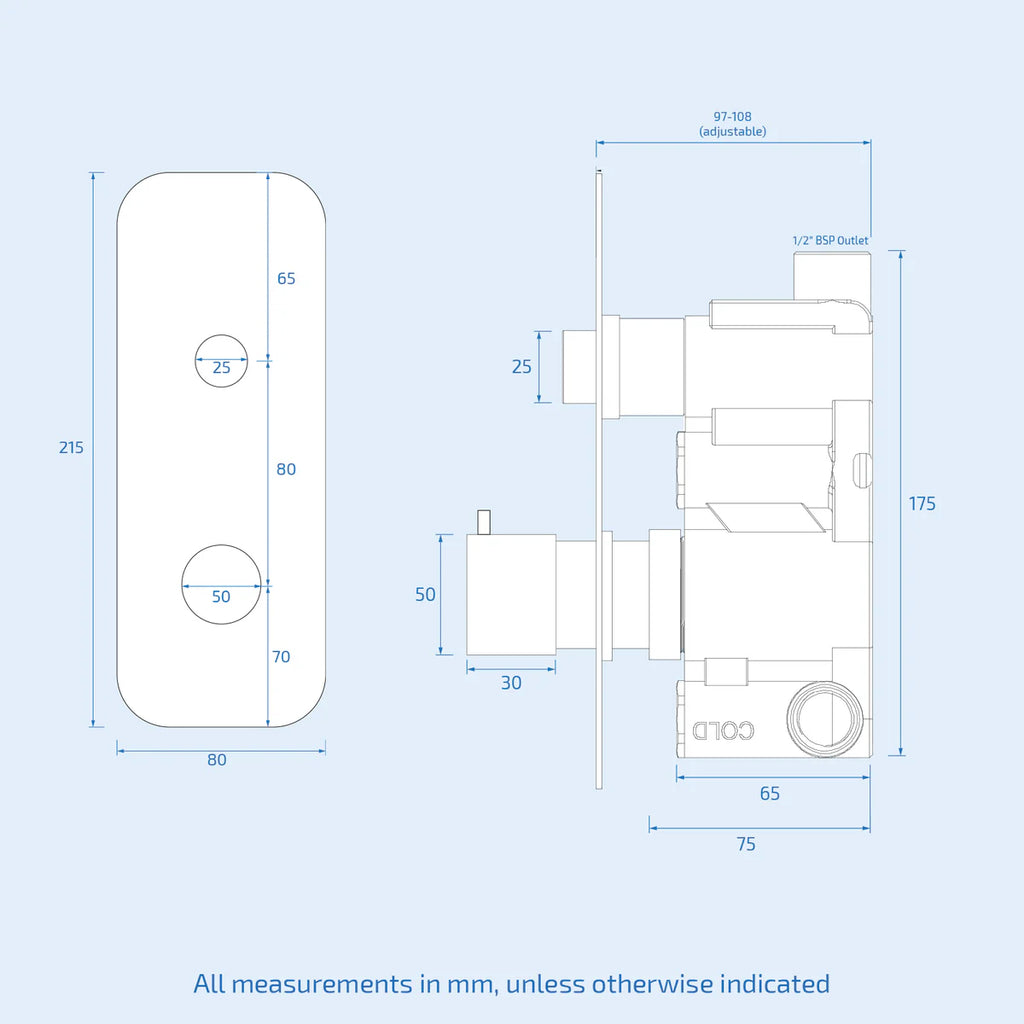

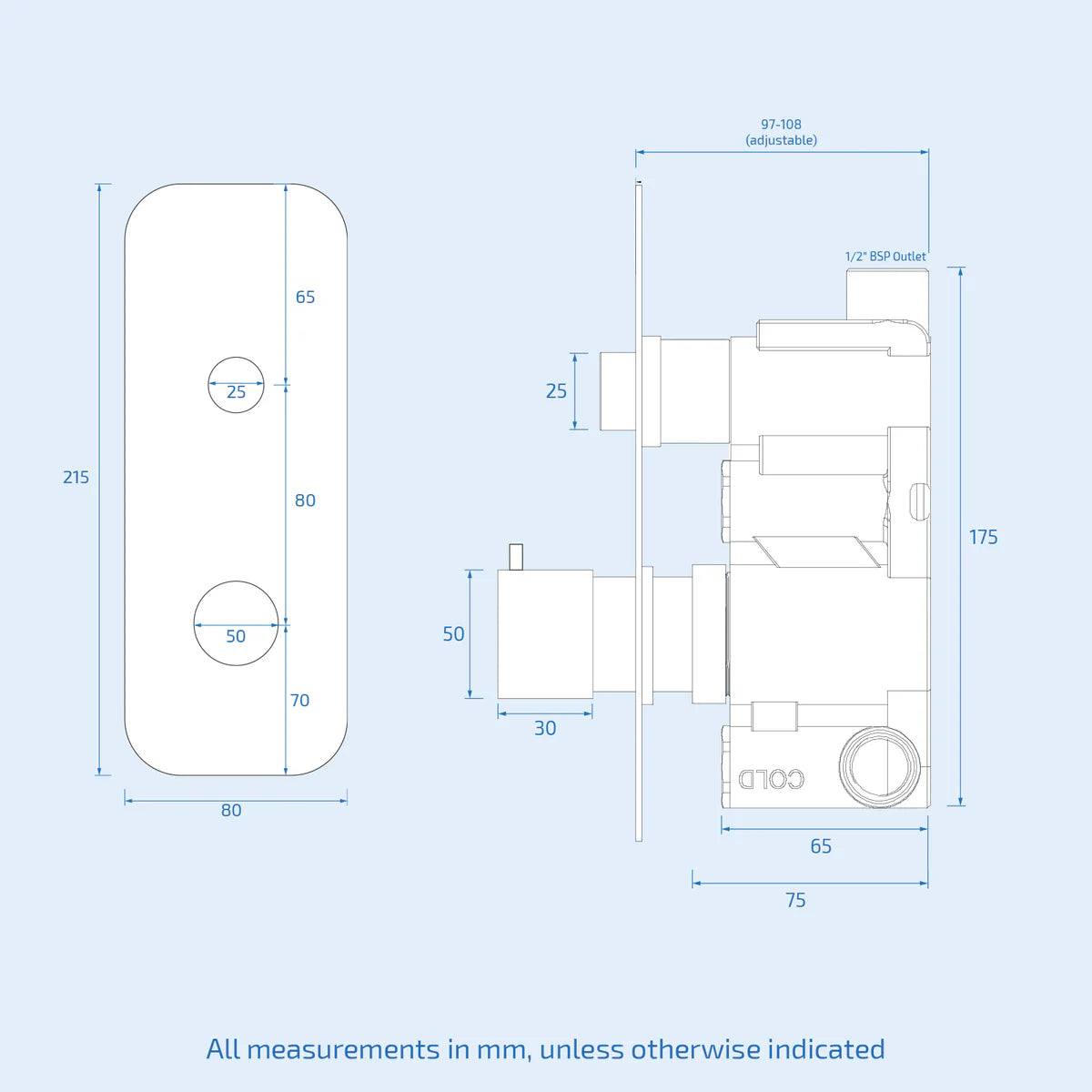

- Faceplate Height: 215 mm
- Faceplate Width: 80 mm
- Adjustable Depth: 97-108 mm approx.
- Valve Body Height: 175 mm approx.
- Inlet Connection Size: 2 x 3/4"
- Outlet Connection Size: 1 x 1/2" BSP
- Minimum Pressure: 1.0 bar
- Maximum Pressure: 6.0 bar
- Operating Temperature Range: 20°C - 50°C
- Safety Stop Temperature: 38°C
- Temperature Stability: Maintained to within +/-1°C
- Installation: Horizontal or Vertical
Package Contents
- 1 x Thermostatic Concealed Mixer Valve
Please Note:
- Shower head, shower handset, hose, wall outlet, and riser rail are not included unless stated otherwise.
- Installation should be carried out by a qualified plumber.
- Please check water pressure and system compatibility before purchase.
- Images are for illustration purposes and may differ from the actual product.
- Concept images may show alternate finishes or variations.
- All measurements are approximate.
- Please consult our Customer Service team for additional information.
