Description

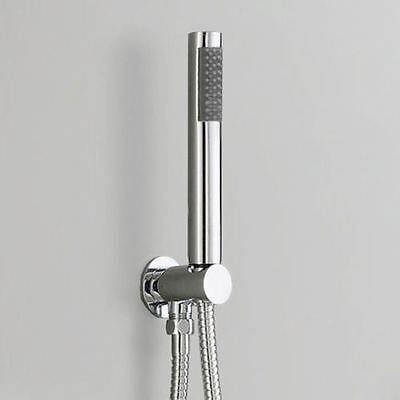

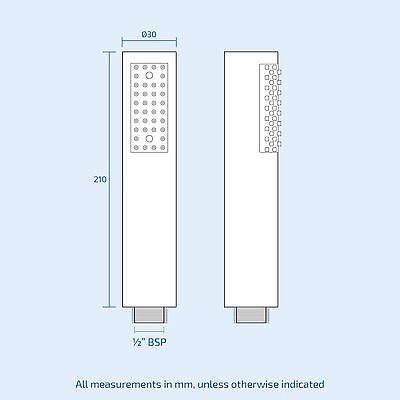

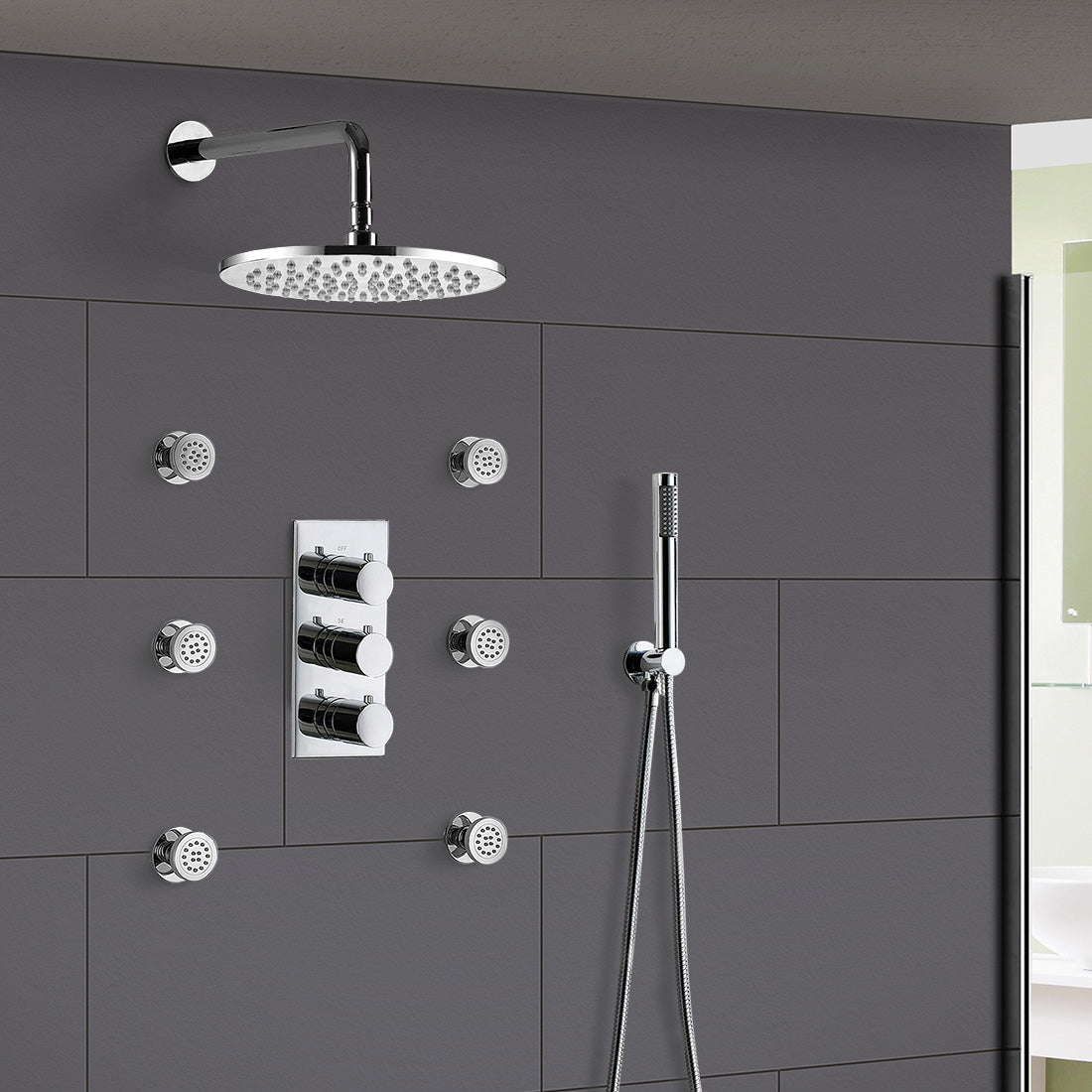

This modern design concealed thermostatic valve will compliment any modern bathroom suite. It offers Thermostatic showering via three easy-to-operate controls for temperature and flow. The 200mm fixed shower head with a swivel joint and arm is supplied with a pencil handset body, making it perfect for use in small or cramped spaces.
Product Specification

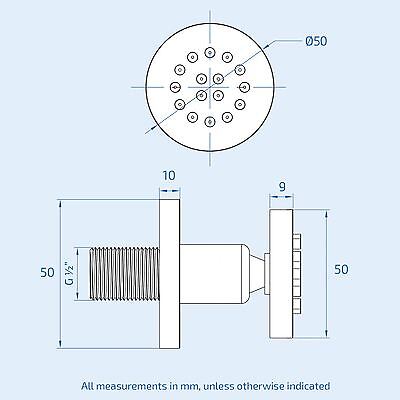

- Body Jet Height: 55mm
- Body Jet Width: 55mm
- Material: Solid Brass
- Finish: Chrome
- Minimum Pressure: 0.2 Bar
- Nozzles: Easy clean

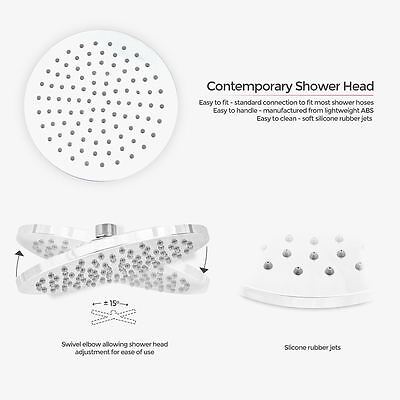

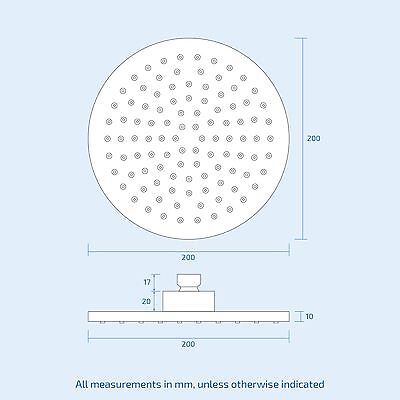

- Shower Head Dimension: 200mm

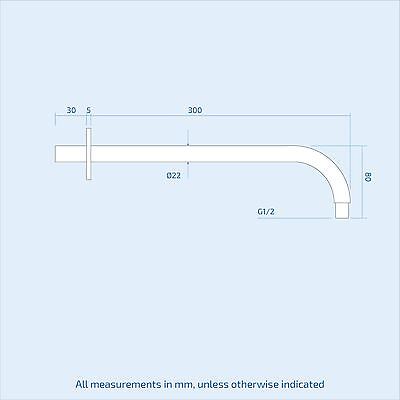

- Shower Arm Dimension: 300mm
- Inlet Connection Size: 1/2"
- Outlet Connection Size: 1/2"
- Guarantee: 10 years

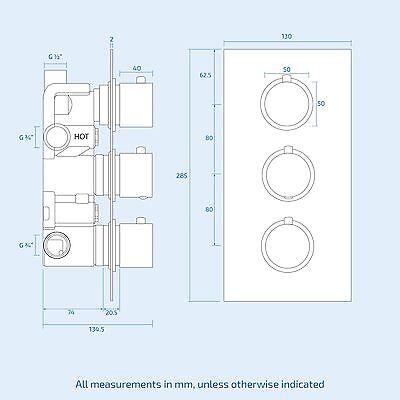

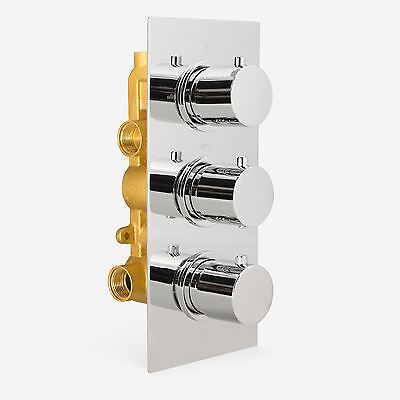

3 Dial 3 Way Thermostatic Mixer Valve Feature
- Top Dial - Controls water to 2 outlet diverters
- Middle Dial - Temperature Control
- Bottom Dial - Controls water to 1 outlet diverter
- High-Quality Design
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built-in nonreturn valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature is maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in the event of water cold supply failure
- UK standard size fitting
Working Requirements
Our thermostatic showers work on water systems that produce a minimum of 0.2 bar water pressure. This can be achieved by using one of the following systems:
- Combination boiler systems
- Gravity-fed systems (only with a pump)
- Megaflow system
- Pumped hot water systems
- Unvented hot water systems
- Standard pressurized hot water cylinder-type systems
Package Includes:

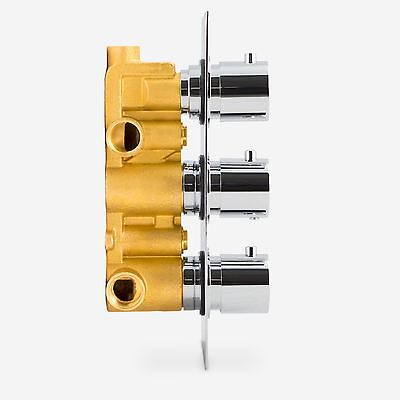

- Concealed Thermostatic Valve
- Brass Shower Head and Shower Arm
- Stainless Steel Shower Hose
- Wall Connector and Brackets

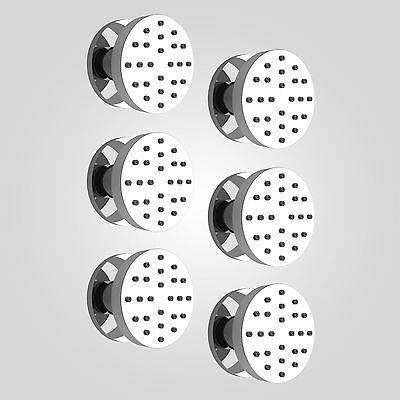

- 6 Round Concealed Body Jets
