Description

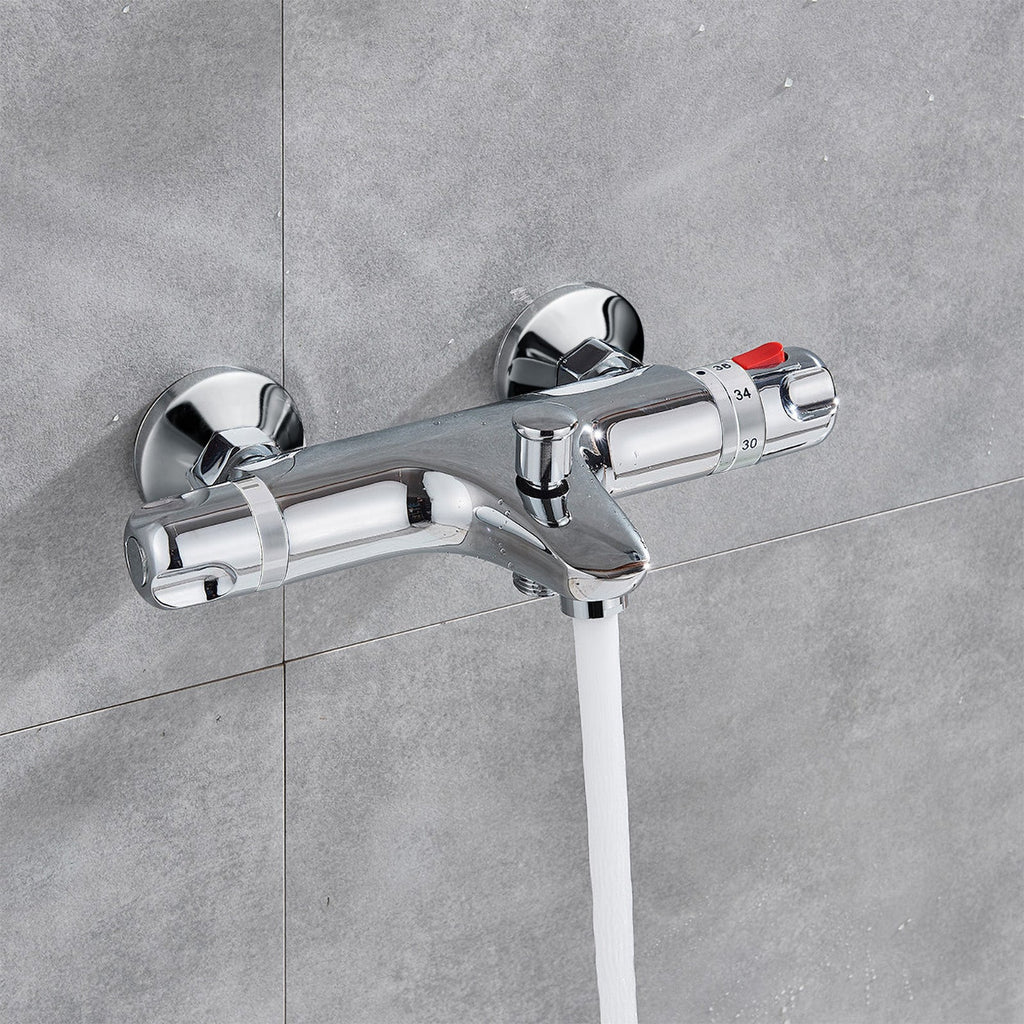

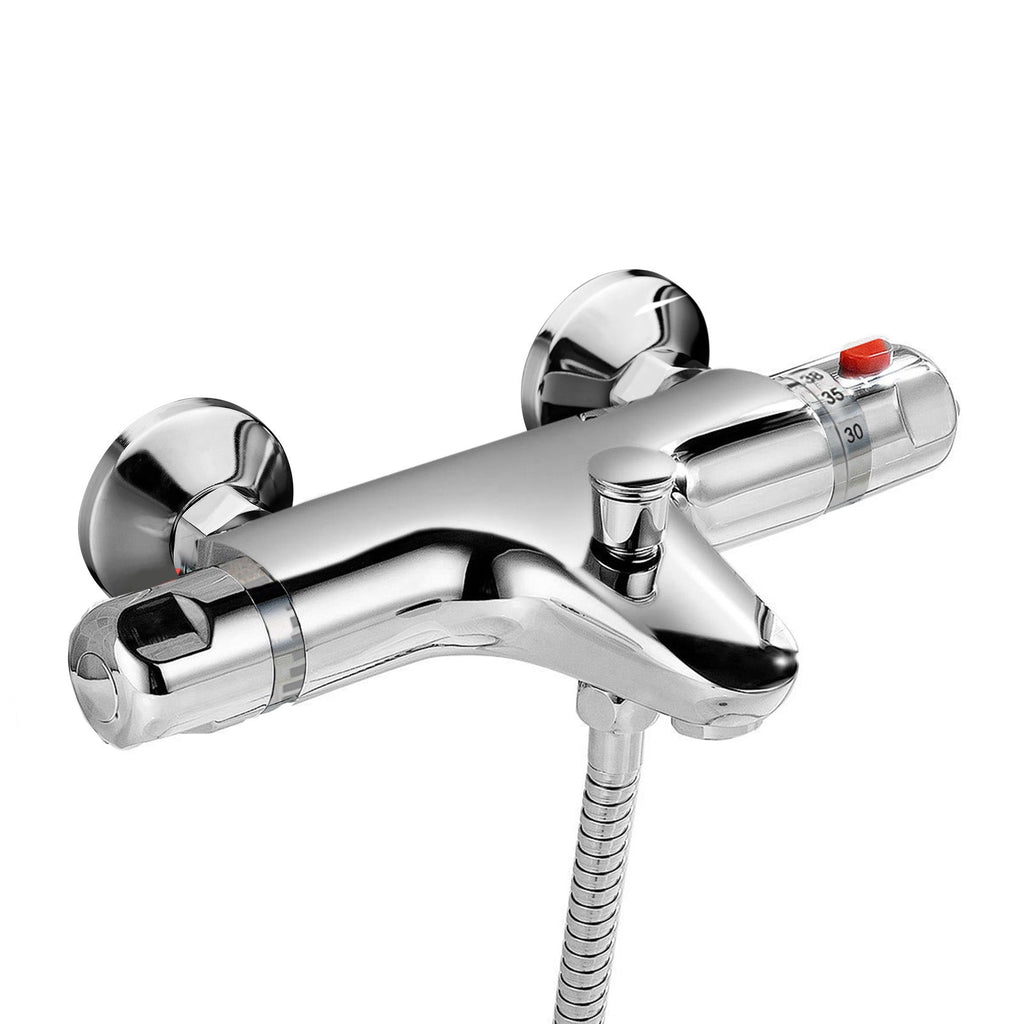

This stylish contemporary thermostatic bath shower mixer is suitable for modern shower and bath areas. The easy to use mixer valve comes with a temperature control knob on the right which is thermostatic for comfort and safety, and there is an override stop button set at 38 degrees C. The diverter on the left controls for the transition between the tap and shower, and controls the water on and off.
Specifications
- Material: Brass
- Finish: Chrome
- Type: Thermostatic
- Mounting Type: Wall Mounted
- UK standard size fitting
- The left control knob (as you look at the front of the taps) controls the water on/off. The hot inlet is also on the side
- The right control knob is the temperature control. This is the Thermostatic for comfort and safety, and there is an override stop button set at 38 degrees C. The cold inlet is nearest this control knob.
Technical Information
Suitable for the following water systems:- Combination boiler systems
- High pressure systems
- Subject to a minimum pressure of 0.5bar to maximum 5bar (Recommended pressure is 1.0bar)
Package Contents
- 1 X Wall Mounted Thermostatic Shower Mixer & Bath Filler Valve
- 1 X Set of Fittings and Wall Brackets
- Handheld Shower and Hose sold separately
