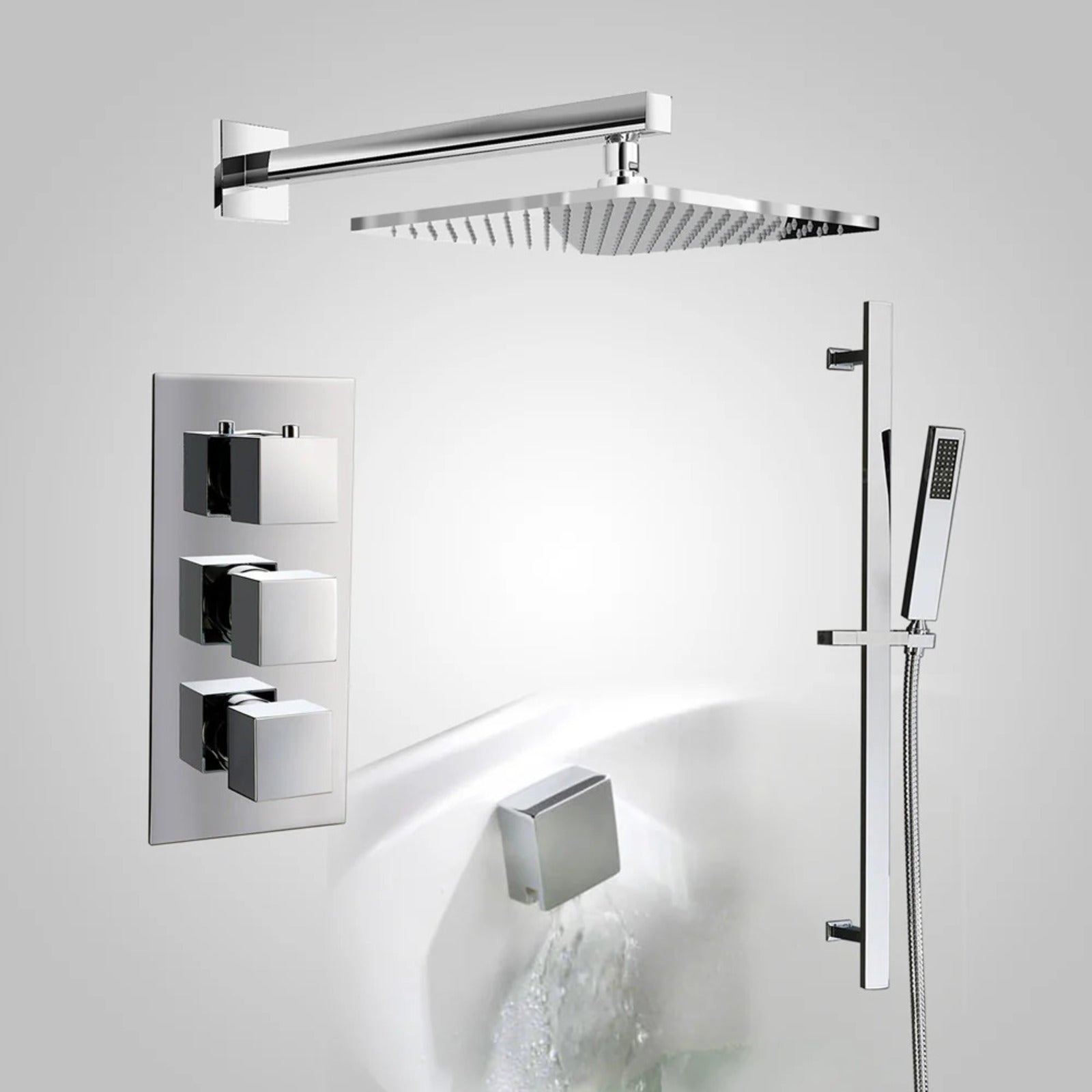

This Concealed Thermostatic Valve will complement any modern bathroom suite and offers thermostatic showering via two easy-to-operate controls for temperature and flow.
Key Features
- High-Quality Design
- Chrome Plated
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button

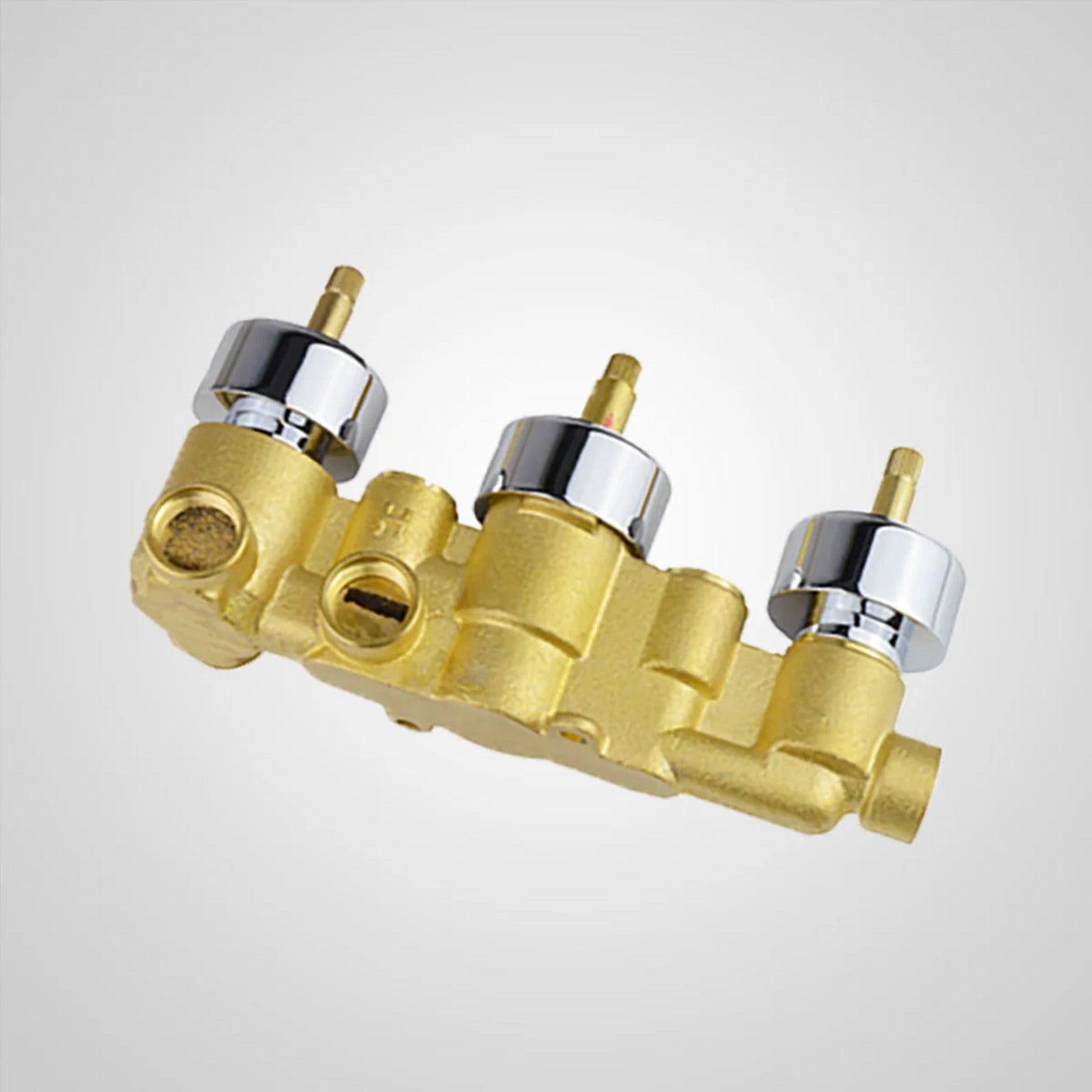

Thermostatic Concealed Valve Features
- Top dial: controls water to 2 outlet diverter
- Middle dial: temperature control
- Bottom dial: controls water to 1 outlet diverter
- High Quality Design
- Chrome Plated
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20: 50 deg C with 38 deg C safety button
- Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in the event of cold water supply failure
- UK standard size fitting
Shower Head with Wall Mounted Arm Details
- Shower head
- Stainless Steel
- Solid Brass Arm
- Chrome Finish
Technical Information
- Suitable for the following water systems:
- Combination boiler systems
- Gravity-fed systems (only with a pump)
- MegaFlo systems
- Pumped hot water systems
- Unvented hot water systems
- Standard pressurised hot water cylinder type systems

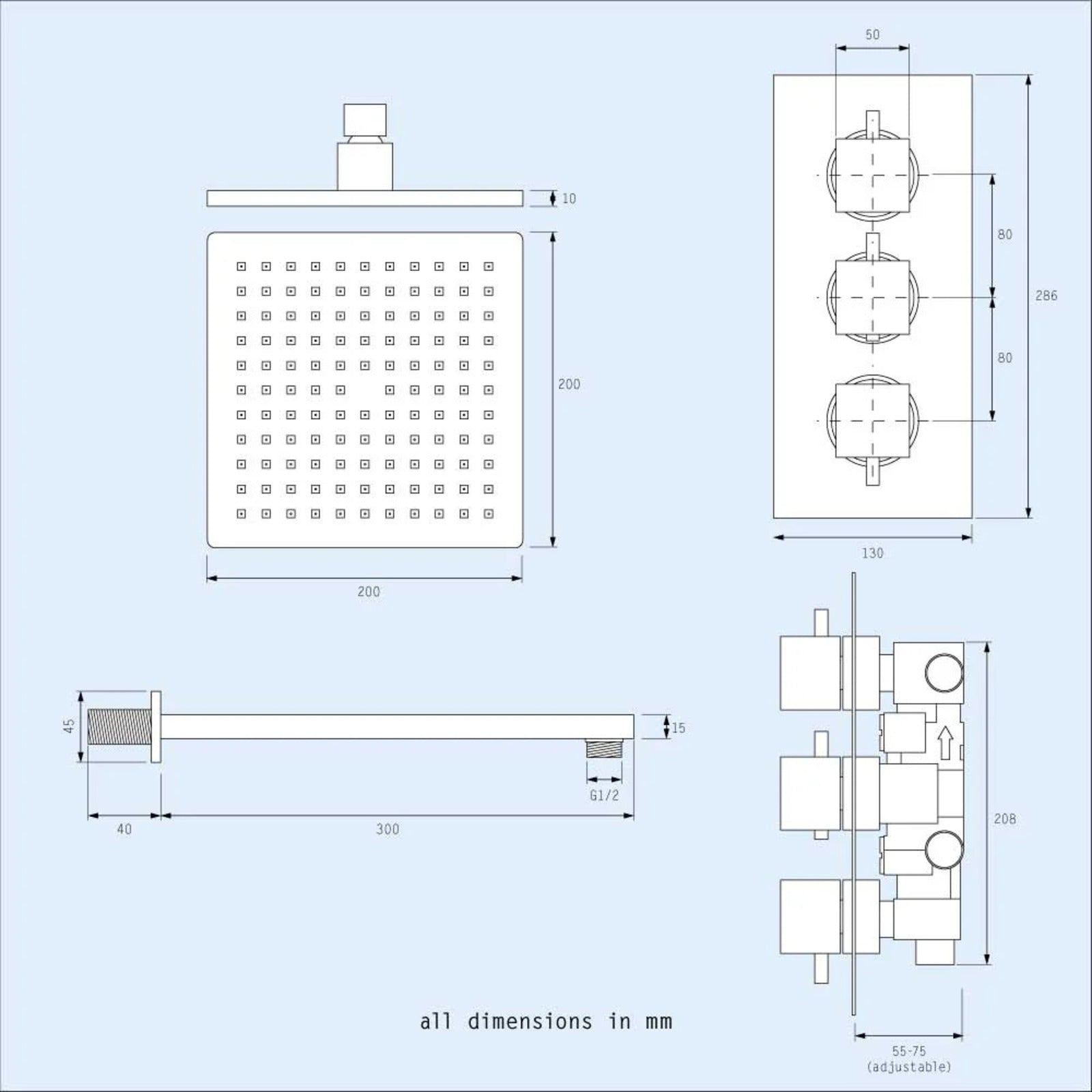

Specifications
- Material: Brass
- Style: Modern
- Finish: Highly Polished Chrome
- Shower Head: 8" (200mm)
- Shower Arm: 300mm
- Shower Hose: 1.5m Flexible Stainless Steel
- Shower Handset: Chrome Plated
- Anti-Scalding: Built-In Device
- Child Friendly: Yes
- Temperature Range: 20–50°C
- Controls: 3
Package Contents
- 1 x Thermostatic Concealed Valve
- 1 x Wall Mounted Shower Head

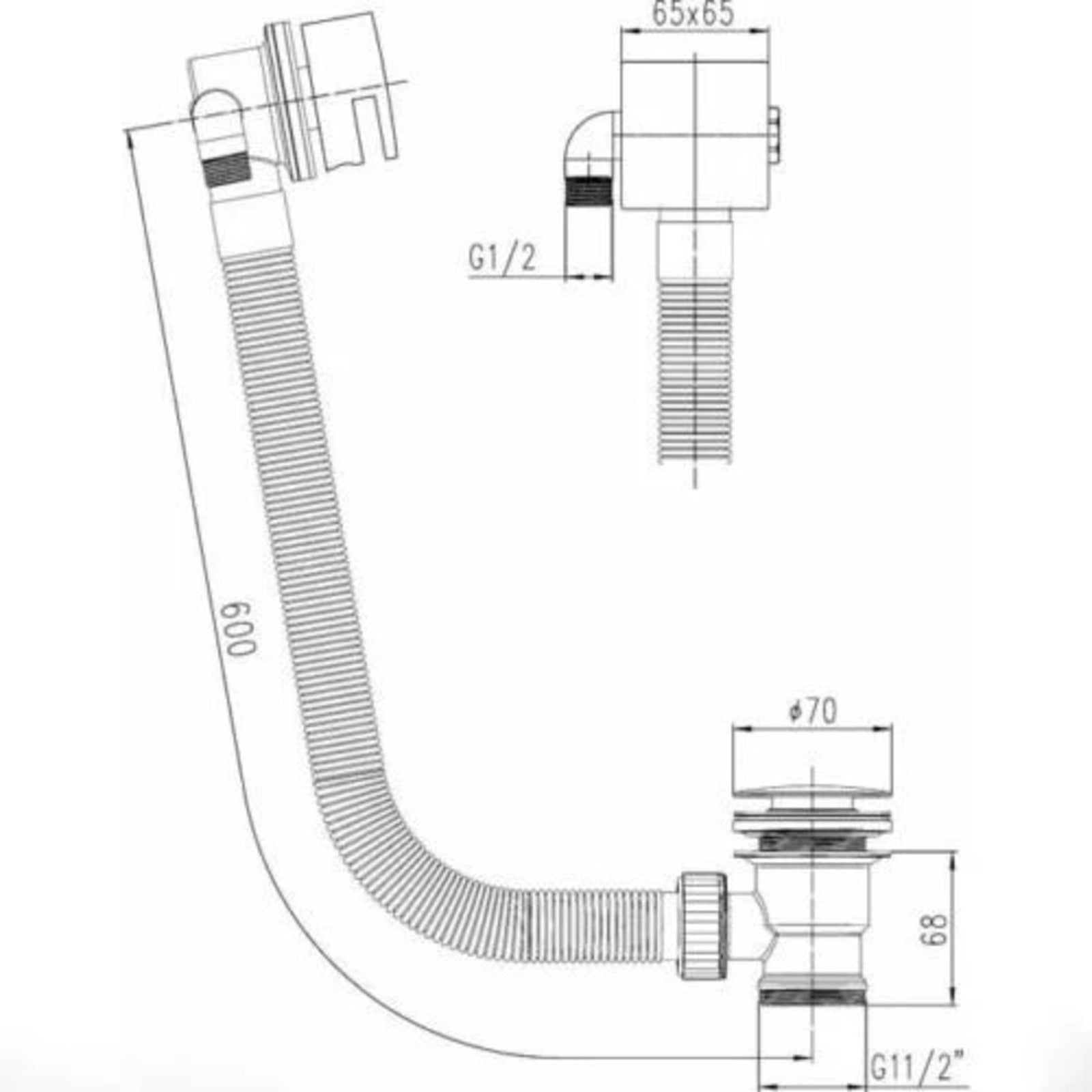

- 1 x Bath Filler

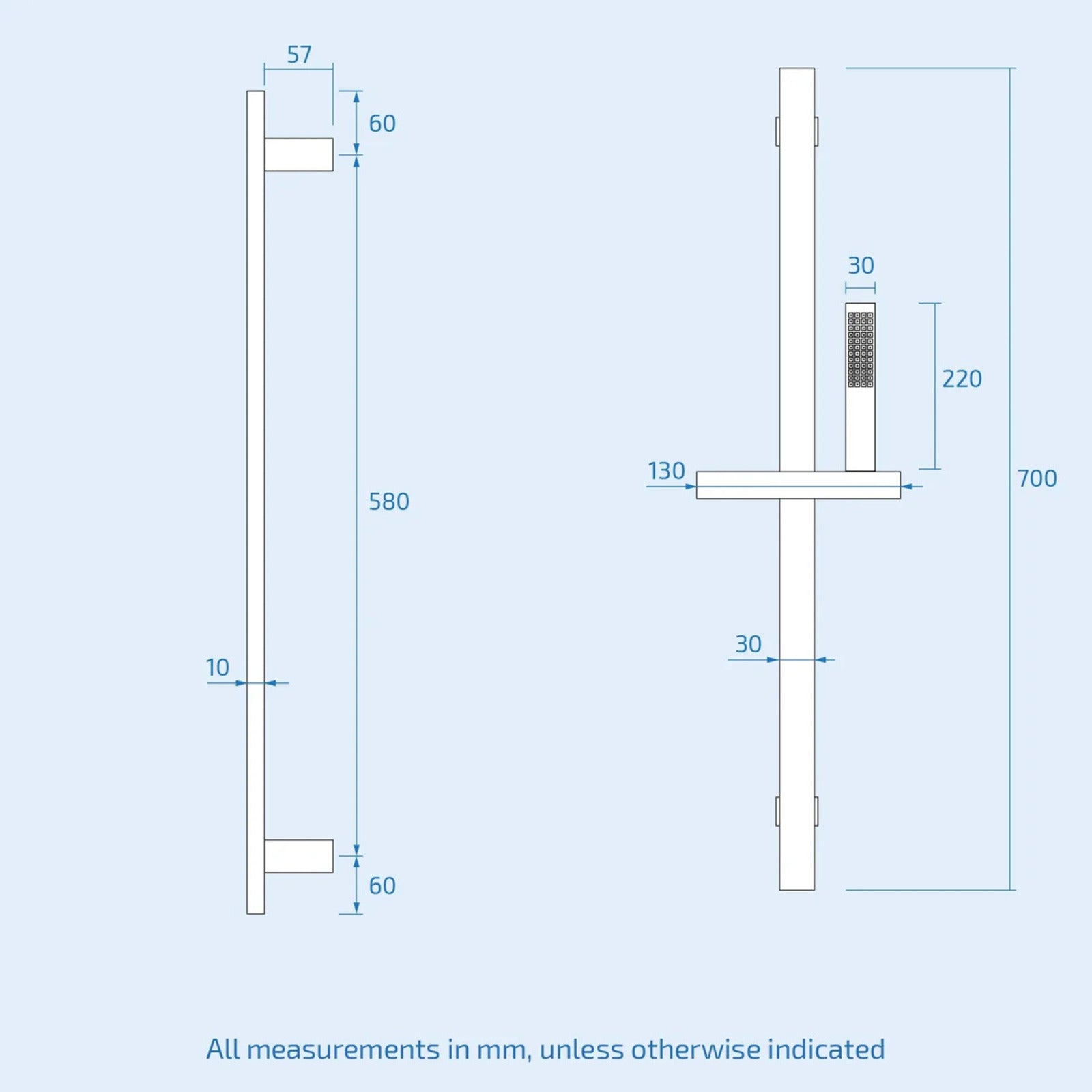

- 1 x Slider Rail and Handset
- Complete fitting accessories
