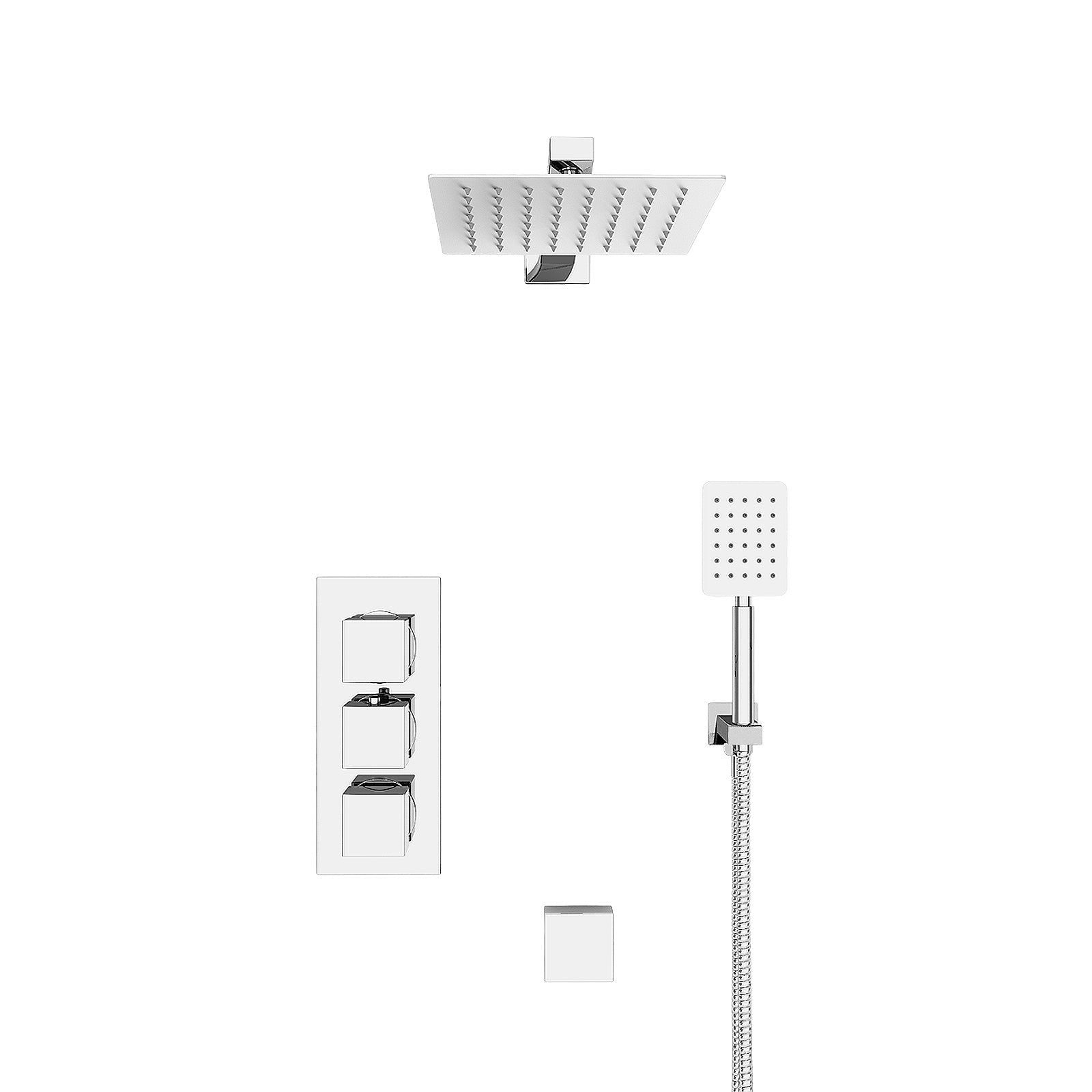

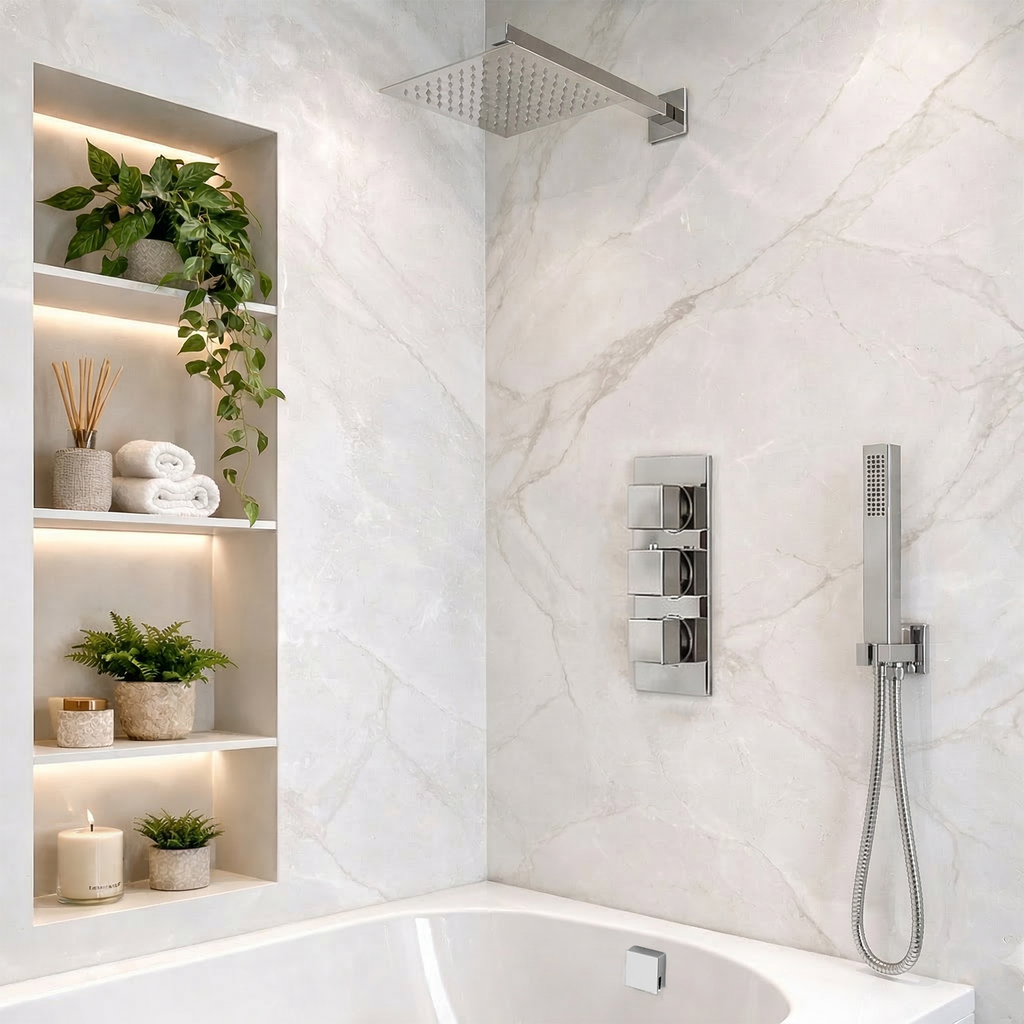

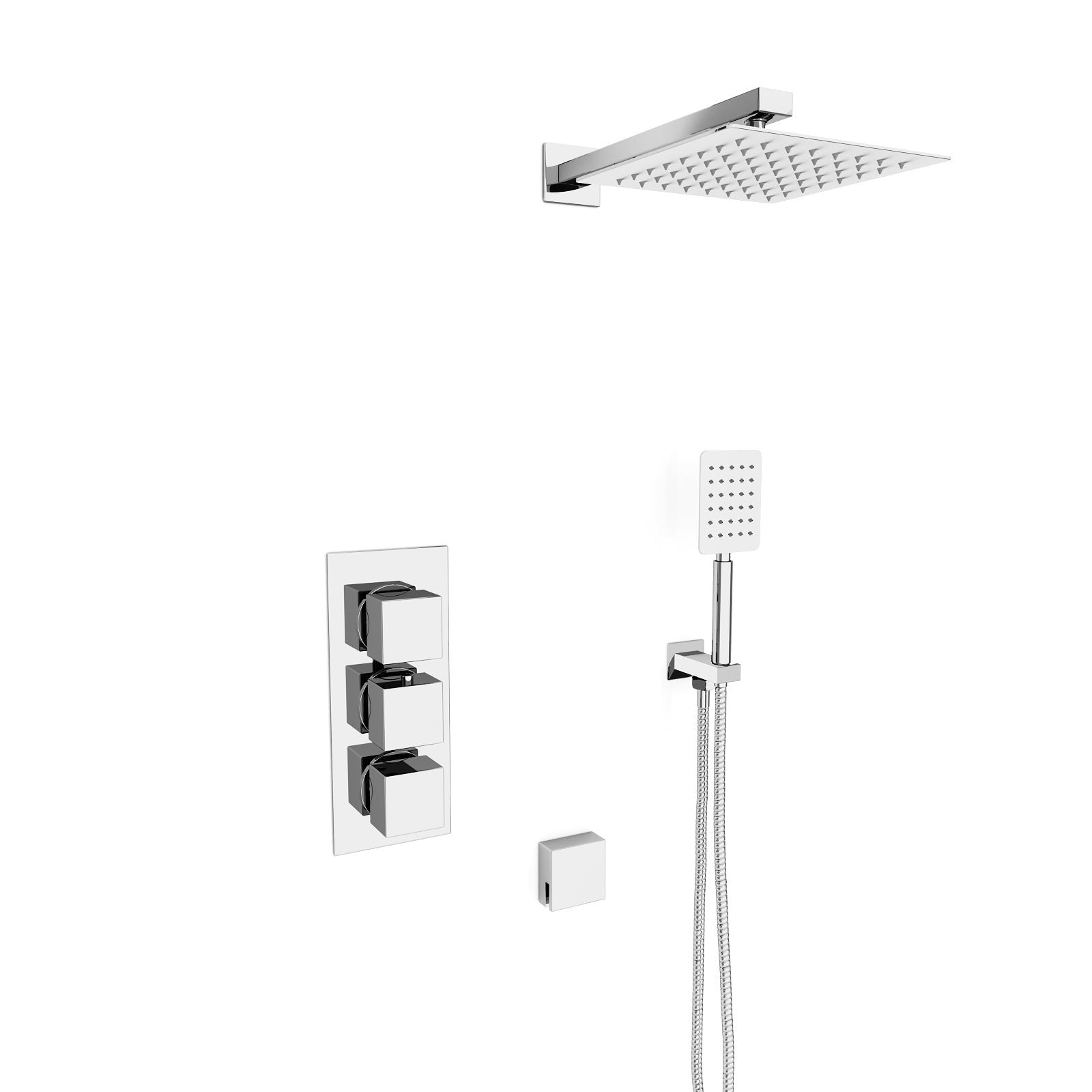

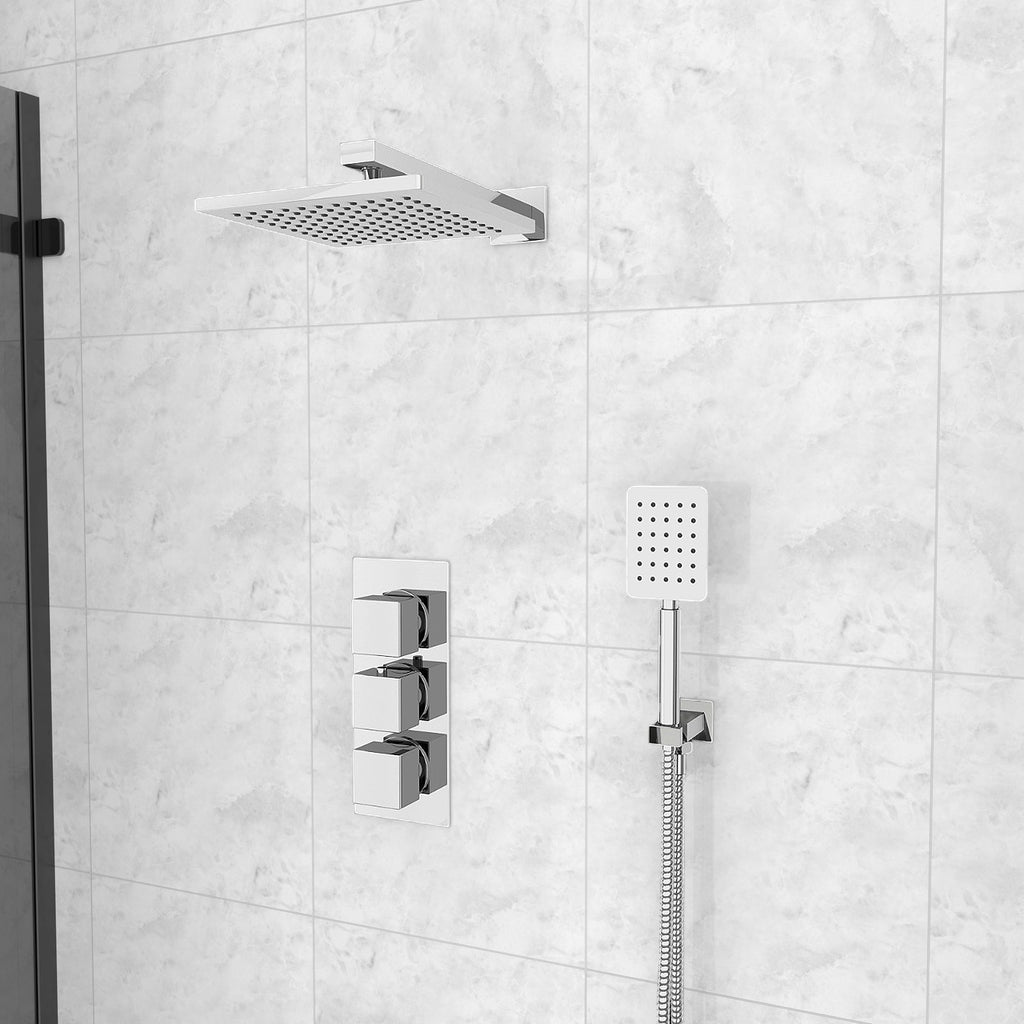

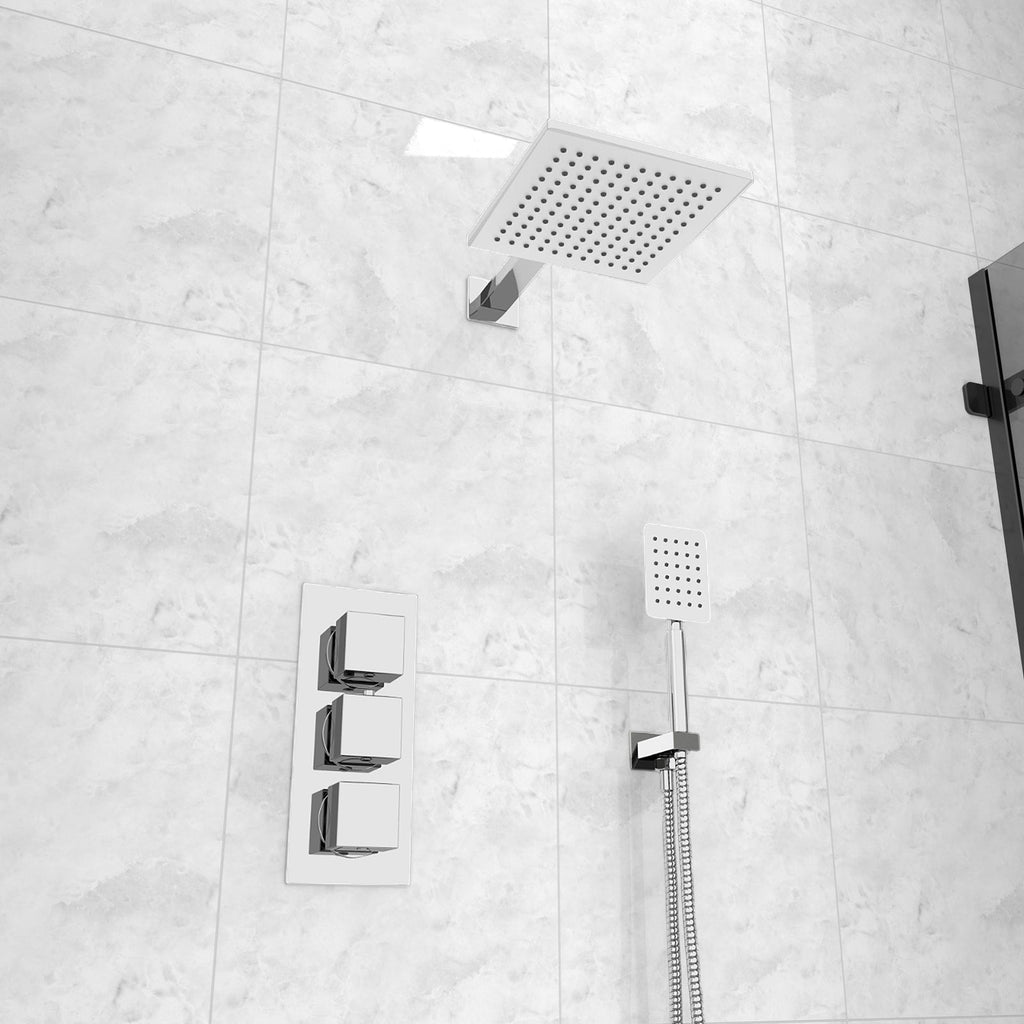

This square concealed thermostatic mixer valve shower set is a perfect addition to any bathroom. The thermostatic mixer valve gives you complete temperature control with a built-in anti-scalding device, so you'll never have to worry about a drop in temperature again.

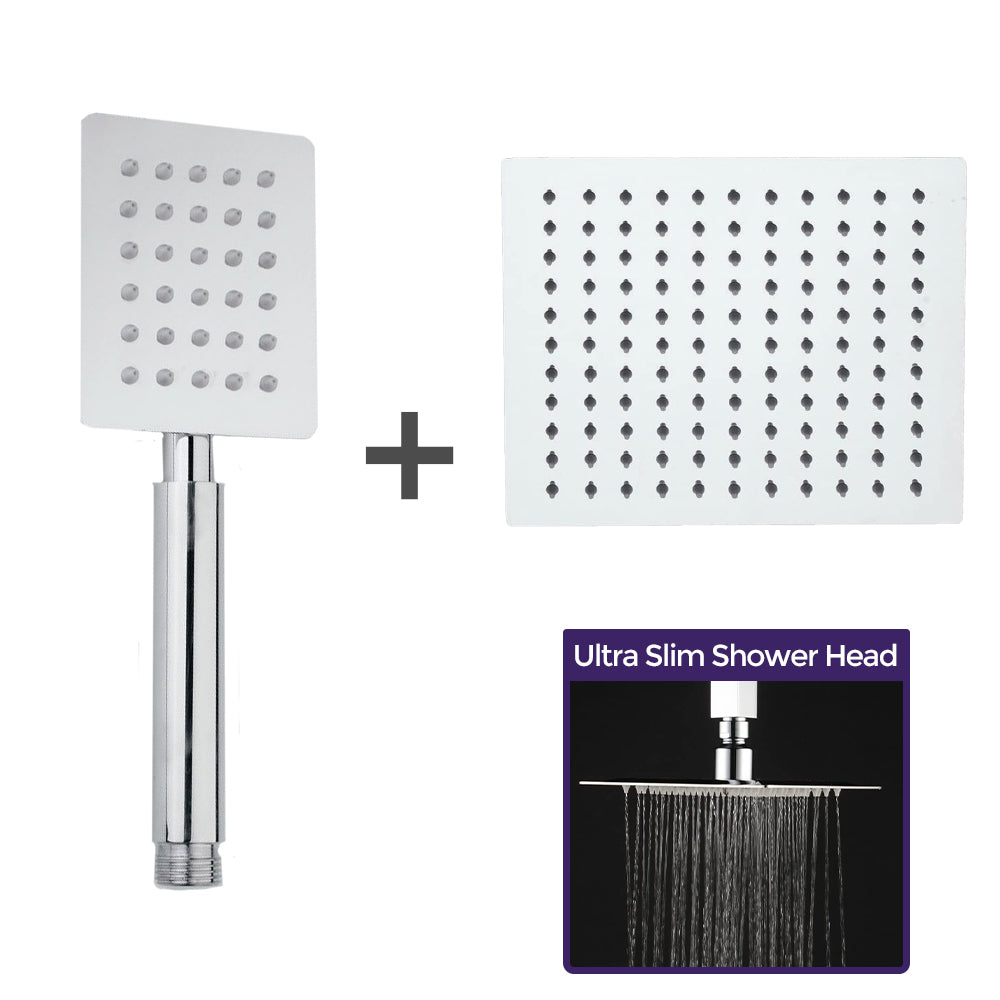

Including the stylish ultra-thin Square fixed head is just 2mm in thickness, for a modern, contemporary appearance.
You can fully angle adjust this fixed head thanks to its ball joint connection, allowing you to optimise your shower experience as desired. The Rainfall shower head also comes with a beautiful, stylish handheld shower.
This Handset is also lightweight; its slimline design is easy to hold.
Besides, the push-button bathtub waste with connecting overflow is convenient to use and install.
Overall, this stylish Shower Mixer Valve, Bath Filler, Shower Head, Arm, Hand Set will complement any modern bathroom.

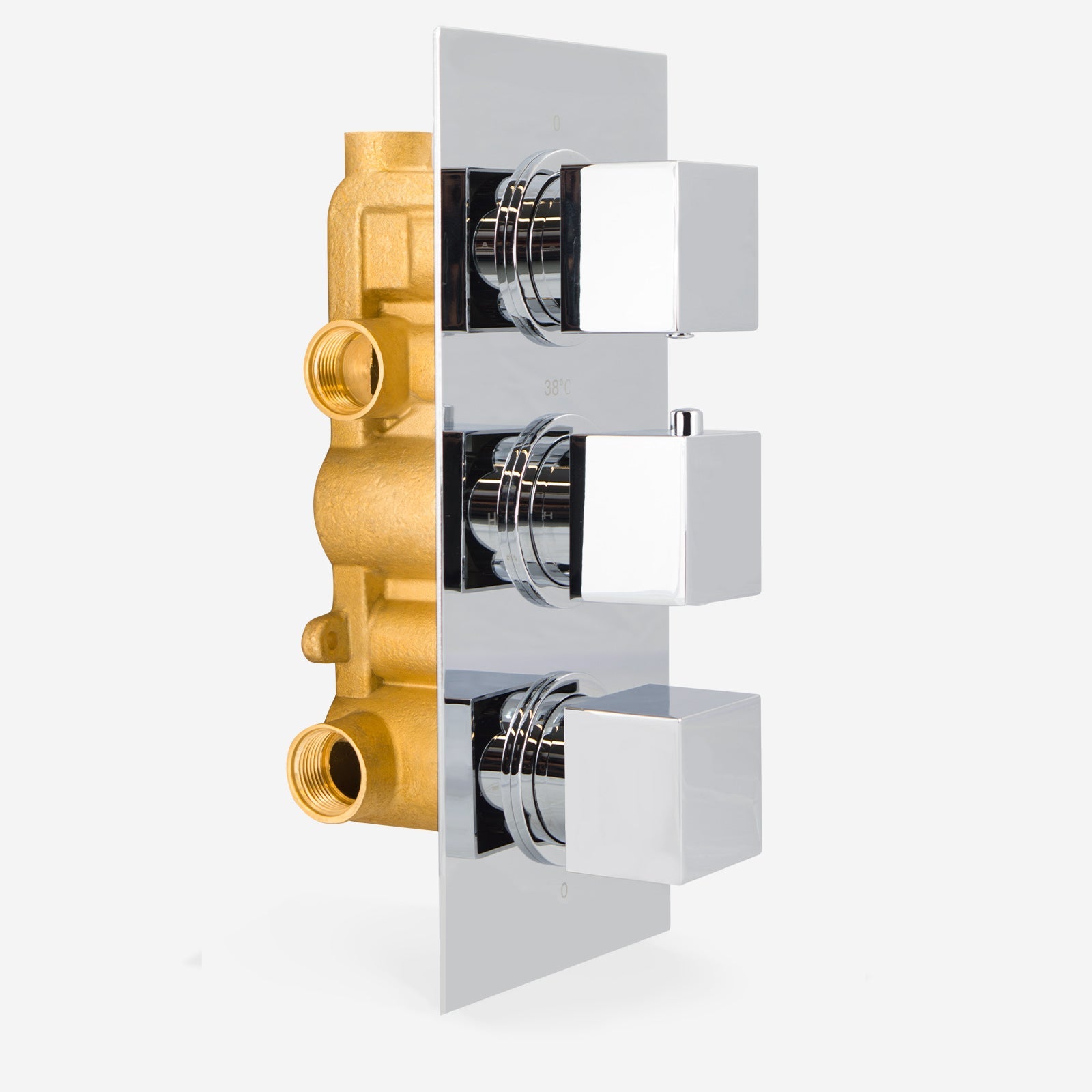

Shower Mixer Valve
- Finish: Chrome
- Shape: Square
- Material: Brass
- Type: Concealed
- Top Dial: Controls water to 1 outlet diverter
- Middle Dial: Temperature Control
- Bottom Dial: Controls water to 2 outlet diverters
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
- Automatic shut off in the event of a water cold supply failure
- Minimum Pressure: 0.2 Bar
- Recommended Pressure: 1.0 Bar
- Outlet: 3

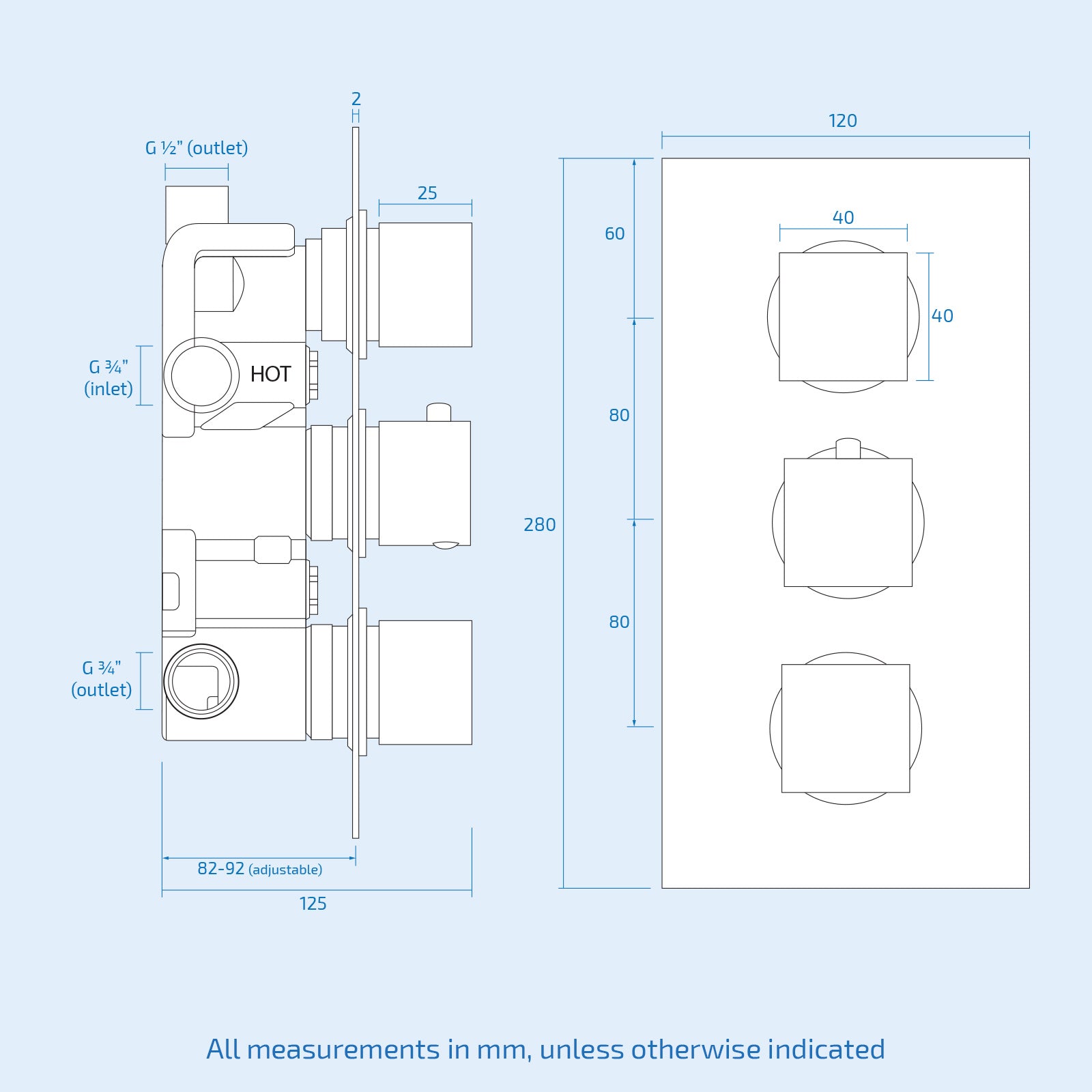

- Total Height: 280 mm
- Total Depth: 125 mm
- Total Width: 120 mm
Suitable Water Systems:
- Combi-boilers
- Gravity-fed systems
- Mega Flow Systems
- Pumped systems
- Unvented systems
- Pressurised cylinder systems
Shower Arm
- Shape: Rectangular Design
- Material: Solid Brass
- Finish: Chrome
- Mounted Type: Wall Mounted
- 40mm Thread
- ½ Inch Shower Head Connection
- Length: 300mm
Shower Head with Wall-Mounted Details

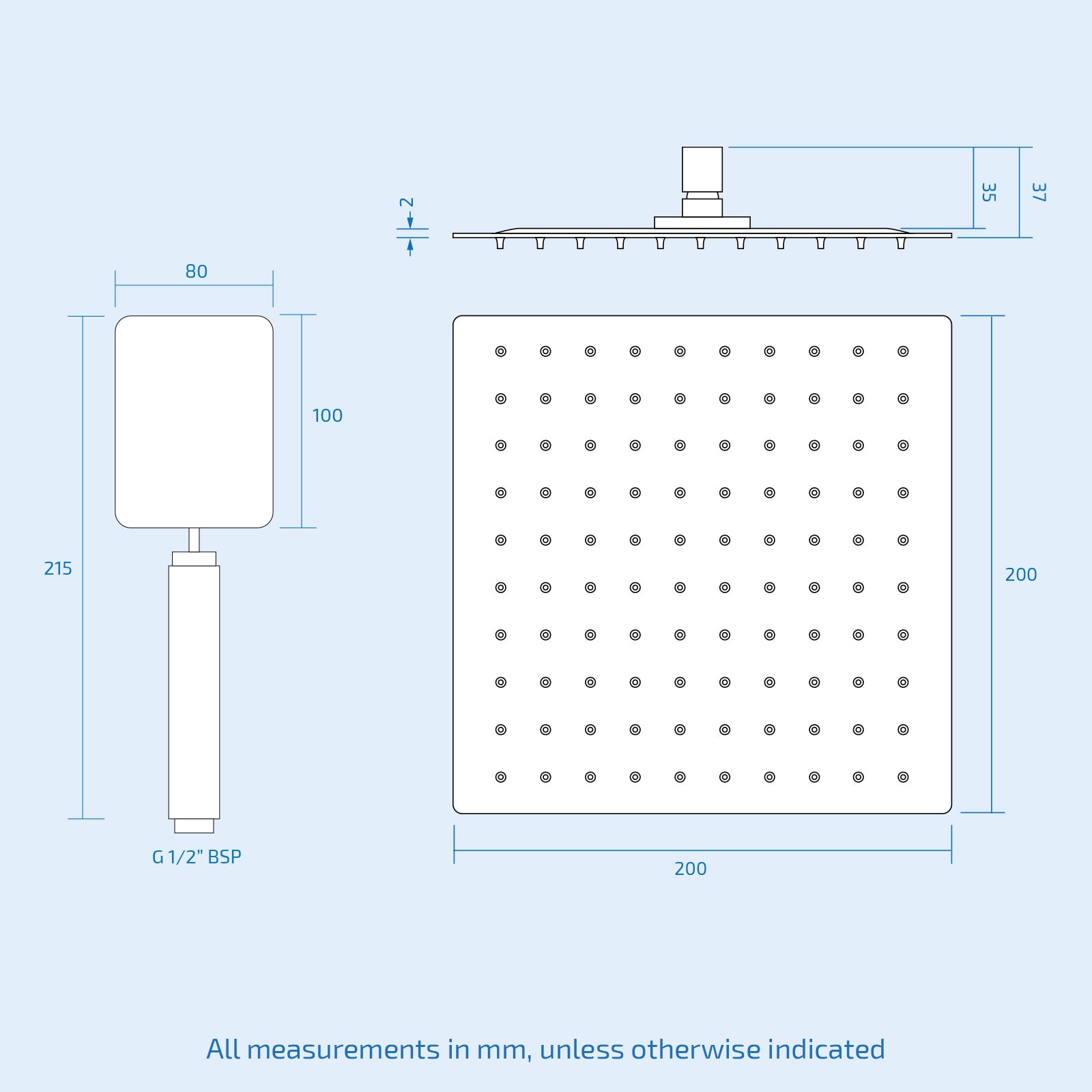

- Showerhead dimensions: 200mm
- Material: Stainless Steel
- Finishing: Chrome
- Adjustable joints
- Easy to clean rubber nozzles
- Subject to a minimum pressure of 1bar to a maximum of 3 bar
Handset Shower
- Height: 220mm
- Width: 29mm
- Depth: 29mm
- Material: ABS
- Finish: Chrome
- Mounted Type: Wall-mounted
- UK standard size fitting

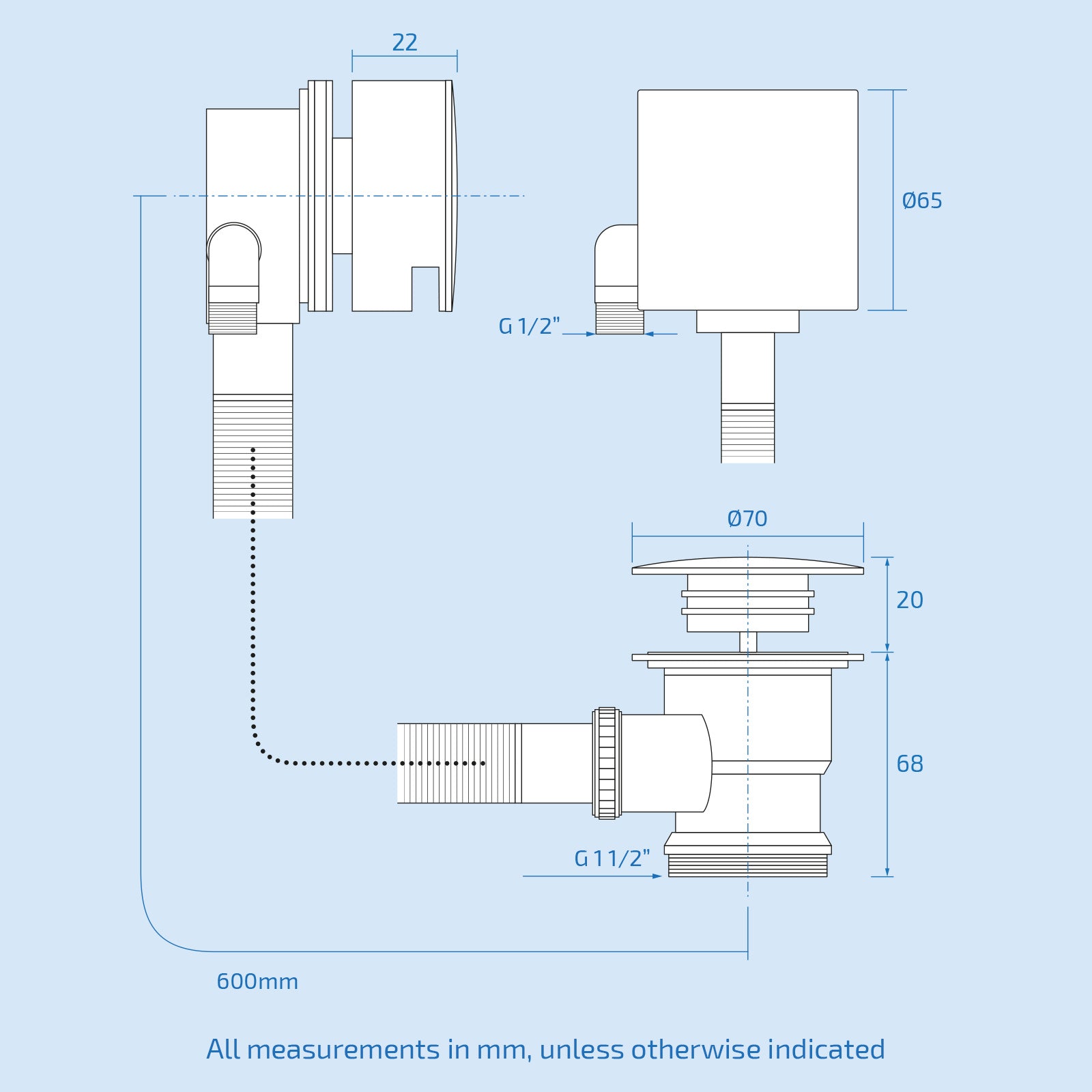

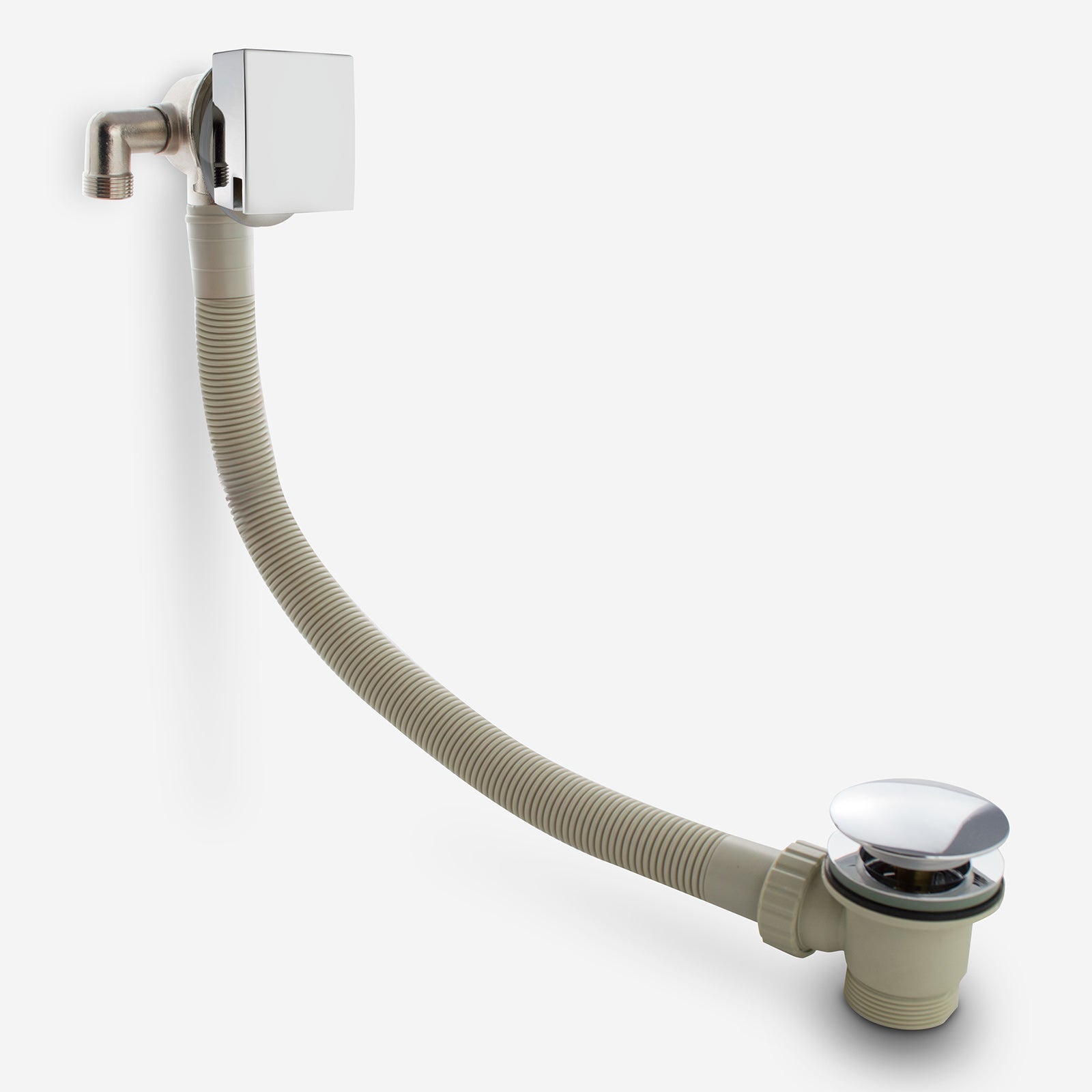

Bath Filler With Sprung Waste & Overflow
- Push button bathtub waste with connecting overflow
- Combined bath filler and waste
- Dimensions: 65mm x 65mm
- Material: Solid brass
- Finish: Chrome
- The overflow doubles as a bath filler tap and is connected to the waste by strong and sturdy plastic piping
- Easy to use - press the waste and the waste pops up and allows the water to drain
Package Content
- 1 X Thermostatic Valve
- 1 X Shower Head
- 1 x Shower Arm
- 1 x Shower Handset
- 1 x 1.5m Shower Hose
- 1 x Wall Bracket with Handset Holder
- 1 x Bath Filler with Sprung Waste & Overflow
