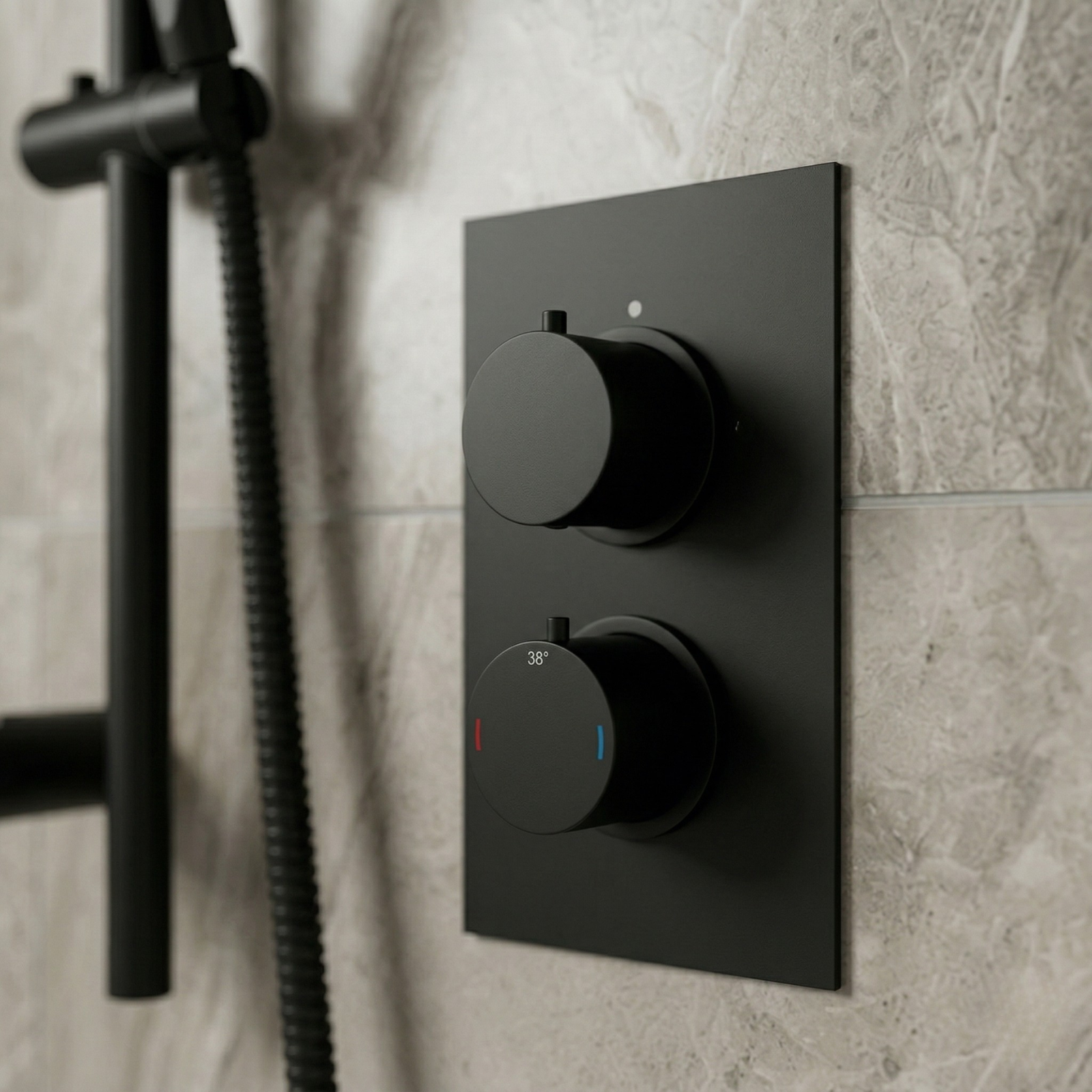

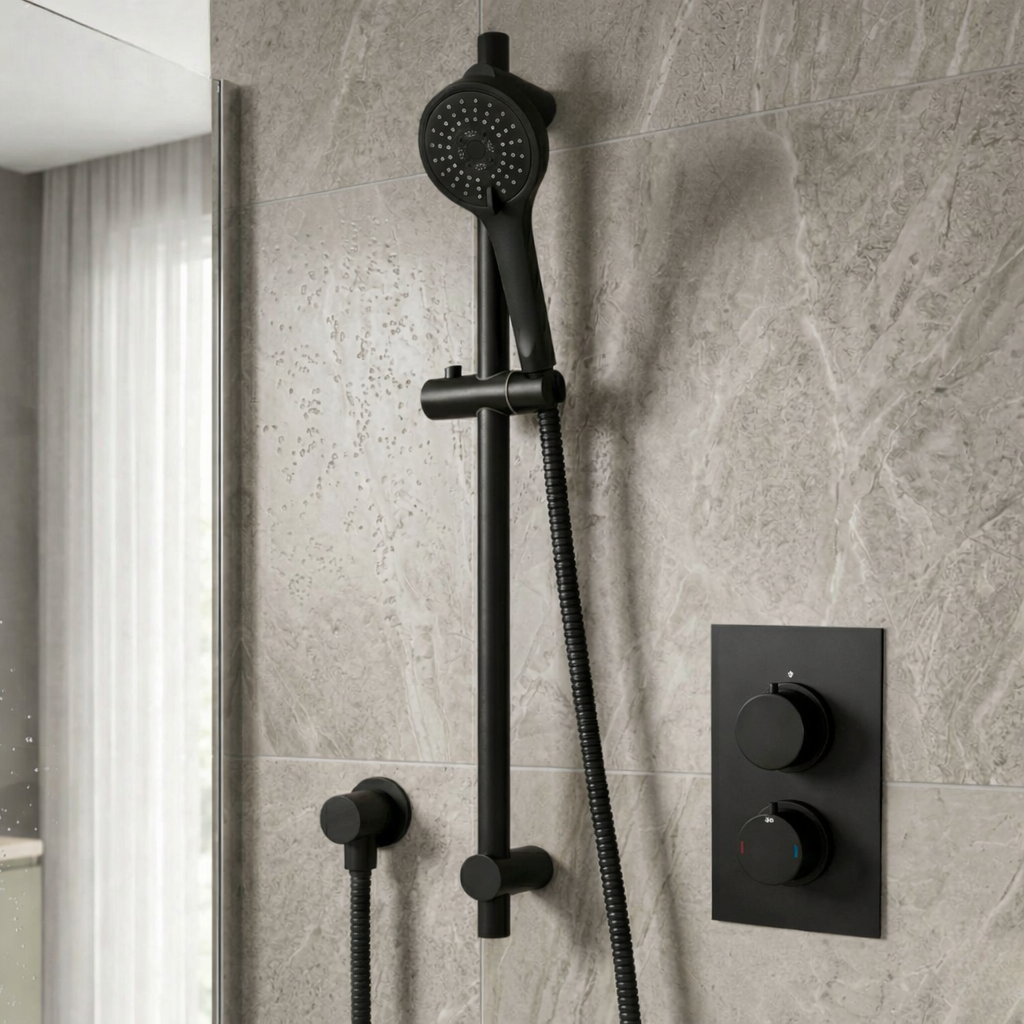

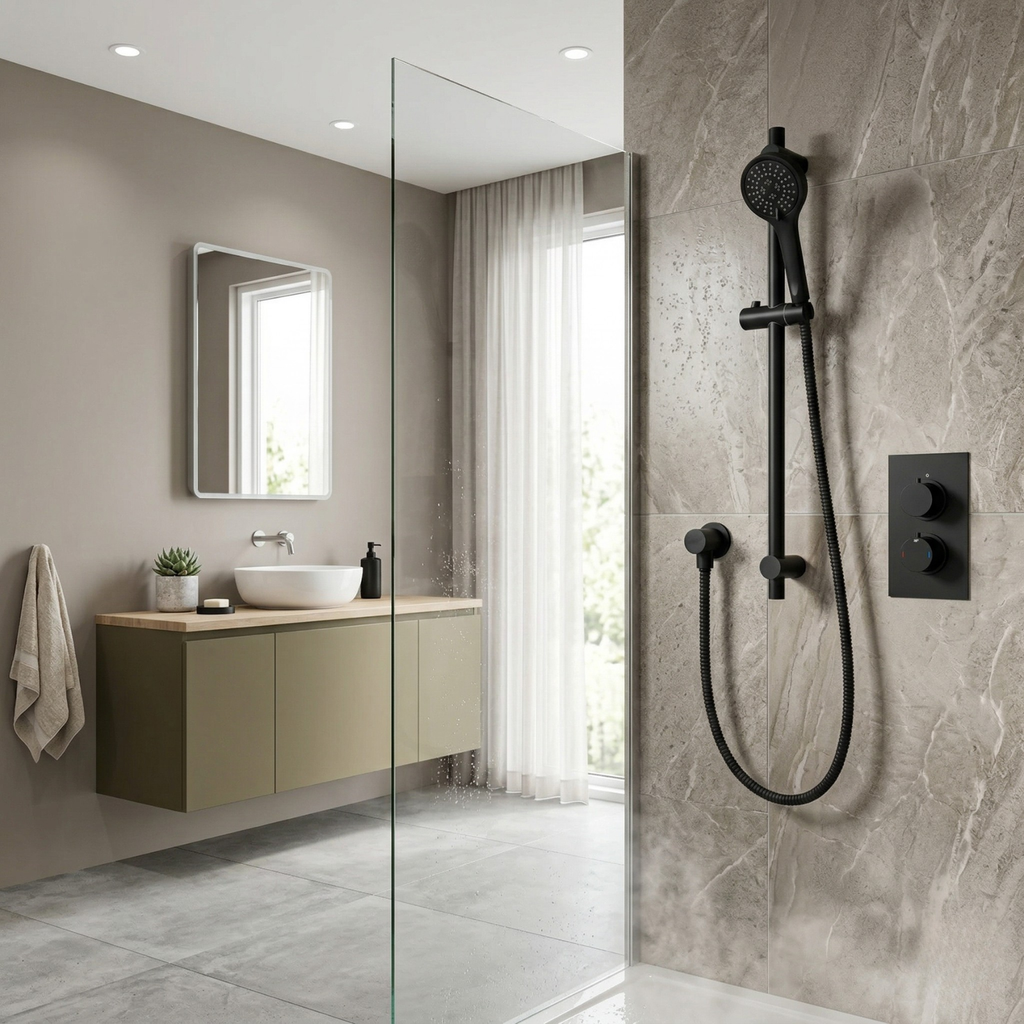

Upgrade your shower space with the Onyx 2 Dial 1 Outlet Concealed Thermostatic Shower Valve Set, a stylish modern combination finished in matt black. This complete set includes a round concealed thermostatic shower valve, a matching round wall mounted outlet elbow, and a modern slider rail shower kit with handset and hose, making it a practical choice for contemporary bathrooms.
The concealed thermostatic valve delivers precise control over water flow and temperature through two easy-to-operate dials. Designed for comfort and safety, it maintains your chosen temperature consistently and features a 38°C safety button to help prevent overheating. Paired with the matching wall outlet elbow and sleek slider rail kit, this set offers both reliable performance and a coordinated modern finish.
The included handset features 3 spray functions, allowing you to adjust the showering experience to suit your preference. With its matt black finish, durable brass construction, and UK standard fittings, this shower set is built for everyday use while bringing a refined designer look to your bathroom.
This product comes with a 10 Year Guarantee for added peace of mind.
Key Features
- Complete matt black shower set with concealed thermostatic valve, wall outlet elbow, slider rail with adjustable holder, handset and hose
- Modern round design ideal for contemporary bathrooms
- 2 dial 1 outlet concealed thermostatic shower valve
- Top dial controls water flow to 1 outlet
- Bottom dial controls temperature
- Thermostatically controlled for safe and stable showering
- 38°C safety button for added protection
- Chosen temperature maintained to within +/-1°C
- Automatic shut off in the event of cold water supply failure
- Built-in non-return valves help prevent backflow
- Integrated filters help protect the thermostatic mechanism

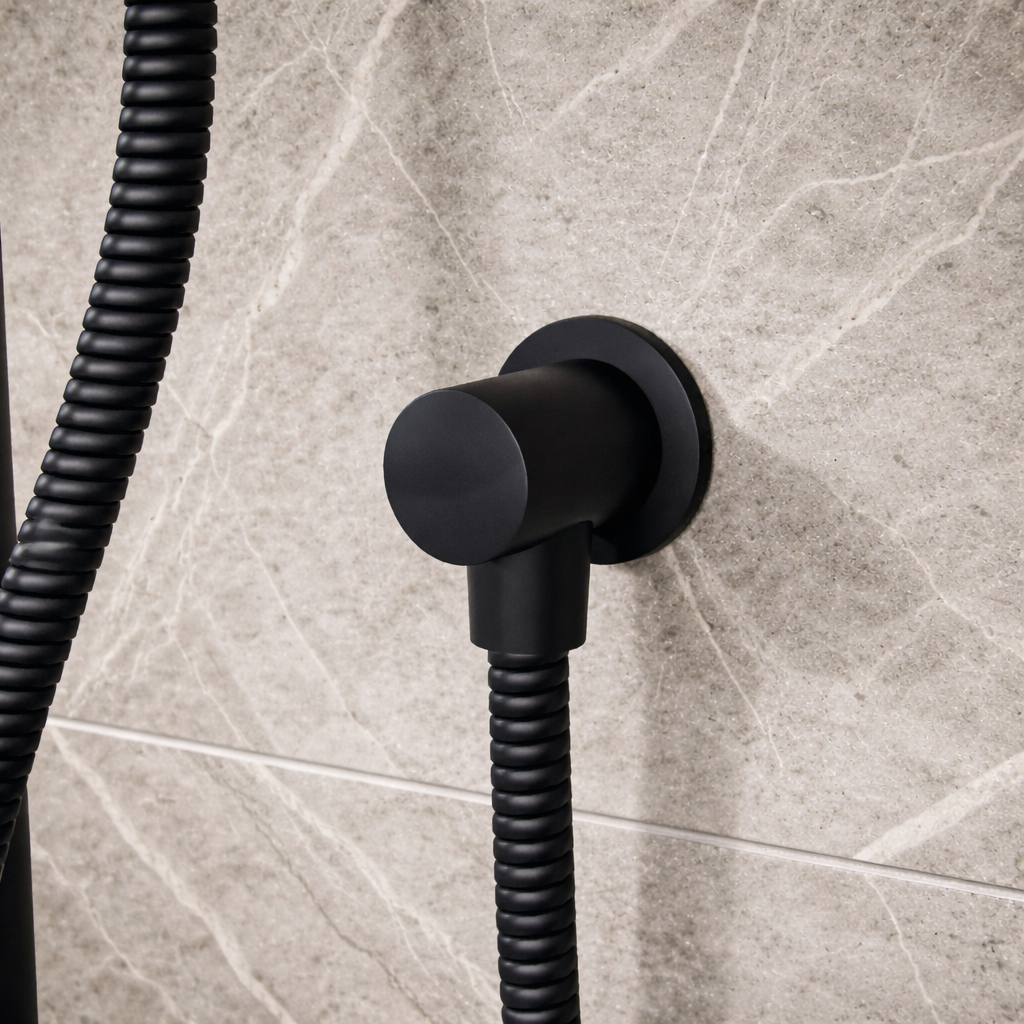

- Round wall mounted outlet elbow with matching wall plate

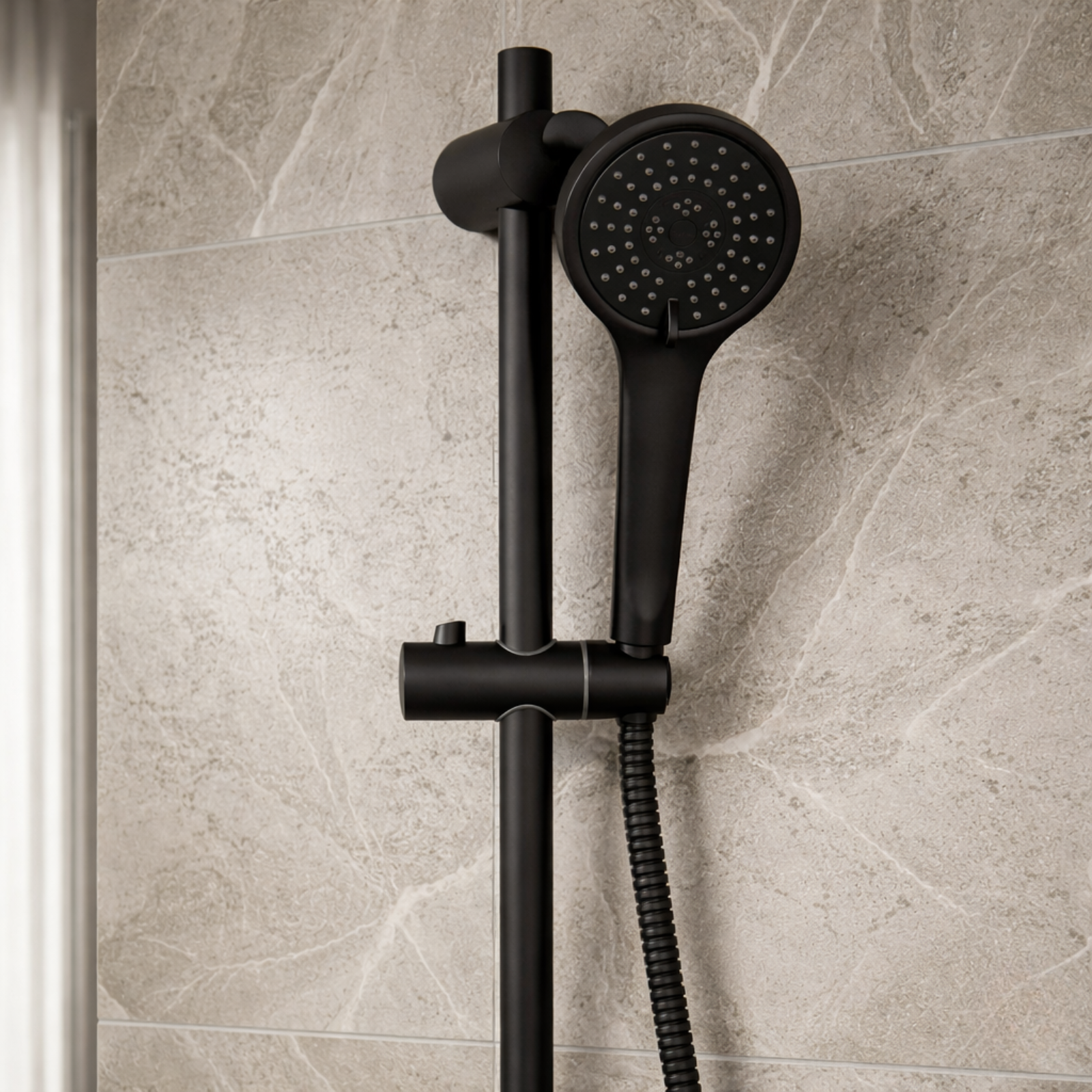

- Slider rail kit includes a 3 function handset
- Adjustable handset bracket for flexible positioning
- UK standard size fittings
Specification
Thermostatic Valve Specifications
- Inlet connection size: 2 x 3/4"
- Outlet connection size: 1 x 1/2"
- Operating range: 20 - 50°C
- Pre-set maximum temperature
- Manufactured from highly durable brass
Wall Outlet Elbow Specifications
- Round wall outlet elbow
- Wall mounted via matching wall plate
- 1/2" BSP outlet
- Solid brass body construction
- Easy to clean and install
Slider Rail Kit Specifications
- Slider Rail Kit comes with 3 Mode Handset Shower, 1.5m Hose, and sliding adjustable handset holder
- Finished in matt black
- Rubber easy-clean nozzles
- Shower Handset Material: High Grade ABS
- Shower Hose Material: Stainless Steel
- Adjustable Holder Material: ABS
Suitable For The Following Water Systems
- Combi-boilers
- Gravity-fed systems
- MegaFlow systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
Pressure Requirements
- Valve: minimum 0.2 bar to maximum 6 bar (recommended pressure 1.0 bar)
- Slider rail kit: minimum 0.5 bar to maximum 3 bar
Package Contents
-
1 x Concealed Thermostatic Shower Valve
- 1 x Round Wall Outlet Elbow
- 1 x Slider Rail with Adjustable Holder
- 1 x Shower Handset
- 1 x 1.5m Shower Hose
- Fixings and Installation Manual Included
