Description

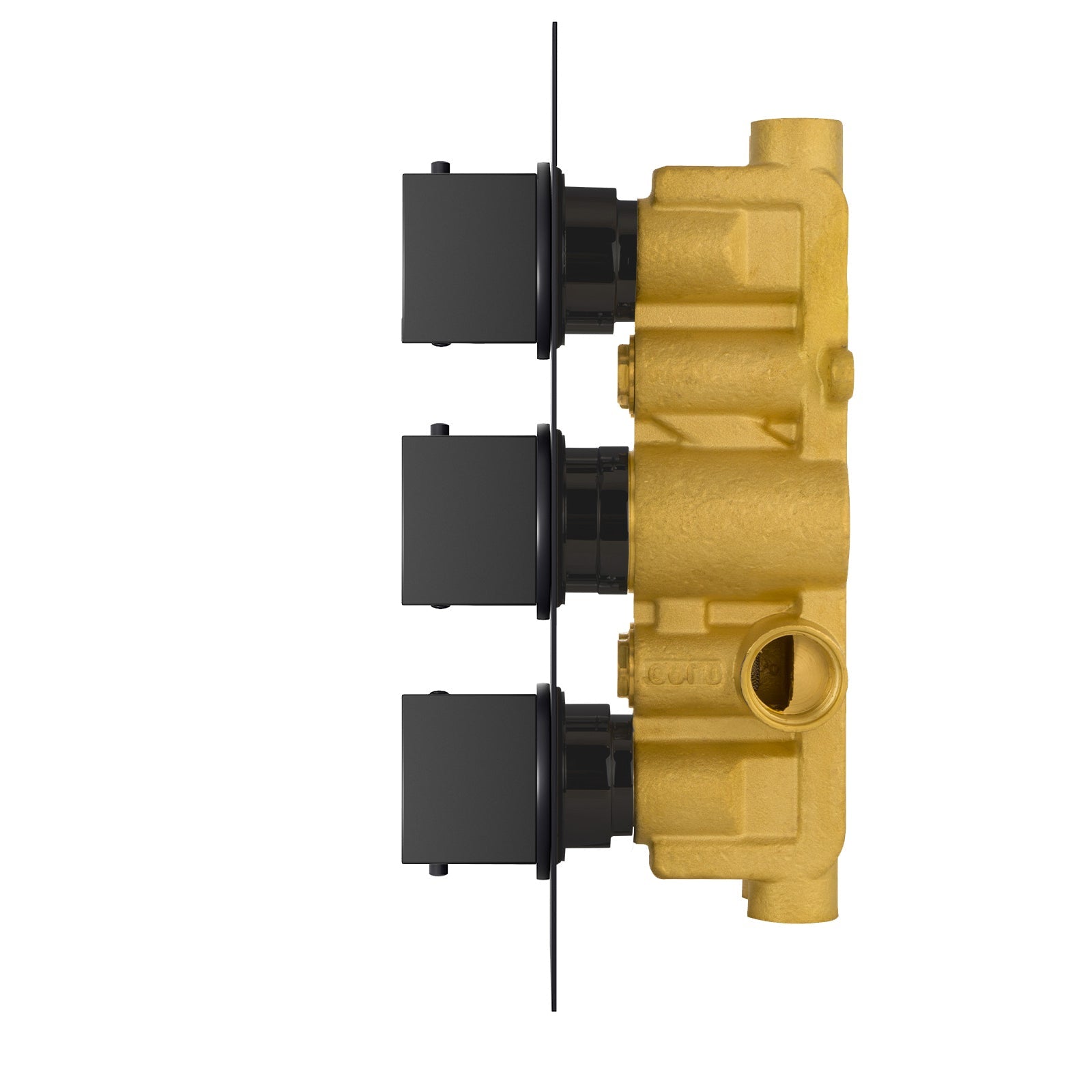

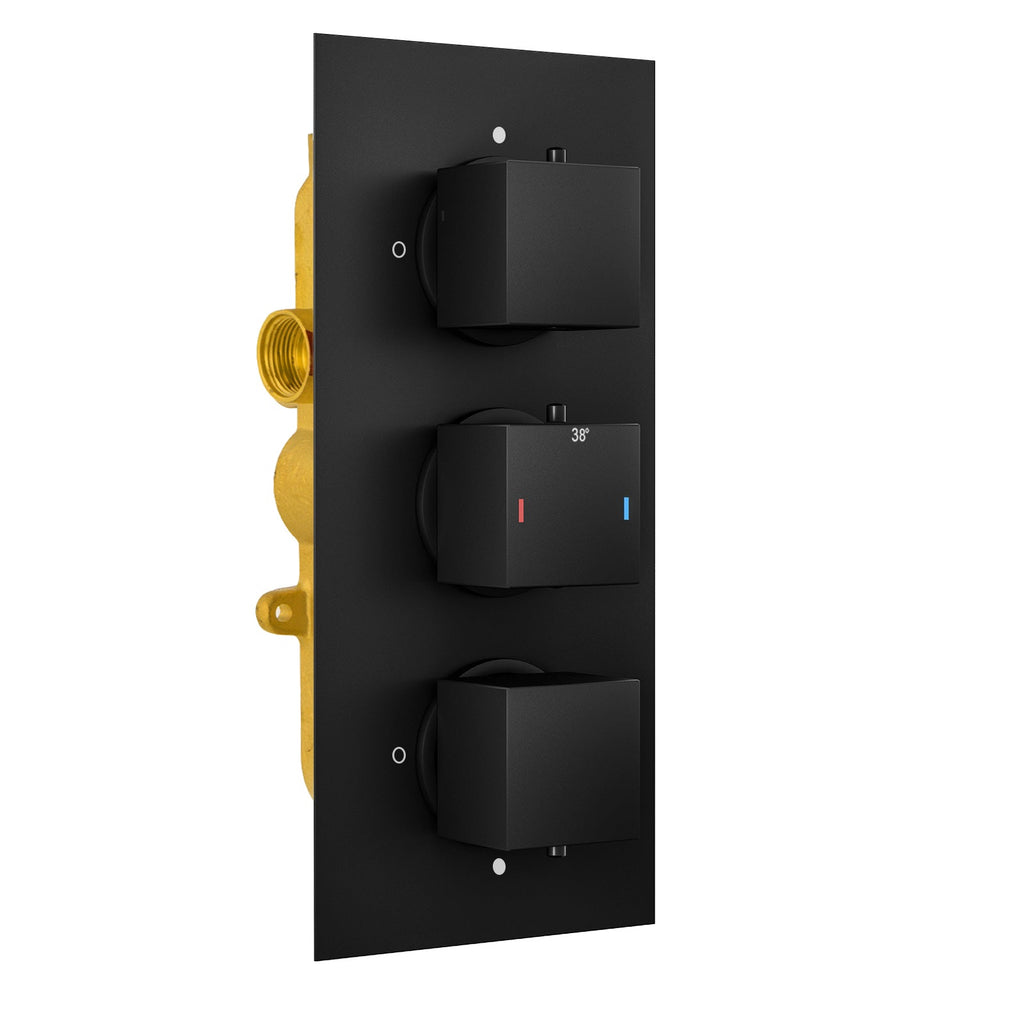

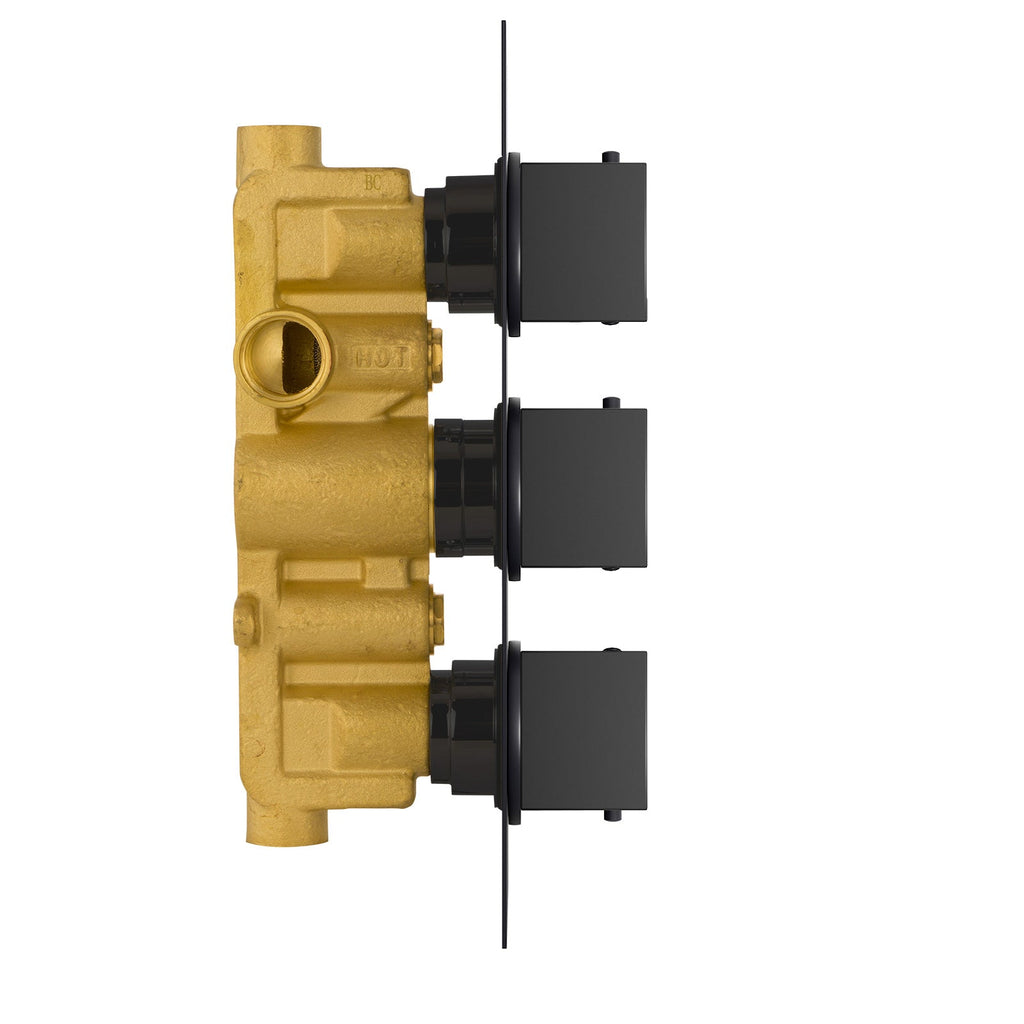

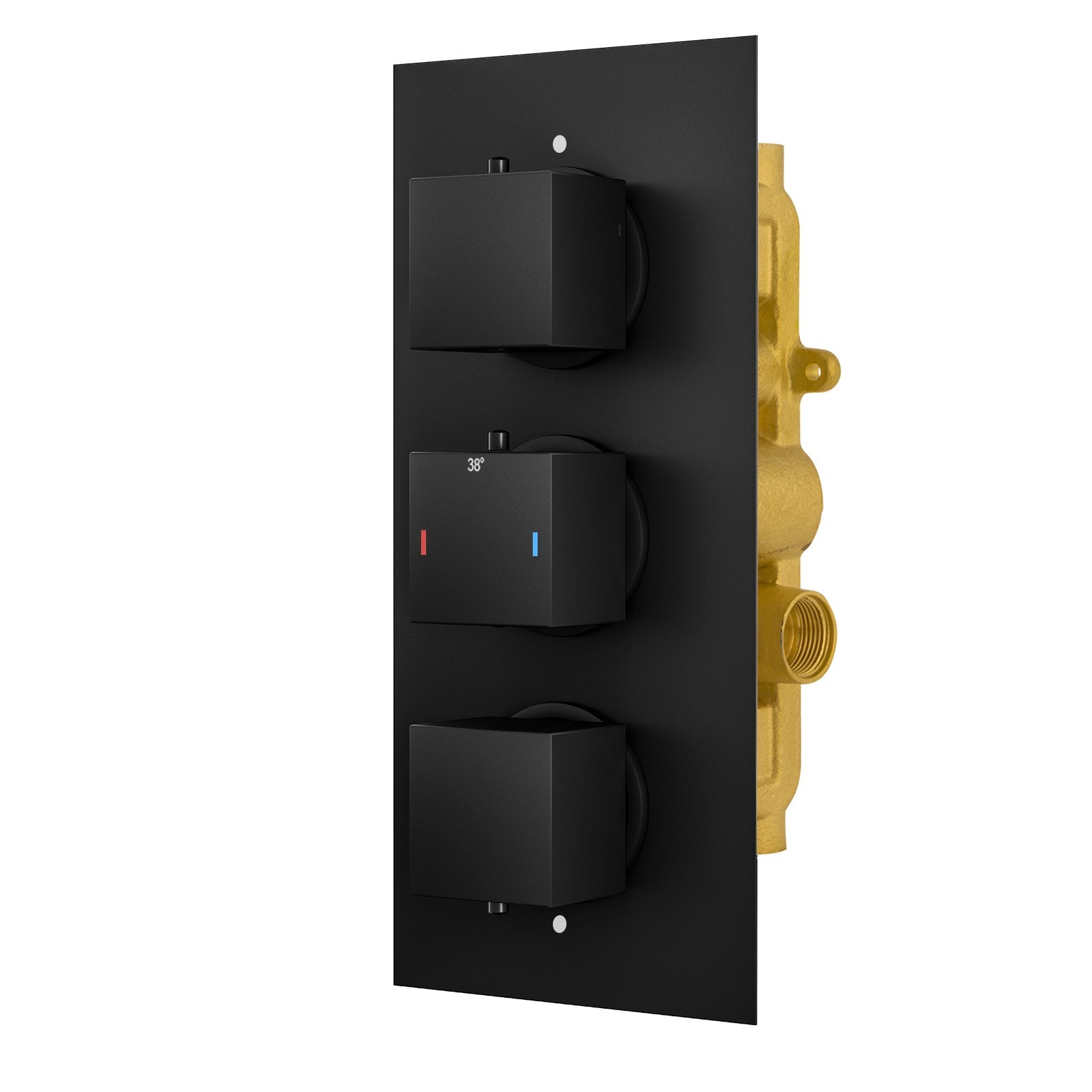

Introducing the Orta Square 3 Dial 2 Outlet Black Matt Concealed Thermostatic Shower Valve. This product is perfect for any modern bathroom suite and offers thermostatic showering via three easy-to-operate controls for temperature and flow. The concealed thermostatic valve is made from high-quality brass, providing your bathroom with a beautiful look and an extra degree of safety.
Specifications

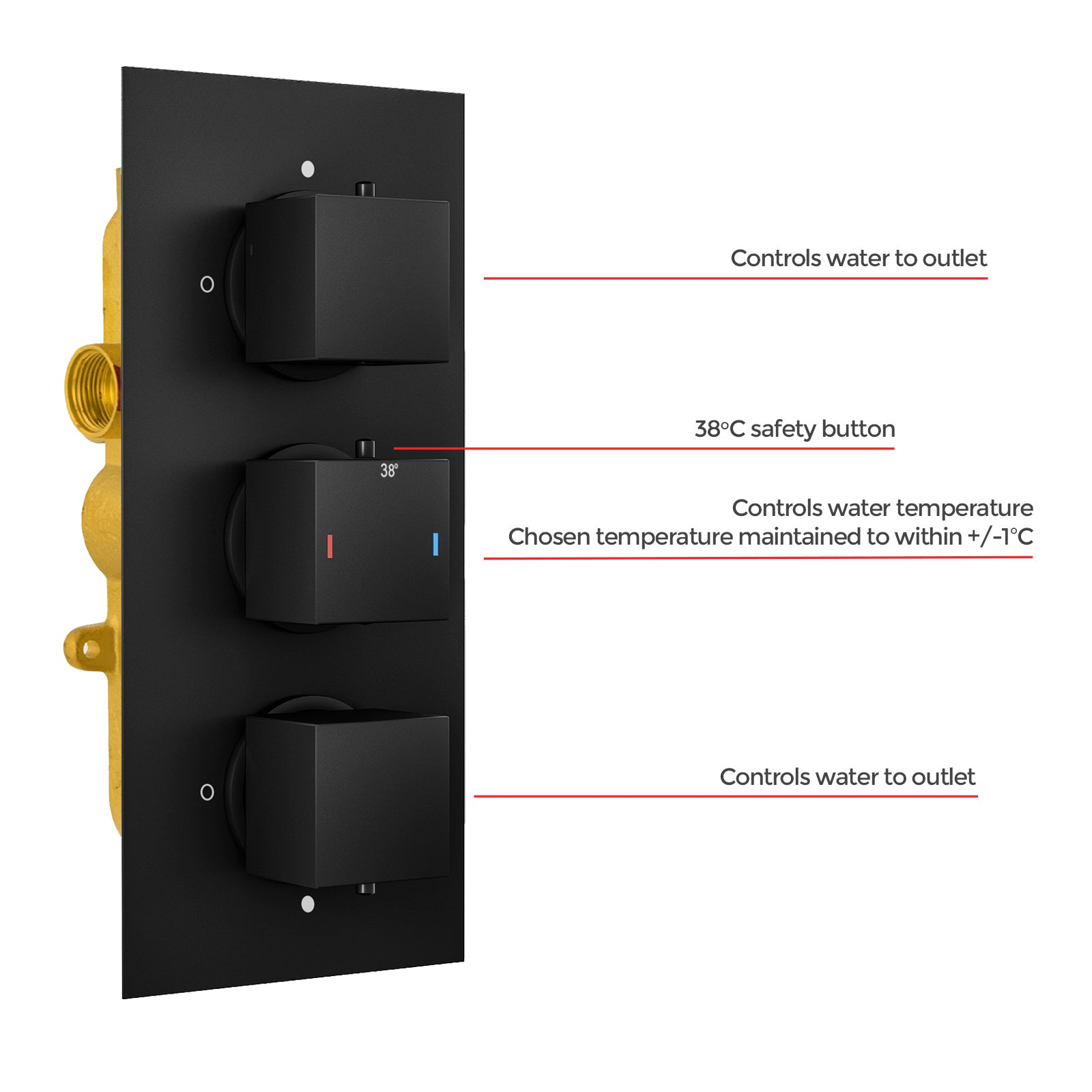

- Top dial - Controls water to the outlet (showerhead)
- Middle dial - Controls temperature
- Bottom dial - Controls water to the outlet (Handset)
- High-Quality Design
- Black matt finish
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature is maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in the event of water cold supply failure
- UK standard size fitting
Technical Information:
Suitable for the following water systems:
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum pressure of 0.2 bar to a maximum of 6 bar (Recommended pressure is 1.0 bar)
Package Contents
- 1 X Thermostatic Valve
- 1 X Installation Guide
