Description

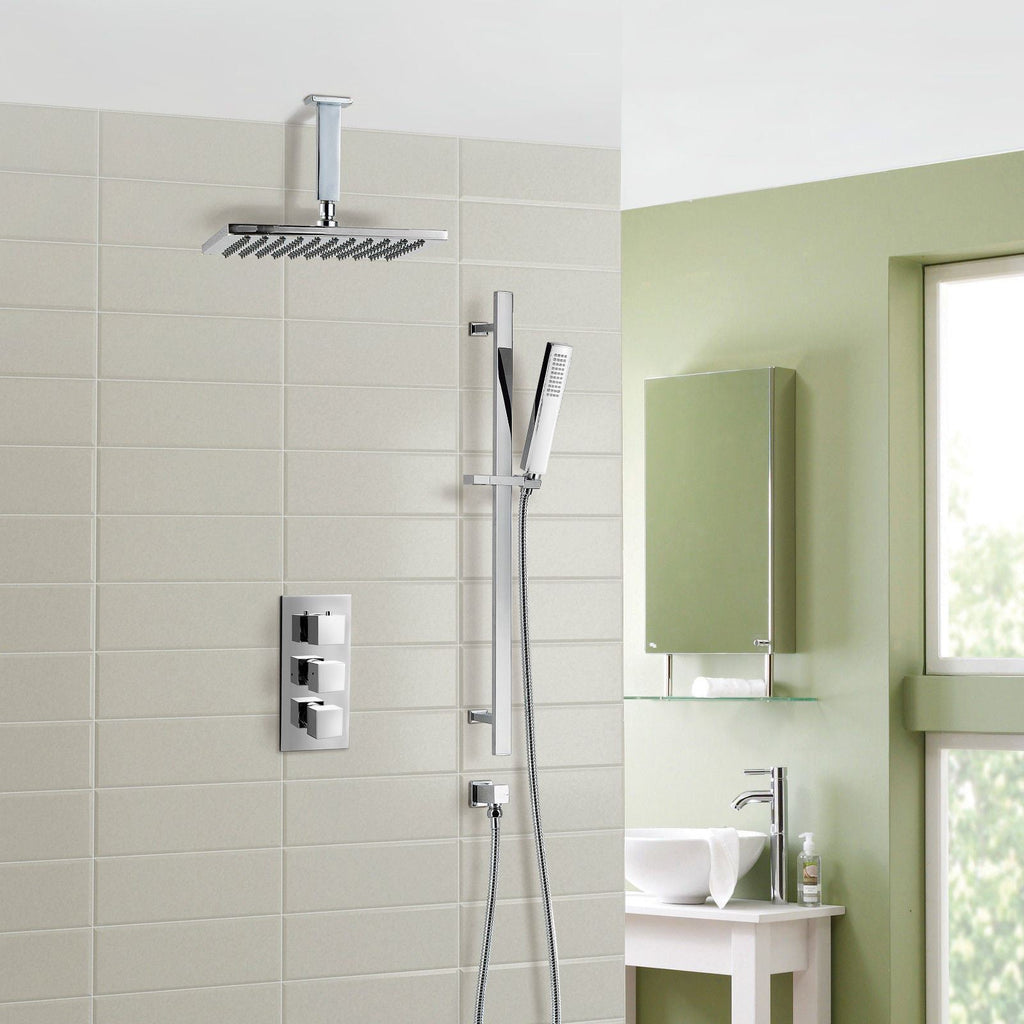

This Concealed Thermostatic Valve will compliment any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow. Supplied with a shower head with swivel joint and arm. Rail Shower Set + 1.5 M Hose.

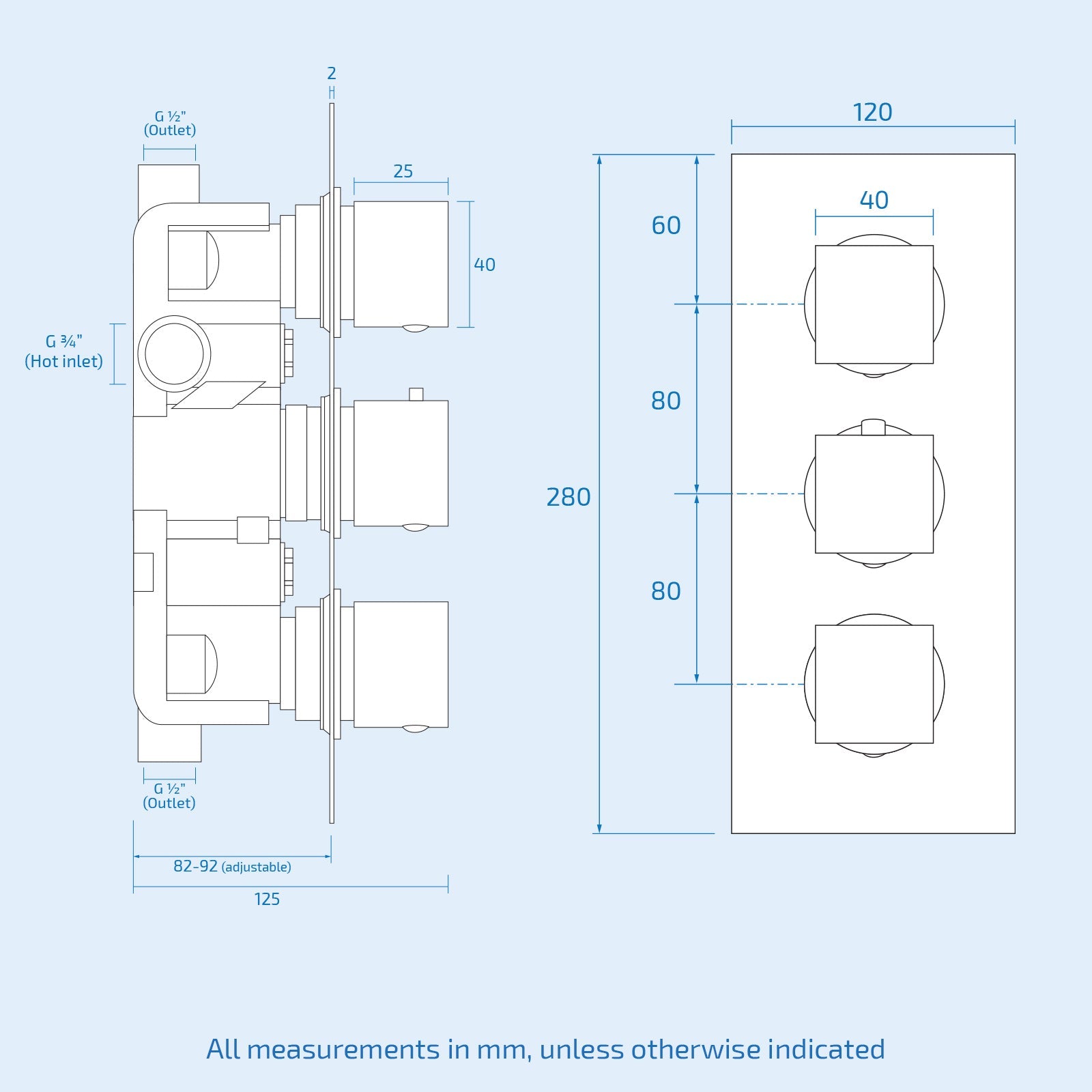

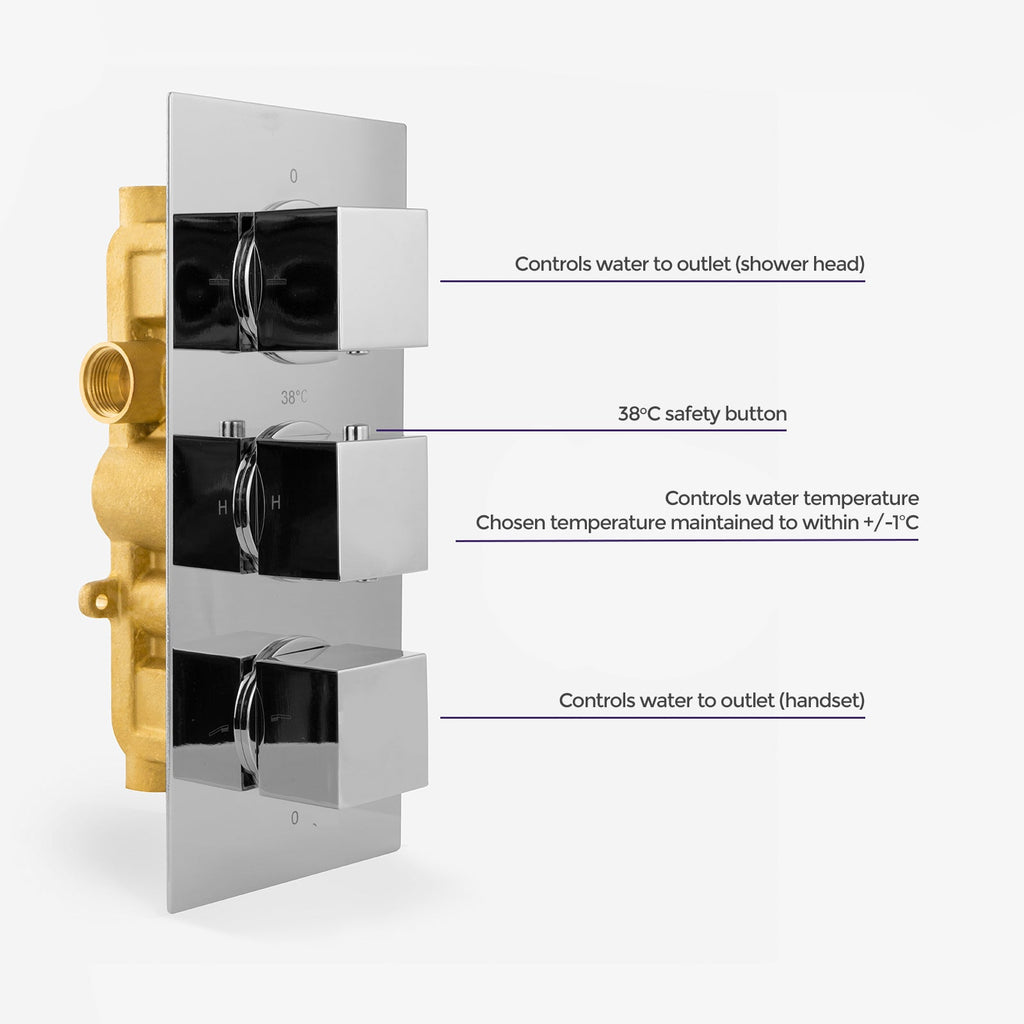

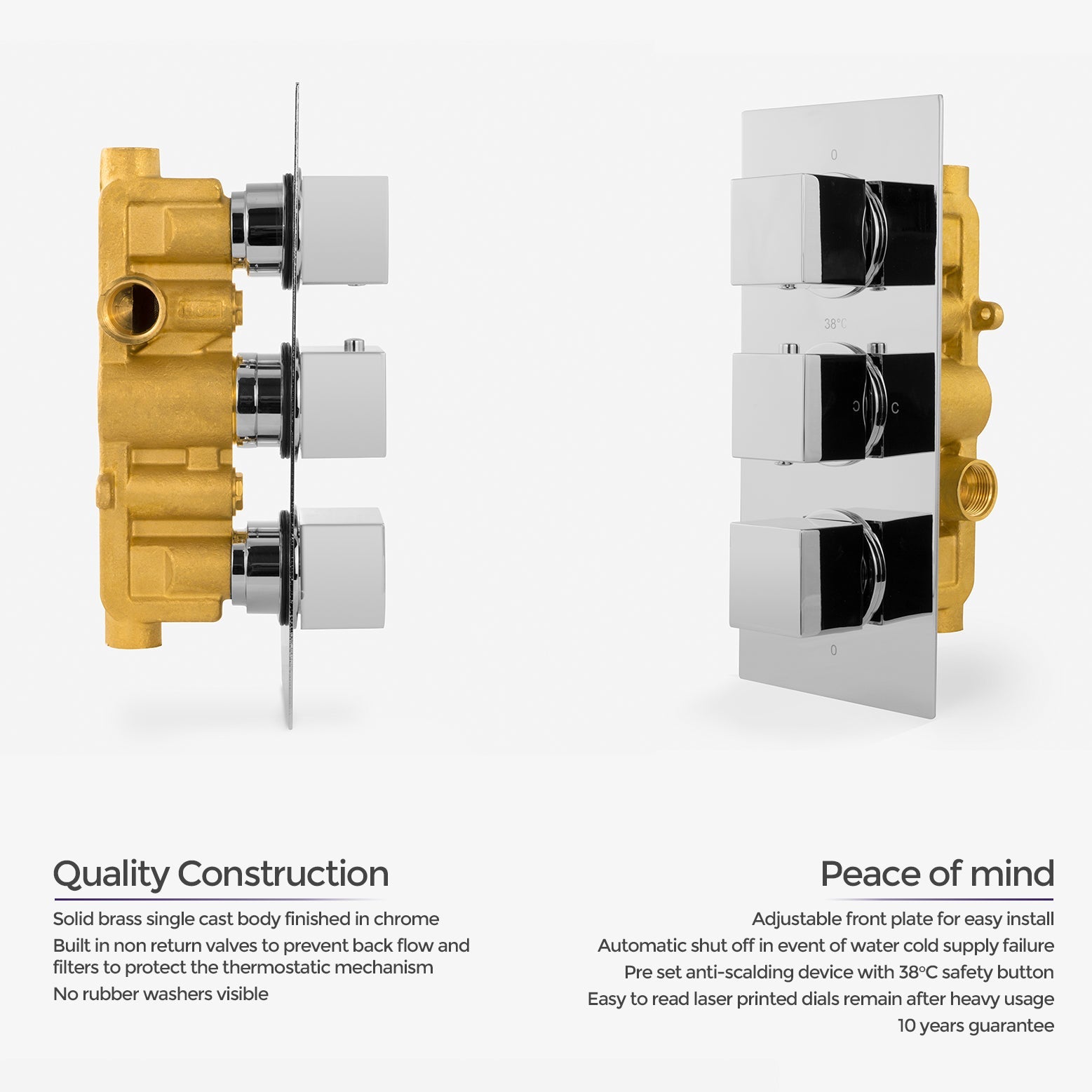

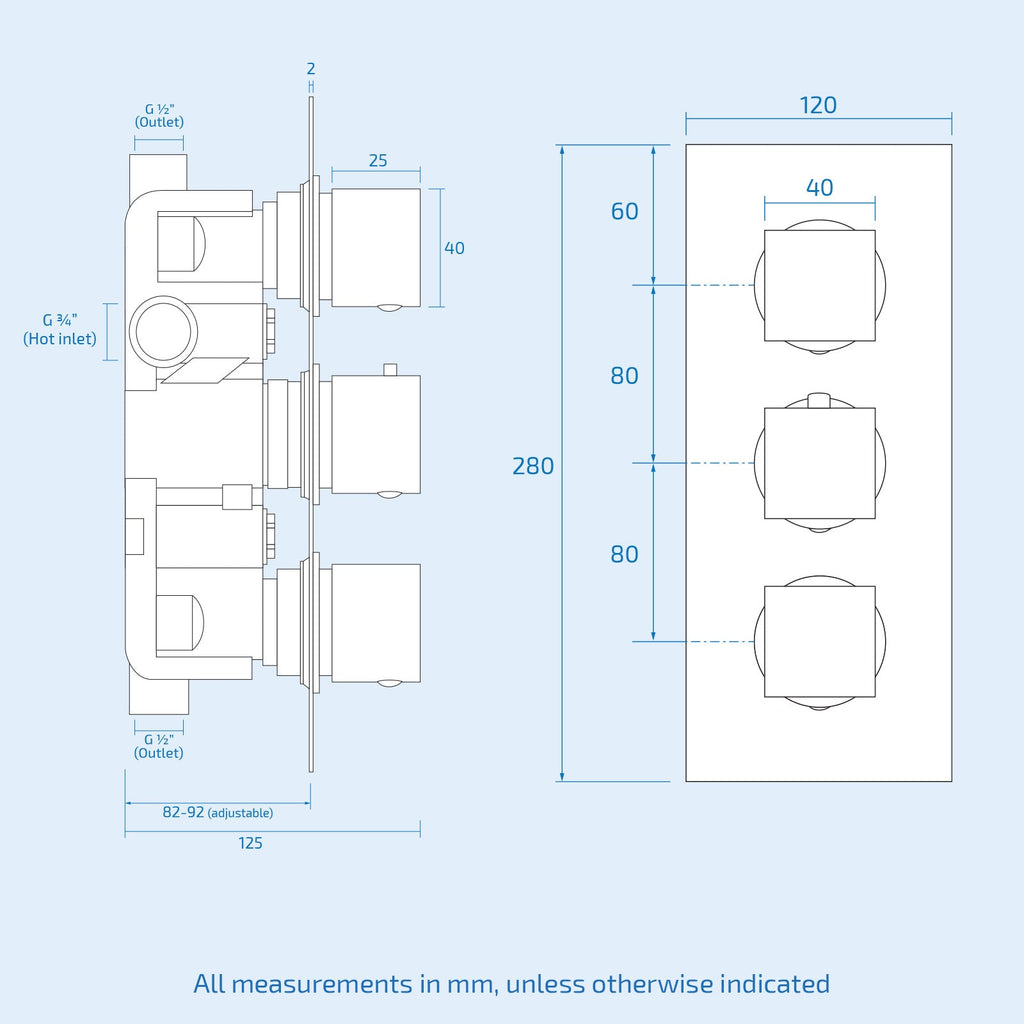

Thermostatic Valve
- Top dial - controls to one water diverter
- Middle dial - controls water temperature
- Bottom dial - controls to one water diverter
- High-Quality Design
- Chrome Finish
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting

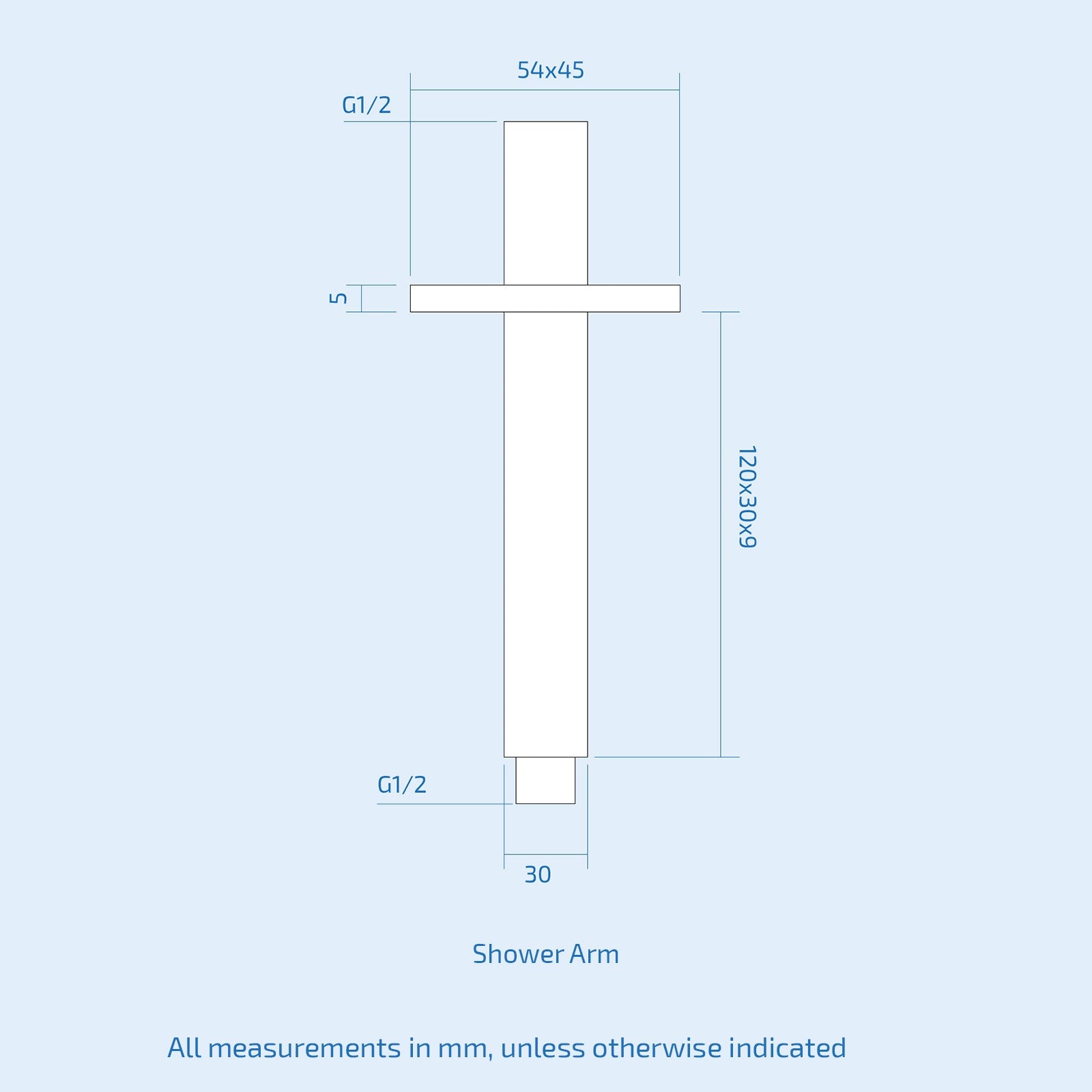

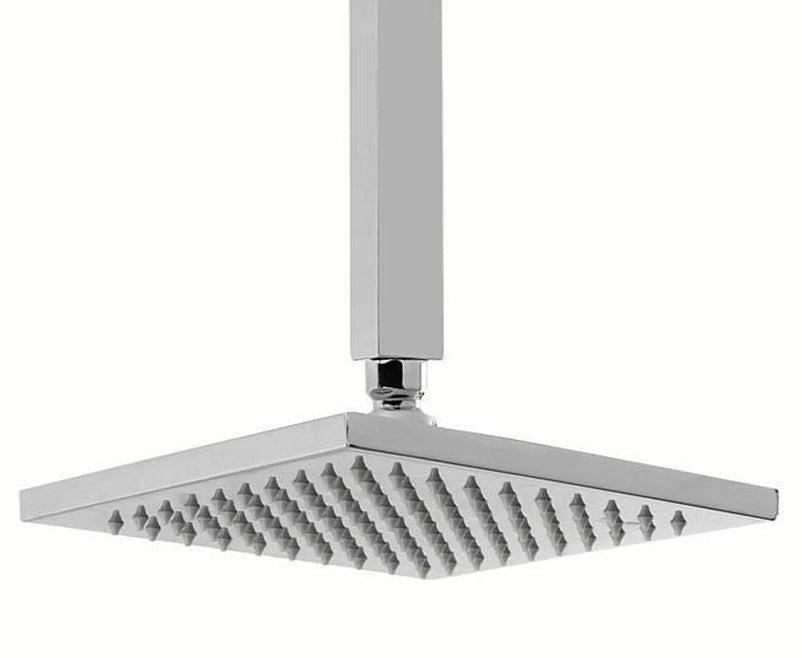

Shower Head With Ceiling Arm Details

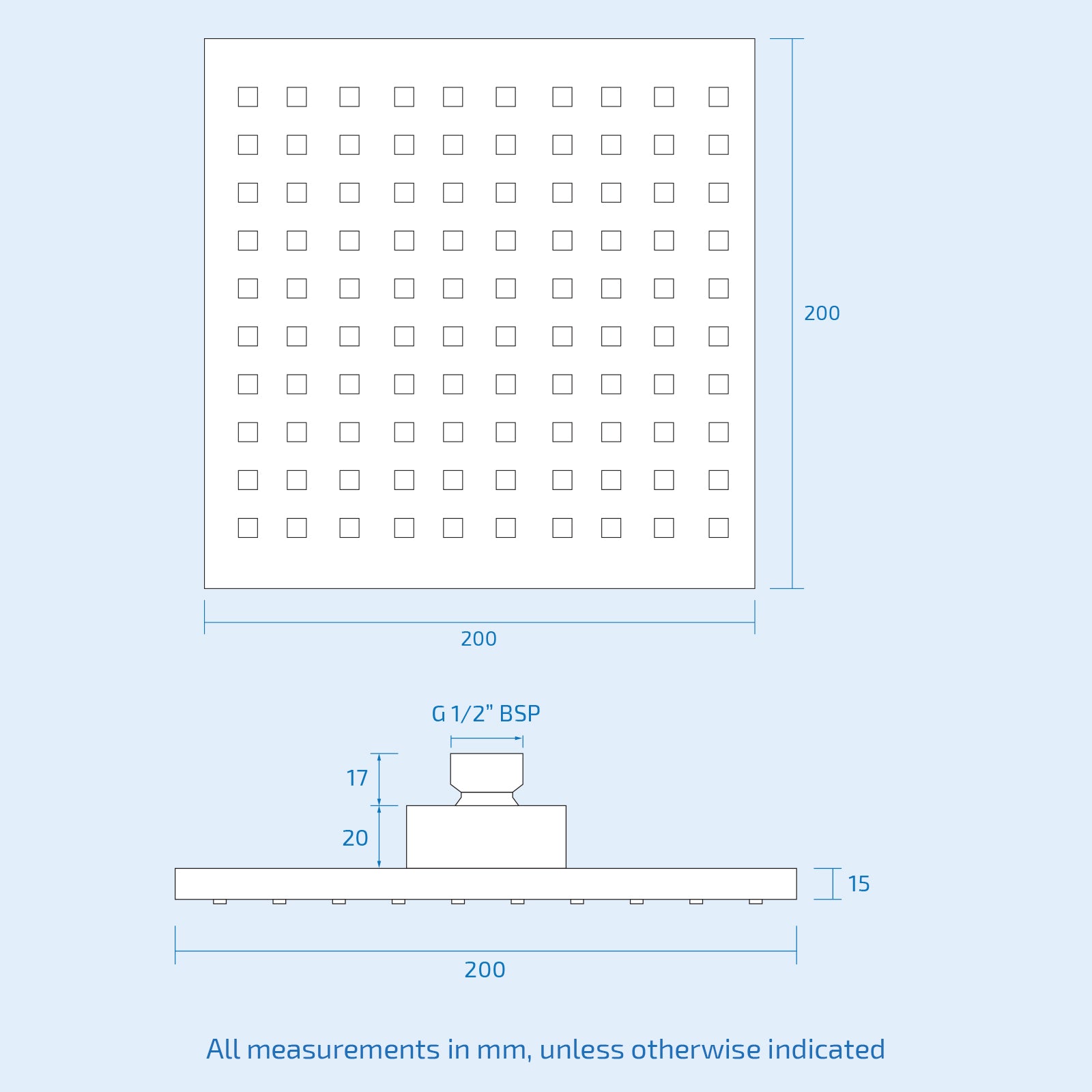

- Showerhead dimensions - 200mm x 200mm
- Chrome Finish

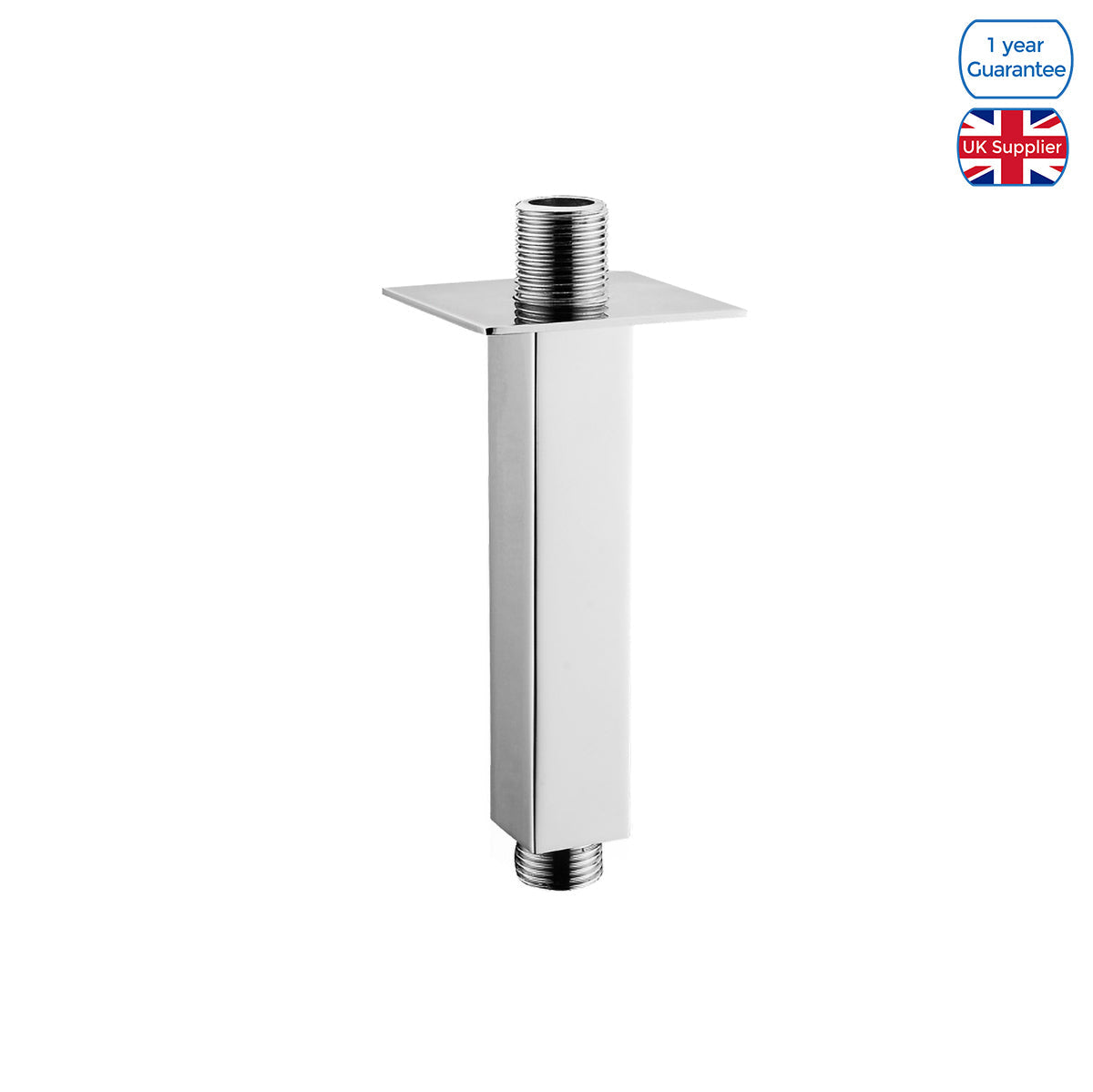

- Solid Brass Arm Length - 120mm
- Subject to a minimum of 1.0 bar water pressure
Suitable For The Following Water Systems
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum of 1.0 bar water pressure
Package Contents
- Thermostatic Valve
- Shower Head

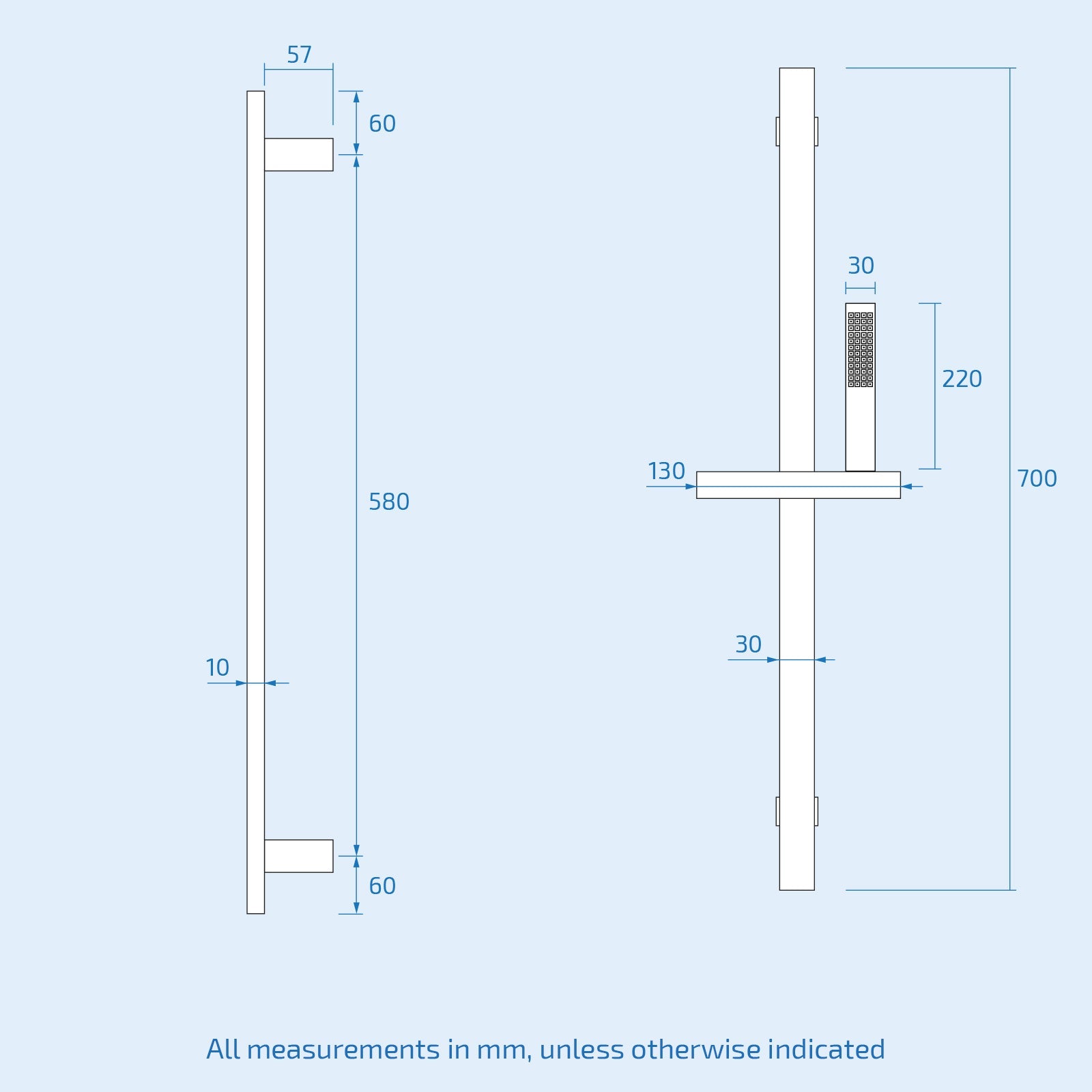

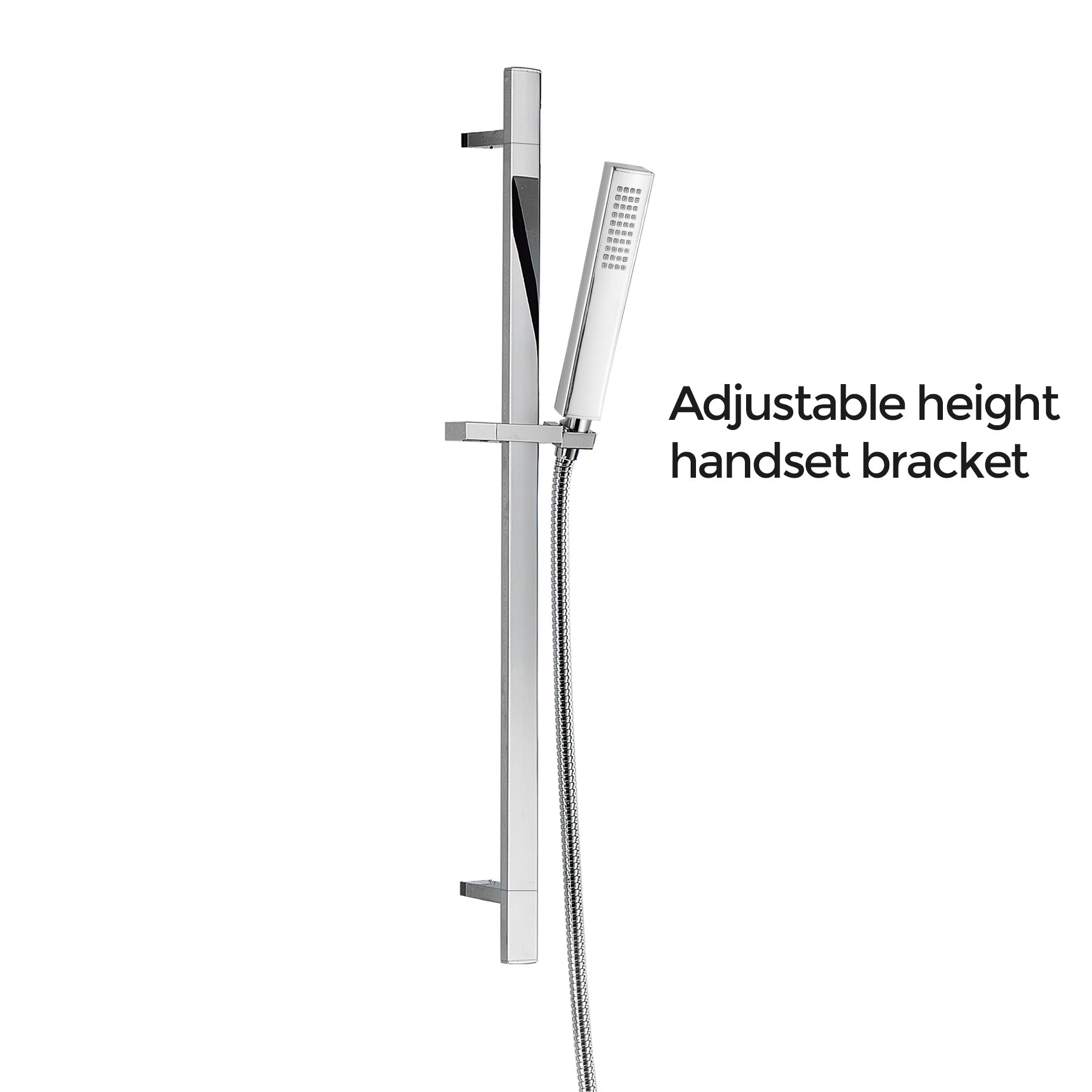

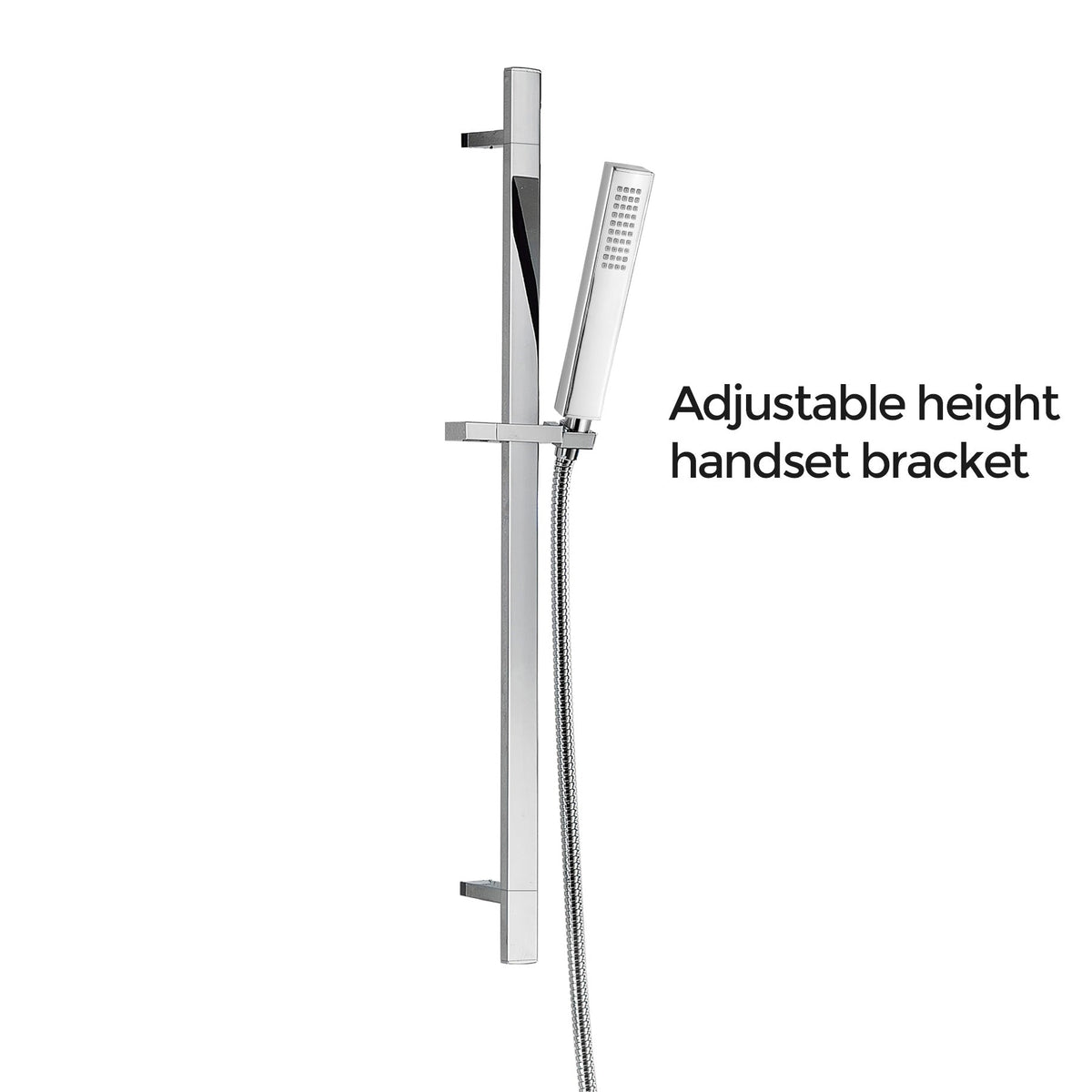

- Shower Rail and Handset Shower
- Ceiling Mounted Arm 120mm
