Description

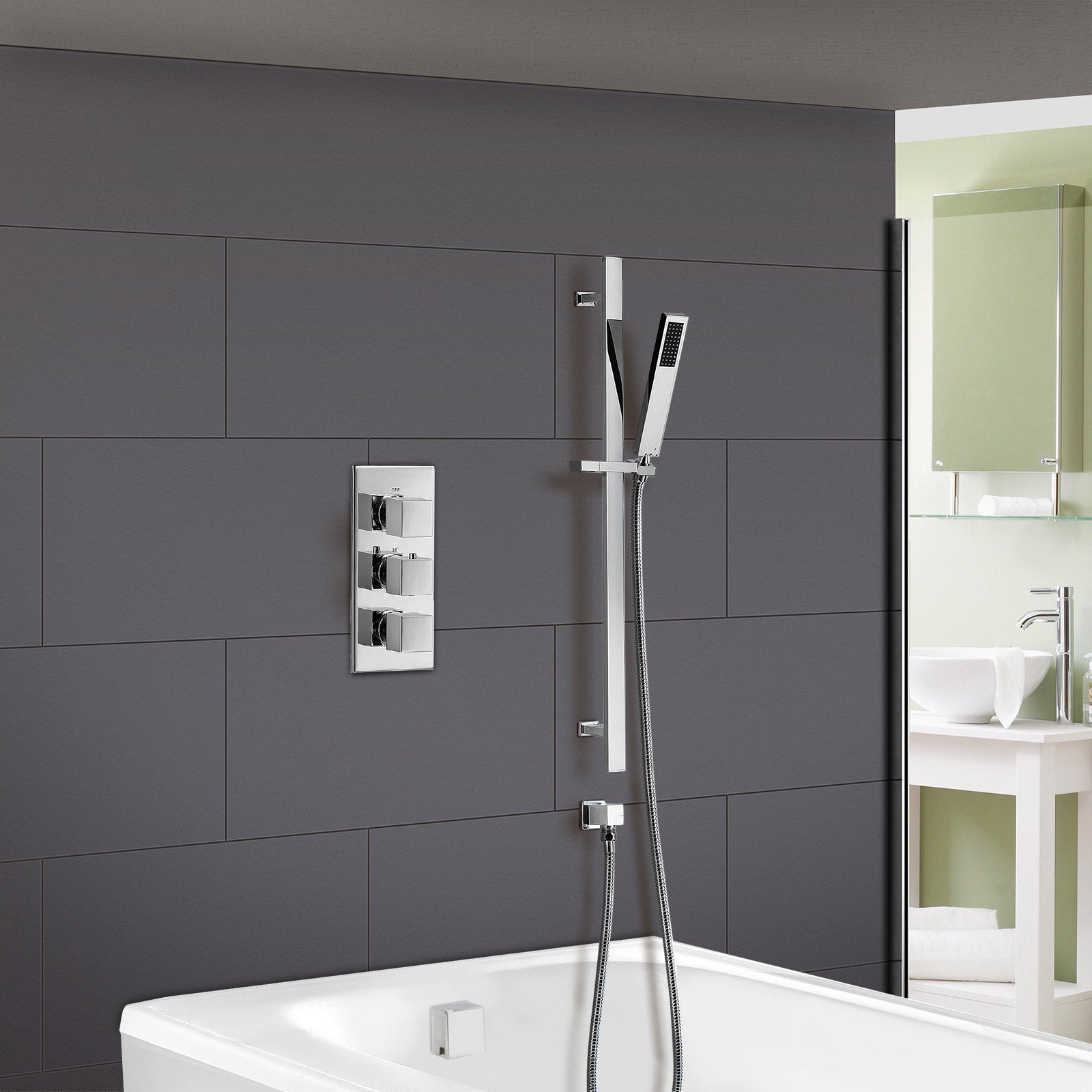

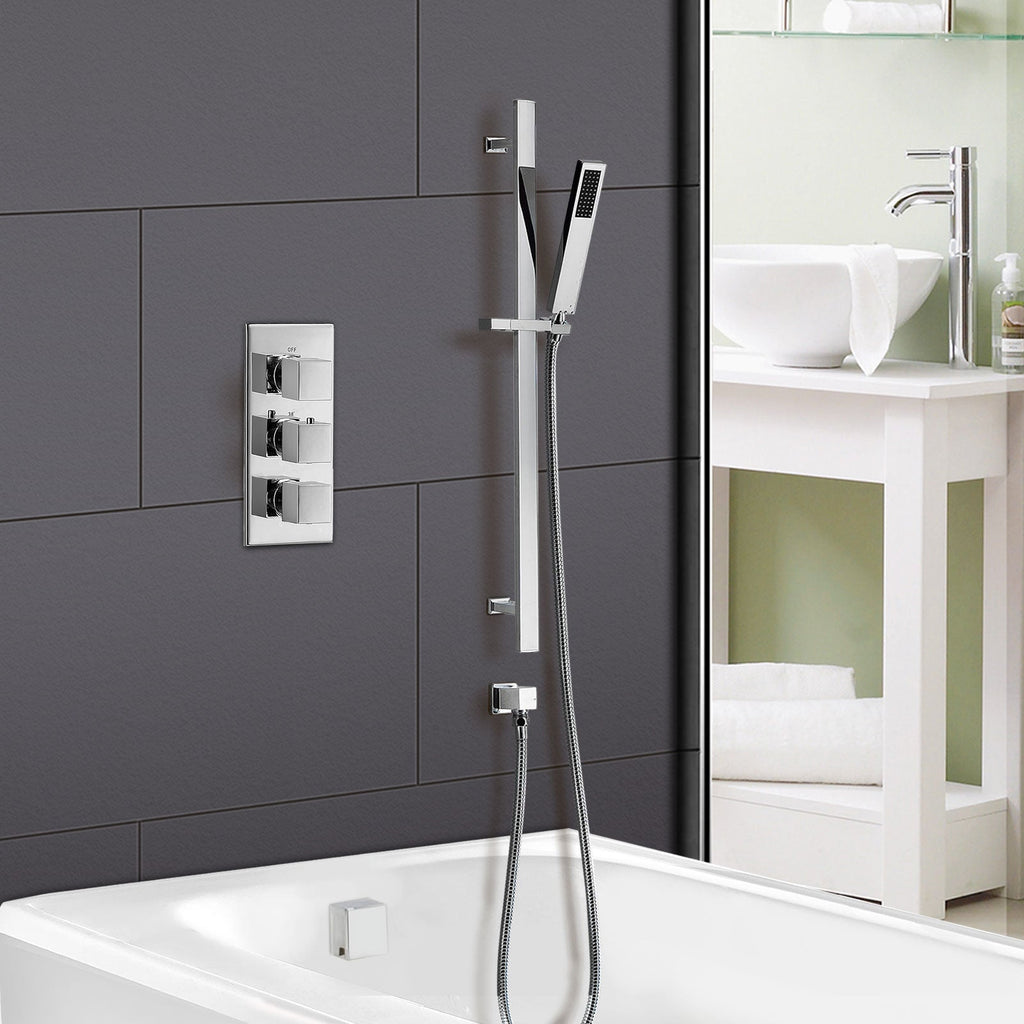

The Concealed 2-Way Thermostatic Shower Mixer Handset Slider Rail & Bath Filler with Sprung Waste and Connecting Overflow is a complete bathroom fixture that includes a thermostatic shower mixer with 3 controls, a handset with a slider rail, and a bath filler that comes with a connecting overflow and waste for the bathtub.
The thermostatic mixer ensures consistent water temperature, while the handset with a slider rail allows for easy adjustment of the water flow. The bath filler provides a convenient way to fill the bathtub. The entire unit is concealed, giving it a sleek and modern look.
The sleek and streamlined look of the chrome finish combination adds a touch of sophistication to any bathroom and for long-lasting use.
This product comes with a 10 Year Guarantee.

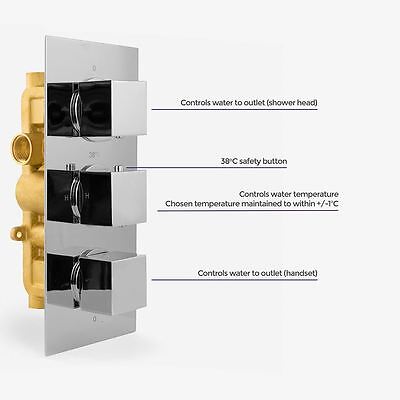

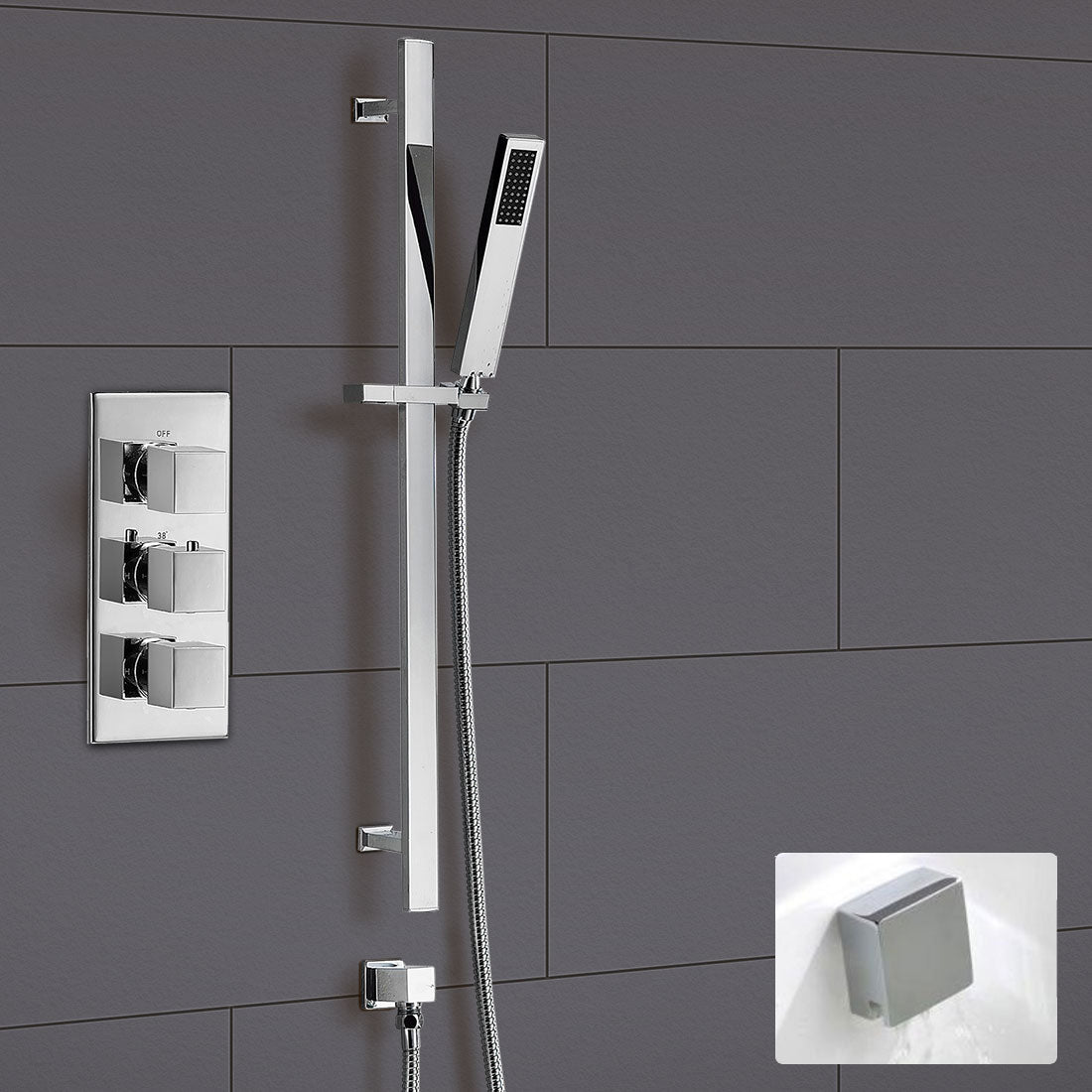

Thermostatic Valve
- Top Dial - Controls water of rain shower
- Middle Dial - temperature control
- Bottom Dial - Controls water of handset
- High-Quality Design
- Chrome Finish
- Thermostatically controlled

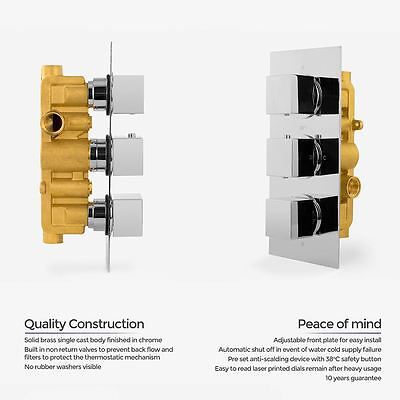

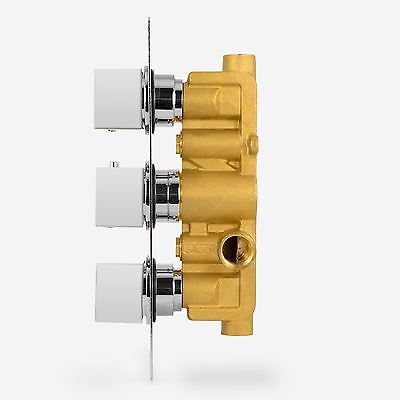

- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built-in nonreturn valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature is maintained to within +/-1ºC
- Pre-set maximum temperature
- UK standard size fitting

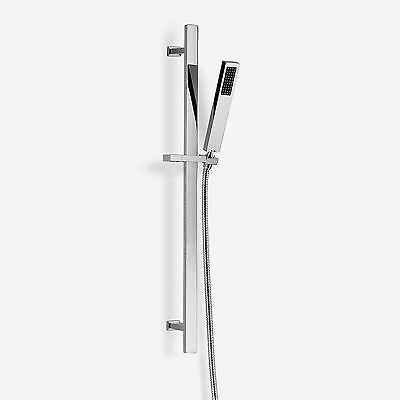

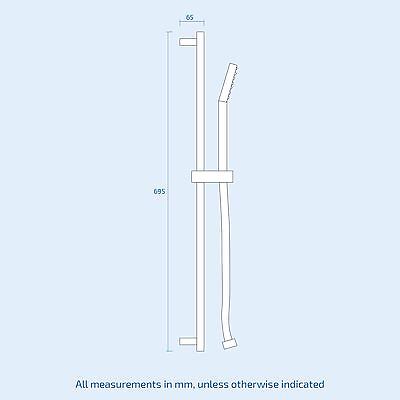

Slide Rail Shower Kits
- Stainless steel 1.5m Double Interlock Hose
- ABS Handset

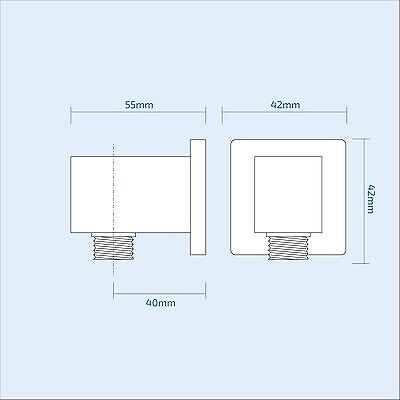

- Brass Wall Outlet Elbow
- Chrome Finish
- 565 mm (H)
- 0.1 Minimum Working Pressure

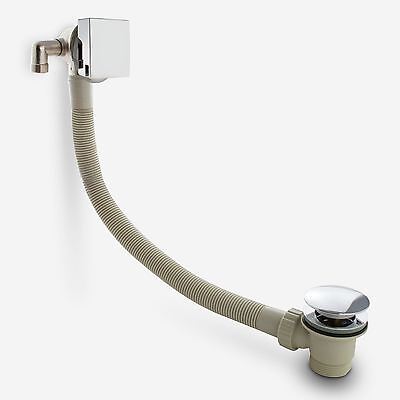

Square Overflow Bath Filler Include Sprung Waste
- Push button bathtub waste with connecting overflow
- Combined bath filler and waste
- The overflow doubles as a bath filler tap and is connected to the waste by strong and sturdy plastic piping
- Easy to use - just press the waste and the waste pops up and allows the water to drain
- Modern design chrome plated finish
- Durable and solid brass construction
- Sprung Click Clack Waste
Suitable for the following water systems
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum pressure of 1.0 bar to a maximum of 6.0 bar
Package Contents
- 1 x Thermostatic Valve
- 1 x Shower Rail with Handset and Hose
- 1 x Square Bath Filler with Sprung Waste
