Description
The concealed shower valve has two easy controls, for temperature and flow. The valve body comes with a contemporary square face plate.
Key Features
- Black matte finish
- Durable and solid brass construction
- Top Dial - controls water to 2 outlet diverter
- Bottom Dial - temperature control
- Slim Shower Head Design
Specifications

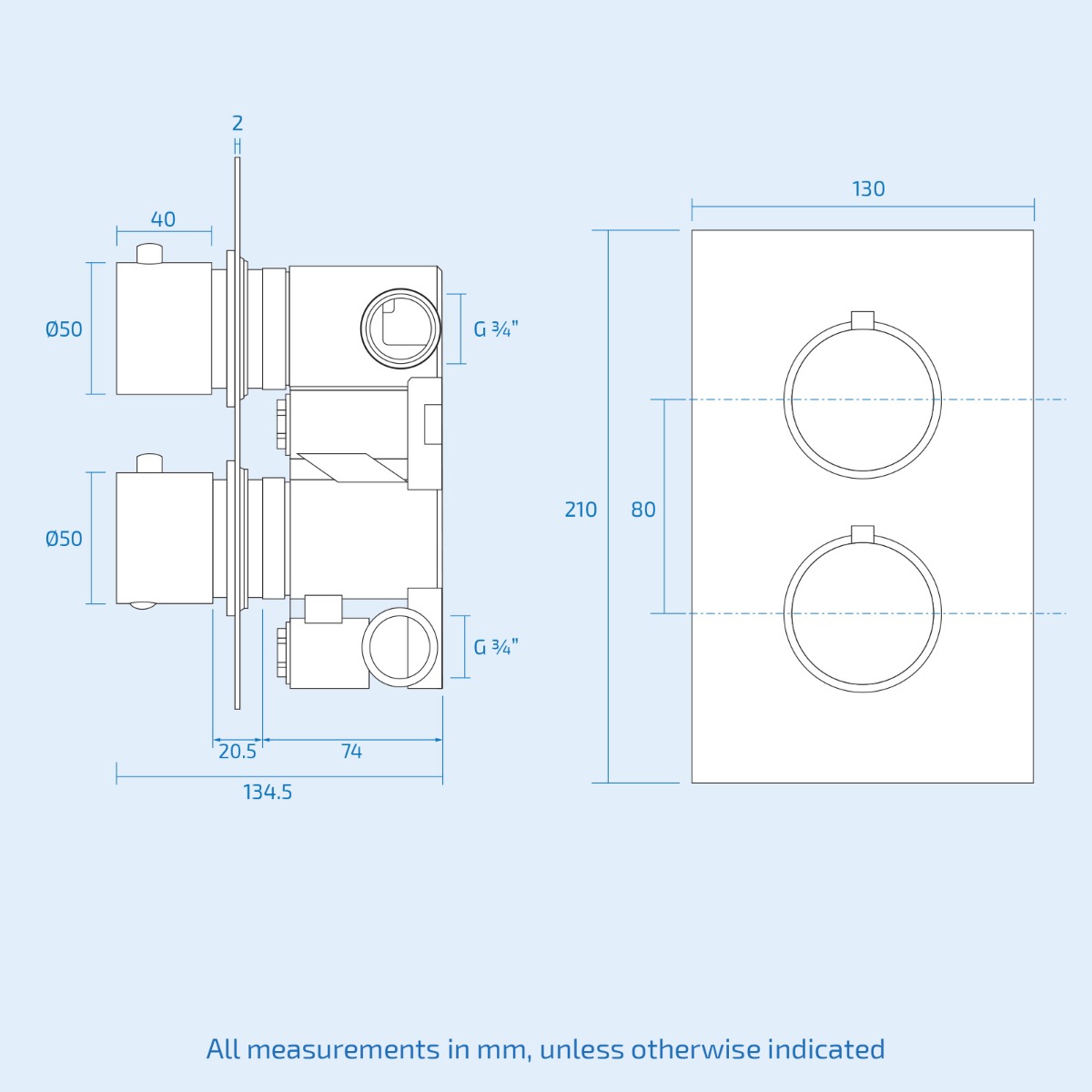

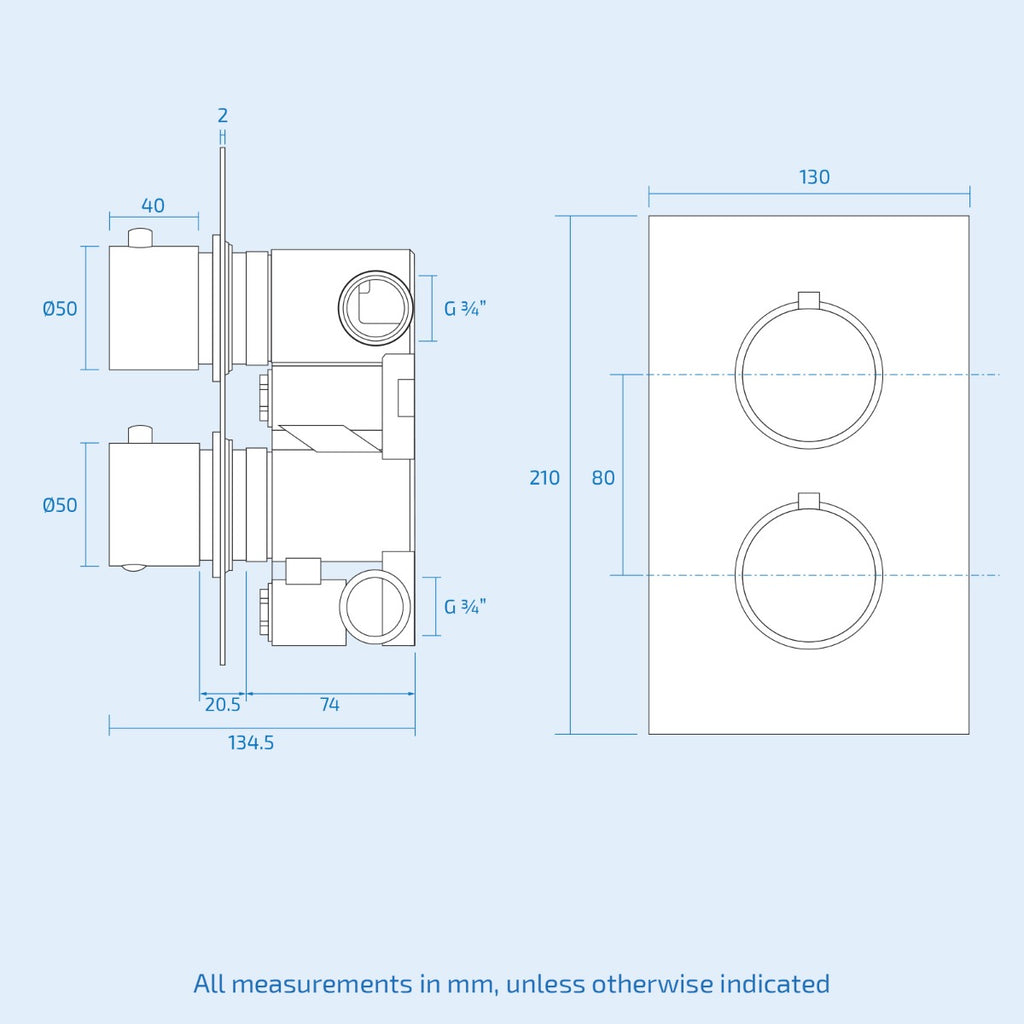

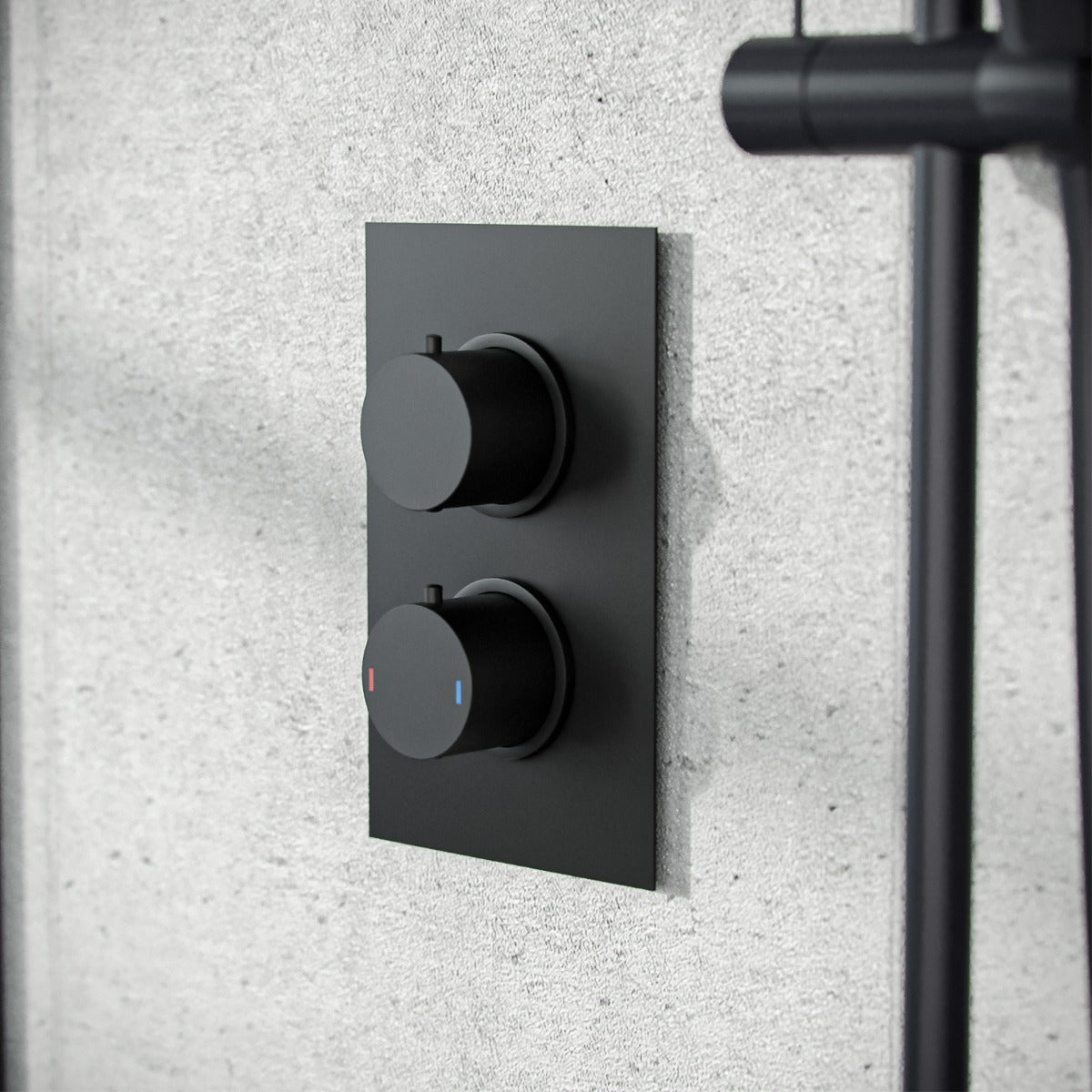

Concealed Thermostatic Mixer Valve
- Height : 210mm
- Width : 130mm
- Dial Depth : 40mm
- Finish : Matte Black
- Thermostatically controlled
- Operating range 20 - 50 deg C with 38 deg C safety button
- Chosen temperature maintained to within +/-1ºC.
- Automatic shut off in event of water cold supply failure
- UK standard size fitting, Inlet 3/4", Outlet 3/4"

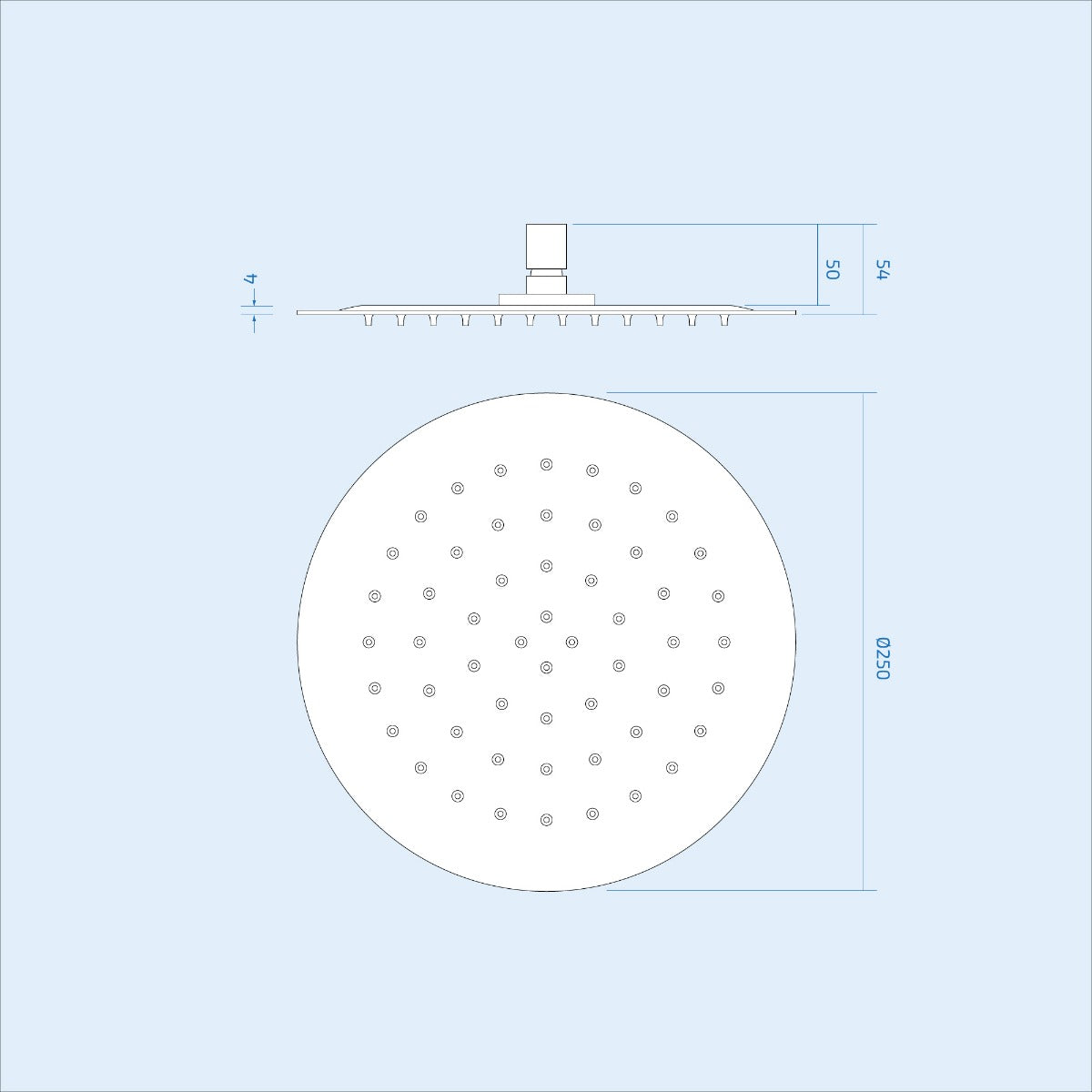

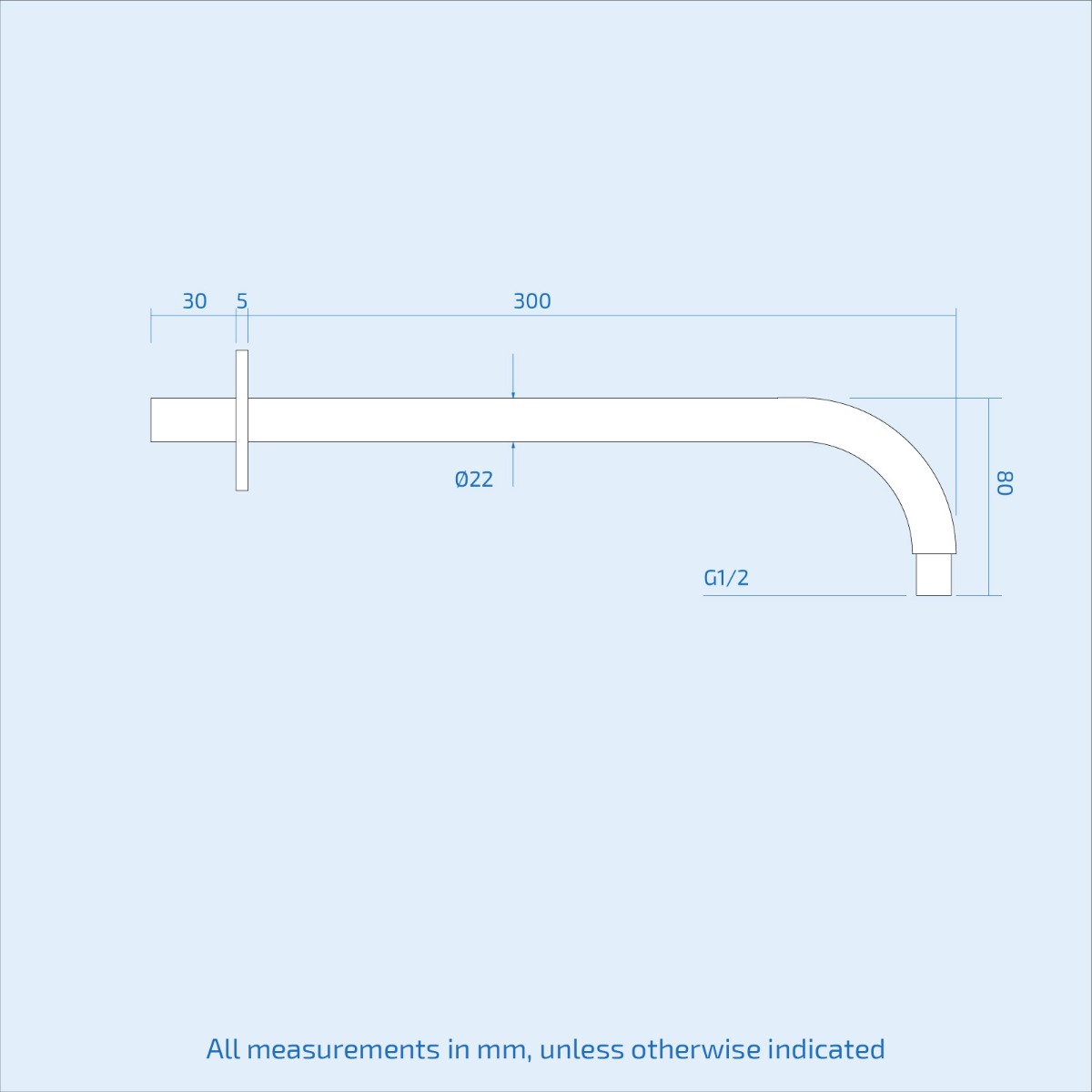

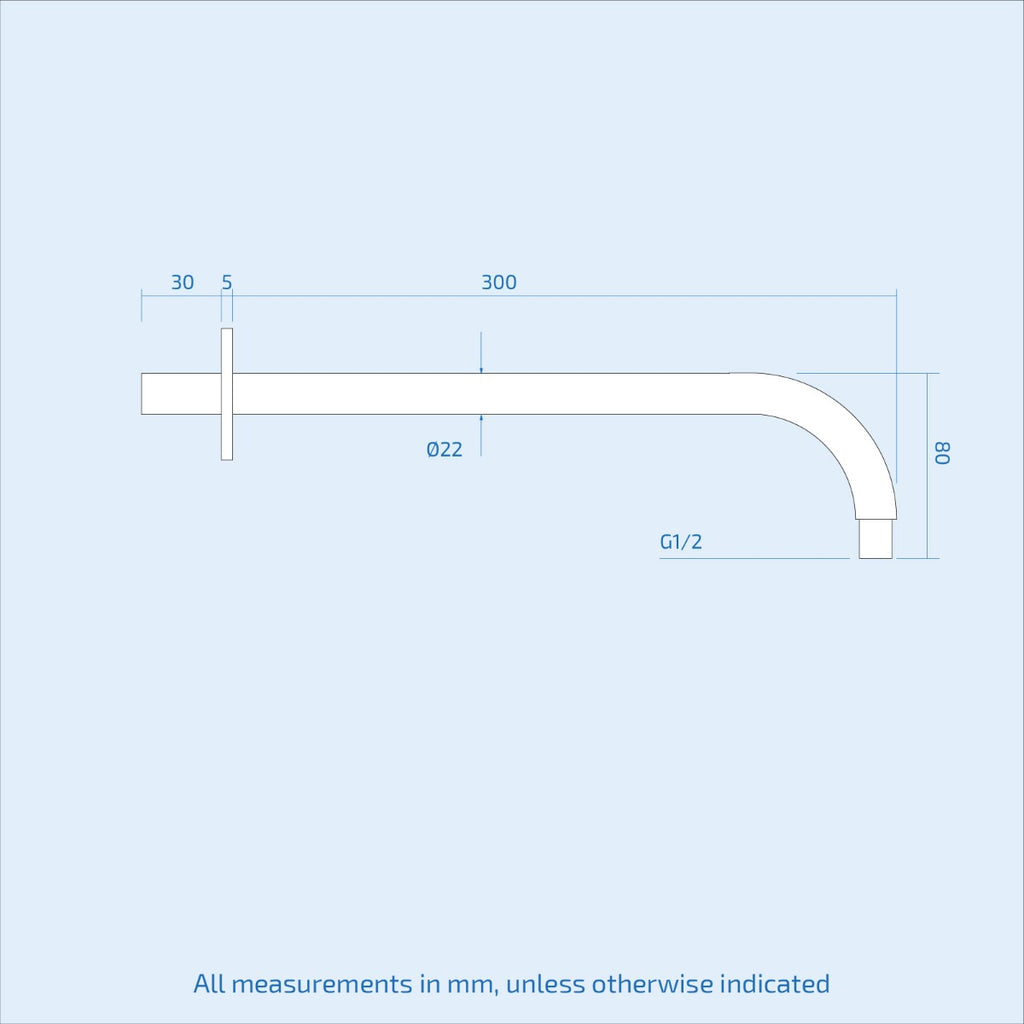

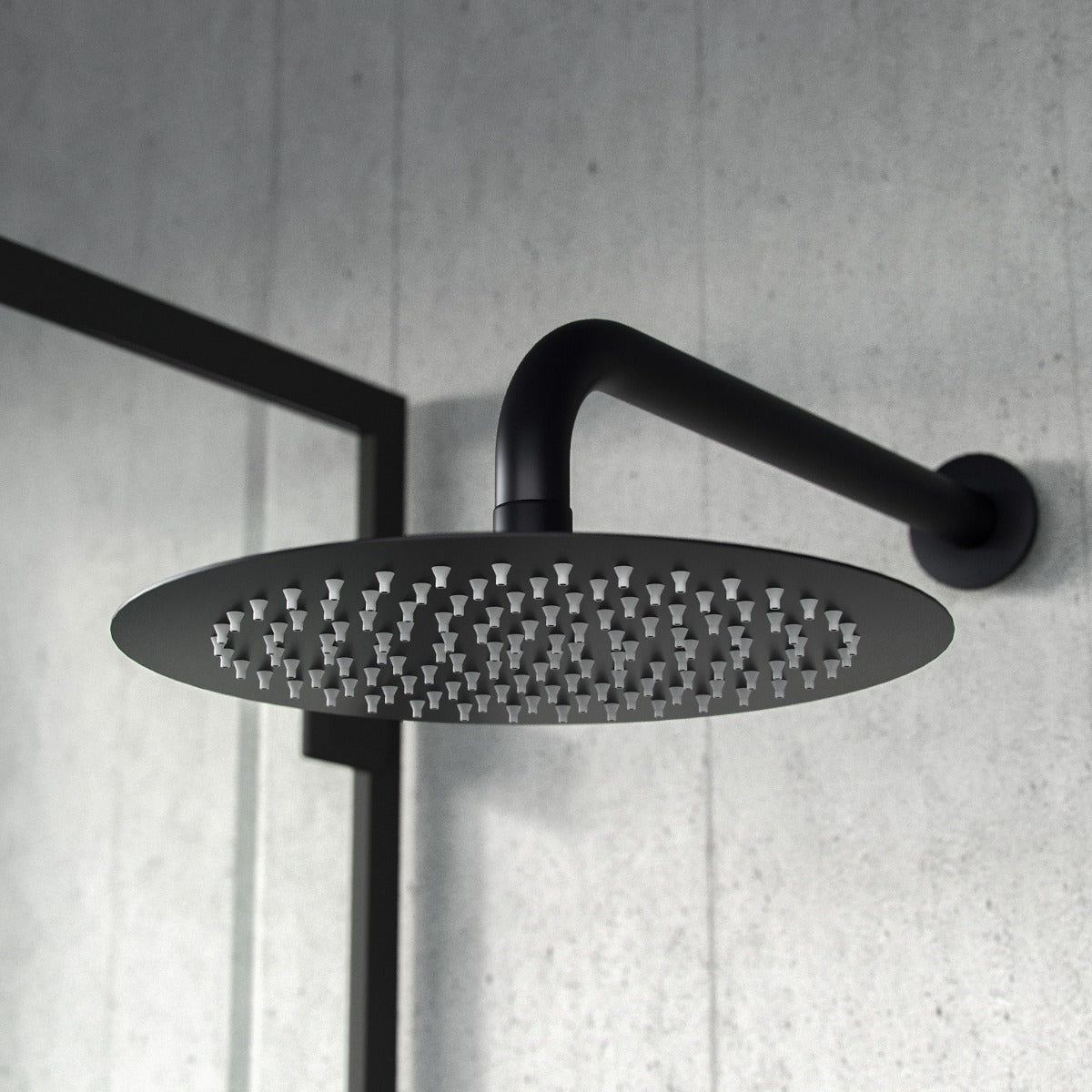

Shower Arm & Head
- Arm Length : 300mm
- Shower Head : 250mm
- Finish : Matte Black
- Single mode shower head with swivel joint
- Brass swivel elbow
- Rub clean anti scale nozzles
- UK standard size fitting
- Mount : Wall
- 40mm Thread
- 1/2" Inch Shower Head Connection

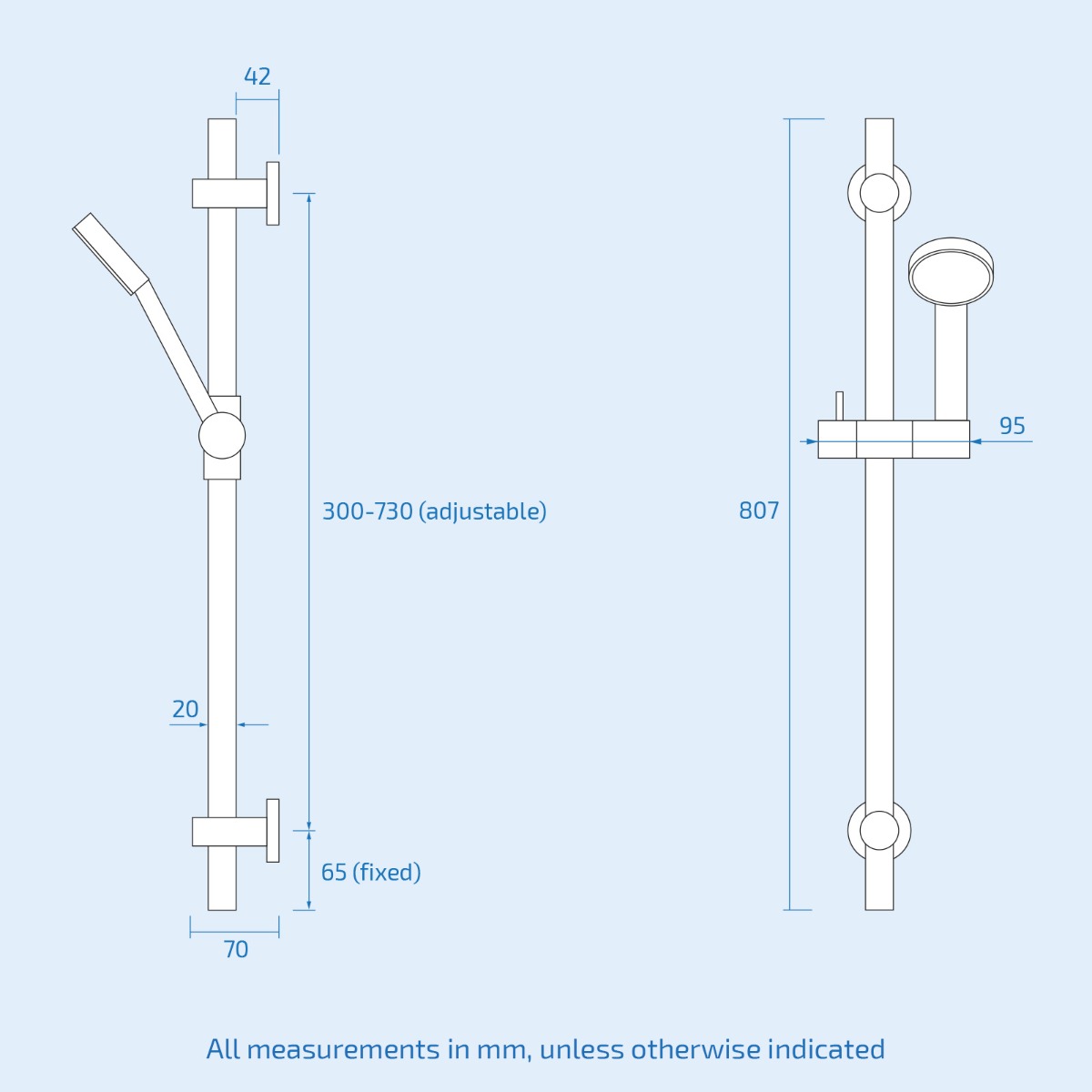

Slider Rail
- Slider Rail - 300-730mm
- Handset - 3 Mode Function
- 150cm Shower Hose
- Finish: Matte Black
- Fitting Size : Shower Hose - G 1/2" BSP
- Materials :
- Slider Rail - Brass
- Handset - ABS
- Shower Hose - PVC
Round Wall Outlet Elbow
- Wall mounted via matching wall plate
- Hose connection without handset holder
- Solid brass body construction making them durable and long lasting
- Finished in a matt black
- Safe and easy to use
- Easy to clean and install
- UK standard size fitting - 1/2" BSP outlet
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum pressure of 0.5 bar to maximum 7.0 bar

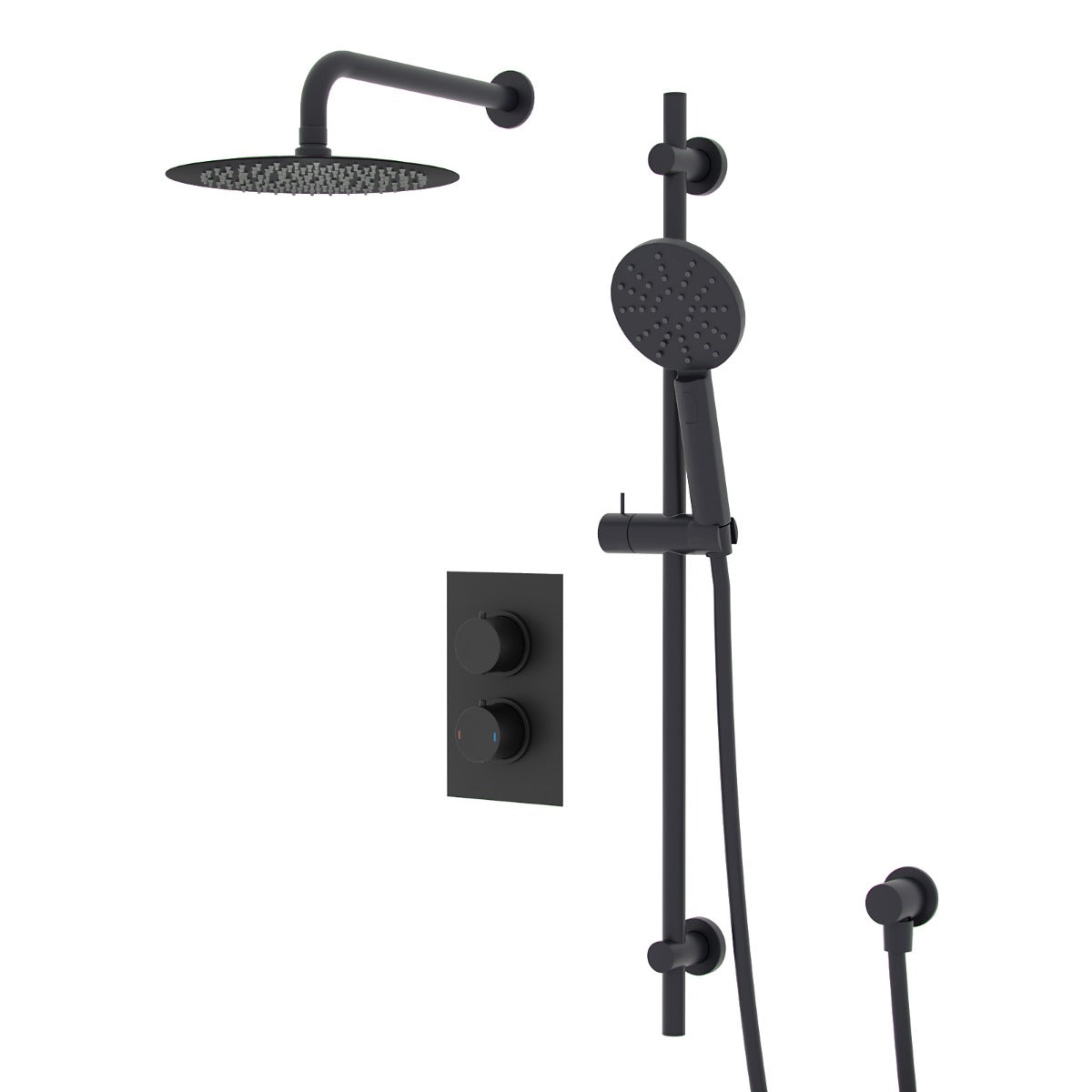

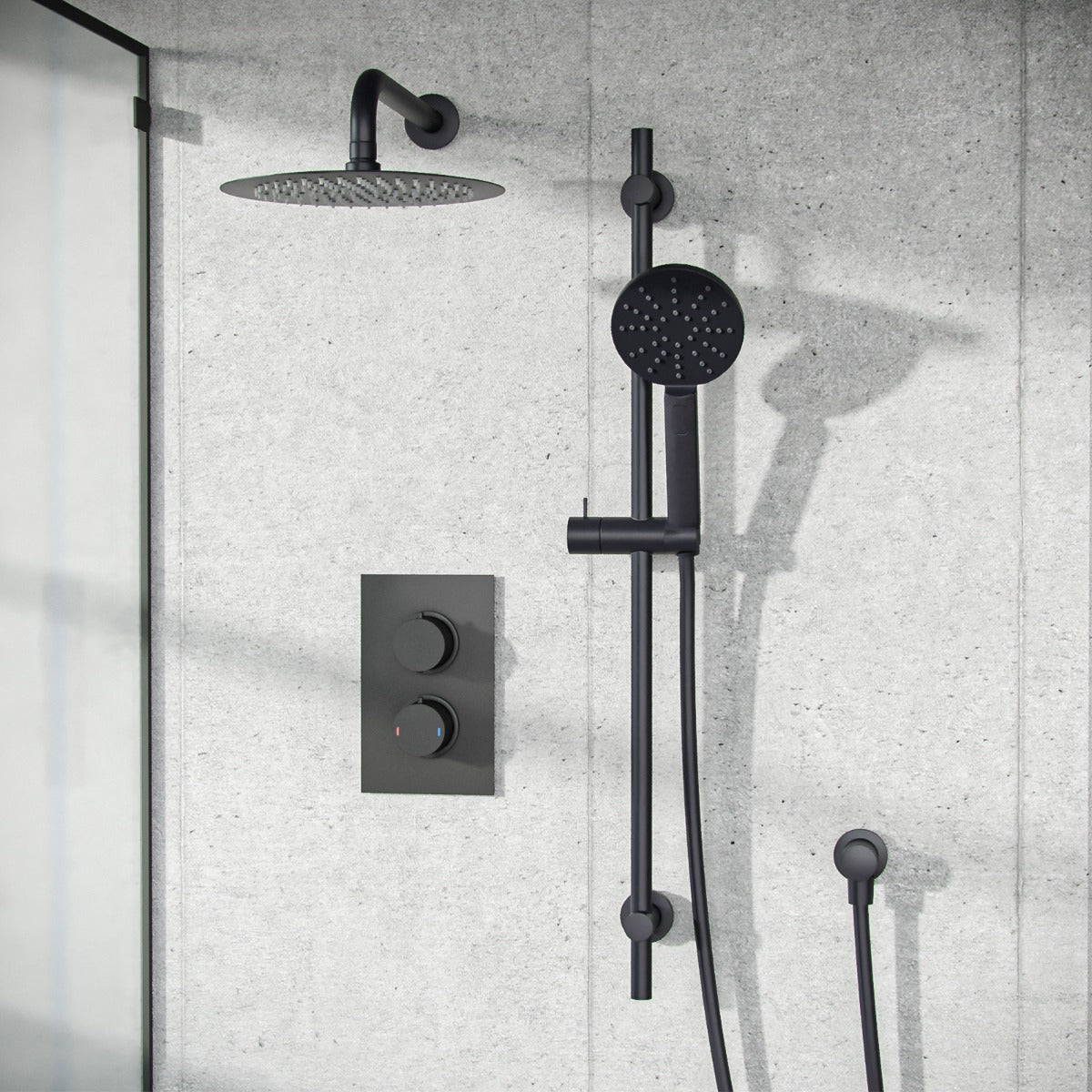

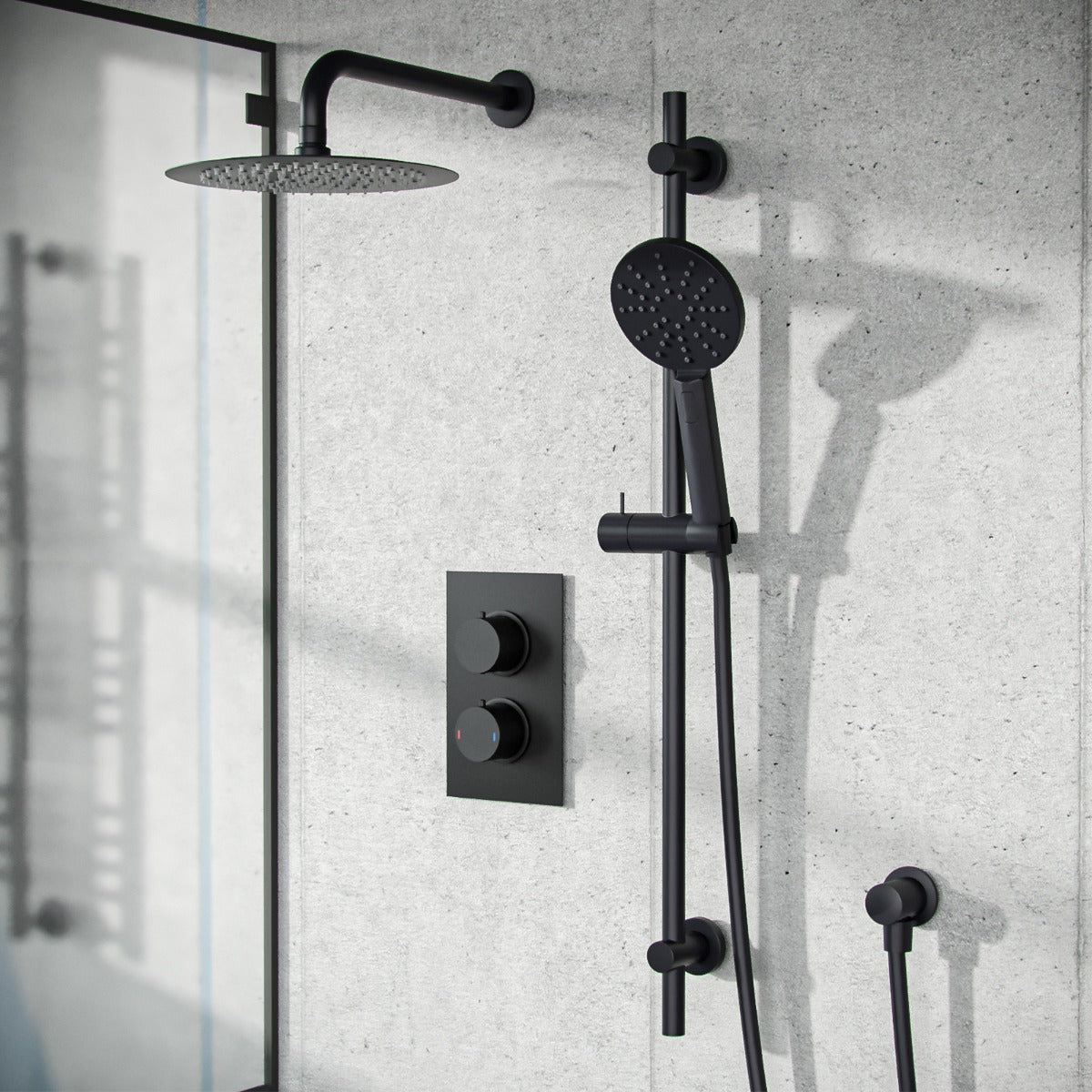

Package Contents
- Concealed Thermostatic Mixer Valve
- Shower Head
- Shower Arm
- Slider Rail
- Round Wall Outlet Elbow
