Description

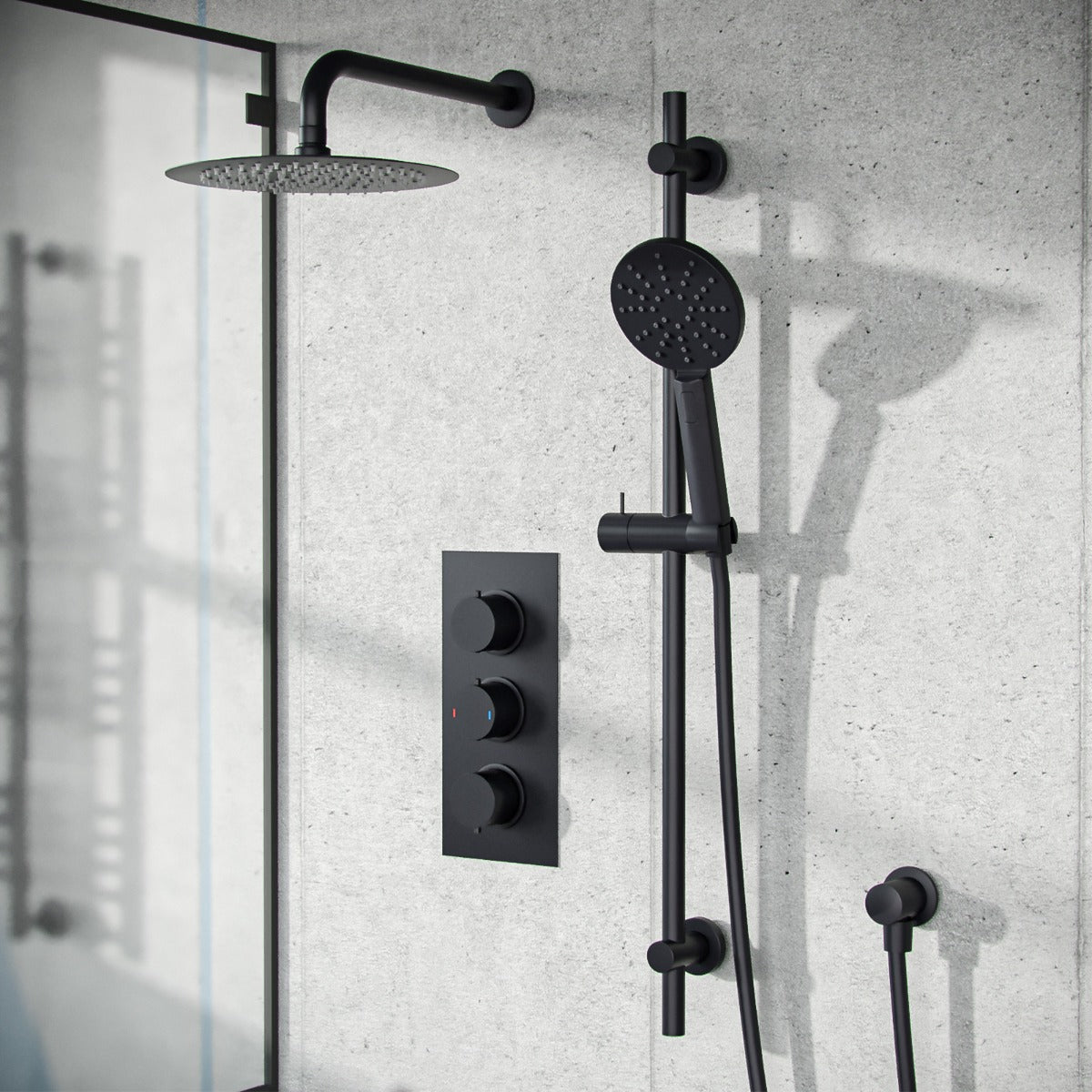

The concealed shower valve has three easy controls, for temperature and flow. The valve body comes with a contemporary square face plate.
Key Features
- Black matte finish
- Durable and solid brass construction
- The thermostatic showering can be accessed via the 3 dials 2-way easy-to-operate dial controls - separate controls for temperature and flow; giving you full temperature control.
- Slim Shower Head Design
Specifications

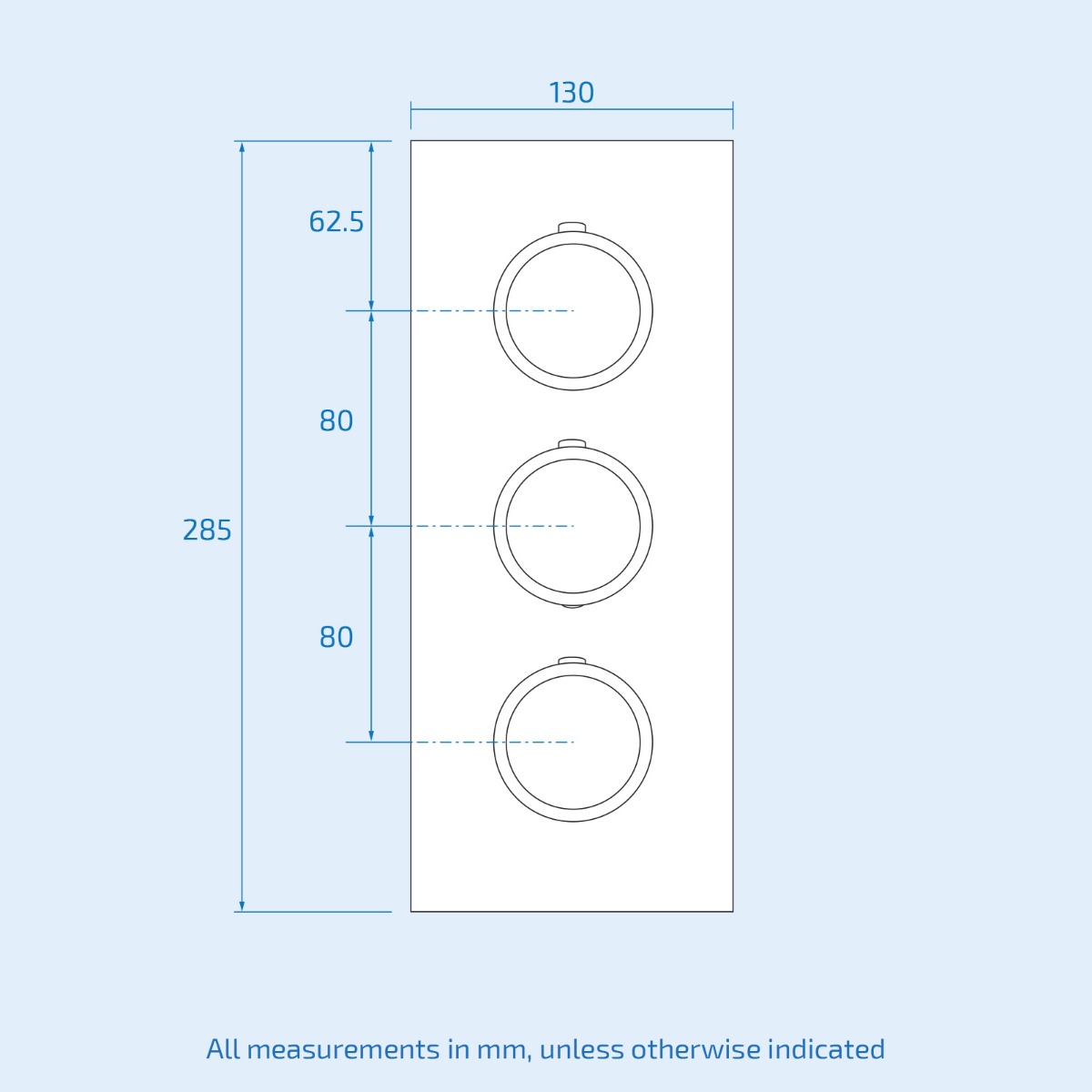

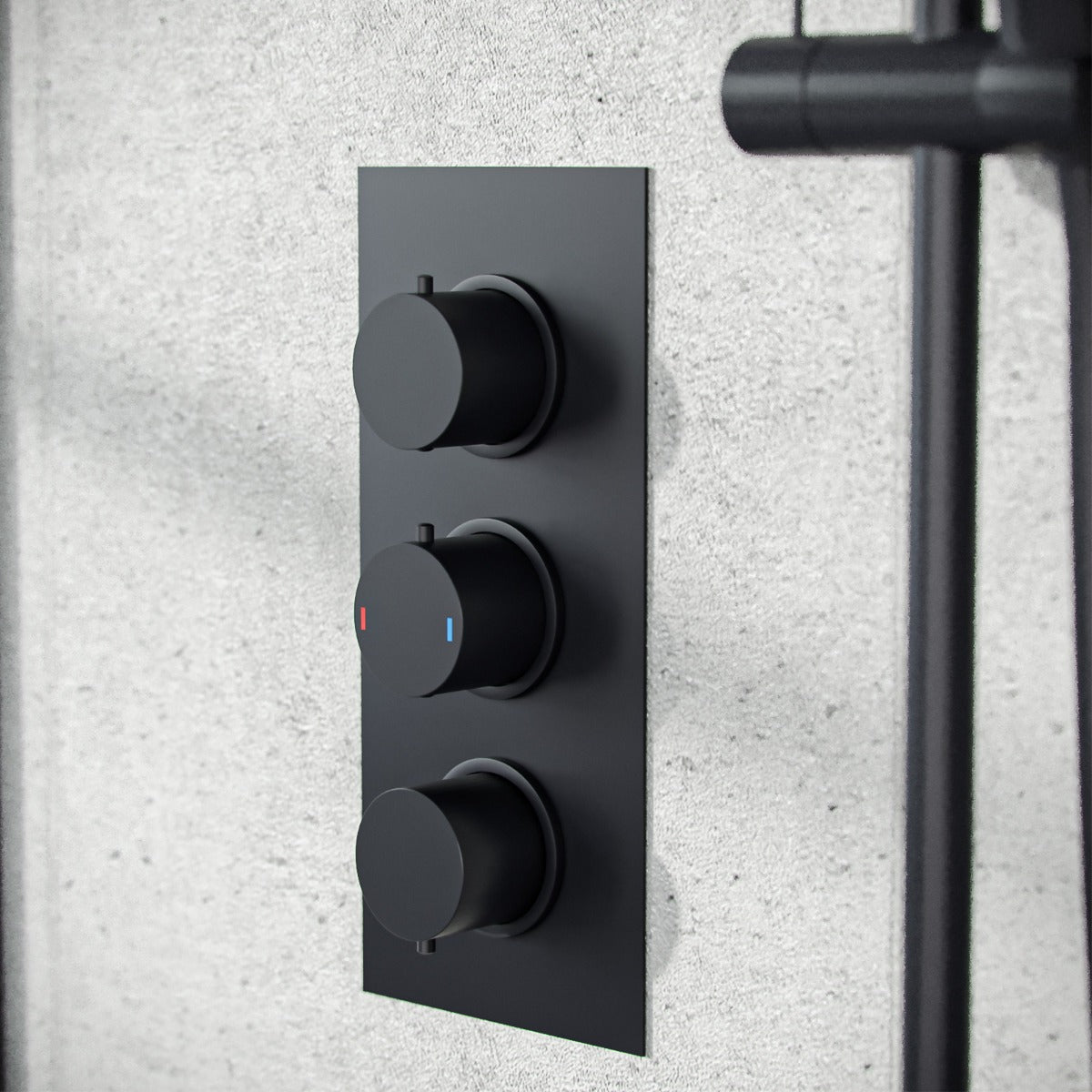

Concealed Thermostatic Mixer Valve
- Height : 285mm
- Width : 130mm
- Dial Depth : 40mm
- Finish : Matte Black
- High Quality Design
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 - 50 °C with 38 °C safety button
- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1°C
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure

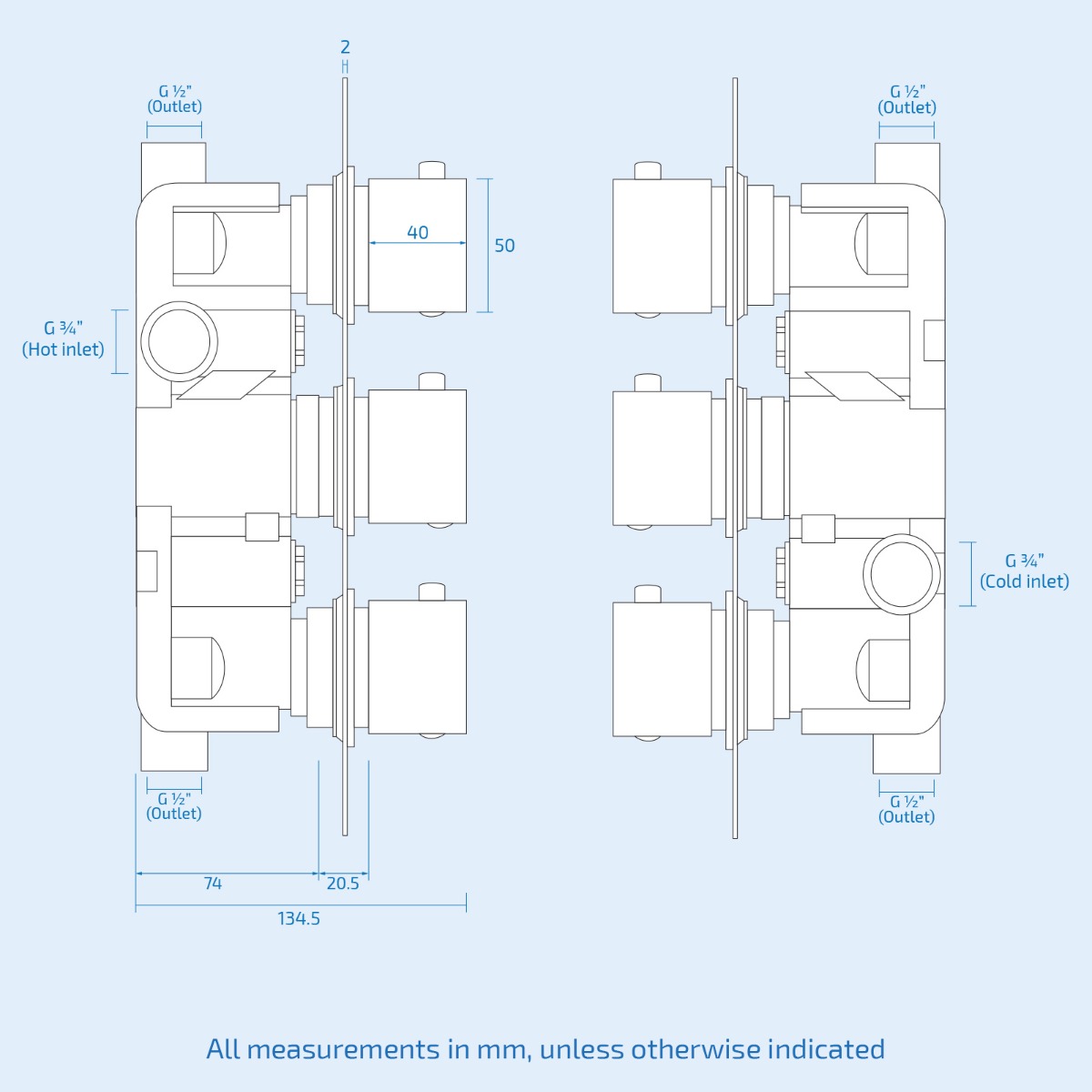

- Dimensions: View dimension image provided
- UK standard size fitting

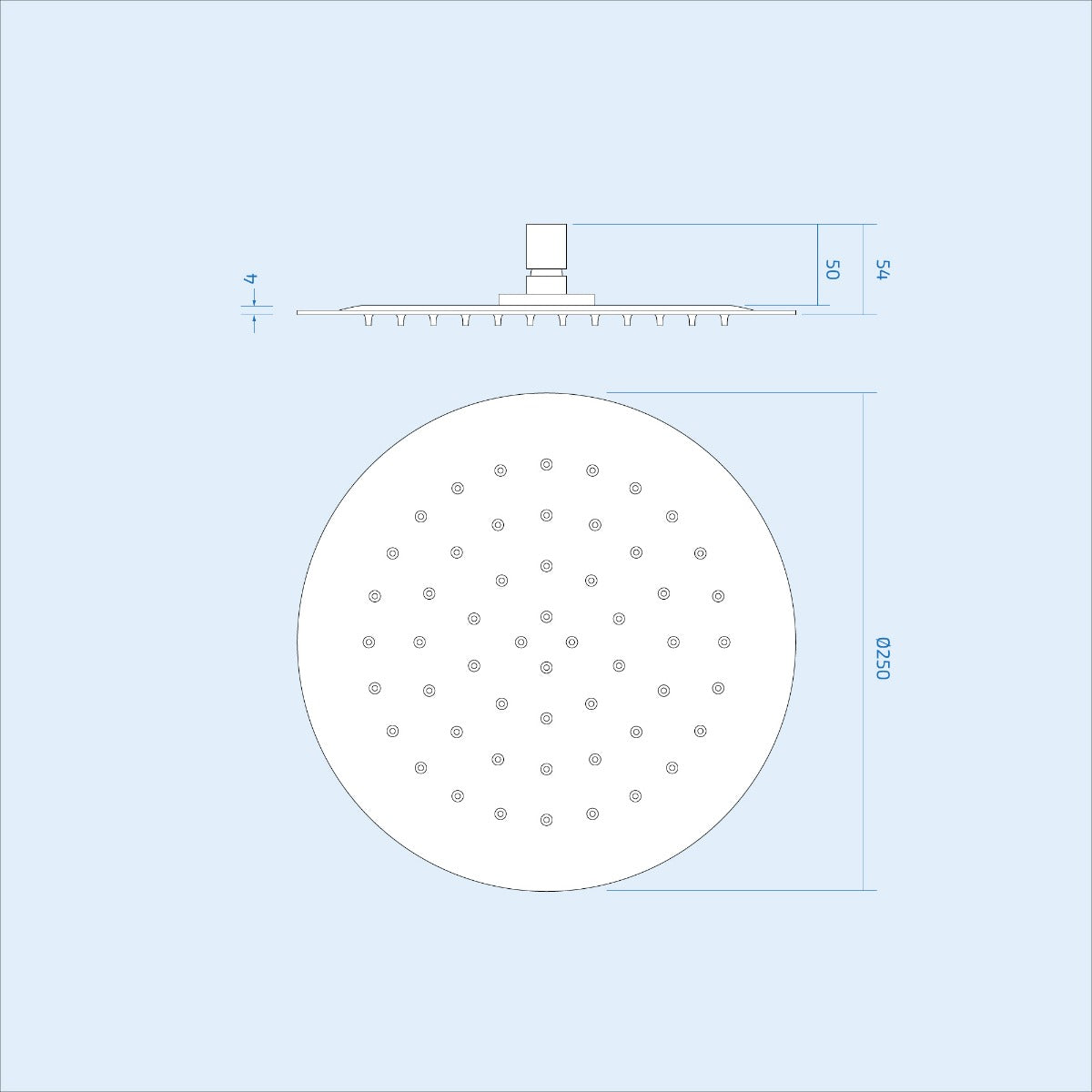

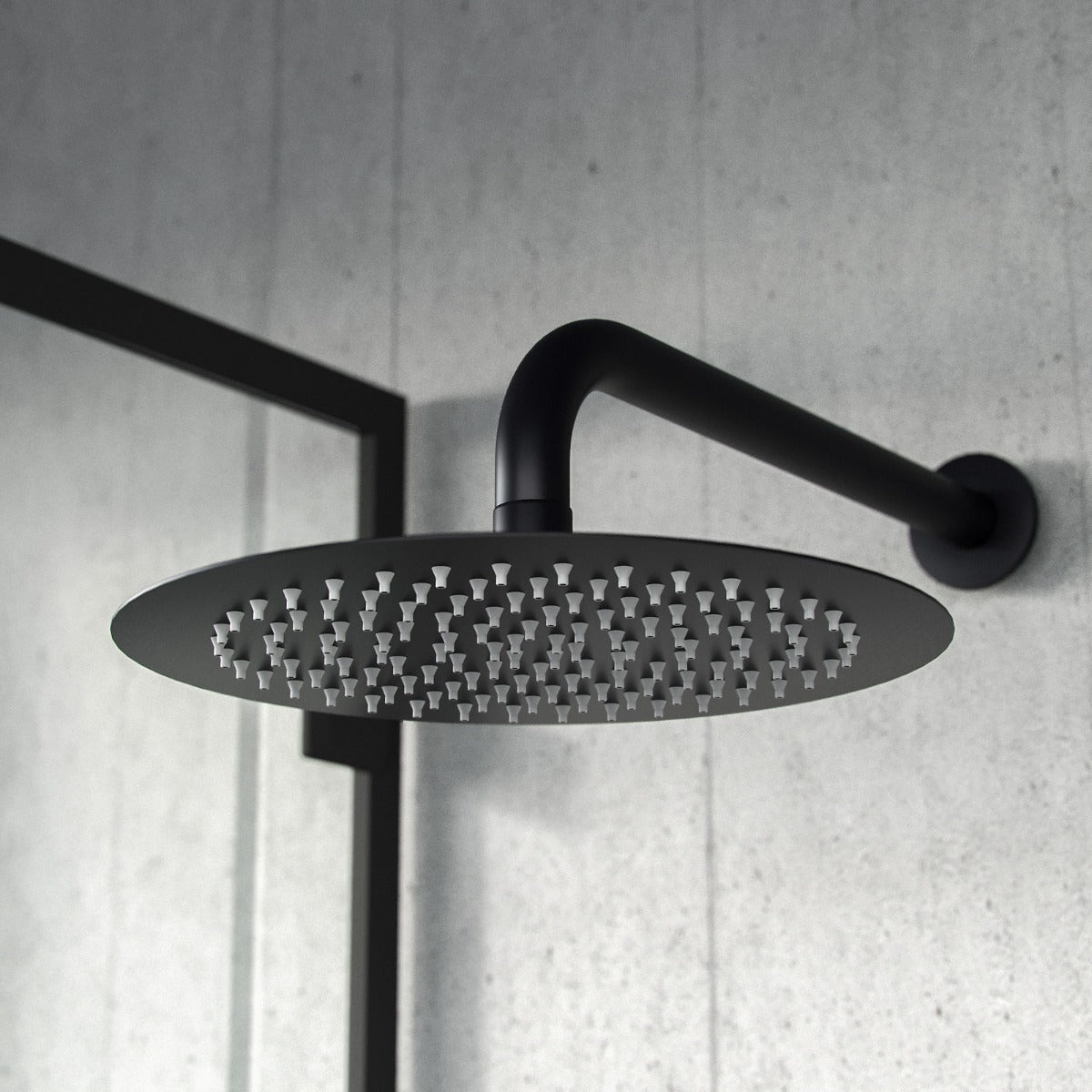

Shower Arm & Head
- Arm Length : 300mm
- Shower Head : 250mm
- Finish : Matte Black
- Single mode shower head with swivel joint
- Brass swivel elbow
- Rub clean anti scale nozzles
- UK standard size fitting
- Mount : Wall
- 40mm Thread
- 1/2" Inch Shower Head Connection

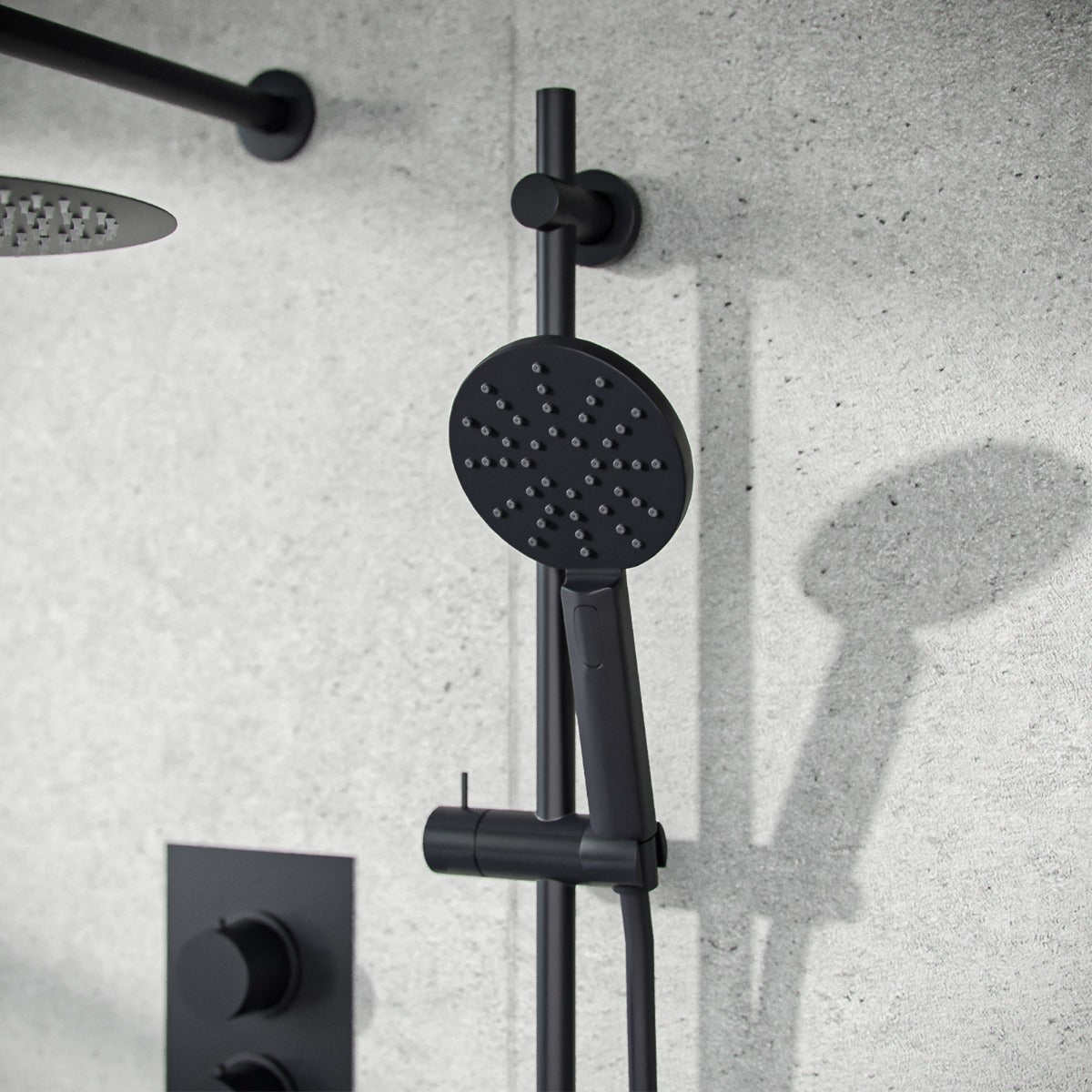

Slider Rail
- Slider Rail - 300-730mm
- Handset - 3 Mode Function
- 150cm Shower Hose
- Finish: Matte Black
- Fitting Size : Shower Hose - G 1/2" BSP
- Materials :
- Slider Rail - Brass
- Handset - ABS
- Shower Hose - PVC
Round Wall Outlet Elbow
- Wall mounted via matching wall plate
- Hose connection without handset holder
- Solid brass body construction making them durable and long lasting
- Finished in a matt black
- Safe and easy to use
- Easy to clean and install
- UK standard size fitting - 1/2" BSP outlet
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum pressure of 0.5 bar to maximum 7.0 bar

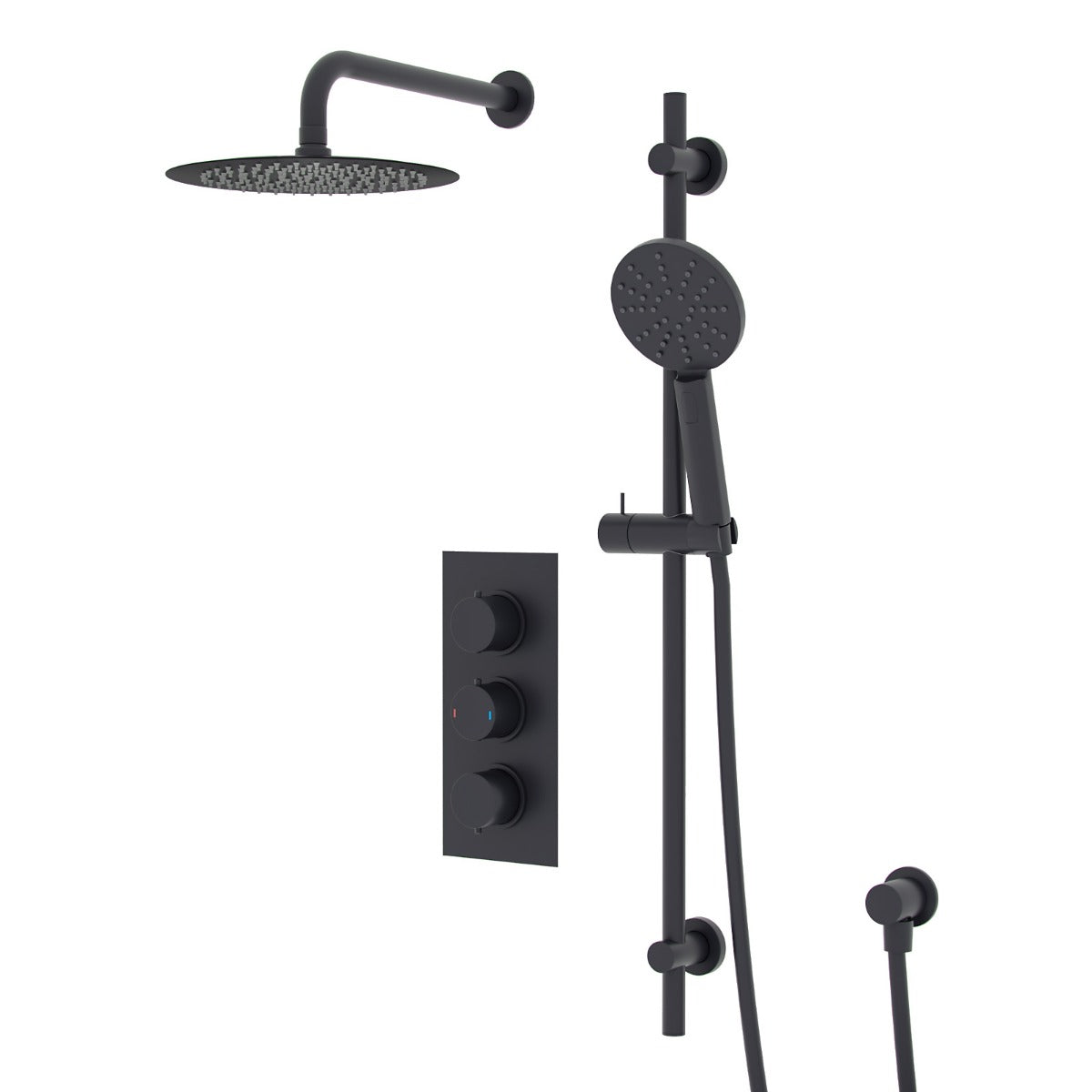

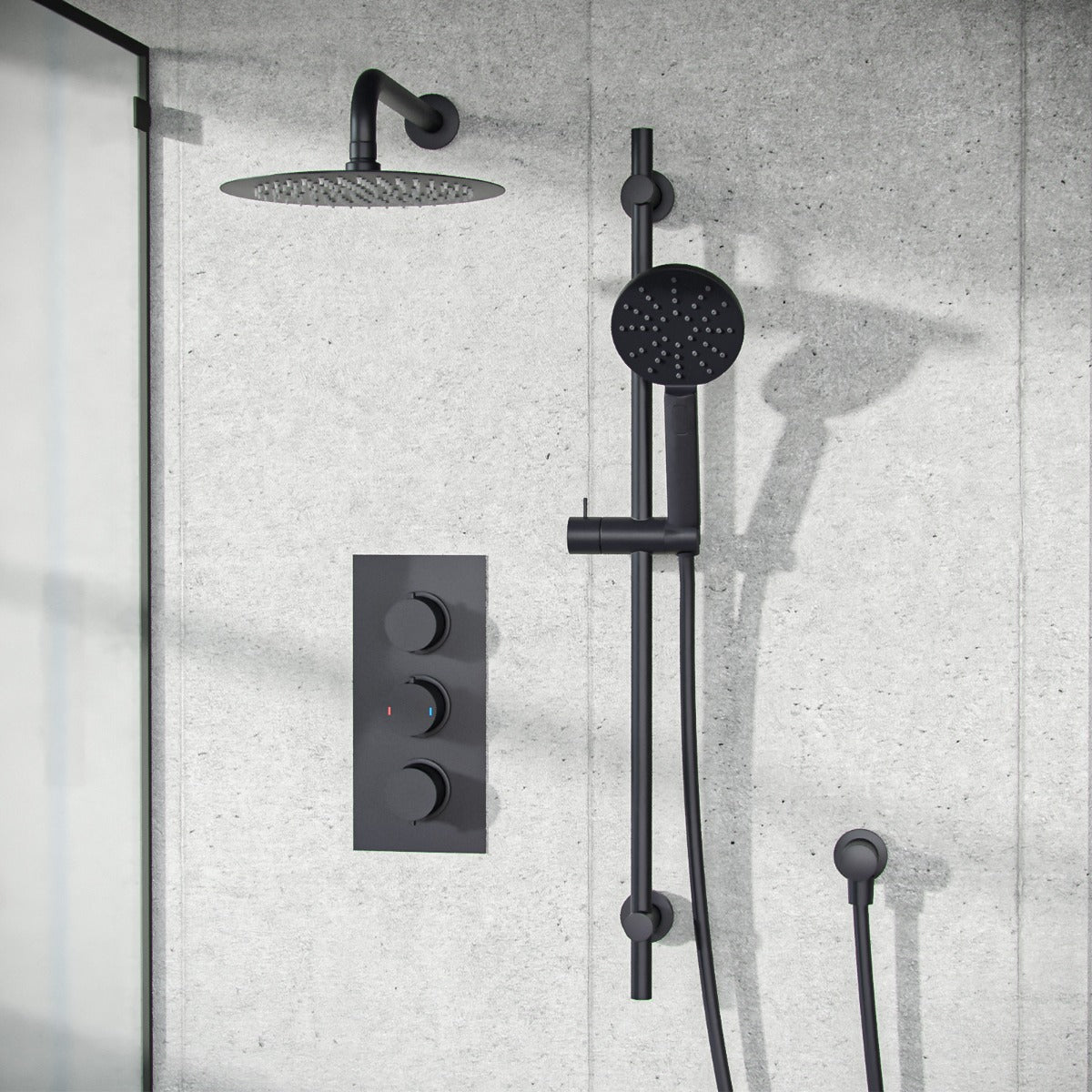

Package Contents
- Concealed Thermostatic Mixer Valve
- Shower Head
- Shower Arm
- Slider Rail
- Round Wall Outlet Elbow
