Description

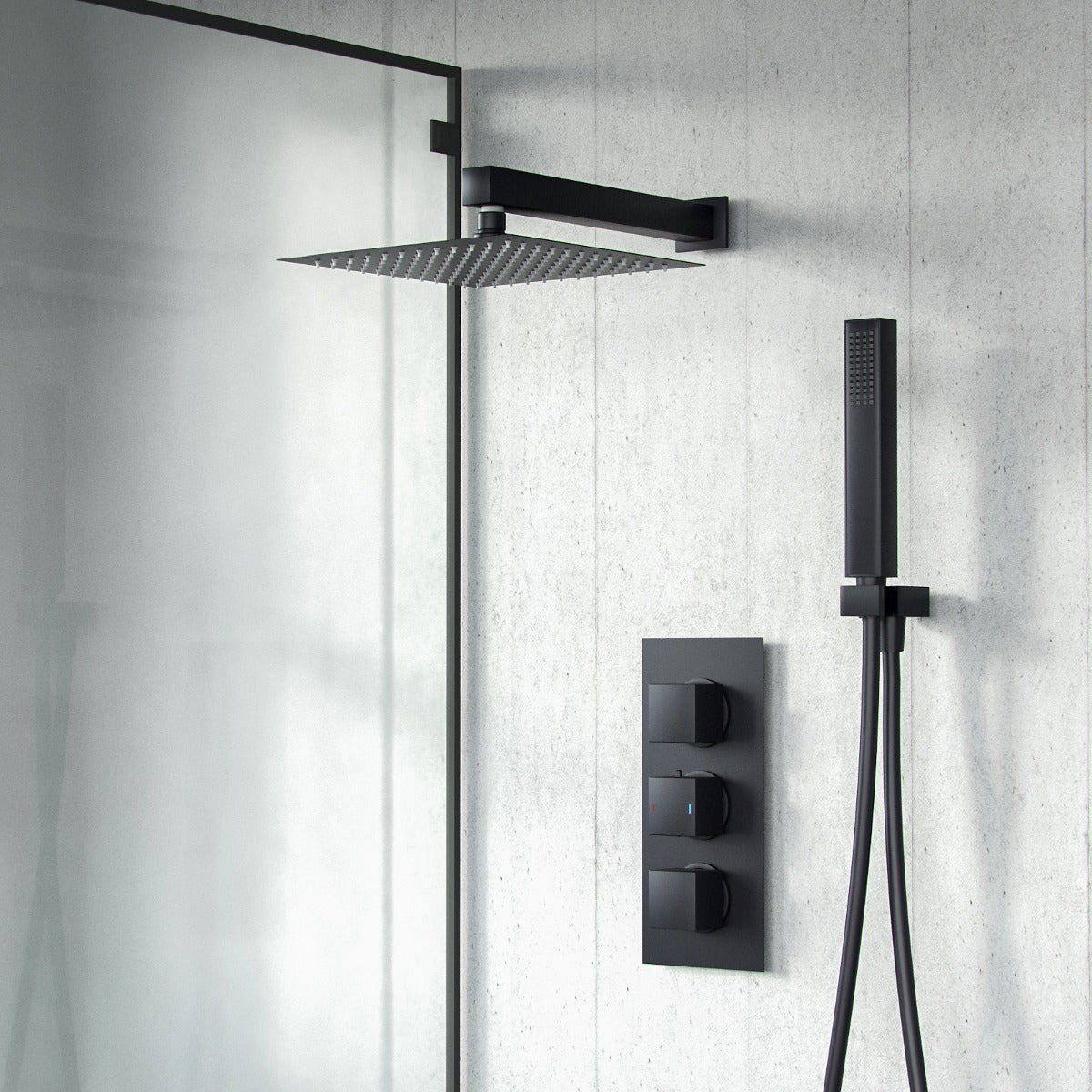

The mixer valve mounts onto the wall, making your shower look less cluttered and bulky. The slim rectangular backplate neatly conceals all pipework, adding an exceptionally sleek finish.
Featuring classic round dials, the mixer valve supplies water to 2 outlet diverters and is finished in stunning matte black, helping your shower maintain its premium look for longer.
Key Features
- The thermostatic showering can be accessed via the 3 dial 2-way easy-to-operate controls
- Separate controls for temperature and flow, giving you full temperature control
- A coordinating fixed wall-mounted overhead shower with a swivel joint and arm for ease of use, supplied complete with the mixer valve
Specifications

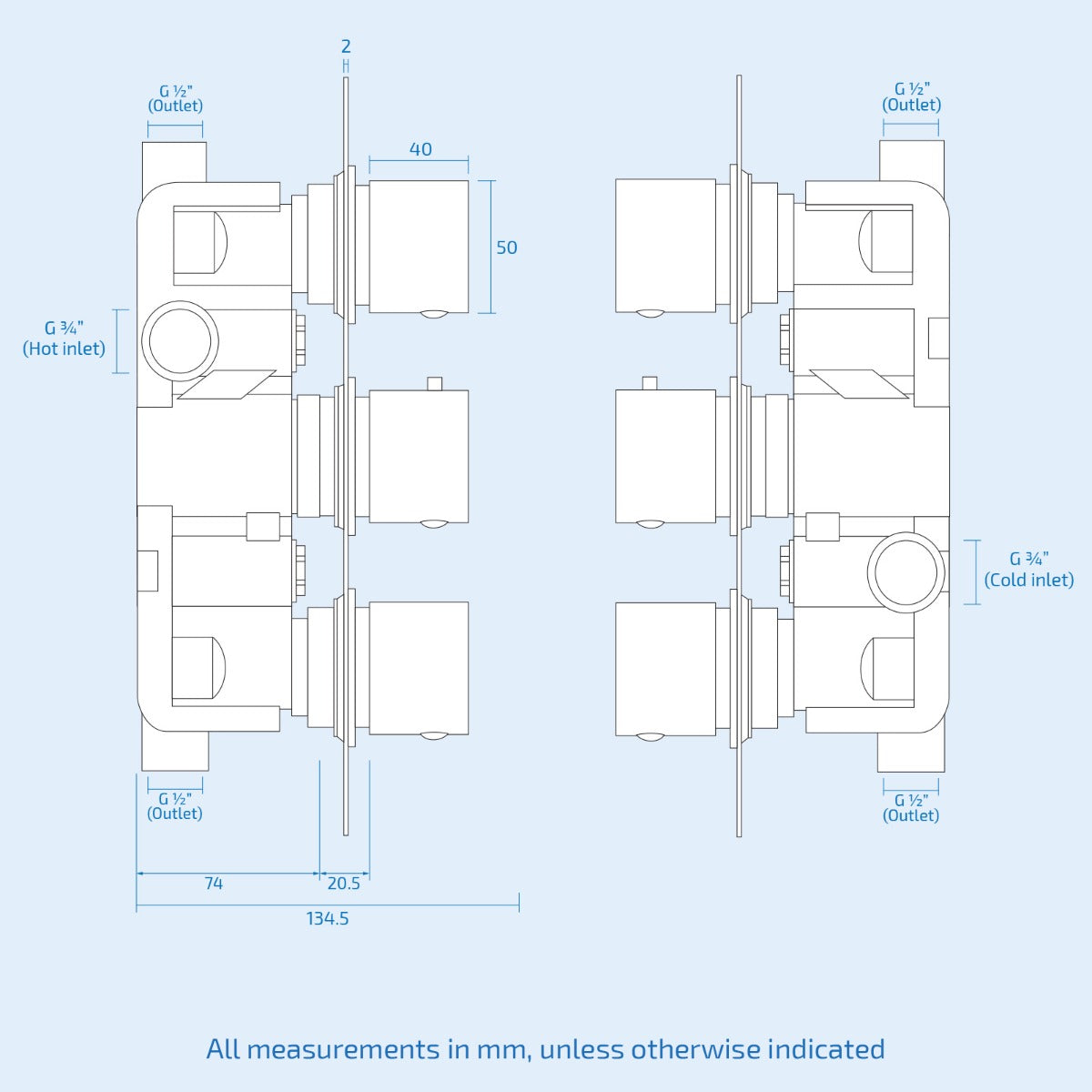

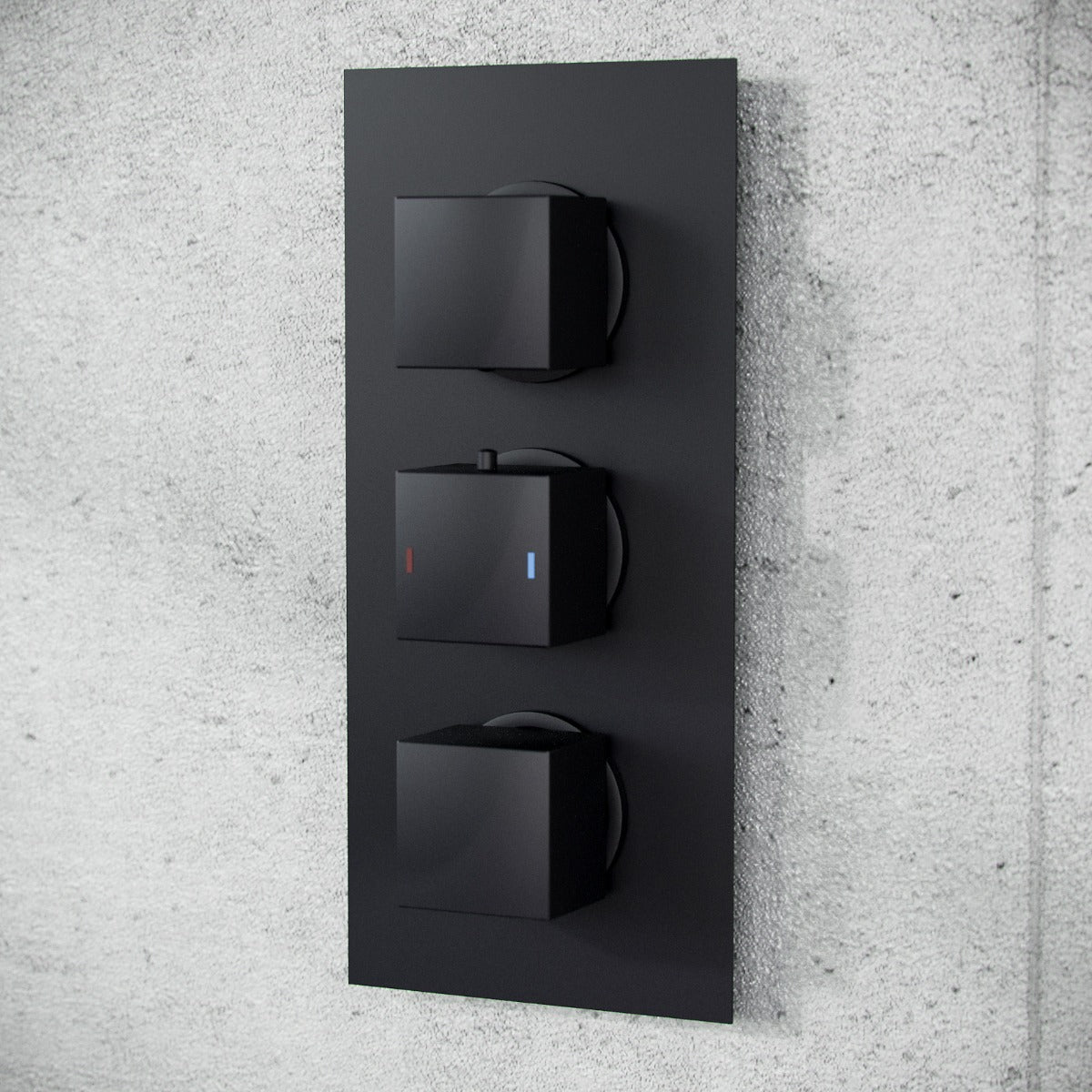

Thermostatic Valve
- Top dial: controls water to 2 outlet diverter
- Middle dial: on and off control
- Bottom dial: temperature control

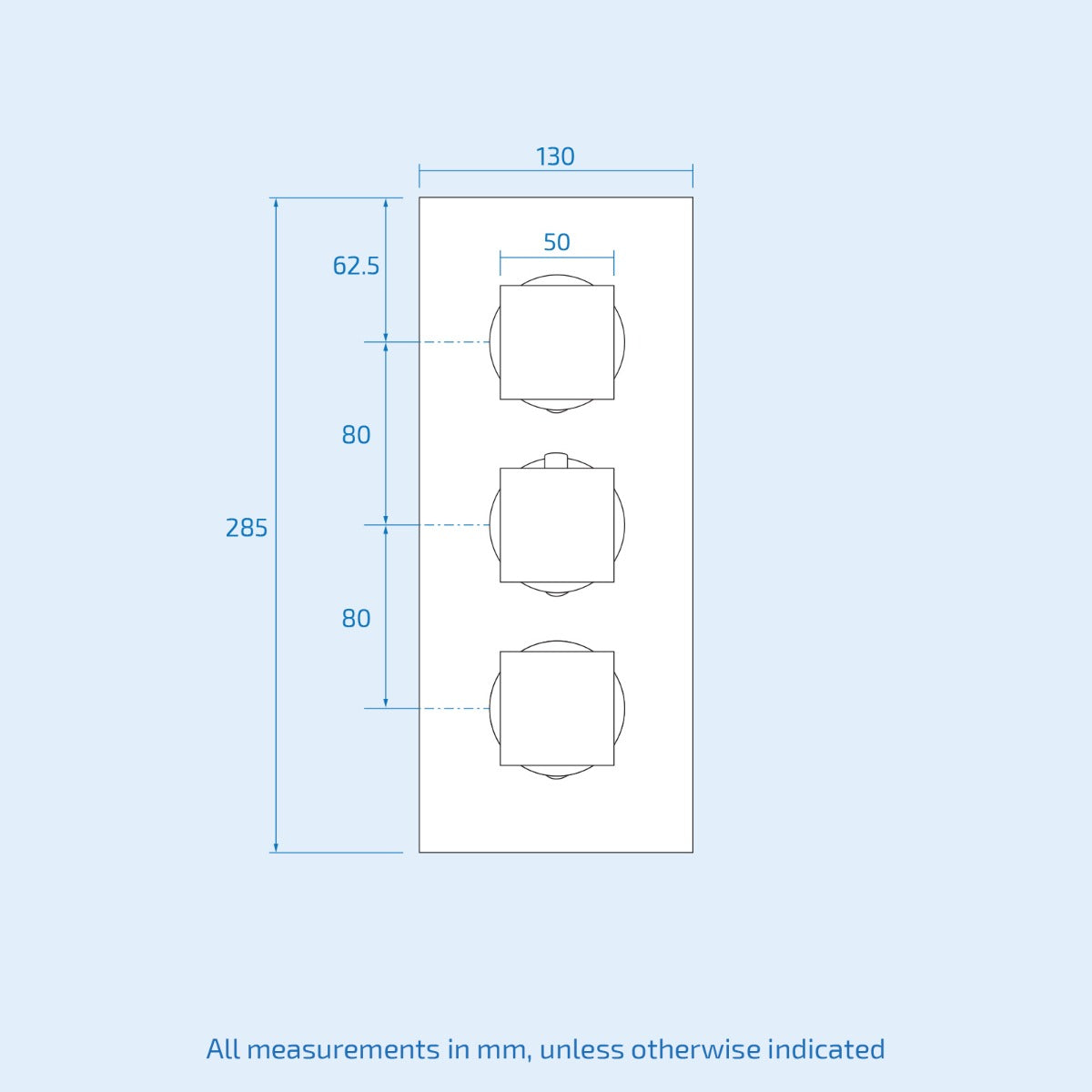

- Height: 285mm
- Width: 130mm
- Depth: 134.5mm
- Manufactured from highly durable solid brass
- Finished in chrome, ensuring a high-quality reflective mirror finish
- Tarnish and corrosion resistant
- Operating range 20–50°C, with 38°C safety button
- Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature maintained within +/-1°C
- Pre-set maximum temperature
- Automatic shut off in the event of cold water supply failure
- UK standard size fitting

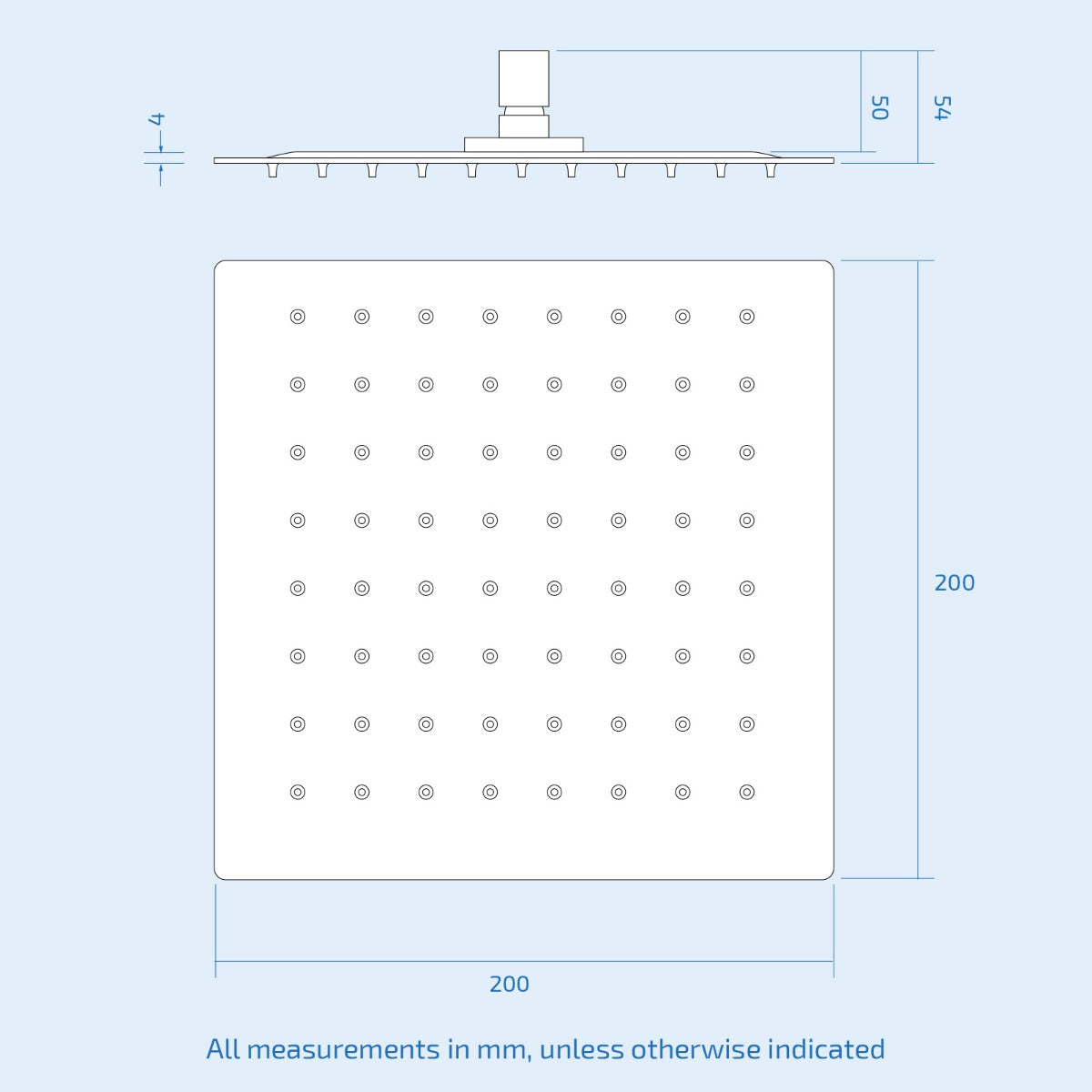

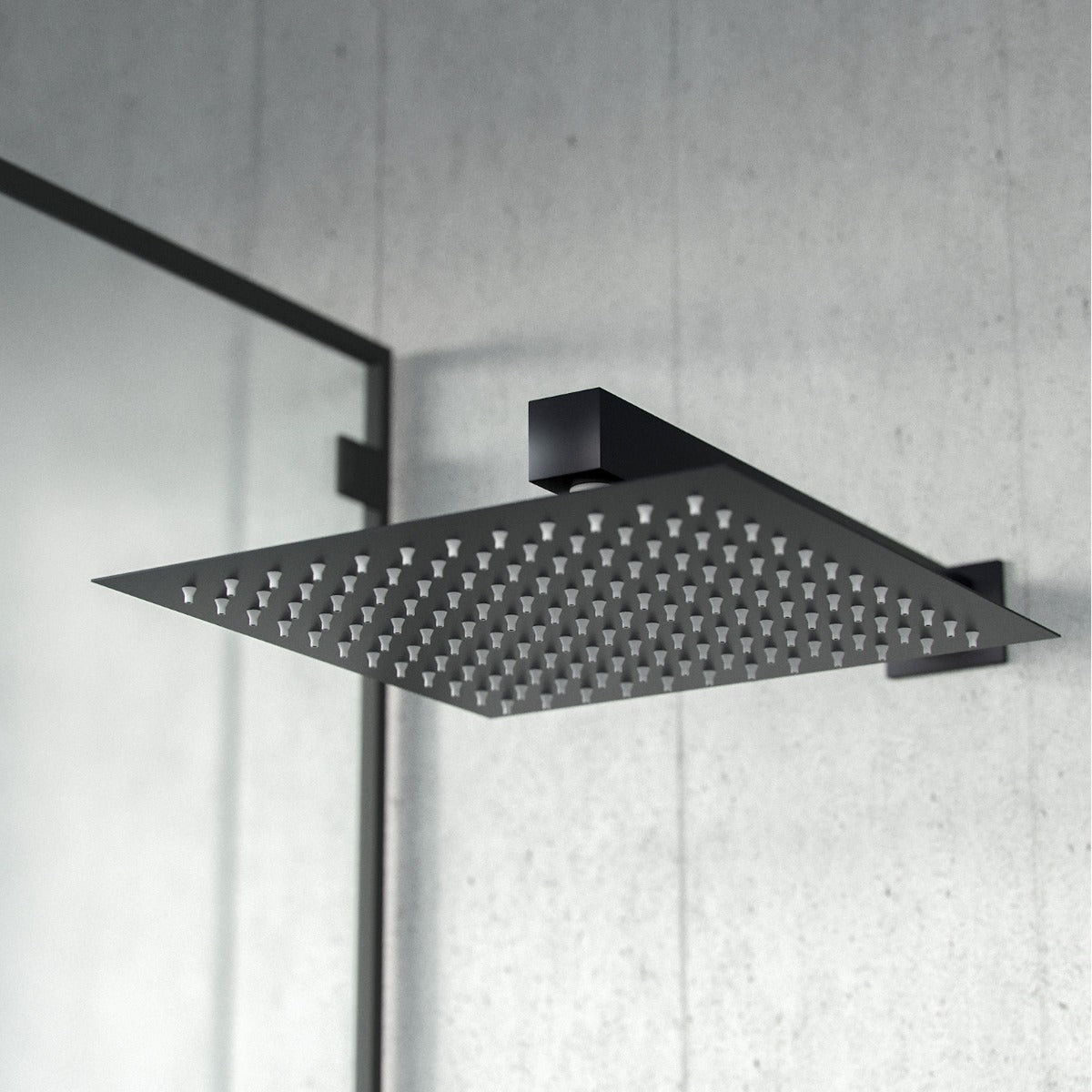

Shower Head & Arm
- Solid brass square ultra-thin shower head
- Large 200mm shower head
- Height: 54mm
- Width: 200mm
- Depth: 200mm
- 4mm thin shower head

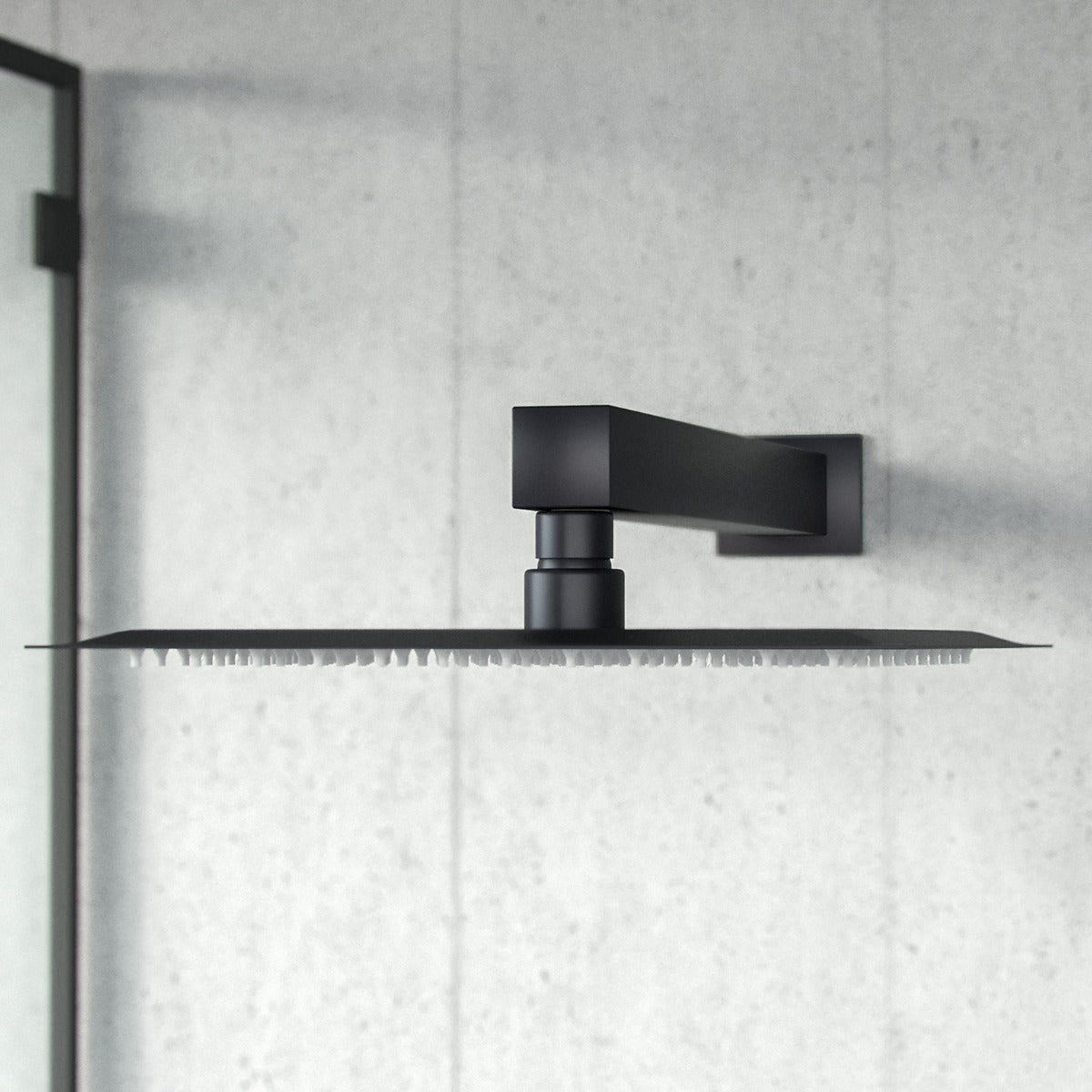

- Swivel connection allowing tilt up to 15°

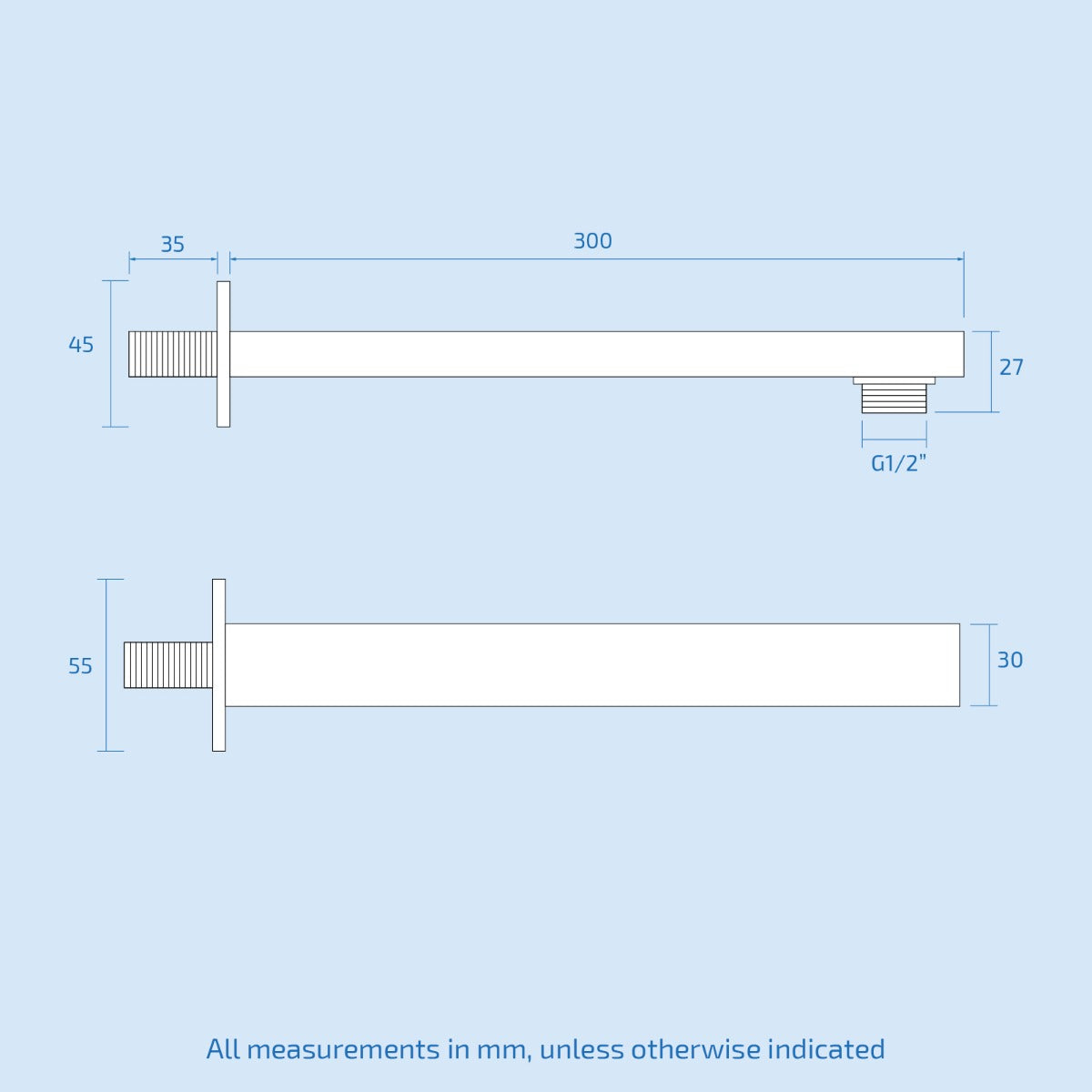

- Solid brass square wall mounting arm
- Neoprene outlets offer easy-clean functionality
- Subject to a minimum of 1.0 bar water pressure
Suitable Water Systems
- Combi boilers
- Gravity-fed systems
- Megaflow systems
- Pumped systems
- Unvented systems
- Pressurised cylinder systems
- Minimum required pressure: 1.0 bar

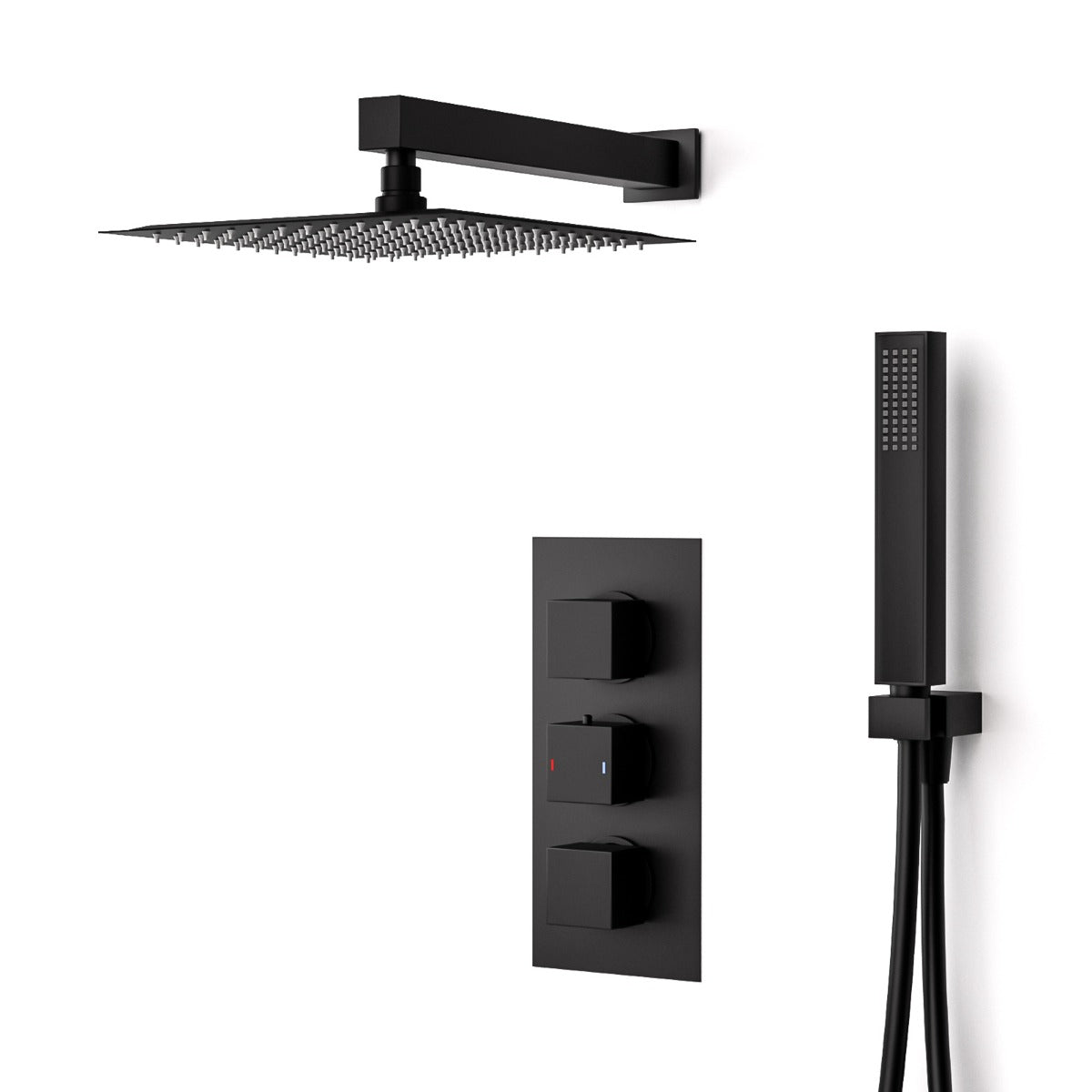

Package Contents
- 1 x Thermostatic shower valve
- 1 x Slim shower head

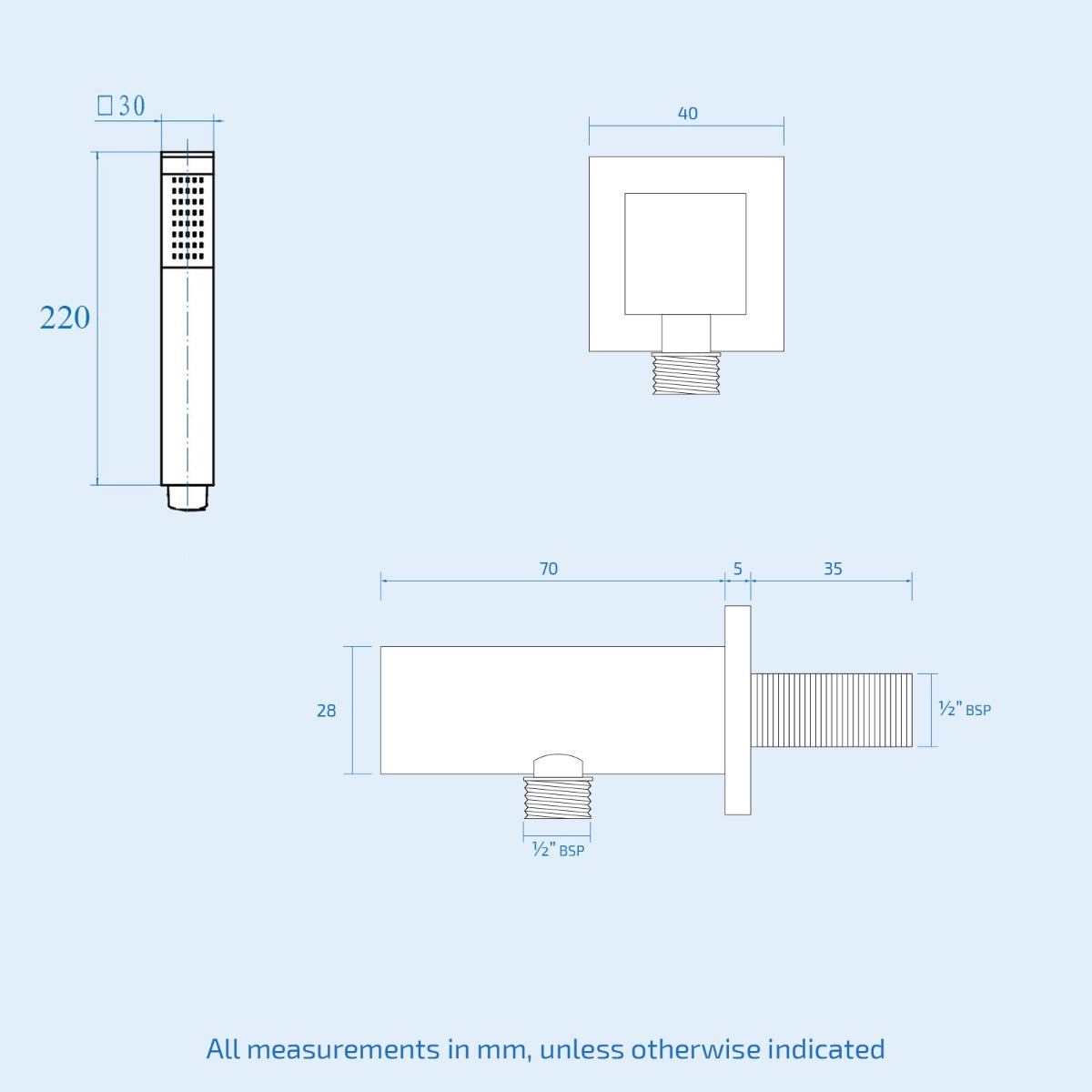

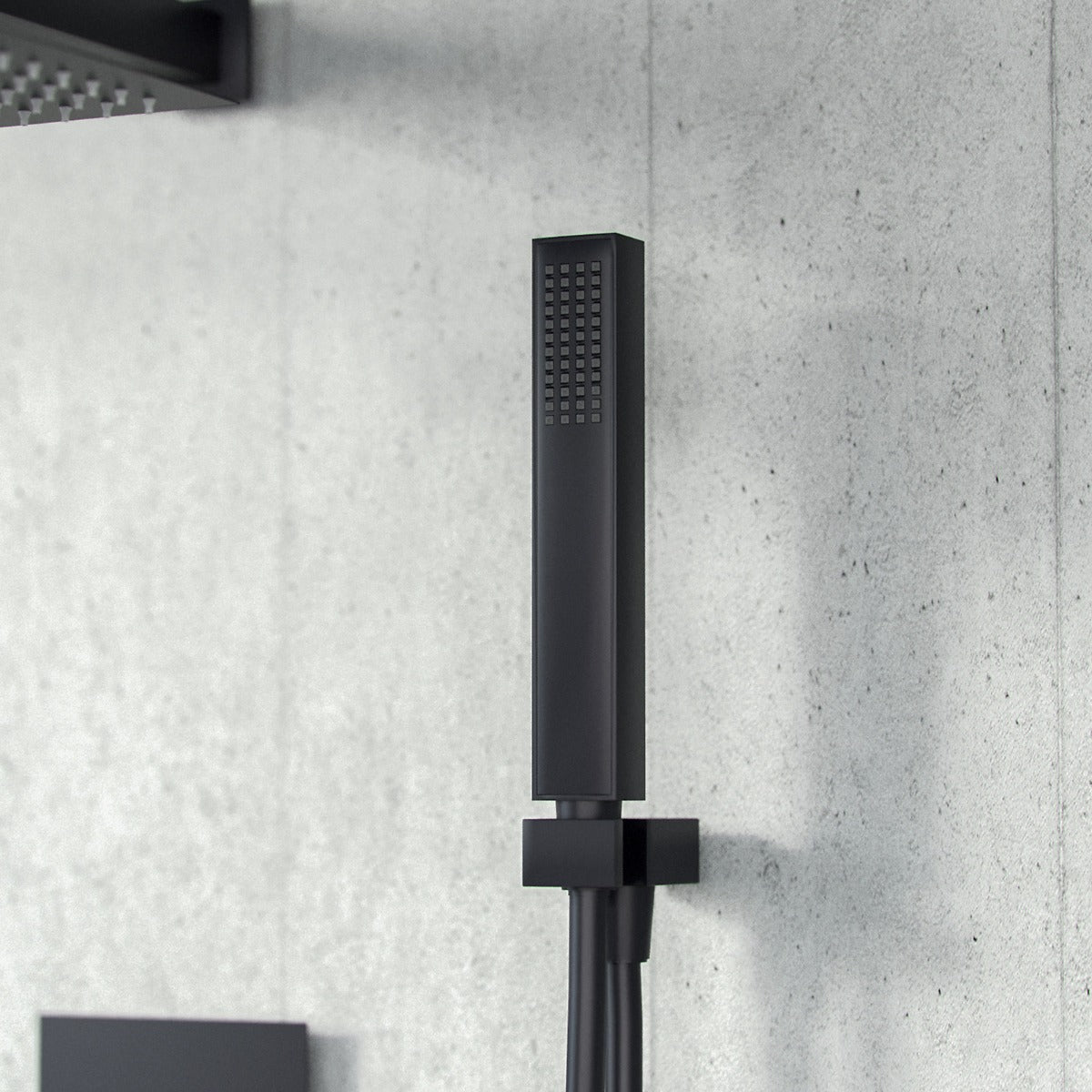

- 1 x Shower handset
- 1 x Shower arm
- 1 x Wall connector and brackets
