Description

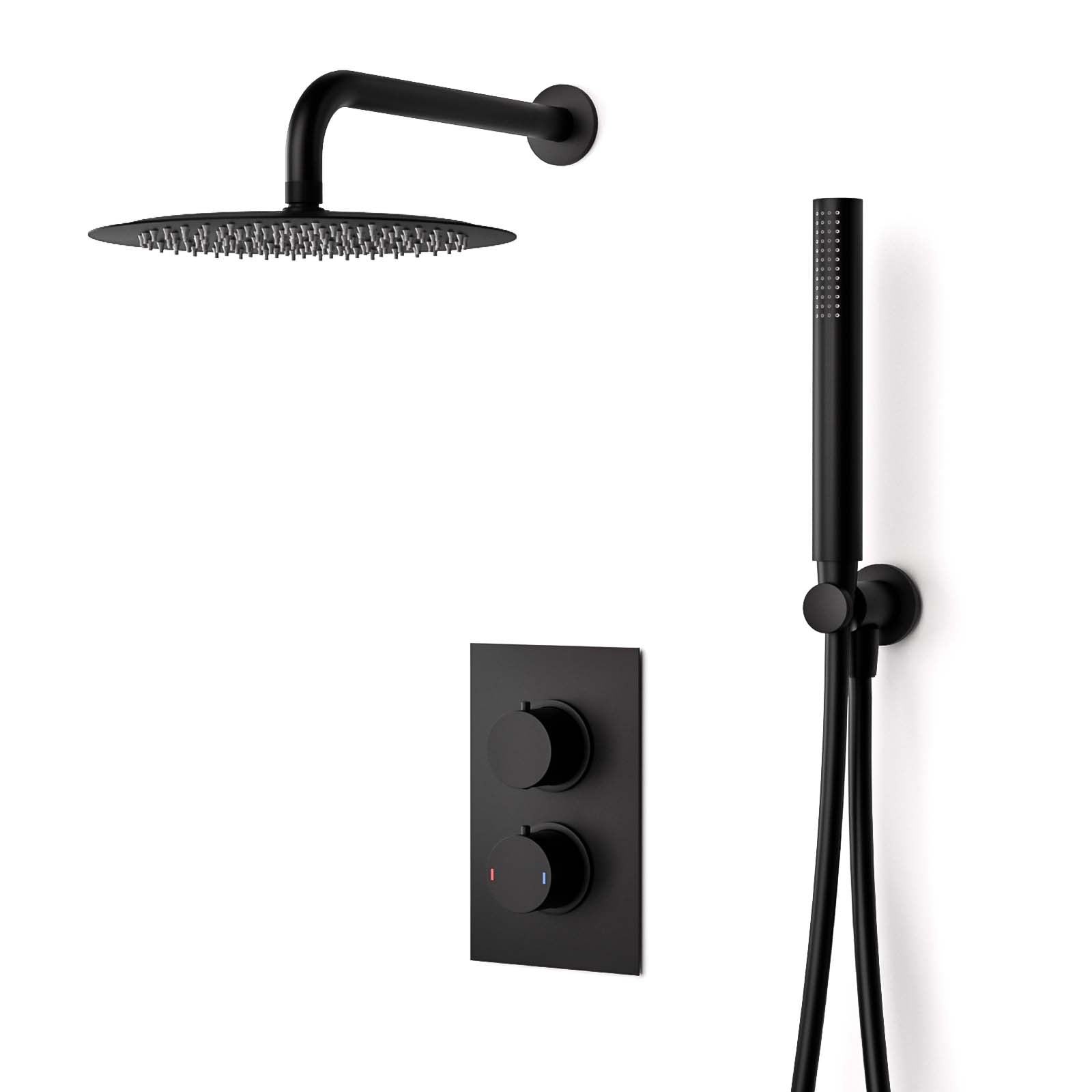

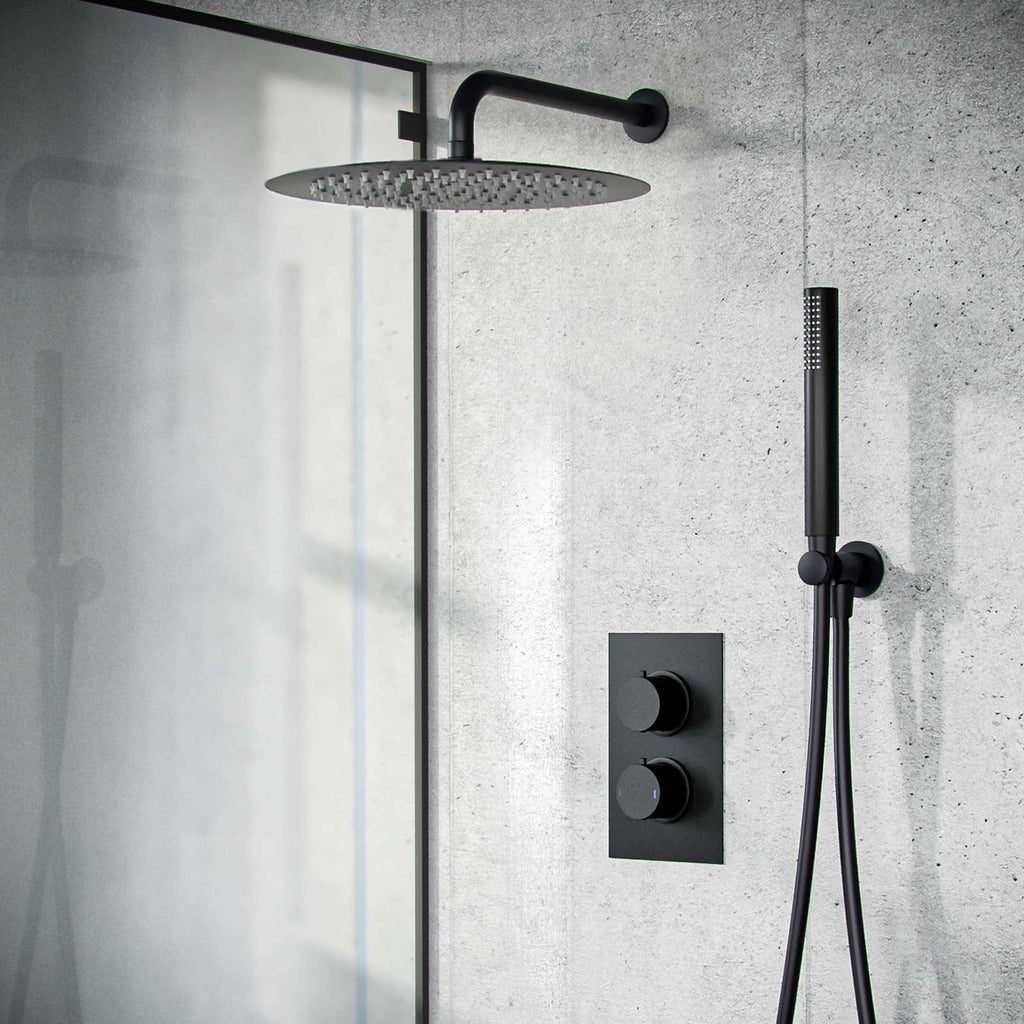

This stunning matt black slim round concealed thermostatic mixer valve shower set is a perfect addition to any modern designer bathroom. The concealed shower valve has two easy controls, for temperature and flow. The valve body comes with a contemporary square face plate.
Key Features
- Black matte finish
- Durable and solid brass construction
- Top Dial - controls water to 2 outlet diverter
- Bottom Dial - temperature control
- Slim Shower Head Design
Specifications

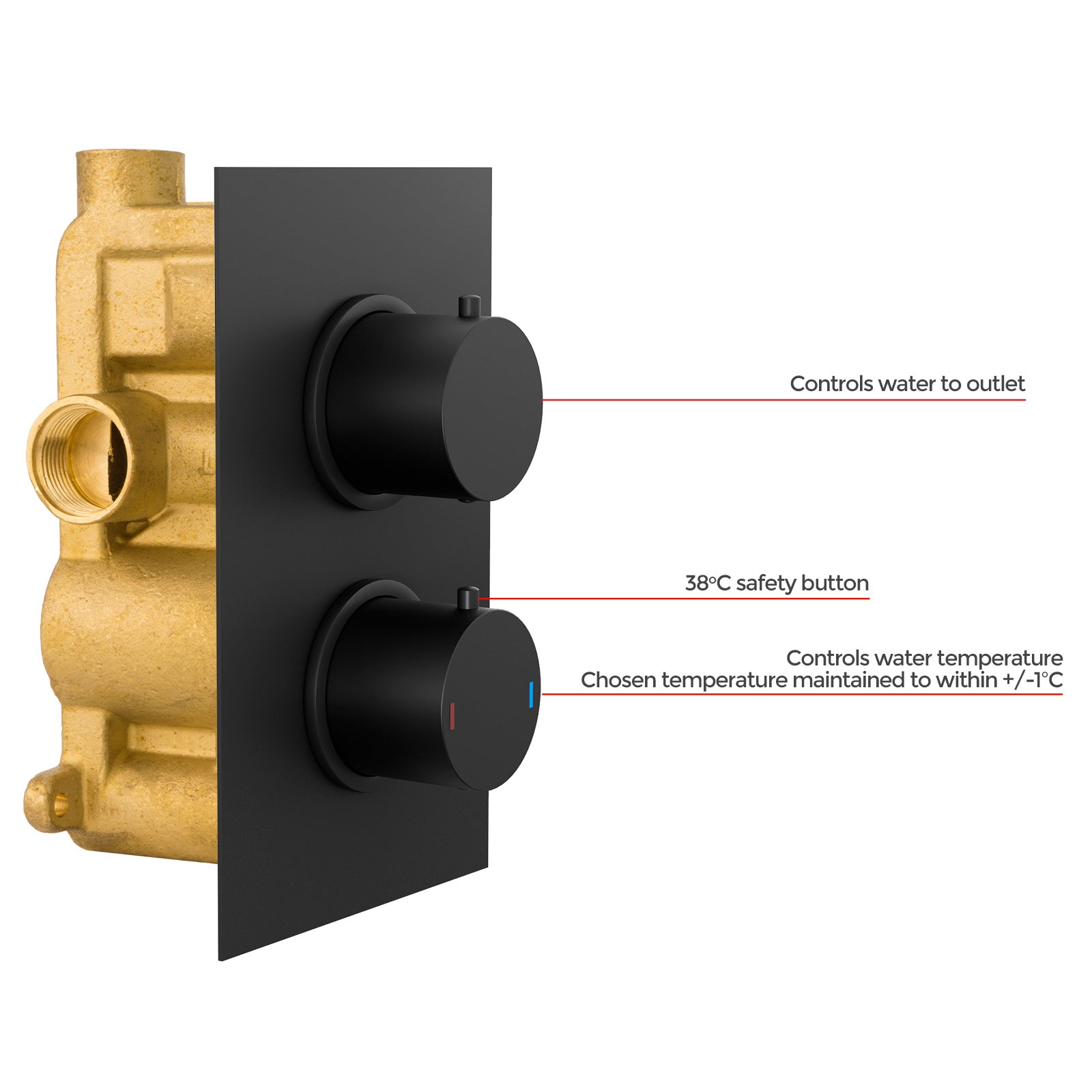

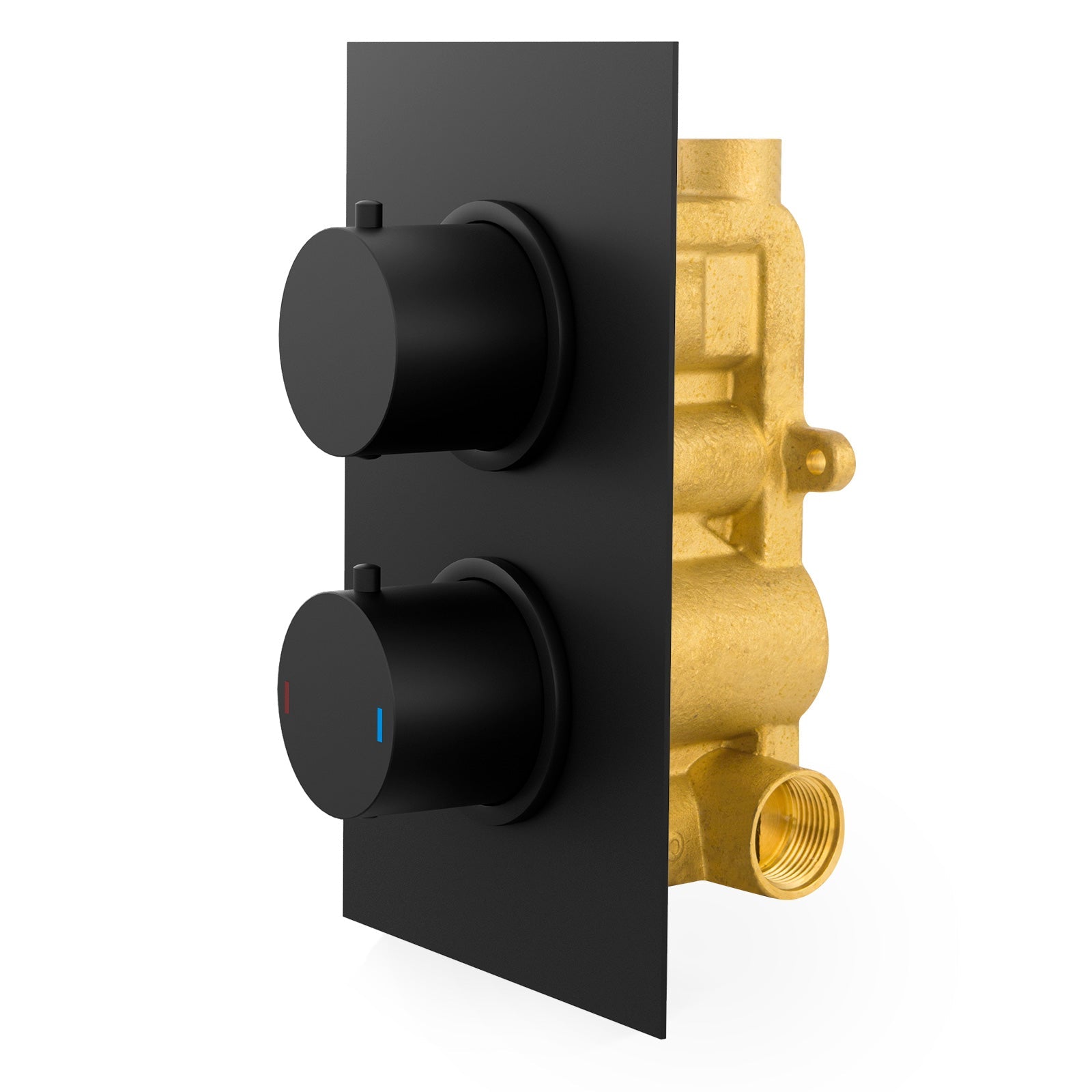

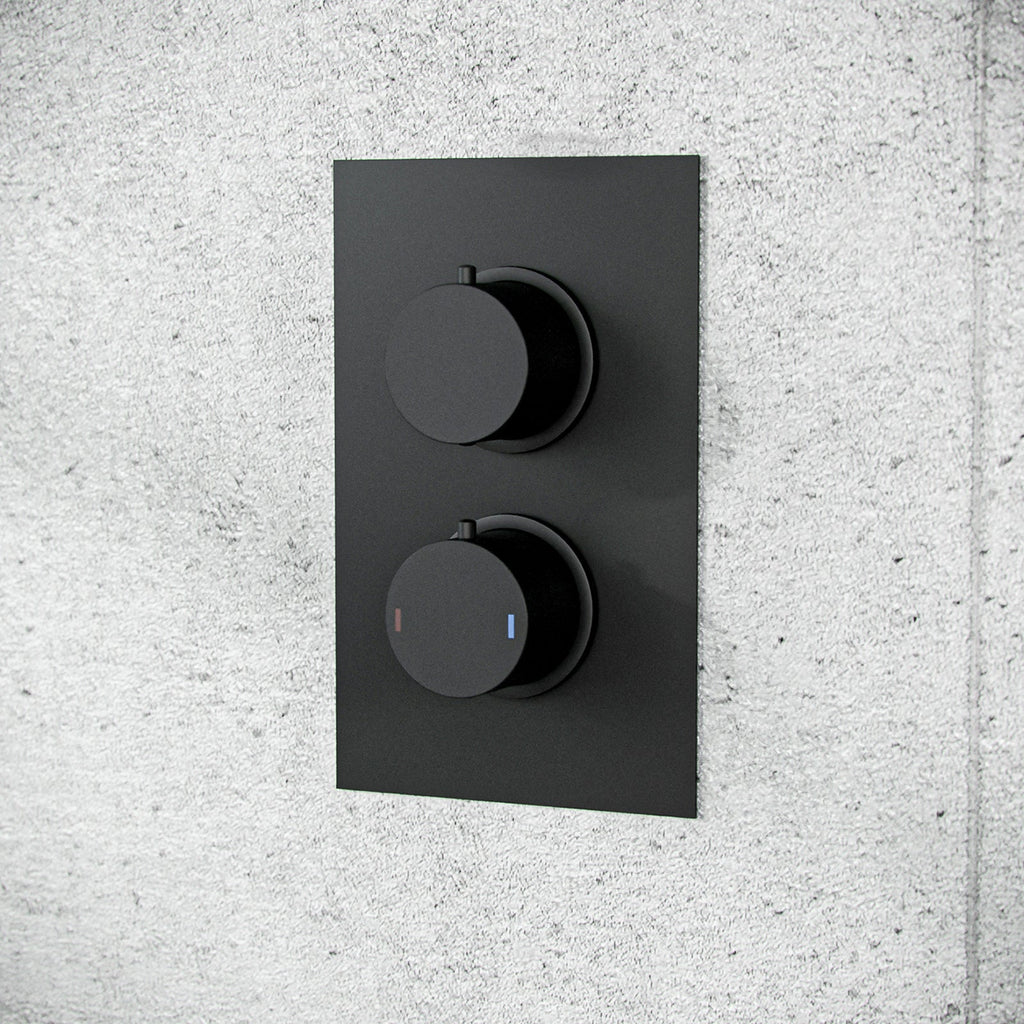

Concealed Thermostatic Mixer Valve
- Height: 210mm
- Width: 130mm
- Dial Depth: 40mm
- Finish: Matte Black
- Thermostatically controlled
- Operating range 20 - 50 deg C with 38 deg C safety button
- Chosen temperature maintained to within +/-1ºC.
- Automatic shut off in event of water cold supply failure
- UK standard size fitting, Inlet 3/4", Outlet 3/4"

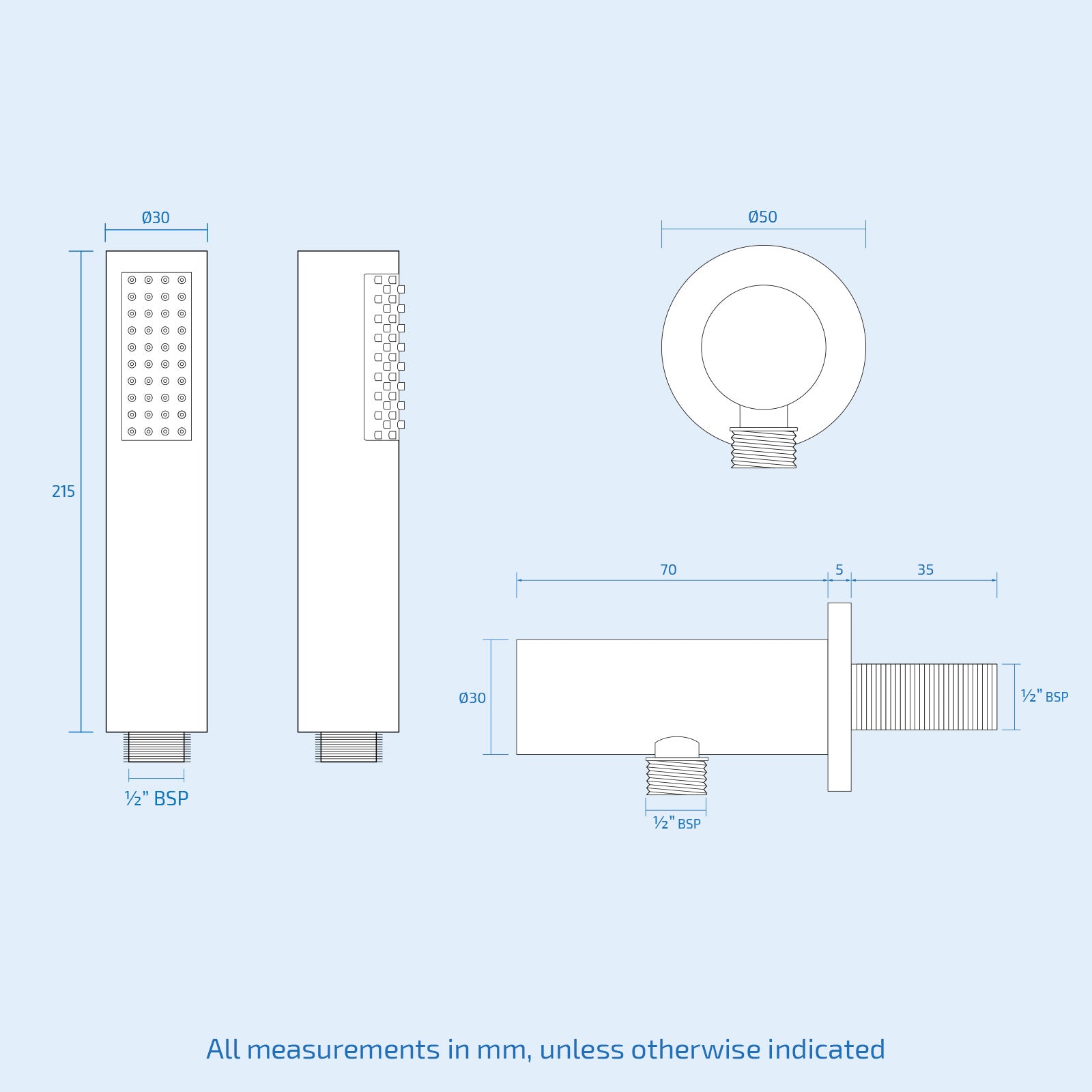

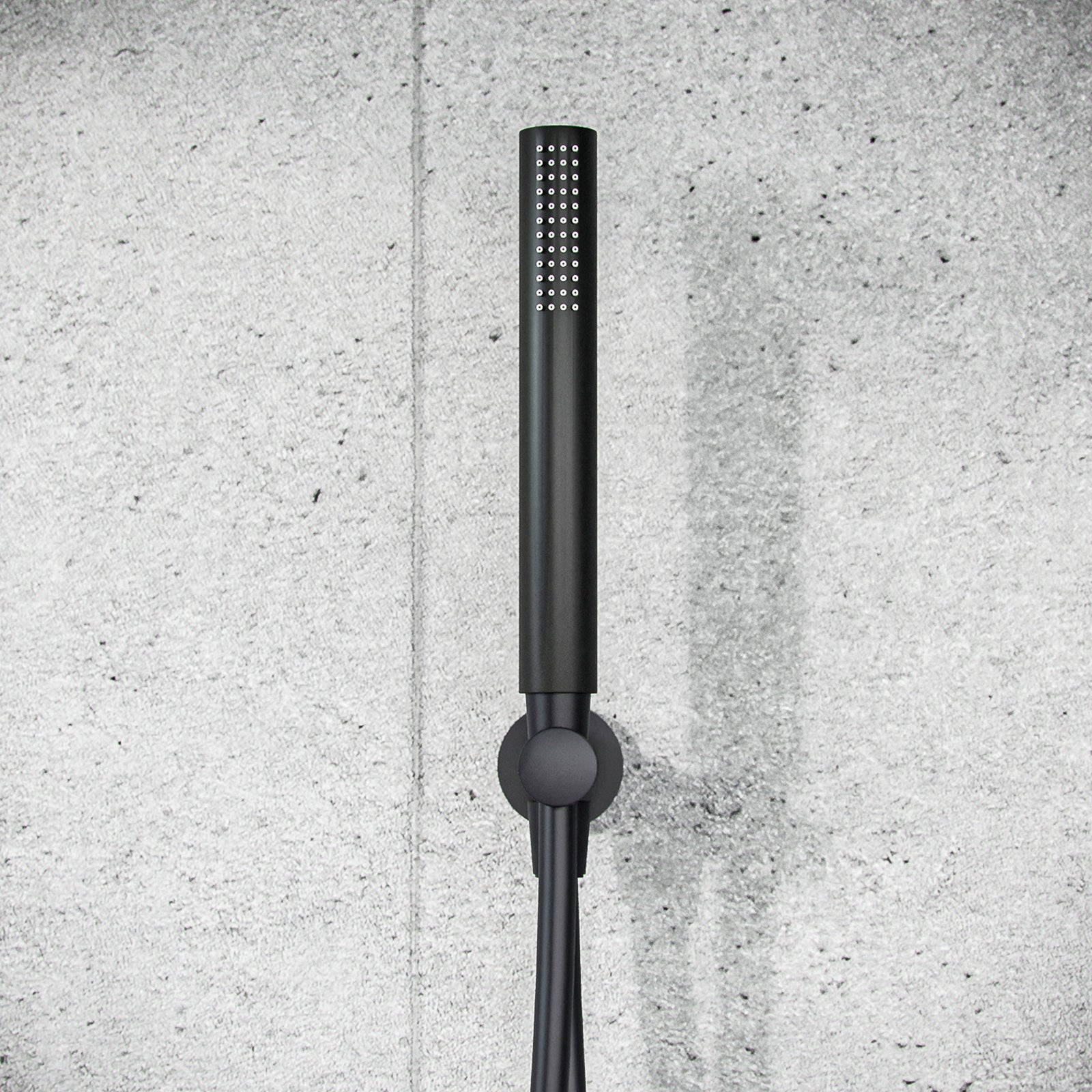

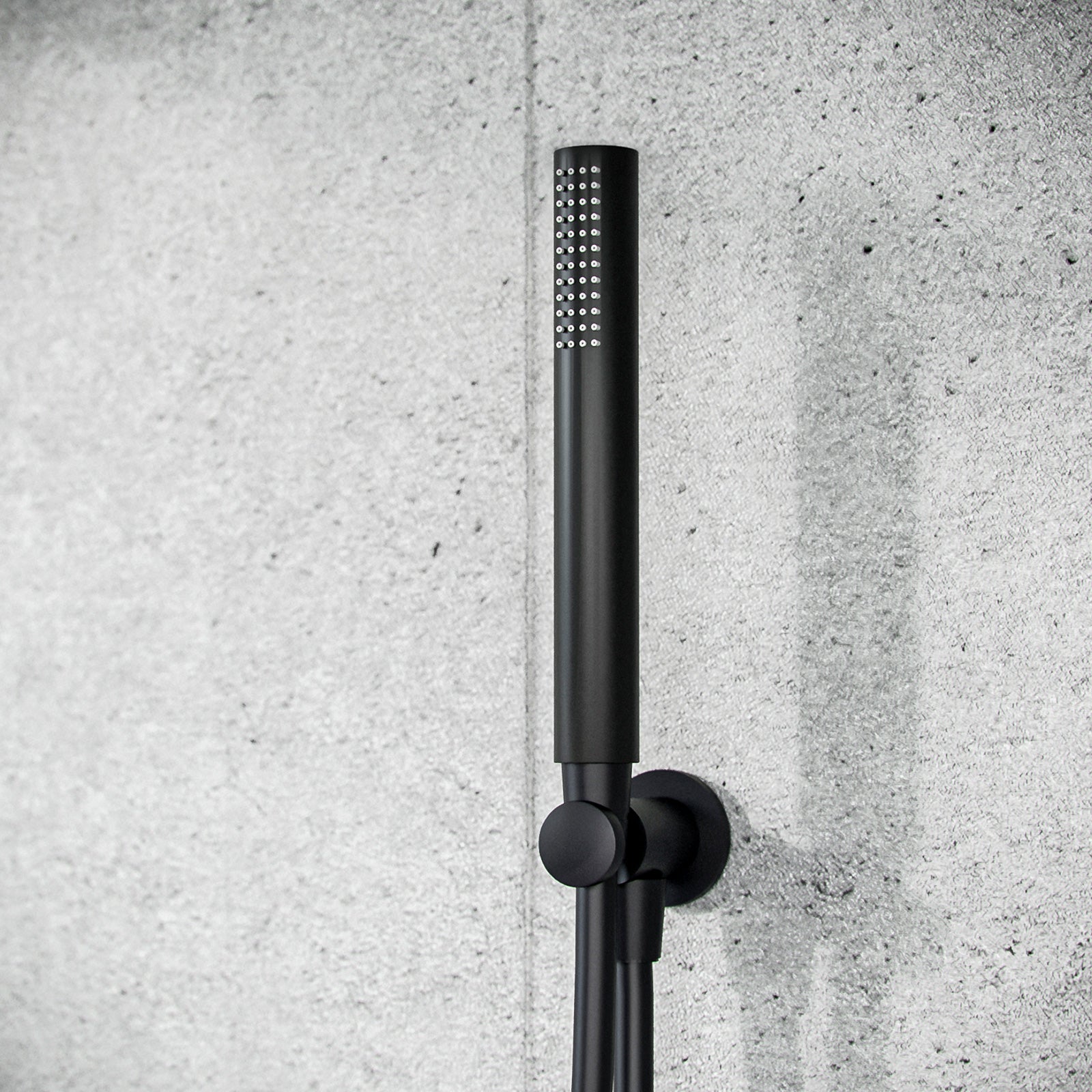

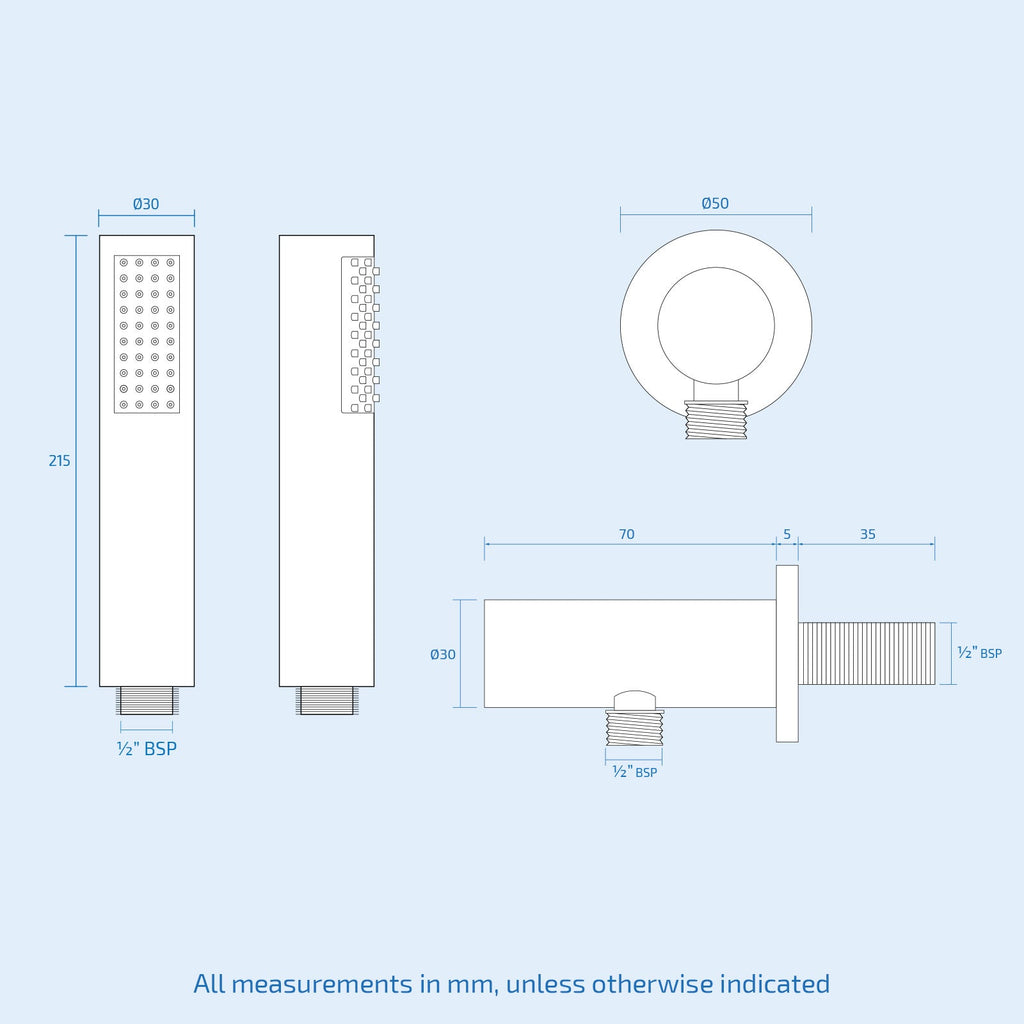

Handset
- Modern matt black style
- 1.5m long flexible PVC shower hose
- Conical end piece to slot into riser and connect to shower handset
- Nut end piece to connect to shower/bracket
- Bracket - durable solid brass construction
- Handset - ABS plastic
- UK standard size fitting

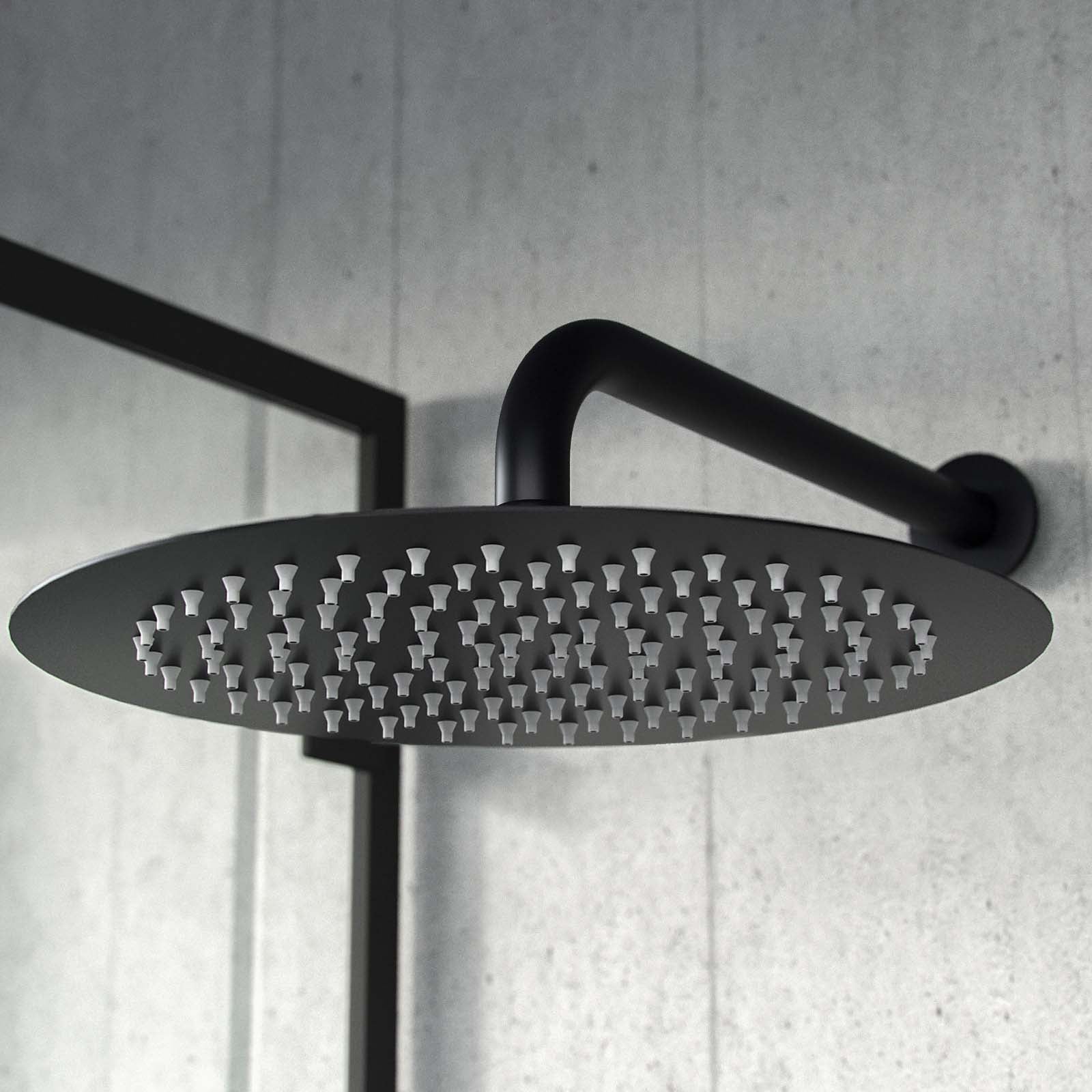

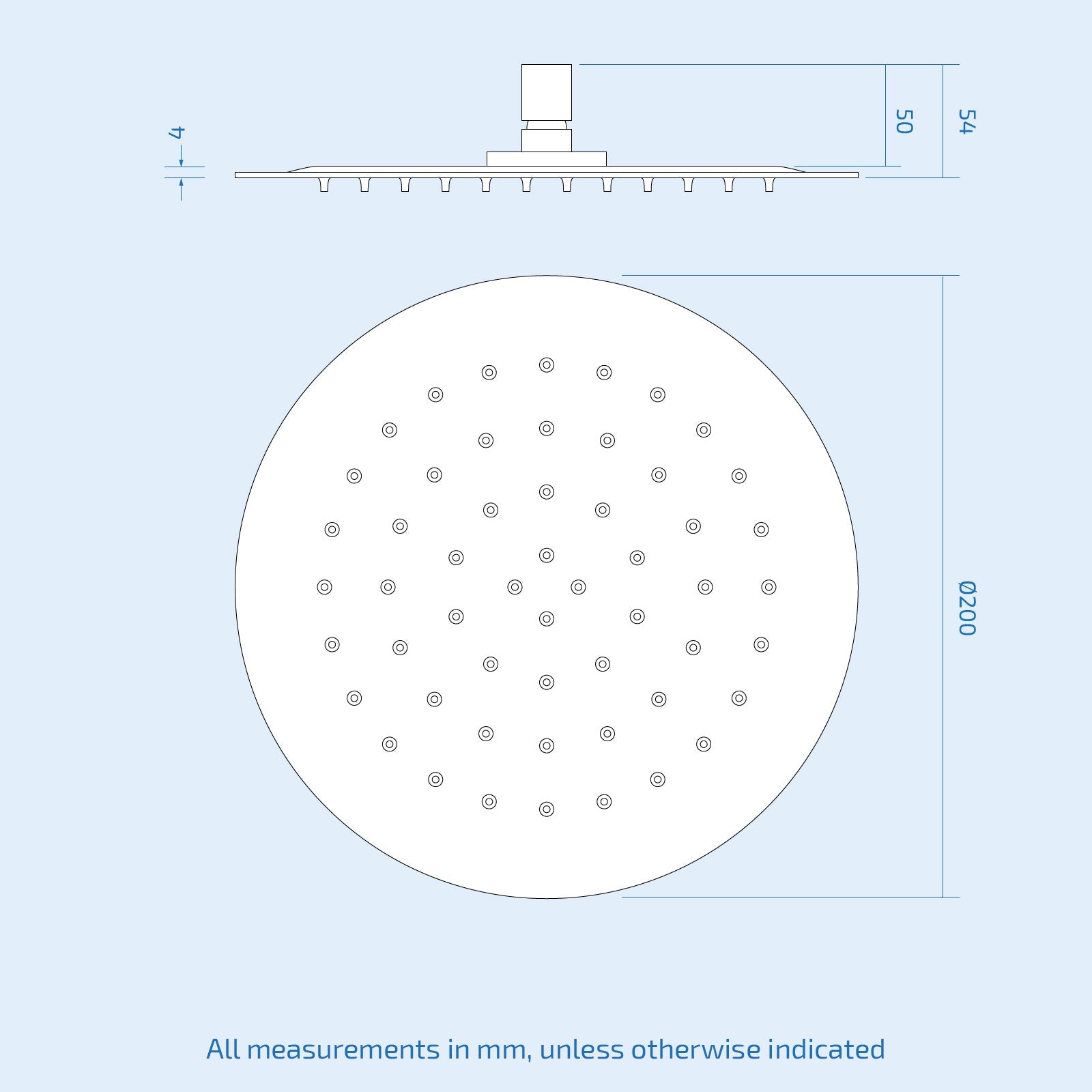

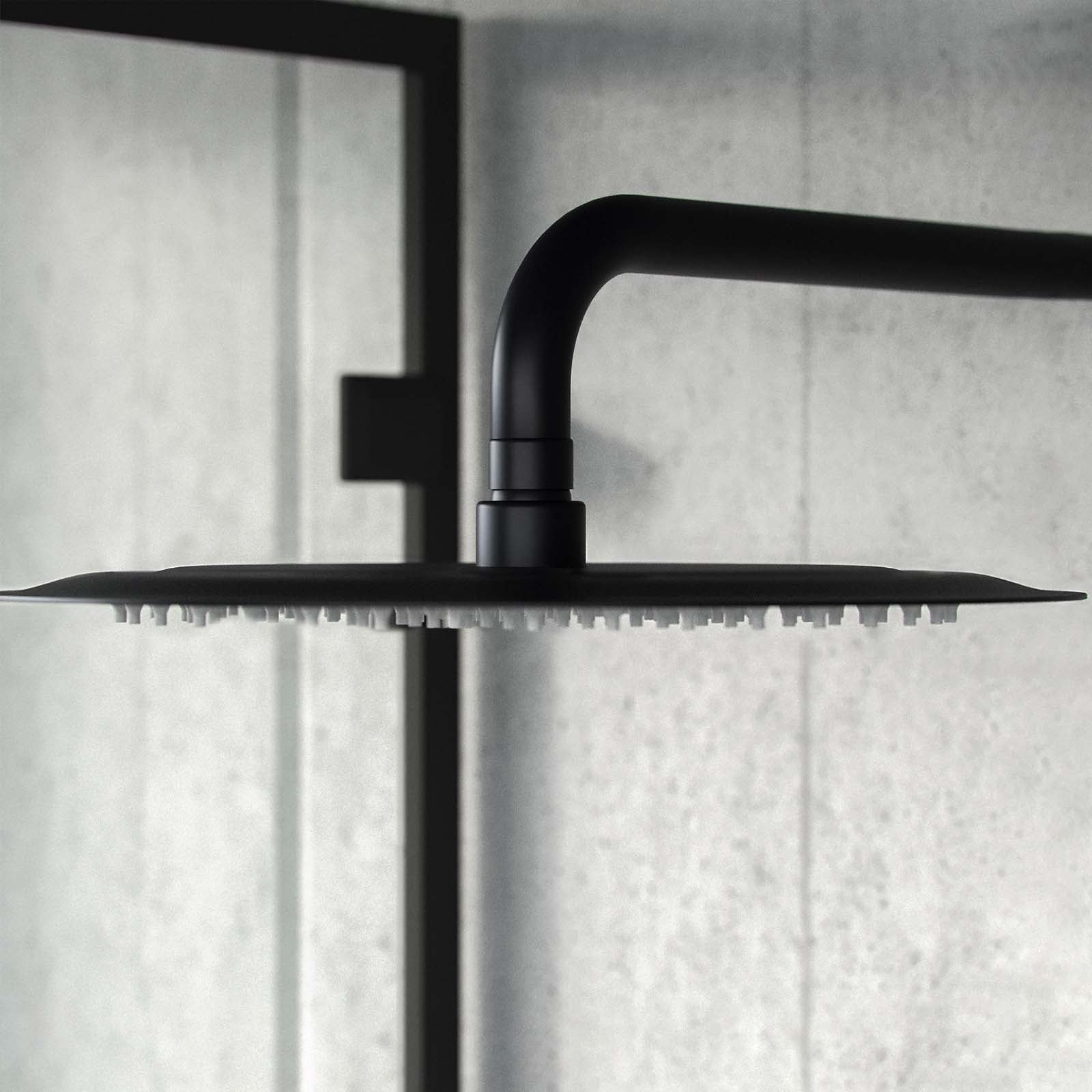

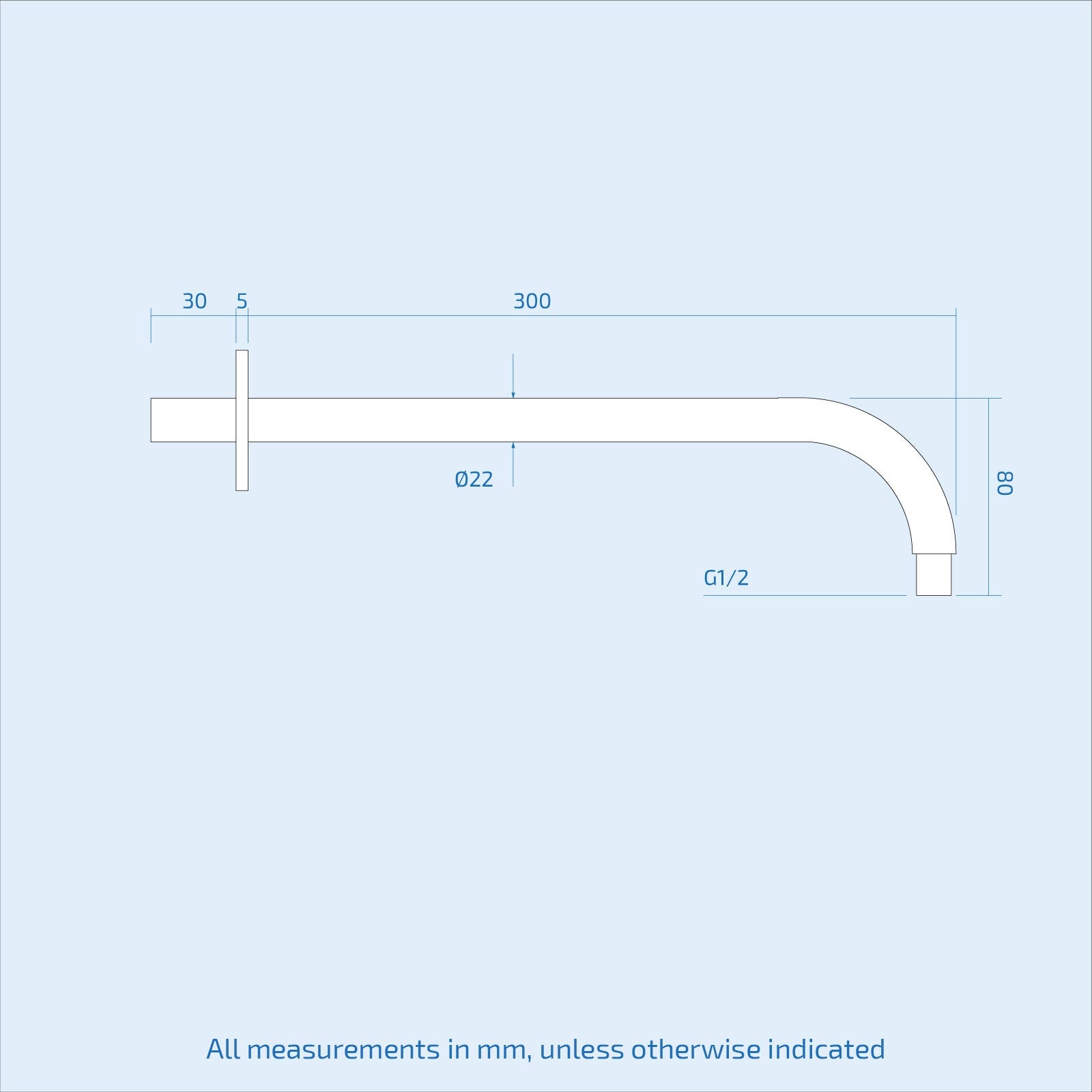

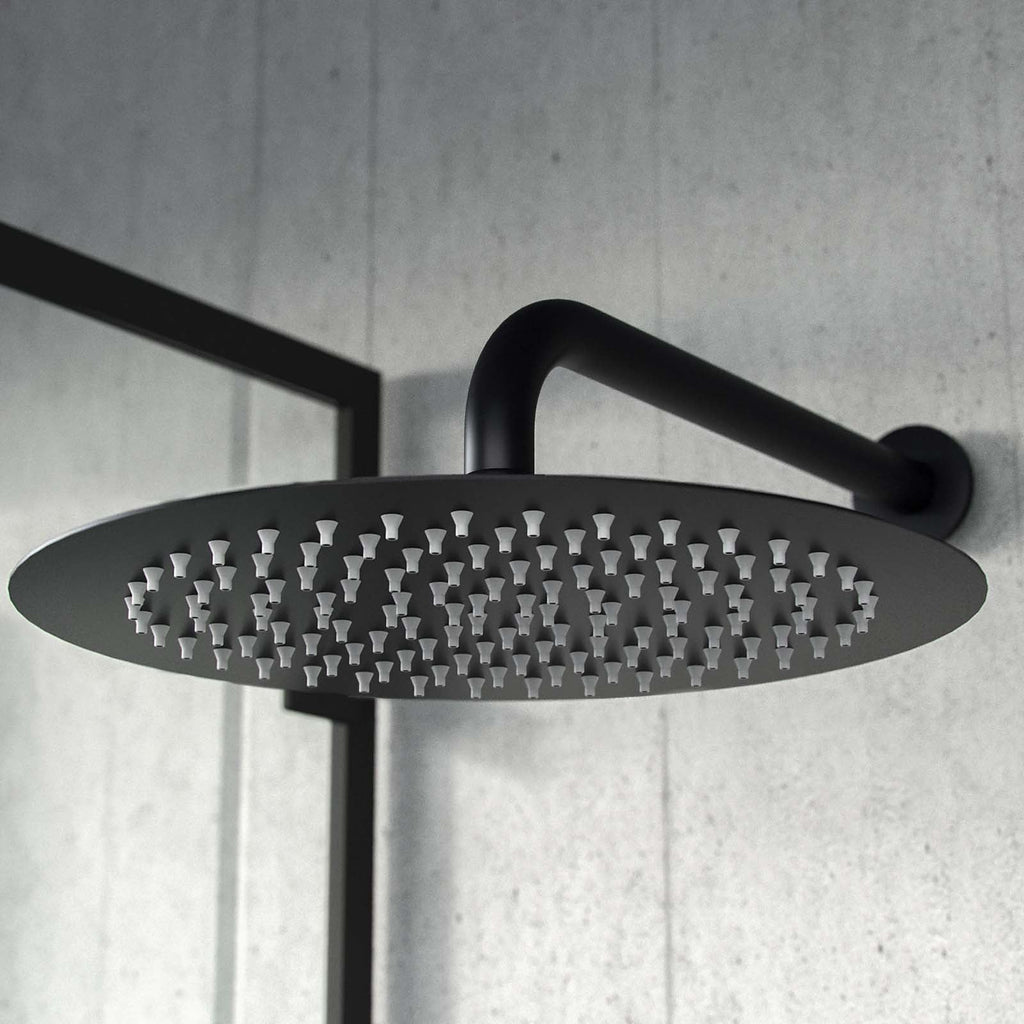

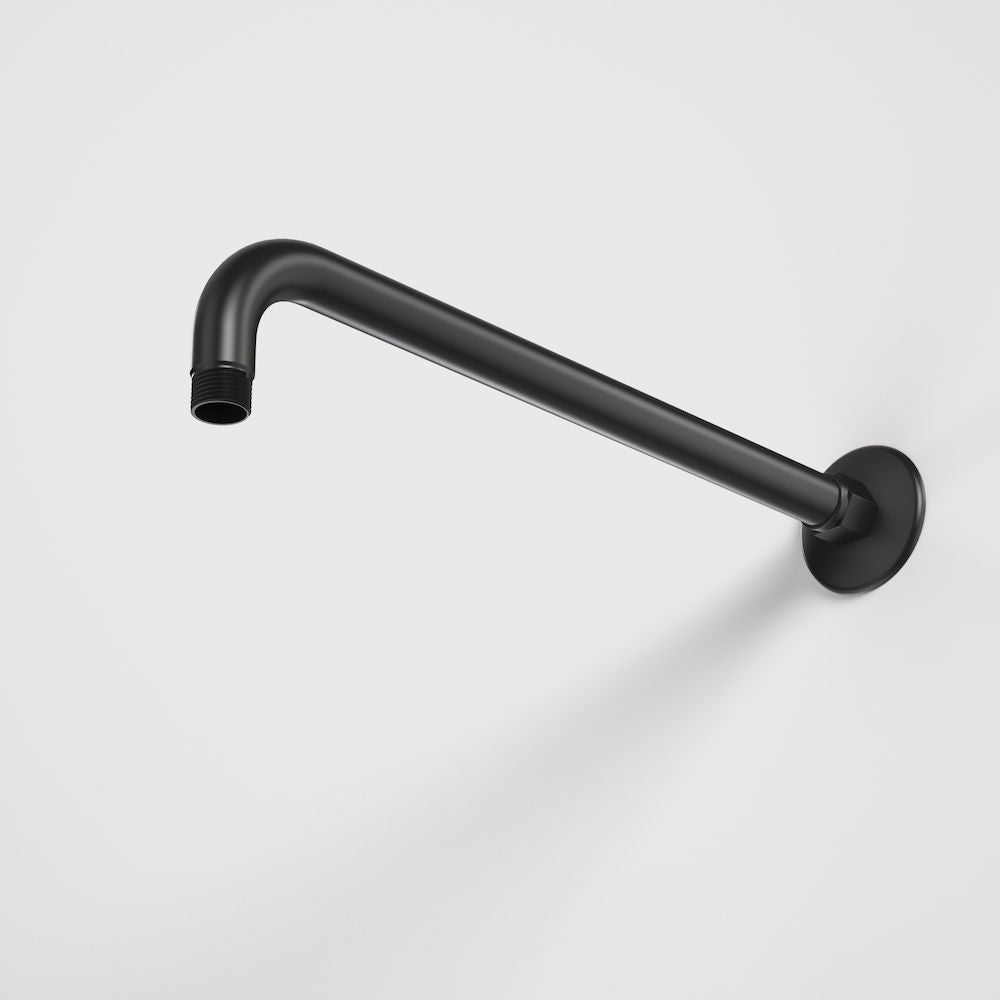

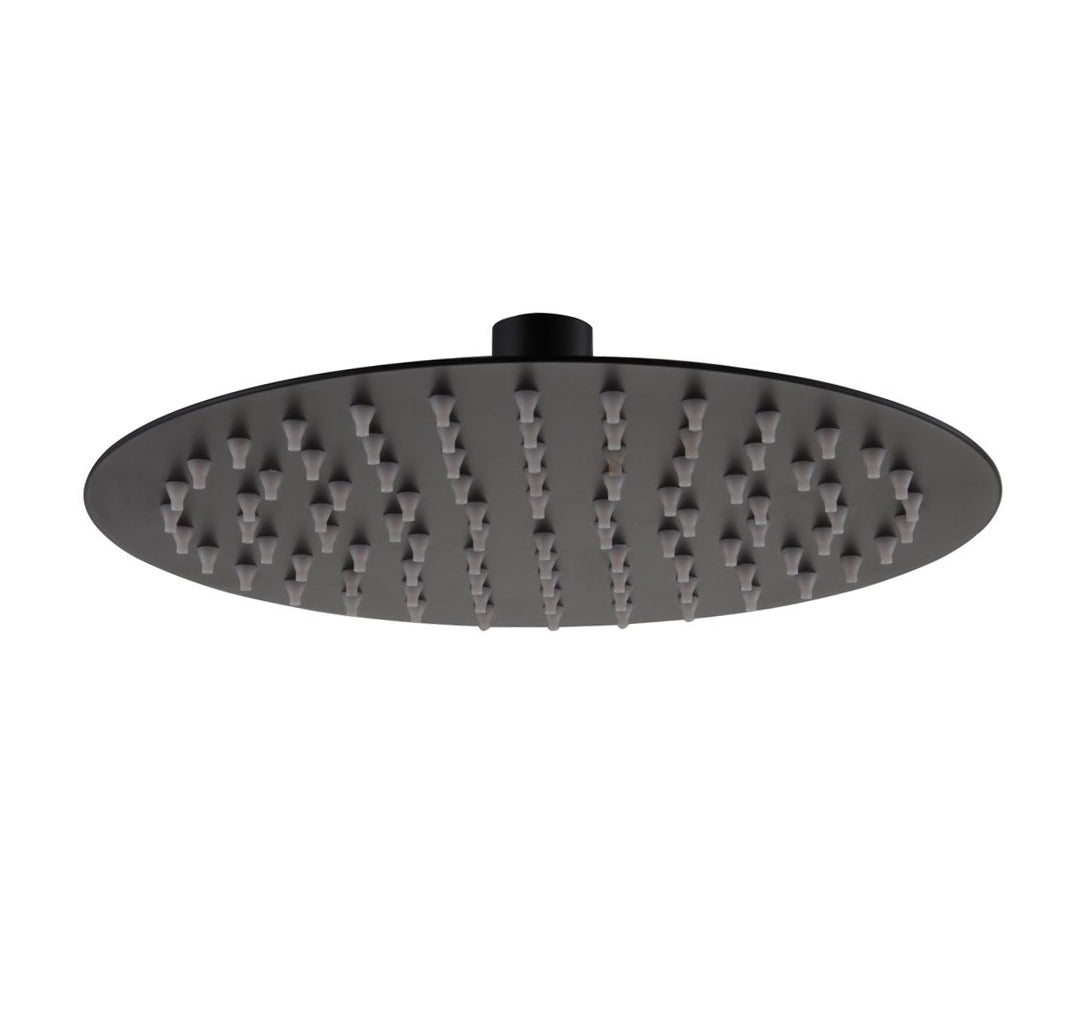

Shower Arm & Head
- Arm Length : 300mm
- Shower Head : 200mm
- Finish : Matte Black
- Single mode shower head with swivel joint
- Brass swivel elbow
- Rub clean anti scale nozzles
- UK standard size fitting
- Mount : Wall
- 40mm Thread
- 1/2" Inch Shower Head Connection
Technical Information: Suitable For The Following Water Systems:
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum pressure of 0.5 bar to maximum 7.0 bar
Package Contents
- Concealed Thermostatic Mixer Valve
- Shower Head
- Handset
- Shower Arm
