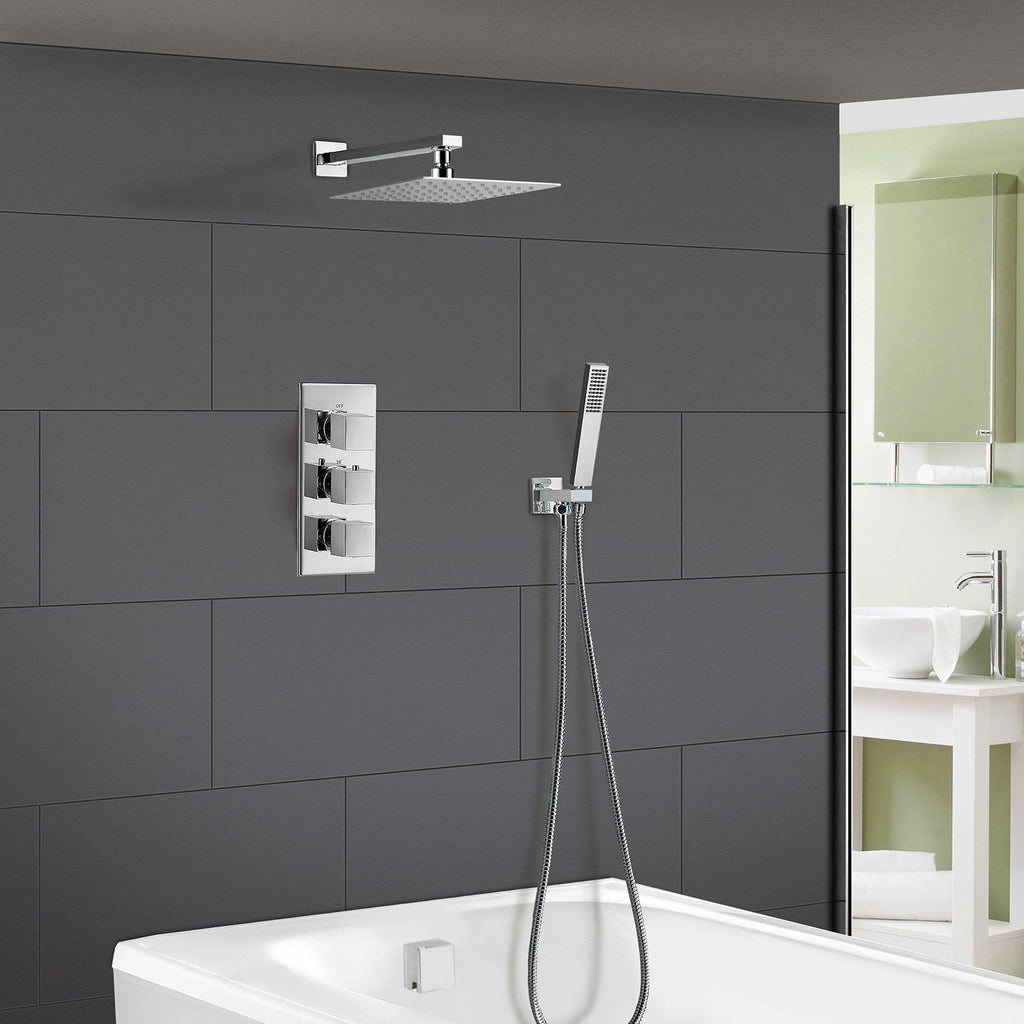

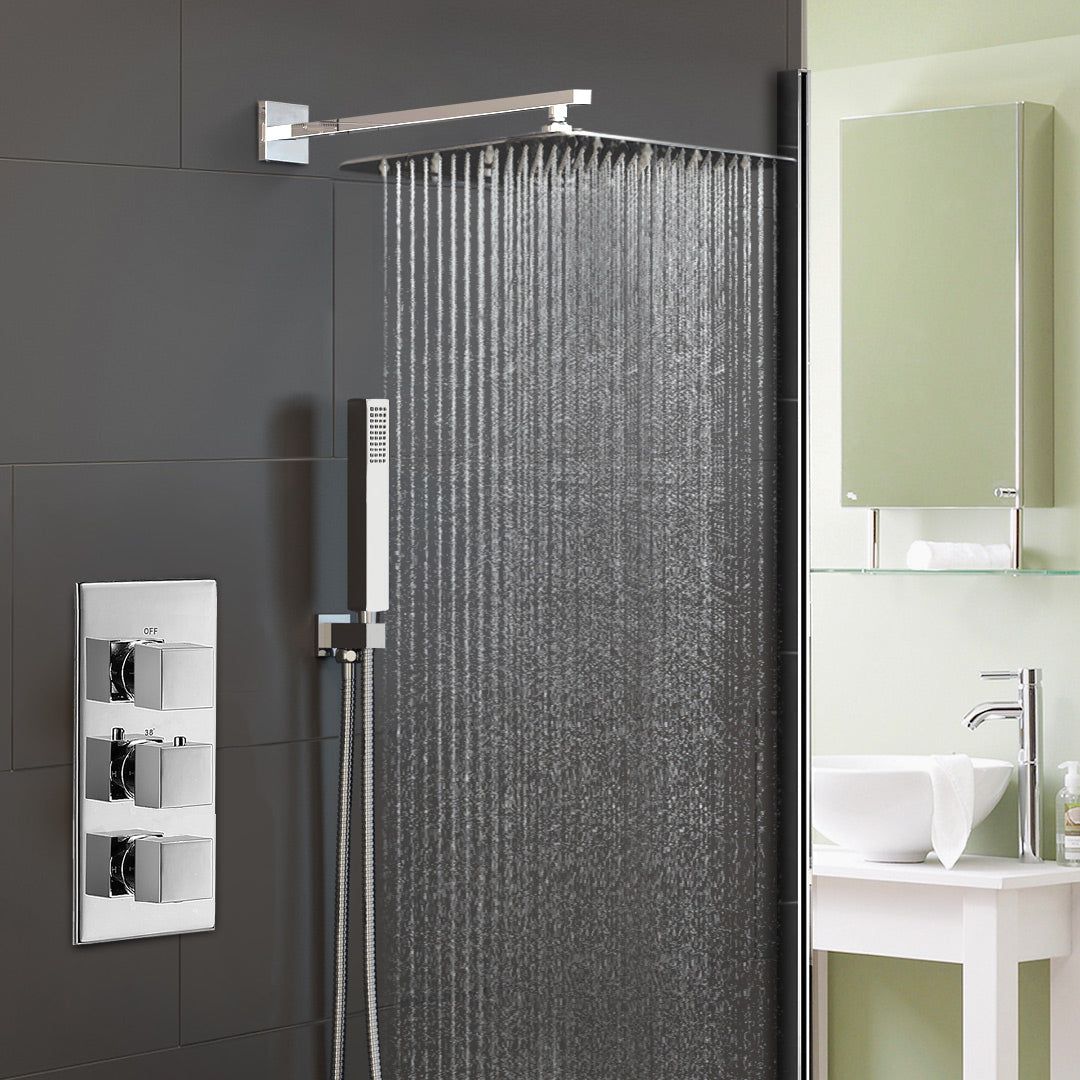

This Modern Design Concealed Thermostatic Valve will compliment any modern bathroom suite and offers thermostatic showering via two easy-to-operate controls for temperature and flow. It is supplied with a 300mm stainless steel slim shower head, swivel joint and arm, handheld shower, and bath filler with click-push button waste.
They also come with a 10 Year Guarantee.
Key Features
- Beautiful chrome finish
- 4-piece collection - shower controls, overhead, handset, and bath filler
- The valve is manufactured from solid brass
- Easy to clean and maintain once installed
- Thermostatic control to set the desired temperature for a better shower experience
- 10 years guarantee
Thermostatic Valve Specifications
- Material: Brass Body
- Finish: Chrome plated to BS EN 248
- Fitting: Inlet: 3/4" Outlet: One 1/2" and two 3/4"
- Water Pressure: Min.0.5 bar, Max. 7.0 bar
- Cartridge: Thermostatic
- Top Dial - Controls water to 1 outlet diverter
- Middle Dial - Temperature Control
- Bottom Dial - Controls water to 2 outlet diverters
- High Quality Design
- Chrome Finish
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting
Flow Rates (Litres per minute)
- 0.2 Bar - 7.5
- 0.5 Bar - 10.7
- 1.0 Bar - 15.0
- 1.5 Bar - 18.5
- 2.0 Bar - 21.5
- 3.0 Bar - 27.0
Suitable for the following water systems
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum pressure of 0.5bar to maximum 7.0bar

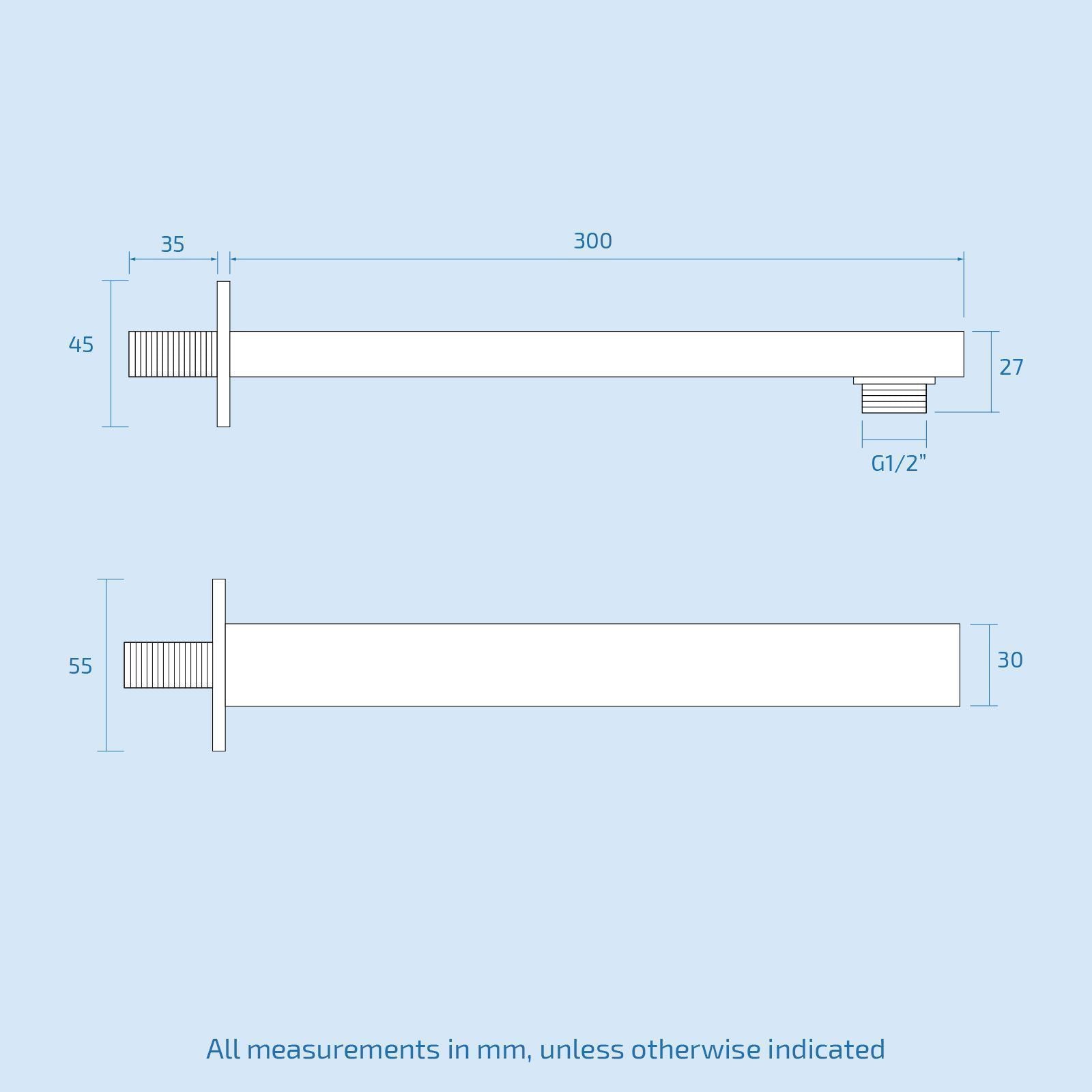

Shower Head with Wall Arm Specifications

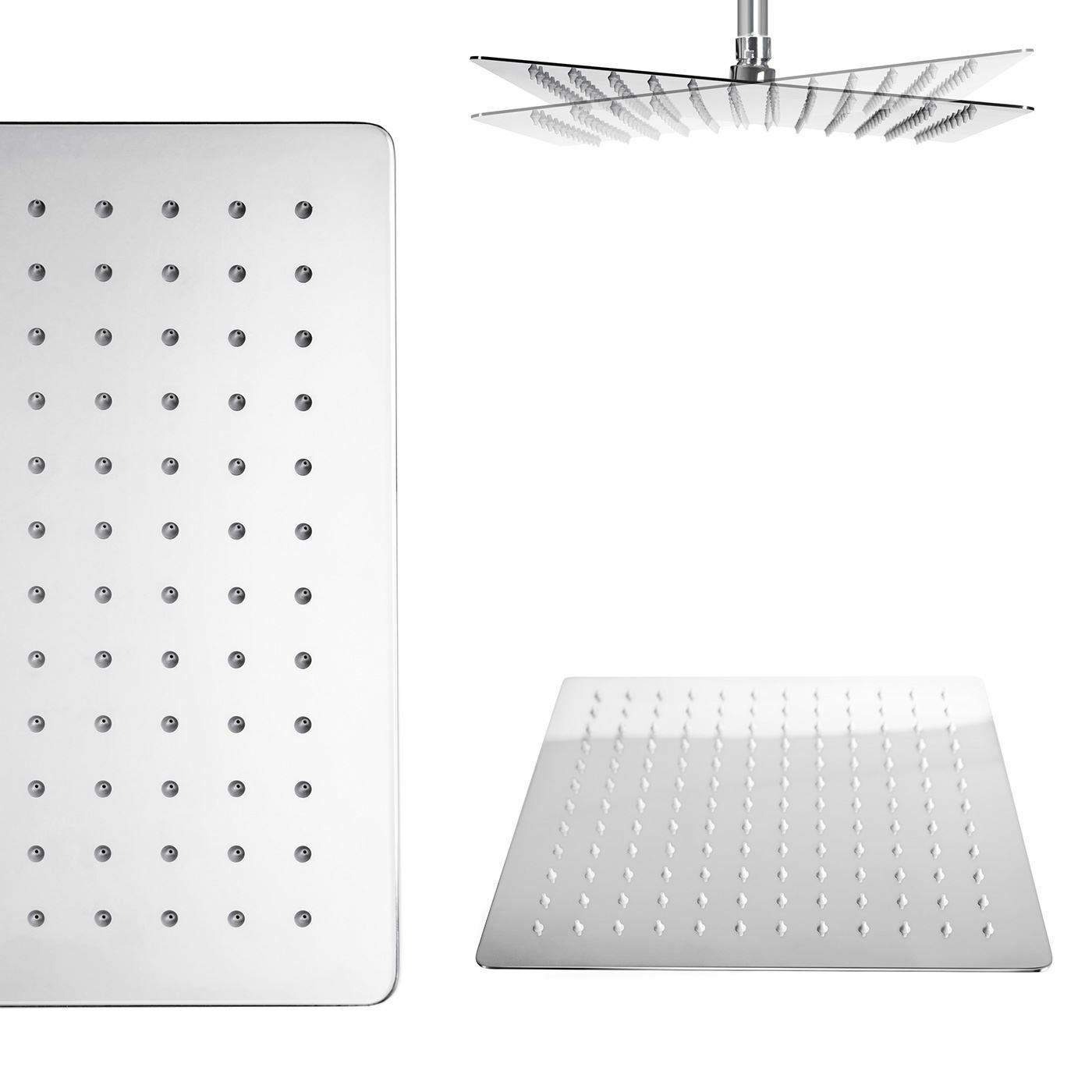

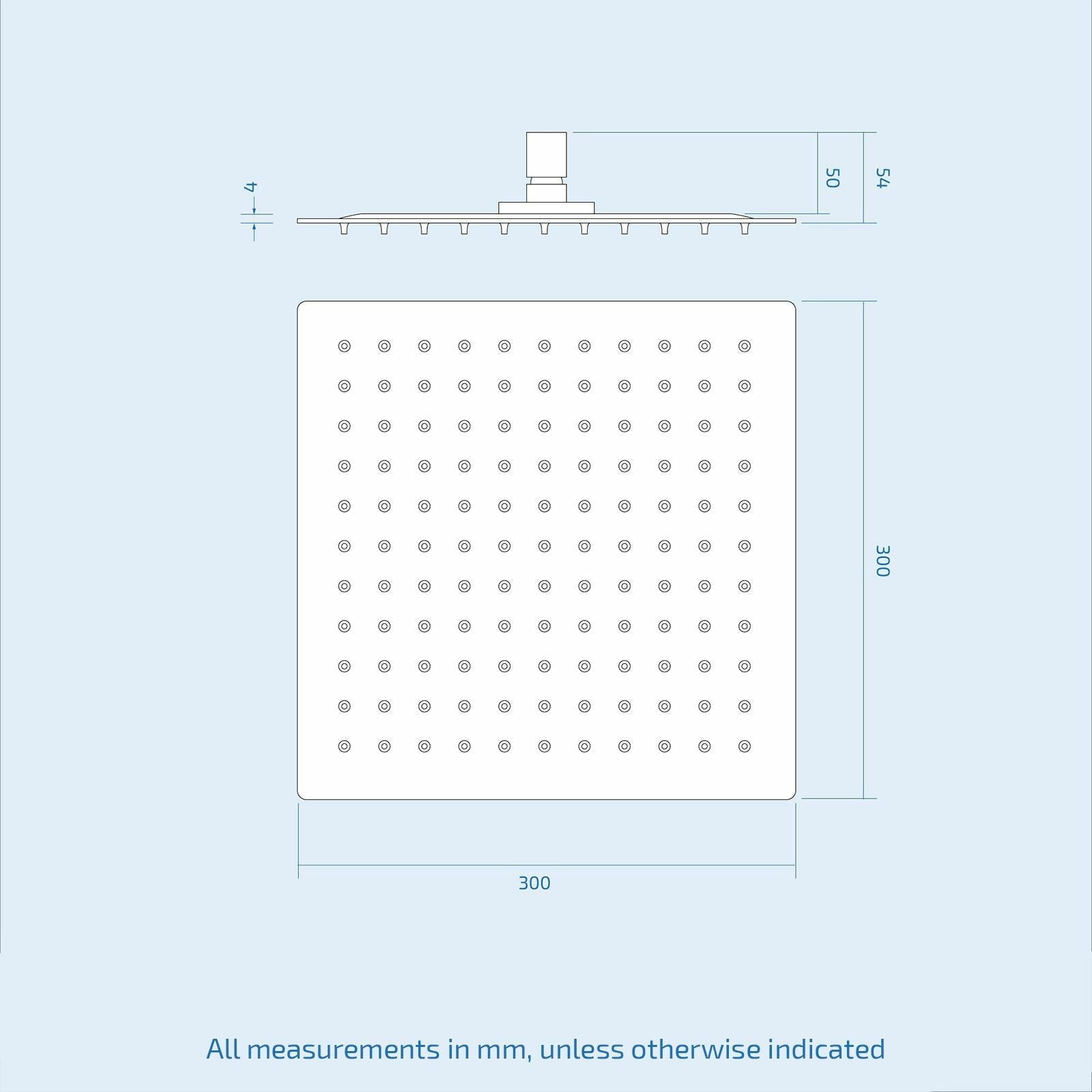

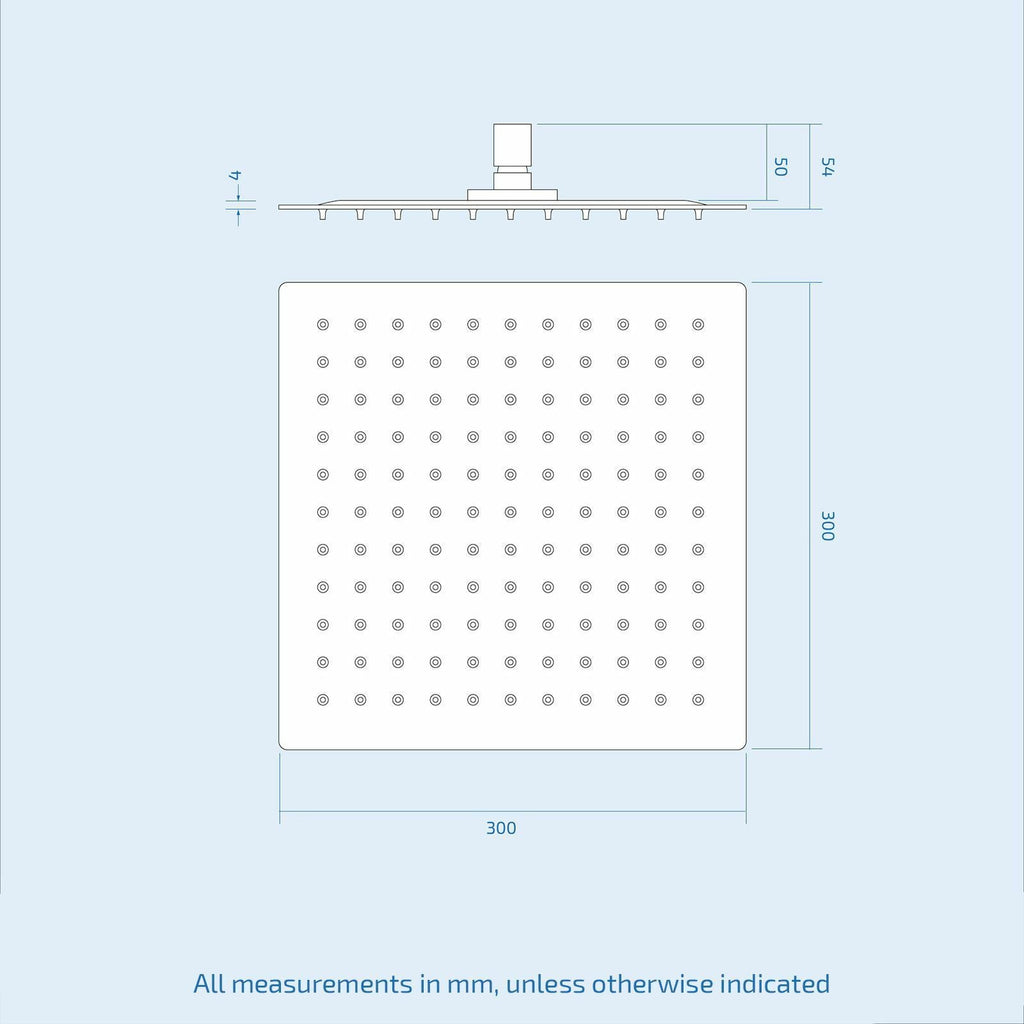

- 300mm Stainless Steel Slim Shower Head
- 300mm Solid Brass Arm Length
- Chrome Finish
- Subject to a minimum of 1.0 bar water pressure

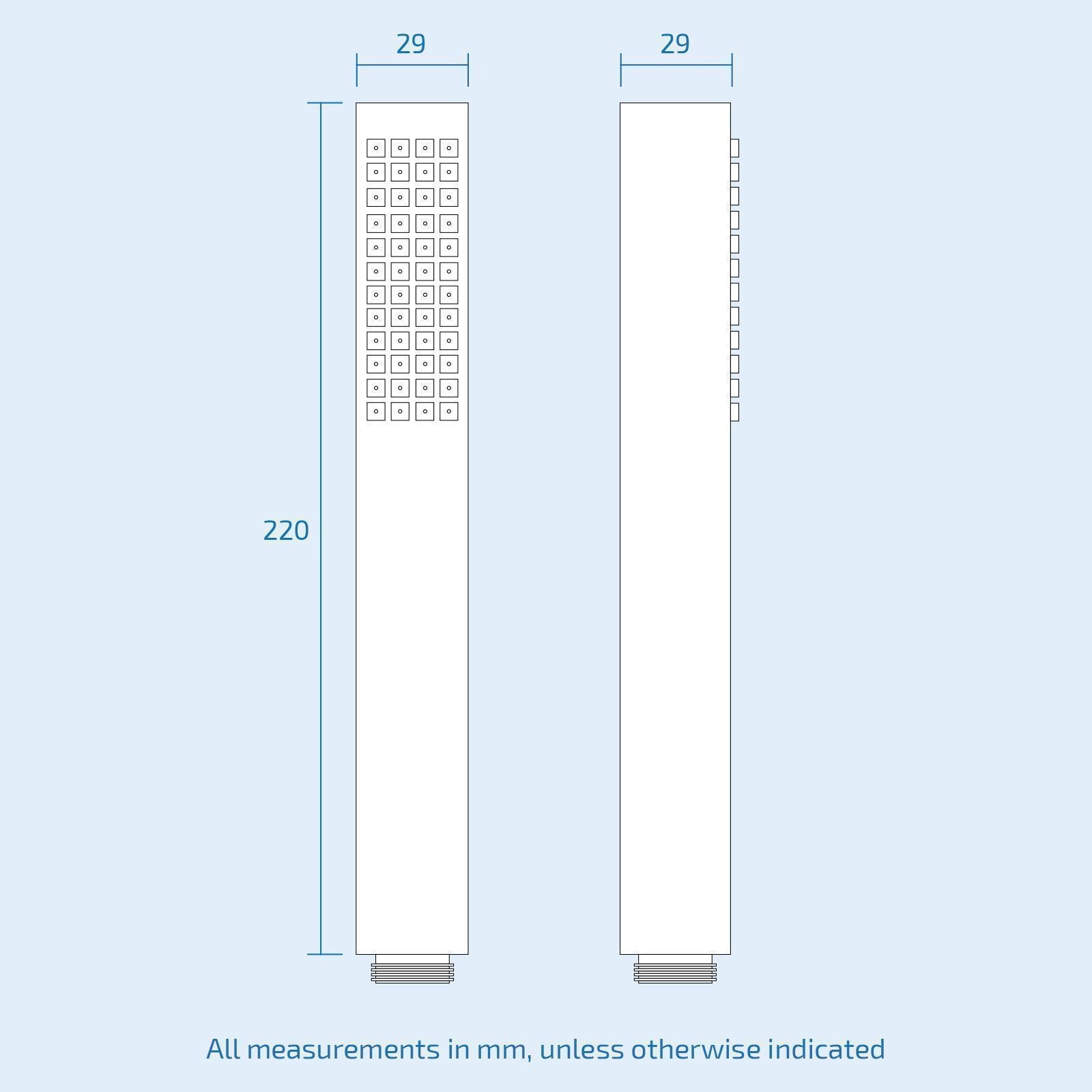

Shower Handset Specifications
- Easy to clean rubber nozzles to prevent scale build-up
- Easily fitted to a shower hose
- Stainless steel flexible 1.5m double interlocking shower hose
- Modern Minimalistic Design
- Exceptional build quality
- Style: Modern
- Handset Material: ABS
- Handset Colour: Chrome
- Handset Modes: 1
- Handset Height: 220mm
- Handset Width: 29mm
- Handset Depth: 29mm

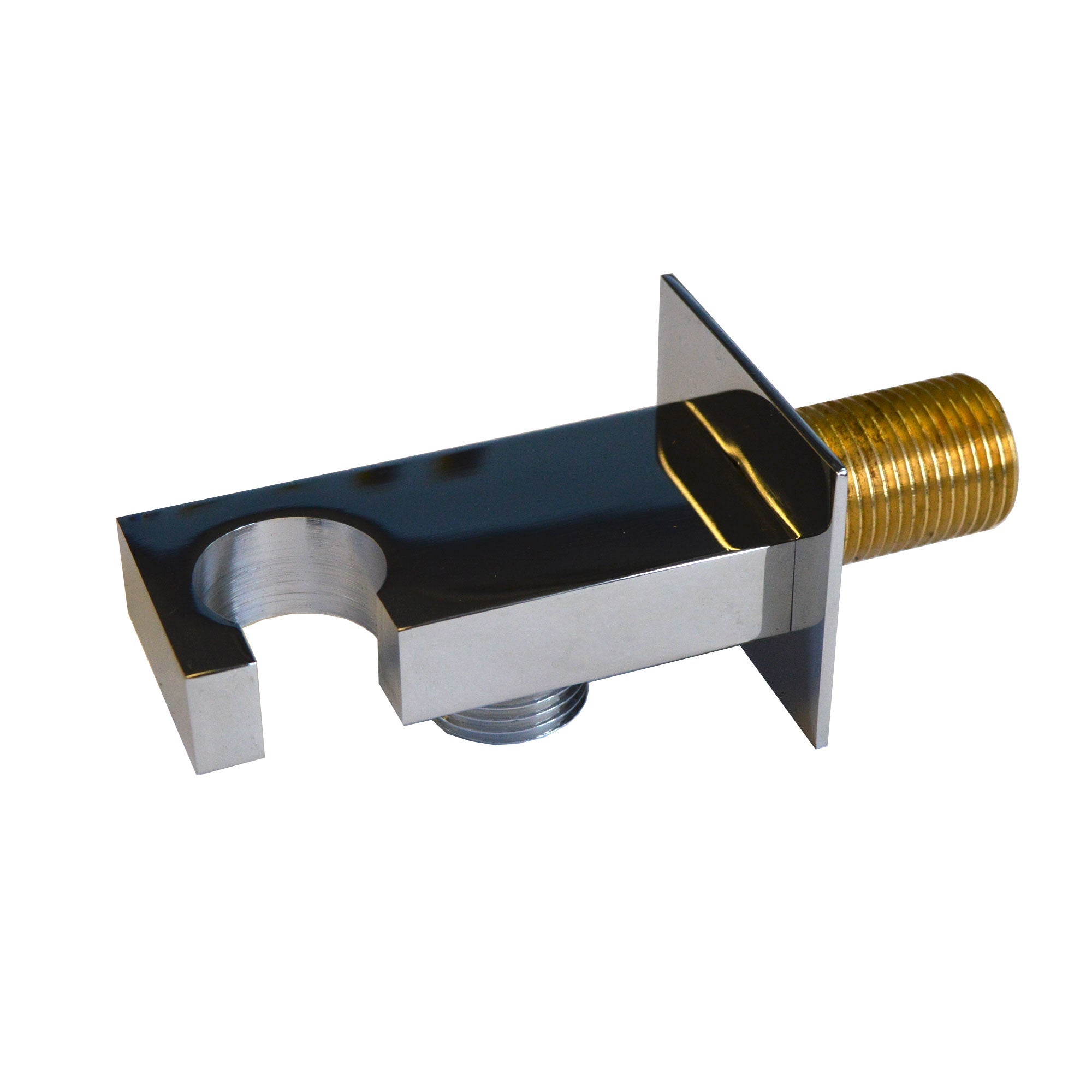

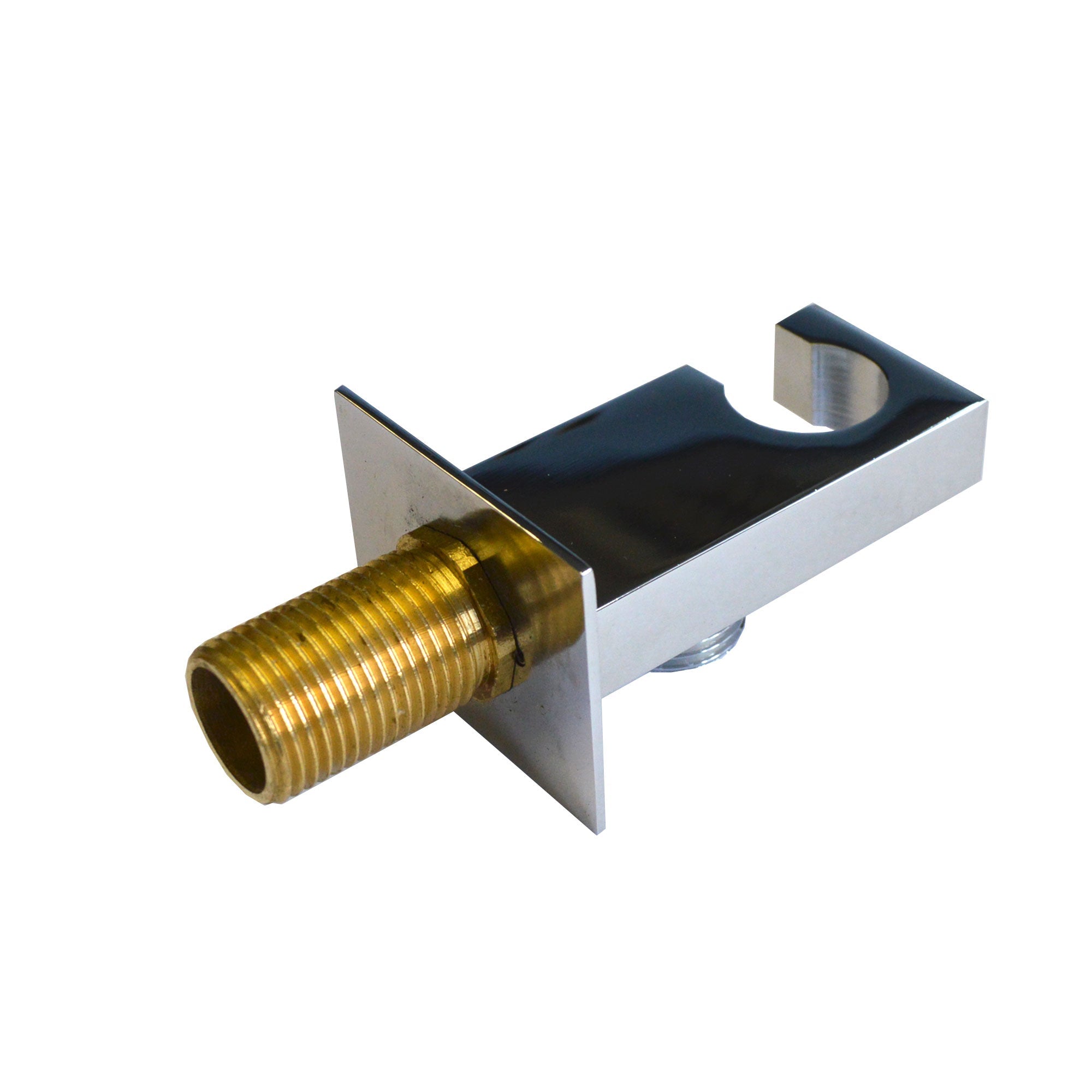

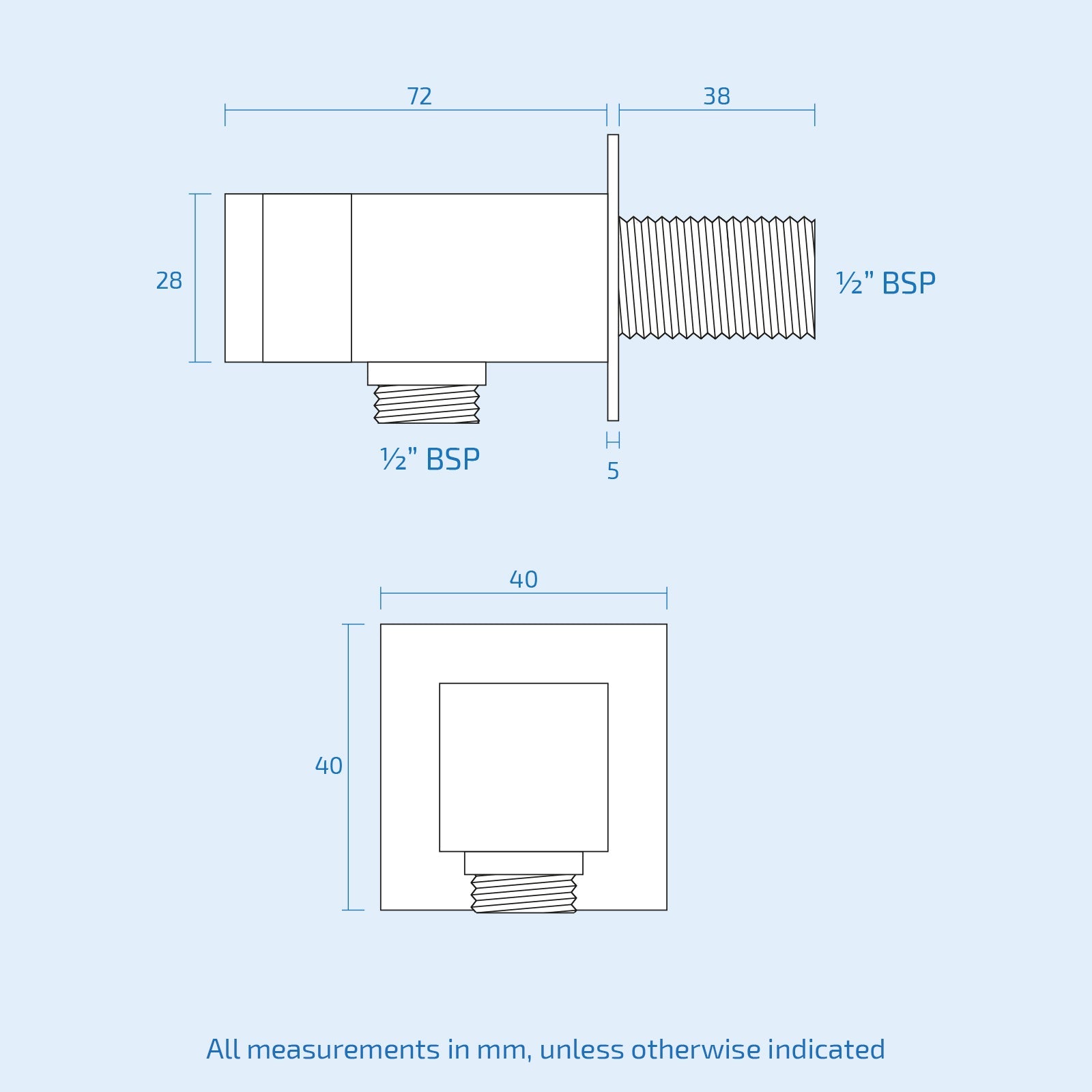

Shower Connector and Handset Holder Specifications
- Handset Holder Material: Brass
- Handset Holder Finish: Highly polished chrome
- Handset Holder Width: 70mm

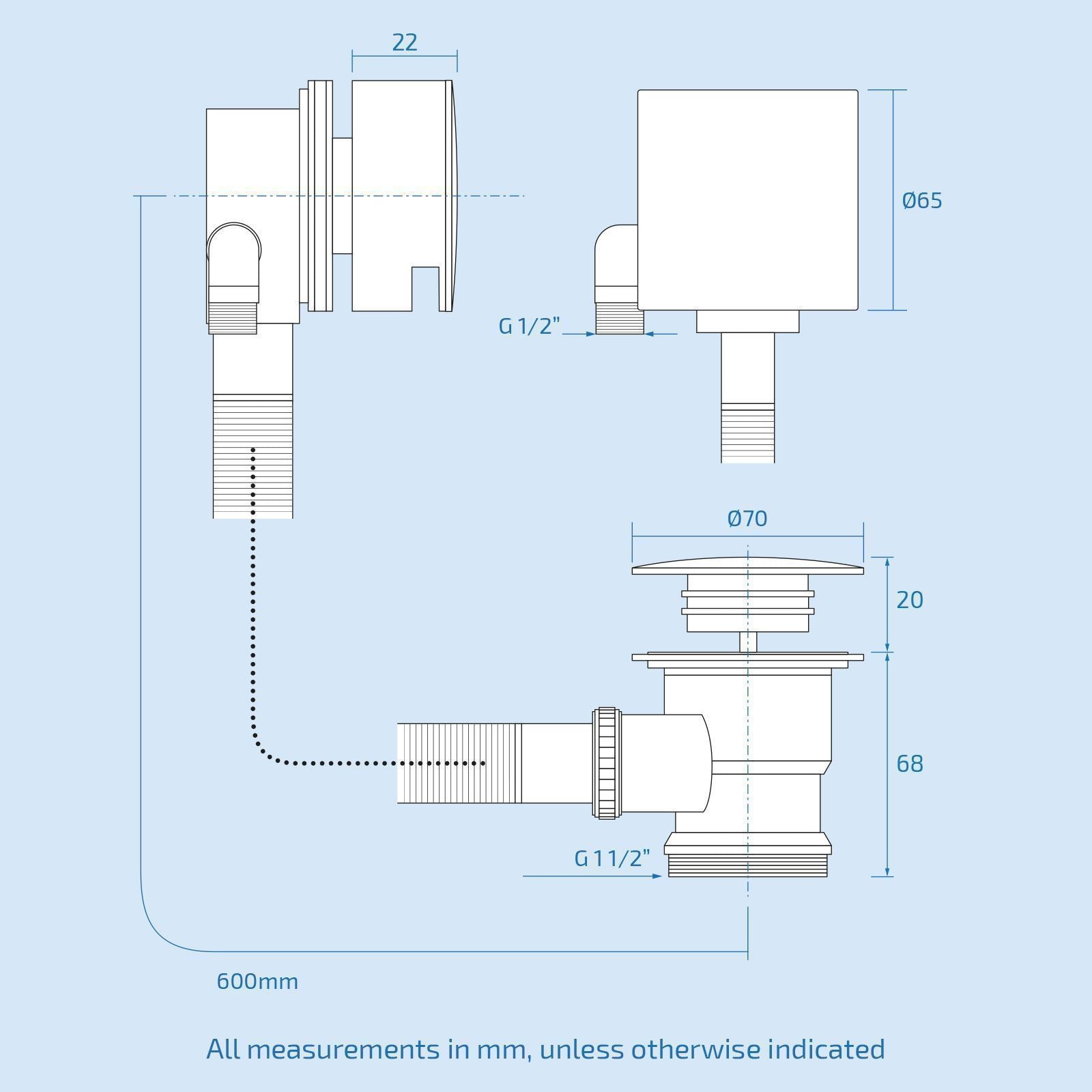

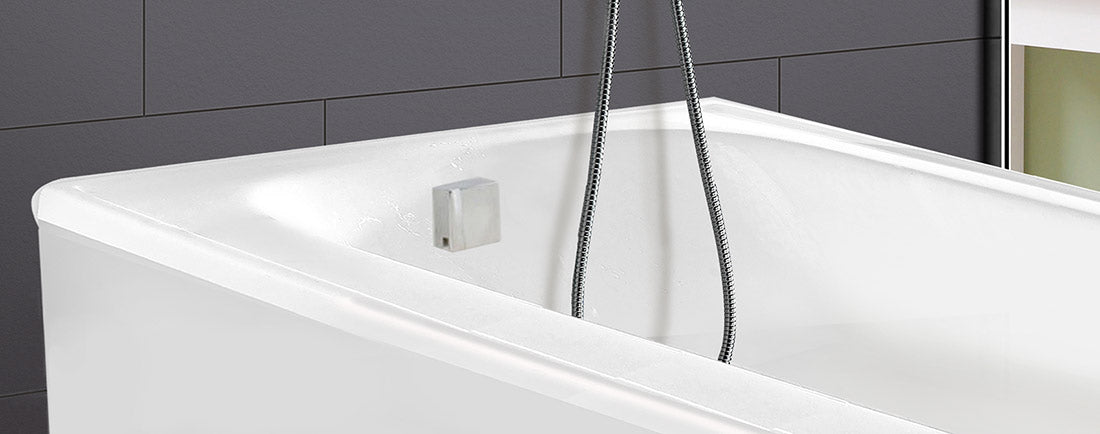

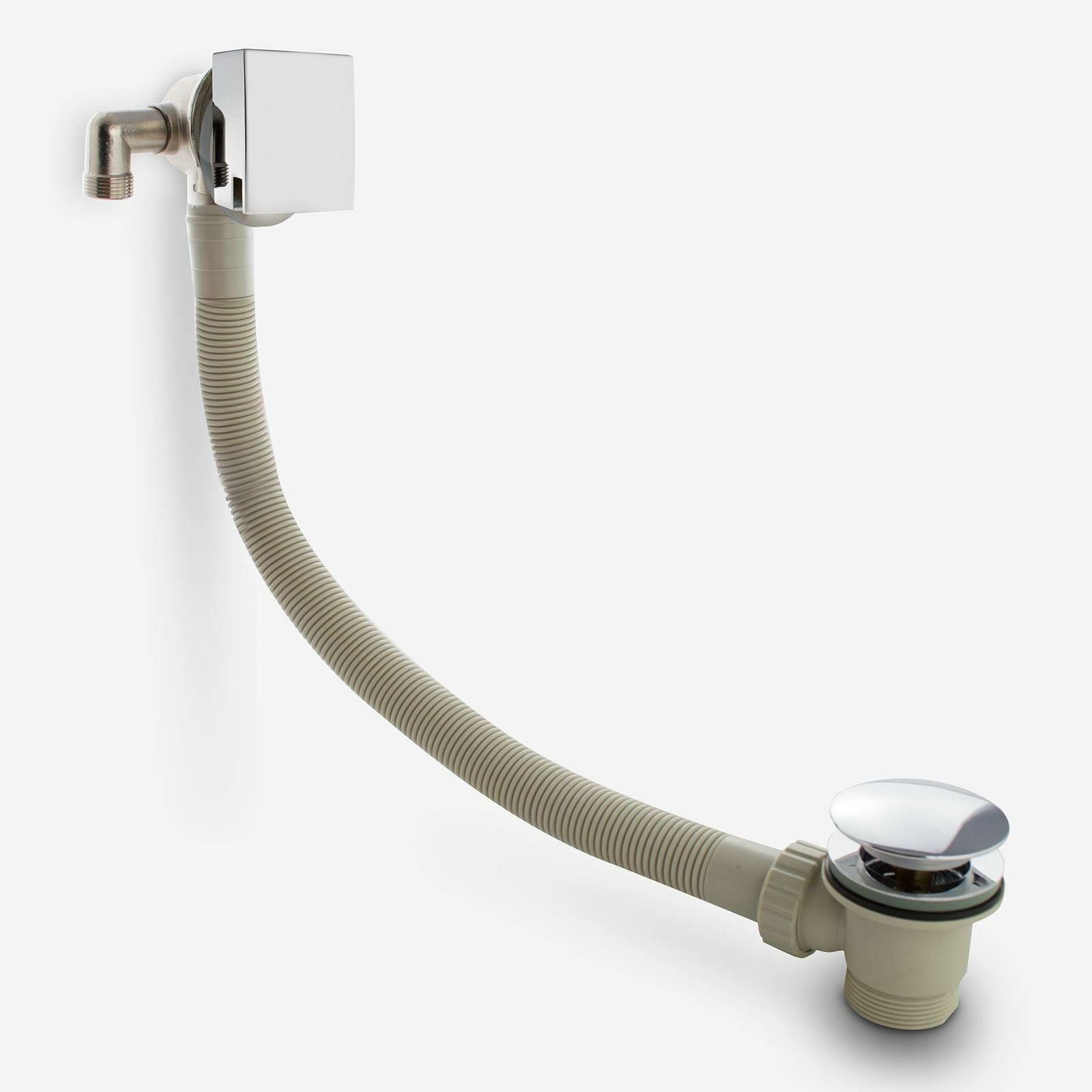

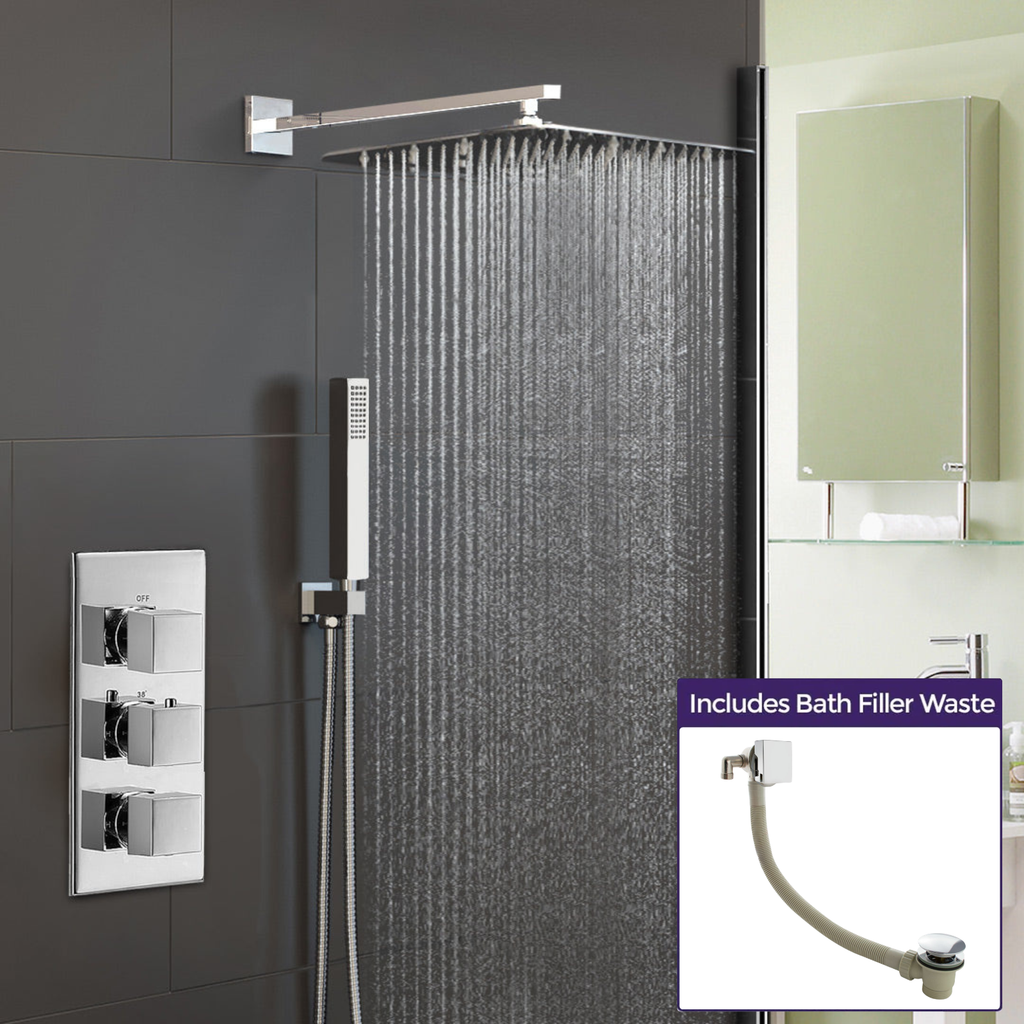

Easyclean Overflow Bath Filler & Click Push Button Waste
- The overflow doubles as a bath filler tap and is connected to the waste by strong and sturdy plastic piping
- Push button bathtub waste with connecting overflow
- Combined bath filler and waste
- Easy to use - just press the waste and the waste pops up and allows the water to drain
- Modern design chrome plated finish
- Durable and solid brass construction
- Sprung Click Clack Waste
- Approx 550mm pipe
Suitable for the following water systems
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum of 1.0 bar water pressure

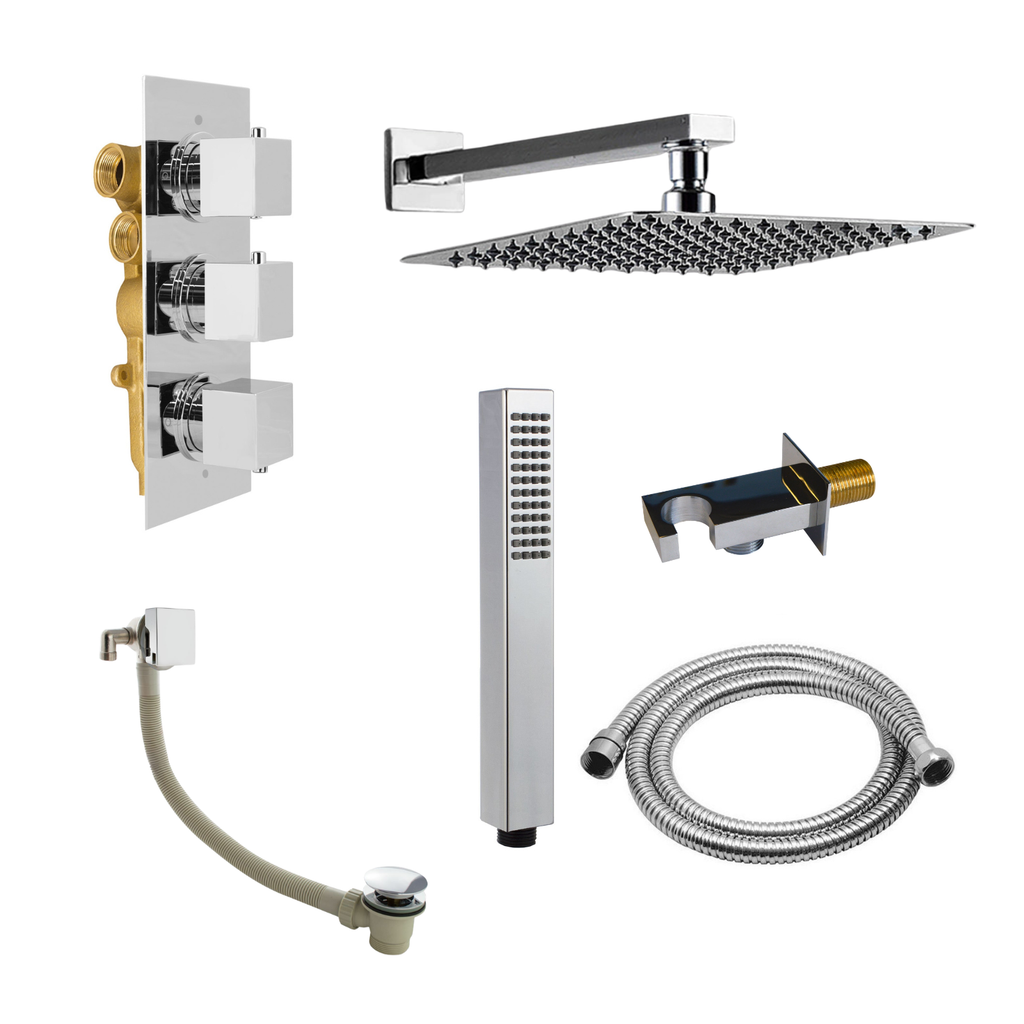

Package Contents
- Thermostatic Valve
- Stainless Steel Slim Showerhead
- Wall Mounted Shower Arm
- ABS Hand Held Shower
- Shower Connector and Handset Holder
- Shower Hose
- Overflow Bath Filler with click push button waste
Please Note:
- Images are illustrative and may vary from actual
- Some concept images depict different sizes or variations, not the exact item
- All measurements are approximate
- Consult our Customer Service for additional information
